USER MANUAL AirLine AWX SAMSON

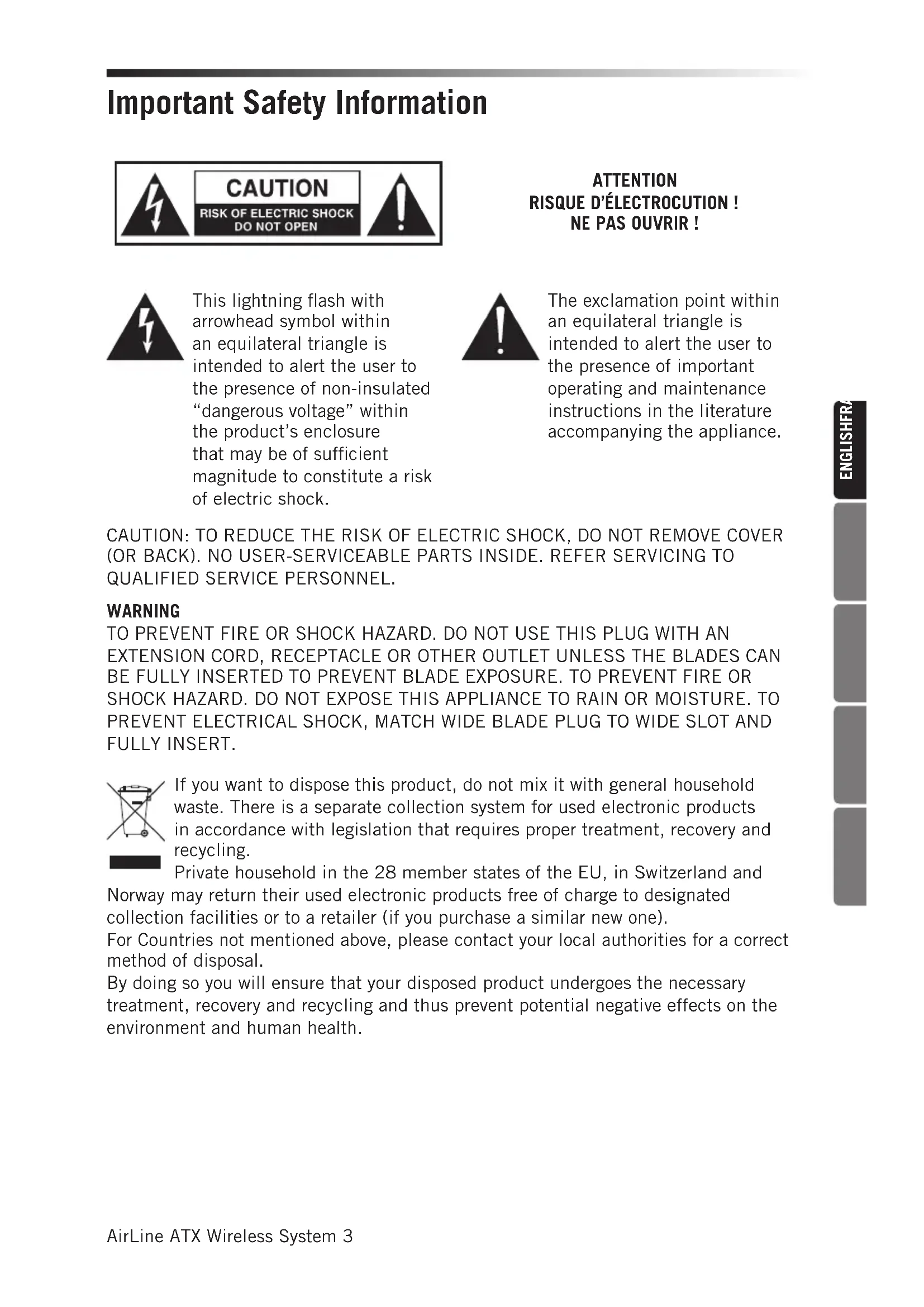

Important Safety Information CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of non-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the appliance. ATTENTION RISQUE D’ÉLECTROCUTION ! NE PAS OUVRIR ! WARNING TO PREVENT FIRE OR SHOCK HAZARD. DO NOT USE THIS PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE OR SHOCK HAZARD. DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. TO PREVENT ELECTRICAL SHOCK, MATCH WIDE BLADE PLUG TO WIDE SLOT AND FULLY INSERT. If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling. Private household in the 28 member states of the EU, in Switzerland and Norway may return their used electronic products free of charge to designated collection facilities or to a retailer (if you purchase a similar new one). For Countries not mentioned above, please contact your local authorities for a correct method of disposal. By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health.4 Important Safety Information

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near

6. Clean only with dry cloth.

7. Do not block any ventilation

openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources

such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose

of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being

walked on or pinched particularly at the plugs, convenience receptacles, and at the point where they exit from the apparatus.

11. Only use attachments/accessories

specified by the manufacturer.

12. Use only with the cart, stand,

tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.

13. Unplug the apparatus during

lightening storms, or when unused for long periods of time.

14. Refer all servicing to qualified

personnel. Service is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. This appliance shall not be exposed

to dripping or splashing water and that no object filled with liquid such as vases shall be placed on the apparatus.

16. Caution-to prevent electrical shock,

match wide blade plug wide slot fully insert.

17. Please keep a good ventilation

environment around the entire unit.

18. The direct plug-in adapter is used as

disconnect device, the disconnect device shall remain readily operable.

19. Batteries (battery pack or batteries

installed) shall not be exposed to excessive heat such as sunshine, fire or the like.AirLine ATX Wireless System 5

ENGLISHFRANÇAISDEUTSCHEESPAÑOLITALIANO

FCC Rules and Regulations Samson wireless receivers are certified under FCC Rules part 15 and transmitters are certified under FCC Rules part 74. Licensing of Samson equipment is the user’s responsibility and licensability depends on the user’s classification, application and frequency selected. This device complies with Part 15 of the FCC rules Class B and RSS-210 of Industry & Science Canada. Operation is subject to the following two conditions: (1) This device must not cause harmful interference, and (2) This device must accept any interference received including interference that may cause undesired operation. Suitable for home or office use. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced Radio/TV technician for help.

WARNING: Changes or modifications not expressly approved by the party responsible

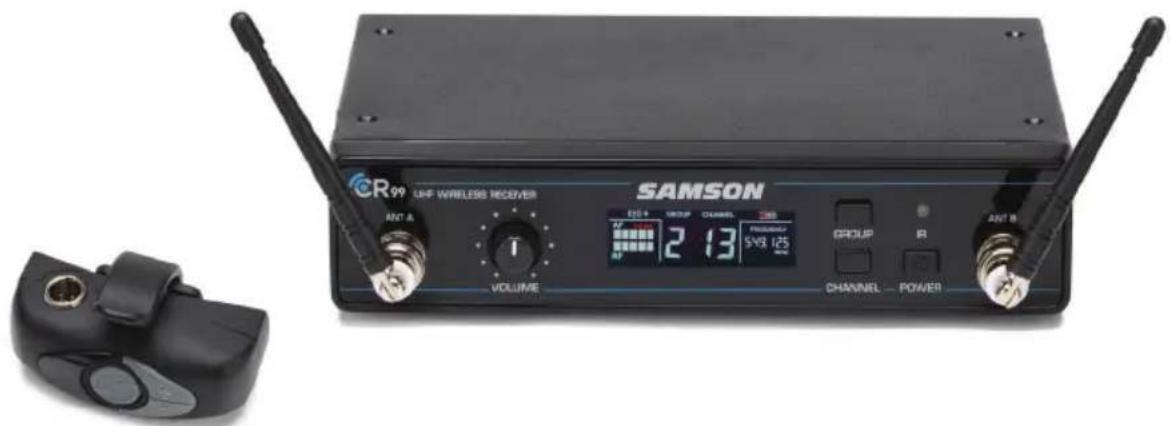

for compliance could void the user’s authority to operate the equipment. This equipment is intended for use in wireless microphone applications. Equipment is intended for sale in: AT, BE, CH, CY, CZ*, DK, EE, FI*, FR*, DE*, GR*, HU, IE, IS, IT, LV, LT*, LU, MT*, NL, NO*, PL* PT, RO, SK, SI, ES, SE, UK *Subject to license. Please contact your national frequency authority for information on available legal use in your area. Any changes or modifications not expressly approved by Samson Technologies Corp. could void your authority to operate the equipment. Hereby, Samson Technologies Corp., declares that this CR99 and ATX is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The declaration of conformity may be consulted at: http://www.samsontech.com/site_media/support/manuals/AirLineATX_DOC.pdf Important Safety Information6 Congratulations on purchasing the Samson AirLine ATX Wireless System. The AirLine ATX is the smallest, frequency agile microphone transmitter on the market. Ideal solution for the active performer who needs a reliable, great sounding system without the inconvenience of a large transmitter. With the included CR99 received, which features a large backlit LCD display, simple operation with auto-scan channel selection, and infrared set for syncing the transmitter and receiver channel, the AirLine ATX is simple and easy to set up and operate. The AirLine ATX system ensures clear, interruption-free performance by utilizing a True RF Diversity design with a pilot tone-key and auto-mute function. This configuration provides maximum operating distance along with eliminating any background noise when the transmitter is out of range or powered off. The AirLine ATX comes in three configurations. The AHX Headset System can be configured with either the DE5 or Qe headset microphone, ALX Lavalier System with the LM8 lavalier microphone, and the AWX Wind Instrument System with HM60 wind instrument microphone. The AirLine ATX includes a standard 19" rackmount kit for permanent installations or transporting in a mobile rack. In these pages, you’ll find a detailed description of the features of the AirLine ATX Wireless System, as well as step-by-step instructions for its setup and use. If your wireless system was purchased in the United States, you’ll also find a registration card enclosed—don’t forget to follow the instructions so that you can receive online technical support and so that we can send you updated information about this and other Samson products in the future. Also, be sure to check out our website www.samsontech.com for complete information about our full product line. We recommend you keep the following records for reference, as well as a copy of your sales receipt: Receiver Serial number: _________________________________________ Transmitter Serial number: ______________________________________ Date of purchase: ______________________________________________ If you have any questions or comments regarding the AirLine ATX Wireless Microphone System or any other products from Samson, do no hesitate to contact us

[e-mail]. With proper care and maintenance, your AirLine ATX Wireless System will operate trouble- free for many years. Should your AirLine ATX Wireless System ever require servicing, a Return Authorization (RA) number must be obtained before shipping your unit to Samson. Without this number, the unit will not be accepted. Please visit www.samsontech.com/ra for an RA number prior to shipping your unit. Please retain the original packing materials and, if possible, return the unit in its original carton. If your AirLine ATX Wireless System was purchased outside of the United States, contact your local distributor for warranty details and service information. IntroductionAirLine ATX Wireless System 7

ENGLISHFRANÇAISDEUTSCHEESPAÑOLITALIANO

Quick Start In order for your wireless system to work correctly, both the receiver and transmitter must be set to the same channel. Follow this basic procedure for setting up and using your AirLine ATX Wireless System:

1. Physically place the CR99 receiver where it will be used, and extend the

antennas vertically. The general rule of thumb is to maintain “line of sight” between the receiver and transmitter so that the person using or wearing the transmitter can see the receiver.

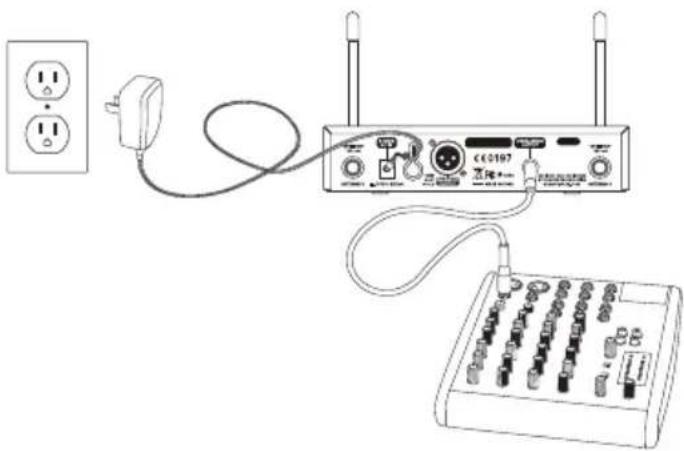

2. With the CR99 powered off,

connect the included power adapter. Turn the CR99 on momentarily to confirm that the unit is receiving power. Then turn the CR99 power off.

3. With your amplifier or mixer

off and volume control all the way down, connect the CR99 receiver output jack to the mic or line level input of a mixer or amplifier using the balanced XLR output or unbalanced ¼” line level output. Turn the Level knob on the CR99 completely counterclockwise, then turn its power on.

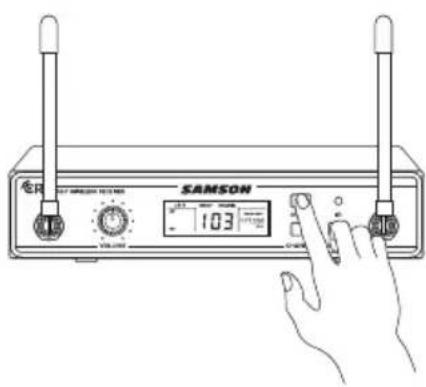

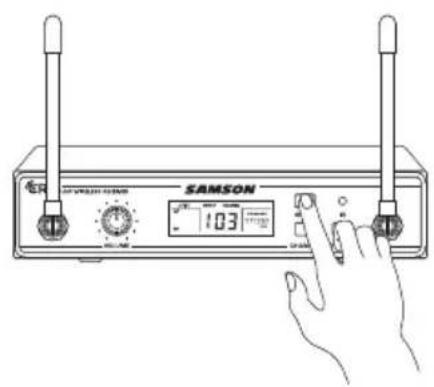

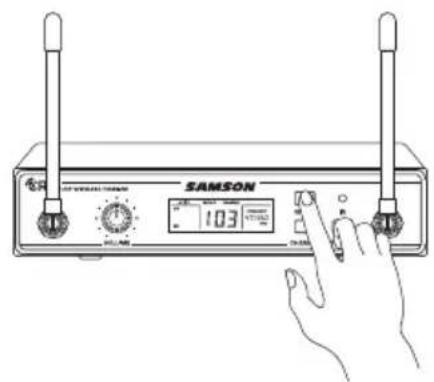

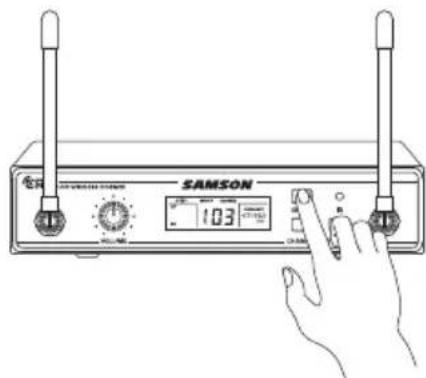

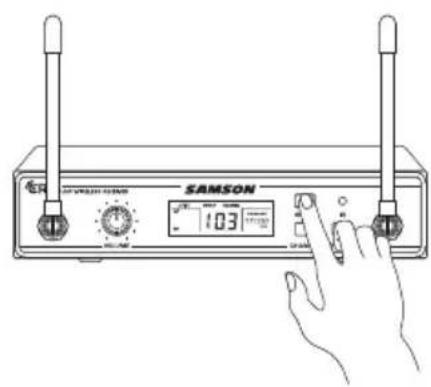

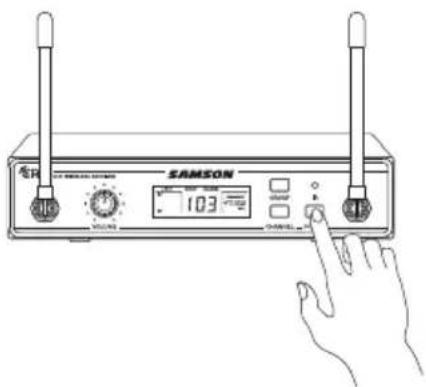

4. Press and hold the GROUP button on the front

of the CR99 receiver to scan for an available channel within the selected group.

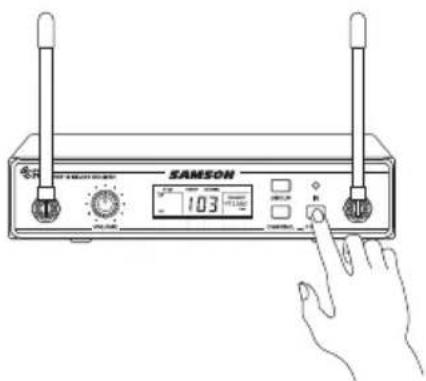

to execute an IR Set which synchronizes the transmitter to the same channel as the receiver via infrared transmission.8

6. Position the ATX transmitter about 6-12”

(15-30 cm) from the front of the CR99 with the transmitter’s IR window facing the IR transmitter on the front panel of the CR99 receiver.

7. Make sure the ATX transmitter is fully charged

(see section Charging the ATX Transmitter) Turn on the power to the transmitter by pressing and holding the Power button for 3 seconds; the indicator LED will light yellow when the button is pressed and turns green when released and the ATX is powered on.

8. When the transmission is complete, the CR99

will receive RF signal and the tone key from the transmitter. The RF meter on the CR99 will light indicating that it is receiving wireless signal from the transmitter. Note: The ATX will only accept infrared transmission from the receiver for the first 10 seconds after the ATX is powered on. If you need to change the operating channel, the ATX must be first powered off, then powered on again to receive the new channel.

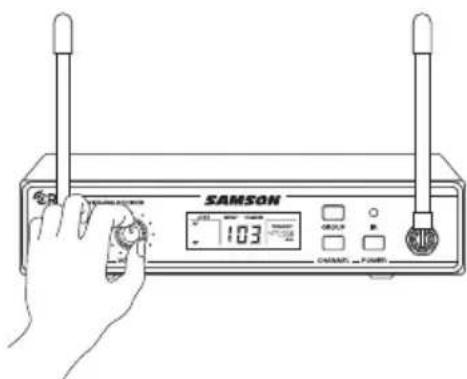

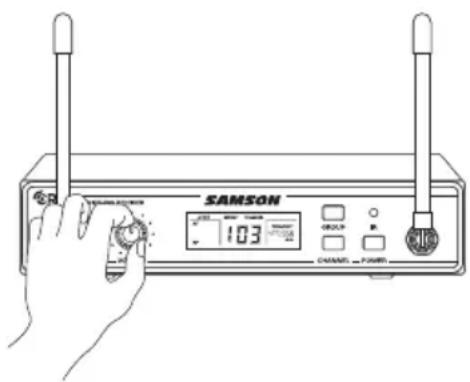

9. Turn on your connected amplifier or mixer, but

keep the volume all the way down. Set the Volume knob on the CR99 fully clockwise (to its “10” setting). This is unity gain.

10. Plug the microphone into the ATX transmitter. Speak, sing or play your

instrument into the microphone at normal performance level. Slowly raise the volume of your amplifier or mixer until the desired level is reached.

11. Walk around the performance area to ensure the coverage is consistent

throughout. If you find the system has noticeable dropouts, reduced overall working range, or unexpected noise bursts, change the operating channel of the system using the steps above. When using multiple systems, each system must be set to a different operating channel. Set all additional transmitters and receivers to the same Group in order to maximize the number of compatible channels. Perform a channel scan for each transmitter to select the optimal channel. Quick StartAirLine ATX Wireless System 9

ENGLISHFRANÇAISDEUTSCHEESPAÑOLITALIANO

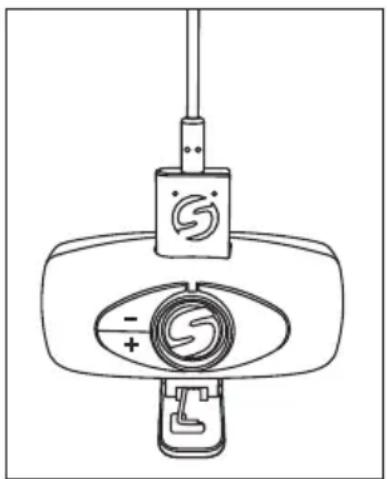

Charging the ATX Transmitter

1. Snap in place the appropriate mains connector plug into the adapter.

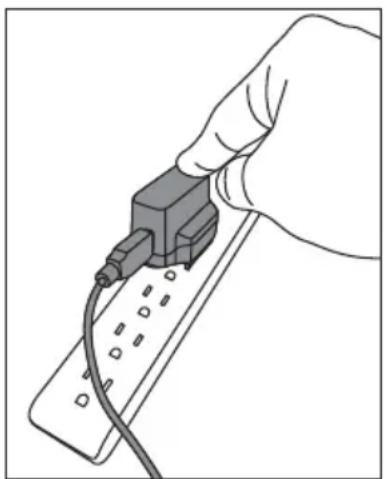

2. Insert the magnetic power cable to the included USB AC plug (or any 5-volt DC

adapter that has a USB port). Insert the AC plug into an electrical outlet.

3. Place the ATX transmitter on a flat surface.

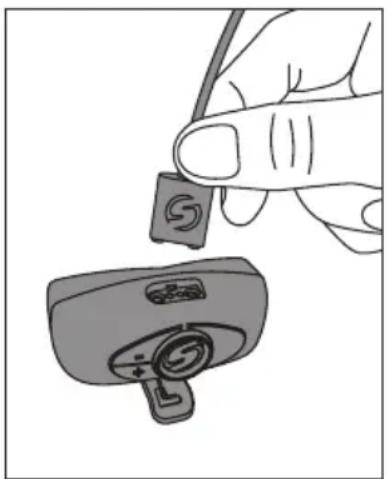

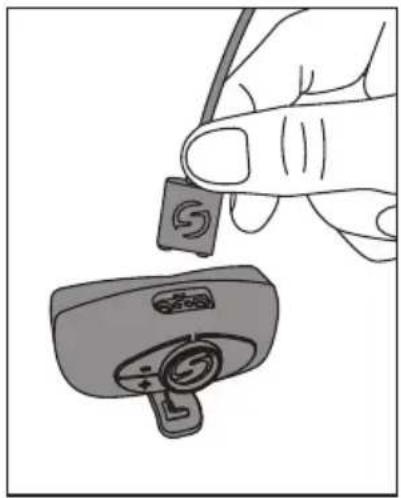

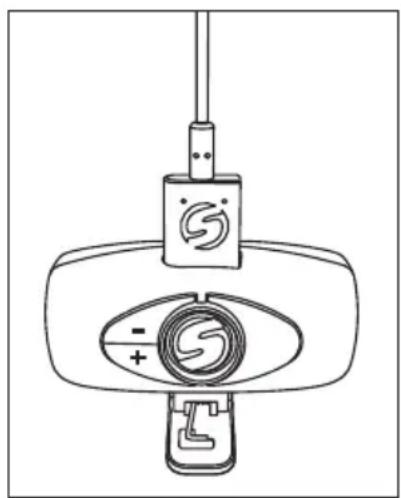

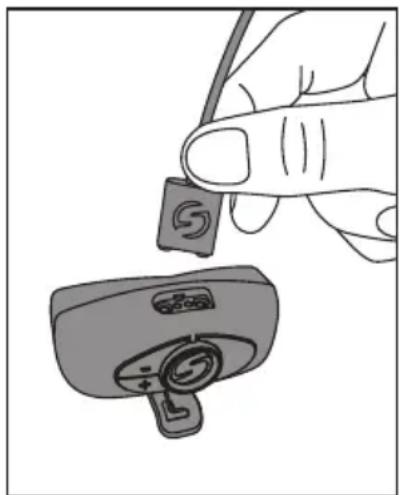

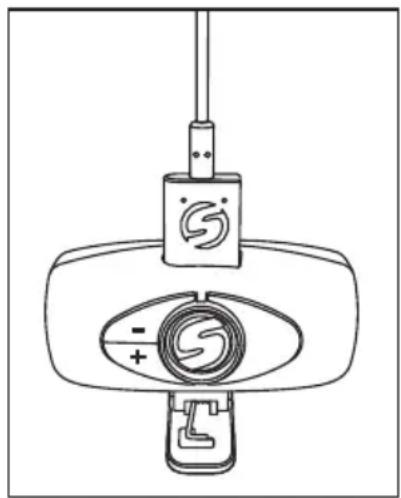

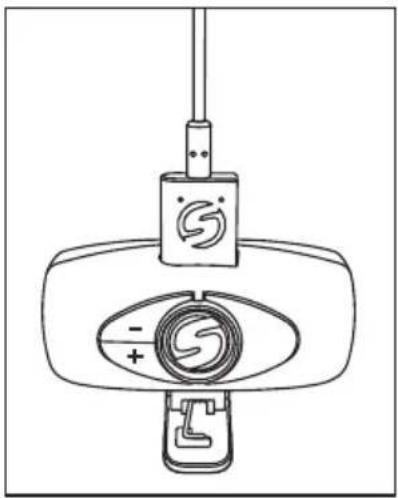

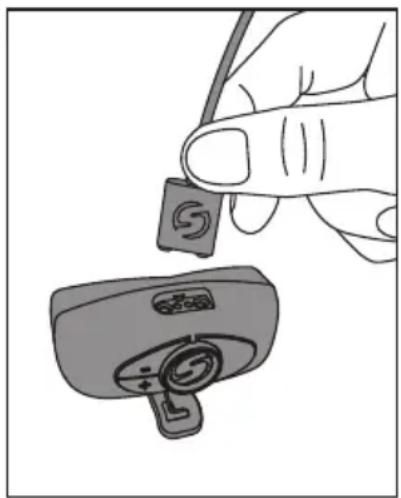

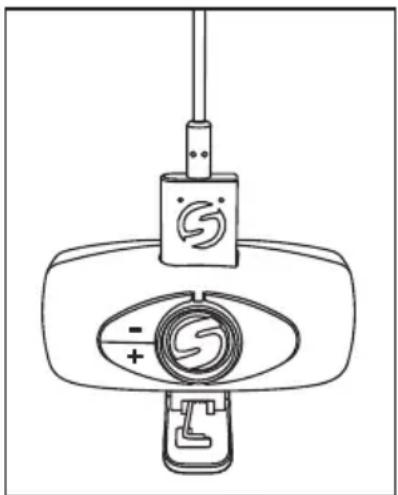

4. Attach the magnetic connector to the gold contact power port on the bottom of

the ATX transmitter. The cable attaches to the port magnetically. The magnetic connector is keyed so it will only connect in one direction. Note: Transmission is disabled during charging.

5. Look at the indicator light on the ATX transmitter to determine when the

transmitter has finished charging. When the light is flashing red, the ATX is charging. When the red light stops flashing it indicates that the ATX is fully charged.

6. Disconnect the magnetic power cable from the ATX when the unit is fully

charged. If you notice your ATX battery life is becoming shorter after a full charge, you can order a user replaceable battery from your local Samson distributer. Getting the most out of the rechargeable battery:

• Completely charge the batteries before first use

• Fully charge the battery before it will be used.

• After the battery is charged, unplug the charger from the outlet or remove the battery from the charger.

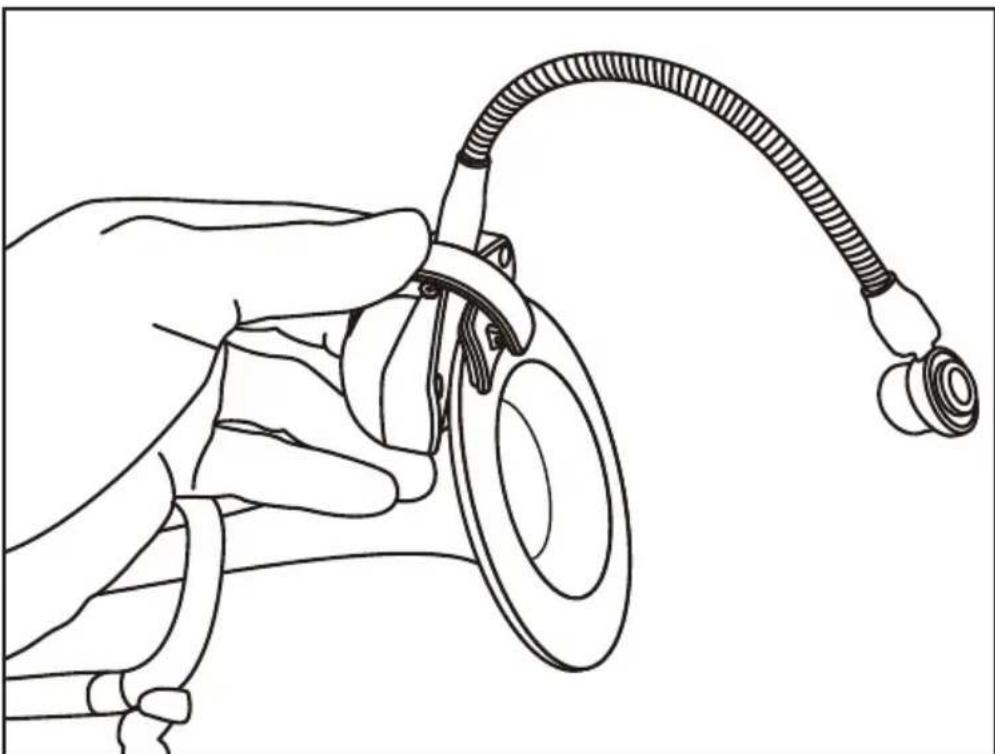

• The optimal temperature range for using and storing the battery is 50°F - 86°F (30°C - 50°C). The battery performance and operation may decrease in temperatures below 50°F (30°C). A warning that batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like. CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. Attention should be drawn to the environmental aspects of battery disposal10 Positioning the HM60 Wind Instrument Mic When positioning the HM60 wind instrument microphone, there are some general rules that you should follow. Always position the microphone as close to the sound source as possible. This is easy with the HM60 since the integrated gooseneck guarantees the mic element is close to the source. Also, keep in mind that in order to minimize feedback problems you want to position the microphone, (and if necessary yourself), behind the main PA speakers. Be aware of a phenomenon called the proximity effect, which causes a noticeable increase in low frequencies (bass response) when a microphone is close to the audio source. This means that by making slight adjustments to the distance of the mic element, you can get a change in the tonal quality of your sound. Keep in mind that your sound is as personal as your playing style, therefore, you may find changing the microphone position gets you just the sound you looking for. As with everything, experience is the best teacher, so plug in and turn up and listen. Here are some starting points to help you along the way. Saxophone – Use the built-in clip to attach the ATX transmitter to the bell of the instrument and position the HM60 mic about 1”–2”from the center of the bell. You can move the mic out a little to get some extra edginess, or closer for some extra warmth. Trumpet – Use the built-in clip to attach the ATX transmitter to the bottom of the bell on the instrument. Aim the HM60 microphone towards the center of the bell, but since the trumpet is capable of producing some of the highest SPL levels, start with the mic element positioned away from the bell. Try bringing the microphone element in closer to the bell for better isolation and more low frequency response. Trombone – Attach the ATX clip to the bottom of the bell and position the HM60 microphone directly into the center. In this position you will get the maximum isolation with full frequency response.AirLine ATX Wireless System 11

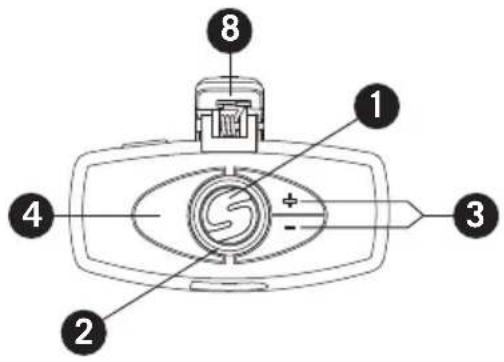

1. Power/Mute Button - Press and hold for 3 seconds to turn the unit on or off.

A quick press and release will mute or unmute the transmitter when the transmitter is on.

2. Status Indicator - This LED displays the operation mode, low battery and recharge

status of the transmitter. The chart below defines the LED colors for each function. GREEN Normal Operation AMBER Mute Flashing RED Low Battery Charging RED Fully Charged

3. Volume +/– Buttons - Press and hold either Volume button to adjust the volume.

Pressing the + or – button increases or decrease the level by one step with each push of the button. There is a total 9 volume levels. The Status Indicator light will flash faster for each increased step and slower for each decrease.

4. IR Lens - This window is used to capture the infrared signal sent from the receiver

during the IR SET to channelize the transmitter. The IR Lens is only active for the first 10 seconds when the transmitter is powered on.

5. Charging Connector - Connect the supplied magnetic charging cable to this

sealed, gold contact charging connector to recharge the internal Lithium Ion battery. The ATX can be recharged by connecting the cable to a USB connector on a computer USB port, or any 5-volt DC adapter that has a USB output. NOTE: The included adapter will charge the ATX faster than a computer USB port.

6. Input Connector - Connect the input device via the mini-XLR connector. The ATX

is supplied with either a lavalier, headset or instrument microphone.

7. Spring Clip - Use this clip to fasten the ATX transmitter to a belt, waist band or

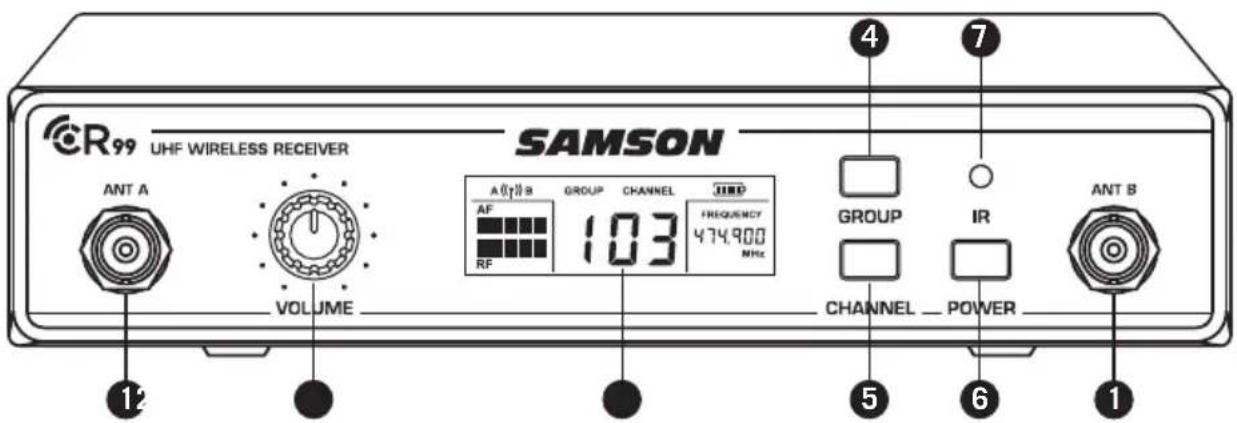

1. Antenna Jacks - The front BNC antenna jacks allow full rotation for optimum

placement. In normal operation, both antennas should be placed in a vertical position.

2. VOLUME Control - This knob sets the level of the audio signal being output

through both the balanced and unbalanced output jacks on the rear panel. Reference level is obtained when the knob is turned fully clockwise (to its “10” setting).

3. LCD Display - Displays transmitter and receiver settings.

4. GROUP Button - Press and release button to cycle through the available groups.

Press and hold button to scan for available channels within the selected group.

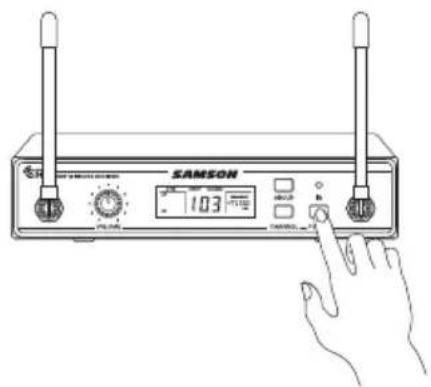

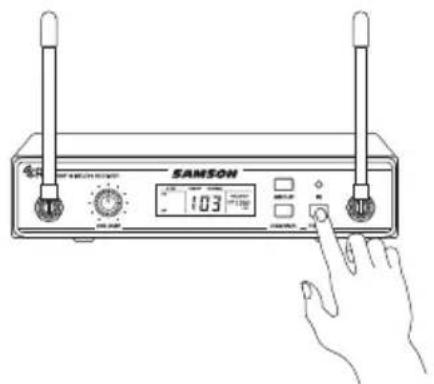

5. CHANNEL Button - Press and release to cycle through available channels within a

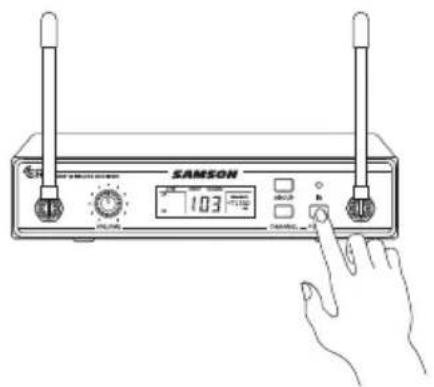

group. Press and hold button to enter IR Set which is used to set the operating channel of the transmitter.

6. POWER Button - Press and hold to turn the CR99 power on and off.

7. IR Transmitter - During “IR SET” an infrared light is used to set the transmitter

channel. CR99 Receiver - Front Callouts

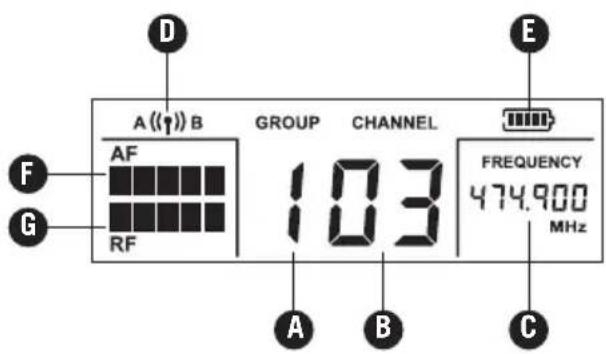

A. Group - Displays the selected group B. Channel - Displays the selected channel C. Frequency - Indicates the operating frequency of the selected Group and Channel. D. Antenna Indicator - Indicates the active antenna (A or B). E. Transmitter Battery Level - Indicates the battery level of the transmitter. F. Audio Meter - Indicates the strength of the incoming audio signal. G. RF Signal Meter - Indicates the strength of the incoming radio signal. Receiver Display

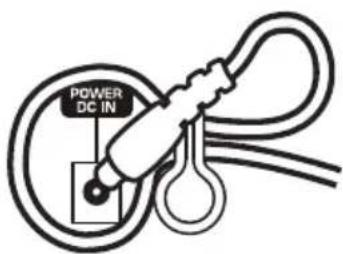

Using the strain relief: Gather up a loop of wire and pass it through the strain relief, then pass the adapter plug through the loop in order to create a knot. CR99 Receiver - Rear Callouts

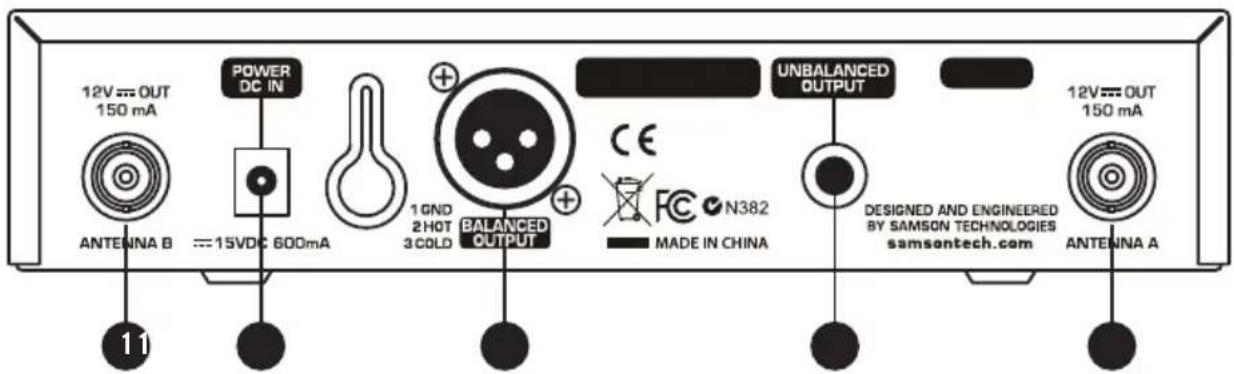

1. Antenna Jacks - The rear BNC antenna jacks allow full rotation for optimum

placement. In normal operation, both antennas should be placed in a vertical position.

2. DC Input - Connect the supplied power adapter here, using the strain relief as

shown in the illustration below. WARNING: Do not substitute any other kind of power adapter. Doing so can cause severe damage to the CR99 and will void your warranty.

3. BALANCED OUTPUT - Use this electronically balanced low impedance (600 Ohm)

XLR jack when connecting the CR99 to professional (+4dBu) audio equipment. Pin wiring is as follows: Pin 1 ground, Pin 2 high (hot), and Pin 3 low (cold).

4. UNBALANCED OUTPUT - Use this unbalanced high impedance (5K Ohm) ¼" jack

when connecting the CR99 to consumer (-10dBV) audio equipment. Wiring is as follows: tip hot, sleeve ground.AirLine ATX Wireless System 15

ENGLISHFRANÇAISDEUTSCHEESPAÑOLITALIANO

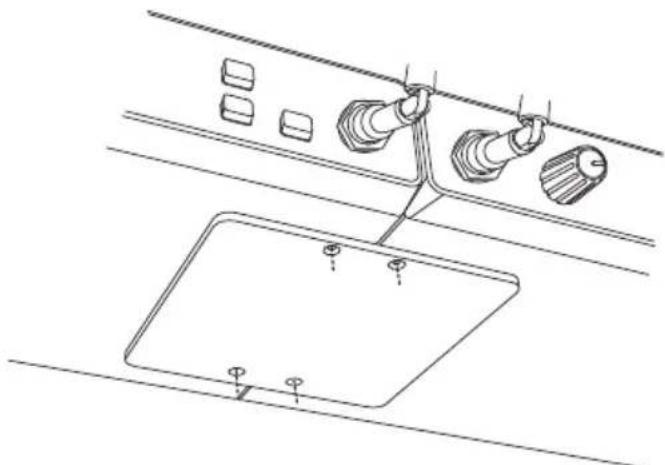

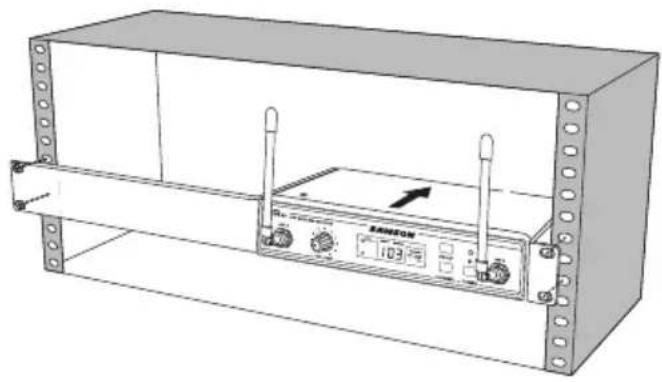

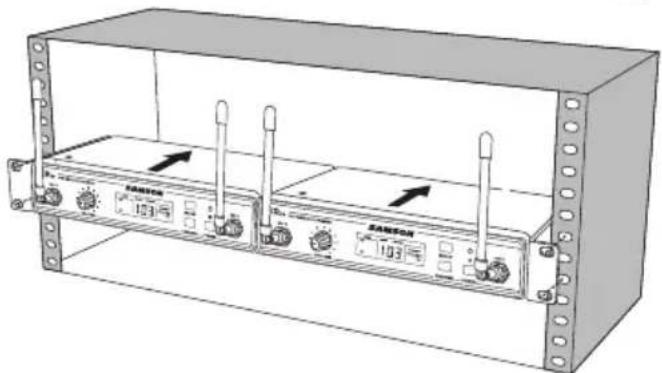

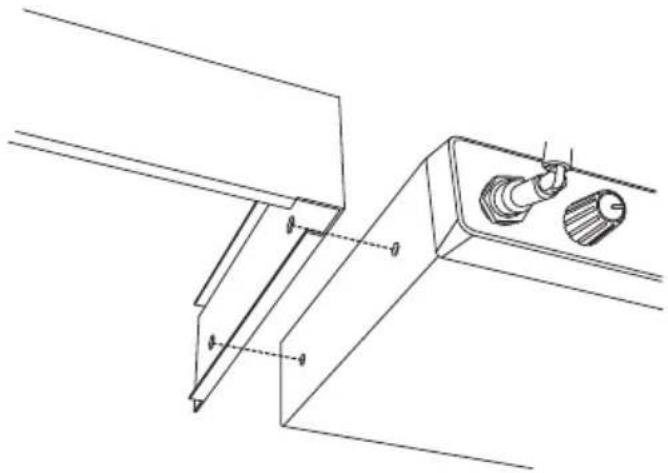

The CR99 receiver can be installed into a standard 19” rack for transport or permanent installation using the included rack ears. Follow the simple steps below to mount the CR99: Rack Mounting Attach the included rack ears by screwing each rack ear into either side of the CR99. Position the CR99 receiver into an available rack space and slide in until the rack ears are touching the rails of the rack case and are aligned with the rack rail holes. Mount the receiver into the rack using the appropriate size rack screws (not included). To ensure equal tension and balance when installing the receiver, you should secure screws in a crisscross pattern of opposite corners: top left -> bottom right -> top right -> bottom left. In order to mount two CR99 receivers in one rack space, the system includes a center connection piece. Screw the center connection piece into bottom of each receiver and attach the short rack ears to each receiver. Mount the receivers into the rack using the crisscross pattern described above.16 Channel Plans Group K 470–494MHz Channel Group 00 01 02 03 04 05 06 07

• Not for use in the USA and Canada. ** Not for use in the EU. For questions regarding available channels in your area contact your local Samson distributor.AirLine ATX Wireless System 17
