USER MANUAL Virtue 00173857 HAMA

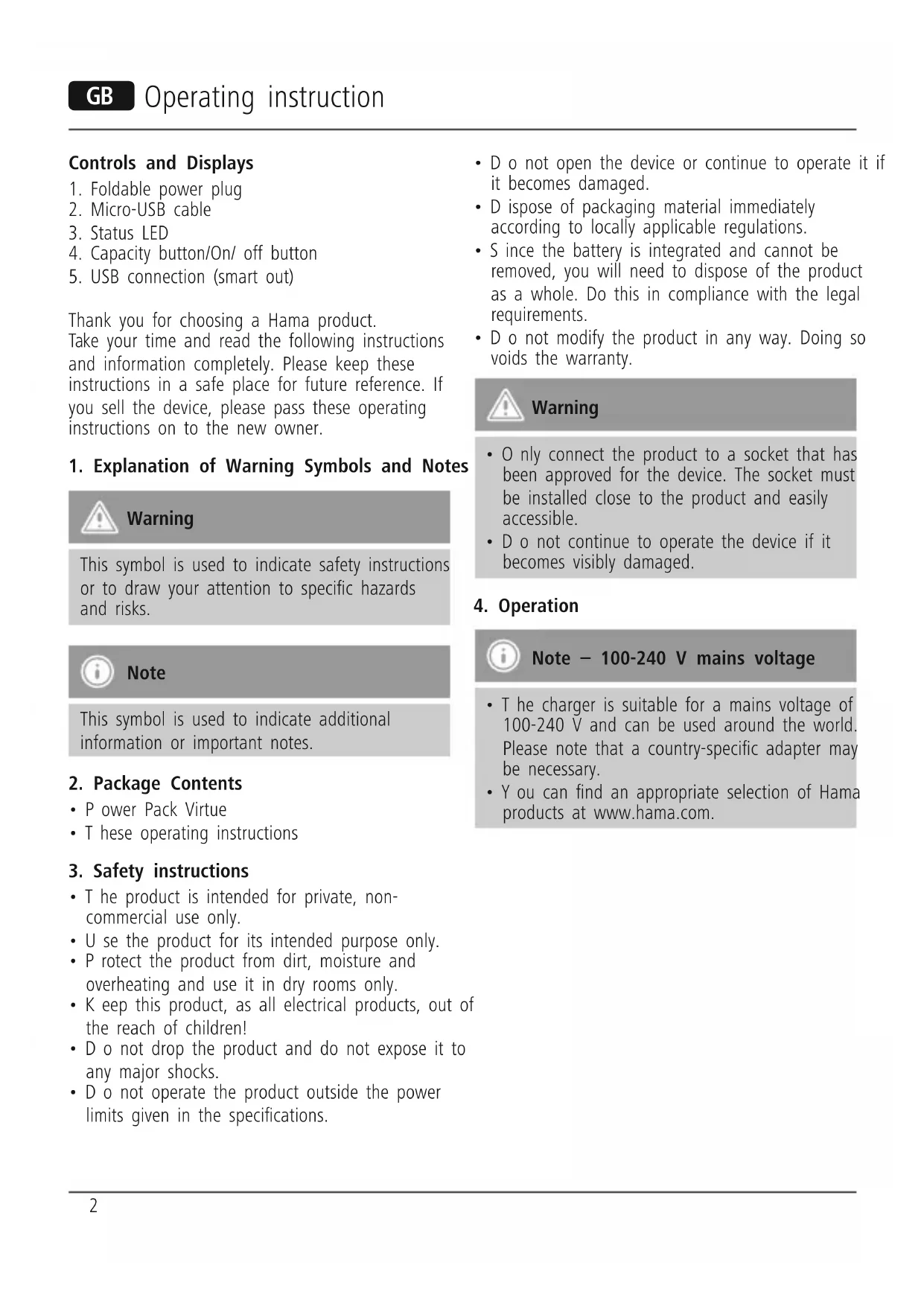

G Operating instruction Controls and Displays

4. Capacity button/On/ off button

5. USB connection (smart out)

Thank you for choosing a Hama product. Take your time and read the following instructions and information completely. Please keep these instructions in a safe place for future reference. If you sell the device, please pass these operating instructions on to the new owner.

1. Explanation of Warning Symbols and Notes

Warning This symbol is used to indicate safety instructions or to draw your attention to specic hazards and risks. Note This symbol is used to indicate additional information or important notes.

• These operating instructions

3. Safety instructions

• The product is intended for private, non- commercial use only.

• Use the product for its intended purpose only.

• Protect the product from dirt, moisture and overheating and use it in dry rooms only.

• Keep this product, as all electrical products, out of the reach of children!

• Do not drop the product and do not expose it to any major shocks.

• Do not operate the product outside the power limits given in the specications.

• Do not open the device or continue to operate it if it becomes damaged.

• Dispose of packaging material immediately according to locally applicable regulations.

• Since the battery is integrated and cannot be removed, you will need to dispose of the product as a whole. Do this in compliance with the legal requirements.

• Do not modify the product in any way. Doing so voids the warranty. Warning

• Only connect the product to a socket that has been approved for the device. The socket must be installed close to the product and easily accessible.

• Do not continue to operate the device if it becomes visibly damaged.

• The charger is suitable for a mains voltage of 100-240 V and can be used around the world. Please note that a country-specic adapter may be necessary.

• You can nd an appropriate selection of Hama products at www.hama.com.3

4.1 Charging the Power Pack

• Fold out the power plug (1) until it clicks into place at a 90° angle to the housing.

• Start the Power Pack’s charging process by plugging it into an approved, easily accessible outlet.

• Charging begins and ends automatically. The status LED (3) lights up constantly during the charging process.

• If the Power Pack is fully charged, the status LED (3) will go out. It takes approx. 5-6 hours to completely charge the product.

• Charge the Power Pack fully before using it for the rst time. Note – Capacity and LED properties

• The capacity is always shown when the Power Pack is charging.

• The colour of the status LED (3) indicates the Power Pack’s battery capacity Red: 0-35% | Orange: 36-60% | Blue: 61-85% | Green: 86-100%

• Press the capacity button (4) on the Power Pack to switch it on and to check its current capacity.

• End the charging process by disconnecting the Power Pack from the outlet. Warning - Battery

• Do not overcharge the product or allow the battery to completely discharge.

• Avoid storing, charging or using batteries in extreme temperatures.

• When stored over a long period of time, batteries should be charged regularly (at least every three months). 4.2. Charging terminal devices

• Connect the terminal device to be charged to the USB port (5) directly using the Micro USB cable (2) included or using a suitable USB cable.

• Press the capacity button (4) to start the charging process.

• Charging stops automatically when the terminal device is fully charged.

• The current battery status of your terminal device will appear on this device.

• End the charging process by disconnecting the Power Pack from the terminal device. Note – Connecting terminal devices/ optimal charging

• Ensure that the total power consumption of all connected terminal devices does not exceed 2100 mA. Please refer to the instructions in the operating manual of your terminal device.

• Do not connect any terminal devices while the Power Pack is charging. This could damage the Power Pack and the connected device.

• While the Micro-USB cable (2) is ideal for charging Samsung and HTC products, the smart out socket (5) offers optimised charging for Apple devices.

• Optimised charging (at the smart out socket (5)) means that the Power Pack recognises the connected terminal device and supplies it with the optimal current to minimise charging time.

• Of course, you can charge terminal devices from any brands as long as they do not exceed the maximum total power consumption.4

5. Maintenance and Care

Only clean this product with a slightly damp, lint-free cloth and do not use aggressive cleaning agents. Ensure that no water intrudes the product.

6. Warranty Disclaimer

Hama GmbH & Co. KG assumes no liability and provides no warranty for damage resulting from improper installation/mounting, improper use of the product or from failure to observe the operating instructions and/or safety notes.

7. Service and Support

Please contact Hama Product Consulting if you have any questions about this product. Hotline: [phone] (German/English) Further support information can be found here: www.hama.com

Note on environmental protection: After the implementation of the European Directive 2012/19/EU and 2006/66/EU in the national legal system, the following applies: Electric and electronic devices as well as batteries must not be disposed of with household waste. Consumers are obliged by law to return electrical and electronic devices as well as batteries at the end of their service lives to the public collecting points set up for this purpose or point of sale. Details to this are dened by the national law of the respective country. This symbol on the product, the instruction manual or the package indicates that a product is subject to these regulations. By recycling, reusing the materials or other forms of utilising old devices/Batteries, you are making an important contribution to protecting our environment.5 D Bedienungsanleitung Bedienungselemente und Anzeigen

5. Port USB (smart out)
