Product type	Portable battery (PowerPack)
Brand	Hama
Model	Supreme 24HD 00187293
Battery capacity	24000 mAh / 88.80 Wh (min.), 24300 mAh / 89.91 Wh (typ.)
Usable capacity	16906 mAh @ 5 V / 2 A
Battery type	High-density lithium polymer (Li-Po)
Battery voltage	3.7 V
USB-C input	5 V / 2 A
micro-USB input	5 V / 2 A
USB-A output 1	5 V / 3 A
USB-A output 2	5 V / 3 A
USB-C output	5 V / 3 A
Total output	5 V / 3 A (max.)
Maximum charging current	3000 mA
Capacity indicator	4 LEDs (25% per LED)
Main functions	Charging smartphones, tablets and other USB devices; optimized charging; automatic shutdown
Protections	Against overcharging, deep discharge, overheating, short circuits
Care and cleaning	Clean with a slightly damp lint-free cloth; avoid harsh detergents
Safety	Do not expose to heat, moisture, impact; do not open; do not throw into fire; use only in dry environment
Recycling	Do not dispose of with household waste; return to designated collection points

Frequently Asked Questions - Supreme 24HD 00187293 HAMA

How to charge the PowerPack?

Connect the supplied USB-A to USB-C cable to the USB-C input of the PowerPack (IN 5 V/2 A) and to a suitable USB charger. You can also use the micro-USB input. The charging process ends automatically. For first use, fully charge the PowerPack.

How to recharge my devices with the PowerPack?

Connect the supplied USB-A to USB-C cable to the USB port of the PowerPack (OUT 5 V/3 A) and to the USB-C port of your device. If necessary, use your device's charging cable. For the USB-C output, use a suitable USB-C cable. The charging process starts automatically.

What do the LEDs on the PowerPack mean?

Each LED corresponds to 25% of the capacity. One LED on indicates the capacity already reached. If three LEDs are on and the fourth is blinking, the PowerPack is charged to at least 75%. Four LEDs on mean full charge.

Can I charge the PowerPack and a device at the same time?

No, the PowerPack must never be charged and discharged simultaneously. Do not connect any device while charging the PowerPack. This could damage the PowerPack and connected devices.

Which cable to use for charging?

Use the supplied USB-A to USB-C cable for charging the PowerPack or for charging a device via the USB-A port. For the USB-C output, use a suitable USB-C cable. If the supplied cable is not suitable, use your device's cable.

What to do if my device is not charging?

Check that the cable is properly connected and the end device is compatible. Ensure that the total consumption does not exceed 3000 mA. Press the PowerPack button to turn it on. If the problem persists, try another cable.

How to clean the PowerPack?

Clean the product only with a slightly damp lint-free cloth. Avoid harsh detergents and excessive moisture.

What to do if I don't use the PowerPack for a long time?

Recharge the PowerPack regularly (at least every three months) to prevent deep discharge. Store it in a dry place at moderate temperature.

How to recycle the PowerPack?

Do not dispose of the product with household waste. Take it to a collection point for electrical and electronic equipment or batteries. Follow local regulations.

What is the warranty of the PowerPack?

Warranty is excluded in case of damage caused by improper installation, assembly or use, or failure to follow safety instructions and the user manual. For more information, see the Hama warranty conditions.

USER MANUAL Supreme 24HD 00187293 HAMA

Operating Instructions

Bedienungsanleitung

Moded'emploi

Instruccionesdeuso

PykoBOOCTBOONKcnpyaatau

Istruzioniperl'uso

Gebruiksaanwijzing

O8nyiecxponc

Instrukcjaobsugi

Hasznalatiutmutató

Návodk p oužití

Návodnapoužitie

Manualdeinstruções

Kullanmakilavuzu

Manualdeutilizare

Bruksanvisning

Käyttoohje

Pa6oTHaHHcTpyKcIa

GB

D

F

E

RUS

1

NL

GR

PL

H

CZ

SK

P

TR

RO

S

FIN

BG

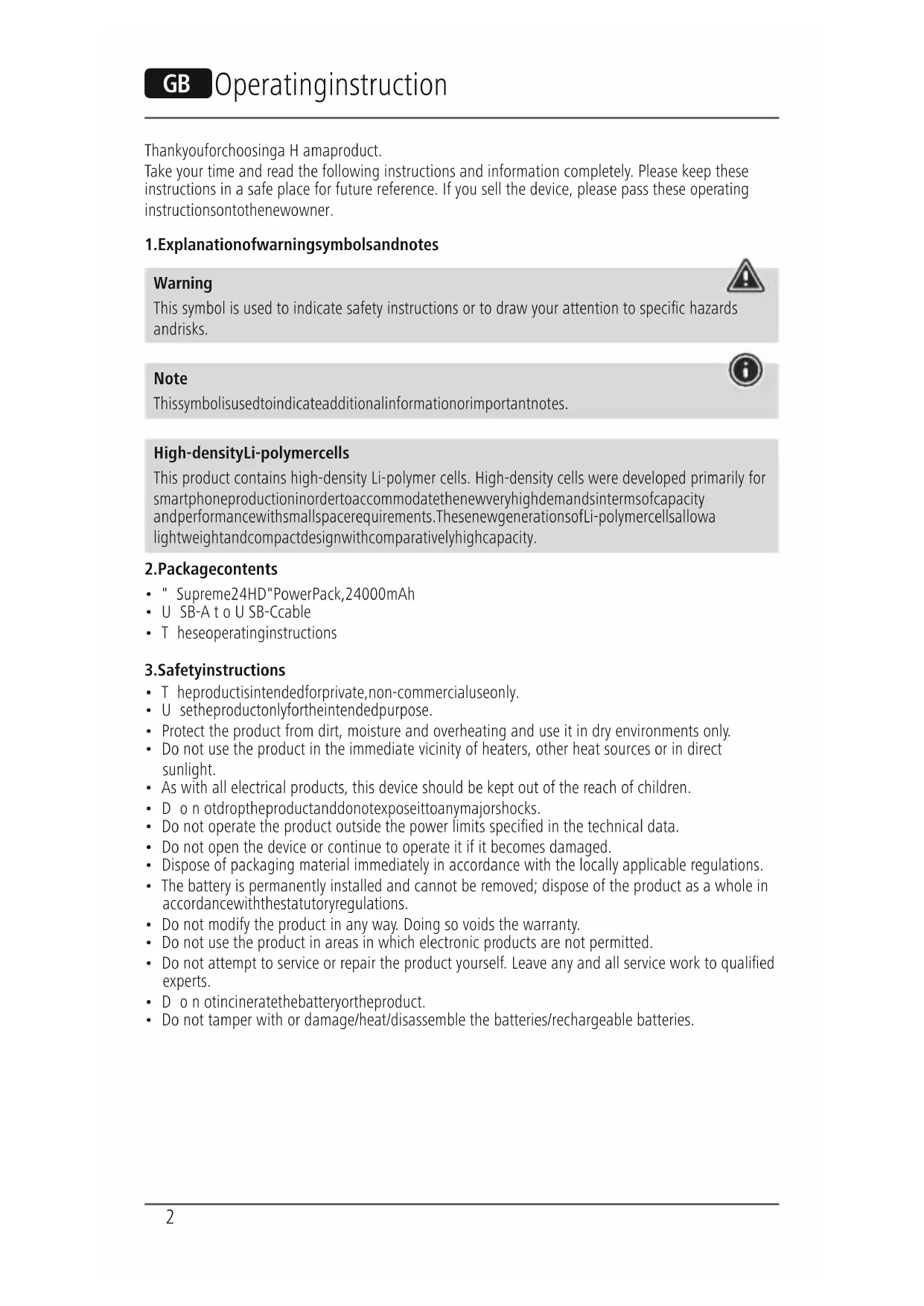

Thankyouforchoosinga H amaproduct.

Take your time and read the following instructions and information completely. Please keep these instructions in a safe place for future reference. If you sell the device, please pass these operating instructions ontothenewowner.

1.Explanationof warningsymbolsandnotes

Warning

This symbol is used to indicate safety instructions or to draw your attention to specific hazards and risks.

Note

This symbolis used to indicate additional information or important notes.

High-densityLi-polymercells

This product contains high-density Li-polymer cells. High-density cells were developed primarily for smartphoneproductioninordertoaccommodethenewveryhighdemandsintermsofcapacity andperformancewithsmallspacerequirements.ThesenewgenerationsofLi-polymercellsallowa lightweightandcompactdesignwithcomparativelyhighcapacity.

2.Packagecontents

" Supreme24HD"PowerPack,24000mAh
- U SB-A to U SB-C cable
- T heseoperatinginstructions

3.Safetyinstructions

T heproductisintendedforprivate,non-commercialuseonly.
- U setheproductonlyforthenthendpurpose.
- Protect the product from dirt, moisture and overheating and use it in dry environments only.
- Do not use the product in the immediate vicinity of heaters, other heat sources or in direct sunlight.
- As with all electrical products, this device should be kept out of the reach of children.
- D o n otdroptheproductandddonotexposeittoanymajorshocks.
- Do not operate the product outside the power limits specified in the technical data.
- Do not open the device or continue to operate it if it becomes damaged.
- Dispose of packaging material immediately in accordance with the locally applicable regulations.
- The battery is permanently installed and cannot be removed; dispose of the product as a whole in accordance with the statutory regulations.
- Do not modify the product in any way. Doing so voids the warranty.
- Do not use the product in areas in which electronic products are not permitted.
- Do not attempt to service or repair the product yourself. Leave any and all service work to qualified experts.
- D o n otincineratethebatteryortheproduct.
- Do not tamper with or damage/heat/disassemble the batteries/rechargeable batteries.

4. Operation

4.1.Chargingthepowerpack

Warning- rechargeablebattery

• Do not charge the power pack via your PC or notebook. The charging currents can damage the USBportonthePCornotepad.
• O nlyusesuitablechargingdevicesorUSBconnectionstochargetheproduct.
• Do not use defective chargers or USB ports and do not attempt to repair them.
• Do not overcharge the product or allow the battery to completely discharge.

• A voidstoring,chargingandusinginextremetemperaturesandatextremelylowatmospheric pressures(suchasathighhaltitudes).
  C hargeregularly(leastquarterly)duringperiodsofprolongedstorage.

• Start the power pack charging process by connecting the enclosed USB-A to USB-C cable to the USB-C input on the power pack (IN 5V/2A) and to a suitable USB charger. To do this, consult the operating instructions for the USB charger you are using. Alternatively, the power pack can also be chargedviathemicro-USBport(IN5V/2A).

• T hechargingprocessbeginsandendsautomatically.
  Fully charge the power pack once before using it for the first time.

Note- capacity

• D uringthepowerpackchargingprocess, the capacity is displayed constantly.
  Each status LED corresponds to 25% of the capacity. The permanent illumination of an LED indicates that the capacity has already been reached. If three LEDs light up and the fourth one flashes, the powerpack is at least 75% charged.
• If a llfourstatusLEDslightup, the full capacity is available.
• Press the button on the power pack to switch this on and to determine the power pack's current capacity.
• Press the button twice until the status LEDs go out to switch the power pack off.

4.2.Chargingdevices

Warning- C onnnectionofdevices

• Before connecting a device, check whether it can be adequately supplied with the power pack's currentdelivery.
• Ensure that the total current consumption of the connected device does not exceed 3000 mA .
• N otetheinstructionsinyourdevice'soperatingmanual.
• Y oumustobeytheinstructionsandsafetynotescontainedthereinregardingthesupplyof powertoyourdevices.
• T hepowerpackmustnotbechargedanddischargedatthesametime!
• Please do not charge simultaneously at the two USB and USB-C outputs since this significantly reduces the charging current. The charging period increases significantly as a result and the powerpack may, in certain circumstances, become overloaded.

Warning

• Never connect the power pack's charging cable to its input and output simultaneously. This can damage the battery.
• Do not connect any devices during the power pack charging process. Doing so can damage the powerpack and connected devices.
• Connect the enclosed USB-A to USB-C cable to the power pack's USB port (OUT 5V/3A) and the USB-Cportonyourdevice(mobilephone,smartphone,etc.).
• In certain circumstances, the enclosed charging / connecting cable may not match the USB port on yourdevice. Inthiscase, use the USB cable that came with your device.
• When using the USB-C output (OUT 5V/3A) for the charging process, connect a suitable USB-C charging cable to the USB-C output on the powerpack and the port on your device.
• The charging process begins automatically. During the charging process, the status LEDs indicate the powerpack's remaining available capacity.
  T hecurrentbatterychargestatusofyourdeviceisindicatedonthis.
• T erminate the charging process and switch the powerpack off by pressing the button on the powerpack twice. The status LEDs go out.
• In the event that no device is connected, the power pack switches itself off automatically.

Note- optimisedcharging

Optimised charging meansthat the powerpack recognises the connected device, supplies it with the ideal current strength and therefore reduces the charging time to a minimum. Note that the powerpack's maximum current delivery is 3000mA .

5.Careandmaintenance

Only clean this product with a slightly damp, lint-free cloth and do not use aggressive cleaning agents.

6.WarrantyDisclaimer

Hama GmbH & Co KG assumes no liability and provides no warranty for damage resulting from improper installation/mounting, improper use of the product or from failure to observe the operating instructionsand/or safety notes.

7. Technical data

USB-Cinput5 V 2 A	---
Micro-USBinput5 V 2 A	---
USB-A o output1	5 ---
USB-A o output2	5 ---
USB-Coutput5 V 3 A	---
Totaloutput5 V 3 A (max.)	---
Battery type	3.7 V/Li-Po (high-density)
Min.capacity24000mAh/ 8 8.80Wh
Typ.capacity24300mAh/ 8 9.91Wh
UsableCapacity*16906mAh@ 5 V	--- 2 A

• The usable capacity is the capacity that can be drawn from the output sockets, measured at 5V output voltage and a draw current of 2A.

8. Recycling information

Noteonenvironmental protection:

Following the implementation of European Directive 2012/19/EU and 2006/66/EU into national law, the following applies: Electrical and electronic devices as well as batteries must not be disposed of with household waste. Consumers are obliged by law to return electrical and electronic devices as well as batteries to the designated public collection points or to the

point of sale at the end of their service lives. Detailed information on this topic is defined in the national laws of the respective country. This presence of the above symbol on the product, operating instructions or package indicates that the product is subject to these regulations. By recycling, reusing the materials or other forms of utilising old devices/batteries, you are making an important contribution toprotectingour environment.

• T heusablecapacityisthecapacitythatcanbedrawnfromtheoutputsockets,measuredat5V output voltage and a draw current of 2A.
