USER MANUAL LB5750E EGO

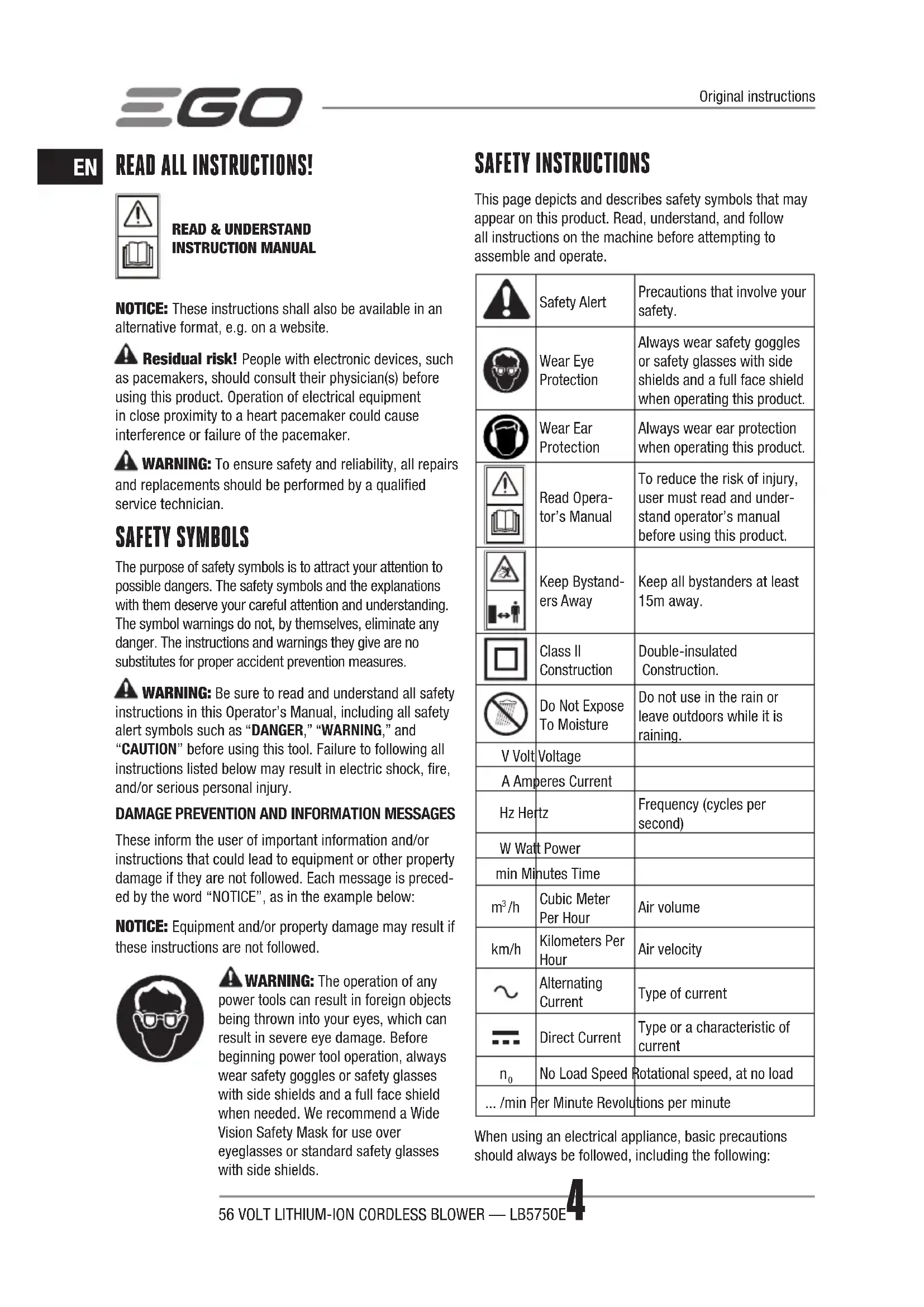

READ & UNDERSTAND INSTRUCTION MANUAL

NOTICE: These instructions shall also be available in an alternative format, e.g. on a website. Residual risk! People with electronic devices, such as pacemakers, should consult their physician(s) before using this product. Operation of electrical equipment in close proximity to a heart pacemaker could cause interference or failure of the pacemaker.

WARNING: To ensure safety and reliability, all repairs

and replacements should be performed by a qualified service technician. SAFETY SYMBOLS The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols and the explanations with them deserve your careful attention and understanding. The symbol warnings do not, by themselves, eliminate any danger. The instructions and warnings they give are no substitutes for proper accident prevention measures.

WARNING: Be sure to read and understand all safety

instructions in this Operator’s Manual, including all safety alert symbols such as “DANGER,” “WARNING,” and “CAUTION” before using this tool. Failure to following all instructions listed below may result in electric shock, fire, and/or serious personal injury.

DAMAGE PREVENTION AND INFORMATION MESSAGES

These inform the user of important information and/or instructions that could lead to equipment or other property damage if they are not followed. Each message is preced-ed by the word “NOTICE”, as in the example below: NOTICE: Equipment and/or property damage may result if these instructions are not followed.

WARNING: The operation of any

power tools can result in foreign objects being thrown into your eyes, which can result in severe eye damage. Before beginning power tool operation, always wear safety goggles or safety glasses with side shields and a full face shield when needed. We recommend a Wide Vision Safety Mask for use over eyeglasses or standard safety glasses with side shields. SAFETY INSTRUCTIONS This page depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate.Safety AlertPrecautions that involve your safety.Wear Eye ProtectionAlways wear safety goggles or safety glasses with side shields and a full face shield when operating this product.Wear Ear ProtectionAlways wear ear protection when operating this product. Read Opera-tor’s ManualTo reduce the risk of injury, user must read and under-stand operator’s manual before using this product.Keep Bystand-ers AwayKeep all bystanders at least 15m away.Class II ConstructionDouble-insulated Construction.Do Not Expose To MoistureDo not use in the rain or leave outdoors while it is raining.V Volt VoltageA Amperes CurrentHz HertzFrequency (cycles per second)W Watt Powermin Minutes Time

No Load Speed Rotational speed, at no load... /min Per Minute Revolutions per minuteWhen using an electrical appliance, basic precautions should always be followed, including the following: Original instructions56 VOLT LITHIUM-ION CORDLESS BLOWER — LB5750E

WARNING: Read all safety warnings and

instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.Save all warnings and instructions for future reference.The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

◾ Keep work area clean and well lit. Cluttered or dark areas invite accidents. ◾ Do not operate power tools in explosive atmospheres, such as in the presence of ammable liquids, petrol or dust. Power tools create sparks which may ignite the dust or fumes. ◾ Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. ELECTRICAL SAFETY ◾ Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adaptor plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock ◾ Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. ◾ Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. ◾ Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. ◾ When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. ◾ If operating a power tool in a damp location is unavoidable, use a Ground-fault circuit interrupter protected supply. Use of GFCI reduces the risk of electric shock. PERSONAL SAFETY ◾ Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the inuence of drugs, alcohol, or medication. A moment of inattention while operating power tools may result in serious personal injury. ◾ Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. ◾ Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents. ◾ Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. ◾ Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. ◾ Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts. ◾ If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust devices can reduce dust-related hazards.

POWER TOOL USE AND CARE

◾ Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. ◾ Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. ◾ Disconnect the plug from the power source and/ or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.56 VOLT LITHIUM-ION CORDLESS BLOWER — LB5750E6

◾ Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. ◾ Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. ◾ Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. ◾ Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

BATTERY TOOL USE AND CARE

◾ Recharge only with the charger specied by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. ◾ Use power tools only with specically designated battery packs. Use of any other battery packs may create a risk of injury and fire. ◾ When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. ◾ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, ush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns. SERVICE ◾ Have your power tool serviced by a qualied repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

READ ALL INSTRUCTIONS BEFORE USING THIS

PRODUCT! TRAINING ◾ Read the instructions carefully. Be familiar with the controls and the proper use of the appliance. ◾ Never allow children, persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge or people unfamiliar with these instructions to use the machine. ◾ Never allow people unfamiliar with these instructions to use the appliance. Local regulations may restrict the age of the operator. ◾ Never operate the appliance while people, especially children, or pets are nearby. ◾ The operator or user is responsible for accidents or hazards occurring to other people or their property. PREPARATION ◾ While operating the appliance, always wear substantial footwear and long trousers. ◾ Do not wear loose clothing or jewellery that can be drawn into the air inlet. Keep long hair away from the air inlets. ◾ Wear protective goggles while operating. ◾ To prevent dust irritation the wearing of a face mask is recommended. ◾ Before using, check the batteries or battery packs for damage. Do not use the appliance if the batteries or battery pack is damaged. ◾ Never operate the appliance with defective guards or shields, or without safety devices, for example debris collector in place. OPERATION ◾ Disconnect the batteries or battery packs:

1. Whenever you leave the machine;

2. Before clearing a blockage;

3. Before checking, cleaning or working on the

4. If the appliance starts to vibrate abnormally.

◾ Operate the appliance only in daylight or in good articial light. ◾ Do not overreach and keep your balance at all times. ◾ Always be sure of your footing on slopes. ◾ Walk, never run. ◾ Keep all cooling air inlets clear of debris. ◾ Never blow debris in the direction of bystanders.56 VOLT LITHIUM-ION CORDLESS BLOWER — LB5750E

◾ Recommendation to operate the machine only at reasonable hours – not early in the morning or late at night when people might be disturbed. ◾ Recommendation to use rakes and brooms to loosen debris before blowing. ◾ Recommendation to slightly dampen surfaces in dusty conditions or use mister attachment.

WARNING: Danger of rotating parts!

◾ Use the full blower nozzle extension so the air stream can work close to the ground. ◾ Not to operate the machine near open windows, etc.

MAINTENANCE AND STORAGE

◾ Keep all nuts, bolts and screws tight to be sure the appliance is in safe working condition. ◾ Replace worn or damaged parts. ◾ Use only genuine replacement parts and accessories ◾ Store the appliance only in a dry place.

WARNING: To ensure safety and reliability, all repairs

should be performed by a qualified service technician.

WARNING: To reduce risk of fire, electric shock,

or injury: IMPORTANT READ CAREFULLY BEFORE USE. KEEP FOR FUTURE REFERENCE. ◾ Know your power blower. Read the instruction manual carefully. Learn the blower’s applications and limitations, as well as the specic potential hazards related to this blower. Following this rule will reduce the risk of electric shock, fire, or serious injury. ◾ Don’t expose the blower to rain or wet conditions. Water entering a blower will increase the risk of electric shock. ◾ Do not allow the blower to be used as a toy. Close attention is necessary when used by or near children. ◾ Use only as described in this manual. Use only manufacturer’s recommended attachments. ◾ If the blower is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center. ◾ Do not handle the charger, including charger plug, or charger terminals with wet hands. ◾ Do not put any object into any openings. Do not use with any opening blocked; keep openings free of dust, lint, hair, and anything that may reduce air ow. ◾ Keep hair, loose clothing, ngers, and all parts of body away from openings and moving parts. Loose clothes, jewelry, or long hair can be drawn into air vents. ◾ Secure long hair above shoulder level to prevent entanglement in moving parts. ◾ Use extra care when cleaning on stairs. ◾ Do not charge the battery pack outdoors. ◾ Use only the charger supplied by the manufacturer to recharge. ◾ Do not leave blower unattended when the battery is inserted. Remove the battery when the blower is not in use and before servicing. ◾ Do not operate blowers in explosive atmospheres, such as in the presence of ammable liquids, gases, or dust. Blowers create sparks which may ignite the dust or fumes. ◾ Use the battery operated blower only with specically designated battery pack. Use of any other batteries may create a risk of fire. ◾ Use only with battery packs and chargers listed below.

- The battery pack must be removed from the appliance before it is scrapped. - The battery shall be disposed of safely. ◾ Stay alert, watch what you are doing and use common sense when operating a power blower. Do not use the blower while tired, upset, or under the inuence of drugs, alcohol, or medication. A moment of inattention while operating blowers may result in serious personal injury. ◾ Avoid accidental starting. Be sure that the switch is in the locked or off position before inserting the battery pack. Carrying blowers with your finger on the switch or inserting the battery pack into a blower with the switch on invites accidents.56 VOLT LITHIUM-ION CORDLESS BLOWER — LB5750E8

◾ Use safety equipment. Always wear eye protection. Dust mask, non-skid safety shoes, hard hat, or hearing protection must be used for appropriate conditions. ◾ Do not use on a ladder, rooftop, tree, or other unstable support. Stable footing on a solid surface enables better control of the blower in unexpected situations. ◾ Always take care of your feet, children, or pets around you when removing the battery pack from blower. Serious injury could result if the battery pack falls. NEVER remove the battery pack when in a high position. ◾ Do not use the blower if switch does not turn it on or off. A blower that cannot be controlled with the switch is dangerous and must be repaired. ◾ Disconnect the battery pack from the blower before making any adjustments, changing accessories, or storing the blower. Such preventive safety measures reduce the risk of starting the blower accidentally. ◾ Turn off all controls before removing the battery. ◾ DO NOT attempt to clear clogs from the unit without first removing the battery. ◾ Check for misalignment or binding of moving parts, breakage of parts, and any other condition that may affect the blower’s operation. If damaged, have the blower serviced before using. Many accidents are caused by poorly maintained blowers. ◾ Keep the blower and its handle dry, clean and free from oil and grease. Always use a clean cloth when cleaning. Never use brake fluids, gasoline, petroleum- based products, or any strong solvents to clean your blower. Following this rule will reduce the risk of loss of control and deterioration of the enclosure plastic. ◾ Always wear safety glasses with side shields. Everyday glasses have only impact resistant lenses. They are NOT safety glasses. Following this rule will reduce the risk of eye injury. ◾ Protect your lungs. Wear a face or dust mask if the operation is dusty. Following this rule will reduce the risk of serious personal injury. ◾ Protect your hearing. Wear hearing protection during extended periods of operation. Following this rule will reduce the risk of serious personal injury. ◾ Battery powered blowers do not have to be plugged into an electrical outlet; therefore, they are always in operating condition. Be aware of possible hazards when not using your battery powered blower or when changing accessories. Following this rule will reduce the risk of electric shock, fire, or serious personal injury. ◾ Wear heavy long trousers, long sleeves, boots, and gloves. Avoid loose garments or jewelry that could get caught in moving parts of the machine or its motor. ◾ Do not operate the equipment while barefoot or when wearing sandals or similar lightweight footwear. Wear protective footwear that will protect your feet and improve your footing on slippery surfaces. ◾ Batteries can explode in the presence of a source of ignition, such as a pilot light. To reduce the risk of serious personal injury, never use any cordless product in the presence of an open flame. An exploded battery can propel debris and chemicals. If exposed, flush with water immediately. ◾ Keep rm footing and balance. Do not overreach. Overreaching can result in loss of balance. ◾ Check the work area before each use. Remove all objects such as rocks, broken glass, nails, wire, or string which can be thrown by or become entangled in the machine. ◾ Do not point the blower tube in the direction of people or pets. ◾ Never run the unit without the proper equipment attached. Always ensure that the blower tube is installed. ◾ When not in use, the blower should be stored indoors in a dry, secure place out of the reach of children. ◾ Keep all bystanders, children, and pets at least 15m away. ◾ Blower service must be performed only by qualied repair personnel. Service or maintenance performed by unqualified personnel may result in a risk of injury. ◾ When servicing a blower, use only identical replacement parts. Follow instructions in the Maintenance section of this manual. Use of unauthorized parts or failure to follow Maintenance Instructions may create a risk of shock or injury. ◾ Never use the blower near res or hot ashes. Use near fires or ashes can spread fires and result in serious injury and/or property damage. ◾ Never use blower to spread chemicals, fertilizers, or any other toxic substances. Spreading these substances could result in serious injury to the operator or bystanders. ◾ Never place the blower on any surface, except a hard, clean surface when the motor is running. Gravel, sand, and other debris can be picked up by the air inlet and thrown at the operator or bystanders, causing possible serious injuries.56 VOLT LITHIUM-ION CORDLESS BLOWER — LB5750E

◾ Save these instructions. Refer to them frequently and use them to instruct others who may use this tool. If you loan this tool to someone else, also loan these instructions to them to prevent misuse of the product and possible injury. SAVE THESE INSTRUCTIONS! SPECIFICATIONS Voltage 56V Air Volume975 m

Maximum Air Velocity192 km/hApprox. Run Time (with EGO 5.0Ah battery)18 min. Blower Weight (without battery pack)2.2 kgMeasured sound power level L

◾ The declared vibration total value has been measured in accordance with a standard test method and may be used for comparing one tool with another; ◾ The declared vibration total value may also be used in a preliminary assessment of exposure. NOTICE: The vibration emission during actual use of the power tool can differ from the declared value in which the tool is used; In order to protect the operator, user should wear gloves and ear protectors in the actual conditions of use. PACKING LIST PART NAME QUANTITYBlower 1Blower tube 1Spread nozzle 1Operator’s manual 1 DESCRIPTION KNOW YOUR BLOWER (Fig. A) 1. Battery-release Button2. Overmold Handle3. Air-speed Trigger4. Air-speed-trigger lock5. Tube-release Button6. Blower Tube7. Spread Nozzle-release Button8. Spread Nozzle9. Air Inlet10. Ejection Mechanism11. Mounting Slot12. Electric Contacts13. Latch14. Shoulder-strap Mount

WARNING: The safe use of this product requires an

understanding of the information on the tool and in this instruction manual as well as knowledge of the project you are attempting. Before use of this product, familiarize yourself with all operating features and safety rules. OPERATION

WARNING: Do not allow familiarity with this product

to make you careless. Remember that a careless fraction of a second is sufficient to inflict serious injury.

WARNING: Do not attempt to modify this product

or create accessories not recommended for use with this blower. Any such alteration or modification is misuse and could result in a hazardous condition leading to possible serious personal injury.

WARNING: Always remove the battery pack from

the product when you are assembling parts, making adjustments, cleaning, or when not in use. Removing the battery pack will prevent accidental starting that could cause serious personal injury.Before each use, inspect the entire product for damaged, missing, or loose parts, such as screws, nuts, bolts, caps,etc. Tighten securely all fasteners and caps and do not operate this product until all missing or damaged parts are replaced.56 VOLT LITHIUM-ION CORDLESS BLOWER — LB5750E10

APPLICATION You may use this product for the purposes listed below: ◾ Clearing hard surfaces such as driveways and walkways. ◾ Keeping decks and driveways free from leaves and pine needles. NOTICE: The tool is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse.

ASSEMBLING/REMOVING THE BLOWER TUBE

◾ To Assemble (Fig. B) Align the groove and push the tube onto the blower housing until you hear a “click”. ◾ To Remove (Fig. C) Press the tube-release button and pull the tube out.

ASSEMBLING/REMOVING THE BLOWER SPREAD

NOZZLE ◾ To Assemble(Fig. D) Align the groove in the spread nozzle with the tube knob and push the nozzle onto the tube until it snaps into place. ◾ To Remove(Fig. E) Press and hold the nozzle-release button to disengage the latch, then pull the nozzle straight from the blower.

INSTALLING/REMOVING THE BATTERY PACK

NOTE: For best performance, we recommend use of the EGO 56V Battery BA2240E (4.0 Ah) or any EGO 56V battery with higher capacity. Charge before rst use. ◾ To Install (Fig. F) Align the battery ribs with the mounting slots and press the battery pack down until you hear a “click”. ◾ To Remove (Fig. G) Depress the battery-release button and pull the battery pack out.

WARNING: Always take care to note the location of

your feet, children, or pets when pressing the battery-re- lease button. Serious injury could result if the battery pack falls. NEVER remove the battery pack when in a high location. STARTING/STOPPING THE BLOWER (Fig. H) ◾ To Start

1. Depress the air-speed trigger and the blower will begin

2. To lock the blower on, move the air-speed-trigger lock

toward the back of the tool. The blower runs at higher speeds as the lever is moved further back.

3. The air-speed-trigger lock can also be pulled back to

start the blower without needing to first depress the air-speed trigger. ◾ To Stop

1. If the air-speed-trigger lock lever is not engaged,

release the air-speed trigger to stop the blower.

2. If the air-speed-trigger lock is engaged, move the lever

to the OFF position to stop the blower.

OPERATING THE BLOWER

◾ To keep from scattering debris, blow around the outer edges of a debris pile. Never blow directly into the center of a pile. ◾ To reduce sound levels, limit the number of pieces of equipment used at any one time. ◾ Use rakes and brooms to loosen debris before blowing. In dusty conditions, slightly dampen surfaces when water is available. ◾ Conserve water by using power blowers instead of hoses for many lawn and garden applications, including areas such as gutters, screens, patios, grills, porches, and gardens. ◾ Watch out for children, pets, open windows, or freshly washed cars, and blow debris safely away. ◾ After using blowers or other equipment, clean up! Dispose of debris properly.56 VOLT LITHIUM-ION CORDLESS BLOWER — LB5750E

WARNING: When servicing, use only identical

replacement parts. Use of any other parts may create a hazard or cause product damage. To ensure safety and reliability, all repairs should be performed by a qualified service technician.

WARNING: To avoid serious personal injury, always

remove the battery pack from the product when cleaning or performing any maintenance. GENERAL MAINTENANCE Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. Use clean cloths to remove dirt, dust, oil, grease, etc.

WARNING: Do not at any time let brake fluids,

petrol, petroleum-based products, penetrating oils, etc., come in contact with plastic parts. Chemicals can damage, weaken or destroy plastic which may result in serious personal injury. STORAGE ◾ Clean all foreign material from the air inlets of the blower. ◾ Store indoors in a place that is inaccessible to children. Keep away from corrosive agents, such as garden chemicals and de-icing salts. Protecting the environment Do not dispose of electrical equipment, battery charger and batteries/rechargeable batteries into household waste!According to the European law 2012/19/EU, electrical and electronic equipment that is no longer usable,and according to the European law 2006/66/EC, defective or used battery packs/batteries, must be collected separately and disposed of in an environmentally correct manner.If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being.56 VOLT LITHIUM-ION CORDLESS BLOWER — LB5750E12

TROUBLESHOOTING PROBLEM CAUSE SOLUTIONBlower doesn’t work. ◾ The battery pack is not attached to the blower. ◾ Attach the battery pack to the blower. ◾ No electrical contact between the blower and battery. ◾ Remove battery, check contacts and reinstall the battery pack. ◾ The battery pack is depleted. ◾ Charge the battery pack. ◾ The battery pack or blower is too hot. ◾ Cool the battery pack and blower until the temperature drops below 67°C. For best performance, we recommend use of the EGO 56V Battery BA2240E (4.0 Ah) or any EGO 56V battery with higher capacity.The air velocity decreases significantly. ◾ Excessive wearing of motor fan. ◾ Contact EGO service center for repair. ◾ The air inlet is blocked by debris. ◾ Remove the battery pack, clear the debris. WARRANTY

Please visit the website egopowerplus.com for full terms and conditions of the EGO Warranty policy.13
