HG00301A - Lighting Livarno Lux - Free user manual and instructions

Product type	LED surface-mounted luminaire
Brand	Livarno Lux
Model	HG00301A
Use	Indoor, dry and enclosed rooms
Total power consumption	Approx. 4.8 W
Primary voltage	220-240 V~, 50 Hz
Secondary voltage	12 V, 300 mA
Primary current	0.035 A
Protection class	II
Bulb type	Integrated non-replaceable LED
Included LED driver	Model GY-CC12V300mA-L-003
Flexible arm	Flexible, adjustable lamp arm
Switch	On/Off switch on cable
Cable length	Approx. 1.5 m (estimated)
Package contents	1 luminaire, 1 LED driver, 4 screws 3.5x25 mm, 4 screws 3.5x20 mm, 2 screws 3x15 mm, 4 wall plugs 6 mm, manual
Mounting	Wall or flat surface mounting
Maintenance	Clean with a dry, lint-free cloth
Repairability	LED non-replaceable; replace entire unit at end of life
Warranty	3 years from date of purchase

Frequently Asked Questions - HG00301A Livarno Lux

How to install the lamp?

Use the supplied mounting bracket. For wall mounting, drill 6 mm diameter holes (depth 30 mm), insert the wall plugs, attach the bracket with the 3.5x25 mm screws. For flat surfaces, drill 2 mm holes (depth 17 mm) and use the 3.5x20 mm screws. Connect the low-voltage connector to the LED driver, then plug into the mains socket.

Can I replace the LED bulb?

No, the LED is integrated and non-replaceable. At end of life, the entire luminaire must be replaced.

What type of power supply is required?

A mains socket 220-240 V~, 50 Hz. Use only the supplied LED driver (model GY-CC12V300mA-L-003).

Can the lamp be used outdoors?

No, it is exclusively designed for indoor use in dry, enclosed rooms.

How to clean the lamp?

Unplug the lamp. Use a dry, lint-free cloth. Never use water or cleaning liquids, nor solvents.

What to do if the lamp does not turn on?

Check that the mains plug is properly inserted and the ON/OFF switch is in the on position. If the problem persists, contact an electrician.

Is the lamp suitable for children?

This product is not a toy. It may be used by children over 8 years old under supervision. Do not let children play with it.

What are the risks of looking directly at the LED?

Never look directly into the beam, as it can cause glare and eye injury. In case of exposure, close your eyes immediately and turn your head away.

Can I use the lamp without the supplied LED driver?

No, use only the supplied LED driver (GY-CC12V300mA-L-003). Using another driver would damage the lamp and void the warranty.

How to completely turn off the lamp?

Unplug the mains plug from the socket. The LED driver consumes a small amount of electricity while plugged in, even when the lamp is off.

USER MANUAL HG00301A Livarno Lux

Assembly, operating and safety instructions

FR BE

LUMINAIRE LED POUR MONTAGE EN SAILLIE

LÁMPARA LED FLEXIBLE

Introduction. Page 13

Intended use.. Page 13

Parts Description.. Page 13

Technical Data Page 13

Scope of delivery.. Page 14

Safety. Page 14

Safety instructions.. Page 14

Installation Page 16

Mounting the light.. Page 16

Wall-mounting the light.. Page 16

Start-up Page 16

Maintenance and

Cleaning Page 17

Disposal Page 17

Warranty.. Page 17

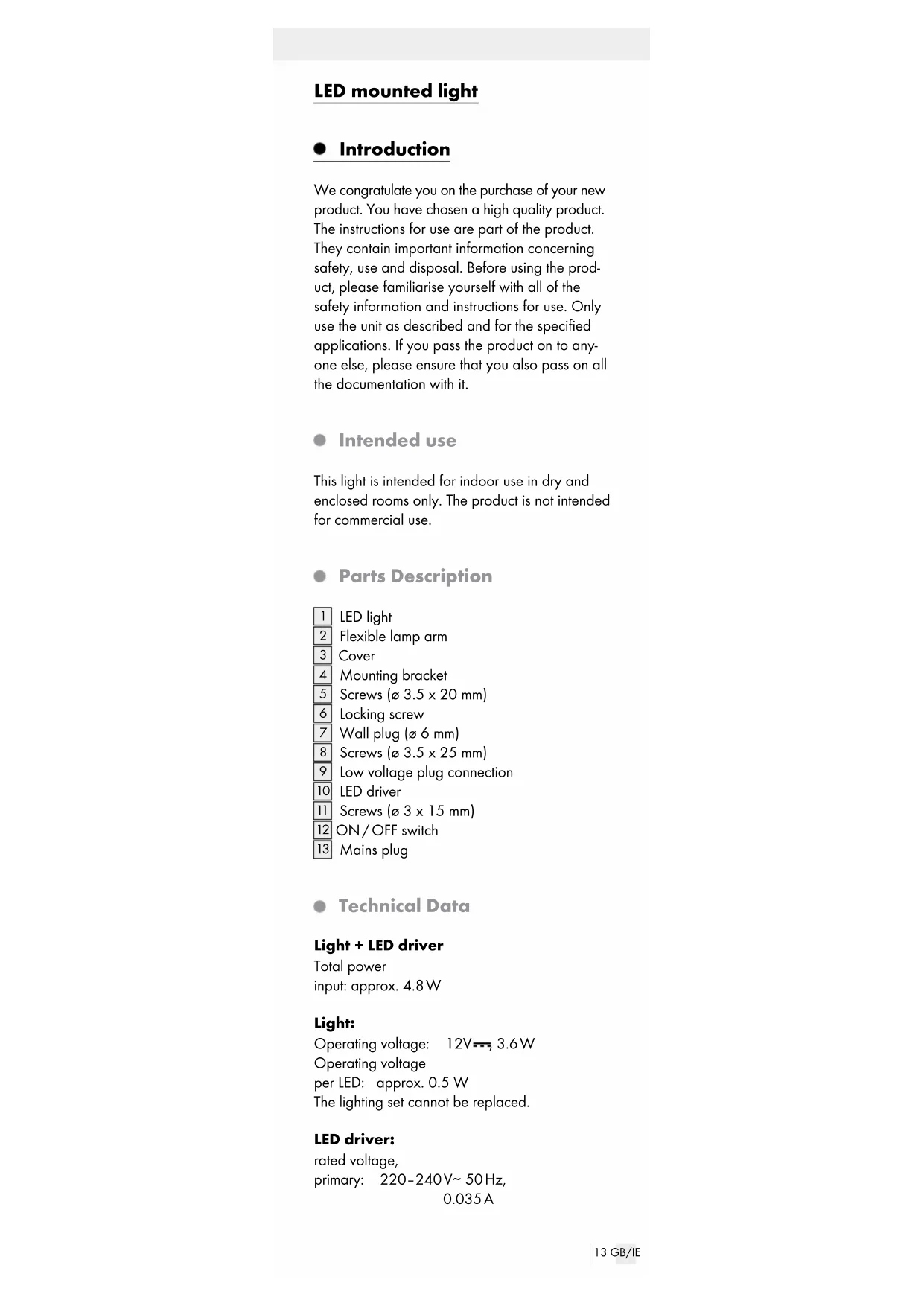

LED mounted light

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the unit as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

- Intended use

This light is intended for indoor use in dry and enclosed rooms only. The product is not intended for commercial use.

- Parts Description

LED light

2 Flexible lamp arm
3 Cover
4 Mounting bracket
5 Screws ( 3.5× 20mm)
Locking screw
7 Wall plug (0 6 mm)
8 Screws ( 3.5× 25mm)
9 Low voltage plug connection
10 LED driver
11 Screws ( 3× 15mm)
12 ON/OFF switch
13 Mains plug

Technical Data

Light + LED driver

Total power

input: approx. 4.8W

Light:

Operating voltage: 12V-3.6W

Operating voltage

per LED: approx. 0.5 W

The lighting set cannot be replaced.

LED driver:

rated voltage,

primary: 220 - 240V 50Hz,

0.035A

- Scope of delivery

1 LED mounted light
LED driver with mains plug
4 Screws ( 3.5× 25mm)
4 Screws ( 3.5× 20mm)
2 Screws ( 3× 15mm)
4 Wall plugs (0 6 mm)

1 Set of assembly instructions and instructions for use

Safety

Safety instructions

READ THESE INSTRUCTIONS BEFORE USING THE PRODUCT! PLEASE KEEP ALL SAFETY INSTRUCTIONS AND INSTRUCTIONS FOR USE FOR FUTURE REFERENCE!

A WARNING! DANGER TO LIFE AND RISK OF ACCIDENT FOR INFANTS AND

CHILDREN! Never leave children unsuper

vised with the packaging material. The packaging material represents a danger of suffocation. Children frequently underestimate the dangers. Please keep the product out of the reach of children at all times.

This product is not a toy. Keep away from children. Children are not able to understand the dangers that can arise when handling this product.
This device may be used by children aged 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or lacking experience and / or knowledge, so long as they are supervised or instructed in the safe use of the device and understand the associated risks. Do not allow children to play with the device. Cleaning and user maintenance should not be performed by children without supervision.

light is solely suitable for use in dry, closed indoor spaces.

The light is not suitable for attaching to tubular objects. The light may otherwise fall. This can result in product damage and / or injuries.

Avoid the danger of death from electric shock!

Verify the existing mains voltage corresponds to the required voltage of the device (220-240 V~) before using it.
Always check the appliance and the mains supply for damage before connecting it to the mains. A damaged device represents the danger of death from electric shock.
Do not use the device if you detect any damage.
In the event of damage, repairs or other problems with the device, please consult an electrician.
Never open any of the components of the electrical equipment or insert any objects into the same components. This will pose a risk of fatal injury from electric shock.
Never allow the appliance to come into contact with water or other liquids.
Protect the power cord from sharp edges, mechanical strain and hot surfaces.
Never use the device in immediate vicinity of a bath, shower or swimming pool.
Do not look directly into the light or its reflection. Do not aim the light directly at people. This could produce glare, leading to accidents.
If direct or reflected light strikes your eyes, close them and immediately move your head out of the light.
Only operate the light with the included LED driver (GY-CC12V300mA-L-003). Please note that any damage caused by the use of a different LED driver is excluded from the warranty.
- Never touch the mains plug 13 with damp or wet hands.
If the light will not be used for extended periods (e.g. during holidays), unplug the mains plug 13 from the socket.
The bulb becomes hot during operation. Allow the light and bulb to cool before you touch them.
The LEDs cannot be replaced.
This product is only suitable to be powered with the included LED driver (GY-CC12V300mA-L003).
Please note, the LED driver will continue to draw a small amount of electricity even without the light being operated so long as the mains plug is plugged into the socket. Unplug from the socket to switch the device off completely.
The illuminant is not replaceable.
If the illuminant fails at the end of its life, the entire light must be replaced.

Mounting the light

Move the cover upward (Fig. A).
Use the mounting bracket and screws 5 to mount the under-cupboard light.
Hold the mounting bracket against the desired surface and mark the drill holes (Fig. A). Now drill the mounting holes approx. 2mm approx. 17mm deep).
Position the mounting bracket according to the predrilled holes and tighten the screws (Fig. A).
The lamp arm can be fixed, if desired. To do so, tighten the two screws on the swivel joint.
Connect the low voltage plug connection with the LED driver [Fig. C].
Mount the LED driver using the included screws [Fig. C].
Plug the mains plug into the mains socket.

Your light is now ready to use.

- Wall-mounting the light

Move the cover 3 upward (Fig. B).
Use the mounting bracket 4 screws 8 and the wall plugs 7 for wall mounting.
Hold the mounting bracket against the desired surface and mark the drill holes (Fig. B). Now drill the mounting holes ( 6mm approx. 30mm deep).
CAUTION! Ensure that you do not damage any electrical cables, gas or water pipes when you drill into the wall.
Insert the included wall plugs into the bores.
Position the mounting bracket according to the predrilled holes, insert the screws into the wall plugs, and tighten the screws (Fig. B).
The lamp arm can be fixed, if desired. To do so, tighten the two screws on the swivel joint.
Connect the low voltage plug connection with the LED driver [10 (Fig. C).
Mount the LED driver using the included screws [11] (Fig. C).
Plug the mains pl into the mains socket.

Your light is now ready to use.

Start-up

Never aim the LED beam at reflective surfaces, people or animals. Failure to observe this advice may result in eye irritation and / or blindness in humans and animals. Even a weak LED light beam can cause eye damage.

Switch the light on and off using the ON/OFF switch 12
Adjust the angle of the LED light and bend the flexible lamp arm 2 to move the light into the desired position.

Note:Do not fully rotate the flexible lamp arm. Otherwise the mains lead inside the light could be damaged.

- Maintenance and Cleaning

Note: The device requires no maintenance. The LEDs cannot be replaced.

Do not use solvents, benzene or similar substances. They could damage the light.
Unplug the mains plug from the socket. CAUTION! RISK OF ELECTRIC SHOCK!

For electrical safety, never clean the light with water or other liquids, or immerse it in water.

Only use a dry, lint-free cloth for cleaning.
Never aim the LED beam at reflective surfaces, people or animals. Failure to observe this advice may result in eye irritation and / or blindness in humans and animals. Even a weak LED light beam can cause eye damage.

Disposal

The packaging is made of environmentally friendly materials. Dispose of them at your local recycling centre.

To help protect the environment, please dispose of the product properly, and not in household waste, when it has reached the end of its useful life. Please contact your local authority for information on collection points and their opening hours.

Warranty

The device has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this device is 3 years from the date of purchase. Should this device show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it - at our choice - free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the device has been damaged or improperly used or maintained.

The warranty applies to faults in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.
