USER MANUAL IAN 378875 ZOOFARI

Operation and safety notes

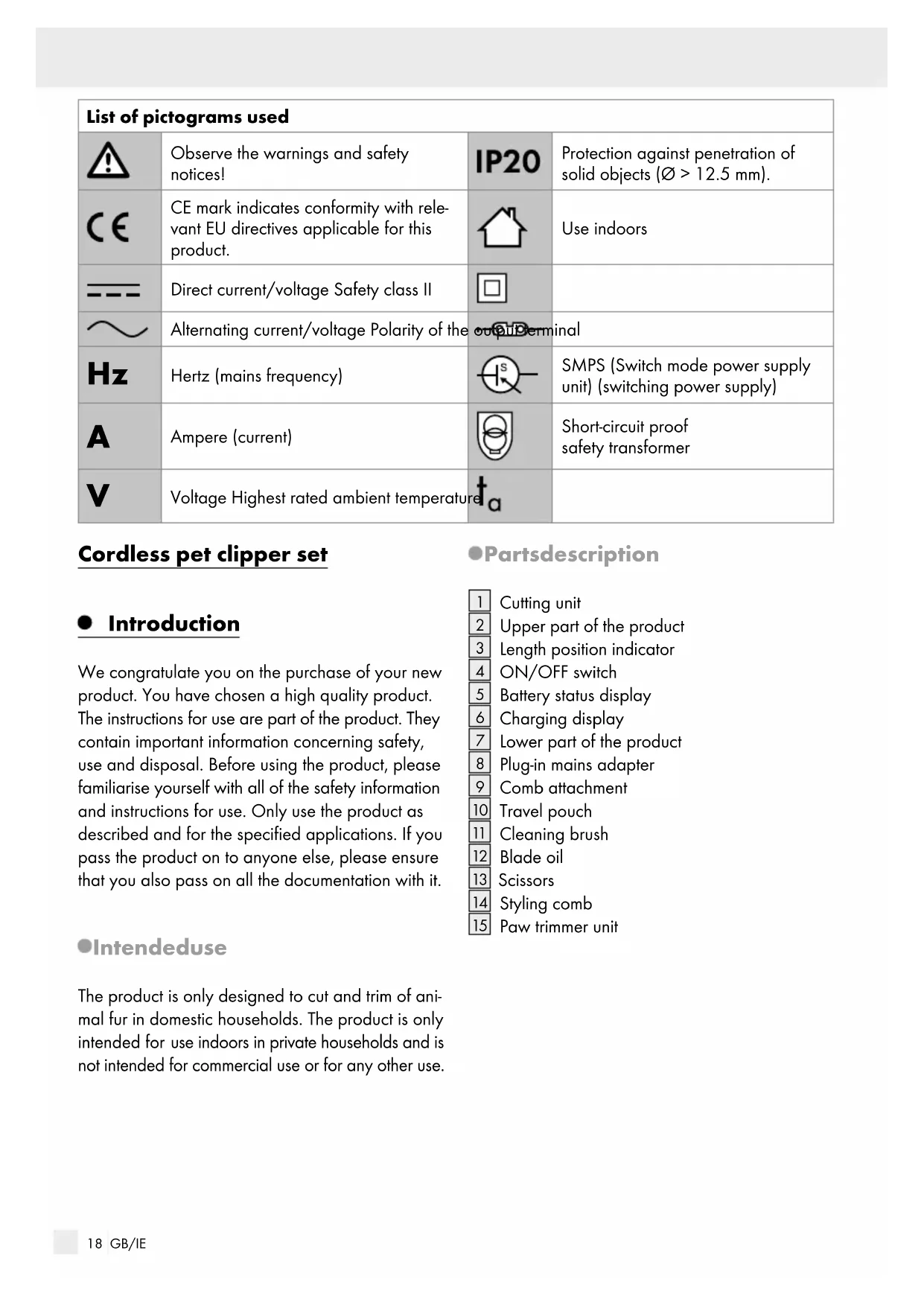

Hertz (mains frequency) SMPS (Switch mode power supply unit) (switching power supply)

Ampere (current) Short-circuit proof safety transformer

Voltage Highest rated ambient temperature Cordless pet clipper set Introduction We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it. Intended use The product is only designed to cut and trim of ani- mal fur in domestic households. The product is only intended for use indoors in private households and is not intended for commercial use or for any other use. Parts description

Upper part of the product

Lower part of the product

Manufacturer’s name or trade mark, commercial registration number and address: Shenzhen Tianyin Electronics Co., Ltd. 91440300788337003T. 9th, Building Sanzhuli Industrial Park, Shiyan Town, Bao’an Disrict, 518108 Shenzhen,

OF CHINA Model identifier: TPA-97050100V11 Input voltage: 100–240 V∼ Input AC frequency: 50/60 Hz Output voltage: 5.0 V Output current: 1.0 A Output power: 5.0 W Average active efficiency: 73.7 % No-load power consumption: 0.10 W Protection class: II / Input current: 0.15 A Ingress protection: IP20 Plug-in mains adapter (TPA-97050100V11) TÜV SÜD/GS certified Cordless pet clipper set: Input voltage: 5 V Input current: 1 A Rechargeable battery: 3.7 V /800 mAh Lithium-ion battery (not replaceable) Operating temperature: 5 °C to 40 °C Storage temperature: 5 °C to 40 °C Scope of delivery 1 Cordless pet clipper set 1 Paw trimmer unit 1 Styling comb 1 Scissors 1 Blade oil 1 Cleaning brush 1 Plug-in mains adapter 6 Comb attachments (3 mm / 6 mm / 9 mm / 12 mm / 15 mm / 18 mm) (for trim length 3.8–5 mm / 6.8–8 mm / 9.8–11 mm / 12.8–14 mm / 15.8–17 mm / 18.8–20.0 mm) 1 Travel pouch 1 Instruction manual Safety notices

KEEP ALL SAFETY NOTICES

AND INSTRUCTIONS FOR

DREN! Never leave children unsupervised with the packag- ing materials. The packaging material poses a suffocation hazard. Children frequently un- derestimate the dangers. Always keep children away from the packaging material. CAUTION! This product is not a toy for children! Children are not aware of the dangers asso- ciated with handling electrical products. This product can be used by children aged from 8 years and above and persons with reduced20 GB/IE physical, sensory or mental ca- pabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved. Children shall not play with the product. Cleaning and user maintenance shall not be made by children without supervision. The product can be used by children aged from 3 years under supervision. Use only the original accessory parts for this product. Check the cutting unit

and paw trimmer unit

for proper function before using the product. Never use the product with a damaged or broken comb at- tachment

The absence of teeth on the comb attachments

can lead to injury. Switch the product off before you put it down. The product is intended for cutting and trimming of animal fur and for household use only. Avoid the risk of fatal injury from electric shock Keep the product dry. Do not use this product near bathtubs, showers, basins or other vessels contain- ing water. If the product falls into the water, immediately remove the plug-in mains adapte

from the mains socket before you reach into the water. Never touch the plug-in mains adapter

with moist or wet hands, especially when you plug it into the socket or pull it out of the socket. Never submerge the product or the supply cord with the plug-in mains adapter

in water or any other liquid and never rinse this / these under running water. Cutting unit

and paw trimmer unit

may become hot after prolonged use. Do not use the product while the animal is being bathed or when the fur is wet. For additional protection, the installation of a residual current21 GB/IE device (RCD) having a rated re- sidual operating current not ex- ceeding 30 mA is advisable in the electrical circuit supplying the bathroom. Ask your installer for advice. Only use the original plug-in mains adapter

supplied for mains operation. Remove the plug-in mains adapter

from the socket - if a malfunction occurs, - before you clean the product, - if you have not used the product for a long time, - during a thunderstorm and - after each use. When doing so, remove the plug-in mains adapter

directly from the socket and do not pull it out using the supply cord. Avoid risk of injury Do not change the accessories while the product is switched on. Do not use the product if you de- tect any kind of visible, external damage. Never use a damaged product. If liquid gets into the product, check before using the product once more. If you notice that the supply cord, plug-in mains adapter

housing or another part has become damaged, the product can no longer be used. Repairs should only be carried out by a specialist. Improper re- pairs may result in considerable danger to the user. This will also make any warranty claims void. Do not use defective attachments with the product as these could have sharp corners. Defective components must al ways be replaced with original spare parts. Only by using original s pare parts can you ensure that safety requirements are met. Connect the plug-in mains adapter

to an outlet which is well within reach. Never use the product unsuper- vised and only use it in acc ordance with the information stated on the type plate. Connect the supply cord to the product before inserting the p lug-in

into the soc ket. The tips of the attachments are sharp. Switch off the product before attaching or switching the at- tachments, as well as before cleaning.22 GB/IE Lay the supply cord so nobody will step on or trip over it. Do not use the product if you have an open wound, cut, sun- burn or blister. Avoid the danger of damage to property Electrical products may pose a hazard to animals. Animals can also damage the product. Always keep animals away from electrical products when it is not in use. Protect the product from moisture, drops of water and splashing water. Ensure that the supply cord does not get stuck in cupboard doors and that it is not pulled over hot surfaces. This could damage the supply cord‘s insulation. Use the original accessories only. Do not place the product on hot surfaces, near hot surfaces or near an open fire. To prevent impermissible heating do not cover the plug-in mains adapter

and the product during use and charging. Do not use any corrosive or abrasive cleaning agents. Keep the blade oil

out of reach of children. Do not ingest the blade oil

, do not get it into your eyes. Keep it in a safe place if it is not being used. Safety instructions for batteries/ rechargeable batteries DANGER TO LIFE! Keep batter- ies/rechargeable batteries out of reach of children. If accidentally swallowed seek immediate med- ical attention.

SION! Never recharge non-rechargeable batteries. Do not short-circuit batteries/rechargea- ble batteries and/or open them. Overheating, fire or bursting can be the result. Never throw batteries/recharge- able batteries into fire or water. Do not exert mechanical loads to batteries/rechargeable batteries. The connection terminals must not be short-circuited.23 GB/IE Risk of batteries/rechargeab

batteries leakage Avoid extreme environmental conditions and temperatures, which could affect batteries / rechargeable batteries, e.g. radiators/direct sunlight. If batteries/rechargeable batter- ies have leaked, avoid contact with skin, eyes and mucous mem- branes with the chemicals! Flush immediately the affected areas with fresh water and seek medi cal attention! WEAR PROTECTIVE GLOVES! Leaked or damaged batteries/rechargea- ble batteries can cause burns on contact with the skin. Wear suitable protective gloves at all times if such an event occurs. This product has a built-in re- chargeable battery which cannot be replaced by the user. The re- moval or replacement of the re- chargeable battery may only be carried out by the manufacturer or his customer service or by a similarly qualified person in or- der to avoid hazards. When dis- posing of the product, it should be noted that this product con- tains a rechargeable battery.

PRODUCT DAMAGE! Do not expose the product to direct sun- shine or heat. The ideal ambient temperature is between 5 and 40 °C. Extreme low or high tem- perature may damage the bat- tery or the product. No action is needed from users to shift the product between 50 and 60 Hz. The product adapts itself for both 50 and 60 Hz. Before use Remove all parts from the package. Oiling the blades (see Fig. D + E) It is recommended that you oil the blades of the cutting unit

and the paw trimmer unit

before first use and after cleaning to guarantee complete functionality. Apply one or two drops of blade oil

between the blades and distribute them evenly. Wipe away any excess oil using a cloth. You can also use any acid-free oil such as sewing machine oil. Charging (see Fig. C) Note: Before first use, the rechargeable battery in the product should be charged for approx. 90 minutes. A charging time of 90 minutes is also required subsequently. Note: The charging process and the battery level are shown on the charging display

Status Plug icon turns red and flashes constantly Charging is in progress Plug icon turns off Charging is complete Plug icon turns red and flashes 3 times. The battery level is too low, so that the product

annot be switched on. Charging is required. Battery-status display

Status Battery symbol turns red and flashes Battery level is < 15 %. The product is operating. Battery symbol turns red Battery level is < 15 %. Charg-

Battery symbol turns green Battery level is between 16 % and 100 %. The product is operating or charging is in progress. To avoid injuries and damage to the product, always switch the product off by sliding the ON/OFF switch

to the position with the marking “0” is shown before charging the battery. Insert the cable plug of the plug-in mains a dapter

into the socket on the lower part of the product

into a socket which meets the product requirements. Disconnect the product from the plug-in mains adapter

shows the red plug icon turns off and the green battery symbol turns on (i.e. approx. 100 % battery level). Note: Do not leave the product permanently connected to the plug-in mains adapter

avoid damage to the battery or the product. Note: You can use the product for up to approx. 60 minutes with a full battery. Operation

hanging the comb attachm ents on the cutting unit (see Fig. F + G) Carefully place the desired comb attachment

onto the product as depicted in Fig. F. Ensure that both recesses of the comb attachment

properly engage into the lateral detents at both sides above the cutting unit

To remove the comb attachment

lide it forward and upwards using both t humbs. CAUTION! It is normal that the product will become hot during use. Occasionally turn off the product while using and check to see if product has possibly gotten too hot for your pet. If so, switch off the product to cool it down. Setting the trim length To set different trim lengths, hold the upper part of the product

and twist the length position indicator

into the desired position (0.8–2.0 mm). The set trim length will be dis- played on the length position indicator

hich aligns with the dot-marking on the upper part of the product

can provide adjust- ments on the trim length. The paw trimmer unit

cannot. Trimming fur Note: The fur being trimmed should be clean, dry and untangled. Carefully comb the fur using the supplied styling comb

to disentangle any potential knots.25 GB/IE Begin by using the longer comb attachment

and trim the fur gradually to the desired length. It is suggested to first trim a small area so as to test the individual comb attachments

Avoid making sudden movements when trimming. Switch the product on by sliding the ON/OFF switch

to the position with the marking “I” is shown. Guide the product slowly and steadily through the fur. If possible, trim against the direction of the fur‘s growth. While doing so, hold the product in such a way that the selected comb attachment

positioned as level as possible. Comb the fur repeatedly. You can adjust the desired trim length of the c omb attachment

more accurately by rotating the length position indicator

. These gradations differ by 0.3 mm. After use, switch the product off by sliding the ON/OFF switch

to the position with the marking “0” is shown. Example: Comb attachment 3.0 mm (trim length 3.8–5 mm): Furthermost left position (0.8 mm): short fur (3.8 mm) Middle position (1.4 mm): mid-length fur (4.4 mm) Furthermost right position (2.0 mm): long fur (5.0 mm) Note: Only cutting unit

can provide adjustments on the trim length. The paw trimmer unit

cannot. Comb attachment (mm) Trim length (mm) Trim length with accurate trim adjustment (mm)

supplied may be used for additional styling. Trimming fur on paw Switch the product off by sliding the ON/OFF switch

to the position with the marking “0” is shown. Remove the cutting unit

and the comb attach- ment

from the product (see Fig. F–I). Rotate the lower part of the product

to the product until both recesses of the paw trimmer unit

engage into the product (see Fig. H + I). Switch on the product by sliding the ON/OFF

switch to the position with the marking “I” is shown. Guide the blade of the paw trimmer unit

the paw area.26 GB/IE Cleaning and care

out of the mains socket before cleaning the product. Never touch the plug-in mains adapter

with moist or wet hands, especially when you plug it into the socket or pull it out of the socket. Always keep the plug-in mains adapter

and supply cord dry.

CAUTION! RISK OF PROPERTY DA

MAGE! Do not submerge the product in water or any other liquid to clean it as the product is not waterproof. This could damage the live parts (rechargeable batteries). Do not use any corrosive or abrasive cleaning agents. Clean the housing using a damp cloth and a mild detergent. Switch the product off by sliding the ON/OFF switch

to the position with the marking “0” is shown. Disconnect the supply cord from the product and remove the plug-in mains adapter

from the mains socket. Remove the comb attachment

from the product (see Fig. F–I). Wash the comb attachment

with running water and dry them. Remove any remaining bits of fur from the cutting unit

using the cleaning brush

provided (see Fig. J). Apply one or two drops of blade oil

between the blades and the moving parts (see Fig. D + E). Adjust the length position indicator

2.0 mm after you have finished cleaning the

product, before once more attaching the cutting unit

to the product (see Fig. H + I). Note: Clean the cutting unit

and paw trimmer unit

after every use. Storage Place the product in the travel pouch

provid ed. Troubleshooting Error Cause Solution The product does not work. The battery may not be charged. Recharge the product. Trimming is difficult. Fur may be stuck inside the blades. Clean the cutting unit

and the product and oil it if necessary. Placing the cutting unit

to the product is difficult. The length position

indicator is on 0.8, 1.1,

to 2.0 mm. Note: To obtain optimal battery capacity, the product must be fully charged roughly every 6 months. Disposal The packaging is made entirely of recyclable mate- rials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics/20–22: paper and fibre- board/80–98: composite materials. The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only. Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.27 GB/IE To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Infor- mation on collection points and their opening hours can be obtained from your local authority. Faulty or used batteries/rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries/rechargeable batteries and/or the product to the available collection points. Environmental damage through incorrect disposal of the batteries/ rechargeable batteries! Batteries/rechargeable batteries may not be dis- posed of with the usual domestic waste. They may contain toxic heavy metals and are subject to haz- ardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is w
