Product type	Electric pet clipper
Brand	ZOOFARI
Model	ZTSD 36 A1
Usage	Domestic for pets (dogs, cats, etc.)
Power supply	Mains 100-240 V ~ 50/60 Hz
Power consumption	10 W
Protection class	II
Cutting length	3 to 13 mm (with combs) + fine adjustment up to 2 mm extra
Combs included	6 combs: 3 mm, 6 mm, 9 mm, 13 mm, left and right tapering combs
Blade features	Metal cutting head
Operating temperature	+5 °C to +40 °C
Storage temperature	0 °C to +40 °C
Included accessories	Clipper, 6 combs, blade guard, cleaning brush, blade oil, instruction manual
Maintenance	Cleaning with brush, occasional oiling of blade, do not immerse
Safety	Do not use on wet animal or in bath, unplug before cleaning
Warranty	3 years (parts and labor)
Customer service	Tel.: [phone], Email: [e-mail]
Repairability	Have repaired by a specialized technician or customer service
Standards	CE (EMC 2004/108/EC, Low Voltage 2006/95/EC)

Frequently Asked Questions - ZTSD 36 A1 ZOOFARI

How to use the cutting combs?

Insert the chosen comb onto the cutting head, teeth facing upward, and press until it clicks. Start with the longest comb (13 mm) and reduce if necessary. You can also remove the comb for precise trimming.

Can I use the clipper on a wet animal?

No, the coat must be dry and clean. Never use the clipper on a wet animal or in the bath to avoid the risk of electric shock.

How to clean the cutting head?

Unplug the device. Use the provided cleaning brush to remove hair. Never use water; only medical alcohol is allowed for deep cleaning.

How to oil the blade?

Occasionally oil the cutting head with the provided oil. Apply a few drops, wipe off excess with a dry cloth.

What to do if the clipper does not work?

Check the mains connection and the condition of the cord. If the problem persists, contact customer service at 0800 919270 or by email: [e-mail].

Can I use the clipper without a comb?

Yes, remove the comb to trim at the minimum length (cutting head only). This allows precise contouring.

What is the minimum cutting length?

With the 3 mm comb, the cutting length is 3 mm. By removing the comb and using the fine adjustment fully, you can achieve approximately 1 mm.

How to adjust the cutting length precisely?

Use the adjustable switch on the back of the device. Slide backward to increase the length (up to +2 mm), forward to reduce it.

Is the clipper under warranty?

Yes, the device has a 3-year warranty from the date of purchase, covering material and manufacturing defects. Keep the receipt.

Where can I find spare parts?

Contact customer service at 0800 919270 or by email: [e-mail]. Only use original accessories.

USER MANUAL ZTSD 36 A1 ZOOFARI

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

KOMPERNASS GMBH

BurgsraBe 21

D-44867 Bochum

www.kompernass.com

Last Information Update:

01/2012 · Ident.No.: ZTSD36A1112011-2

IAN 72031

IAN 72031

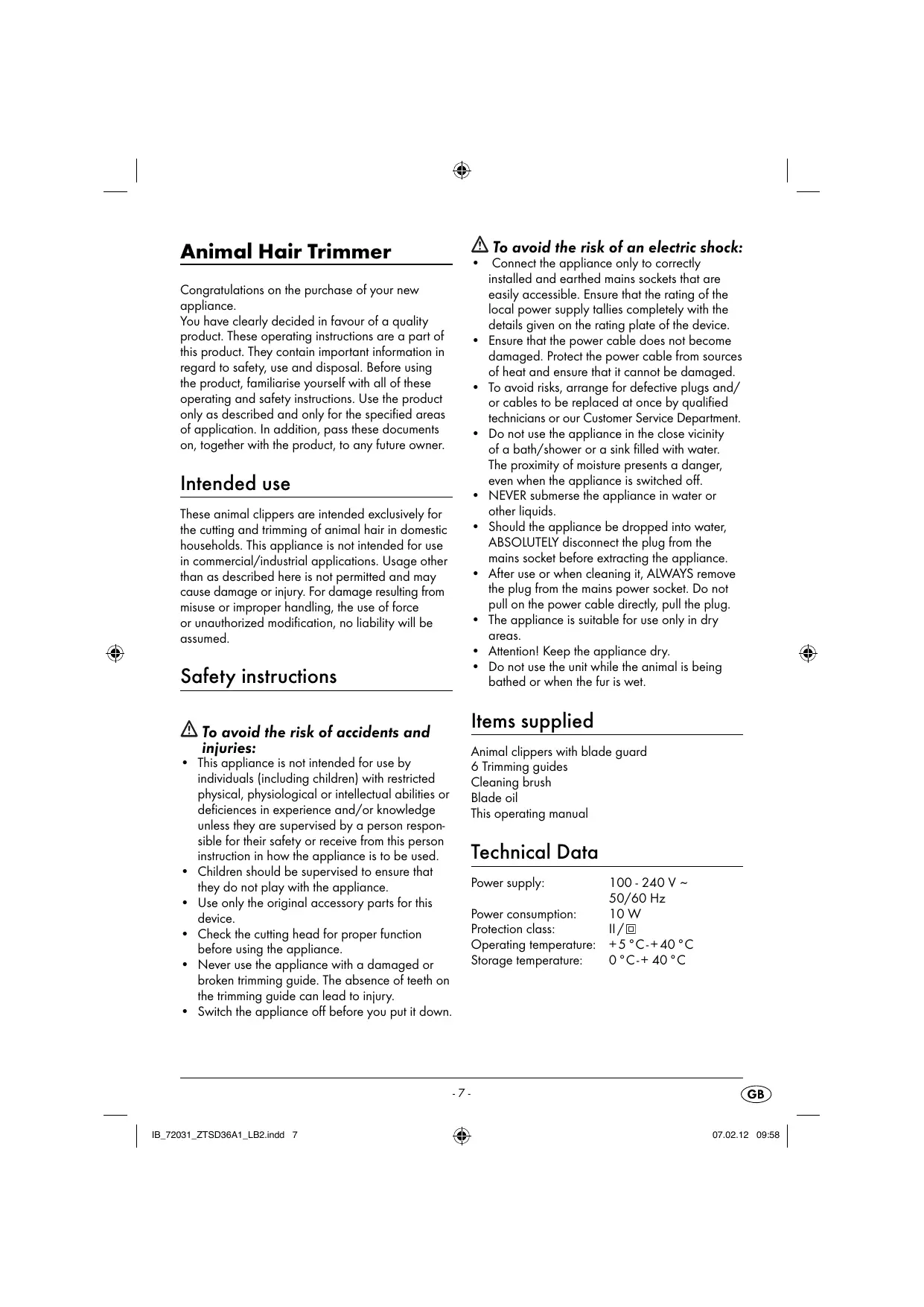

Congratulations on the purchase of your new appliance.

You have clearly decided in favour of a quality product. These operating instructions are a part of this product. They contain important information in regard to safety, use and disposal. Before using the product, familiarise yourself with all of these operating and safety instructions. Use the product only as described and only for the specified areas of application. In addition, pass these documents on, together with the product, to any future owner.

Intended use

These animal clippers are intended exclusively for the cutting and trimming of animal hair in domestic households. This appliance is not intended for use in commercial/industrial applications. Usage other than as described here is not permitted and may cause damage or injury. For damage resulting from misuse or improper handling, the use of force or unauthorized modification, no liability will be assumed.

Safety instructions

To avoid the risk of accidents and injuries:

• This appliance is not intended for use by individuals (including children) with restricted physical, physiological or intellectual abilities or deficiencies in experience and/or knowledge unless they are supervised by a person responsible for their safety or receive from this person instruction in how the appliance is to be used.
• Children should be supervised to ensure that they do not play with the appliance.
• Use only the original accessory parts for this device.
• Check the cutting head for proper function before using the appliance.
• Never use the appliance with a damaged or broken trimming guide. The absence of teeth on the trimming guide can lead to injury.
• Switch the appliance off before you put it down.

To avoid the risk of an electric shock:

• Connect the appliance only to correctly installed and earthed mains sockets that are easily accessible. Ensure that the rating of the local power supply tallies completely with the details given on the rating plate of the device.
• Ensure that the power cable does not become damaged. Protect the power cable from sources of heat and ensure that it cannot be damaged.
• To avoid risks, arrange for defective plugs and/ or cables to be replaced at once by qualified technicians or our Customer Service Department.
• Do not use the appliance in the close vicinity of a bath/shower or a sink filled with water. The proximity of moisture presents a danger, even when the appliance is switched off.
• NEVER submerse the appliance in water or other liquids.
• Should the appliance be dropped into water, ABSOLUTELY disconnect the plug from the mains socket before extracting the appliance.
• After use or when cleaning it, ALWAYS remove the plug from the mains power socket. Do not pull on the power cable directly, pull the plug.
• The appliance is suitable for use only in dry areas.
• Attention! Keep the appliance dry.
• Do not use the unit while the animal is being bathed or when the fur is wet.

Items supplied

Animal clippers with blade guard

6 Trimming guides

Cleaning brush

Blade oil

This operating manual

Technical Data

Power supply: 100 - 240 V ~

50/60 Hz

Power consumption: 10 W

Protection class: II/回

Operating temperature: +5^ C + 40^ C

Storage temperature: 0^ C + 40^ C

CE- Conformity

This device complies, in regards to conformance with the basic requirements and other relevant regulations, with the EMC Directive 2004/108/EC, as well as the Directive for Low Voltage Devices 2006/95/EC.

Description of the appliance

Appliance (Fig. A)

Cutting head
Suspension loop
3 On/Off switch
4 Adjustment switch "Cutting length"

Trimming guides and accessories (Fig. B)

① 1/8" (3 mm Cutting length)
② 1 / 4'' (6mm Cutting length)
3 / 8'' (9 mm Cutting length)
④ 1 / 2'' (13 mm Cutting length)
⑤ Trimming guide for side step cut (right)
⑥ Trimming guide for side step cut (left)
⑦ Blade cover
⑧ Cleaning brush
9 Blade oil

Operation

The fur to be cut must be dry and clean. Brush the fur through to remove any knots.

• Remove the blade guard ⑦ from the cutting head ①.
• Place the required trimming guide (① - ⑥) with the prongs facing upwards on the cutting head and thereby press the flap of the trimming guide down firmly onto the lower metal edge of the cutting head (see illustration).

• Ensure that the trimming guide has properly engaged and is secured before starting to cut/trim the fur.

① Note:

It is advisable to first trim a small area so as to test the individual comb attachments. Start with a comb attachment for long hair (1/2" ④ or 3/8" ③) and, if necessary, use a shorter one. The comb attachments permit cutting lengths from 3 to 13 mm.

• Switch the appliance on by sliding the On/Off switch ③ to the position "ON".
• Slowly run the appliance through the fur against the direction of hair growth. Hold the appliance so that the trimming guide is as flat as possible against the animal.
• In addition, with the adjustment switch 4 the cutting length of the cutter head 1 can be adjusted in steps (up to 2mm ) without having to exchange the comb attachment. To do this, slide the adjustment switch 4 backwards to increase the cutting length in steps.

With this the cutting length of the respectively attached comb attachment is also increased by up to 2mm

Slide the adjustment switch 4 forward again to reduce the cutting length or to bring the comb attachment back into its original position.

• Through removal of the individual trimming guide, i.e. using only the cutting head ① itself, you can cut clean contours.
  After use, switch the appliance off by sliding the On/Off switch 3 to the position "OFF".

Cleaning and Care

Risk of electric shock

Before cleaning, remove the plug from the mains power socket.

NEVER submerse the appliance in water or other liquids.

Take the respective trimming guide, if fitted, off.
- Using exclusively the cleaning brush ⑧ , remove the hairs from the cutting head 1 . The cutting head 1 may not be cleaned with water or other liquids, except medical alcohol!
If in regular use, the cutting head 1 should be oiled occasionally. For this, use the supplied blade oil (9).
- Remove excess oil with a dry cloth.
- Clean the housing with a soft, dry lint-free cloth.
- Store the appliance in a dry and dust free location. When it is in storage, place the blade guard ⑦ on the cutting head 1 .

Do not dispose of the device in your normal domestic waste. This product is subject to the provisions of European Directive 2002/96/EC.

Dispose of the appliance over a registered waste disposal firm or at your local community waste disposal facility. Observe the currently applicable regulations. In case of doubt, please contact your waste disposal centre.

Dispose of all packaging materials in an environmentally friendly manner.

Warranty and Service

You receive a 3-year warranty for this device as of the purchase date. This appliance has been manufactured with care and meticulously examined before delivery.

Please retain your receipt as proof of purchase. In the case of a warranty claim, please make contact by telephone with our service department.

Only in this way can a post-free despatch for your goods be assured.

The warranty covers only claims for material and manufacturing defects, not for transport damage, worn parts or for damage to fragile components, e.g. switches or batteries. This product is for private use only and is not intended for commercial applications.

In the event of misuse and improper handling, use of force and interference not carried out by our authorized service branch, the warranty will become void.

Your statutory rights are not restricted in any way by this warranty.

The warranty period is not extended by repairs effected under warranty. This applies also to replaced and repaired parts. Damages or defects discovered after purchase are to be reported directly after unpacking, at the latest two days after the purchase date. Repairs carried out after lapse of the warranty period are subject to charge
