USER MANUAL AB 84 Kärcher

CEO Head of Approbation 6 DE- 1 Please read and comply with these original instructions prior to the initial operation of your appliance and store them for later use or subsequent owners. – The non-compliance of the operating and safety instructions may lead to damages of the appliance and to dan- gers for the operator and other persons. – In case of transport damage inform ven- dor immediately Notes about the ingredients (REACH) You will find current information about the ingredients at: http://www.karcher.de/de/unternehmen/ umweltschutz/REACH.htm Danger Immediate danger that can cause severe injury or even death. 몇 Warning Possible hazardous situation that could lead to severe injury or even death. Caution Possible hazardous situation that could lead to mild injury to persons or damage to property. Danger – Never hold the mains plug or the device with wet hands. – Never leave the device unattended if it has not been switched off and the plug has not been pulled out of the socket. – Check the mains cable regularly for damage such as aging or formation of cracks. If you find a damage, then the cable must be replaced before using it any further. – The machine with working equipment must be checked to ensure that it is in proper working order and is operating safely prior to use. Otherwise, the appli- ance must not be used. – The operator must use the appliance properly. The person must consider the local conditions and must pay attention to third parties, in particular children, when working with the appliance. – The appliance may only be used by per- sons who have been instructed in han- dling the appliance or have proven qualification and expertise in operating the appliance or have been explicitly assigned the task of handling the appli- ance. – This appliance is not intended for use by persons (including children) with limited physical, sensoric or mental capacities or lack of experience and/or skills, unless such persons are accompanied and su- pervised by a person in charge of their safety or if they received precise instruc- tions on the use of this appliance. – Children should be supervised to prevent them from playing with the appliance. – Do not use or park the device in the open. – To avoid risks, all repairs and replace- ment of spare parts in the machine may only be carried out by the authorised customer service personnel. Environmental protection The packaging material can be recycled. Please do not throw the packaging material into household waste; please send it for recycling. Old appliances contain valuable materials that can be recycled; these should be sent for recy- cling. Batteries, oil, and similar substances must not enter the environment. Please dispose of your old appliances using ap- propriate collection systems. Symbols in the operating instructions Safety instructions 7EN- 2– This blower is meant for drying carpets/ carpet floors that have been wet-cleaned.– This device is exclusively meant for in-dustrial and commercial use. Any use extending beyond this is not con-sidered as proper use. The manufacturer is not liable for any losses resulting from this; the user alone bears the risk for this.1 Transport handle2 Fastener for transport handle3 Power cord4 Bearing wheel5 Clamping part with cross-handles6 Blower7 Handle8 Power switchÎ Install the transport handle.Note: When installing the appliance, en-sure that the blower grid is free and does not have any objects in front of it.Î Open doors and windows as wide as possible to improve the ventilation. Î Place the device on the carpet to be dried.Î Lift the carpet. Î Push the carpet under the clamping part of the device and fasten it by turn-ing the cross-handles.Î Plug in the main plug.Î Turn on the appliance.Î Turn off the appliance. Î Pull out the mains plug. Proper use Device elements

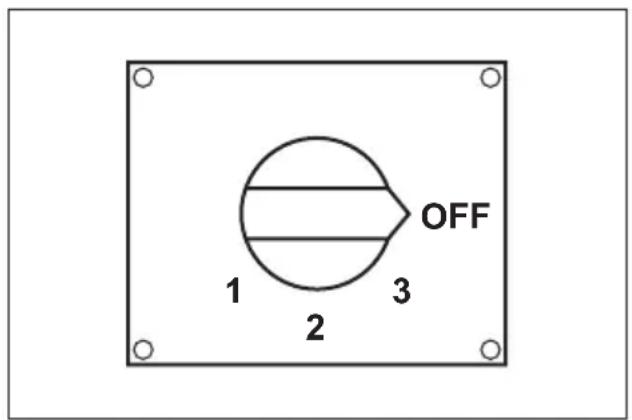

Start up Operation Drying the carpet from the top Drying the carpet from below Power switch OFF Off3 Maximum output2 Medium output1 Minimum output Turning on the Appliance Shutting down OFF

8 EN- 3 Caution Risk of injury and damage! Observe the weight of the appliance when you transport it. Î Grab the appliance by the carry handle, not by the transport handle. Î Pull the appliance behind you by trans- port handle for transporting it over long- er distances. Î When transporting in vehicles, secure the appliance according to the guide- lines from slipping and tipping over. Caution Risk of injury and damage! Note the weight of the appliance in case of storage. This appliance must only be stored in inte- rior rooms. Danger First pull out the plug from the mains before carrying out any tasks on the machine. Î Check the blower grid daily for dirt and clean it. Î Clean regularly the surfaces of the de- vice with a moist piece of cloth. Danger First pull out the plug from the mains before carrying out any tasks on the machine. Î Check cables, plugs, fuse, and socket. Î Turn on the appliance. If malfunction can not be fixed, the device must be checked by customer service. Î Inform Customer Service The warranty terms published by the rele- vant sales company are applicable in each country. We will repair potential failures of your appliance within the warranty period free of charge, provided that such failure is caused by faulty material or defects in man- ufacturing. In the event of a warranty claim please contact your dealer or the nearest authorized Customer Service centre. Please submit the proof of purchase. – Only use accessories and spare parts which have been approved by the man- ufacturer. The exclusive use of original accessories and original spare parts ensures that the appliance can be oper- ated safely and troublefree. – At the end of the operating instructions you will find a selected list of spare parts that are often required. – For additional information about spare parts, please go to the Service section at www.kaercher.com. Transport Storage Maintenance and care Troubleshooting Blower is not working Warranty Accessories and Spare Parts 9EN- 4 We hereby declare that the machine de- scribed below complies with the relevant basic safety and health requirements of the EU Directives, both in its basic design and construction as well as in the version put into circulation by us. This declaration shall cease to be valid if the machine is modified without our prior approval. 5.957-867 The undersigned act on behalf and under the power of attorney of the company man- agement. Alfred Kärcher GmbH Co. KG Alfred-Kärcher-Str. 28 - 40 71364 Winnenden (Germany) Phone: [phone] Fax: [phone] Technical specifications Voltage V 230 Frequency Hz 50 Current type -- 1~ Power W 700 Length mm 640 Width mm 400 Height mm 950 Weight kg 17,5 Values determined to EN ISO 3744 Sound pressure level L
