Product type	Cooker hood
Brand	Electrolux
Model	LFG337S
Color	Not specified (likely gray or white)
Electrical supply	220-240 V ~ 50 Hz (standard estimate)
Lighting power	4 W (bulb E14, 220-240 V)
Bulb type	DRBB/F-4-220-240-E14-37/100
Number of motor speeds	3 (speeds 1, 2, 3)
Control	Fan speed slider + light switch
Exhaust type	Exhaust to outside (recirculation possible with charcoal filter)
Grease filter	Dishwasher safe (short cycle, low temperature)
Charcoal filter	Not washable, replace every 4 to 6 months
Minimum distance to cooking surface	65 cm
Material	Not specified (likely stainless steel or glass)
Dimensions (W x D x H)	Not specified (standard 90 cm wide)
Weight	Not specified (approx. 15-20 kg)
Maintenance	Monthly cleaning of grease filters, interior and surfaces
Safety	Automatic shut-off not mentioned; all-pole disconnection required for electrical installation
Warranty	Standard Electrolux (contact after-sales service)

Frequently Asked Questions - LFG337S ELECTROLUX

How to install the Electrolux LFG337S hood?

Installation must be carried out by a qualified professional. Ensure a minimum distance of 65 cm between the hood and the cooking surface. Follow the installation instructions provided separately. Make sure the air exhaust complies with local regulations.

What is the bulb wattage and how to replace it?

The bulb is 4 W, type E14, voltage 220-240 V, dimensions 37 x 100 mm. To replace, disconnect the appliance, let it cool, carefully remove the diffuser with a non-sharp tool, then replace the bulb.

How to clean the grease filters?

Grease filters should be cleaned monthly. To remove, press the lever of the clip, tilt the filter downwards and pull. Wash them by hand with mild detergent or in the dishwasher on a short, low-temperature cycle.

When to replace the charcoal filter?

The charcoal filter is not washable and must be replaced every 4 to 6 months, or more often with intensive use. To replace, first remove the grease filters, then turn the charcoal filter to the left and pull.

The hood does not turn on, what should I do?

Check that the appliance is properly plugged in. If the fuse has tripped, reset it. If the problem persists, contact a qualified electrician.

How to use the different hood speeds?

Use speed 1 for reheating or cooking covered food, speed 2 for cooking with several covered pots or gentle frying, and speed 3 for boiling or frying large quantities without a lid. Let the hood run for 15 minutes after cooking.

Can I install the hood in recirculation mode?

Yes, with an activated charcoal filter (not included). Refer to the installation manual for specific instructions. The charcoal filter must be replaced regularly.

What cleaning products to use for the hood?

Use a soft cloth, warm water and mild detergent. Avoid abrasive cleaners, metal brushes, steam cleaners and water sprayers.

How to contact Electrolux after-sales service?

Before contacting the authorized service, note the model, PNC and serial number (on the rating plate). Visit www.electrolux.com/support or call customer service.

The hood is noisy or not sucking enough, what should I do?

Check that the motor speed is suitable for the steam. Clean the grease filters and replace the charcoal filter if necessary. Make sure the exhaust ducts are not obstructed.

USER MANUAL LFG337S ELECTROLUX

Simple line drawing of a chimney with three windows and a base (no text or symbols)

LFG235S

LFG335S

LFG337S

Technical line drawing of a mechanical component with two labeled parts (1 and 2), showing internal structure and rotation arrows (no text or symbols beyond labels)

Technical line drawing of a mechanical component with two labeled parts (1 and 2), showing internal structure and rotation arrows (no text or symbols beyond labels)

Technical diagram of a mechanical component with labeled parts 1 and 2, showing internal structure and directional arrows.

Technical line drawing of a mechanical component with two labeled parts (1 and 2), showing internal structure and rotation arrows (no text or symbols beyond labels)

Technical line drawing of a mechanical component with two labeled parts (1 and 2), showing internal structure and rotation arrows (no text or symbols beyond labels)

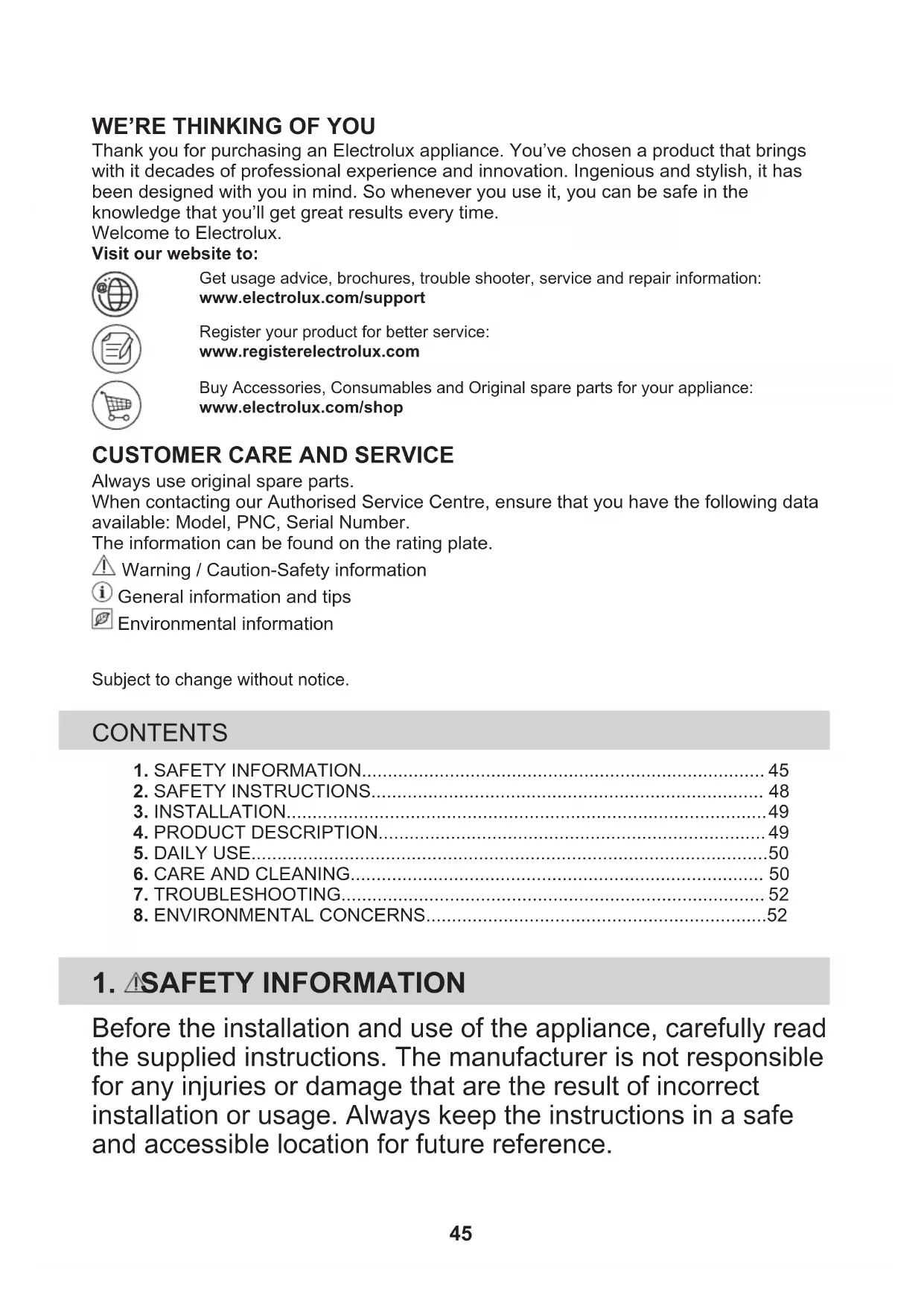

WE'RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You've chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you'll get great results every time.

Welcome to Electrolux.

Visit our website to:

Get usage advice, brochures, trouble shooter, service and repair information: www.electrolux.com/support

Register your product for better service: www.registerelectrolux.com

Buy Accessories, Consumables and Original spare parts for your appliance: www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

⚠ Warning / Caution-Safety information

i General information and tips

Environmental information

Subject to change without notice.

CONTENTS

1. SAFETY INFORMATION......45
2. SAFETY INSTRUCTIONS.... 48
3. INSTALLATION....49
4. PRODUCT DESCRIPTION....49
5. DAILY USE....50
6. CARE AND CLEANING....50
7. TROUBLESHOOTING....52
8. ENVIRONMENTAL CONCERNS....52

1. ⚠ SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

1.1 Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children of less than 8 years of age and persons with very extensive and complex disabilities shall be kept away from the appliance unless continuously supervised.
• Children should be supervised to ensure that they do not play with the appliance.
• Keep all packaging away from children and dispose of it appropriately.
• Keep children and pets away from the appliance when it operates.
• Children shall not carry out cleaning and user maintenance of the appliance without supervision.

1.2 General Safety

• This appliance is intended for domestic use above hobs, cookers and similar cooking devices.
• This appliance is designed for single household domestic use in an indoor environment.
• This appliance may be used in, offices, hotel guest rooms, bed & breakfast guest rooms, farm guest houses and other similar accommodation where such use does not exceed (average) domestic usage levels.
• Before carrying out any maintenance, disconnect the appliance from the power supply.
• CAUTION: Accessible parts may become hot during use with cooking appliances.
• Use only the fixing screws supplied with the appliance if not supplied, use the screws recommended in the installation instructions. Install the appliance in a safe and suitable place that meets installation requirements.

- WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

- Do not use adhesives to fix the appliance.

- The minimum distance between the hob surface on which the pans stand and the lower part of the appliance shall be at least 65 cm, unless otherwise specified in the installation instructions for the appliance or hob.

- The discharge of air must comply with local authorities regulations.

- Ensure good air ventilation in the room where the appliance is installed to avoid the backflow of gases into the room from appliances burning gas or other fuels, including open fires.

- Make sure that the ventilation openings are not blocked and the air collected by the appliance is not conveyed into a duct used to exhaust smoke and steam from other appliances (central heating systems, thermosiphons, water-heaters, etc.).

- When the appliance operates with other appliances the maximum vacuum generated in the room should not exceed 0.04 mbar.

- Make sure not to cause damage to the mains cable. Contact our Authorised Service Centre or an electrician to change a damaged mains cable.

- If the appliance is connected directly to the power supply, the electrical installation must be equipped with an isolating device that allows to disconnect the appliance from the mains at all poles. Complete disconnection must comply with conditions specified in the overvoltage category III. The means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.

- Do not flambé under the appliance.

- Do not use to exhaust hazardous or explosive materials and vapours.

• Clean the appliance regularly with a soft cloth to prevent the deterioration of the surface material.
• Do not use a steam cleaner, water spray, harsh abrasive cleaners or sharp metal scrapers to clean the surface of the appliance. Use only neutral detergents.
• Clean grease filters regularly (at least every 2 months) and remove grease deposits from the appliance to prevent the risk of fire.
• Use a cloth to clean the interior of the appliance.

2. SAFETY INSTRUCTIONS

2.1 Installation

WARNING!

Risk of injury, electric shock, fire, burns or damage to the appliance.

• Only a qualified person must install this appliance.
• Do not install or use a damaged appliance.
• Follow the installation instructions supplied with the appliance.
  • Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.
• Before installing the appliance remove all the packaging, the labelling and the protective film.
• Do not install the exhaust air into a wall cavity, unless the cavity is designed for that purpose.

2.2 Electrical connection

WARNING!

Risk of fire and electric shock.

• All electrical connections should be made by a qualified electrician.

• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.

• If the symbol ( ) not printed on the rating plate, the appliance must be earthed.
  • Always use a correctly installed shockproof socket.

• Do not let the electricity mains cable tangle.
• Do not use multi-plug adapters and extension cables.
• If the mains socket is loose, do not connect the mains plug.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
• The shock protection of live and insulated parts must be fastened in such a way that it cannot be removed without tools.
• Make sure the appliance is installed correctly. Loose and incorrect electricity mains cable can make the terminal become too hot.
• Connect the appliance at the end of the installation. Make sure that there is access to the mains after the installation.

2.3 Use

WARNING!

Risk of injury, burns and electric shock.

• This appliance is for cooking purpose only. Do not use the appliance for other purpose.
• Do not change the specification of this appliance.

• Do not operate the appliance with wet hands or when it has contact with water.

• Use only the accessories supplied with the appliance.

• Keep flames or heated objects away from fats and oils during cooking and frying.
• Do not use uncovered electric grills.
• Do not use the appliance as a storage surface.
• Do not use magnifying glasses, binoculars or similar optical devices to look directly at the lighting of the appliance.
• If the appliance works with other devices, the maximum developed pressure must not exceed 4 Pa (4x10-5 bar).

2.4 Service

• To repair the appliance contact the Authorised Service Centre. Use original spare parts only.
- Concerning the lamp(s) inside this product and spare part lamps sold separately: These lamps are intended to withstand

extreme physical conditions in household appliances, such as temperature, vibration, humidity, or are intended to signal information about the operational status of the appliance. They are not intended to be used in other applications and are not suitable for household room illumination.

2.5 Disposal

WARNING!

Risk of injury or suffocation.

• Contact your municipal authority for information on how to dispose of the appliance.
• Disconnect the appliance from the mains supply.
• Cut off the mains electrical cable close to the appliance and dispose of it.

3. INSTALLATION

WARNING!

Refer to Safety chapters.

3.1 Installation instructions

For complete information about the installation of the appliance refer to a separate installation booklet.

4. PRODUCT DESCRIPTION

4.1 Control panel overview

1 2 3

Function Description

1

Light switch To switch the light on and off.

2

Fan speed switch To switch between fan speed level.

3

Indicator Indicates if the hood operates.

5. DAILY USE

5.1 Using the hood

Check the recommended speed according to the table below.

1	While heating up food, cooking with covered pots.
2	While cooking with covered pots on multiple cooking zones or burners, gentle frying.
3	While boiling and frying big quantities of food without a lid, cooking on multiple cooking zones or burners.

It is recommended to leave the hood operating for approximately 15 minutes after cooking.

To operate the hood:

Move the fan speed switch to one of the speed levels. The hood starts to operate. If needed, change the speed by moving the switch.

The hoods light works independently to other hood functions. To illuminate the cooking surface use the light switch

To turn off the appliance move the fan speed switch to the 0 position.

6. CARE AND CLEANING

6.1 Notes on cleaning

Cleaning Agents

Do not use abrasive detergents and brushes.

Clean the surface of the appliance with a soft cloth with warm water and a mild detergent.

After cooking some parts of appliance can get hot. To avoid stains appliance must be cooled down and dried with clean cloth or paper towels.

Clean stains with a mild detergent.

Keep the hood clean

Clean the appliance and grease filters each month. Clean the interior and grease filters carefully from fat. Fat accumulation or other residue may cause fire.

Grease filters can be washed in a dishwasher.

The dishwasher must be set to a low temperature and a short cycle. The grease filter may discolour, it has no influence on the performance of the appliance.

Charcoal filter

The time of saturation of the charcoal filter varies depending on the type of cooking and the regularity of cleaning the grease filter. The activated charcoal filter is not washable, cannot be regenerated and must be replaced approximately every 4/6 months of operation, or more frequently for particularly heavy usage.

6.2 Cleaning the grease filter

Filters are mounted with the use of clips and pins on the opposite side.

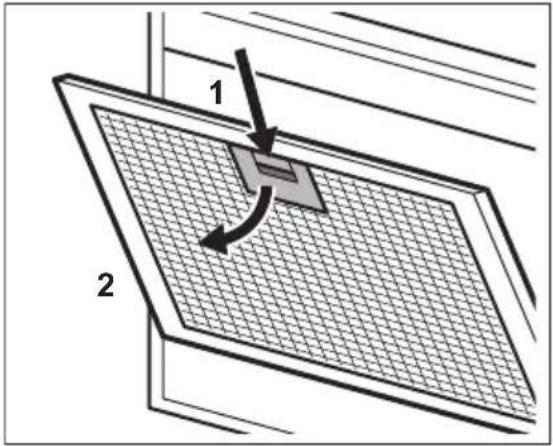

To clean the filter:

1. Press the handle of the mounting clip on the filter panel underneath the hood.

1 2

1. Slightly tilt the front of the filter downwards, then pull.

Repeat the first two steps for all filters.

1. Clean the filters using a sponge with non abrasive detergents or in a dishwasher.

The dishwasher must be set to a low temperature and a short cycle. The grease filter may discolour, it has no influence on the performance of the appliance.

1. To mount the filters back follow the first two steps in reverse order.

Repeat the steps for all filters if applicable.

6.3 Replacing the charcoal filter

WARNING!

The charcoal filter is NON-washable! The filter cannot be regenerated!

To replace the charcoal filter:

1. Remove the grease filters from the appliance.
   Refer to "Cleaning the grease filter" in this chapter.

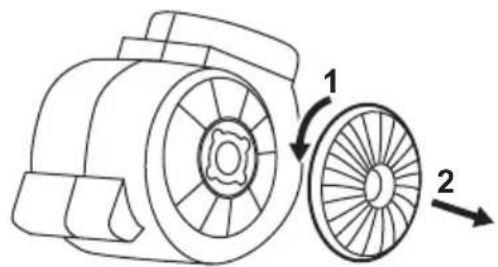

2. Turn the filter counterclockwise (1) and then pull (2).

Technical line drawing of a mechanical component with two labeled parts (1 and 2), showing internal structure and rotation arrows (no text or symbols beyond labels)

To mount the filters back follow the steps in reverse order.

In any case, it is necessary to replace the filters at least every four months.

6.4 Replacing the lamp

WARNING!

Risk of burns and electric shock! Disconnect the appliance from the electricity before the operation! Make sure that the light bulb has cooled down before touching it.

WARNING!

Risk of injury! Use protective gloves to replace the lamp.

Risk of damage to the appliance! Do not use sharp edged tools!

Replace the burnt light bulb in accordance with the specifications:

Power (W) 4

Socket E14

Voltage (V) 220 - 240

Dimensions (mm) 37 x 100 (diameter x length)

ILCOS D Code (according IEC 61231)

DRBB/F-4-220-240-E14-37/100

7. TROUBLESHOOTING

WARNING!

Refer to Safety chapters.

7.1 What to do if...

Problem Possible cause Remedy

You cannot activate the appliance. The appliance is not connected to a power supply or it is connected incorrectly.		Check if the appliance is correctly connected to the electrical supply.
You cannot activate the appliance. The fuse is blown. Make sure that the fuse is the cause of the malfunction. If the fuse is blown again and again, contact a qualified electrician.
The lamp does not operate. The lamp is defective. Replace the lamp. Refer to the "Care and Cleaning" chapter.
The appliance does not absorb enough vapours.	The motor speed is not adequate to the appearing vapours.	Change the speed of the motor.

8. ENVIRONMENTAL CONCERNS

Recycle materials with the symbol Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of

To replace the lamp:

1. The lamp cover has two slots on each side. Use a flat non sharp plastic tool. Gently remove the lamp cover from the appliance.
2. Replace the lamp.
3. Mount the lamp cover.

appliances marked with the symbol ⚗with the household waste. Return the product to your local recycling facility or contact your municipal office.

PENSAMOS EN USTED

Technical line drawing of a mechanical component with two labeled parts (1 and 2), showing internal structure and rotation arrows (no text or symbols beyond labels)

Technical line drawing of a mechanical component with two labeled parts (1 and 2), showing internal structure and rotation arrows (no text or symbols beyond labels)

Technical line drawing of a mechanical component with two labeled parts (1 and 2), showing internal structure and motion arrows (no text or symbols beyond labels)

Technical line drawing of a mechanical component with two labeled parts (1 and 2), showing internal structure and rotation arrows (no text or symbols beyond labels)

5. SVAKODNEVNA UPORABA

5.1 Uporaba nape

Technical diagram of a mechanical component with labeled parts 1 and 2, showing internal structure and directional arrows.

Technical line drawing of a mechanical component with two labeled parts (1 and 2), showing internal structure and rotation arrows (no text or symbols beyond labels)

Technical line drawing of a mechanical component with two labeled parts (1 and 2), showing internal structure and motion arrows (no text or symbols beyond labels)

Technical diagram of a mechanical component with labeled parts 1 and 2, showing internal structure and directional arrows.

Technical line drawing of a mechanical component with two labeled parts (1 and 2), showing internal structure and rotation arrows (no text or symbols beyond labels)

Technical line drawing of a mechanical component with two labeled parts (1 and 2), showing internal structure and rotation arrows (no text or symbols beyond labels)

Technical line drawing of a mechanical component with two labeled parts (1 and 2), showing internal structure and rotation arrows (no text or symbols beyond labels)

Technical diagram of a mechanical component with labeled parts 1 and 2, showing internal structure and rotation arrows.

7. PROBLEEMOPLOSSING

WAARSCHUWING!

Technical line drawing of a mechanical component with two labeled parts (1 and 2), showing internal structure and rotation arrows (no text or symbols beyond labels)

Technical line drawing of a mechanical component with two labeled parts (1 and 2), showing internal structure and rotation arrows (no text or symbols beyond labels)

Technical line drawing of a mechanical component with two labeled parts (1 and 2), showing internal structure and rotation arrows (no text or symbols beyond labels)

Technical line drawing of a mechanical component with two labeled parts (1 and 2), showing internal structure and rotation arrows (no text or symbols beyond labels)

Technical line drawing of a mechanical component with two labeled parts (1 and 2), showing internal structure and rotation arrows (no text or symbols beyond labels)

Technical line drawing of a mechanical component with two labeled parts (1 and 2), showing internal structure and motion arrows (no text or symbols beyond labels)

Technical line drawing of a mechanical component with two labeled parts (1 and 2), showing internal structure and rotation arrows (no text or symbols beyond labels)

4. PËRSHKRIM I PRODUKTIT

Technical diagram of an electric motor showing stator and rotor blades with labeled parts 1 and 2

Technical line drawing of a mechanical component with two labeled parts (1 and 2), showing internal structure and rotation arrows (no text or symbols beyond labels)

Technical line drawing of a mechanical component with two labeled parts (1 and 2), showing internal structure and rotation arrows (no text or symbols beyond labels)

Technical diagram of an electric motor showing two labeled components with directional arrows indicating rotation or flow.

Technical line drawing of a mechanical component with two labeled parts (1 and 2), showing internal structure and rotation arrows (no text or symbols beyond labels)

Technical line drawing of a mechanical component with two labeled parts (1 and 2), showing internal structure and rotation arrows (no text or symbols beyond labels)
