LFV639K - Basket ELECTROLUX - Free user manual and instructions

Brand	Electrolux
Model	LFV639K
Product type	Cooker hood
Installation type	Wall-mounted (extraction or recirculation)
Minimum distance between hob and hood	65 cm
Controls	Touch panel
Motor speeds	3 speeds + temporary maximum speed (8 min)
Breeze function	Minimum speed for 60 min, automatic shut-off
Hob2Hood function	Automatic control by compatible hob (infrared)
Lighting	LED, independent
Grease filter	Dishwasher-safe or hand wash
Charcoal filter	Replaceable (optional, depending on recirculation mode)
Filter alarm	Grease filter cleaning reminder (40h) and charcoal filter replacement reminder (160h)
Power supply	230 V ~ 50 Hz (European standard)
Energy consumption	Not specified
Protection class	Class II (double insulation)
Noise level	Not specified
Dimensions (W x D x H)	Not specified (see installation manual)
Net weight	Not specified

Frequently Asked Questions - LFV639K ELECTROLUX

How to turn on the Electrolux LFV639K hood?

Press the On/Off symbol (button Ⓐ) for at least 1 second. The control panel is touch-sensitive.

What is the minimum distance between the hob and the hood?

The minimum distance is 65 cm between the surface of the hob and the lower part of the hood.

How to clean the grease filters of the hood?

Remove the filters by pressing the lever of the clip. Clean them by hand with a sponge and non-abrasive detergent, or in the dishwasher at a low temperature on a short cycle. Put them back after drying.

What is the purpose of the Breeze function?

The Breeze function runs the hood at minimum speed for 60 minutes to refresh the air after cooking, then turns off automatically.

What to do if the lighting does not work?

The LED bulb is integrated and can only be replaced by an authorized technician. Contact Electrolux after-sales service.

How to activate the filter alarm?

The alarm is activated by default. It flashes every 40 hours for the grease filter and every 160 hours for the charcoal filter. To reset, press and hold the notification button for 3 seconds.

Can the hood be used in recirculation mode?

Yes, with an optional charcoal filter. Activate the charcoal filter counter by touching the alarm symbol for 3 seconds (fan and light off). The symbol flashes once to activate.

How to control the hood with the hob?

The Hob2Hood function connects the compatible hob via infrared. The speed adjusts automatically according to the utensil temperature. Refer to the hob manual for details.

What to do if the hood does not extract enough?

Check that the motor speed is appropriate. Increase it manually or activate the maximum speed (button Ⓓ) which runs for 8 minutes before returning to the previous setting.

Is the hood easy to install?

Installation must be carried out by a qualified professional. Follow the installation manual provided separately. Observe safety distances and electrical standards.

USER MANUAL LFV639K ELECTROLUX

Simple line drawing of a chimney with three windows and a flat top (no text or symbols)

LFV446K

LFV449K

LFV616Z

LFV619Z

LFV626Y

LFV629Y

LFV636K

LFV639K

Simple line drawing of a rectangular object with a label '1' and an arrow, placed on a base (no text or symbols beyond the label)

Isometric line drawing of a grid-patterned structure with an arrow indicating direction (no text or symbols)

Simple line drawing of a rectangular object with a label '1' and an arrow, placed on a base (no text or symbols beyond the label)

Isometric line drawing of a grid-patterned panel or panel structure with an arrow indicating direction (no text or symbols)

Simple line drawing of a rectangular object with a label '1' and an arrow, no text or symbols present.

Isometric view of a grid-patterned structure with an arrow pointing to a specific section (no text or symbols)

Simple line drawing of a rectangular box with a circular arrow labeled '1' on its side, placed on a base (no text or symbols beyond the label)

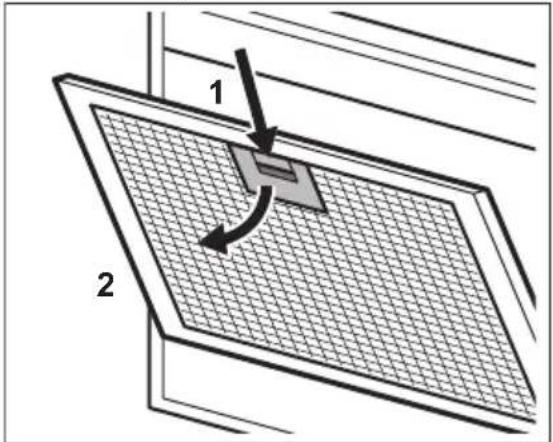

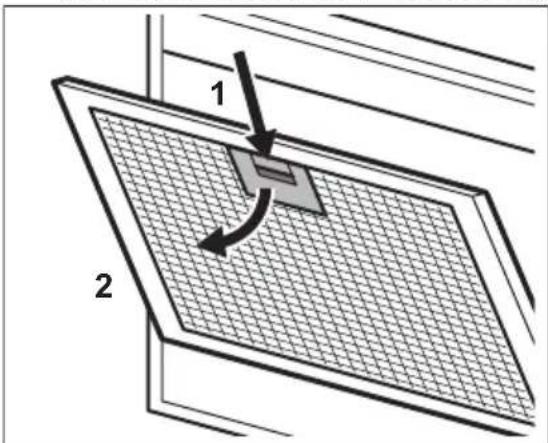

1. Tryk på grebet til monteringsclipsen på filterpanelet under emhætten (1).

Isometric line drawing of a grid-patterned panel or panel structure with an arrow indicating direction (no text or symbols)

Simple line drawing of a rectangular object with a label '1' and an arrow, resting on a base (no text or symbols beyond the label)

Isometric line drawing of a grid-patterned panel or panel structure with an arrow pointing to one corner (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

Recycling symbol with three arrows forming a triangle (no text or labels)

Simple line drawing of a rectangular object with a label '1' and an arrow, placed on a base (no text or symbols beyond the label)

Isometric line drawing of a grid-patterned panel or panel structure with an arrow indicating direction (no text or symbols)

Welcome to Electrolux! Thank you for choosing our appliance.

Get usage advice, brochures, troubleshooting, service and repair information: www.electrolux.com/support

Subject to change without notice.

CONTENTS

1. SAFETY INFORMATION......60
2. SAFETY INSTRUCTIONS.... 63
3. INSTALLATION....64
4. PRODUCT DESCRIPTION....64
5. DAILY USE....65
6. CARE AND CLEANING.... 66
7. TROUBLESHOOTING....67
8. ENVIRONMENTAL CONCERNS....68

1. ⚠SAFETY INFORMATION

Before the installation and use of the appliance read the supplied instructions carefully. The manufacturer is not responsible for any injuries or damage that result from incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

1.1 Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children of less than 8 years of age and persons with very extensive and complex disabilities shall be kept away from the appliance unless continuously supervised.
• Children should be supervised to ensure that they do not play with the appliance.

• Keep all packaging away from children and dispose of it appropriately.

• Keep children and pets away from the appliance when it operates.

• Children shall not carry out cleaning and user maintenance of the appliance without supervision.

1.2 General Safety

• This appliance is intended for domestic use above hobs, cookers and similar cooking devices.
• This appliance is designed for single household domestic use in an indoor environment.
• This appliance may be used in offices, hotel guest rooms, bed & breakfast guest rooms, farm guest houses and other similar accommodation where such use does not exceed (average) domestic usage levels.
• Before carrying out any maintenance, disconnect the appliance from the power supply.
• CAUTION: Accessible parts may become hot during use with cooking appliances.
• Use only the fixing screws supplied with the appliance if not supplied, use the screws recommended in the installation instructions. Install the appliance in a safe and suitable place that meets installation requirements.
• WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.
• Do not use adhesives to fix the appliance.
• The minimum distance between the hob surface on which the pans stand and the lower part of the appliance shall be at least 65 cm, unless otherwise specified in the installation instructions for the appliance or hob.
• The discharge of air must comply with local authorities regulations.

• Ensure good air ventilation in the room where the appliance is installed to avoid the backflow of gases into the room from appliances burning gas or other fuels, including open fires.

• Make sure that the ventilation openings are not blocked and the air collected by the appliance is not conveyed into a duct used to exhaust smoke and steam from other appliances (central heating systems, thermosiphons, water-heaters, etc.).

• When the appliance operates with other appliances the maximum vacuum generated in the room should not exceed 0.04 mbar.
• If the supply cord is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons to avoid an electrical hazard.
• If the cord set is damaged, it must be replaced by a special cord set available from the manufacturer or its Authorised Service Centre.
• If the appliance is connected directly to the power supply, the electrical installation must be equipped with an isolating device that allows to disconnect the appliance from the mains at all poles. Complete disconnection must comply with conditions specified in the overvoltage category III. The means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.
• Do not flambé under the appliance.
• Do not use to exhaust hazardous or explosive materials and vapours.
• Clean the appliance regularly with a soft cloth to prevent the deterioration of the surface material.
• Do not use a steam cleaner, water spray, harsh abrasive cleaners or sharp metal scrapers to clean the surface of the appliance. Use only neutral detergents.
• Clean grease filters regularly (at least every 2 months) and remove grease deposits from the appliance to prevent the risk of fire.
• Use a cloth to clean the interior of the appliance.

2. SAFETY INSTRUCTIONS

2.1 Installation

WARNING!

Risk of injury, electric shock, fire, burns or damage to the appliance.

• Only a qualified person must install this appliance.
• Do not install or use a damaged appliance.
• Follow the installation instructions supplied with the appliance.
  • Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.
• Before installing the appliance remove all the packaging, the labelling and the protective film.
• Do not install the exhaust air into a wall cavity, unless the cavity is designed for that purpose.

2.2 Electrical connection

WARNING!

Risk of fire and electric shock.

• All electrical connections should be made by a qualified electrician.
• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.
• If the symbol ( ) is not printed on the rating plate, the appliance must be earthed.
  • Always use a correctly installed shockproof socket.
• Do not let the electricity mains cable tangle.
• Do not use multi-plug adapters and extension cables.
• If the mains socket is loose, do not connect the mains plug.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

• The shock protection of live and insulated parts must be fastened in such a way that it cannot be removed without tools.

• Make sure the appliance is installed correctly. Loose and incorrect electricity mains cable can make the terminal become too hot.

• Connect the appliance at the end of the installation. Make sure that there is access to the mains after the installation.

2.3 Use

WARNING!

Risk of injury, burns and electric shock.

• This appliance is for cooking purpose only. Do not use the appliance for any other purpose.
• Do not change the specification of this appliance.
• Do not operate the appliance with wet hands or when it comes in contact with water.
• Use only the accessories supplied with the appliance.
• Keep flames or heated objects away from fats and oils during cooking and frying.
• Do not use uncovered electric grills.
• Do not use the appliance as a storage surface.
• Do not pour liquids over the appliance.
• Do not use magnifying glasses, binoculars or similar optical devices to look directly at the lighting of the appliance.
• If the appliance works with other devices, the maximum developed pressure must not exceed 4 Pa (4x10-5 bar).

2.4 Service

• To repair the appliance contact the Authorised Service Centre. Use original spare parts only.
- Concerning the lamp(s) inside this product and spare part lamps sold separately: These lamps are intended to withstand extreme physical conditions in household appliances, such as temperature, vibration, humidity, or are intended to signal information about the operational status of the appliance. They are not intended to be used in other applications

and are not suitable for household room illumination.

2.5 Disposal

WARNING!

Risk of injury or suffocation.

• Contact your municipal authority for information on how to dispose of the appliance.
• Disconnect the appliance from the mains supply.
• Cut off the mains electrical cable close to the appliance and dispose of it.

3. INSTALLATION

WARNING!

Refer to Safety chapters.

3.1 Installation instructions

i

For complete information about the installation of the appliance refer to a separate installation booklet.

4. PRODUCT DESCRIPTION

4.1 Control panel overview

Function Description

1	On / Off Turns the hood on and off.
2	First speed The motor switches to first speed level.
3	Second speed The motor switches to second speed level.
4	Third speed The motor switches to third speed level.
5	Maximum speed The motor switches to maximum speed level.
6	Breeze The hood operates on the lowest speed. After 60 minutes the appli-ance turns off.
7	Hob ^2 Hood Indicator of the function to control hood from hob.
8	Filter notification Reminds to change or clean the charcoal filter and clean the grease filter.
9	Lamp Turns the lights on and off.

5. DAILY USE

5.1 Using the hood

Check the recommended speed according to the table below.

1 While heating up food, cooking with covered pots.

2 While cooking with covered pots on multiple cooking zones or burners, gentle frying.

3 While boiling and frying big quantities of food without a lid, cooking on multiple cooking zones or burners.

While boiling and frying big quantities of food without a lid, big humidity. After 8 minutes the appliance returns to previous setting.

Refreshes the air in kitchen after cooking at a very low noise level. It can be activated and de-activated by touching the symbol. The function turns off automatically after 60 minutes. Use after cooking only.

It is recommended to leave the hood operating for approximately 15 minutes before and after cooking.

Activating the appliance

The control Panel is a sensor field. To operate the hood touch the symbol exactly in the middle for at least 1 second.

To operate the hood:

1. Turn on the appliance by pressing the symbol.

You can now activate the functions.

1. To activate the function touch the symbol.

Deactivating the appliance

To turn off the appliance press the Ⓛ symbol again.

Lighting

The hood lighting works independently to other hood functions.

Activating and deactivating the lighting To illuminate the cooking surface touch the

symbol.

To switch off the lights, touch and hold the symbol for 3 seconds.

5.2 Hob2Hood®

It is a function that connects the hob to a hood. Both the hob and the hood are equipped with an infrared signal communicator. The fan speed is determined based on the mode setting and the temperature of the hottest cookware on the hob. Alternatively, you can manually control the fan using the hob. This function can be activated from the hob's control panel.

For more information how to use the function, refer to the hob user manual.

5.3 Activating Maximum Motor Speed

When you touch the Maximum Motor Speed starts to operate for 8 minutes. After that time, the appliance returns to its previous speed settings.

When the function is turned on, additional touch on does not have any effects.

5.4 Filter notification

The filter alarm serves as a reminder to clean the grease filter and either replace or clean the charcoal filter, depending on its type. The symbol blinks regularly for 30 seconds if the grease filter must be cleaned. The

symbol blinks twice per every second for 30 seconds if the charcoal filter must be replaced or cleaned.

This function activates independently after 40 hours of operation for grease filter and 160 hours of operation for charcoal filter.

Refer to Cleaning the grease filter in the Care and cleaning chapter.

Refer to cleaning the charcoal filter or replacing the charcoal filter in Care and cleaning chapter.

To reset the function counter in the notification period, touch the symbol for 3

seconds. The symbol stops blinking for the correct reset.

The function counter for charcoal filter is disabled by default. For recirculation mode, it must be activated.

To activate or deactivate the counter for charcoal filter:

1. Switch on the control panel.
2. Make sure the fan and the light are turned off.
3. Touch the symbol for 3 seconds.
   The function is activated if symbols 2 and blink once. The function is deactivated if symbols 2 and think twice.

6. CARE AND CLEANING

6.1 Notes on cleaning

Cleaning Agents

Do not use abrasive detergents and brushes. Clean the surface of the appliance with a soft cloth with warm water and a mild detergent.

After cooking some parts of appliance can get hot. To avoid stains appliance must be cooled down and dried with clean cloth or paper towels.

Clean stains with a mild detergent.

Keep the hood clean

Clean the appliance each month to prevent the deterioration of the surface material. Clean the interior and grease filters carefully from fat. Fat accumulation or other residue may cause fire. Follow the instructions to clean the filters when the filter notification is on. Refer to the Daily Use chapter.

Charcoal filter

The time of saturation of the charcoal filter varies depending on the type of cooking and the regularity of cleaning the grease filter. Refer to leaflet included in the accessory.

Before carrying out any maintenance, make sure there is no cookware on the hob and that the hood and the hob are disconnected from the power supply.

6.2 Cleaning the grease filter

There are two grease filters. One situated underneath and the other at the front side of the appliance.

Filters are mounted with the use of clips and pins on the opposite side.

To clean the filter:

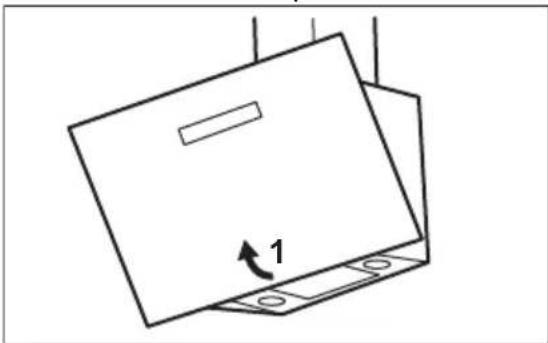

1. Pull the cover to open it.

Simple line drawing of a rectangular box with a label '1' and an arrow, placed on a base (no text or symbols beyond the label)

1. Press the handle of the mounting clip on the filter panel underneath the hood (1).

1. Slightly tilt the front of the filter downwards (2), then pull.

Repeat the first two steps for all filters.

1. Clean the grease filters by hand using a sponge with non-abrasive detergents, or clean them in a dishwasher. We recommend cleaning the grease filters by hand.

The dishwasher must be set to a low temperature and a short cycle. The grease filter may discolour, it has no influence on the performance of the appliance.

1. To mount the filters back follow the first two steps in reverse order.

Repeat the steps for all filters if applicable.

6.3 Replacing the charcoal filter - optional

Depending on type, filter can be or cannot be regenerated. Refer to the leaflet provided with the filter.

7. TROUBLESHOOTING

WARNING!

Refer to Safety chapters.

To replace the filter:

1. Remove the grease filters from the appliance.
   Refer to "Cleaning the grease filter" in this chapter.

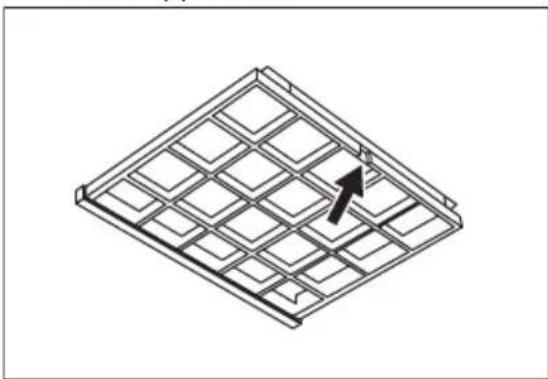

2. Press the front edge in slot towards the bottom part of the filter. Slightly tilt the front of the filter downwards. There are two charcoal filters. One situated underneath and the other at the front side of the appliance.

Isometric line drawing of a grid-patterned panel or panel structure with an arrow indicating direction (no text or symbols)

1. To install a filter, perform the same steps in reverse order.

6.4 Replacing the lamp

This appliance is supplied with a LED lamp. This part can be replaced by a technician only. In case of any malfunction refer to "Service" in the "Safety Instructions" chapter.

7.1 What to do if...

Problem Possible cause Remedy
You cannot activate the appliance.	The appliance is not connected to a power supply or it is connected incorrectly.	Check if the appliance is correctly connected to the electrical supply.
You cannot activate the appliance.	Lack of electrical power supply.	Check the fuse or the main switch. If the fuse or the switch continue to break the circuit, contact a qualified electrician.
The lamp does not operate. The lamp is defective. Contact an Authorised Service Centre.
The appliance does not absorb enough vapours.	The motor speed is not adequate to the appearing vapours.	Increase the speed of the motor.

8. ENVIRONMENTAL CONCERNS

Recycle materials with the symbol. Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of

appliances marked with the symbol 📀 with the household waste. Return the product to your local recycling facility or contact your municipal office.

Simple line drawing of a rectangular object with a label '1' and an arrow, no text or symbols present.

Isometric line drawing of a grid-patterned structure with an arrow indicating direction (no text or symbols)

Simple line drawing of a rectangular object with a label '1' and an arrow, no text or symbols present.

Isometric line drawing of a grid-patterned structure with an arrow indicating direction (no text or symbols)

1. ⚠TURVALLISUUSTIEDOT

Simple line drawing of a rectangular object with a curved arrow labeled '1' pointing to its base, no text or symbols present.

Isometric line drawing of a grid-patterned structure with an arrow indicating direction (no text or symbols)

Simple line drawing of a rectangular object with a label '1' and an arrow, no text or symbols present.

Isometric line drawing of a grid-patterned structure with an arrow indicating direction (no text or symbols)

5. SVAKODNEVNA UPORABA

5.1 Uporaba nape

Simple line drawing of a rectangular box with a label '1' and an arrow, placed on a base (no text or symbols beyond the label)

1. Pritisnite ručku montažne kopče na ploči filtra ispod nape (1).

1. Lagano nagnite prednji dio filtra prema dolje (2), a zatim ga povucite.

Ponovite prva dva koraka za sve filtre.

1. Filtar za masnoću očistite ručno koristeći spužvu s neabrazivnim deterdžentima ili ga očistite u perilici posuđa.

Isometric line drawing of a grid structure with an arrow indicating direction (no text or symbols)

1. Da biste instalirali filtar, izvršite iste korake obrnutim redoslijedom.

6.4 Zamjena žarulje

Ovaj uređaj se isporučuje s LED žaruljom. Ovaj dio može zamijeniti samo tehničar. U slučaju bilo kakvog kvara, pogledajte "Servis" u poglavlju "Sigurnosne upute".

Simple line drawing of a rectangular object with a label '1' and an arrow, no text or symbols present.

Isometric line drawing of a grid structure with an arrow indicating direction (no text or symbols)

Simple line drawing of a rectangular object with a label '1' and an arrow, no text or symbols present.

Isometric line drawing of a grid-patterned panel or panel structure with an arrow indicating direction (no text or symbols)

J6mm3s 8sd9m3o 2ndsm0u y3cm5g cosdsm 1n0f5m0g. 60 f7yomou 3d4w8dmbym0omms 8sdma6m3Gds.

modification of the following forms:

Simple line drawing of a rectangular object with a label '1' and an arrow, resting on a base (no text or symbols beyond the label)

Isometric line drawing of a grid-patterned panel or panel structure with an arrow indicating direction (no text or symbols)

_2g_3g_4d_5m_0 g_5m_0d_1m_1 _5 s_0s_0d_0s_0b_0u x_5b_6d_6m_7g_7m_8d_0n_1 _6g_3s_0d_0 g_7m_7f_0g_6h_7m_0 _6 g_7m_7f_0g_6h_6m_6g_7m_0 d_7m_7y_m0d0m_7m_0d_0b_0u b_5m_6f_6g_6b_0u g_5s_0s_0s_0s_0s_0s_0s_0s_0s. d_7m_7y_m0d0m_0s, h_7m_7g_7m_6g_6 g_6d_0m_1s b_6v_7m_0s

uodommm y6cos gsoosgomos usymozbgm3mgm bsmhgbdossb gmosso. mssdmy6cm 36mqmyf0n ofg6bl

Simple line drawing of a rectangular object with a label '1' and an arrow, no text or symbols present.

Isometric line drawing of a grid-patterned structure with an arrow indicating direction (no text or symbols)

Simple line drawing of a rectangular object with a label '1' and an arrow, placed on a base (no text or symbols beyond the label)

Isometric line drawing of a grid-patterned panel or panel structure with an arrow pointing to one corner (no text or symbols)

4. PRODUKTA APRAKSTS

Simple line drawing of a rectangular object with a label '1' and an arrow, no text or symbols present.

Isometric line drawing of a grid-patterned panel or panel structure with an arrow pointing to one corner (no text or symbols)

Simple line drawing of a rectangular object with a circular arrow labeled '1' on its base, no text or symbols present.

Isometric line drawing of a grid-patterned structure with an arrow indicating direction (no text or symbols)

4. PRODUCTBESCHRIJVING

Simple line drawing of a rectangular object with a curved arrow labeled '1' and circular base plates (no text or symbols)

Isometric line drawing of a grid-patterned panel or panel structure with an arrow pointing to one corner (no text or symbols)

7. PROBLEEMOPLOSSING

WAARSCHUWING!

Simple line drawing of a rectangular object with a label '1' and an arrow, no text or symbols present.

1. Trykk på håndtaket til monteringsklipsen på filterpanelet under ventilatoren (1).

Isometric line drawing of a grid-patterned panel or panel structure with an arrow indicating direction (no text or symbols)

Simple line drawing of a rectangular object with a circular arrow labeled '1' on its side, resting on a base (no text or symbols beyond the label)

Isometric line drawing of a grid-patterned panel or panel structure with an arrow pointing to one corner (no text or symbols)

Simple line drawing of a rectangular object with a curved arrow labeled '1' on its side, placed on a base (no text or symbols beyond the label)

Isometric line drawing of a grid-patterned panel or panel structure with an arrow pointing to one corner (no text or symbols)

Simple line drawing of a rectangular object with a label '1' and an arrow, no text or symbols present.

Isometric line drawing of a grid-patterned structure with an arrow indicating direction (no text or symbols)

Simple line drawing of a rectangular object with a label '1' and an arrow, no text or symbols present.

Isometric line drawing of a grid-patterned structure with an arrow indicating direction (no text or symbols)

Simple line drawing of a rectangular object with a curved arrow labeled '1' and circular holes, resting on a base (no text or symbols beyond the label)

Isometric line drawing of a grid-patterned panel or panel structure with an arrow pointing to one corner (no text or symbols)

Simple line drawing of a rectangular object with a label '1' and an arrow, no text or symbols present.

Isometric line drawing of a grid-patterned panel or panel structure with an arrow indicating direction (no text or symbols)

1. Za namestitev filtra ponovite iste korake v obratnem zaporedju.

6.4 Zamenjava žarnice

Simple line drawing of a rectangular object with a curved arrow labeled '1' and two circular holes at the base (no text or symbols beyond the label)

Isometric line drawing of a grid-patterned structure with an arrow indicating direction (no text or symbols)

Simple line drawing of a rectangular object with a label '1' and an arrow, no text or symbols present.

1. Притисните ручку стеге за монтажу на панелу филтера испод аспиратора (1).

Isometric line drawing of a grid-patterned structure with an arrow indicating direction (no text or symbols)

Simple line drawing of a rectangular box with a label and an arrow indicating rotation (no text or symbols)

Isometric line drawing of a grid-patterned panel or panel structure with an arrow indicating direction (no text or symbols)

Simple line drawing of a rectangular object with a curved arrow labeled '1' pointing to its base, no text or symbols present.

Isometric line drawing of a grid-patterned structure with an arrow indicating direction (no text or symbols)

ELECTROLUX APPLIANCES AB

BUSINESS SECTOR EMA-EMEA (SEE)

ST GÖRANSGATAN 143

SE-105 45 STOCKHOLM

SWEDEN

TEL: [phone]

FAX: [phone]

www.electrolux.com

Simple line drawing of a rectangular object with a circular arrow labeled '1' and two circular holes on a base (no text or symbols beyond the label)

Isometric line drawing of a grid-patterned structure with an arrow indicating direction (no text or symbols)

Isometric line drawing of a grid-patterned panel or panel structure with an arrow indicating direction (no text or symbols)

Simple line drawing of a rectangular object with a curved arrow labeled '1' and circular holes on a base (no text or symbols beyond the label)

هذا小微企业 Muslims Concentrated Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Market Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets Markets markets, 2018.
