USER MANUAL GGH 35 TRI Güde

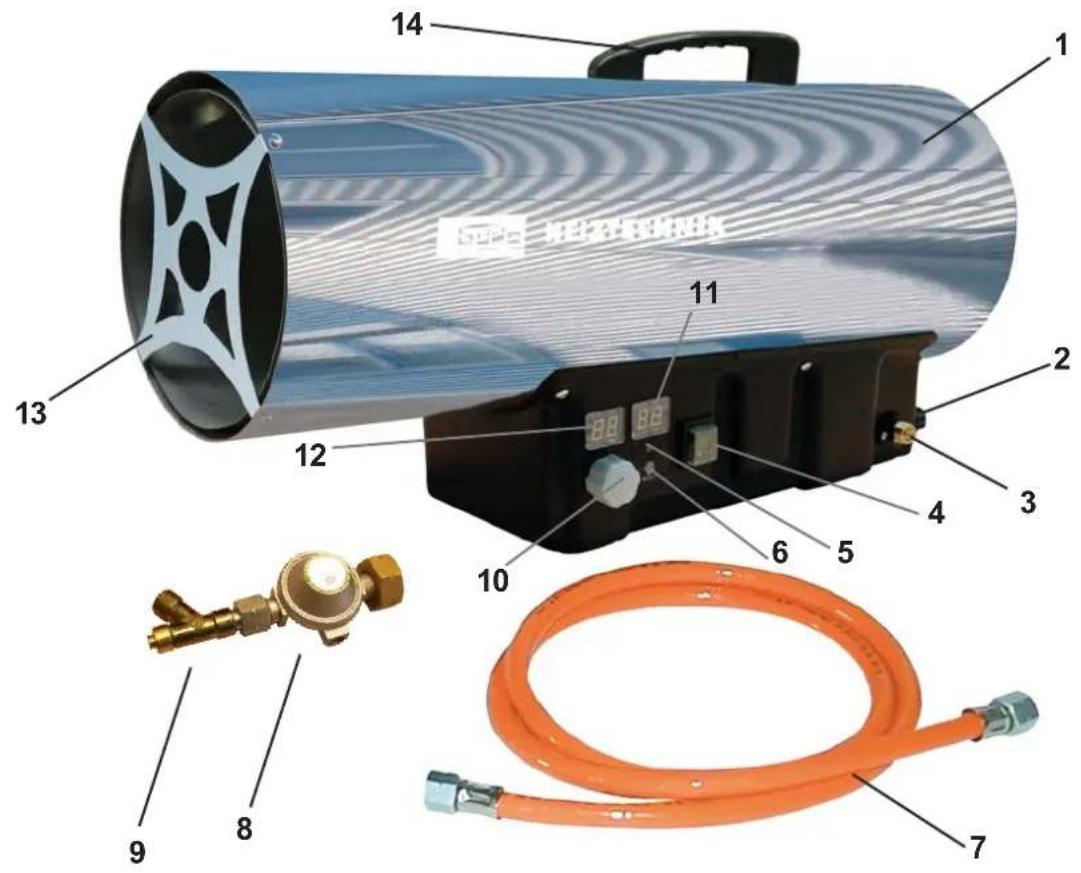

1. Gas hot air turbine with stainless steel housing

3. Gas hose connector

7. Gas hose with connectors

8. Pressure reducing valve

12. Digital required temperature indicator (required

Technical data GGH 35 TRI Voltage/frequency: 230 V~50 Hz Heating output: 22-35 kW/18.900-30.000 kcal.per hour (controllable) Consumption: 2.0-2.5 kg per hour Operating pressure: 1500 mbar Fan output: 707 m³ per hour Gas type: Propane-butane Feeder cable length: 1.6 m Weight: 7.8 kg Use as designated The gas hot air turbine has exclusively been designed for heating and drying out purposes in the building industry (fabrics), agriculture, storage spaces (ventilated rooms only), etc. The appliance may only be used as designated. The manufacturer cannot be held liable for any damage if provisions of the generally applicable regulations or provisions of these Operating Instructions are not followed. General safety instructions Read and observe all instructions contained herein before commissioning and operation of the device. Keep the safety instructions for future reference! Safe work Keep your workplace tidy! Disorder on workplace may result in injuries. Consider surrounding conditions! Do not expose to rain. Do not use in moist or wet environment. Provide good lighting. Do not use close to flammable liquids or gases (except for substances required for operation - here propane/butane). Keep other persons in a safe distance! Other persons, particularly children, may not touch the device and power cable. Keep them in a sufficient distance from your workplace. Store your device properly! The device, if not used, should be stored in a dry and closed space, out of reach of children. Do not overload your device! You will work better and more safely if the device is used at performance power for which it is designed to. Use correct device! Do not use the device for purposes other than intended. Secure your device correctly! Connect your device according to instructions in "Assembly" section. Take care of your tools! Observe maintenance directions and instructions. Check tool cable regularly and ask an authorized specialist to replace the same if damaged. Check extension cable regularly and replace, if damaged. Keep handles dry, without traces of oils and greases. Be careful! Be aware of what you are doing. Approach your work with sound mind. Do not use the device if you are tired. Check the device for damage! Before use, check thoroughly all safeguards and slightly damaged parts if they are still functioning properly. Check whether rotary parts operate freely and not jammed or damaged. All parts must be installed properly and must comply with conditions so that perfect operation of the device is ensured. Damaged safeguards and parts must be either repaired or replaced by an authorized workshop, unless specified otherwise in this operation manual. Replace damaged switches in a service workshop. Do not use the devices with malfunctioning ON/OFF switch. WARNING! Use of non-compliant accessories may result in an injury. Have your device repaired by an electrician only! This device complies to applicable safety provisions. Repairs may be performed by an electrician with the use of genuine spare parts, otherwise the user may be exposed to injury hazard. Safety instructions specific for this device

• This device may be used outside only and in well ventilated areas, however, it must be protected against moisture or rain.

• Gas cylinder must be always protected against freeze and minus temperature at any times.

• The device may be used for heating only.

• Attention! Open flame tightness test is strictly prohibited.

• Do not operate under ground level.

• Do not move and lift the device if in use.

• Radiation area must be at least 3 metres from persons and all flammable substances.

• Keep 50 cm distance between walls and rear or sides of the device.

• If gas leaks (smell), close the gas cylinder valve immediately and keep the device out of reach of all flammable sources.

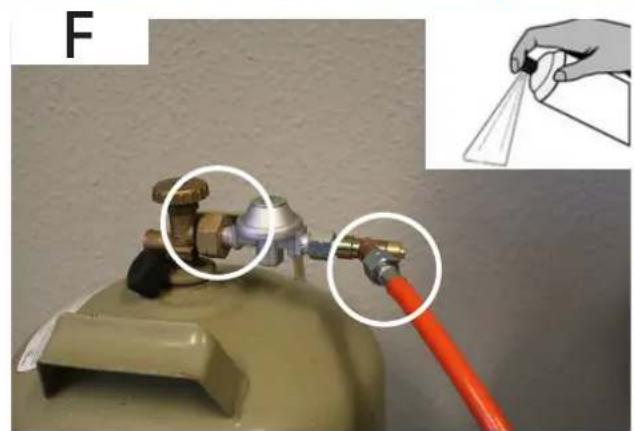

Check tightness of all connections.• Before putting the appliance into operation, all screwed connections must be checked if tight, using lye soap or leak detection spray! (pic. F+G)

• If gas leakage remains, call an expert before re- commissioning.

• Assembly and maintenance of the device must comply with laws and directives of a country where the device is used.

• Do never turn the gas cylinder upside down even though you think it is empty! This procedure may jam the hose with residues from the gas cylinder and cause fire hazard and immediate damage of the device.

• Do not disassemble the protective grid and/or other parts of the heater.

• Keep children out of reach of the burner.

• Do not operate the device without supervision!

• Do not cover the device!

• Do not use for drying of clothes etc.!

• Do not touch the protective grid and thermal shield, otherwise burning injury may occur!

A dangerous lack of oxygen may be experienced in small spaces! Identification Product safety:

The product complies with relevant EU standards

No flame and no smoking Not cover

No operation in closed spaces!

Warning of fire hazardous materials Caution! Dangerous electric voltage! Caution! Hot surface! Warning of gas bottles Caution! Dangerous electric voltage! Use outside only, however, protect against rain. Commands: General prohibition sign Read operation manual before use Environment protection: Dispose waste not to harm your environment. Packaging material from cardboard can be recycled in a collection point. Defective and/or disposed electric or electronic devices must be delivered to relevant collection points.

Packaging: Protect against moisture Packaging must direct upwards Interseroh-Recycling Technical data: Connection Heating power

Turbine capacity Consumption Type of gas Operating pressure WeightEU DECLARATION ON CONFORMITY The company Güde GmbH & Co. KG Birkichstraße 6 D-74549 Wolpertshausen hereby declares that the design and structure of the devices listed below and in designs marketed conforms to applicable basic requirements of the EU directives on safety and hygiene. This declaration on conformity becomes void in case of a change to the device not consulted with us. Identification of the devices: GHH 35 TRI Order No.: #85032 Applicable EU directives: 2009/142/ EG Harmonized standards used EN 1596:1998+A1:2004 DIN 4815-2(01.06.1979) (gas pipe) EN 13785:2005+A1:2008(regulator) Date/signature of manufacturer: 2012-07-04

Information about signer: the executive Mr Arnold Technical documentation: J. Bürkle FBL; QS Warranty The warranty exclusively applies to material or manufacturing defects. The original proof of purchase including the date of purchase must be submitted when applying a claim in the warranty period. The warranty does not cover any unauthorised use such as machine overload, violent use, damage by any other person or an undesirable item. The failure to follow the Operating Instructions and assembly instructions and common wear and tear are also excluded from the warranty.

Behaviour in case of emergency Provide necessary first aid treatment corresponding to the injury nature and seek qualified medical help as soon as possible. Protect the injured person from other injuries and calm him/her down.

In case of accident, first aid kit must always be available in the place of your work in accordance with DIN 13164. Material taken out of the first aid kit needs to be supplemented right away. Please provide the following details if help is needed:

1. Place of accident

3. Number of injured persons

Warranty The warranty applies exclusively on material or production defects. For warranty claims, please submit an original proof of purchase with date of purchase indicated. The warranty does not cover unprofessional use, such as overloading, violent use, damage caused by third party or a thing. The warranty also does not cover failure to comply with the operation manual and normal wear and tear. Residual risks and protective measures Electrical residual risks:

• Direct electric contact: May lead to electric shock. To be used in electrical network with a safety switch against stray current only.

• Indirect electric contact: May lead to electric shock. To be used in electrical network with a safety switch against stray current only. Thermal residual risks:

• Burns, chilblains: A contact with the protection grid and appliance body may lead to burns. Avoid such structural parts. Disposal Disposal instructions are illustrated in the form of pictograms on the device or packaging. Description of the pictograms is given in "Identification" chapter. Disposal of transport packaging Packaging protects the device against damage during transport. Packaging materials are usually selected according to their effect on environment and disposal methods and can therefore be recycled. Returning of the packaging back to circulation saves resources and costs for packaging disposal. Parts of the packaging (e.g. foil, styropor) may be dangerous for children. Risk of suffocation! Keep these parts of the packaging out of reach of children and dispose as soon as possible.

Operator requirements The operators must thoroughly read operation manual before use. Qualification Except for thorough training by an expert for use of the device, no special qualification is required. Minimum age The device may be operated by persons over 16 years of age. An exception is use by younger person if the use takes place under supervision of an adult trainer in the course of education. Training Use of the device requires corresponding guidance by an expert or operation manual only. No special training is required. Application according to intended use Attention! DO NOT USE FOR HEATING OF RESIDENTIAL

• For heating of closed or residential spaces (residential buildings) or operation in such spaces;

• Close to flammable materials (e.g. paper, construction materials);

• On places where volatile materials are stored/present (e.g. gasoline, solvents, chemicals) or where explosive atmosphere may be generated;

• Following unauthorized structural change to the gas heater;

• In case of incorrect or unacceptable connection to gas source;

• On places insufficiently ventilated;

• As source of heating during social events and family celebrations. Instructions for installation and putting the appliance into operation (pic. B-K) Appliance to be used on a level, stable and non- flammable surface. Never use the appliance near open fire or flying sparks or similar high-flammable substances!

1. The appliance may only be used with propane or butane.

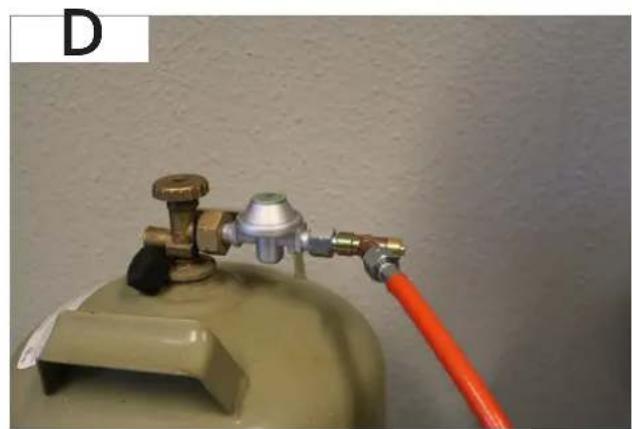

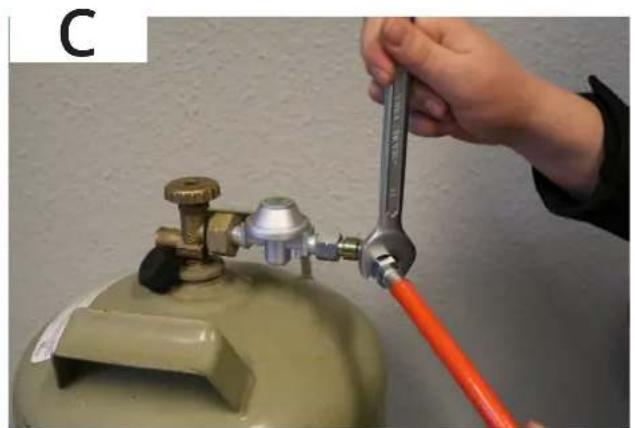

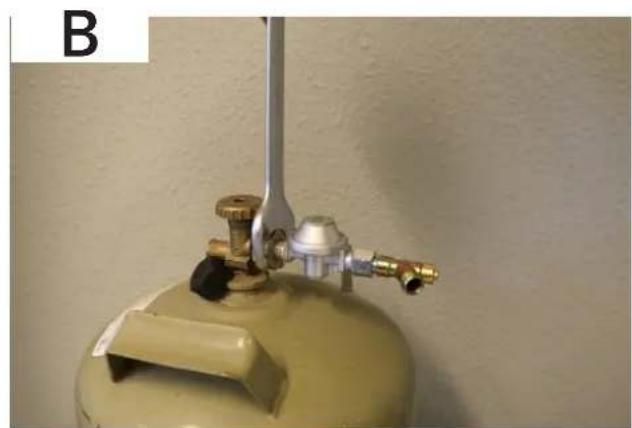

2. Connect the gas hot air turbine as specified in pic. B-F.

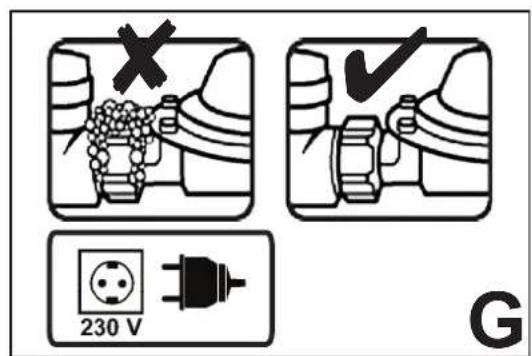

3. All connectors to be checked for gas detection using lye

soap or leak detection spray. (pic. F+G)

4. Plug the appliance (pic. G)

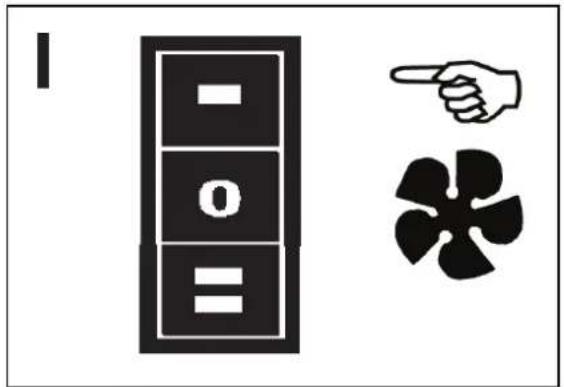

5. Position “I”. The gas hot air turbine only runs with the fan

function and provides air circulation in the room. (pic. I)

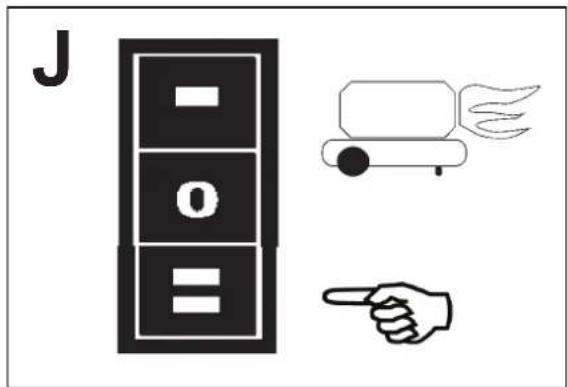

6. Position “II”. The gas hot air turbine is now also heating

(pic. J). However, the appliance is only started when the required temperature (pic. K/12) is set higher than the actual temperature (pic. K/11) (room temperature).

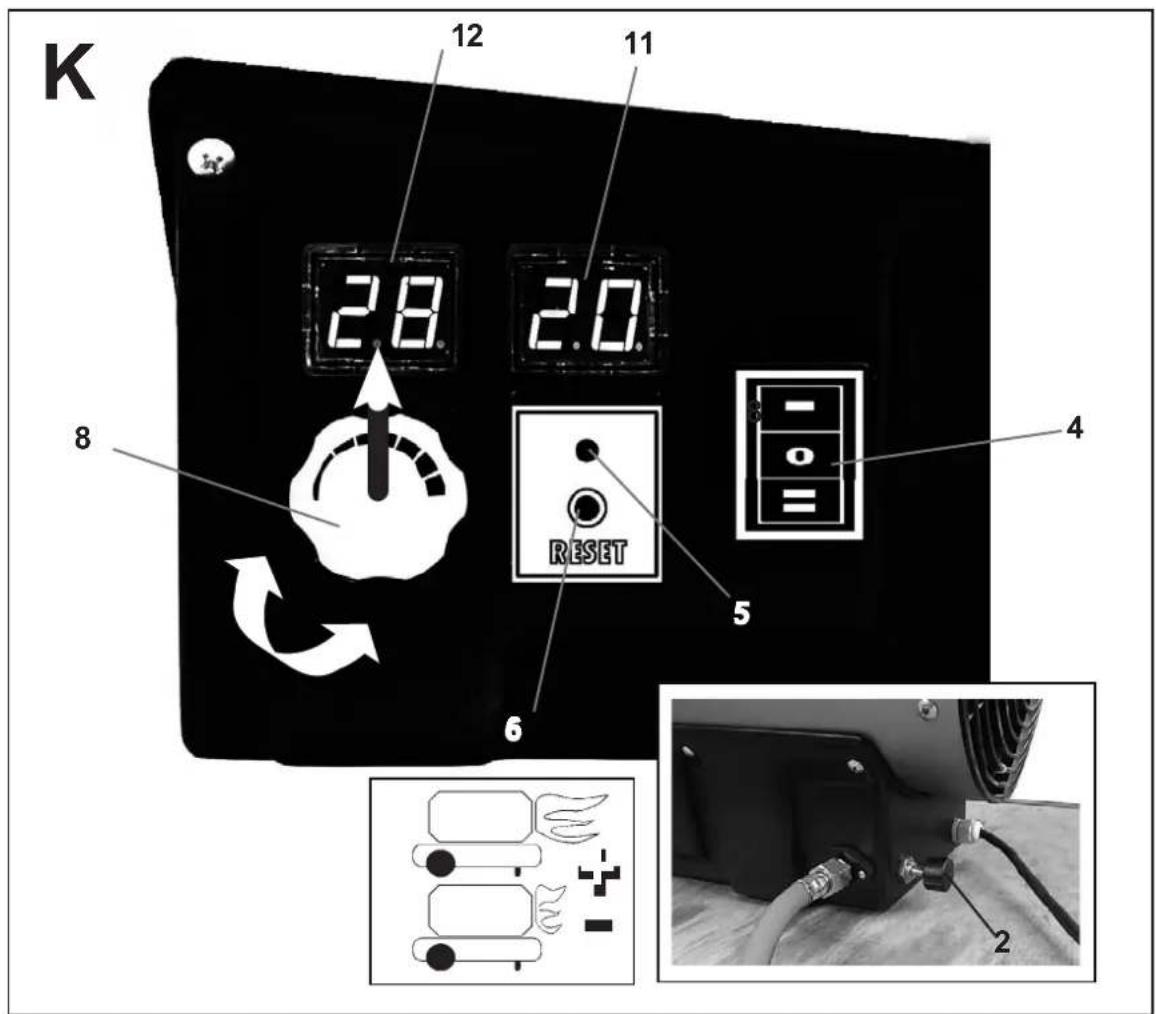

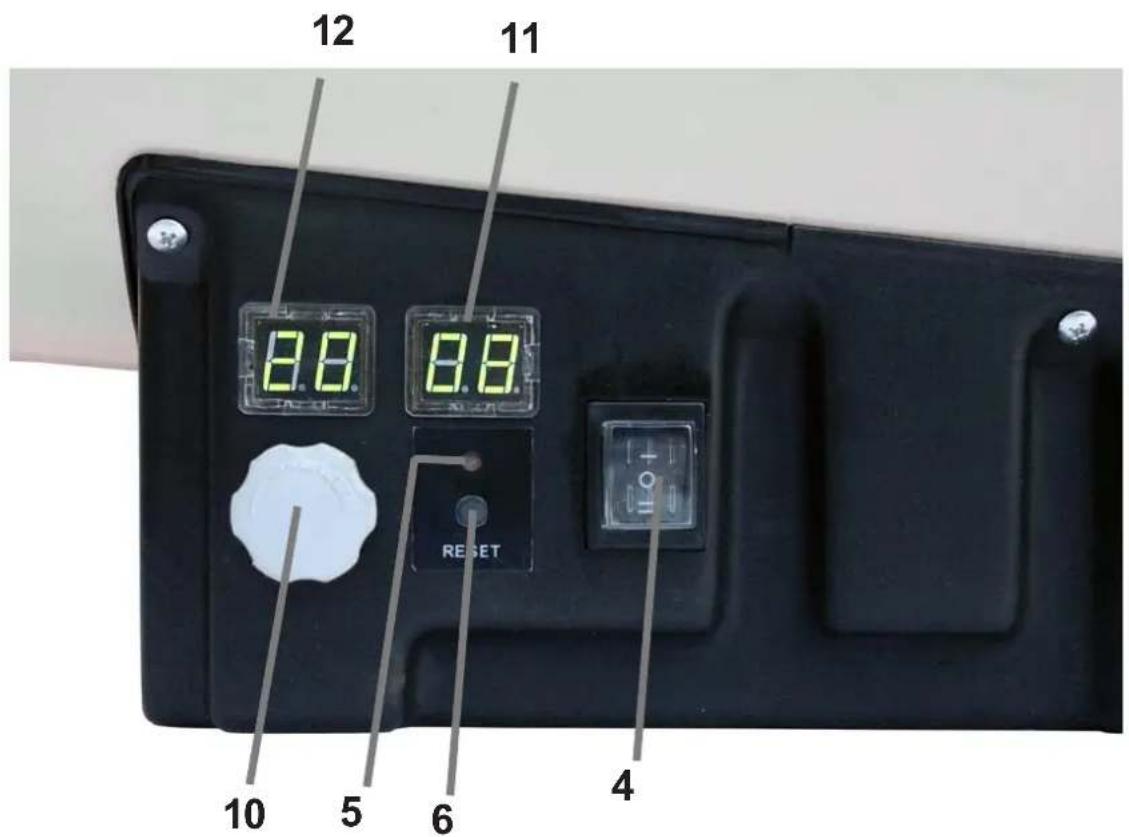

7. Electronic control: Pic. K/11 shows the room

temperature. Use the thermostat (pic. K/8) to control/set the required temperature – see the indicator (pic. K/12). (The gas hot air turbine is automatically switched on and then switched off when the required temperature is reached). Example of use: "II" (pic. J) 15°C actual temperature (pic. K/11) 20° temperature required (pic. K/12). The gas hot air turbine is now able to heat the “space” to 20°C and then is automatically switched off. If the appliance remains in the emergency position, the gas hot air turbine is automatically switched on when it is below the required temperature.

8. If the controller (pic. K/8) is set below the actual room

temperature shown on the digital indicator (K11), the appliance also gets switched off. Example of use: 18°C actual temperature (pic. K/11) 15°C temperature required (pic. K/12). The gas hot air turbine now gets switched off. If the appliance remains in the emergency position, the gas hot air turbine is automatically switched on when it is below 15°C.

The indicator (K/4) lights up in case of failure or when the gas bottle is empty. Press Reset (pic. K/6) and put ON/OFF to “0” or change the gas bottle and connect it as specified in pic. B+F. The gas hot air turbine can now be switched on again as specified.

Switching off (pic. L-M)) To switch the gas hot air turbine off, close the gas bottle valve (pic. L) first at all times.

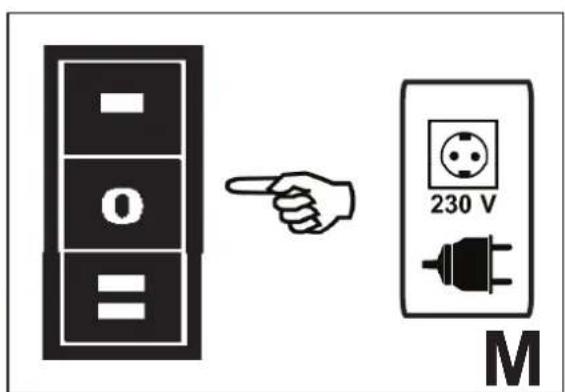

Switch the appliance off by ON/OFF (pic. M). To the position “0”.

To unplug the appliance, disconnect the plug (pic. M). Changing the gas bottle

• When outdoors and in a safe distance from any fire or flammable sources and with no persons around proceed as follows!

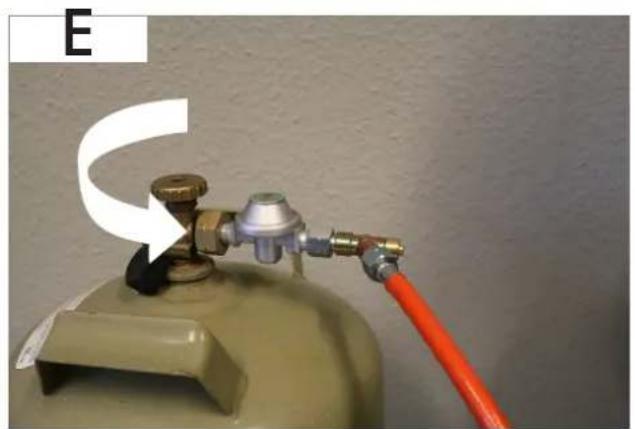

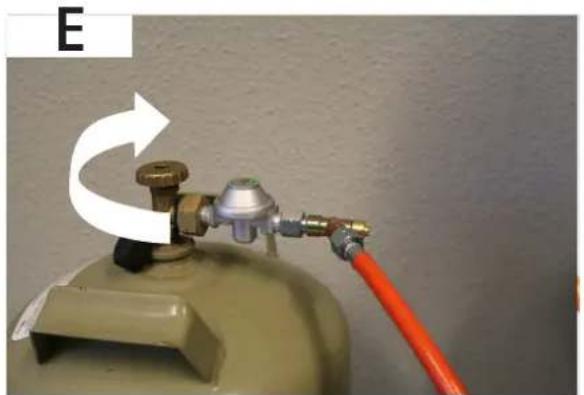

• Close the gas bottle valve. (E/1)

• Unscrew the pressure reducing valve (pic. B-D in the reverse order).

• Make sure pressure reducing valve gasket is in place.

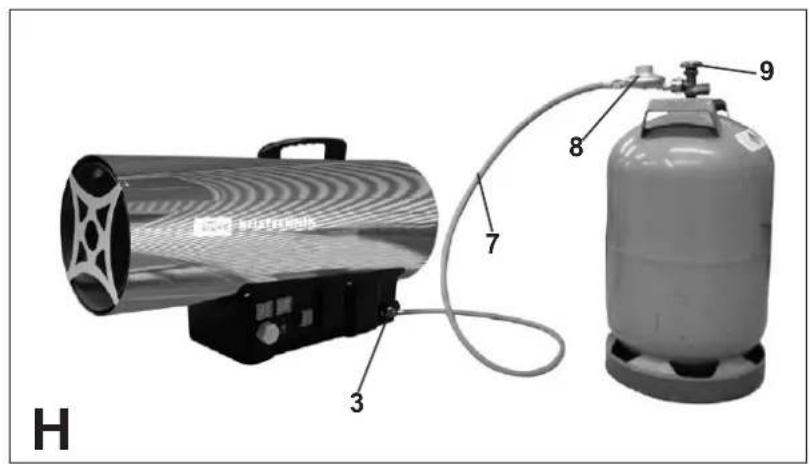

• Connect the appliance to a new gas bottle and proceed as specified in pic. B-H). Transport, storing and cleaning The appliance may only be carried using the carrying handle. Appliances not being used must be kept in a dry and locked room.

• To clean the appliance, use a smooth and fine soap water solution. Prevent any direct contact of aggressive cleaning agents with the appliance. No aggressive, volatile or caustic cleaning agents may be used.

• Have the gas hot air turbine checked by a qualified authorised expert once a year.

• The hose must necessarily be replaced if damaged.

• The appliance needs to be protected against moisture and dust.

• If the appliance has not been used for a long time, disconnect it from the gas bottle and keep it covered in a dry and safe place inaccessible to children. Service Any technical questions? Complaint? Do you need spare parts or operation manual? Go to our website www.guede.com and the section Service will help you quickly and without bureaucracy. Please, help us to help you. In order to identify your device in case of complaint, please indicate serial number, order number and year of manufacture. All information is available on the product label. To have all information always at hand, put them down. Serial number: Order number: Year of manufacture: Phone: [phone] / 700-360 Fax: [phone] E-Mail: [e-mail] Defect Cause Remedy Electric motor does not start No current Check plug Check power supply connection Piezo-ignition does not ignite Electrode in incorrect position Call specialist No gas Gas cylinder empty Replace gas cylinder. Close valve on the gas cylinder Open valve. Gas hose or leaking connection Seek for leaking point by suitable spray and remove Burner ignites, flame goes off as soon as the gas valve is turned

2. Plinski regulator
