Product type	Infrared oil heating (direct heating)
Brand	Güde
Model	GID 40
Heating power	40 kW
Power connection	220-240 V~, 50 Hz
Max. power consumption	80 W
Rated current consumption	0.35 A
Fuel	Diesel (exclusively)
Fuel consumption	3.9 l/h
Tank capacity	38 l
Max. running time (full tank)	Approximately 10 hours
Irradiation surface (from front)	5 m
Room heating capacity	640 m³
Dimensions (W × D × H)	925 × 640 × 860 mm
Net weight	28.4 kg
Gross weight	34.8 kg
Protection rating	IPX4
Protection class	I
Sound level (at 1 m)	67 dB
Power cable length	1.10 m
Safety – Overheat shutdown	Yes, with automatic shutdown system
Safety – Tilt sensor	Yes
Initial assembly required	Safety grille, heat protection plate, handle
Maintenance – Tank cleaning	Every 150-200 operating hours
Maintenance – Fuel filter cleaning	Twice per heating season
Warranty	24 months (consumer)

Frequently Asked Questions - GID 40 Güde

What fuel should I use with the GID 40?

Use exclusively diesel. Petrol, naphtha, thinners or other flammable liquids are strictly prohibited due to fire and explosion risks.

Can I use this appliance indoors?

No, this heater is designed for outdoor use only or in very large well-ventilated buildings (construction sites). It produces carbon monoxide; insufficient ventilation can lead to death.

How do I start the appliance?

Make sure the tank contains diesel, plug the appliance into an earthed socket, then set the I/O switch to I (on). The appliance starts within a few seconds.

What should I do if the appliance does not start?

Check the power supply, fuel level, and that the switch is set to I. If error codes appear (F0, F1...), consult the troubleshooting manual. A restart may be necessary after waiting 5 minutes.

How do I clean the fuel filter?

Unscrew the filter bowl (see diagram), remove the filter and rinse it with clean diesel. Do not damage it. Perform this operation at least twice per heating season.

The appliance emits a strange smell during first use, is this normal?

Yes, this is normal. Manufacturing residues burn off and the smell disappears after a few minutes of operation.

Can I use an extension cord?

If necessary, use an extension cord in good condition, suitable for the power (at least 80 W) and fully unrolled. The cable must run behind the appliance, never in front.

How should I store the appliance after use?

Empty and clean the diesel tank (use the drain plug). Let the appliance cool down, clean it and store it upright in a dry place, protected from frost and out of reach of children.

What do error codes F1 and F2 mean?

F1 indicates a photocell error (lack of fuel, clogged filter, etc.). F2 is a temperature sensor error. Refer to the Error messages chapter in the manual for detailed solutions.

Where can I find spare parts or after-sales service?

Contact Güde service: phone [phone] / 700-360, email [e-mail], or visit www.guede.com. Have the serial number and year of construction ready.

USER MANUAL GID 40 Güde

Translation of the original operating instructions Infrared oil heater

Exterior view of a portable electric heater with mesh fan and wheels (no visible text or symbols)

GID 40

85139

ENGLISH Please read the instructions carefully before starting the machine.

ENGLISH Use only outdoors and away from combustible materials.

ENGLISH Only use diesel! Firing with petrol is strictly prohibited!

Exterior view of a Heiztechnik Gude instrument with wheels and a speaker grille (no text or symbols on the device itself)

Pure geometric diagram of a circular structure with intersecting lines and a central oval, no text or symbols present.

Curved metallic object with labeled points (e, c) and letter C in top-right corner, no readable text or symbols on body

Black metal bracket with four holes, no text or symbols visible

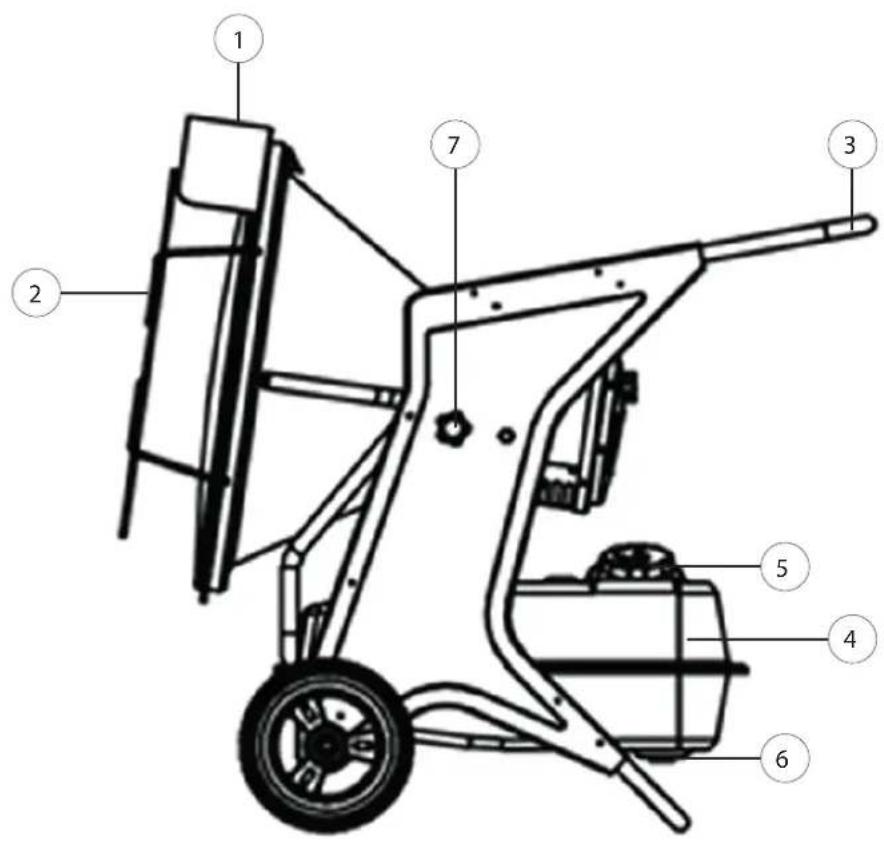

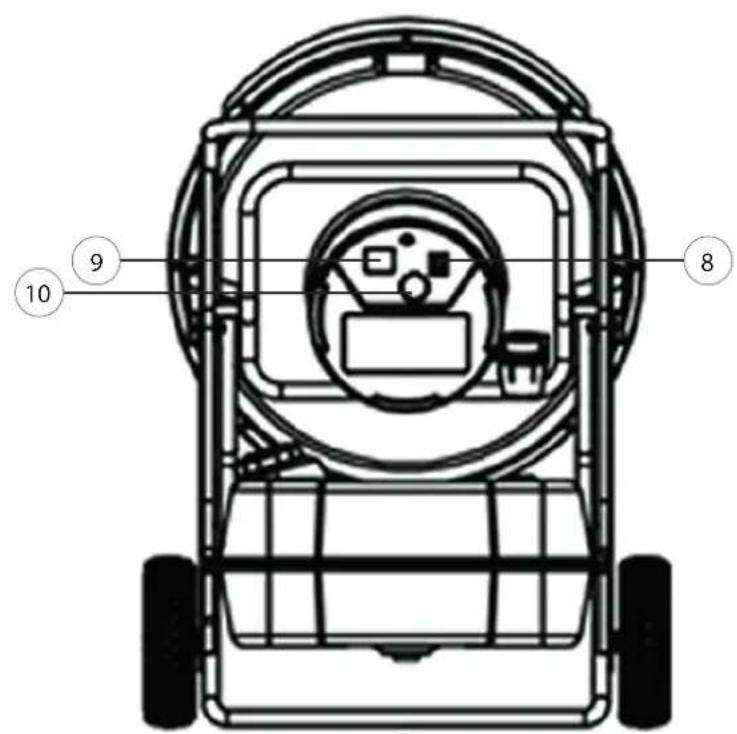

Geräteübersicht

EN Device overview FR Aperçu des appareils IT Panoramica del dispositivo ES Visión general del dispositivo NL Overzicht van het apparaat CZ Přehled zařízení SK Prehlad zariadení PL Przegląd urządzeń HU Eszköz áttekintése

Technical diagram of a mechanical device with numbered components for identification

Technical diagram of a vehicle's front view with numbered components labeled 8, 9, and 10

	DE EN FR IT ES NL CZ SK PL HU
1	Hitzeschutzblech Heat shield		Tôle de protection contre la chaleur	Scudo termico	Escudo térmico	Hitteschild	Tepelný štít	Tepelný štít	Osłona termiczna	Hőpajzs
2	Schutzgitter	Protective grille Grille de protection		Griglia di prote-zione	Rejilla protectora	Beschermrooster	Ochranná mřížka	Ochranná mriežka	Kratka ochronna	Védórács
3	Griff	Handle	Poignée	Maniglia	Asa	Handgreep	Rukojeť	Rukovăť	Uchwyt	Fogantyú
4	Kraftstofftank	Fuel tank	Réservoir de car-burant	Serbatoio del carburante	Depósito de com-bustible	Brandstoftank	Palivová nádrž	Palivová nádrž	Zbiornik paliwa	Üzemanyagtartály
5	Deckel/Einfüll-stutzen Kraftstoff-tank	Fuel tank cap / filler neck	Bouchon / goulot de remplissage du réservoir de carburant	Tappo del serbatoio / bocchettone di riempimento	Tapón depósito / Boca de llenado	Tankdop/vulopening	Víčko palivové nádrže / plnicí hrdlo	Uzáver palivovej nádrže / plniace hrdlo	Korek zbiornika paliwa / szyjka wlewu	Üzemanyagtartály kupak / töltőnyak
6	Ablassschraube	Drain plug	Bouchon de vidange	Tappo di scarico	Tapón de vaciado	Aftapplug	Vypušťecí zátka	Vypušťacia zátka	Korek spustowy	Leeresztó dugó
7	Feststellschraube (Abstrahlwinkel)	Locking screw (angle of radiation)	Vis de blocage (angle de rayonne-ment)	Vite di bloccaggio (angolo del fascio)	Tornillo de bloqueo (ángulo del haz)	Borgschroef (straalhoek)	Zajišťovací šroub (úhel paprsku)	Zaistovacia skrutka (uhol lúča)	Śruba blokująca (kąt wiązki)	Zárócsavar (fényszög)
8	An-/Ausschalter	On / Off switch	Interrupteur mar-che / arrêt	Interruttore on/off	Interruptor de en-cendido / apagado	Aan/uit-schakelaar	Spínač zapnutí/ vypnutí	Spínač zapnutia/ vypnutia	Włącznik/wyłącznik	Be-/kikapcsoló
9	Display	Display	Écran	Display	Pantalla	Display	Displej	Displej	Wyświetlacz	Kijelző
10	Drehregler Raum-thermostat	Control dial Room thermostat	Bouton de réglage Thermostat d'am-biance	Quadrante di co-mando Termostato ambiente	Dial de control Ter-mostato ambiente	Bedieningsknop Kamerthermostaat	Ovládací kolečko Pokojový termostat	Ovládací volič Izbový termostat	Pokrętło sterujące Termostat poko -jowy	Vezérólótárcsa Szo-batermosztát

1 A B 2 + 4x E

3 + C 3x F

4x 2 1 D G

Illustration of a mechanical device and a large cylindrical device with a green checkmark (no text or symbols)

English Technical data / Safety / Assembly / Operation / Cleaning & Maintenance / Storage / Error messages / Troubleshooting / Warranty / Service / Disposal ____ 15

⚠️ WARNING STROMSCHLAGGEFAHR!

CLOSE OPEN

Gerät ausschalten

Infrared oil heater	GID 40
Article no. 85139
Mains connection 220-240 V~, 50 Hz
Heat output 40 kW
Power consumption max. 80 W
Rated current consumption 0,35 A
Fuel Diesel
Fuel consumption 3,9 l/h
Fuel tank capacity 38 l
Maximum operating hours 10
Irradiation area (starting from the front 5 m)
Room heating capacity 640 m	^3
Length of power cord 1,10 m
Mains plug type	CEE 7/7 (protective contact hybrid plug)
Overheating protection with cut-off system	Yes
Protection type/class	IPX4 / I
Noise level indication LWA at 1m distance	67 dB
Dimensions L x W x H	925 x 640 x 860 mm
Weight net/gross	28,4 / 34,8 kg

Security

Explanation of symbols

	Attention Danger! Safety instructions marked with this symbol must be observed. Failure to do so may result in serious damage to health and immense material damage.
	Warning of hot surfaces!Risk of burns!
	Warning of electrical voltage
	Warning: To prevent the heater from overheating, do not cover the heater.
	To reduce the risk of injury, read the operating instructions.
	Electrical or electronic equipment that is damaged and/or needs to be disposed of must be handed in at the recycling points provided for this purpose.
	European conformity mark

Read the operating instructions carefully before commissioning/using the unit and keep them for future reference! Read all safety notes and instructions. Failure to comply with the safety information and instructions may result in serious injury and/or damage to property. Ensure

that third parties also only use this product after receiving the necessary instructions.

Important safety instructions

DANGER!

The unit must not be used in living areas or in insufficiently ventilated enclosed spaces. Never use the unit in places where flammable vapours may be present. There is a risk of explosion, fire and burns!

Always ensure sufficient ventilation during use. Use the appliance only in a well-ventilated room. The air must be changed regularly during use (twice an hour), insufficient combustion due to lack of oxygen can lead to carbon monoxide poisoning.

Do not expose the unit to rain or snow and do not use it in damp places. Always disconnect the mains plug from the socket before routine maintenance and inspection!

WARNING!

Fire, burn, inhalation and explosion hazard. Keep combustible materials such as building materials, paper or cardboard at a safe distance from the heater as recommended in this manual. Never use the heater in rooms containing products such as petrol, solvents, paint thinners, dust particles, volatile or airborne flammables or unknown chemicals.

WARNING!

This is a portable heater without venting. It uses air (oxygen) from the area in which it is used. Adequate combustion and ventilation air must be provided.

WARNING!

Do not operate this heater until you have thoroughly read and understood all safety and operating instructions. Failure to follow the precautions and instructions provided with this heater may result in death, serious bodily injury, loss of property or damage from the hazards of fire, sooting, explosion, burns, asphyxiation or carbon monoxide poisoning. Only persons who can read and understand these instructions should use or service this heater.

Not suitable for use in flats or mobile homes.

WARNING.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children must not play with the appliance.

Cleaning and maintenance work must not be carried out by children without supervision.

Children aged 3 to under 8 years may only switch the appliance on and off if it is set up or installed in the intended normal operating position and they have been supervised or instructed in the safe use of the appliance and understand the hazards involved. Children aged 3 to under 8 years must not connect, adjust or clean the appliance or carry out maintenance.

Children under 3 years of age should be kept away unless they are supervised at all times.

WARNING.

To avoid overheating, do not cover the heater.

CAUTION

Some parts of this product can become very hot and cause burns. Special care should be taken when children and vulnerable persons are present.

Specific safety instructions

DANGER!

Carbon monoxide poisoning can lead to death! This is a direct-fired diesel radiant heater. It is primarily intended for temporary heating of buildings under construction, reconstruction or repair.

Direct-fired means that all combustion products of the heater enter and spread directly into the heated room. This appliance has a combustion efficiency of 98 %, but still produces a small amount of carbon monoxide. Carbon monoxide is toxic.

Humans can only tolerate small amounts of carbon monoxide, which is why it is essential to ensure sufficient ventilation.

Persons with breathing problems should consult a doctor before using the heater. Failure to provide proper ventilation in accordance with these instructions may result in death!

The first signs of carbon monoxide poisoning are similar to those of flu. Symptoms that may occur with improper ventilation are: Headache, dizziness, burning in the nose and eyes, nausea, dry mouth, sore throat.

If the heater is used in the presence of other people, you must inform them of all correct and important safety precautions, operating procedures and hazards.

Some people are more affected by carbon monoxide than others. These include pregnant women, people with heart or lung disease or anaemia, people under the influence of alcohol or when using the device at high altitudes.

Check the appliance thoroughly for damage before each use. Do NOT operate a damaged heater.

DO NOT modify this heater or operate a heater that has been modified from its original condition.

Make sure that the heater is always supervised and keep children and animals away from it.

Keep the area around the heater free from flammable materials such as gas, oil, paint thinner and other flammable vapours and liquids. Dust is flammable. Do not use the heater in areas with high dust concentration.

The inlet (rear) and outlet (front) of the heater must not be narrowed. The heater must never be used with an air ducting system (pipes/hoses etc.).

WARNING!

Burn/fire/explosion hazard! NEVER use petrol or other fuels of any kind to operate this heater!

To avoid injury, always wear gloves when handling the heater. Never touch an operating or hot heater as severe burns may occur.

This heater is not suitable for use on noble or sensitive floors. Use a heat protection mat on a heat-sensitive floor.

Use the heater only in accordance with local regulations and federal ordinances.

⚠ WARNING Risk of electric shock!

Only use the earth connection that complies with the National Electrical Standards.

Never move the heater while it is still hot.

Never transport the heater with fuel in the tank.

NEVER refill the heater fuel tank when the heater is in operation or still hot. This heater is EXTREMELY HOT during operation.

Fuel storage should be at least 8m away from heaters, flares, portable generators or other sources of ignition.

Only use the electrical power (voltage and frequency) specified on the heater's type plate.

ALWAYS unplug the appliance when it is not in use.

NEVER leave the heater unattended

Operate the unit only on flat and stable surfaces.

If the mains cable is damaged, it must be replaced by the manufacturer, its after-sales service or similarly qualified persons in order to avoid a hazard.

Intended use

This direct-fired diesel radiant heater is primarily intended for temporary heating or drying of unenclosed, very large rooms and buildings. First and foremost construction sites. The rooms must always be sufficiently ventilated. Use for agricultural purposes (for example in barns, for drying straw) is strictly prohibited! When using the unit, always observe the respective local building and fire protection regulations as well as the necessary electrical fuses. This unit may only be used as specified for its intended purpose. The manufacturer cannot be held responsible for any damage caused by non-compliance with the provisions of the generally applicable regulations and the provisions of this manual.

Assembly

Before you can operate the appliance, the safety grille, the heat protection plate and the handle must be fitted.

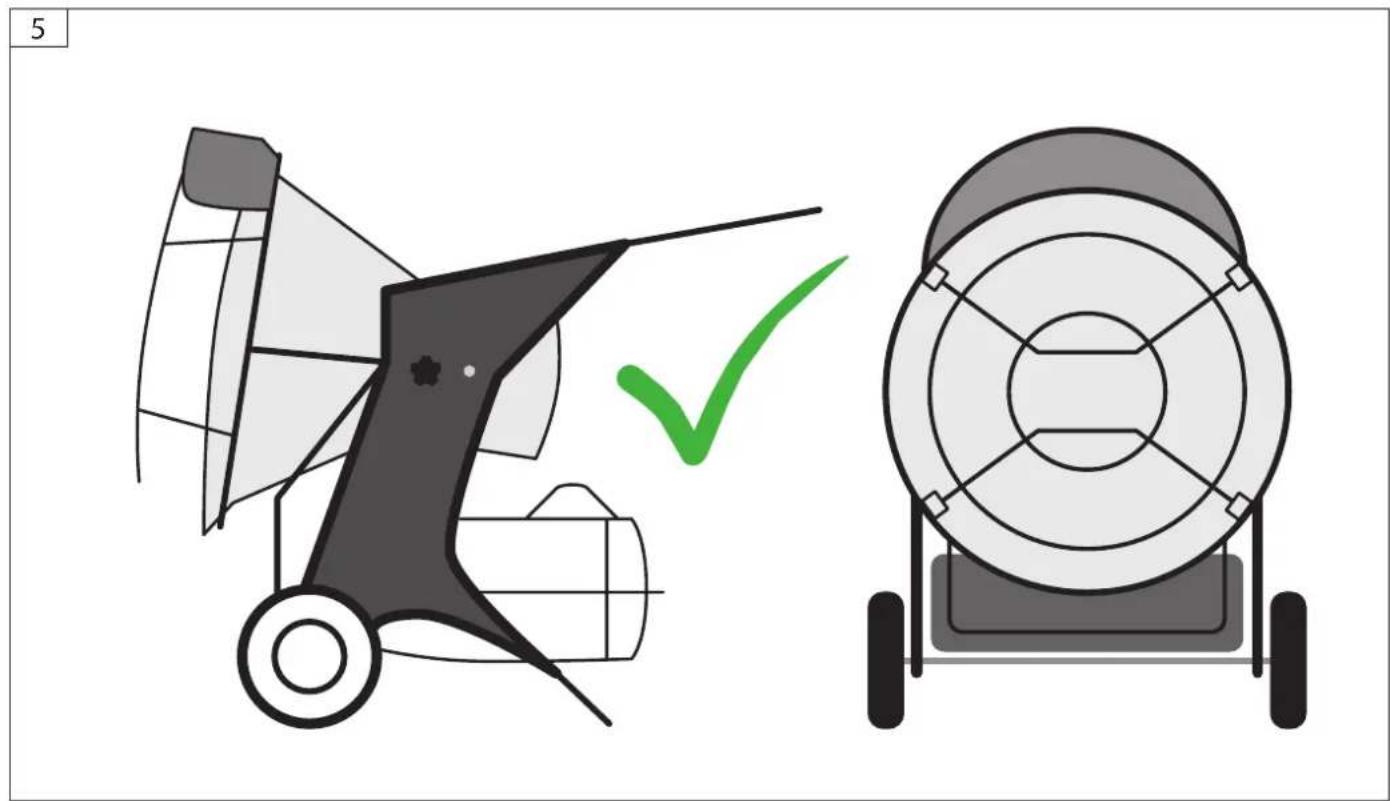

You will find an illustrated illustration on page 6-7 of this manual.

Proceed as follows for assembly:

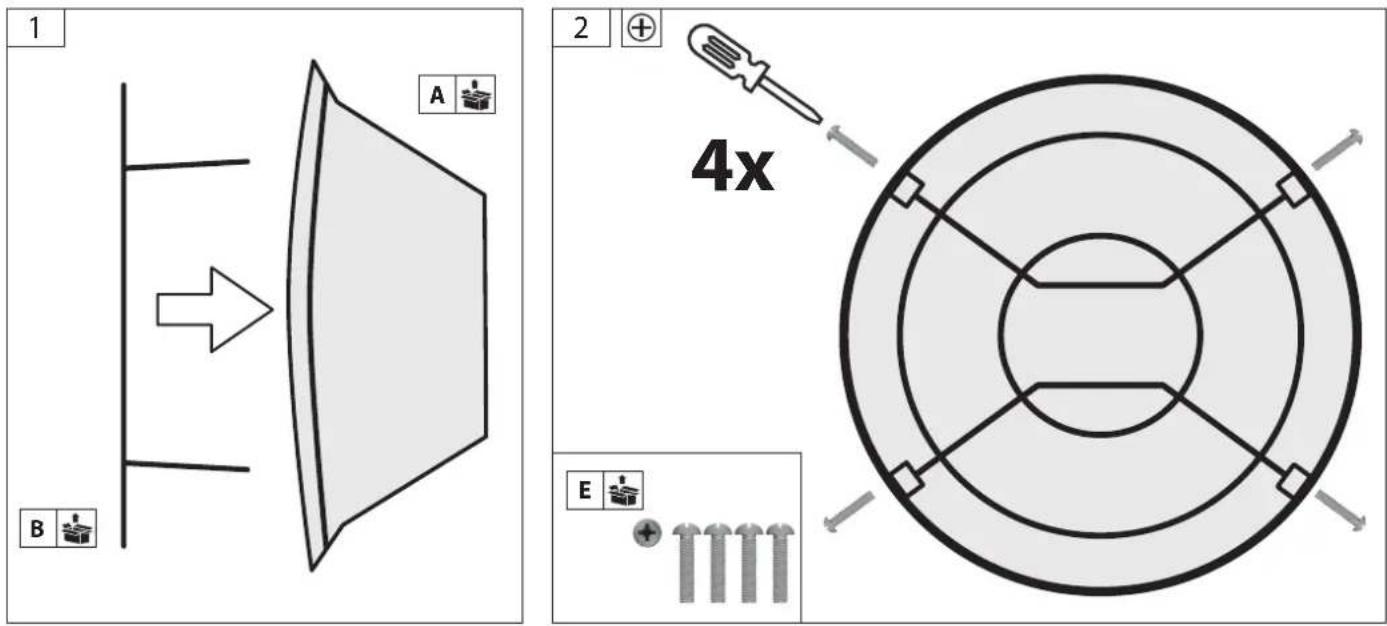

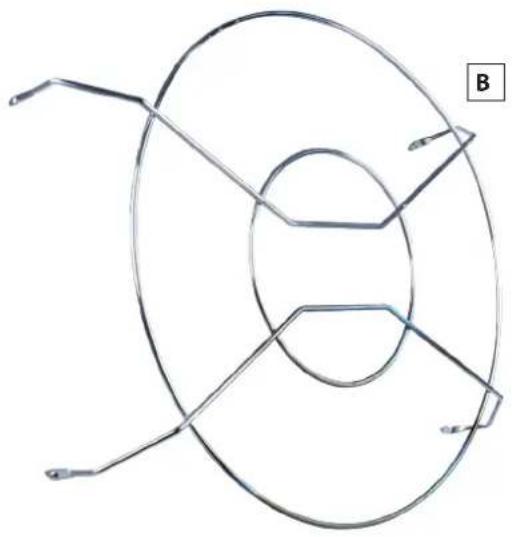

1. Attach the protective grille (B) to the heating head with the corresponding fasteners (E). (p. 6, pictures 1-2).

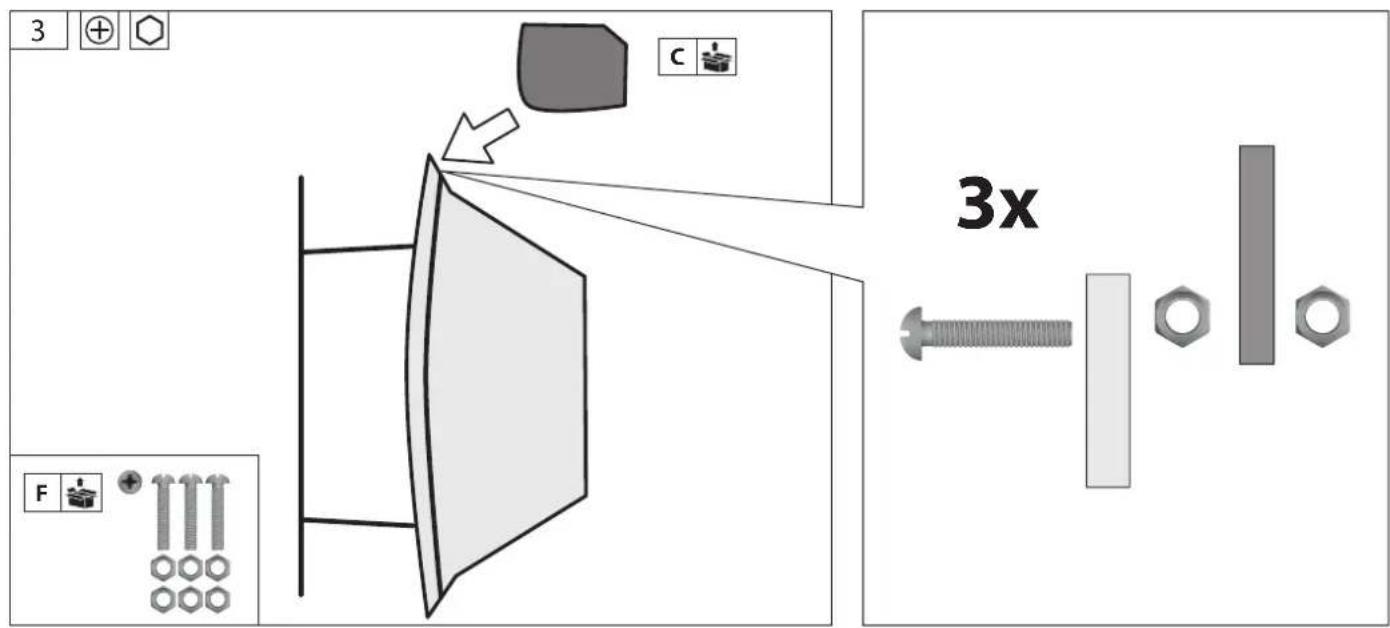

2. Attach the heat protection plate (C) to the back of the heating head with the corresponding fasteners (F). Ensure the correct sequence/positioning of the fasteners as shown in the detailed picture (p. 6, Fig. 3).

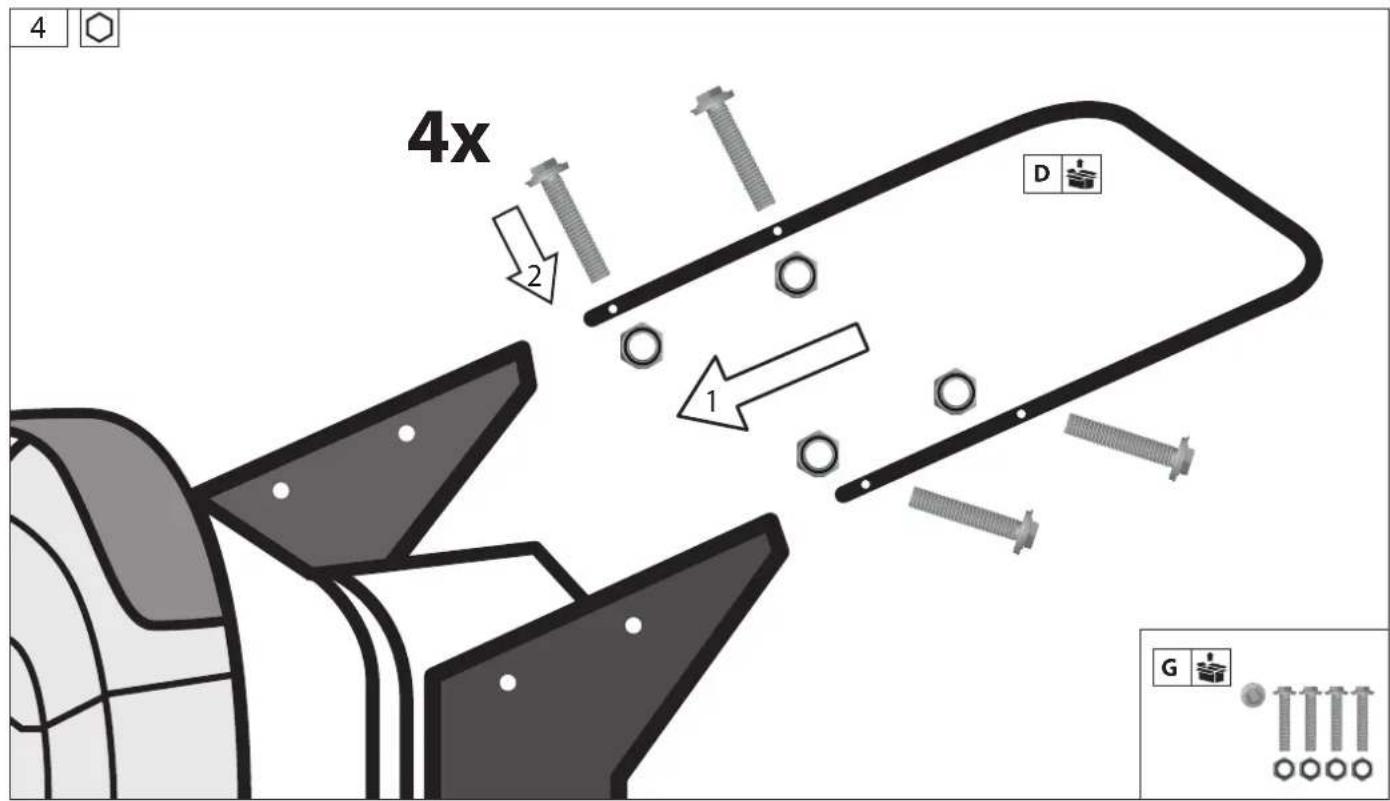

3. Mount the handle (D) with the fasteners (G) on the heater (A) (p. 7, Fig. 4).

Operation

WARNING!

The heater may only be operated with diesel!

To avoid fire or explosion, use only diesel. DO NOT use petrol, naphtha, paint thinner, alcohol or other flammable liquids.

For operation at low temperatures, antifreeze must be used.

Position the fan heater so that it is upright on a solid, non-combustible surface and a safe distance away from damp environments and combustible materials.

WARNING!

Read the chapter „SAFETY“ carefully before operating the unit!

1. Always follow the safety information and instructions in this manual during all steps.

2. Fill the tank with diesel when using the machine for the first time. Check the tank contents with each subsequent use and refill if necessary. Always close the fuel filler cap afterwards!

3. Connect the mains plug to a properly installed and fused socket.

4. Make sure that the unit is completely switched off when you plug it in.

5. Make sure that the cable is completely unwound.
6. Make sure that the unit voltage (see type plate) and mains voltage match.

7. Make sure that the mains cable is always routed behind the unit - never in front of it!

8. Switch on the unit by setting the „I/O (Off/On) switch to „I (On)“. Now the unit should start running in a few seconds. If it does not, please refer to the „Troubleshooting” section.

Note

If the generator switches off/no longer works due to lack of fuel, switch it off completely („I/O (Off/On) switch to „O (Off)“). Refuel and switch the unit on again.

Note

When you operate the heater for the first time, there may be an odour. This is normal and will fade.

Note

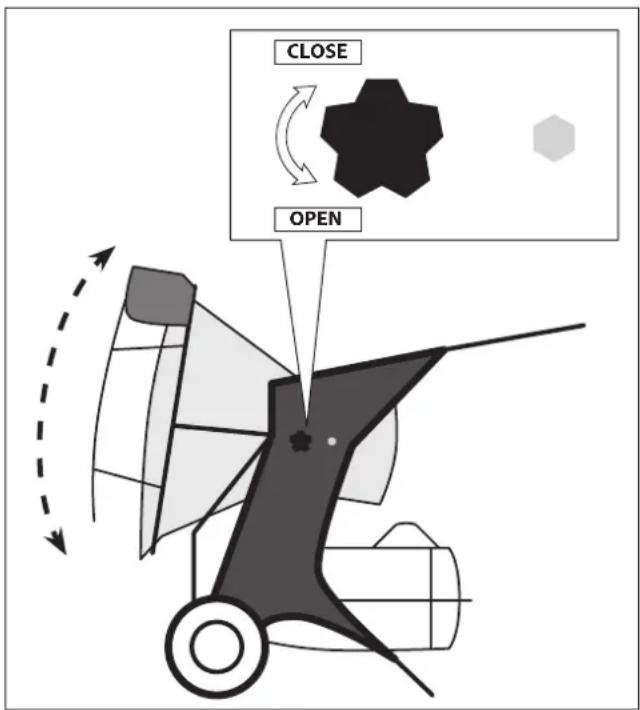

The discharge angle of the heater fan can be varied and locked by the locking screws (7).

CLOSE OPEN

Switching off the unit

1. Switch off the unit by setting the „I/O (Off/On) switch to „O (Off)“.

WARNING!

Never disconnect the unit from the power supply until it has cooled down completely. (Duration about 5 min.)

1. When the unit has cooled down completely, unplug the power cord from the mains socket.

Cleaning & Maintenance

Hot surface warning

⚠ Warning of electrical voltage

Before cleaning, always switch off the appliance, disconnect the mains plug and allow the appliance to cool down.

Never rinse the appliance with water or immerse it in water to clean it, as this could result in an electric shock or fire.

Never touch the mains plug with wet or damp hands.

Remove dust from the unit with a dry cloth. To remove stains, a slightly damp cloth can be used.

Warning of electrical voltage

Work on electrical components may only be carried out by an authorised specialist company.

Repairs and work not described in these instructions should only be carried out by qualified personnel. Only use original accessories and original spare parts.

Repairs that require opening the unit are reserved exclusively for the manufacturer or its customer service.

We recommend following the maintenance schedule as follows:

Component	Maintenance frequency	Maintenance procedures
Fuel tank * Clean	every 150-200 operating hours or as required	Drain and flush with fresh fuel
Nozzle Clean or replace once per season or as needed		Contact the technical service centre
Photocell Clean on once per season or as needed		Contact the technical service centre
Fuel filter * Clean	or replace twice per season or as needed	Clean the fuel filter with clean fuel
Ignition device Clean or replace every 1,000 hours of operation or as required.		Contact the technical service centre
Fan blades Clean if necessary Contact the technical service centre

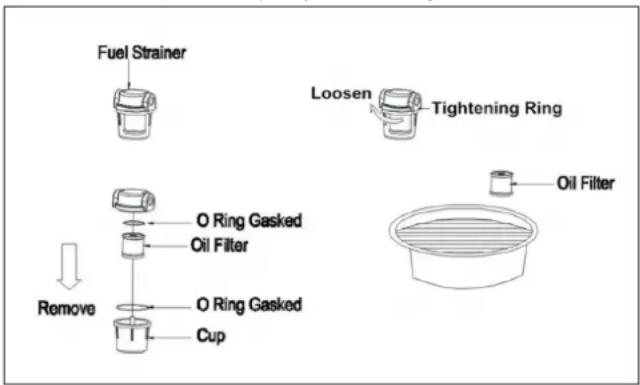

1. Fuel/fuel tank: Flush every 200 hours of operation or as needed. Do not use water to flush the tank. Only use fresh diesel.
2. Filter: The fuel filter should be cleaned at least twice per heating season by flushing it with clean diesel. Contaminated fuel could make this necessary immediately, see picture below: Fig 1

Fig. 1

Storage

When you put the unit into storage, you must empty and clean the tank.

• Drain the remaining diesel by loosening the drain plug (6) with an open-end spanner.
• Then clean the tank by flushing it with a small amount of fresh diesel.
• Empty the tank completely.
• NEVER mix diesel with water! This will cause rust to form inside the heater.

Never store leftover diesel over the summer. Using old fuel can damage the heater. Switch off the unit and let it cool down before storing.

Clean the unit (see chapter Cleaning) and store it in the original packaging with original operating instructions in an upright position.

Store the appliance in a well-ventilated and dry place out of the reach of children. Store the unit away from heat, frost and direct sunlight.

Ensure that the storage area is free from dust and corrosive vapours.

Error messages

Error Cause Solution
F0	OPERATING ERROR
	The „I (On) /O (Off)" switch is set to „I (On)" when the heater is plugged in.	After unplugging the heater, make sure the switch is in the „O (Off)" position, then plug it back in and switch it to „I (On)”.
F1	PHOTOCELL ERROR
	No fuelFuel is contaminatedPhotocell is dirty or damagedFuel filter is dirtyIgnition error	Flip the switch to „O (Off)" and fill the fuel tank.Set switch to „O (Off)", empty fuel tank, clean and refill. Clean the filter with clean fuel, do not damage the filter. (see chapter Cleaning & Maintenance Fig 1)Contact the technical service centres. Chapter Cleaning & Maintenance Fig 1Contact the technical service centre
F2	TEMPERATURE CONTROL SENSOR ERROR
	Interrupted cableSensor is damaged	Contact the technical service centreContact the technical service centre
F3	THERMOSTAT ERROR
	Overheating of the internal generatorAnti-tilt sensor intervention	Switch off the unit and wait until it has cooled down.Place the heater on a flat and stable surface.
LO	Outdoor temperature below -9°C	Normal state
CH	Continuous operation (55°C)	Normal state

Troubleshooting

Problem Possible causeV Possible solution
The unit does not start / does not heat up	1. The mains switch is in the „O (Off)” position.2. No power3. Feed cable not plugged in4. Blocked control card5. Incorrect thermostat setting6. Bridging the temperature sensor7. Fuse damaged	1. Turn on the switch „I (On)”.2. - Plug the mains cable into the socket correctly- Check the power supply network.3. Contact the technical service centre4. - Restart the generator- Identify the display error- Contact the technical service centre5. Calibrate the thermostat by setting it higher than the ambient temperature.6. Wait at least ten minutes and then try to activate the ignition again.- Contact the technical service centre7. Contact the technical service centre
Motor/pump runs but flame does not ignite	1. No fuel2. Ignition device is dirty3. Fuel filter is dirty4. Nozzle is dirty5. Photocell is dirty, damaged or improperly installed6. Foreign substances in the tank7. The electrodes are worn out or placed at an unsuitable distance	1. Switch off the unit, fill the fuel tank and restart the unit.2. Contact the technical service centre3. Clean the filter with clean fuel4. Contact the technical service centre.5. Contact the technical service centre.6. Empty the fuel tank and fill it with clean fuel.7. Contact the technical service centre.
Fan blocks or rotates too slowly	1. Engine damaged	1. Contact the technical service centre

Note

After all troubleshooting, maintenance and cleaning work, wait at least 5 minutes before switching the unit on again.

If the unit still does not work properly, please contact the customer service or an authorised electrician. The unit must then be checked and repaired if necessary.

Warranty

The warranty period is 24 months for consumers and begins at the time of purchase of the appliance.

The warranty only covers defects that are due to material or manufacturing faults. When claiming a defect within the meaning of the warranty, the original purchase receipt with the date of sale must be enclosed.

Improper use, e.g. overloading of the unit, use of force, damage due to external influences or foreign bodies, are excluded from the warranty. Non-observance of the operating instructions and normal wear and tear are also excluded from the warranty.

Important customer information!

Please note that a return within or even outside the warranty period should always be made in the original packaging. This measure effectively avoids unnecessary transport damage and its often contentious settlement. Only in the original box is your device optimally protected and thus a smooth processing is ensured.

Service

Do you have technical questions? A complaint? Do you need spare parts or operating instructions? On the homepage of the company Güde GmbH & Co KG (www.guede.com) in the service area we will help you quickly and unbureaucratically. Please help us to help you. In order to be able to identify your unit in the event of a complaint, we need the serial number as well as the item number and year of manufacture. You will find all these data on the type plate.

Tel.: [phone] / 700-360

Fax: [phone]

E-Mail: [e-mail]

Disposal

Warning Danger of suffocation!

Keep packaging parts out of the reach of children and dispose of them as soon as possible.

The packaging protects the unit from damage during transport. The packaging materials are usually selected according to environmentally compatible and disposal aspects and are therefore recyclable. Returning the packaging to the material cycle saves raw materials and reduces the amount of waste. Packaging parts (e.g. foils, Styrofoam*) can be dangerous for children.

Do not dispose of electrical appliances in household waste, use the collection points in your municipality. Ask your local authority for the locations of the collection points. If electrical appliances are disposed of in an uncontrolled manner, hazardous substances can enter the groundwater and thus the food chain during weathering, or flora and fauna can be poisoned for years. If you replace the appliance with a new one, the seller is legally obliged to accept the old one for disposal at least free of charge.

When disposing of the unit, the relevant regulations on the disposal of used oil must be followed.

Electrical or electronic equipment that is damaged and/or needs to be disposed of must be handed in at the recycling points provided for this purpose.

Données techniques

CLOSE OPEN

Éteindre l'appareil

CLOSE OPEN

CLOSE OPEN

CLOSE OPEN

CLOSE OPEN

Vypnutí přístroje

CLOSE OPEN

Vypnutie jednotky

CLOSE OPEN

O Ring Gasked Oil Filter O Ring Gasked Cup Remove

Przechowywanie

CLOSE OPEN
