USER MANUAL IAN 378698 Livarno Lux

QR code with embedded icon of a person holding an object, likely linking to a digital resource or app

PDF ONLINE

www.lidl-service.com

Black-and-white photo of a modern table lamp and a water droplet on a shelf, both with bokeh background (no text or symbols visible)

LED TABLE LAMP "STARRY SKY" / LED TABLE LAMP / LED-TISCHLEUCHTE „STERNENHIMMEL" / LED-TISCHLEUCHTE / LAMPE DE TABLE À LED « CIEL ÉTOILÉ » / LAMPE DE TABLE À LED

DEATCH

Operating and safety instructions

NL BE

LED-TAFELLAMP 'STERRENHEMEL'/LED-TAFELLAMP

Before reading, unfold the two pages with the illustrations and then familiarise yourself with all the functions of the unit.

FR BE

GB / IE User manual and safety information Page 11

Technical diagram showing a cylindrical device connected to a sensor or electrical component with labeled parts 1, 2, and 3.

55886

Diagram of a cylindrical device with labeled components and connections, showing internal particles and connected electrical connectors.

EDI Light Service Center

Kleinbahnstraße 35

E: [e-mail]

Österreich

EDI Light Service Center

Heiligkreuz 22

6136 Pill, ÖSTERREICH

T: [phone]

E: [e-mail]

Schweiz

EGLO Schweiz AG

Seetalstraße 142

6032 Emmen, SCHWEIZ

T: [phone]

E: [e-mail]

Garantiekarte

Absender:

Name/Vorname:

Key to pictograms ......Page 12

Introduction ......Page 12

Intended use ......Page 13

Contents included ......Page 13

Description of parts ......Page 13

Technical details Page 13

Safety Page 13

Safety information ......Page 13

First use ......Page 14

Setting up the product ......Page 14

Switching the product on and off......Page 14

Maintenance and cleaning......Page 14

Disposal Page 15

Declaration of Conformity......Page 15

Warranty and service Page 15

Warranty Page 15

Service addresses Page 16

Warranty card......Page 16

Key to pictograms*
	Read the instructions!		Note warnings and safety information!
[DXBA]	Safety informationUsage instructions		Danger to toddlers and children –risk of accident, injury or death!
	This light is only suitable for use in indoor dry and enclosed areas.		Warning:electric shock
[DOB4]	Volt
[730T]	Alternating current/voltage		Caution: hot surfaces
	Direct current/voltage	[SSX2]	LED service life
[KOKC]	Hertz (frequency)		Safety extra-low voltage
	Watt (power)	[T054]	Constant voltage
[KTOT]	Lumens
[ADKO]	Colour rendering index of LED lighting	[ADKG]	Product complies with the applicable Euro-pean guidelines for the product.
	Appliance class II		Safety-certified by TÜV SÜD
[XXXD]	Safety transformer		Consider the environment when disposing of your packaging and device.
	Independent device
[2XTW]	Ambient temperature		Only a professional should replace the light source.
	Casing temperature at the specified point		The camshaft should only be replaced by a specialist.

LED table lamp "Starry sky"/ LED table lamp

* You can find more information, including explanations of additional symbols and other technical details, at www.edi-light.com

Introduction

Congratulations on your purchase of an LED table lamp! (Sometimes referred to below as a light or "the product"). You

have chosen a high-quality product. Please read this user manual right through carefully. Start by unfolding the page with the image. This manual

constitutes part of the product and includes important information for preparing the product for use and operating it. Read all the safety information carefully. Before you use the product for the first time, make sure that the voltage is correct and all parts are correctly installed. If you have any questions or are unsure about using the product, please contact your retailer or service centre. Store

this manual carefully and pass it on to third parties if necessary.

Intended use

This light is only suitable for use in indoor, dry and enclosed areas. This product is only intended for private

household use.

- Contents included

When you unpack the product, check straight away that no parts are missing or defective.

1 LED table lamp

1 User manual

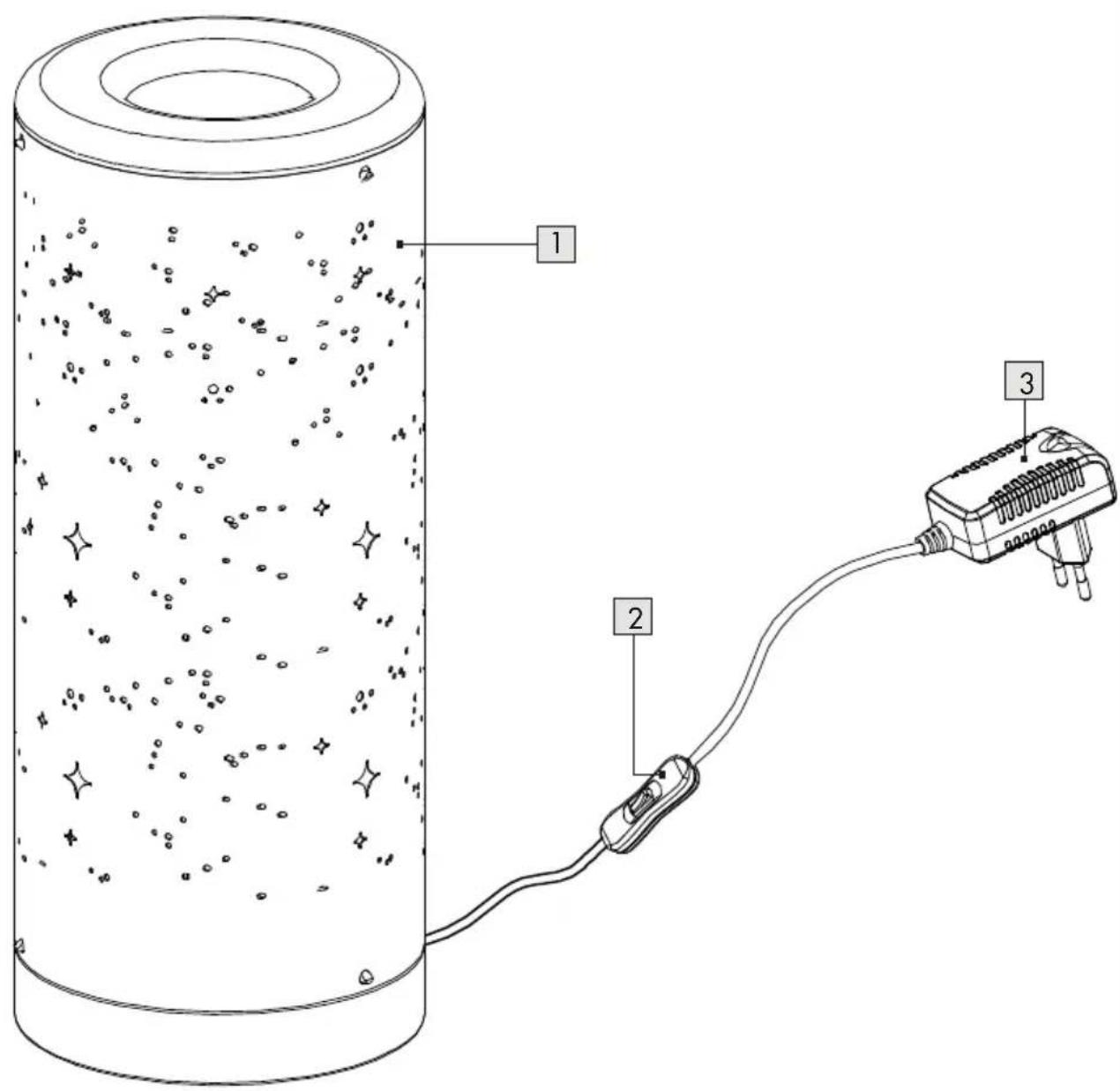

Description of parts

1 LED table lamp

2 On/off switch

3 AC adapter plug

- Technical details

Item number: 55885(without star effect)

55886 (with star effect)

Operating voltage: 220–240 V\~, 50/60 Hz

LED light source: Warm white

Total power: 7 Watt

Appliance class: II /

Dimensions: Height 35 cm approx.

Diameter 13 cm approx.

Power cable length: 150 cm approx.

Marketed by:

EDI Light GmbH, Heiligkreuz 22, 6136 Pill,

AUSTRIA

www.edi-light.com

Safety

Safety information

Damage caused by failure to follow this manual invalidates the warranty. No liability is accepted for consequential damage. No liability is accepted for property damage or injury resulting from improper use or failure to observe the safety information.

WARNING!

TODDLERS AND CHILDREN - RISK OF ACCIDENTS

AND DEATH

Never leave children unattended with the packaging material. They can suffocate themselves with this material. Children often underestimate the risks. The packaging material is not a toy.

This product can be used by children aged 8 years and over and by people with limited mental, sensory or intellectual capacities, or by people without relevant experience or knowledge, provided they understand or are briefed about safe use of the product and the associated risks. Children may not play with the product. Children may not carry out cleaning and maintenance activities without supervision. This product is not a toy.

If you notice anything unusual while using the product (e.g. unusual noises, odours or smoke), switch the product off immediately and take the plug out of the socket. Do not use the product again until it has been checked by a professional.

- Avoid death by electric shock

No liability is accepted for property damage or injury resulting from improper use or failure to observe the safety information.

■ Never use your light if you notice any damage or defects.

- Check the light and its power cable/adapter

plug for damage before you plug it in.

■ Never bring the light into contact with water or other liquids.
- Never open up any of the electrical equipment or insert any objects into electrical parts, as this carries a risk of death from electric shock.
- When plugging the AC adapter into the power supply or unplugging it, make sure you only touch the insulated parts.
The external flexible cable for this light cannot be replaced; if this cable becomes damaged, the light can no longer by used and must be disposed of.
Before using the light, make sure that the supply voltage matches the required operating voltage for the light (220–240 V\~, 50/60 Hz).
■ Always take the plug out of the socket before cleaning or if you are not using the light for a long period. The light source for this light may only be replaced by the manufacturer, a service technician authorised by the manufacturer, or a person with equivalent qualifications.

Avoid fire and injury

CAUTION: HOT SURFACES - RISK OF BURNING To avoid burns, make sure that the light is switched off and has cooled down before you touch it. Lamps can get very hot.

• Do not cover the lamp with any other objects. Overheating can cause fire.
• Set up the light somewhere where it is protected from damp and dirt.
• Do not hang any extra objects (e.g. clothing) on the product.
  ■ Always set up the product on a stable, level surface.
• Do not wrap the power cable around the product. Do not carry or pull the product by its power cable.
• Do not leave the light unattended while it is on.

Overheating can cause fire.

• When positioning the power cable, make sure it does not create a trip hazard.
  This LED lamp is not dimmable.

Do not look directly into the light source (light bulb, LED, etc.). Do not look at the light source (light bulb, LED, etc.) through an optical instrument such as a magnifying glass.

- First use

Setting up the product

Take the LED table lamp 1 carefully out of the packaging and remove all the packaging material.
☐ Make sure that the power cable does not present a trip hazard.
☐ Plug the AC adapter 3 into a socket that meets the regulations.

Your product is now ready for use.

- Switching the product on and off

☐ Switch the product on and off using the on/off switch 2

● Maintenance and cleaning

WARNING: ELECTRIC SHOCK

Before cleaning, always remove the plug 3 from the socket.

WARNING: ELECTRIC SHOCK For reasons of electrical safety, the light must never be cleaned using aggressive

cleaning agents or immersed in water.

CAUTION: HOT SURFACES – RISK OF BURNING Let the light cool down completely.

☐ Never use solvents, petrol, etc. These can damage the light.
□ Always use a dry, lint-free cloth for cleaning.

- Disposal

The packaging consists of environmentally friendly materials that you can dispose of in your local recycling facilities.

Check the marking on the packaging when sorting your waste. Packaging materials are marked with abbreviations

(a) and numbers (b) as follows: 1–7: plastics/20–22: paper and cardboard/80–98: composites.

The product and packaging materials are recyclable. Please separate them so they can be processed properly by the

waste disposal company. The Triman logo only applies in France.

Ask your local administrative council or waste disposal facility about how to dispose of the product at the end of its life.

When your product reaches the end of its life, please consider the environment and do not throw it into your general

waste: instead, dispose of it properly.

You can find out about disposal facilities and their opening times from your local council or administration.

● Declaration of conformity

This product complies with the requirements of the applicable national and European directives. Corresponding

declarations and documentation are available with the manufacturer. The product complies with the requirements of German safety legislation for equipment and products.

We reserve the right to make technical changes and modifications to the appearance of the item in the course of our product improvement process. Typing errors and misprints reserved.

This product contains a light source of energy efficiency class F.

● Information and warranty

Warranty

We offer a three-year warranty from the date of purchase. Our products are manufactured according to the latest production techniques and undergo detailed quality checks. We guarantee that the article is in perfect condition. During the warranty period, we will repair material or manufacturing defects free of charge. If, contrary to all expectations, the item exhibits any defects, please pack it up carefully and send it to the service address provided. The warranty excludes damage resulting from improper use and all wear parts or consumable materials. You can order replacement wear parts and consumables at your own cost by telephoning the number provided. You can likewise arrange repairs that are not covered by the warranty (e.g. lamps) by contacting the service address provided; these will be billed to you at cost price. The item will be repaired at the service address provided. To ensure it can be handled and sent back to you promptly, please send it directly to this address. If you require additional product information, want to order accessories, or have any questions about our service, please telephone our customer service line on the telephone number provided. Please include the item number when you submit your query (see "Technical details").

Great Britain & Ireland

EGLO UK LTD.

Unit 12 Cirrus Park, Lower Farm Road,

Moulton Park

Industrial Estate, NORTHAMPTON NN3 6UR

T: [phone]

E: [e-mail]

IAN 374230\_2104

When you submit your query, please have the receipt and item number (e.g. IAN 123456_7890) ready as proof of purchase.

Warranty card

Sender:

Full name:

Country/Postcode/Town/Street address:

Telephone number:

Item number/item name:

Date and place of purchase:

Details of the defect:

Date/signature:

If the warranty does not apply:

☐ Please return the unrepaired item at my own cost.
☐ Please inform me of the cost and repair the item at my own cost.
