Product type	LED light panel with color variation
Dimensions (Model A)	45 x 45 x 6.5 cm (L x l x H)
Dimensions (Model B)	59.5 x 29.5 x 6.5 cm (L x l x H)
Supply voltage	220-240 V~, 50/60 Hz
Total power	22 W
LED module power	15.5 W
LED module lifespan	25,000 hours
Luminous flux	1900 lumens
Color temperature	RGB from 3000 K to 6500 K+
Protection rating	IP20
Battery type (remote control)	2 x AAA 1.5 V
Package contents	1 LED panel, 4 screws, 4 wall plugs, 2 AAA batteries, 1 remote control, 1 manual
Main functions	Cool white/neutral white/warm white, RGB variation, 11 random programs, night light, remote control
Care and cleaning	Clean with a dry, lint-free cloth after disconnecting power
Protection class	II
Warranty	3 years
After-sales service (France)	EGLO FRANCE LUMINAIRE SARL, Z.A. Jeune Bois, 2 Rue de la Martinique, 68274 Wittenheim
After-sales service (Belgium)	EGLO BELGIUM bv, Antwerpsesteenweg 247, 2950 Kapellen
Repairability	LED module replaceable only by a specialist

Frequently Asked Questions - IAN 378861 Livarno Lux

How to install the LED light panel?

Electrical installation must be carried out by a qualified electrician. First, turn off the power at the circuit breaker, attach the mounting bracket to the wall with the provided wall plugs and screws, then connect the power cable via the terminal block respecting polarities (L = black/brown, N = blue). Finally, attach the LED panel to the bracket.

How to turn the LED panel on and off?

Use the wall switch to turn on/off. If you toggle the switch quickly, you cycle between cool white, warm white, and neutral white. You can also use the remote control for more precise settings.

How to change the light color with the remote control?

Press the RGB button to choose red, green, or blue. Use the K+ and K- buttons to adjust the white temperature. The © button activates a color gradient. There are also 11 random programs accessible by pressing the corresponding button multiple times.

What to do if the remote control stops working?

First, check that the batteries are inserted correctly (polarity respected). If the range decreases, replace both AAA batteries. Make sure no obstacle is blocking the signal (range about 6 m). If the problem persists, the receiver may be defective.

Can the LED panel be used outdoors?

No, this product is designed exclusively for indoor use in dry, enclosed spaces (IP20 protection rating). Do not expose it to moisture or water.

How to clean the LED panel?

Before cleaning, turn off power at the circuit breaker. Use a dry, lint-free cloth. Never use solvents, gasoline, or abrasive products. Wait for the lamp to cool down to avoid burns.

Can I replace the LED module myself?

No, the LED module is not designed to be replaced by the user. In case of defect, contact a specialist or after-sales service.

What is the lifespan of the LED panel?

The lifespan of the LED module is approximately 25,000 hours. This corresponds to several years of daily use.

How to dispose of the LED panel and batteries?

Do not dispose of the device with household waste. Take it to a recycling center or collection point for electronic waste. Used batteries must be placed in specific recycling containers (they contain heavy metals). Follow local regulations.

What to do in case of malfunction or suspicious odor?

Turn off the device immediately by cutting the power at the circuit breaker. Do not use the product until a qualified person has examined it. Contact EGLO France or Belgium after-sales service for warranty repair.

USER MANUAL IAN 378861 Livarno Lux

Black-and-white photo of a wall-mounted ceiling light fixture with a blank square frame, flanked by dark foliage (no text or symbols visible)

LED-PANEL MIT FLIESSENDEN FARBEFFEKTEN/LED PANEL WITH FLOWING COLOUR EFFECTS/PAN NEAU LED AVEC FONCTION VARIATION DE COULEUR

DE AT CH

LED-PANEL MIT FLIESSENDEN FARBEFFEKTEN

LED PANEL WITH FLOWING COLOUR EFFECTS

Assembly, operating and safety instructions

NL BE

LED-PANEEL MET VLOEIENDE KLEUREFFECTEN

Before reading, unfold both pages containing illustrations and familiarise yourself with all functions of the device.

FR BE

GB/IE Assembly, operating and safety instructions Page 13

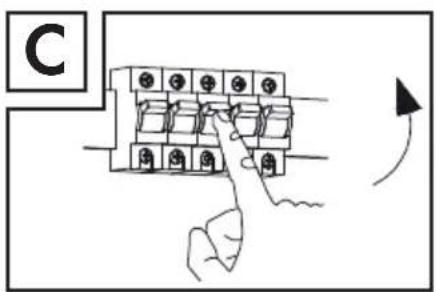

Diagram showing a hand interacting with a grid of electrical components, with an arrow indicating rotation or adjustment.

B

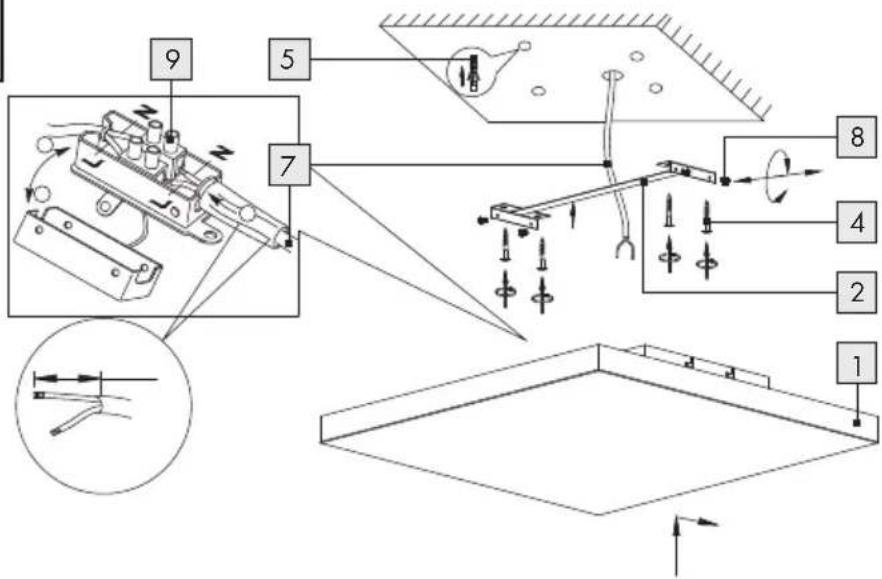

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or force directions.

55854

9 7 N N L L N K N L N L N L

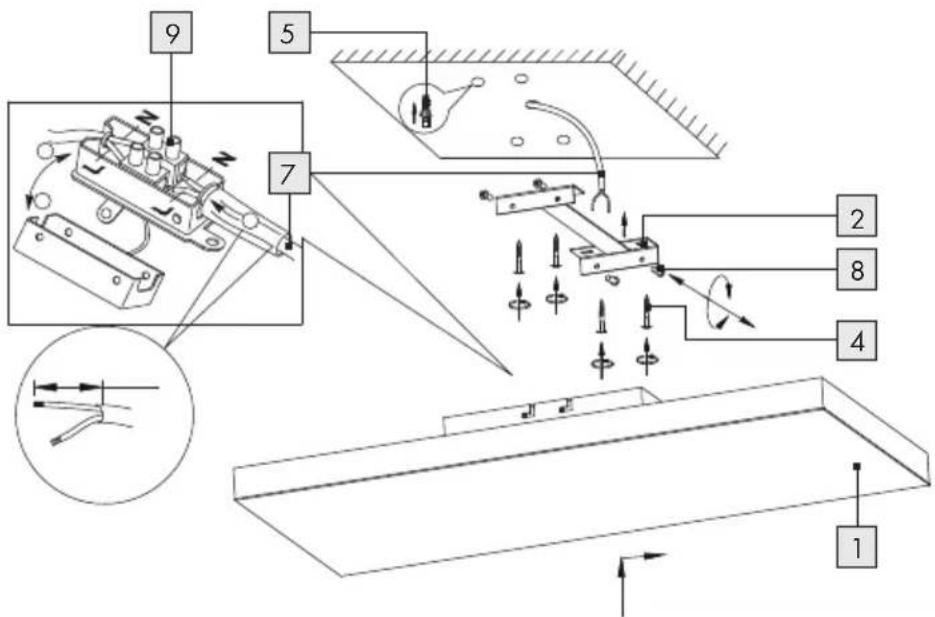

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or force directions.

55855

C

D + K K RGB

EDI Light Service Center

Kleinbahnstraße 35

E: [e-mail]

Österreich

EDI Light Service Center

Heiligkreuz 22

6136 Pill, ÖSTERREICH

T: [phone]

E: [e-mail]

Garantiekarte

Absender:

Name/Vorname:

Intended use....Page 15

Scope of delivery....Page 15

Parts description Page 15

Technical data......Page 15

Safety Page 15

Safety notes......Page 15

Safety instructions for batteries/rechargeable batteries Page 16

Preparation......Page 17

Required tools and material Page 17

Mounting the LED light panel......Page 17

Inserting/replacing batteries (remote control) Page 17

Initial use....Page 18

Switching the light on and off/adjusting the light colour Page 18

Controlling light effects with the remote control....Page 18

Maintenance and cleaning......Page 18

Disposal Page 18

Declaration of conformity......Page 19

Warranty and service......Page 19

Warranty Page 19

Service address......Page 19

Warranty card....Page 20

List of pictograms used*
	Read the instructions!	ta	Ambient temperature
[XX6H]	Safety notesInstructions for use	tc	Housing temperature at stated point
[2492]	This light is only suitable for indoor use in dry and enclosed spaces.		Protection class II with ballast unit
	Alternating current/voltage Light temperature in Kelvin
	Hertz (frequency) Lumen
	Watts (effective power)	25000 h	Operating life
	Direct current/voltage		Cannot be dimmed using an external controller.
[202W]	Polarity output		Switching cycles
[50WD]	Protection class II For indoor use only	IP20
[TB47]	Observe the warnings and safety information!		Wear protective gloves
	Warning! Danger of electric shock! TÜV	Certified
	Caution! Danger of explosion!		Improper disposal of batteries can harm the environment!
	Danger to life and risk of accidents for infants and children!		Dispose of the packaging and device in an environmentally friendly manner!
	Short-circuit-proof safety transformer	* Further details, e.g. additional symbol explanations and technical information, can be found at www.edi-light.com

LED panel with flowing colour effects

- Introduction

Congratulations on the purchase of your new product. You have chosen a high-quality product. Please be sure to carefully

read all the instructions for use. Fold out the page with the illustration. These instructions for use are part

of the product and contain important information on setup and handling. Always observe all safety information. Before using this product for the first time, verify that the correct mains voltage is present and that all parts are properly installed. If you have any questions or are unsure about operating the product, please contact your retailer or the service centre. Please keep these instructions for use in a safe place and include them when passing this product on to others.

Intended use

This lamp is only suitable for indoor use in dry and enclosed spaces. This product is only intended for private household use.

- Scope of delivery

Always check that all the parts are present and that the product is in perfect condition immediately after unpacking.

1 LED light panel
4 screws
4 wall plugs
2 batteries (AAA)
1 remote control
1 set of assembly instructions and instructions for use

Parts description

1 LED light panel
2 Mounting bracket
3 Remote control
4 Screw for LED light panel
5 Wall plugs
6 Battery
7 Mains connection cable (external)
8 Screw for mounting bracket
9 Lustre terminal

- Technical data

Item number: 55854/55855

Operating voltage: 220-240V\~50/60Hz

Total output: 22 Watt

Protection class: II/

LED module:

output 15.5W; 25000 hours service life; 1900 Lumen; 3000K to 6500K+ RGB light colour

The LED illuminants and the LED module can only be replaced by a specialist.

Dimensions:

Model A (55854): LED panel 45 × 45 × 6.5 cm
(L x W x H)

Model B (55855): LED panel 59.5 x 29.5 x 6.5cm (L x W x H)

IP rating: IP20

Battery type

(remote control): 2 x AAA 1.5V

Distributor:

EDI Light GmbH, Heiligkreuz 22, 6136 Pill, AUSTRIA

www.edi-light.com

Safety

Safety notes

Damage due to failure to comply with these operating instructions will void the warranty! We assume no liability for consequential damage! We assume no liability for property damage or personal injury due to improper handling or failure to observe the safety information!

DANGERWARNING!

LIFE AND RISK OF ACCIDENT FOR INFANTS AND CHILDREN!

Never leave children unsupervised with the packaging material. The packaging material poses a suffocation hazard. Children frequently underestimate the dangers. The packaging material is not a toy.

This product may be used by children aged 8 years and up, as well as by persons with reduced physical, sensory or mental capacities or lacking experience and knowledge, so long as they are supervised or instructed in the safe use of the product and understand the associated risks. Do not allow children to play with the product. Cleaning and user maintenance must not be performed by children without supervision. This product is not a toy.
If you notice anything unusual during use (e.g. unusual noise, strange odour or smoke), switch

off the product immediately. Afterwards, do not use the product until it has been examined by a qualified person.

Avoid the risk of fatal injury from electric shock

We assume no liability for property damage or personal injury due to improper handling or failure to observe the safety information!
■ above electrical installation performed by a trained electrician or a person trained to perform electrical installations.
■ Remove the fuse or switch off the circuit breaker (0 setting) in the fuse box prior to installation.
■ Never let the lamp come into contact with water or other liquids.
Before installing, ensure that the available mains voltage matches the operating voltage required by the light (see "Technical data").
- Be sure not to damage any wires during installation.
The LED lamp cannot be dimmed using an external controller.

Prevent fire and injury hazards

To prevent burns, ensure that the lamp has been switched off and has cooled down before touching it.
Do not mount the light to a damp or conductive surface.
Do not leave the light or packaging material lying unattended. Plastic films or bags, or plastic parts etc. can turn into dangerous toys for children.
■ Exposure to certain strobe lights or lighting effects can cause epileptic seizures or unconsciousness in some people. If you experience symptoms of an epileptic seizure, seek immediate medical attention.
- Install the light so it is protected from moisture, dirt and extreme heat.
Before drilling, ensure that there are no gas or water pipes or power cables where you intend to drill. Installation may only be carried out by

experts. It is essential that you take note of how the wall is constructed, as the included fittings are not suitable for all types of wall. Ask a retailer about screws and wall plugs suitable for the respective wall structure.

The manufacturer assumes no liability for incorrect wall to wall plug connection and resulting damages.
Always be alert! Always pay attention to what you are doing and use common sense. Never use the light if you are having difficulty concentrating or do not feel well.
Prior to installation, make sure that the installation site is suitable to bear the weight of the lamp.
Familiarise yourself with all instructions and diagrams in this manual as well as with the light itself before use.

Safety instructions for batteries/rechargeable batteries

■ DANGER TO LIFE! Keep batteries/rechargeable batteries out of reach of children. If accidentally swallowed seek immediate medical attention.
■ Swallowing may lead to burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion.

DANGER OF EXPLOSION!

Never recharge non-rechargeable batteries. Do not short-circuit batter-

ies/rechargeable batteries and/or open them. Overheating, fire or bursting can be the result.

■ Never throw batteries/rechargeable batteries into fire or water.

Do not exert mechanical loads to batteries/rechargeable batteries.

Risk of leakage of batteries/rechargeable batteries

• Avoid extreme environmental conditions and temperatures, which could affect batteries/rechargeable batteries, e.g. radiators/direct sunlight.
  If batteries/rechargeable batteries have leaked, avoid contact with skin, eyes and mucous

membranes with the chemicals! Flush immediately the affected areas with fresh water and seek medical attention!

WEAR PROTECTIVE GLOVES!

Leaked or damaged batteries/rechargeable batteries can cause burns on contact with the skin. Wear suitable protective gloves at all times if such an event occurs.

In the event of a leakage of batteries/rechargeable batteries, immediately remove them from the product to prevent damage.
Only use the same type of batteries/rechargeable batteries. Do not mix used and new batteries/rechargeable batteries.
■ Remove batteries/rechargeable batteries if the product will not be used for a longer period.

Risk of damage of the product

■ Only use the specified type of battery/rechargeable battery!
- Insert batteries/rechargeable batteries according to polarity marks (+) and (-) on the battery/rechargeable battery and the product.
Use a dry lint-free cloth or cotton swab to clean the contacts on the battery/rechargeable battery and in the battery compartment before inserting!
■ Remove exhausted batteries/ rechargeable batteries from the product immediately.

● Preparation

- Required tools and material

The specified tools and materials are not included. The information and values specified are non-binding and are only provided as a reference. The nature of the material is determined by the specific local conditions.

• Pencil/ marking tool
• 2-pole voltage tester
• Cross-tip screwdriver
• Slotted screwdriver
• Power drill (approx. ∅ 6mm)
• Side cutters

- Mounting the LED light panel

WARNING! DANGER OF ELECTRIC SHOCK!

Important: The electrical connection must be established by a qualified electrician or a person trained to perform electrical installations. This person must be familiar with the properties of the light and the connection regulations. To do so, remove the fuse or switch off the circuit breaker in the fuse box (0 setting) (see Fig. A).

Remove the screws visible at the side of the mounting bracket 2 and remove the mounting bracket.
☐ Use the holes in the mounting bracket 2 intended for the screws 4 to mark the drill holes.
Now drill the mounting holes. Be sure not to damage the power cable.
☐ Insert the wall plugs into the drill holes (see Fig. B).
☐ Secure the mounting bracket using the screws 4 provided (see Fig. B).

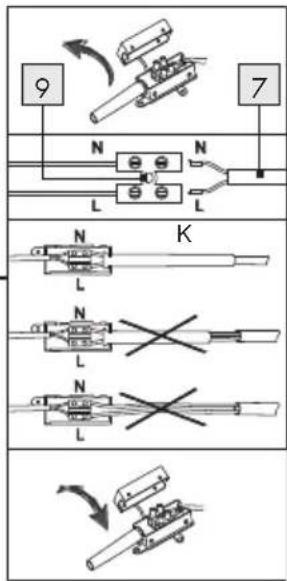

Connect the connection cable of the LED light panel 1 with the mains connection cable (external) 7 using the lustre terminal 9 (see Fig. B).
☐ Be sure to correctly connect the individual conductors of the mains connection cable (external) 7: live conductor, black or brown = symbol L, neutral conductor, blue = symbol N.
☐ Ensure that it is positioned correctly.
Now attach the LED light panel to the mounting bracket 2 using the screws 8.
Note: Make sure that the screws 8 are properly engaged.
☐ Reinstall the fuse or switch on the circuit breaker in the fuse box (I setting) (see Fig. C).

Your LED light panel is now ready to use.

- Inserting/ replacing batteries (remote control)

Note: The batteries 6 are included in the scope of delivery and must be inserted prior to the first use.

☐ If the range of the remote control reduces, the batteries 6 need to be replaced. To do

this, remove the battery compartment cover from the remote control 3 in the direction of the arrow.

Remove the batteries 6 and insert the new batteries 6. The battery type is specified in the chapter "Technical data".

Note: The correct polarity is indicated in the battery compartment.

☐ Replace the battery cover on the battery compartment.

The remote control 3 is now ready to use.

- Initial use

- Switching the light on and off/ adjusting the light colour

☐ Use the light switch (wall switch) to switch the LED light panel 1 on or off.

If you press the light switch repeatedly in quick succession, the LED light panel 1 switches between cold, warm and neutral white.

- Controlling light effects with the remote control

Note: Ensure there are no obstacles between the remote control 3 and the receiver. The range of the remote control 3 is approx. 6m.

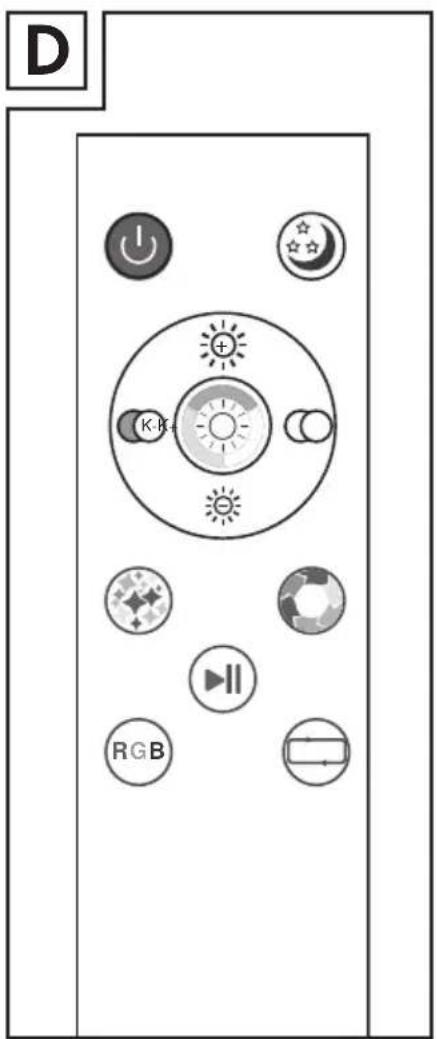

Choose from the following functions (see Fig. D):

Switching the product on / off

Nightlight (10% white light)

(K): Switching from warm to cold white

K: Switching from cold to warm white

1. Increase brightness 2. Speed up random programme

2. Decrease brightness 2. Slow down random programme

Adjust cold white/neutral white/warm white 4 colour flows programmes can be set: "Blue wave", "Green sky", "Dreamer", "Volcano"

Press once: random programme 1, Press twice: random programme 2 etc.

Note: There are a total of 11 random programmes.

Start-/pause button: continue/resume light programme

RGB: Select the desired colour (red, green or blue)

: Flowing colour change

● Maintenance and cleaning

WARNING! DANGER OF ELECTRIC

SHOCK! Disconnect the light from the power supply before cleaning. To do so, remove the fuse or switch off the circuit breaker in the fuse box (0 setting) (see Fig. A).

To prevent burns, ensure that the lamp has been switched off and has cooled down before touching it.

Do not use solvents, petrol, etc. These will damage the lamp.

☐ Use a dry, lint-free cloth to clean the LED light panel 1.

☐ Reinstall the fuse or switch on the circuit breaker in the fuse box (I setting) (see Fig. C).

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics/20-22: paper and fibre-board/80-98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Faulty or used batteries/rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries/rechargeable batteries and/or the product to the available collection points.

Environmental damage through incorrect disposal of the batteries/rechargeable batteries!

Batteries/rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries/rechargeable batteries at a local collection point.

● Declaration of conformity

This product fulfils the requirements of the applicable European and national directives. The relevant declarations and documents are held by the manufacturer. The product meets the requirements of the German Equipment and Product Safety Act.

We reserve the right to make technical and visual changes to the product in the interest of product improvement. Typographical and printing errors excepted.

● Warranty and service

Warranty

We provide a 3-year warranty from the date of purchase. Our products are manufactured using modern production methods and are subject to precise quality control. We guarantee that this product is in perfect condition. During the warranty period we will remedy any defects in material or manufacture free of charge. In the event of an unexpected defect, please return the carefully packaged product to the service address specified.

The warranty does not extend to damage due to improper operation, or to wear parts and consumables. These can be ordered from the telephone number listed for a charge. Repairs not covered by the warranty (e.g. light bulbs) may also be requested at cost price from the service address listed.

The product will be repaired at the specified service location. Timely processing and returns can only be ensured by sending the product directly to this address. If you would like additional product information, need to order accessories or if you have a question about the service process, please contact our customer service department on the telephone number specified. Please include the item number (see "Technical data") when enquiring about the product.

This product contains an illuminant from energy efficiency category "E".

Service address

Great Britain/Ireland

EGLO UK Ltd.

Unit 12 Cirrus Park

Lower Farm Road

Moulton Park Industrial Estate

Northampton, NN3 6UR, GREAT BRITAIN

T: [phone]

E: [e-mail]

IAN 378861\_2101

Please have your receipt and item number (e.g. IAN 123456_7890) ready as your proof of purchase when enquiring about the product.

Warranty card

Return address:

Name / First name:

Country/Postal code / City / Street address: ____

Phone number:

Item number / Description:

Purchase date / Point of purchase: ____

Description of the defect:

Date / Signature:

Non-warranty cases:

Please return the un-repaired item, carriage paid.

Please inform me of the costs. Repair the product for a fee.

koud-wit/neutraal-wit/warm-wit instellen

NOSTE OCHRANNÉ RUKAVICE!

NOSTE OCHRANNÉ RUKAVICE!

(Edf. Best Point) 2°-16A

San Fernando de Henares

28830 MADRID, ESPAÑA

T: [phone]

E: [e-mail]

IAN 378861\_2101

Montering of LED-lyspanel ......Side 75

- Montering of LED-lyspanel

ADVARSEL! RISIKO FOR ELEKTRISK ST∅D!
