| Brand | Livarno Lux |
| Model | IAN 359578 |
| Product type | Indoor LED floor lamp |
| Dimensions (diameter) | Approx. 13 cm |
| Power cable length | Approx. 180 cm |
| Power supply | 100-240 V~, 50/60 Hz |
| Total power | 12.5 W |
| Energy efficiency class | F |
| LED light source | Replaceable only by a specialist |
| Remote control | Yes, with AAA 1.5 V batteries (included) |
| Remote control functions | On/off, brightness dimmer, color selection (R/G/B/White), 12 preset variants, color changes (fast, slow, fade) |
| Switch | Integrated on/off foot pedal |
| Protection rating | IP20 (indoor use) |
| Protection class | II |
| Permissible ambient temperature | Not specified, dry indoor use |
| Remote control battery type | 2 x AAA 1.5 V |
| Package contents | 1 floor lamp, 1 remote control, 2 AAA batteries, 1 instruction manual |
| Warranty | 3 years from the date of purchase |
| After-sales service France | EGLO FRANCE LUMINAIRE SARL, Tel: +33 389 6250 30 |
| Maintenance and cleaning | Disconnect before cleaning, use a dry lint-free cloth, do not immerse in water |
| Recyclable packaging material | Yes |
Frequently Asked Questions - IAN 359578 Livarno Lux
User questions about IAN 359578 Livarno Lux
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your TV in PDF format for free! Find your manual IAN 359578 - Livarno Lux and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. IAN 359578 by Livarno Lux.
USER MANUAL IAN 359578 Livarno Lux
DE AT CH
STARS LED FLOOR LAMP/LED FLOOR LAMP
Operation and safety notes
NL BE
LED-STAANDE LAMP „STERRENHEMEL“/ STAANDE LED-LAMP
Before reading, unfold both pages containing illustrations and familiarise yourself with all functions of the device.
FR BE
GB/IE Operation and safety notes Page 13
Kleinbahnstraße 35
E: info@edi-light.com
Österreich
EDI Light Service Center
Heiligkreuz 22
6136 Pill, ÖSTERREICH
T: +43 5242 670 57
E: info@edi-light.com
Schweiz
EGLO Schweiz AG
Seetalstraße 142
6032 Emmen, SCHWEIZ
T: +41 41 268 69 59
E: info-switzerland@eglo.com
IAN 359578_2101
Intended use....Page 15
Scope of delivery....Page 15
Parts description......Page 15
Technical data......Page 15
Safety Page 15
Safety information......Page 15
Safety instructions for batteries/rechargeable batteries Page 17
Initial use Page 17
Setting up the product......Page 17
Inserting/replacing batteries (remote control) Page 17
Switching the product on and off....Page 18
Controlling light effects with the remote control....Page 18
Maintenance and cleaning......Page 18
Disposal Page 18
Declaration of conformity......Page 19
Warranty and service......Page 19
Warranty Page 19
Service address......Page 19
Warranty card....Page 20
| List of pictograms used* | |||
 | Read the instructions! |  | Observe the warnings and safety information! |
| [S88C] | Safety information Instructions for use | [T720] | Danger to life and risk of accidents for infants and children! |
| [C2TT] | This light is only suitable for indoor use in dry and enclosed spaces. | [8Y1C] | Warning! Danger of electric shock! |
 | Alternating current/voltage Caution - hot gases! | ^  | |
 | Hertz (frequency) | [4770] | Cannot be dimmed using an external controller. |
 | Direct current/voltage | - [26WZ] | Ambient temperature |
 | Housing temperature at stated point |  | Energy efficiency class |
 | Polarity output TÜV SÜD/GS certified |  | |
| [T490] | Short-circuit proof safety transformer Sep control unit | [1CT8] | |
 | Watts (effective power) For indoor use o |  | |
 | Switching cycles Wear protective gloves |  | |
 | Protection class II |  | Improper disposal of batteries can harm the environment! |
 | Caution! Danger of explosion! |  | Dispose of the packaging and device in an environmentally friendly manner! |
* Further details, e.g. additional symbol explanations and technical information, can be found at www.edi-light.com
Stars LED Floor Lamp/LED Floor Lamp
- Introduction
Congratulations on the purchase of your new product. You have chosen a high-quality product. Please be sure to carefully read all the instructions for use. Fold out the page with illustrations. These instructions for use are part of the product and contain important information on setup and handling. Always observe all safety information. Before using this product for the first time, verify that the correct mains voltage is present and that all parts are properly installed. If you have any questions or are unsure about operating the product, please contact your retailer or the service centre. Please keep these instructions for use in a safe place and include them when passing this product on to others.
Intended use
This light is only suitable for indoor use in dry and enclosed spaces. This product is only intended for private household use.
- Scope of delivery
Always check that all the parts are present and that the product is in perfect condition immediately after unpacking.
1 LED floor lamp
1 remote control
2 batteries (AAA, 1.5 V)
1 set of instructions for use

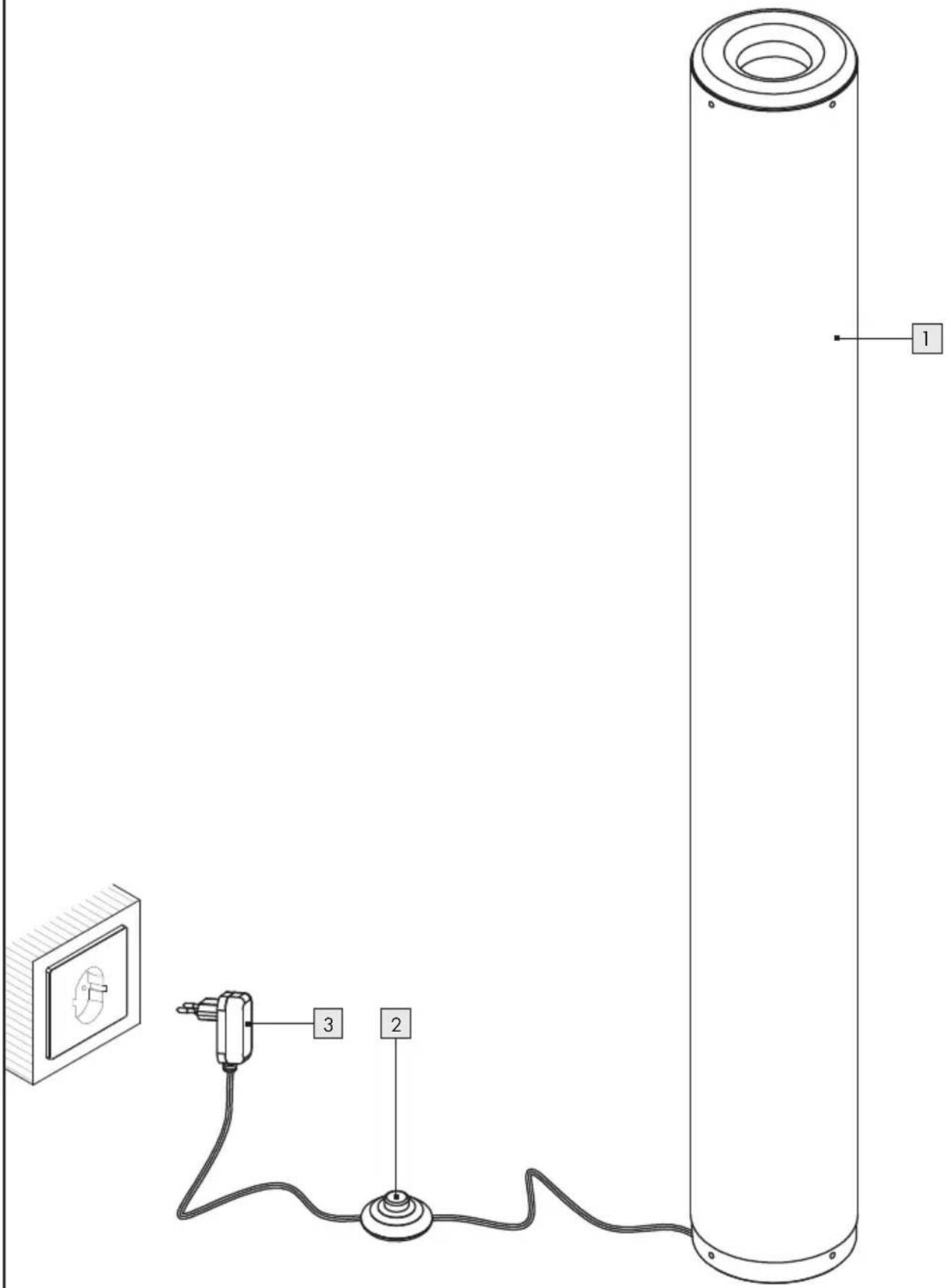

Parts description
1 LED floor lamp
2 ON/OFF foot switch
3 LED power adaptor (can only be replaced by a specialist)
4 Remote control
5 Battery
6 Battery compartment cover
7 Battery compartment
- Technical data
Item number: 55677 (with star effect), 55678 (without star effect)
Operating voltage: 100-240V\~50/60Hz
LED light source: Item number: 2835-L3000-90-10,2W-3000K RGB decorative lighting The LED light sources can only be replaced by a specialist.
Total output: 12.5 watts
Protection class: II/
Dimensions: height approx. 103.5cm, ∅ approx. 13cm
Mains cable length: approx. 180cm
IP rating: IP20
Battery type
(remote control): 2 x AAA 1.5V
Distributor:
EDI Light GmbH, Heiligkreuz 22, 6136 Pill, AUSTRIA
www.edi-light.com
Safety
Safety information
Damage due to failure to comply with these operating instructions will void the warranty! We assume no liability for consequential damage! We assume no liability for property damage or personal injury due to improper handling or failure to observe the safety information!
DANCE WARNING!
LIFE AND RISK OF ACCIDENT FOR INFANTS AND CHILDREN!
Never leave children unsupervised with the packaging material. The packaging material poses a suffocation hazard. Children frequently underestimate the dangers. The packaging material is not a toy.
This product may be used by children aged 8 years and up, as well as by persons with reduced physical, sensory or mental capacities or lacking experience and knowledge, so long as they are supervised or instructed in the safe use of the product and understand the associated risks. Do not allow children to play with the product. Cleaning and user maintenance must not be performed by children without supervision. This product is not a toy.
If you notice anything unusual during use (e.g. unusual noise, strange odour or smoke), switch the product off immediately and unplug the LED plug-in mains adapter from the mains socket. Afterwards, do not use the product until it has been examined by a qualified person.
Avoid the risk of fatal injury from electric shock
We assume no liability for property damage or personal injury due to improper handling or failure to observe the safety information!
■ Never use the lamp if any defects have been identified.
■ Always check the lamp and the mains cable with the LED plug-in mains adapter for any damage before connecting it to the mains socket.
■ Never allow the lamp to come into contact with water or other liquids.
■ Never open any of the electrical equipment or insert any objects into this equipment. Such interferences pose a risk of fatal injury from electric shock.
Only touch the insulated area of the LED plug-in mains adapter when connecting it to or disconnecting it from the mains socket!
To prevent hazards, if the external lead on this lamp is damaged, it must only be replaced by
the manufacturer, its service representative or an equally qualified professional.
Before use, verify the available mains voltage matches the voltage required for operating the light (100-240V\~, 50/60Hz).
■ Always unplug the LED plug-in mains adapter from the mains socket before cleaning or if the lamp will not be used for extended periods.
Prevent fire and injury hazards
CAUTION! RISK OF BURNS DUE TO HOT SURFACES! Make
sure that the lamp has been switched
off and has cooled down before you touch it in order to avoid burns. Light sources become very hot.
Do not cover the lamp with objects. Excessive heat build-up can result in fire.
■ Position the lamp so it is protected from moisture and dirt.
- Do not hang any other objects from the product, e.g. pieces of clothing.
■ Always set the product on a sturdy, level surface.
■ Do not wrap the mains cable around the product.
Do not carry or pull the product by the mains cable.
■ Never leave the lamp unattended during operation. Excessive heat build-up can result in fire.
Lay the mains cable in such a way that nobody will trip over it.
The light source in this light must be replaced by the manufacturer or by a service technician they have authorised or a similarly qualified person.
The LED lamp cannot be dimmed using an external controller.
Do not look directly into the light source (light bulb, LED etc.). Do not look into the light source (light bulb, LED, etc.) with an optical instrument (e.g. magnifying glass).
Safety instructions for batteries/rechargeable batteries
■ DANGER TO LIFE! Keep batteries/rechargeable batteries out of reach of children. If accidentally swallowed seek immediate medical attention.
Swallowing may lead to burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion.
DANGER OF EXPLOSION!
Never recharge non-rechargeable batteries. Do not short-circuit batteries/rechargeable batteries and/or open them. Overheating, fire or bursting can be the result.
■ Never throw batteries/rechargeable batteries into fire or water.
Do not exert mechanical loads to batteries/rechargeable batteries.
Risk of leakage of batteries/rechargeable batteries
- Avoid extreme environmental conditions and temperatures, which could affect batteries/rechargeable batteries, e.g. radiators/direct sunlight.
If batteries/rechargeable batteries have leaked, avoid contact with skin, eyes and mucous membranes with the chemicals! Flush immediately the affected areas with fresh water and seek medical attention!
WEAR PROTECTIVE GLOVES!
Leaked or damaged batteries/rechargeable batteries can cause burns on contact with the skin. Wear suitable protective gloves at all times if such an event occurs.
In the event of a leakage of batteries/rechargeable batteries, immediately remove them from the product to prevent damage.
Only use the same type of batteries/rechargeable batteries. Do not mix used and new batteries/rechargeable batteries.
■ Remove batteries/rechargeable batteries if the product will not be used for a longer period.
Risk of damage of the product
■ Only use the specified type of battery/rechargeable battery!
- Insert batteries/rechargeable batteries according to polarity marks (+) and (-) on the battery/rechargeable battery and the product.
Use a dry lint-free cloth or cotton swab to clean the contacts on the battery/rechargeable battery and in the battery compartment before inserting!
■ Remove exhausted batteries/ rechargeable batteries from the product immediately.
- Initial use
- Setting up the product
Carefully remove the LED floor lamp from the packaging and remove all packaging materials.
Place the LED floor lamp on a stable and smooth surface.
☐ Ensure that nobody can trip over the mains cable.
Plug the LED plug-in mains adapter into a properly installed mains socket.

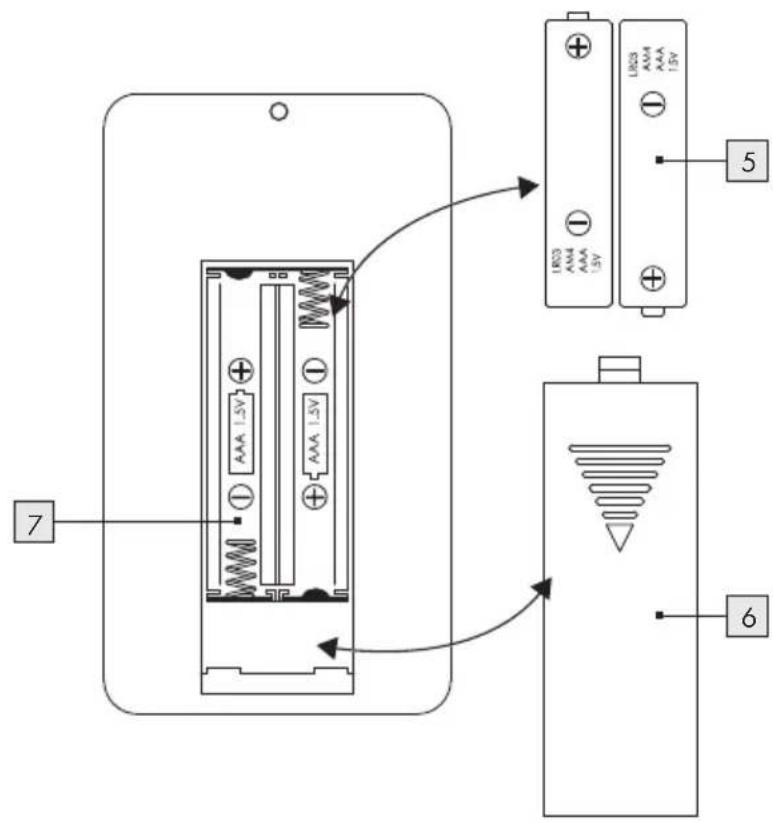

- Inserting/replacing batteries (remote control)
Note: The batteries 5 are included in the scope of delivery and must be inserted prior to the first use.
☐ If the range of the remote control reduces, the batteries 5 need to be replaced. To do this, remove the battery compartment cover 6 from the remote control 4 in the direction of the arrow.
Remove the batteries ^5 and insert the new batteries ^5 . The battery type is specified in the chapter „Technical data“.
Note: The correct polarity is indicated in the battery compartment 7.
Replace the battery compartment cover on the battery compartment 7.
The product is now ready to use.
- Switching the product on and off
Use the ON / OFF foot switch or the remote control 4 to switch the product on or off.

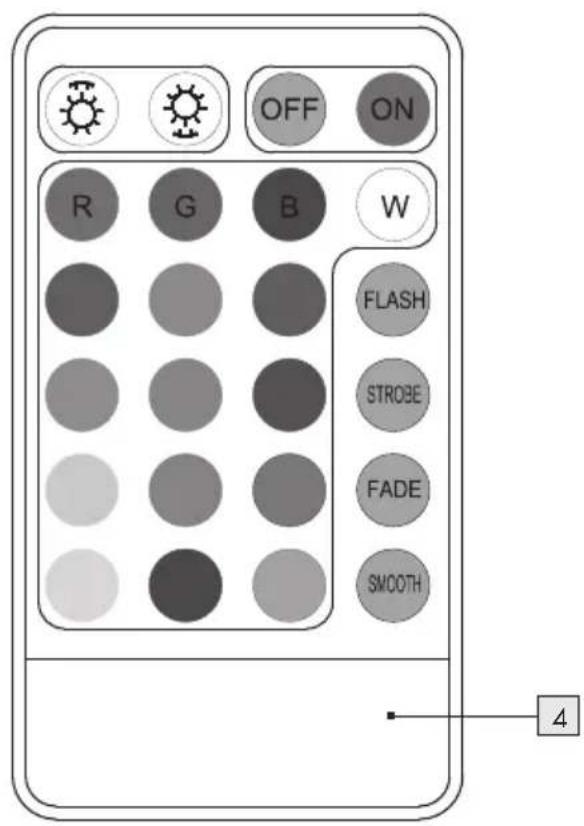

- Controlling light effects with the remote control
Note: Ensure there are no obstacles between the remote control 4 and the receiver. The range of the remote control 4 is approx. 6m.
Choose from the following functions:
increase brightness
reduce brightness
ON switch the product on
OFF switch the product off
1 x R select the desired colour (red)
1 x G select the desired colour (green)
1 x B select the desired colour (blue)
1 x W select the desired colour (white)
12× select 12 pre-set variations
FLASH rapid colour change
STROBE slow colour change
FADE flowing colour change
SMOOTH slow, flowing colour change
- Disposal
The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.
Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics/20-22: paper and fibre-board/80-98: composite materials.
The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.
Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.
To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.
● Maintenance and cleaning
WARNING! DANGER OF ELECTRIC
SHOCK! Always unplug the LED plug-in mains adapter 3 from the mains socket before cleaning.
WARNING! DANGER OF ELECTRIC
SHOCK! To ensure electrical safety, never clean the lamp with aggressive
detergents or immerse it in water.
CAUTION! RISK OF BURNS DUE TO HOT SURFACES! Allow the lamp to cool down completely.
Faulty or used batteries/rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries/rechargeable batteries and/or the product to the available collection points.
Environmental damage through incorrect disposal of the batteries/rechargeable batteries!
Batteries/rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The
chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why
Do not use solvents such as petrol or similar, as they could damage the lamp.
☐ Only clean with a dry, lint-free cloth.
you should dispose of used batteries/rechargeable batteries at a local collection point.
- Declaration of conformity
This product fulfils the requirements of the applicable European and national directives. The relevant declarations and
documents are held by the manufacturer. The product meets the requirements of the German Equipment and Product Safety Act.
We reserve the right to make technical and visual changes to the product in the interest of product improvement. Typographical and printing errors excepted.
- Warranty and service
Warranty
We provide a 3-year warranty from the date of purchase. Our products are manufactured using modern production methods and are subject to precise quality control. We guarantee that this product is in perfect condition. During the warranty period we will remedy any defects in material or manufacture free of charge. In the event of an unexpected defect, please return the carefully packaged product to the service address specified.
The warranty does not extend to damage due to improper operation, or to wear parts and consumables. These can be ordered from the telephone number listed for a charge. Repairs not covered by the warranty (e.g. light bulbs) may also be requested at cost price from the service address listed.
The product will be repaired at the specified service location. Timely processing and returns can only be ensured by sending the product directly to this address.
If you would like additional product information, need to order accessories or if you have a question about the service process, please contact our customer service department on the telephone number
specified. Please include the item number (see „Technical data“) when enquiring about the product.
This product contains an light source from energy efficiency category F.
Service address
Great Britain/Ireland
EGLO UK Ltd.
Unit 12 Cirrus Park
Lower Farm Road
Moulton Park Industrial Estate
Northampton, NN3 6UR, GREAT BRITAIN
T: +44 1604 790 986
E: info-greatbritain@eglo.com
IAN 359578_2101
Please have your receipt and item number (e.g. IAN 123456_7890) ready as your proof of purchase when enquiring about the product.
Warranty card
Return address:
Name / First name:
Country /Postal code/City / Street address: ____
Phone number:
Item number / Description:
Purchase date / Point of purchase:
Description of the defect:
Date / Signature:
Non-warranty cases:
Please return the un-repaired item, carriage paid.
Please inform me of the costs. Repair the product for a fee.
NOSTE OCHRANNÉ RUKAVICE!
NOSTE OCHRANNÉ RUKAVICE!
(Edf. Best Point) 2°-16A
San Fernando de Henares
28830 MADRID, ESPAÑA
T: +34 91 677 9044
E: info-spain@eglo.com
IAN 359578_2101
