USER MANUAL SSMW 750 D4 SILVERCREST

Warnings and symbols used Page 20

Short manual....Page 21

Intended use....Page 21

Scope of delivery....Page 21

Description of parts ...... Page 21

Technical data Page 21

Safety notes....Page 21

Before first use Page 24

Unpacking the product and basic cleaning....Page 24

Usage Page 24

Installing and removing the plates....Page 24

Operation.... Page 24

Grilling sandwiches....Page 25

Grilling Page 25

Baking waffles Page 26

Recipes Page 26

Tuna sandwich....Page 26

Turkey sandwich....Page 27

Monte Cristo Sandwich....Page 27

Pepperoni Pizza Grilled Sandwiches....Page 27

Egg Salad Sandwich....Page 27

Belgian waffles....Page 28

Blueberry waffles....Page 28

Ham and cheese waffles....Page 28

Brownie Belgian waffles.... Page 29

Shrimp and plum kebabs....Page 29

Cleaning and care Page 30

Disposal Page 30

Warranty Page 31

Warranty claim procedure....Page 31

Service....Page 31

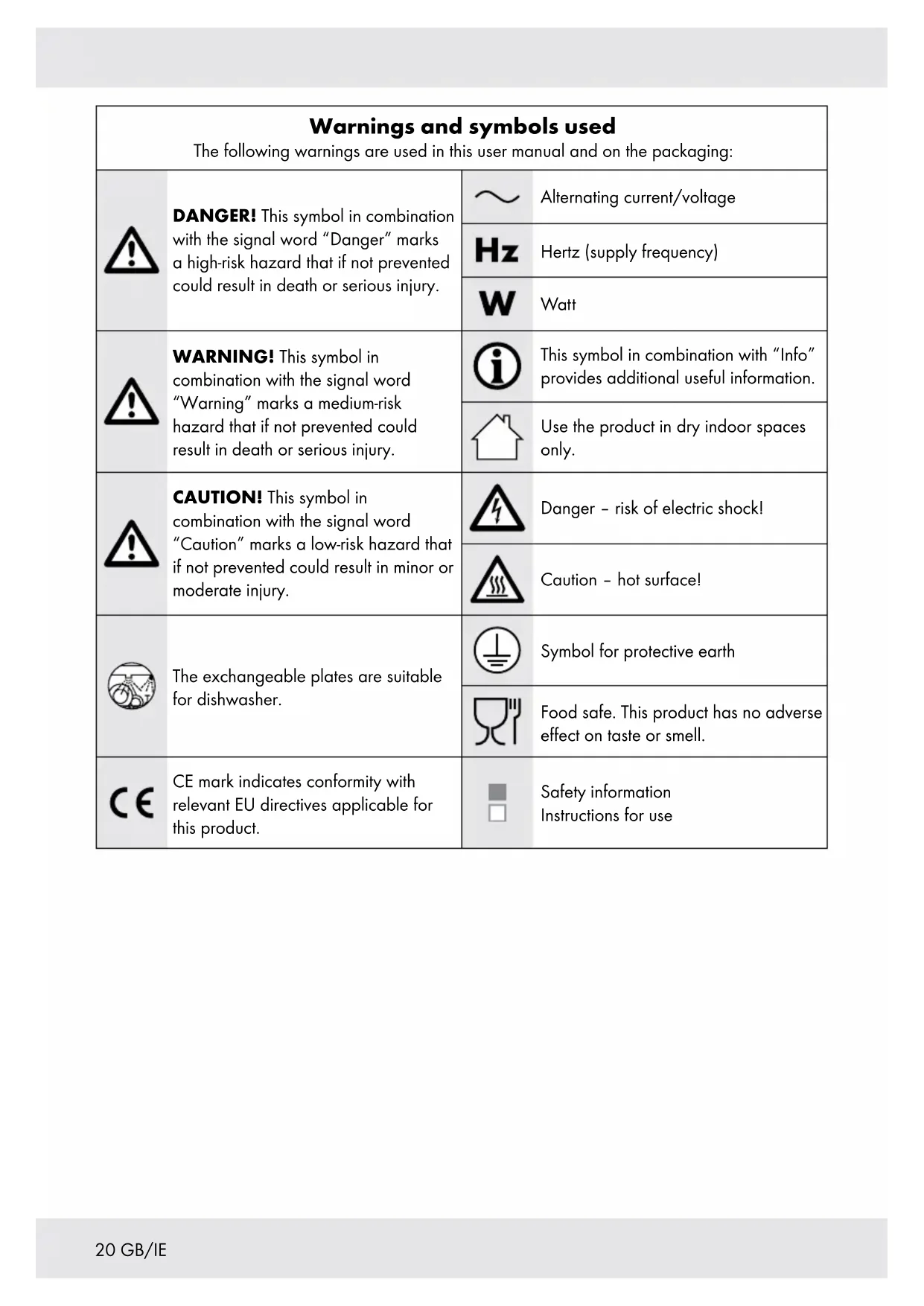

Warnings and symbols usedThe following warnings are used in this user manual and on the packaging:
	DANGER! This symbol in combination with the signal word “Danger” marks a high-risk hazard that if not prevented could result in death or serious injury.		Alternating current/voltage
			Hertz (supply frequency)
			Watt
	WARNING! This symbol in combination with the signal word “Warning” marks a medium-risk hazard that if not prevented could result in death or serious injury.		This symbol in combination with “Info” provides additional useful information.
			Use the product in dry indoor spaces only.
	CAUTION! This symbol in combination with the signal word “Caution” marks a low-risk hazard that if not prevented could result in minor or moderate injury.		Danger - risk of electric shock!
			Caution - hot surface!
	The exchangeable plates are suitable for dishwasher.		Symbol for protective earth
			Food safe. This product has no adverse effect on taste or smell.
	CE mark indicates conformity with relevant EU directives applicable for this product.		Safety informationInstructions for use

3-IN-1 SANDWICH TOASTER

● Short manual

This document is a shorter printed version of the complete instruction manual. Scanning the QR code takes you straight to the Lidl service website (www.lidl-service.com) where you can view and download the complete instruction manual by entering the article number (IAN) 472451_2407.

The short guide forms an integral part of this product. Prior to using the product, familiarize yourself with all operation and safety notes. Store the short guide in a safe place, and if you give the product to third parties, all documentation should be passed on to them as well.

Intended use

This product is designed for making waffles, sandwiches, and for grilling food. Do not use it for any other purpose.

This product is only intended for private household use, not for commercial purposes.

The manufacturer accepts no liability for damages caused by improper use.

- Scope of delivery

1× 3-in-1 sandwich toaster
3× Exchangeable plate sets
1× Instruction manual

● Description of parts

1 Lock
2 Red indicator (power)
3 Green indicator (ready)
4 Mains cord with mains plug
5 Mains cord retainer
6 Heating element
7 Large hook catch
8 Release lever
9 Outer catch (small)
10 Inner catch (large)
11 Sandwich plate (upper and lower plate)
12 Grill plate (upper and lower plate)
13 Waffle plate (upper and lower plate)

14 Lid
15 Handle

Technical data

Input voltage: 220-240 V \~, 50-60 Hz

Power consumption: 750 W

Protection class: I

HG09121: GS (TÜV SÜD)

HG09121-CH: -

HG09121-BS: -

Safety notes

BEFORE USING THE PRODUCT, FAMILIARISE YOURSELF WITH ALL OF THE SAFETY INFORMATION AND INSTRUCTIONS FOR USE!

In the case of damage resulting from non-compliance with these operating instructions the warranty claim becomes invalid!

No liability is accepted for consequential damage! In the case of material damage or personal injury caused by incorrect handling or non-compliance with the safety instructions, no liability is accepted!

⚠ WARNING! RISK OF LOSS OF LIFE OR ACCIDENT TO INFANTS AND CHILDREN!

Never leave children unsupervised with the packaging material. The packaging material represents a danger of suffocation.

Children frequently underestimate the dangers. Always keep children away from the packaging material.

This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved.

■ Children shall not play with the product.

■ Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

Clean the product and its accessories (see "cleaning and care").

- Keep the product and its mains cord out of reach of children aged younger than 8 years.

⚠ WARNING! RISK OF INJURY!

■ Misuse may lead to injury. Use this product solely in accordance with these instructions. Do not attempt to modify the product in any way.

⚠️ DANGER! RISK OF ELECTRIC SHOCK!

■ Never attempt to repair the product yourself. In case of malfunction, repairs are to be conducted by qualified personnel only.

- Do not immerse the product in water or other liquids. Never hold the product under running water.

■ Never use a damaged product. Disconnect the product from the mains supply and contact your retailer if it is damaged.

■ The product is not to be used if it has been dropped, if there are visible signs of damage.

The product is under current at all times while it is connected to the mains supply.

Before connecting the product to the mains supply, check that the voltage and current rating corresponds with the mains supply details shown on the product's rating label.

■ Regularly check the mains plug and the mains cord for damages. If the mains cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

■ Protect the mains cord against damages. Do not let it hang over sharp edges, do not squeeze or bend it. Keep the mains cord away from hot surfaces and open flames.

CAUTION! HOT SURFACE!

During use the product gets hot. Do not touch the product while in use nor immediately after use.

■ Only touch the product on the handle during operation and while it is still cooling.

During use, care must be taken as low heat may be generated at the handle.

WARNING! RISK OF INJURY AND DAMAGE!

- The product must not be left unattended while it is connected to the mains supply. - Do not move the product while it is in operation. - Do not use the product without an inserted set of plates. - Do not place the product on hot plates (gas, electric, coal cooking range etc.). Operate the product only on a level, stable, clean, heat-resistant and dry surface.

- Do not cover the product while it is in use or shortly after use, when it is still hot.

■ Make sure that the mains cord is not pinched by the plates or touches the rim of the plates.

■ The use of extension cords is not recommended.

If the use of an extension cord is necessary, it must be designed for a current flow of at least 10 A.

■ Lay cords in such a way that they may not be tripped over or otherwise damaged.

■ The product is not intended to be operated by means of an external timer or separate remote-control system.

• Do not pull the mains plug out of the electrical outlet by the mains cord.
  ■ Protect the product, its mains⚠️ cord and mains plug against dust, direct sunlight, dripping and splashing water.
  ■ Protect the product against heat. Do not place the product close to open flames or heat sources such as stoves or heating appliances.

⚠ WARNING! RISK OF INJURY!

■ Disconnect the product from the mains supply before cleaning and when not in use.

Before first use

● Unpacking the product and basic cleaning

1. Take the product out of the packaging and remove all packaging materials and plastic wrappings.
2. Check to make sure that all listed parts are included (see "Scope of delivery").
3. Check whether the product and all parts are in good condition, if any damage or defect is detected, do not use the product, but follow the procedure described in chapter "Warranty".
4. Before first use, operate the product without any food so that any potential production residues burn off. Ensure sufficient ventilation.
5. Clean all parts of the product as described in the chapter "Cleaning and care".

● Usage

- Installing and removing the plates

WARNING! RISK OF ELECTRIC SHOCK!

Before installing/removing the plates, disconnect the mains plug from the wall outlet.

CAUTION! HOT SURFACE!

Do not change/remove the plates right after operation. Let the product cool first.

i INFO:

- Install only pla11/12/13 of the same type.

Installing the plates

1. Open the lock 1 and open up the product.
2. Place the inner catch 10 of the chosen plate into the large hook catches 7.
3. Push down the plate until it noticeably clicks in place.
4. Repeat step 2 and 3 on the other side of the product.

Removing the plates

1. Open the lock 1 and open up the product.
2. Pull the release levers 8 and remove the plate.
3. Repeat step 2 on the other side of the product.

Operation

i INFO:

The first few times the product is heated up, a faint odour may be present. Ensure sufficient ventilation in the area.
- Discard the first set of grilled or baked food.
During operation, the green indicator goes on and off from time to time. This indicates that the product is reheating up to the operating temperature.

This product is designed for making waffles, sandwiches, and for grilling food (see the following sections).

Suggested baking/grilling times
Sandwiches 4 to 5 minutes
Grilling 4 to 9 minutes(check the degree ofbrowning from time to time)
Waffles (sweet/savoury)	8 minutes
For reference only (see the “Recipes” sectionfor estimated cooking times)

1. To turn the product on, connect the mains plug 4 to a suitable wall outlet. The red indicator 2 lights up.
2. Keep the product locked while preheating. Preheat until the green indicator 3 lights up.
3. Grease the upper and lower exchangeable plates 11/12/13 with suitable cooking oil.
4. Add a reasonable amount of food or dough onto the lower plates and close the lid 14 using the handle 15 and the lock 1 to keep the product closed while it is cooking the food.
5. To turn the product off, disconnect the mains plug from the wall outlet. The red indicator goes off.

Light indicator Status
Red indicator on Product on
Red indicator off Product off
Green indicator off Product is preheating/reheating.
Green indicator on The operating temperature has been reached.

Grilling sandwiches

Suitable for sandwich pockets with sweet or savoury filling.

i INFO:

While the sandwiches are being grilled, the green indicator 3 will turn off and on again. This is to regulate the required operating temperature.

Plates:

■ Sandwich plates (upper and lower pla11

Approx. grilling time:

4 to 5 minutes, depending on how crunchy you prefer your sandwich. Grilling time can be shortened or increased to suit personal taste.

1. Open the lock 1 and open up the product.
2. Place 2 prepared sandwiches onto the lower sandwich plate 11.
3. Close the lid 14 using the handle 15 and the lock to keep the product closed while it is grilling the sandwich.
4. Once the sandwiches are done, remove them from the product using a plastic/wooden spatula (or other suitable non-metallic tools) to avoid damaging the product's non-stick coating.
5. When you are done with grilling, disconnect the mains plug 4 from the wall outlet.

Grilling

CAUTION! DANGER OF SPLASHES!

Do not use wet food for grilling. Fat splashes and rising steam will occur when opening the product.

Suitable for grilling smaller meat chunks, sausages, or vegetables.

i INFO:

While the food is grilled, the green indicator 3 will turn off and on again. This is to regulate the required operating temperature.

Plates:

Grill plates (upper and lower pla12

Approx. grilling time:

4 to 9 minutes, depending on how browned you prefer your food. Grilling time can be shortened or increased to suit personal taste.

1. Open the lock 1 and open up the product.
2. Place the food to be grilled onto the lower grill plate 12.
3. Close the lid 14 using the handle 15 and the lock to keep the product closed while it is grilling the food.
4. When you are done with grilling, disconnect the mains plug 4 from the wall outlet.

Baking waffles

Suitable for sweet and savoury waffles.

i INFO:

While the waffles are baking, the green indicator 3 will turn off and on again. This is to regulate the required operating temperature.

Plates:

■ Waffle plates (upper and lower pla ^13 )

Approx. baking time:

8 minutes, depending on how brown you prefer your waffle. Baking time can be shortened or increased to suit personal taste.

1. Open the lock 1 and open up the product.
2. Use a wooden or heat-resistant plastic ladle to pour batter onto the lower waffle plate 13. Do not use metal ladles, as this could damage the non-stick surface of the plates. Do not overfill the lower waffle plate with batter.

3. Close the lid 14 using the handle 15 and the lock to keep the product closed while it is baking the batter.

4. Once the waffles are done, remove them from the product using a plastic/wooden spatula (or other suitable non-metallic tools) to avoid damaging the product's non-stick coating.

5. When you are done with cooking, disconnect the mains plug 4 from the wall outlet.

● Recipes

Tuna sandwich

Plates:

■ Sandwich plates (upper and lower pla11

Ingredients:

4 slices Toast bread

85 g Tahini

85 g Low fat Greek yogurt

80 g Tuna

65 g Fresh basil

1 Squeezed lemon

14 ml Olive oil

1 pinch Salt

1 pinch Pepper

Preparation:

1. Preheat the product.
2. Blend tahini, Greek yogurt and lemon juice until combined; season with basil, salt, and pepper.
3. Add the olive oil into the tahini yogurt sauce. Spread the tahini yogurt sauce over 2 bottom toast bread slices.
4. Spread drained tuna on top.
5. Top with remaining toast bread slices.
6. Close the product and grill for about 4 minutes.
7. Serve immediately.

Turkey sandwich

Plates:

■ Sandwich plates (upper and lower pla11

Ingredients:

4 slices Toast bread

2 slices Young Gouda cheese

50 g Sliced turkey breast

10 g Mustard

12 Onion

1 pinch Salt

1 pinch Pepper

Preparation:

1. Preheat the product.
2. Spread mustard on the inside of the toast bread slices.
3. Chop the onion into small pieces.
4. Spread the turkey breast and onion over 2 bottom toast bread slices.
5. Sprinkle with salt and pepper.
6. Spread the cheese slices on top.
7. Top with remaining toast bread slices.
8. Close the product and grill for about 4 minutes.
9. Serve immediately.

Monte Cristo Sandwich

Plates:

■ Sandwich plates (upper and lower plc11

Ingredients:

4 slices bread

1 slice ham

1 slice urkey

1 slice Swiss cheese

1 egg

14 cup milk

Butter (for cooking)

Preparation:

1. Preheat the product.
2. Assemble the sandwich with ham, turkey, and cheese between the bread slices.

3. Whisk together the egg and milk.

4. Dip the sandwich in the egg mixture, coating both sides.

5. Close the product and grill for about 3-5 minutes until golden brown.
6. Serve immediately.

● Pepperoni Pizza Grilled Sandwiches

Plates:

■ Sandwich plates (upper and lower pla11

Ingredients:

4 slices bread

Pepperoni slices

Mozzarella cheese (shredded)

Pizza sauce

Butter (for spreading)

Preparation:

1. Preheat the product.
2. Spread pizza sauce on one side of each bread slice.
3. Add pepperoni and mozzarella cheese.
4. Top with the second slice of bread.
5. Butter the outside of the sandwich.
6. Close the product and grill for about 3-5 minutes until golden brown.
7. Serve immediately.

Egg Salad Sandwich

Plates:

■ Sandwich plates (upper and lower pla11

Ingredients:

4 slices whole grain bread

4 hard-boiled eggs, chopped

2 tbsp mayonnaise

1 tsp Dijon mustard
1 tbsp chopped chives
1 pinch salt
1 pinch pepper

Preparation:

1. Preheat the product.
2. Prepare the egg salad: In a bowl, mix the chopped hard-boiled eggs, mayonnaise, Dijon mustard, chopped chives, salt, and pepper until well combined.
3. Assemble the sandwich: Spread the egg salad mixture evenly over two slices of bread.
4. Top with remaining bread: Place the other slices of bread on top.
5. Grill the sandwich: Close the product and grill for about 3-4 minutes, or until the bread is golden brown.
6. Serve immediately.

Belgian waffles

Plates:

■ Waffle plates (upper and lower pla13

Ingredients:

5 Eggs
250 g Butter
200 g Sugar
400 ml Milk
500 g All-purpose flour
2 packets Vanilla sugar
5 g Baking powder

Preparation:

1. Preheat the product.
2. In a medium bowl, combine egg, vanilla sugar, sugar and butter.
3. Add baking powder, around half of the flour and half of milk into the bowl and stir.
4. Add the rest of flour and milk, then stir until the batter becomes creamy.
5. Spray both exchangeable plates 13 with cooking spray.
6. Evenly spoon the batter onto the lower plate.
7. Close the product and bake for 8 minutes.
8. Serve immediately.

Blueberry waffles

Plates:

■ Waffle plates (upper and lower pla13

Ingredients:

100 ml Vegetable oil
250 ml Milk
2 Eggs
100 g Sugar
280 g All-purpose flour
8 g Baking powder
80 g Blueberries (fresh or frozen)

Preparation:

1. Preheat the product.
2. In a large bowl, whisk together the oil, milk, eggs, and sugar. Add the flour, baking powder and stir until well combined.
3. Fold in the blueberries.
4. Spray both exchangeable plates 13 with cooking spray.
5. Evenly spoon the batter onto the lower plate.
6. Close the product and bake for about 10 minutes, until golden brown.
7. Take out the waffle and cool it for 5 minutes to get crispy waffle.
8. Serve immediately.

● Ham and cheese waffles

Plates:

■ Waffle plates (upper and lower pla13

Ingredients:

570 g Package refrigerated hash brown potatoes
225 g Black forest ham, diced
200 g Shredded cheddar cheese
3 Large eggs, beaten
2 cloves Garlic (minced)
2 tsp Chopped fresh parsley leaves
12 tsp Dried thyme
14 tsp Smoked paprika

Salt and freshly ground black pepper, to taste

Preparation:

1. Thaw the hash brown potatoes.
2. Preheat the product.
3. Spray both exchangeable plates 13 with cooking spray.
4. In a large bowl, combine hash brown potatoes, ham, cheese, eggs, garlic, parsley, thyme and paprika. Season with salt and pepper, to taste.
5. Evenly spoon the potato mixture onto the lower plate.
6. Close the product and bake for about 7 minutes, until golden brown and crisp.
7. Serve immediately.

- Brownie Belgian waffles

Plates:

■ Waffle plates (upper and lower pla13

Ingredients:

180 g All-purpose flour
65 g Unsweetened cocoa powder
20 g Granulated sugar
1 tsp Baking powder
1 tsp Sea salt
10 tbsp Melted unsalted butter
2 Large eggs
2 tsp Vanilla extract
60 ml Water
120 g Mini chocolate chips

■ Optional toppings: Vanilla ice cream, chocolate sauce, powdered sugar

Preparation:

1. Preheat the product. In a large bowl, mix the flour, cocoa powder, sugar, baking powder, and salt. Melt the butter and set aside to cool a little.
2. In a small bowl, beat the eggs, vanilla extract, and water. Whisk the egg mixture into the dry mixture, then quickly mix in the melted butter. Stir in the chocolate chips.
3. Spray both exchangeable plates 13 with cooking spray.

4. Evenly spoon the batter onto the lower plate.

5. Close the product and bake for about 3 minutes.

6. Lift the lid 14 to check the waffle. The waffle should be fully formed, but soft to the touch.
7. Serve with powdered sugar, vanilla ice cream or chocolate sauce.

● Shrimp and plum kebabs

Plates:

Grill plates (upper and lower pla12

Ingredients:

2 tbsp Canola oil
2 tbsp Cilantro (chopped fresh)
1 tsp Lime zest (freshly grated)
3 tbsp Lime juice
12 tsp Salt
12 Raw shrimps (8 to 12 shrimps per 500 g/peeled and deveined)
3 Jalapeño peppers (stemmed, seeded and quartered lengthwise)
2 Plums (pitted and cut into sixths)

Preparation:

1. Preheat the product.
2. In a large bowl, whisk canola oil, cilantro, lime zest, lime juice and salt.
3. Set aside 3 tablespoons of the mixture in a small bowl.
4. Add shrimp, jalapeños and plums to the remaining marinade. Toss the mixture to coat and marinade.
5. Alternate shrimps, jalapeños and plums evenly among 4 skewers (25 cm). Discard the marinade.
6. Grill the kebabs until the shrimp are cooked through. Turn the kebabs once. Grill for about 2 minutes on each side.
7. Drizzle with the remaining dressing.

● Cleaning and care

DANGER! RISK OF ELECTRIC SHOCK!

■ Always disconnect the product from the wall outlet before cleaning.
Do not immerse the product's electrical components in water or other liquids. Never hold the product under running water.
Do not let any water or other liquids enter the product interior of the product.

CAUTION! HOT SURFACE!

Do not clean the product right after operation. Let the product cool first.

NOTICE! RISK OF DAMAGE!

Do not use any abrasive, aggressive cleaners or hard brushes to clean the product or its accessories.

i INFO:

• Clean the product right after it has cooled. Once the food residues have dried, they are not easy to remove.
  The pld11/12/13 are suitable for dishwasher.

Part Cleaning method
■ Housing	□ Wipe down the housing with a slightly damp cloth. Add a little detergent, if needed.
■ Plates11/12/13	□ Rinse the plates with water and mild detergent.
■ Spaces underneath the plates■ Heating element6■ Lock 1	□ To remove fat and liquids, use a piece of kitchen paper.□ Remove stuck-on burnt residues using a wooden spatula or small wooden skewers.

□ After cleaning and before reusing the product, dry all parts thoroughly.

● Disposal

The packaging is made of environmentally friendly materials, which may be disposed of through your local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics/20-22: paper and fibreboard/80-98: composite materials.

Product:

The product incl. accessories, manual and packaging materials are recyclable and are subject to extended producer responsibility. Dispose them separately, following the illustrated Info-tri (sorting information), for better waste treatment.

The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your wornout product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of material or manufacturing defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Keep the original sales receipt in a safe location as this document is required as proof of purchase.

Any damage or defects already present at the time of purchase must be reported without delay after unpacking the product.

Should the product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. The warranty period is not extended as a result of a claim being granted. This also applies to replaced and repaired parts.

This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty covers material or manufacturing defects. This warranty does not cover product parts subject to normal wear and tear, thus considered consumables (e.g. batteries, rechargeable batteries, tubes, cartridges), nor damage to fragile parts, e.g. switches or glass parts.

● Warranty claim procedure

To ensure quick processing of your claim, observe the following instructions:

Make sure to have the original sales receipt and the item number (IAN 472451_2407) available as proof of purchase.

You can find the item number on the rating plate, an engraving on the product, on the front page of the instruction manual (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, contact the service department listed below either by telephone or by e-mail.

Once the product has been recorded as defective you can return it free of charge to the service address that will be provided to you.

Ensure to enclose the proof of purchase (sales receipt) and a short, written description outlining the details of the defect and when it occurred.

Service

GB Service Great Britain

Tel.:[phone]

E-Mail:[e-mail]

IE Service Ireland

Tel.:[phone]

E-Mail:[e-mail]

CE

● Gaufres brownies belges

Plaques interchangeables :

⚠ WAARSCHUWING! LETSEL- EN BESCHADIGINGSGEVAAR!

⚠ WAARSCHUWING! RISICO OP LETSEL!

F∅R PRODUKTET BRUGES

F∅RSTE GANG SKAL DU

VÆRE FORTROLIG MED

ALLE SIKKERHEDS- OG BETJENINGSANVISNINGER!
