Product type	Premium digital toaster
Brand	SilverCrest
Model	STD 870 A2
Input voltage	220-240 V~, 50-60 Hz
Power consumption	730-870 W
Standby consumption	0.2 W
Protection class	I
Number of slots	2
Functions	Toasting, defrosting, reheating, roll warming rack, emergency stop
Browning levels	7 (from 1 to 7)
Display	Digital (timer and browning level)
Cord length	Approx. 0.8 m (with cord winder)
Dimensions (approx.)	30 x 20 x 20 cm
Weight (approx.)	1.5 kg
Housing material	Heat-resistant plastic
Care and cleaning	Removable crumb tray; housing can be cleaned with a damp cloth; do not immerse
Safety	Automatic shut-off at end of cycle, jam protection, hot surface indicator, non-slip feet
Spare parts and repairability	Parts available via customer service; 3-year warranty
Package contents	Toaster, quick start guide
Intended use	Household, for toasting bread and rolls

Frequently Asked Questions - STD 870 A2 SILVERCREST

How to use the SilverCrest STD 870 A2 toaster?

Insert the bread into the slots, set the browning level using the + and - buttons, then lower the lever until it clicks. The countdown is displayed and the bread pops up automatically.

What are the available browning levels?

The toaster offers 7 browning levels, from 1 (very light) to 7 (very dark). Use the + and - buttons to adjust.

How to defrost frozen bread?

Press the defrost button (snowflake symbol). The indicator lights up. Set the desired browning level, then lower the lever. The bread is defrosted and then toasted automatically.

How to reheat already toasted bread?

Press the reheat button (cup symbol). The indicator lights up. Lower the lever without changing the browning level. The bread is reheated without burning.

Can you toast rolls?

Yes, lower the folding lever to bring out the warming rack. Place the rolls on the rack, select the browning level (recommended: 3), then lower the main lever. Turn the rolls halfway through for even browning.

How to clean the toaster?

Always unplug the appliance and let it cool down. Clean the housing with a damp cloth. Remove and empty the crumb tray. For the warming rack, lower it and wipe the slot with a damp cloth. Never immerse the appliance.

What to do if bread gets stuck in the slots?

Immediately unplug the appliance and let it cool down. Carefully remove the bread with a wooden spatula without touching the heating elements. The appliance has jam protection that cuts power if the lever does not rise.

Why is there smoke during use?

A slight smoke during first use is normal (manufacturing residues). If it persists, check that the crumb tray is not full. Clean it regularly. Too high a browning level or very dry bread can also produce smoke.

What are the important safety instructions?

Never immerse the appliance in water. Do not use near flammable materials. Do not cover during operation. Unplug after use. Supervise children. The appliance becomes hot: use the designated handles.

What is the warranty for the SilverCrest STD 870 A2?

The warranty is 3 years from the date of purchase. It covers material and manufacturing defects. Keep the receipt as proof of purchase. For any claims, contact customer service (tel. [phone] in France).

USER MANUAL STD 870 A2 SILVERCREST

Operation and safety notes

FR BE

GRILLE-PAIN NUMÉRIQUE PREMIUM

DIGITALNY HRIANKOVAC PREMIUM

Pokyny pre obsluhu a bezpečnostné pokyny

ES

TOSTADORA DIGITAL PREMIUM

GB/IE Operation and safety notes Page 15

List of pictograms used

Introduction 16

Intended use. 16
Scope of delivery. 16
Description of parts 17
Technical data 17

Safety instructions. Page 17

Before first use. 20

Operation. 20

Off mode. 20
Toasting bread. 20
Toast frozen bread 20
Warming up bread 20
Baking bread rolls 21
Canceltoasting 21

Cleaning and care 21

Storage 21

Troubleshooting 22

Disposal. 22

Warranty 22

Warranty claim procedure.. 22

Service 23

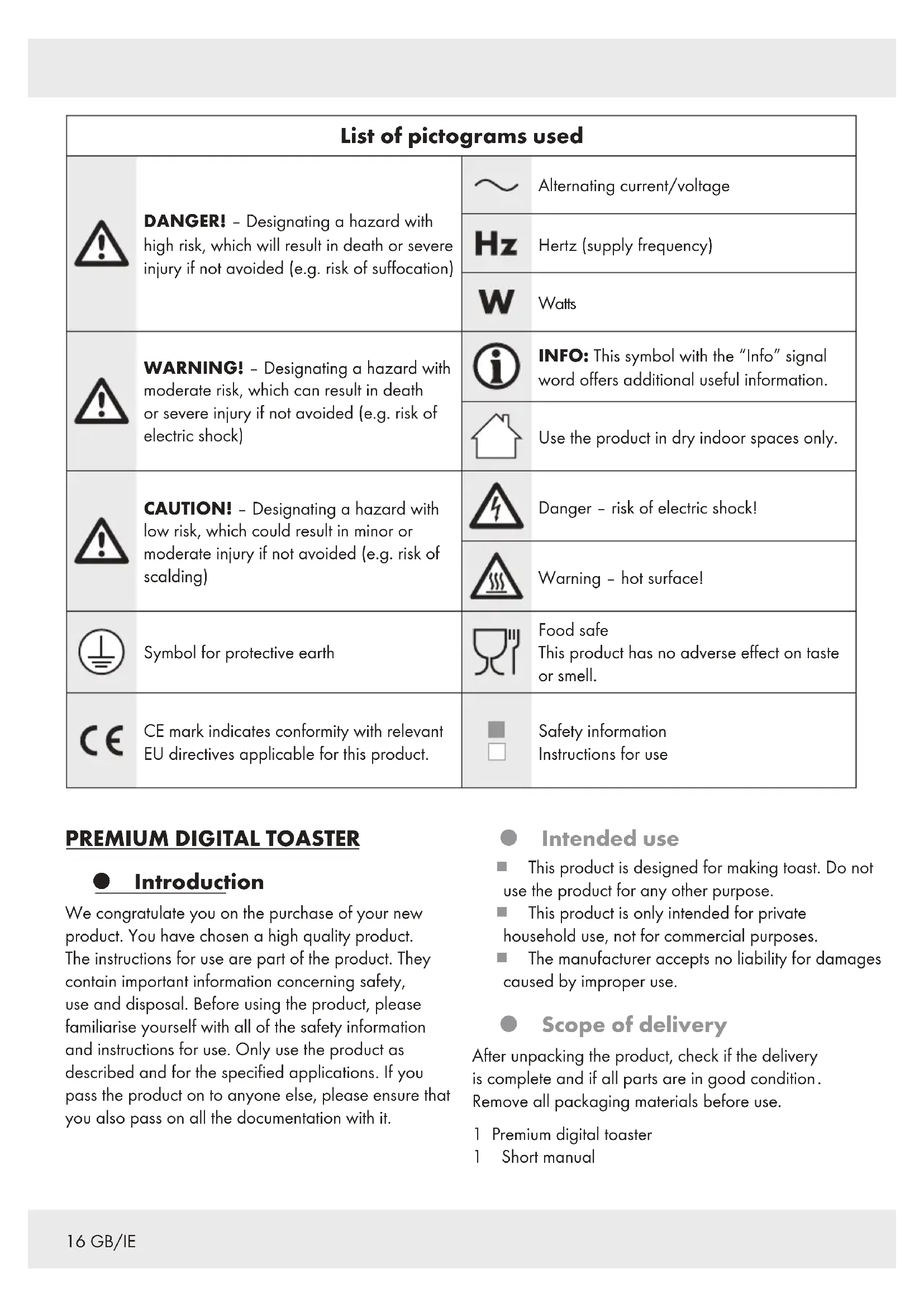

List of pictograms used
!	DANGER! - Designating a hazard with high risk, which will result in death or severe injury if not avoided (e.g. risk of suffocation)	~ Alternating current/voltage
		Hz Hertz (supply frequency)
		W Watts
!	WARNING! - Designating a hazard with moderate risk, which can result in death or severe injury if not avoided (e.g. risk of electric shock)	i INFO: This symbol with the "Info" signal word offers additional useful information.
		Use the product in dry indoor spaces only.
!	CAUTION! - Designating a hazard with low risk, which could result in minor or moderate injury if not avoided (e.g. risk of scalding)	Danger - risk of electric shock!
		Warning - hot surface!
	Symbol for protective earth	Food safeThis product has no adverse effect on taste or smell.
CE	CE mark indicates conformity with relevant EU directives applicable for this product.	Safety informationInstructions for use

PREMIUM DIGITAL TOASTER

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

This product is designed for making toast. Do not use the product for any other purpose.
This product is only intended for private household use, not for commercial purposes.
The manufacturer accepts no liability for damages caused by improper use.

Scope of delivery

After unpacking the product, check if the delivery is complete and if all parts are in good condition. Remove all packaging materials before use.

1 Premium digital toaster
1 Short manual

Description of parts

Before reading, unfold the page containing the illustrations and familiarise yourself with all the functions of the product.

1 Toasting slots
2 Timer display
3 - (Button to decrease the browning level)
4 + (Button to increase the browning level)
5 Defrost button with indicator light)
6 (Stop button)
7 (Reheat button with indicator light)
8 Bread roll warmer
9 Feet
[10] Cord rewind
[11] Cord clamp
12 Mains cord with mains plug
[13] Crumb tray
14 Fold-out lever (for the bread roll warmer)
[15] Browning level display
16 Lever

Technical data

Input voltage: 220-240	V~, 50-60 Hz
Power consumption: 730	-870 W
Power consumption in off mode: 0.2 W
Protection class: I
Certification: GS (TÜV Rheinland)

Safety instructions

BEFORE USING THE PRODUCT, FAMILIARISE YOURSELF WITH ALL OF THE SAFETY INFORMATION AND INSTRUCTIONS FOR USE! WHEN PASSING THIS PRODUCT ON TO OTHERS, ALSO INCLUDE ALL THE DOCUMENTS!

In the case of damage resulting from non-compliance with these

operating instructions the warranty claim becomes invalid! No liability is accepted for consequential damage! In the case of material damage or personal injury caused by incorrect handling or non-compliance with the safety instructions, no liability is accepted!

Children and persons with disabilities

WARNING! RISK OF LOSS OF LIFE OR ACCIDENT TO INFANTS AND CHILDREN!

Never leave children unsupervised with the packaging material. The packaging material represents a danger of suffocation.

Children frequently underestimate the dangers. Always keep children away from the packaging material.

This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved.

Children shall not play with the product.

Cleaning and user maintenance shall not be made by children without supervision.
- Keep the product and its cord out of reach of children.

Intended use

WARNING! Misuse may lead to injury. Use this product solely in accordance with these instructions. Do not attempt to modify the product in any way.

The product is intended to be used in household and similar applications such as:

staff kitchen areas in shops, offices and other working environments;

• farm houses;
• by clients in hotels, motels and other residential environments;
• bed and breakfast type environments.

Electrical safety

WARNING! Risk of electric shock! Never attempt to repair the product yourself. In case of malfunction, repairs are to be conducted by qualified personnel only.

WARNING! Risk of burns!

During use the product gets hot.
Do not touch the product while in use nor immediately after use.

WARNING! Risk of burns!

Do not use non-standard toast. Due to the smaller size or shape, there is a risk of touching hot parts when removing the toasted toast or bread.

WARNING! Risk of electric shock! Do not immerse the product in water or other liquids. Never hold the product under running water.

WARNING! Risk of electric shock! Never use a damaged product. Disconnect the product from the mains supply and contact your retailer if it is damaged.

The product is not to be used if it has been dropped, if there are visible signs of damage.
The bread may burn, therefore do not use the product near or below combustible material, such as curtains.
The product is powered at all times while it is connected to the mains supply.
Before connecting the product to the mains supply, check that the voltage and current rating corresponds with the mains supply details shown on the product's rating label.

Regularly check the mains plug and the mains cord for damages. If the mains cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Protect the mains cord against damages. Do not let it hang over sharp edges, do not squeeze or bend it. Keep the mains cord away from hot surfaces and open flames.

Operation

The product must not be left unattended while it is connected to the mains supply.
Do not move the product while it is in operation.
Do not place the product on hot plates (gas, electric, coal cooking range etc.). Operate the product on a level, stable, clean, heat-resistant and dry surface.
Do not cover the product while it is in use or shortly after use, when it is still hot.
The use of extension cords is not recommended. If the use of an extension cord is necessary, it must be designed for a current flow of at least 10 A.

Lay the mains cord and the extension cord in such a way that they may not be tripped over or otherwise damaged.

The product is not intended to be operated by means of an external timer or separate remote control system.

Cleaning and storage

WARNING! Risk of injury!

Disconnect the product from the mains supply before cleaning work and when not in use.

Do not store the hot product in a cupboard or in the packaging.
- Do not pull the mains plug out of the mains socket by the mains cord.
Protect the product, its mains cord and mains plug against dust, direct sunlight, dripping and splashing water.
Store the product in a cool, dry place, protected from moisture and out of the reach of children.
- Protect the product against heat. Do not place the product close to open flames or heat sources such as stoves or heating appliances.
Clean the product after each use (see "Cleaning and care").

Before first use

① NOTES:

Possible production residues lead to the formation of odours during initial start-up. This is normal and does not indicate a malfunction of the product.

• Removing production residues: Operate the empty product at browning level 7 until the lever 16 moves upwards automatically. Ensure sufficient ventilation.
  Discard the first set of toasted bread slices.

• Remove the packaging material.

• Clean the product (see "Cleaning and care").

Operation

1. Unwind the mains cord 12 from the cord rewind 10 before use.
2. Connect the mains plug 12 to a suitable mains socket. The timer display 2 and the browning level display 15 light up.

Off mode

The product enters off mode after 1 minute of inactivity. The timer display 2 and the browning level display 15 go out while the lever 16 remains in its initial position (up).
When the toasting process is finished:

The lev16 moves upwards automatically.
The timer disp 2 and the browning level display 15 keep lighting up for 1 minute.
The product then returns to off mode.

- Toasting bread

① NOTES:

The toasting result depends, among other things, on the type, moisture, and freshness of the bread.
Dry or white bread browns quicker than fresh or dark bread.
This product has a function to prevent bread from getting stuck in the toasting slots 1. If the bread gets stuck and the lever 16 does not spring back, the power automatically disconnects after the preset toasting time.
The le16 only engages when the mains plug 12 is connected to a mains socket.

If the timer disp 2 and the browning level display 15 go out, you can switch them on again by pressing any button (except 6).

Browning level 7 causes a very strong browning. Thick bread slices may cause smoke to form. In this case, stop the toasting process: Press 6.
If you only want to toast a single slice of bread, use a lower browning level than forasting 2 slices of bread.

1. Insert a slice of bread into each toasting slot 1.

Do not use bread slices that are too thick.

The bread must not be jammed in the toast slot.

1. Set the browning level: Press -3 or +4 to select one of the browning levels, from 1 to 7.

1 = very light toasting/light browning

7 = very strong toasting/very strong browning

1. Press down the lever 16 until it clicks into place. The bread is lowered. The timer display 2 starts counting down the toasting time.
2. When the toasting process is finished, the bread is lifted up. The lever 16 moves upwards.
3. Remove the bread from the toasting slot 1.

- Toast frozen bread

NOTE: Frozen bread is gently defrosted by the product and then toasted. It is not necessary to change the browning level.

1. Press 5. The indicator light above lights up.
2. Set the desired browning level.
3. Press down the lever 16 until it clicks into place. The timer display 2 starts counting down the toasting time.
4. When the toasting process is finished, the bread is lifted up. The lever 16 moves upwards. The indicator light above 5 goes off.
5. Remove the bread from the toasting slot 1.

Warming up bread

① NOTE: Bread that has already been toasted can be reheated by the product.

1. Press 7 . The indicator light above lights up.

2. Press down the lever 16 until it clicks into place. The timer display 2 starts counting down the toasting time.

3. When the toasting process is finished, the bread is lifted up. The lever 16 moves upwards. The indicator light above 7 goes off.
4. Remove the bread from the toasting slot 1.

Baking bread rolls

① NOTES:

The toasting result depends, among other things, on the type and freshness of the bread rolls.

• Toast the bread roll from both sides to ensure an even browning.
• Press down the fold-out lever 14. The bread roll warmer 8 folds out.
• Place the rolls on the bread roll warmer 8.
• Set the desired browning level. We recommend browning level 3.
• Press down the lever 16 until it clicks into place. The timer display 2 starts counting down the toasting time.
• When the toasting process of one side of the bread roll is finished, the lever 16 moves upwards.
• Turn the rolls over.
• Press down the lever 16 until it clicks into place. The product switches on. The timer display 2 starts counting down the toasting time.
• When the toasting process of the other side of the bread roll is finished, the lever 16 moves upwards.
• After the bread rolls are baked: Push the fold-out lever 14 upwards. The bread roll warmer 8 folds in.

- Cancel toasting

1. When the product is toasting, defrosting or reheating bread, you can press 6 early to stop operation.
2. Press 6. The lever 16 moves upwards.

- Cleaning and care

WARNING! Risk of electric shock!

Before cleaning: Always disconnect the product from the mains supply.
Do not immerse the product's electrical components in water or other liquids. Never hold the product under running water.

WARNING! Risk of burns! Do not clean

the product right after operation. Let the product cool first.

Part Cleaning	method
■ Housing	□ Wipe down the housing with a slightly damp cloth. □ Do not let any water or other liquids enter the product interior.
■ Bread roll warmer 8	□ Press down the fold-out lever 14. The bread roll warmer 8 folds out. □ Hold the product upside down and remove the crumbs from the recess of the bread roll warmer 8. □ Wipe the recess and the bread roll warmer 8 with a slightly moistened cloth.
■ Crumb tray 13	□ Pull out the crumb tray 13. □ Remove the crumbs. Wipe out the crumb tray 13 with a damp cloth. □ Reinsert the crumb tray 13.

Storage

WARNING! Risk of burns! Do not store

the product right after operation. Let the product cool first.

Clean the product before storage.

Run the mains cord 12 around the cord rewind 10 and attach it to the cord clamp 11.
Store the product in the original packaging when it is not in use.
Store the product at a dry location out of the reach of children.

Troubleshooting

Problem Possible	le cause/Solution
Bread too strongly browned.	Set a lower browning level.
Bread gets stuck in the product.	Disconnect the mains plug 12. Let the product cool. Use a wooden spatula to remove the bread from the toasting slot 1. Do not touch the heating elements.
Heavy smoke	The crumb tray 13 may be full. Disconnect the mains plug 12. Let the product cool. Clean the crumb tray.

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

rve the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics/ 20-22: paper and fibreboard/80-98: composite materials.

Product:

The product and packaging materials are recyclable and are subject to extended producer responsibility. Dispose them separately, following the illustrated Info-tri (sorting information), for better waste treatment.

The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of material or manufacturing defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Keep the original sales receipt in a safe location as this document is required as proof of purchase.

Any damage or defects already present at the time of purchase must be reported without delay after unpacking the product.

Should the product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it - at our choice - free of charge to you. The warranty period is not extended as a result of a claim being granted. This also applies to replaced and repaired parts.

This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty covers material or manufacturing defects. This warranty does not cover product parts subject to normal wear and tear, thus considered consumables (e.g. batteries, rechargeable batteries, tubes, cartridges), nor damage to fragile parts, e.g. switches or glass parts.

Warranty claim procedure

To ensure quick processing of your claim, observe the following instructions:

Make sure to have the original sales receipt and the item number (IAN 502867_2501) available as proof of purchase.

You can find the item number on the rating plate, an engraving on the product, on the front page of the instruction manual (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, contact the service department listed below either by telephone or by e-mail.

Once the product has been recorded as defective you can return it free of charge to the service address that will be provided to you. Ensure to enclose the proof of purchase (sales receipt) and a short, written description outlining the details of the defect and when it occurred.

Service

Service Great Britain

Tel.:[phone]

E-Mail: [e-mail]

Service Ireland

Tel.:[phone]

E-Mail: [e-mail]

WAARSCHUWING! Risico

DIGITALNY HRIANKOVAC PREMIUM

Uvod

kvalificeret person for at undgå farer.
