SH-FX82E - Audio accessory PANASONIC - Free user manual and instructions

Product Type	Wireless speaker module for home cinema system
Brand	Panasonic
Model	SH-FX82E
Dimensions (W × H × D)	123 mm × 176 mm × 146 mm
Weight	Approx. 0.83 kg
Total RMS output power	400 W (1 kHz, 10% THD)
Surround power per channel	200 W per channel (3 Ω)
Wireless frequency band	2.4 GHz
Power supply	AC 220-240 V, 50 Hz
Power consumption	36 W
Standby power consumption	0.5 W
Operating temperature	0 °C to 40 °C
Operating humidity	35% to 80% RH (without condensation)
Included accessories	2 power cords
Maintenance and cleaning	Soft, dry cloth; do not use alcohol, paint thinner, or benzene
Safety	Do not expose to rain, moisture, dripping; do not obstruct ventilation openings; use only recommended accessories
Wireless link indicator	Solid green (connected), slow flashing green (searching), fast flashing green (pairing), solid red (sleep)
Wireless operating distance	Approx. 10 m from home cinema system
Compatibility	Panasonic wireless compatible home cinema system
Connectors	2 speaker terminals (speaker cables not included), 1 AC IN connector
Intended use	Household use in temperate climate

Frequently Asked Questions - SH-FX82E PANASONIC

How to pair the SH-FX82E wireless system with my Panasonic home cinema system?

Turn on your home cinema system and access the HOME menu. Select 'Setup' > 'Settings' > 'Audio' > 'Speakers' > 'Wireless system pairing'. Follow the on-screen instructions. You can also use 'Easy Setting' in the setup menu. The wireless link indicator becomes solid green when pairing is successful.

What should I do if the wireless link indicator does not light up?

Make sure the power cord is properly connected to the wireless system and the wall outlet. Verify that the wall outlet is powered.

Why is there no sound from my surround speaker?

Check the surround sound settings on your home cinema system. Ensure the surround mode is on and the speaker settings are correct. Also verify that wireless pairing is active (solid green indicator).

What is the power consumption of the SH-FX82E in standby?

The standby power consumption (off) is 0.5 W.

Can I use the SH-FX82E with other brands of home cinema systems?

This product is designed to be used exclusively with a Panasonic wireless compatible home cinema system. Pairing via the Panasonic specific menu is not guaranteed with other brands.

How to clean the SH-FX82E wireless module?

Use a soft, dry cloth to clean the unit. Never use alcohol, paint thinner, or benzene. If using a chemically treated cloth, read the cloth instructions first.

What is the maximum distance between the SH-FX82E and the home cinema system?

Place the wireless system approximately 10 meters from the home cinema system for a reliable link. Keep it away from other devices using the 2.4 GHz band to avoid interference.

What to do if the pairing process fails?

Disconnect the power cords from the wireless system and the home cinema system, wait a few seconds, then reconnect them. Restart the pairing procedure from the home cinema system menu.

Is the SH-FX82E compatible with 110 V voltage?

No, this unit is designed for AC 220 V to 240 V, 50 Hz power supply. Use under a different voltage may damage the unit and void the warranty.

Where can I find the Declaration of Conformity (DoC) for this product?

You can download the original Declaration of Conformity from the Panasonic DoC server at http://www.doc.panasonic.de.

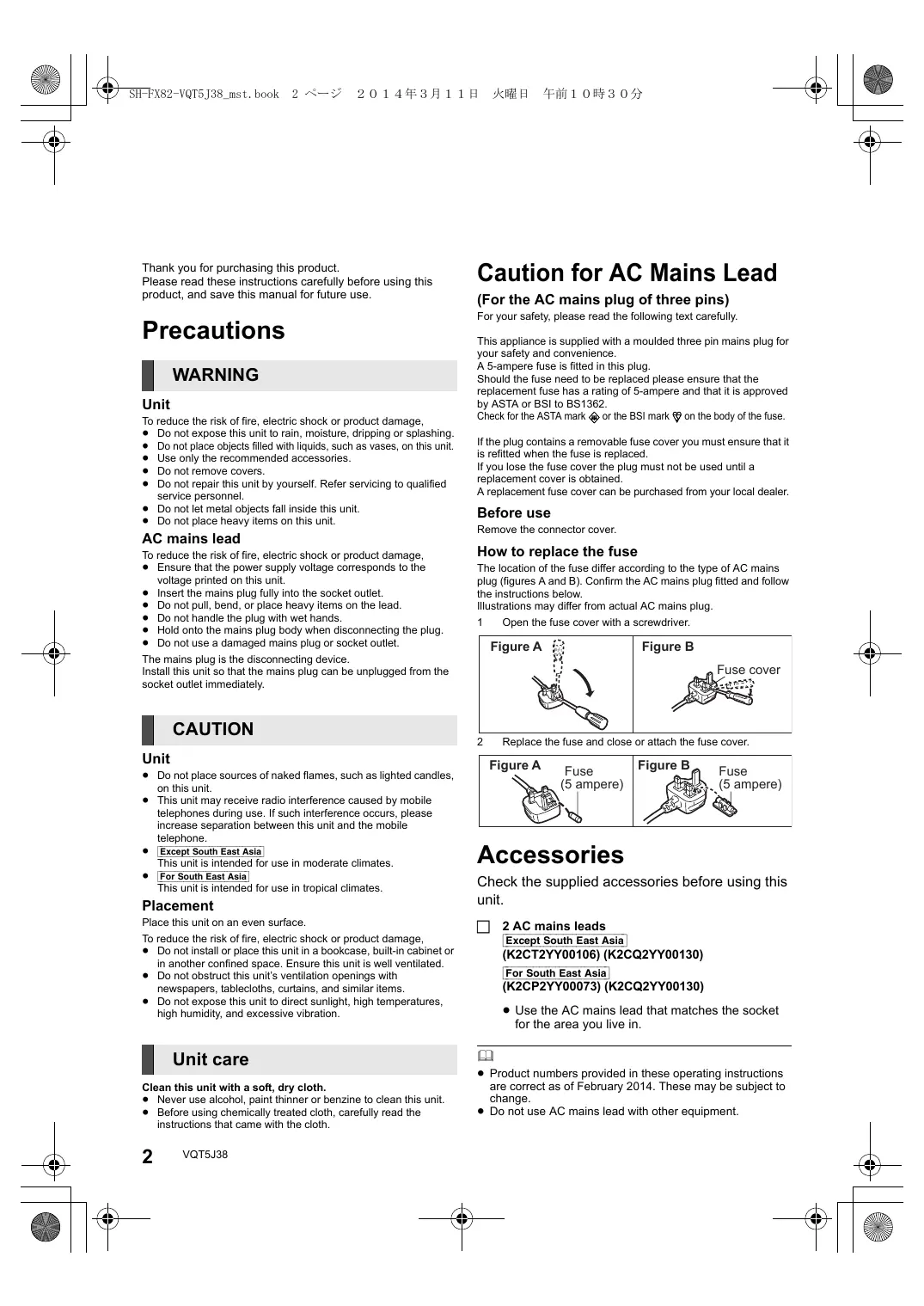

USER MANUAL SH-FX82E PANASONIC

Thank you for purchasing this product.

Please read these instructions carefully before using this product, and save this manual for future use.

Precautions

WARNING

Unit

To reduce the risk of fire, electric shock or product damage,

• Do not expose this unit to rain, moisture, dripping or splashing.
• Do not place objects filled with liquids, such as vases, on this unit.
• Use only the recommended accessories.
• Do not remove covers.
• Do not repair this unit by yourself. Refer servicing to qualified service personnel.
• Do not let metal objects fall inside this unit.
• Do not place heavy items on this unit.

AC mains lead

To reduce the risk of fire, electric shock or product damage,

• Ensure that the power supply voltage corresponds to the voltage printed on this unit.
• Insert the mains plug fully into the socket outlet.
• Do not pull, bend, or place heavy items on the lead.
• Do not handle the plug with wet hands.
• Hold onto the mains plug body when disconnecting the plug.
• Do not use a damaged mains plug or socket outlet.

The mains plug is the disconnecting device.

Install this unit so that the mains plug can be unplugged from the socket outlet immediately.

CAUTION

Unit

• Do not place sources of naked flames, such as lighted candles, on this unit.
• This unit may receive radio interference caused by mobile telephones during use. If such interference occurs, please increase separation between this unit and the mobile telephone.
• Except South East Asia
  This unit is intended for use in moderate climates.
• For South East Asia
  This unit is intended for use in tropical climates.

Placement

Place this unit on an even surface.

To reduce the risk of fire, electric shock or product damage,

• Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure this unit is well ventilated.
• Do not obstruct this unit's ventilation openings with newspapers, tablecloths, curtains, and similar items.
• Do not expose this unit to direct sunlight, high temperatures, high humidity, and excessive vibration.

Unit care

Clean this unit with a soft, dry cloth.

• Never use alcohol, paint thinner or benzine to clean this unit.
• Before using chemically treated cloth, carefully read the instructions that came with the cloth.

Caution for AC Mains Lead

(For the AC mains plug of three pins)

For your safety, please read the following text carefully.

This appliance is supplied with a moulded three pin mains plug for your safety and convenience.

A 5-ampere fuse is fitted in this plug.

Should the fuse need to be replaced please ensure that the replacement fuse has a rating of 5-ampere and that it is approved by ASTA or BSI to BS1362.

Check for the ASTA mark 📍 or the BSI mark 🔗 on the body of the fuse.

If the plug contains a removable fuse cover you must ensure that it is refitted when the fuse is replaced.

If you lose the fuse cover the plug must not be used until a replacement cover is obtained.

A replacement fuse cover can be purchased from your local dealer.

Before use

Remove the connector cover.

How to replace the fuse

The location of the fuse differ according to the type of AC mains plug (figures A and B). Confirm the AC mains plug fitted and follow the instructions below.

Illustrations may differ from actual AC mains plug.

1 Open the fuse cover with a screwdriver.

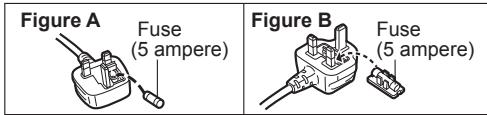

Figure A Figure B Fuse cover

2 Replace the fuse and close or attach the fuse cover.

Figure A Fuse (5 ampere) Figure B Fuse (5 ampere)

Accessories

Check the supplied accessories before using this unit.

□ 2 AC mains leads

Except South East Asia

(K2CT2YY00106) (K2CQ2YY00130)

For South East Asia

(K2CP2YY00073) (K2CQ2YY00130)

- Use the AC mains lead that matches the socket for the area you live in.

• Product numbers provided in these operating instructions are correct as of February 2014. These may be subject to change.
• Do not use AC mains lead with other equipment.

Control reference guide

Top

Diagram of a battery with two terminals and a switch, labeled 1 and 2 (no text or symbols on the diagram itself)

Rear

SPEAKERS 3 4 AC IN ~

1 Wireless link indicator

Green lights: Wireless link is activated.

blinks (slow): Searching mode

blinks (fast): Pairing mode

Red lights: Sleeping mode

2 Enable pairing
3 Speaker terminals
4 AC IN terminal

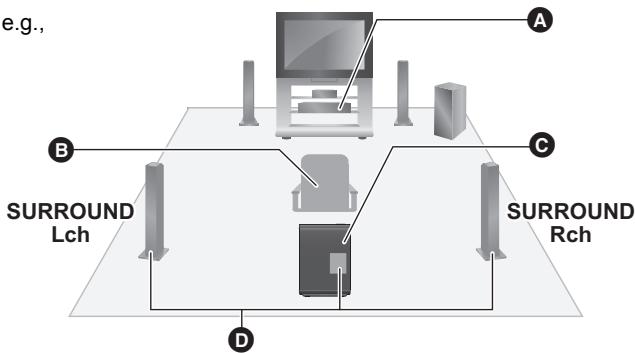

Wireless setup diagram

e.g., A B C SURROUND Lch SURROUND Rch D

A Home theatre unit
B Seating position
© Wireless system
D Surround speaker cables (not supplied)

• To avoid interference, separate the wireless system from the other electronic devices that use the same radio frequency (2.4 GHz band).
• Place the wireless system within approximately 10 m from the home theatre unit.
• To allow for proper ventilation and to maintain good airflow around the wireless system, position it with at least 5 cm of space on all sides.
• Do not use the wireless system in a metal cabinet or bookshelf.
• Do not attempt to connect any extra surround speakers to the home theatre unit.

Connections

Turn off all equipment before connection.

Do not connect the AC mains lead until all other connections are complete.

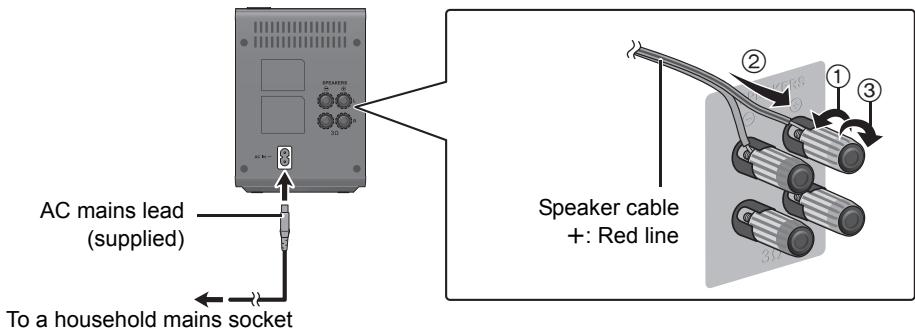

AC mains lead (supplied) To a household mains socket Speaker cable +: Red line

Pairing with the home theatre unit

Refer also to the operating instructions for your home theatre unit.

Using the remote control of the home theatre unit, perform the following steps:

1 Turn on your home theatre unit.

• If the HOME menu is not displayed, press [HOME].
  2 Press [OK] to select "Setup".
  3 Select "Settings" to show the Setup menu.
  4 Select "Sound" and press [OK].
  5 Select "Speaker" and press [OK].
  6 Select "Wireless System Pairing" and press [OK].

Follow the on-screen instructions to pair the wireless system and the home theatre unit.

- The wireless link indicator lights green when the wireless system and the home theatre unit are connected wirelessly.

- You can also perform this setup by selecting "Easy Settings" in the Setup menu.

Troubleshooting guide

Before requesting service, please perform the following checks.

If the problem remains unresolved, consult your dealer for instructions.

The wireless link indicator does not light.

➢ Ensure the AC mains lead is connected properly.

Pairing cannot be done.

➢ Disconnect and reconnect the AC mains lead of the wireless system and the home theatre unit, and do pairing again.

No sound from the surround speaker.

➢ Verify the surround sound setting on the home theatre unit.

Specifications

RMS TTL POWER OUTPUT	400 W
	1 kHz, 10 % total harmonic distortion
	SURROUND: 200 W per ch (3 Ω)
Wireless module	Frequency range: 2.4 GHz Band
Power supply	Except South East AsiaAC 220 V to 240 V, 50 HzFor South East AsiaAC 220 V to 240 V, 50 Hz/60 Hz
Power consumption	36 W
Power consumption in off mode	0.5 W
Dimensions (W×H×D)	123 mm×176 mm×146 mm
Mass	Approx. 0.83 kg
Operating temperature range	0 °C to 40 °C
Operating humidity range	35 % to 80 % RH(no condensation)

Specifications are subject to change without notice.

Except South East Asia

CE 0560

Declaration of Conformity (DoC)

Hereby, “Panasonic Corporation” declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

Customers can download a copy of the original DoC to our R&TTE products from our DoC server:

http://www.doc.panasonic.de

Contact to Authorized Representative:

Panasonic Marketing Europe GmbH, Panasonic Testing

Centre, Winsbergring 15, 22525 Hamburg, Germany

This product is intended for general consumer. (Category 3)

Disposal of Old Equipment

Only for European Union and countries with recycling systems

This symbol on the products, packaging, and/or accompanying documents means that used electrical and electronic products must not be mixed with general household waste.

For proper treatment, recovery and recycling of old products, please take them to applicable collection points in accordance with your national legislation. By disposing of them correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment.

For more information about collection and recycling, please contact your local municipality.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

Diagram of a battery with two ports and a switch, labeled 1 and 2 (no text or symbols on the diagram itself)

Rückseite

SPEAKERS 3 SD AC 1W ~ 4

Diagram of a battery with two terminals and a switch, labeled 1 and 2 (no text or symbols on the diagram itself)

Retro

SPEAKERS 3 3D 4 AC IN ~

Centre, Winsbergring 15, 22525 Hamburg, Germany

Superior 1 2

Posterior SPEAKERS 3 3D AC AIR ~ 4

Diagram of a battery with labeled terminals (1 and 2) and a switch, no readable text or symbols beyond labels

Achterkant

SPEAKERS 3 3D AC IN 4

1 Controlelampje draadloze verbinding

Bagside Speaker 3 4 AC Bus ~

1 Wireless link-indikator

Grøn	lyser: blinker (langsomt): blinker (hurtigt): lyser:	Wireless link aktiveres. Søgetilstand Sammenkoblingstilstand Snusetilstand
Rød

2 Aktivér sammenkobling
3 Højttalerterminaler
4 AC IN-stik

Diagram of a battery with two ports and a switch, labeled 1 and 2 (no text or symbols on the diagram itself)

Zadní strana

SPEAKERS 3 3D AC IN 4

Diagram of a battery casing with two ports and a dial indicator (no text or symbols)

后面

SPEAKERS 3D AC IN ~ 4

1 无线连接指示灯

绿色 点亮： 无线连接启动。

闪烁（慢）：搜索模式

闪烁（快）：配对模式

红色 点亮：睡眠模式

Winsbergring 15, 22525 Hamburg, Germany

CE 0560

For the United Kingdom and Ireland customers

Sales and Support Information

Customer Communications Centre

• For customers within the UK: 0844 844 3899
• For customers within Ireland: 01 289 8333
• Monday–Friday 9:00 am – 5:00 pm (Excluding public holidays).
• For further support on your product, please visit our website: www.panasonic.co.uk

Direct Sales at Panasonic UK

• Order accessory and consumable items for your product with ease and confidence by phoning our Customer Communications Centre Monday–Friday 9:00 am – 5:00 pm (Excluding public holidays).
• Or go on line through our Internet Accessory ordering application at www.pas-europe.com.
• Most major credit and debit cards accepted.
• All enquiries transactions and distribution facilities are provided directly by Panasonic UK.
• It couldn't be simpler!
• Also available through our Internet is direct shopping for a wide range of finished products. Take a browse on our website for further details.

Manufactured by: Panasonic Corporation

Kadoma, Osaka, Japan

Importer for Europe: Panasonic Marketing Europe GmbH

Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Germany

Panasonic Corporation

Web Site: http://panasonic.net

En Ge Fr It Sp Du Sw Da Fi Po Cz Hu Cn
