Product Type	Indoor Wi-Fi 6 Access Point
Brand	Grandstream
Model	GWN7664
Wi-Fi Standard	802.11ax (Wi-Fi 6) dual-band 2x2:2 MU-MIMO
Max Data Rate	Up to 2.4 Gbps (aggregated)
Max Concurrent Clients	512
Network Ports	1× RJ45 2.5 GbE port with PoE/PoE+; 1× RJ45 1 GbE port with PoE/PoE+
Power Supply	PoE/PoE+ (802.3af/at) via 2.5 GbE port
Management	Built-in web interface, GWN.Cloud, GWN Manager, mobile app
Advanced Features	Wi-Fi Mesh, captive portal, QoS, VLAN, bandwidth, multi-SSID
Security	WPA2/WPA3, AES encryption, 802.1X authentication
Mounting	Wall or ceiling (kit included)
Operating Temperature	0 °C to 50 °C
Operating Humidity	10% to 90% RH (non-condensing)
Dimensions (approx.)	200 mm × 200 mm × 35 mm (estimated)
Weight (approx.)	350 g (estimated)
Package Contents	Access Point, mounting brackets, screws, wall anchors, quick installation guide
Maintenance	Clean with a dry, soft cloth. Do not use chemical products.
Repairability	No consumer-replaceable parts. Contact Grandstream support.

Frequently Asked Questions - GWN7664 GRANDSTREAM

What are the default SSID and password of the GWN7664?

The default SSID is GWN[last 6 digits of MAC address] and the password is printed on the device's MAC label.

How to reset the GWN7664 to factory settings?

Press the RESET button for 7 seconds. The device will reboot with default settings.

How to access the GWN7664 configuration interface?

Connect to the same network as the access point. Use the URL https://gwn_[MAC].local or the GWNDiscoveryTool to find its IP address.

What power supply types are supported by the GWN7664?

The GWN7664 can be powered via PoE/PoE+ (802.3af/at) on the 2.5 GbE port. It is not supplied with a power adapter.

Does the GWN7664 support Wi-Fi mesh?

Yes, it supports Wi-Fi mesh to extend wireless coverage without additional cables.

What is the maximum number of concurrent clients?

The GWN7664 can handle up to 512 clients simultaneously.

How to mount the GWN7664 on the ceiling?

Use the provided mounting bracket. Drill holes into the ceiling tile, insert wall anchors, attach the bracket, then snap the access point into place by turning clockwise.

What is the difference between the two Ethernet ports?

The NET/POE 2.5G port supports up to 2.5 Gbps and PoE power, while the NET/POE 1G port supports 1 Gbps and also PoE.

Can I use the GWN7664 without a controller?

Yes, it features a distributed controller in its web interface. It can also be managed via GWN.Cloud or GWN Manager.

How to clean the GWN7664?

Use a dry, soft cloth. Avoid liquid or abrasive cleaners. Unplug the device before cleaning.

USER MANUAL GWN7664 GRANDSTREAM

Grandstream Networks, Inc.

126 Brookline Ave, 3rd Floor

Boston, MA 02215. USA

Tel: [phone] - 9300

In the UK and EU member states, operation of 5150-5350 MHz is restricted to indoor use only.

For Certification, Warranty and RMA information, please visit www.grandstream.com

Circular white object with a central circular mark and the text 'GRANDSTREAM' at the center (no additional symbols or text visible)

GWN7664

Enterprise 802.11ax 4x4:4

Wi-Fi 6 Access Point

Quick Installation Guide

Content

English....1

简体中文....7

Español....13

Français....19

Deutsch....25

Italiano....31

Polski....37

Português....43

Русский....49

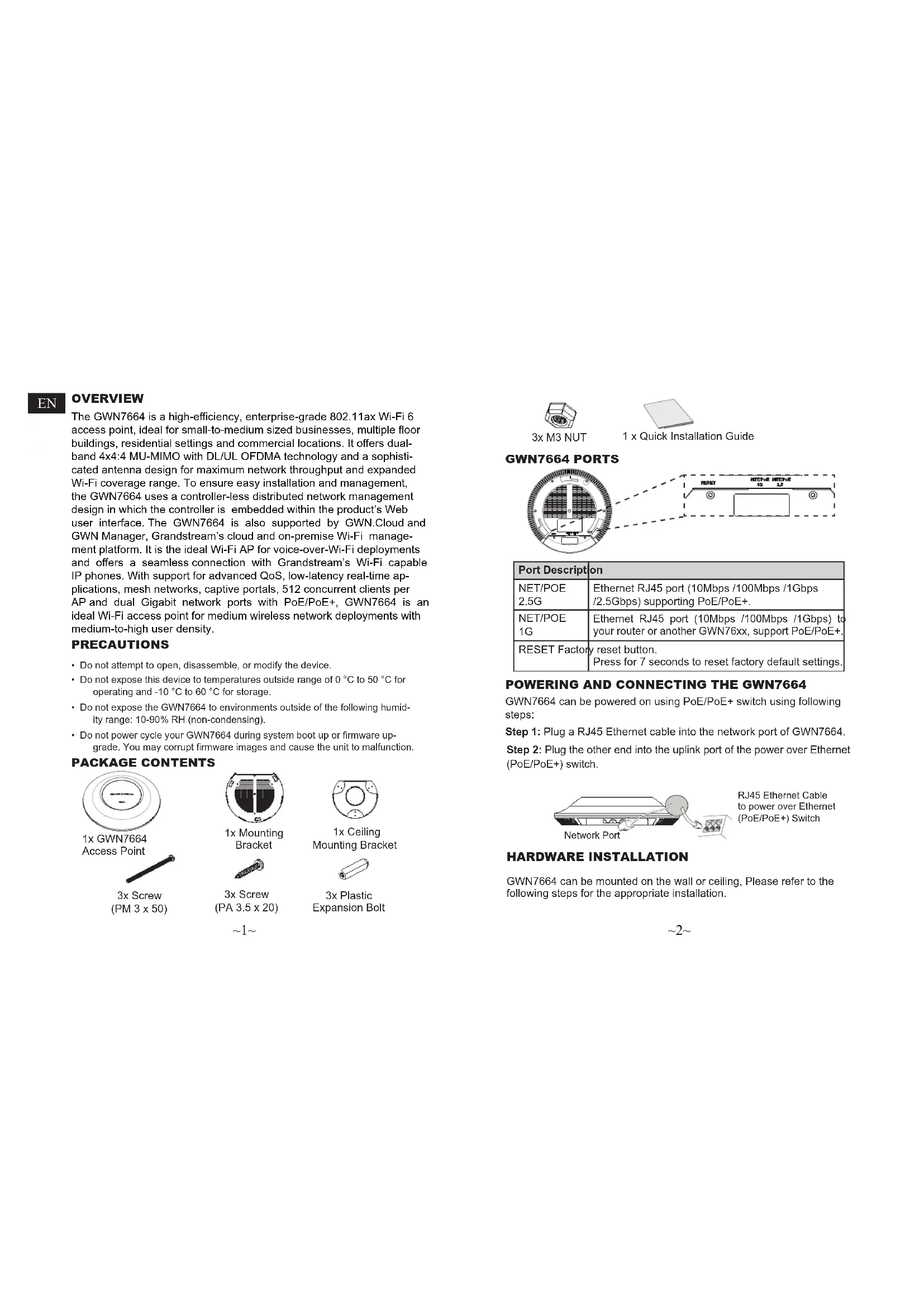

EN

OVERVIEW

The GWN7664 is a high-efficiency, enterprise-grade 802.11ax Wi-Fi 6 access point, ideal for small-to-medium sized businesses, multiple floor buildings, residential settings and commercial locations. It offers dual-band 4x4:4 MU-MIMO with DL/UL OFDMA technology and a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range. To ensure easy installation and management, the GWN7664 uses a controller-less distributed network management design in which the controller is embedded within the product's Web user interface. The GWN7664 is also supported by GWN.Cloud and GWN Manager, Grandstream's cloud and on-premise Wi-Fi management platform. It is the ideal Wi-Fi AP for voice-over-Wi-Fi deployments and offers a seamless connection with Grandstream's Wi-Fi capable IP phones. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals, 512 concurrent clients per AP and dual Gigabit network ports with PoE/PoE+, GWN7664 is an ideal Wi-Fi access point for medium wireless network deployments with medium-to-high user density.

PRECAUTIONS

• Do not attempt to open, disassemble, or modify the device.
• Do not expose this device to temperatures outside range of 0^ to 50^ for operating and -10^ to 60^ for storage.
• Do not expose the GWN7664 to environments outside of the following humidity range: 10-90% RH (non-condensing).
• Do not power cycle your GWN7664 during system boot up or firmware upgrade. You may corrupt firmware images and cause the unit to malfunction.

PACKAGE CONTENTS

1x GWN7664

Access Point

3x Screw
(PM 3 x 50)

1x Mounting Bracket

3x Screw (PA 3.5 x 20)

1x Ceiling Mounting Bracket

3x Plastic Expansion Bolt

1

3x M3 NUT

1 x Quick Installation Guide

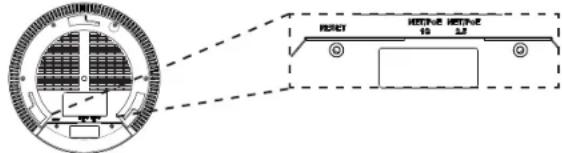

GWN7664 PORTS

HOTY 10 2.2

Port Description
NET/POE2.5G	Ethernet RJ45 port (10Mbps /100Mbps /1Gbps /2.5Gbps) supporting PoE/PoE+.
NET/POE1G	Ethernet RJ45 port (10Mbps /100Mbps /1Gbps) to your router or another GWN76xx, support PoE/PoE+.
RESET Factory reset button.Press for 7 seconds to reset factory default settings.

POWERING AND CONNECTING THE GWN7664

GWN7664 can be powered on using PoE/PoE+ switch using following steps:

Step 1: Plug a RJ45 Ethernet cable into the network port of GWN7664.

Step 2: Plug the other end into the uplink port of the power over Ethernet (PoE/PoE+) switch.

RJ45 Ethernet Cable to power over Ethernet (PoE/PoE+) Switch

HARDWARE INSTALLATION

GWN7664 can be mounted on the wall or ceiling, Please refer to the following steps for the appropriate installation.

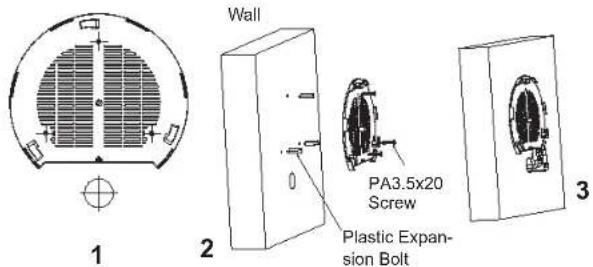

Wall Mount

1. Position the mounting bracket at the desired location on the wall with the arrow pointing up.
2. Use a pencil to mark the four mounting holes (screw holes DIA 5.5mm, reticle hole DIA 25mm).
3. If your Ethernet cable feeds through the wall, then cut or drill a circle approximately 18mm in diameter.
4. Insert screw anchors into the 5.5mm holes. Attach the mounting bracket to the wall by inserting the screws into the anchors.

Wall PA3.5x20 Screw Plastic Expans- sion Bolt 1 2 3

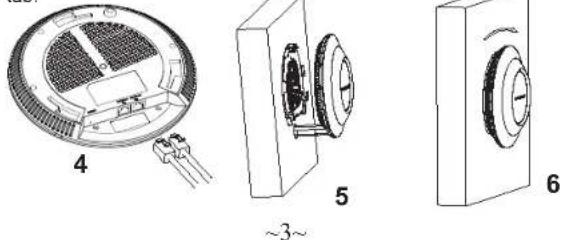

1. Connect the ethernet cable (RJ45) to the correct ports of your GWN7664.
2. Align the arrow on the GWN7664 AP with the arrow on the locking tab of the mounting bracket and ensure that your GWN is firmly seated on the mounting bracket.
3. Turn the GWN clockwise until it locks into place and fits the locking tab.

4 5 ~3~ 6

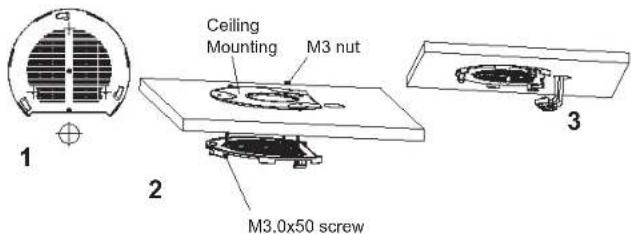

Ceiling Mount

Note: Ceiling mounting is recommended for optimal coverage performance.

1. Remove the ceiling tile.
2. Place the ceiling backing plate in the center of the ceiling tile and mark the mounting screw holes (screw holes DIA 5.5mm, reticle hole DIA 25mm).
3. Insert the screws through the mounting bracket.

Ceiling Mounting M3 nut 1 2 M3.0x50 screw 3

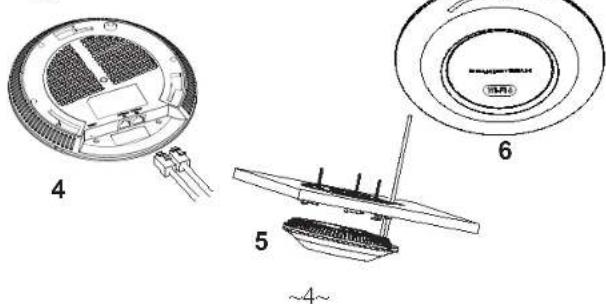

1. Connect th Ethernet cable (RJ45) to the correct ports of your GWN7664.
2. Align the arrow on the GWN7664 with the arrow on the locking tab of the mounting bracket and ensure that your GWN is firmly seated on the mounting bracket and connect the network and power cables.
3. Turn the GWN clockwise until it locks into place and fits the locking tab.

4 5 6 ~4~

CONNECT TO GWN7664 DEFAULT Wi-Fi NETWORK

GWN7664 can be used as standalone access point out of box, or after factory reset with Wi-Fi enabled by default.

After powering the GWN7664 and connecting it to the network, GWN7664 will broadcast a default SSID based on its MAC address GWN[MAC's last 6 digits] and a random password.

Note: GWN7664's default SSID and password information are printed on the MAC tag of the unit.

GRANDSTREAM This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: [1] this device may not cause harmful interference, and [2] this device must accept any interference received, including interference that may cause undesired operation. SIN XXXXXXXXXX.XXXX MAC XXXXXXXXXX.XXX WIFI Password: WWWWWWW SSD: GWWXXXXXX (N) PN XXXXXXXXXX.XXXX Model: GWN7664 Input: 48V=0.5A PoE CE UK CA ECAC GNC KOR: 300MHz 200 IC: 1994-025-0000 FCC ID: YZZQYN784 Made in China

ACCESSING THE CONFIGURATION INTERFACE

A computer connected to the GWN7664's SSID, or to the same network as the GWN7664 can discover and access its configuration interface using one of the below methods:

Method 1: Discover GWN7664 using its MAC Address

1. Locate the MAC address on the MAC tag of the unit, which is on the underside of the device, or on the package.
2. From a computer connected to same network as the GWN7664, type in following address using GWN7664's MAC address on your browser: https://gwn_.local
   Example: If a GWN7664 has the MAC address C0:74:AD:8B:4E:28, this unit can be accessed by typing https://gwn_c074ad8b4e28.local on the browser.

Method 2: Discover GWN7664 using GWN Discovery Tool

1. Download and install GWN Discovery Tool from the following link: http://www.grandstream.com/tools/GWNDiscoveryTool.zip

2. Open the GWN DiscoveryTool, and click on Scan.

3. The tool will discover all GWN76XX Access Points connected on the network showing their MAC and IP addresses.

4. Click on Manage Device to be redirected directly to the GWN7664's configuration interface, or type in manually the displayed IP address on your browser.

Enter username and password to login. (The default administrator username is "admin" and the default random password can be found at the sticker on the GWN7664).

GWN7664 WIN7664

Notes:

• Make sure that the GWN7664 is not already paired with another GWN76xx Access Point as slave, GWN7000 Router Series, GWN Cloud, or GWN Manager, otherwise the configuration interface cannot be accessed
• If the GWN7664 is already paired, make sure to unpair it first, or do a factory reset.
• It is customer's responsibility to ensure compliance with local regulations for frequency bands, transmit power and others.
• To manage GWN7664 over cloud, please refer to https://www.gwn.cloud.

The GNU GPL license terms are incorporated into the device firmware and can be accessed via the Web user interface of the device at my_device_ip/gpl_license. It can also be accessed here:

http://www.grandstream.com/legal/open-source-software

To obtain a CD with GPL source code information please submit a written request to [e-mail]

Refer to online documents and FAQ for more detailed information: http://www.grandstream.com/our-products
