| Brand | Livarno Lux |
| Model | IAN 290164 (ref. 14125106L / 14125206L) |
| Product type | LED strip with sensor (music or motion/light) |
| Usage | Indoor, dry and enclosed areas |
| Input voltage | 100-240 V ~ 50/60 Hz |
| LED strip voltage | 12 V --- (DC) |
| Total power (max.) | 17 W (14125106L) / 6 W (14125206L) |
| LED strip power | 14 W (14125106L) / 4.5 W (14125206L) |
| Power supply output current | 1.5 A (14125106L) / 0.5 A (14125206L) |
| Protection class (strip) | III |
| Protection class (power supply) | II |
| Protection rating | IP20 |
| Integrated sensor | Music sensor (14125106L) or motion detector + day/night light (14125206L) |
| Remote control battery | CR2025 (only 14125106L) |
| Remote control / detector range | ~5 m |
| Main functions | On/off, brightness adjustment, color selection (red, green, blue, white, orange, yellow, turquoise, lilac), color change (3 or 7 colors), music programs (14125106L); automatic activation on motion detection in darkness, adjustable duration (14125206L) |
| Connection | Power adapter with connector, possibility to shorten and connect the strip (up to desired length) |
| Mounting | Adhesive on back, clean, dry and grease-free surface |
| Maintenance and cleaning | Unplug before cleaning; dry, lint-free cloth |
| Safety | Not for outdoor use; do not cover; do not look directly at LEDs; keep out of reach of children; do not open power supply; replace if damaged |
| Warranty | 36 months (excluding wear parts) |
| Customer service | Briloner: +49 (0) 29 61 / 97 12-800, kundenservice@briloner.com |
Frequently Asked Questions - IAN 290164 Livarno Lux
User questions about IAN 290164 Livarno Lux
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Lighting in PDF format for free! Find your manual IAN 290164 - Livarno Lux and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. IAN 290164 by Livarno Lux.
USER MANUAL IAN 290164 Livarno Lux
Assembly, operating and safety instructions
NL BE
SENSORLICHTBAND
CINTA LUMINOSA CON SENSOR
Before reading, unfold both pages containing illustrations and familiarise yourself with all functions of the device.
FR BE


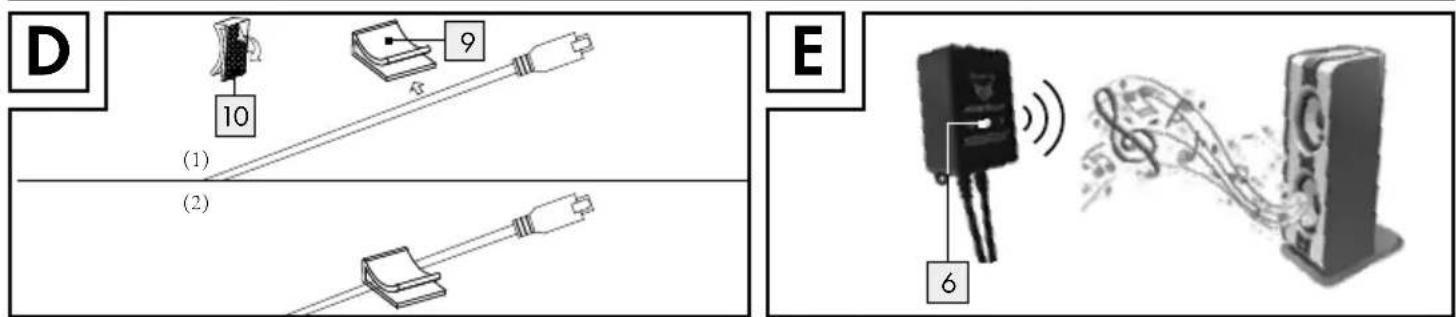

D 10 9 (1) (2) E 6


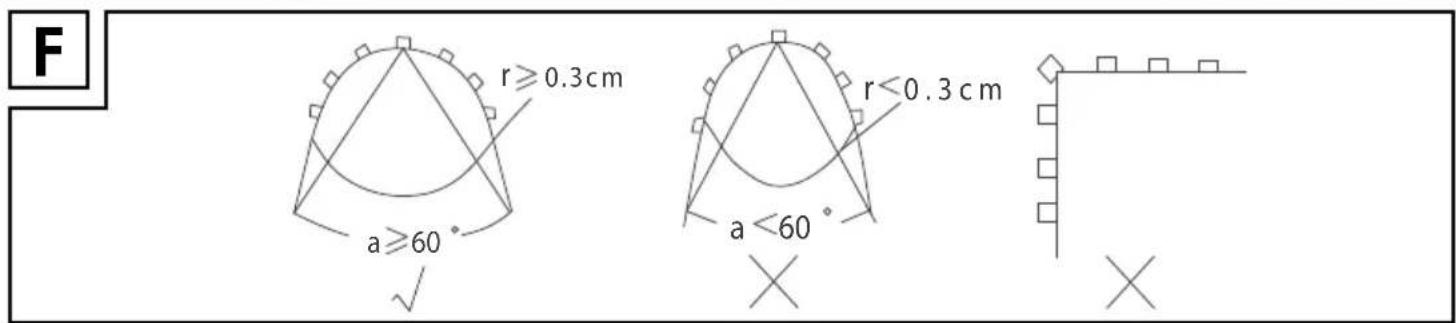

F r≥0.3cm a≥60 r<0.3cm a<60 X X


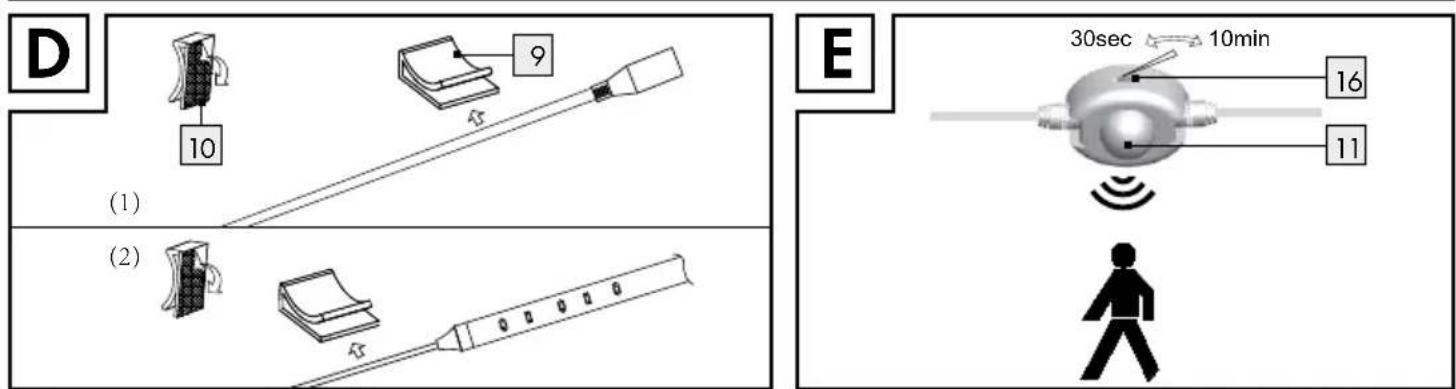

D 10 9 (1) (2) E 30sec 10min 16 11 (2)


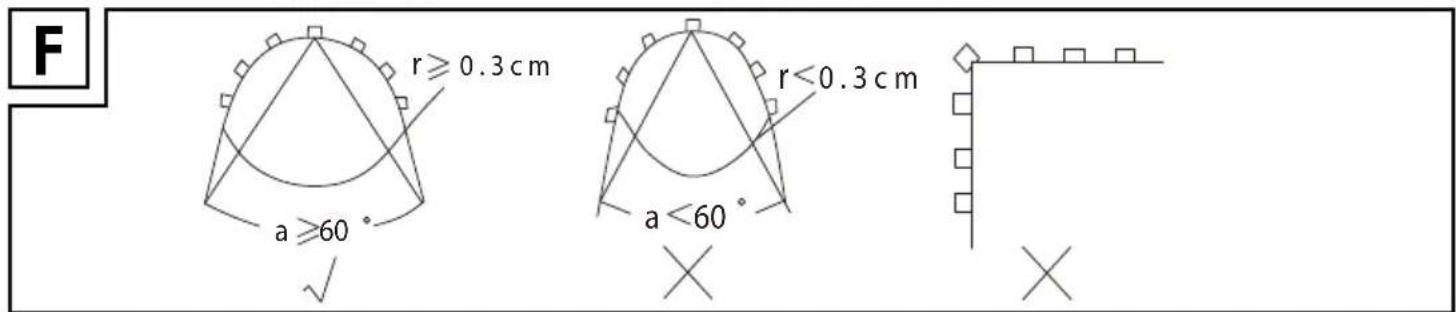

F r≥0.3cm a≥60 r<0.3 cm a<60 X XIntended use......Page 17
Scope of delivery Page 17
Parts Description......Page 17
Technical Data Page 17
Safety Page 18
Safety instructions......Page 18
Safety instructions for batteries/rechargeable batteries Page 19
Initial use Page 20
Replacing / inserting batteries ......Page 20
Trimming / connecting the LED tape......Page 20
Installing the LED strip Page 21
Switching the LED strip on/off......Page 21
Controlling light effects with the remote control....Page 22
Maintenance and Cleaning......Page 22
Disposal Page 22
Warranty and Service......Page 23
Warranty Page 23
Service address......Page 23
Declaration of Conformity....Page 23
Manufacturer......Page 23

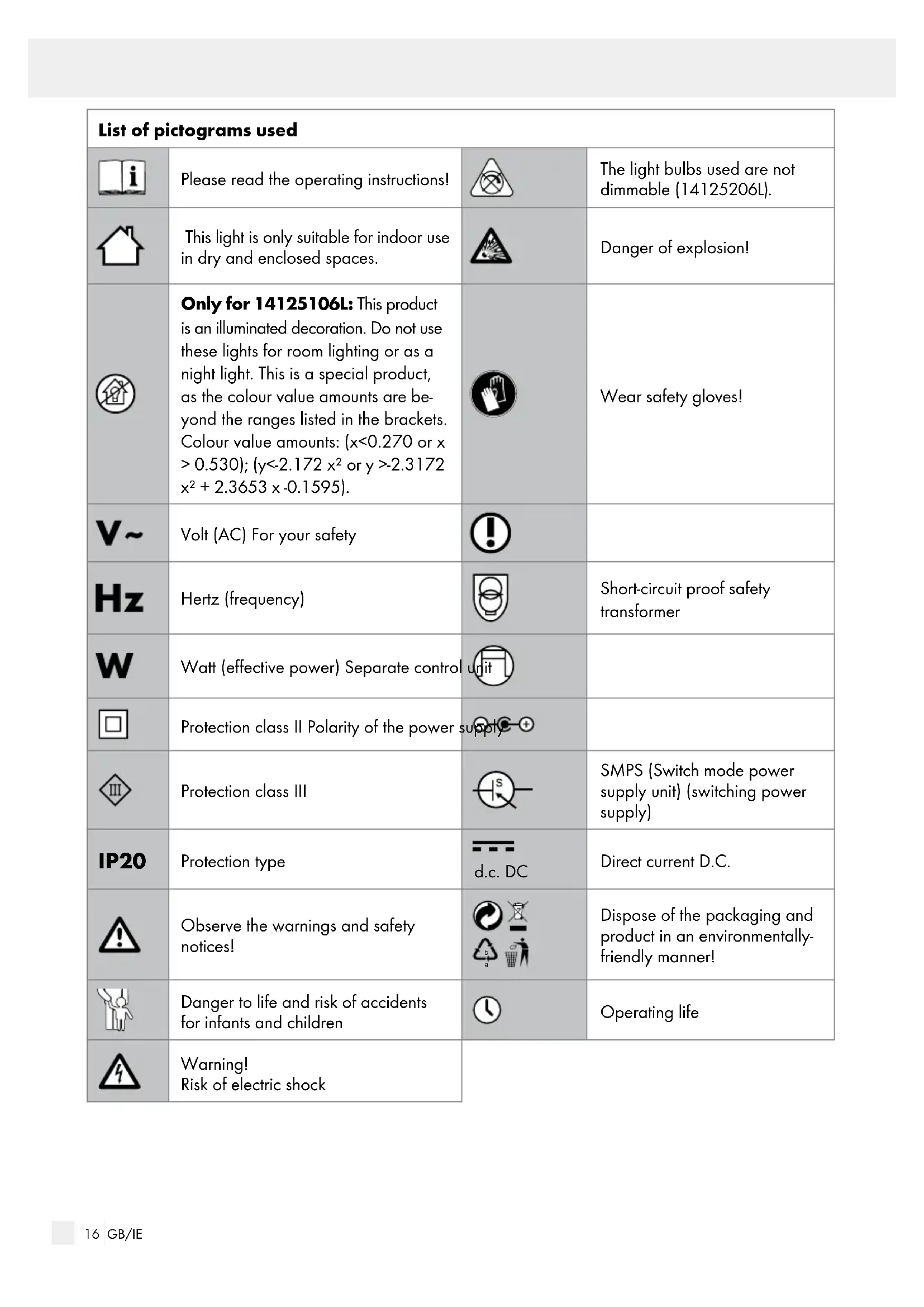

| List of pictograms used | |||
 | Please read the operating instructions! |  | The light bulbs used are not dimmable (14125206L). |
 | This light is only suitable for indoor use in dry and enclosed spaces. |  | Danger of explosion! |
 | Only for 14125106L: This product is an illuminated decoration. Do not use these lights for room lighting or as a night light. This is a special product, as the colour value amounts are beyond the ranges listed in the brackets. Colour value amounts: (x<0.270 or x >0.530); (y<-2.172 x2 or y>-2.3172 x2 + 2.3653 x -0.1595). |  | Wear safety gloves! |
 | Volt (AC) For your safety |  | |
 | Hertz (frequency) |  | Short-circuit proof safety transformer |
 | Watt (effective power) Separate control |  | |
 | Protection class II Polarity of the power su |  | |
 | Protection class III |  | SMPS (Switch mode power supply unit) (switching power supply) |
 | Protection type |  d.c. DC | Direct current D.C. |
 | Observe the warnings and safety notices! |   | Dispose of the packaging and product in an environmentally-friendly manner! |
 | Danger to life and risk of accidents for infants and children | [B7AC] | Operating life |
 | Warning!Risk of electric shock | ||
Light Strip with Sensor
- Introduction
Please be sure to carefully read the complete instructions for use. These instructions are part of the product and contain imimportant information on setup and handling. Always follow all safety instructions. Before using this product for the first time verify the correct voltage and that all parts are properly installed. If you have any questions or you are unsure about operating the product, please contact the distributor or service centre. Please keep these instructions in a safe place and pass them on to third parties if necessary.
Intendeduse
This luminaire is only suitable for indoor use, in dry and enclosed rooms. This product is suitable for indoors and outdoor use. This device is only intended for use in a private domestic environment, not for commercial use. Any use other than that described above is prohibited and will result in product damage. It is further associated with dangers, e.g. short circuit, fire, electric shock, etc.
Only for 14125106L:
This product is an illuminated decoration. Do not use these lights for room lighting or as a night light.
This is a special product, as the colour value amounts are beyond the ranges listed in the brackets. Colour value amounts: (x<0.270 or x>0.530) ; (y<-2.172 x^2 or y>-2.3172 x^2+2.3653 x-0.1595) .
- Scope of delivery
Check immediately after unpacking that the parts are complete and that the product is in proper condition.
1 LED strip, model 14125106L / 14125206L
1 mains adapter with sensor (14125106L)
1 mains adapter (14125206L)
2 connectors
4 end caps
2 cable holder
1 adhesive strip
2 screws for sensor unit (14125106L)
1 remote control (14125106L)
1 set of instructions for use
PartsDescription
1 Supply cable
2 Mains adapter
3 Plug
4 Socket
5 LED strip
6 Music sensor (14125106L)
7 Plug connection
8 End cap
9 Cable holder
10 Protective film
11 Sensor (14125206L)
12 Remote control (14125106L)
13 Battery compartment (14125106L)
14 Battery (14125106L)
15 Insulating strip (14125106L)
16 Slider (14125206L)
17 Adhesive strip
- TechnicalData
Art. no.:14125106L
Operating voltage: 100-240V \~ 50/60Hz
Total capacity: LED/max. 17W
LED strip:
Operating voltage: 12V
Performance (LED strip): 14 W
Protection category: III
Level of protection: IP20
Mains adapter:
Operating voltage: 100-240V \~ 50/60Hz
Output power: 1.5 A
Protection category: II
Level of protection: IP20
Battery for remote control:
Type: CR 2025
Art. no.:14125206L
Operating voltage: 100-240V \~ 50/60Hz
Total capacity: LED/max. 6W
LED strip:
Operating voltage: 12V
Performance (LED strip): 4.5 W
Protection category: III
Level of protection: IP20
Mains adapter:
Operating voltage: 100-240V \~ 50/60Hz
Output power: 0.5 A
Protection category: II
Level of protection: IP20
Safety
Safety instructions
Damage due to failure to comply with these instructions for use will void the warranty! We assume no liability for consequential damages! We assume no liability for property damage or personal injury due to improper handling or failure to comply with the safety instructions!
RISK OF FATAL INJURY AND ACCIDENT HAZARD FOR TODDLERS AND SMALL CHILDREN!
Never leave children unsupervised with the packaging material. The packaging material poses a suffocation hazard. Children frequently
underestimate the dangers. Please always keep the product out of the reach of children.
This device may be used by children aged 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or lacking experience and/or knowledge, so long as they are supervised or instructed in the safe use of the device and understand the associated risks. Do not allow children to play with the product. Cleaning and user maintenance must not be performed by children without supervision.
Avoid the risk of fatal injury from electric shock
- Check the LED strip for damage before every use. Never use the LED strip if any damage is detected.
WARNING!
A damaged mains cable poses a risk of fatal injury from electrical shock. In the case of damage, repairs or other problems, please contact the service centre or a qualified electrician. The supply cable of this appliance cannot be replaced. If the cable is damaged, the appliance must be disposed of. The appliance contains no parts which may be serviced by the consumer.
■ Make sure before use that the available supply voltage corresponds to the required operating voltage of the item (see "Technical Data").
■ Never allow the live power leads and contacts to come into contact with water or other liquids.
■ Never open any of the components of the electrical equipment or insert any objects into the same components. This will pose a risk of fatal injury from electric shock.
- Do not use the LED strip if it is covered with objects or is inlaid into a surface.
- Do not install the lamp on damp or conductive surfaces.
This LED strip must not be connected electronically with other LED strips.
- Protect the product from sharp edges, mechanical loads and hot surfaces (see Fig. F).
- Do not secure with sharp staples or nails.
■ Always unplug the mains plug from the socket before assembly, disassembly or cleaning.
■ Never catch hold of the mains plug or the LED strip with wet hands.
■ Only use the individual parts supplied, otherwise all warranty claims will become invalid.
This item must not be connected with the power supply while it is still in its packaging provided that the packaging has not been adjusted for exhibition purposes. Lay out the item completely before you connect it to the power supply.
- Do not connect the rope light to the supply while it is in the packing or wound onto a reel.
- Do not use the rope light when covered or recessed into a surface.
■ Do not open or cut the rope light.
- Do not connect this rope light to another manufacturer's product.
Interconnection shall be made only by the use of the supplied connectors. Any open ends must be sealed-off before use.
Model 14125106L
For some people, this can lead to epileptic seizures or disturbances of consciousness if they are exposed to certain flashes or light effects. Immediately visit a doctor if you experience epileptic symptoms.
Prevent fire and injury hazards
This product does not contain any parts that can be serviced by the user. The LEDs cannot be replaced.
If the LEDs cease to function at the end of their operational life, the entire item must be replaced.
■ The installed LEDs are not suitable
for dimmers or electronic switches (14125206L).
Do not look into the LED from a close distance during operation.
Do not look at the LED with an optical instrument (e.g. magnifier).
Safe working
- Install the light so that it is protected from dirt and excessive heating.
■ Always be attentive! Always pay attention to what you are doing and use common sense. Never use the LED strip if you are having difficulty concentrating or do not feel well.
Before use, familiarise yourself with all the instructions and diagrams in these instructions, as well as with the LED strip itself.
To completely disconnect the LED strip from the power supply, the mains adapter must be removed from the mains socket.
Safety instructions for batteries/rechargeable batteries
WARNING!
KEEP BATTERIES OUT OF THE REACH OF
CHILDREN! Swallowing batteries can cause chemical burns, perforation of soft tissue, and death. Severe burns may occur within 2 hours of swallowing batteries. Seek immediate medical attention.
■ DANGER TO LIFE!
Keep batteries / rechargeable batteries out of reach of children. If accidentally swallowed seek immediate medical attention.
DANGER OF EXPLOSION!
Never recharge non-rechargeable batteries. Do not short-circuit batteries/rechargeable batteries and/or open them. Overheating, fire or bursting can be the result.
■ Never throw batteries / rechargeable batteries into fire or water.
Do not exert mechanical loads to batteries / rechargeable batteries.
Risk of leakage of batteries / rechargeable batteries
Avoid extreme environmental conditions and temperatures, which could affect batteries / rechargeable batteries, e.g. radiators / direct sunlight.
Avoid contact with the skin, eyes and mucous membranes. In the event of contact with battery acid, thoroughly flush the affected area with plenty of clean water and seek immediate medical attention.
WEAR PROTECTIVE GLOVES!
Leaked or damaged batteries / rechargeable batteries can cause burns on contact with the skin. Wear suitable protective gloves at all times if such an event occurs.
In the event of a leakage of batteries / rechargeable batteries, immediately remove them from the product to prevent damage.
Only use the same type of batteries / rechargeable batteries. Do not mix used and new batteries/rechargeable batteries.
■ Remove batteries / rechargeable batteries if the product will not be used for a longer period.
Risk of damage of the product
Only use the specified type of battery / rechargeable battery!
Insert batteries / rechargeable batteries according to polarity marks (+) and (-) on the battery / rechargeable battery and the product.
Clean the contacts on the battery / rechargeable battery and in the battery compartment before inserting!
■ Remove exhausted batteries/rechargeable batteries from the product immediately.
- Initial use
☐ Remove all packaging materials before first use.
☐ Never connect the LED strip to the mains power supply whilst in the packaging.
Note: Ensure that a plug socket is located in close proximity to the installation area.

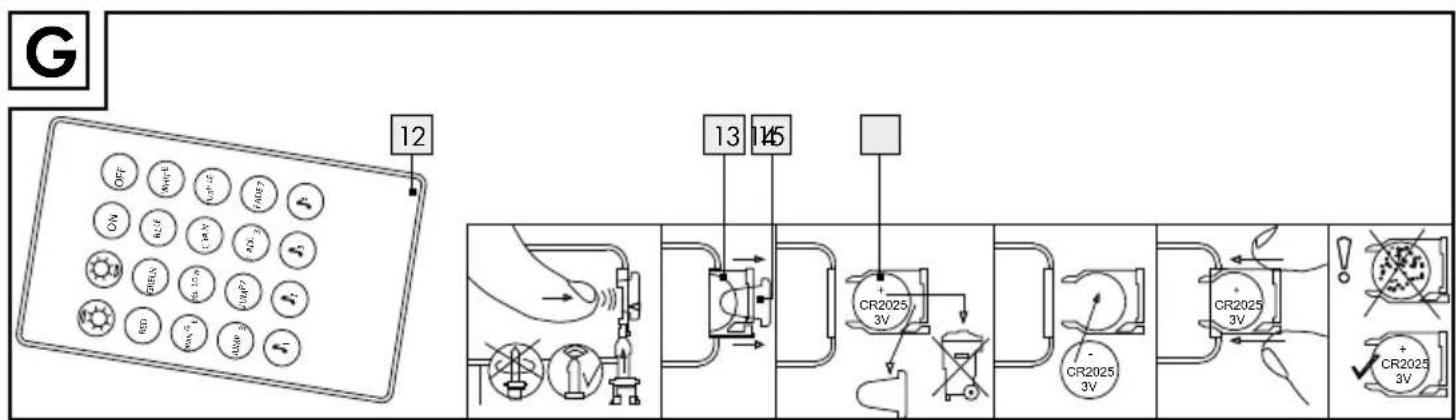

● Replacing / inserting batteries (14125106L) (Fig. G)
Note: Before first use, pull the insulating strip 15 out of the battery compartment 13.
☐ If the range of the remote control 12 reduces, the battery 14 needs to be replaced. To do so, slide the battery compartment out of the remote control 12. Remove the old battery 14 and insert a new one.
Note: The correct polarity is indicated on the reverse side of the remote control ^12 .
☐ Slide the battery compartment back into the remote control 12.

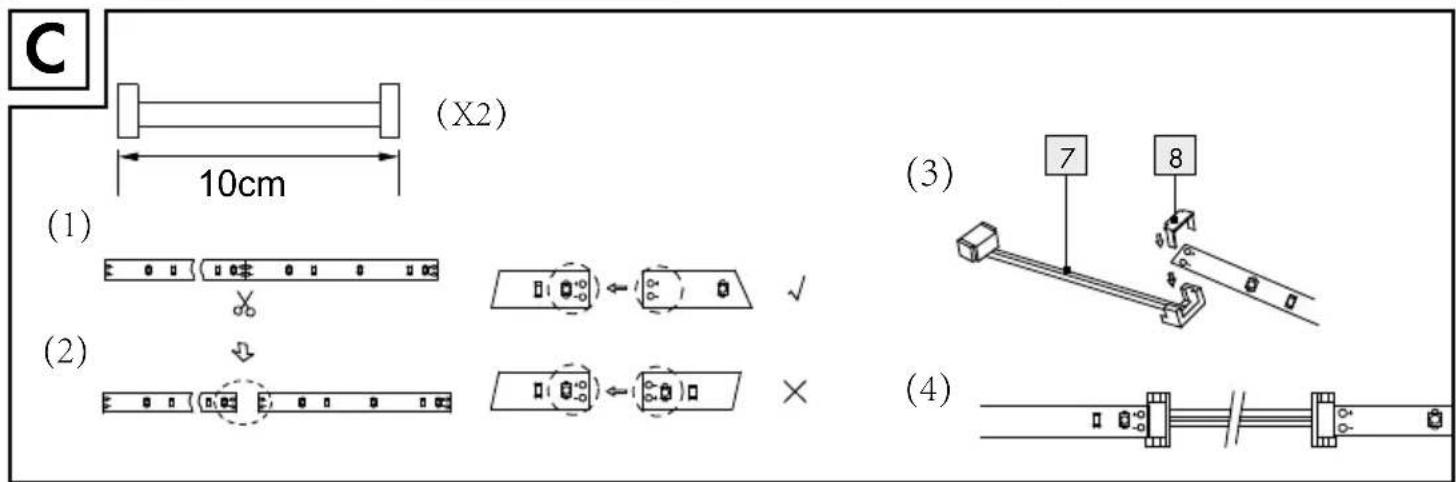

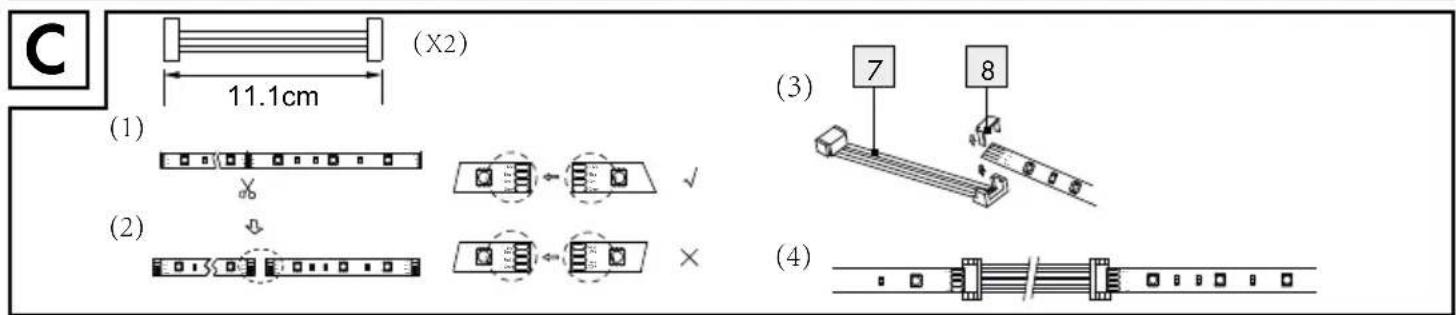

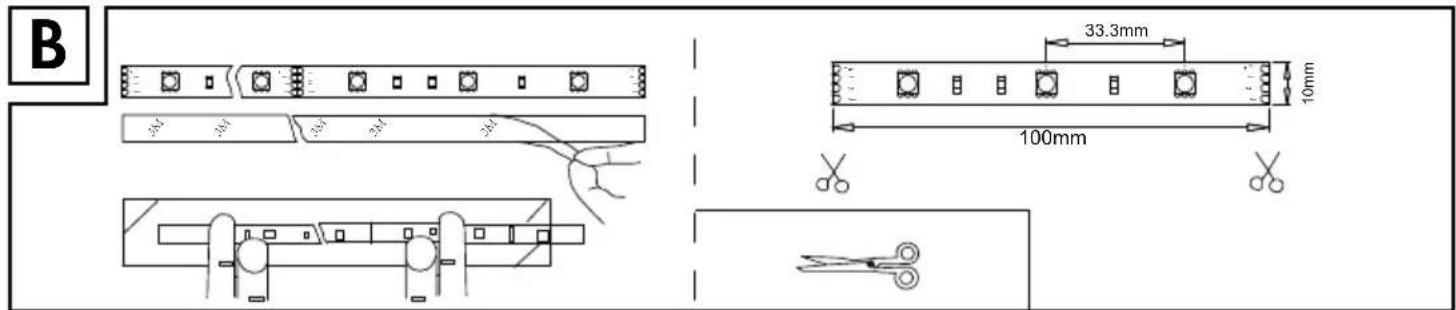

• Trimming / connecting the LED tape
The LED tape may be trimmed to size or connected.
WARNING! DANGER TO LIFE BY ELECTRIC SHOCK!
Disconnect the lights from the power supply before performing any work on the LED strip 5. Unplug the mains adapter 2 from the socket to do so.
☐ Choose the desired LED strip length.

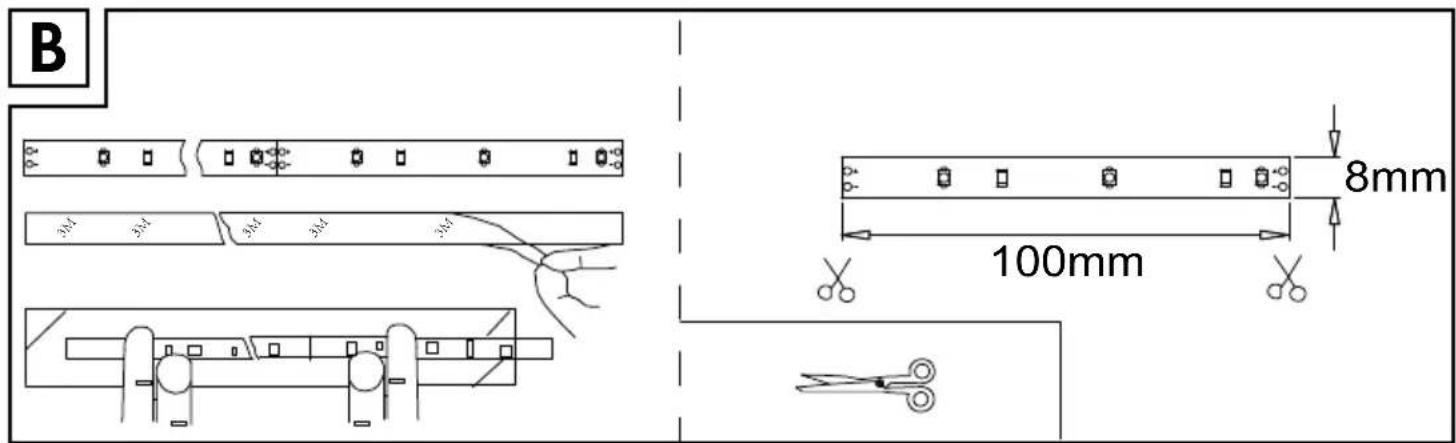

Note Ensure that you cut the LED strip at the right place. The cutting point lies exactly between the plus and minus pole and is marked with a black line (14125106L: + 12 V, blue, red, green - ✗; 14125206L: +, -) (see Fig. C).
☐ Shorten the LED strip 5 using a pair of scissors.
☐ Then press both ends of the LED strip 5 onto the displacement contact of the plug connection 7 (see Fig. C).
Ensure the correct polarity of the connector when connecting the LED strip 5 (14125106L: +12 V, blue, red, green <> +12 V, blue, red, green; 14125206L: +,- <> +,-) (see Fig. C).
☐ Then press one end cap 8 at a time onto the ends of the plug connection 7 (See Fig. C).
☐ Check the correct positioning.
☐ Be sure to cover the open end of the LED tape 5 with the adhesive strip 17 if you do not wish to connect the end after trimming the tape (see below Fig. 1-4).
- Installing the LED strip
Note: Ensure that the installation area is clean, grease-free and dry. Otherwise the functionality of the adhesive strip may be impaired.
Note: Ensure that a plug socket is located in close proximity to the installation area.
Note: Light incidence affects the sensor unit 11 (14125206L).
14125106L (see Fig. A):
- Connect the supply cable 1 using the plug 3 and socket 4 to the music sensor 6 if they have not been preassembled. Then connect the music sensor 6 to the LED strip 5. Ensure the correct polarity of the connector when connecting the LED strip 5 (see below, < + 12 V, blue, red, green).

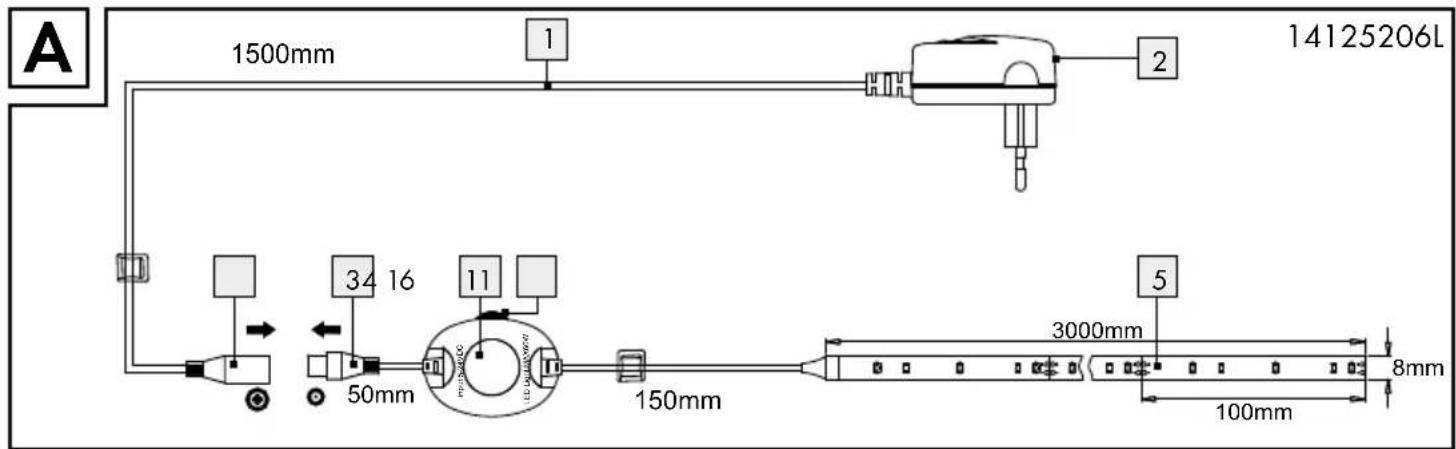

14125206L (see Fig. A):
Connect the supply cable 1 to the sensor 11 and the LED strip 5 using the plug 3 and socket 4.
☐ Choose a suitable installation area.
☐ Remove the protective foil from the reverse side of the LED strip 5.
☐ Stick the LED strip 5 with the adhesive strip onto the installation area and press it on firmly.
☐ Remove the protective foil 10 (see Fig. B) from the reverse side of the cable holder 9 and the sensor 11 (14125206L) / the music sensor 6 (14125106L).
☐ Stick the cable holder 9 onto the desired position (see Fig. D).
☐ Stick the sensor 11 (14125206L)/the music sensor 6 (14125106L) onto the desired location.
☐ Screw down the music sensor 6 using the screws (14125106L).
☐ Squeeze the mains cable 1 into the cable hold 9.
☐ Insert the mains adapter 2 into the plug socket.
Your light is now ready to use.
- Switching the LED strip on / off
14125106L (see Fig. G):
☐ Press the ON button on the remote control 12, to switch on the LED strip 5. Press the OFF button on the remote control 12, to switch off the LED strip 5.
Note: the OFF button on the remote control 12 is only suitable to temporarily switch off the LED strip 5. Unplug the mains adapter 2 from the socket to switch off the LED strip 5 permanently.
14125206L (see Fig. E):
☐ The LED strip has a daylight sensor / movement sensor 11 . The motion sensor has a maximum range of max. 5 m.
During darkness, the LED strip will automatically turn on when it detects movement in the detection zone. The light turns on for approx. 30 seconds to 10 minutes. The lighting period can be continuously adjusted using the controller 16.

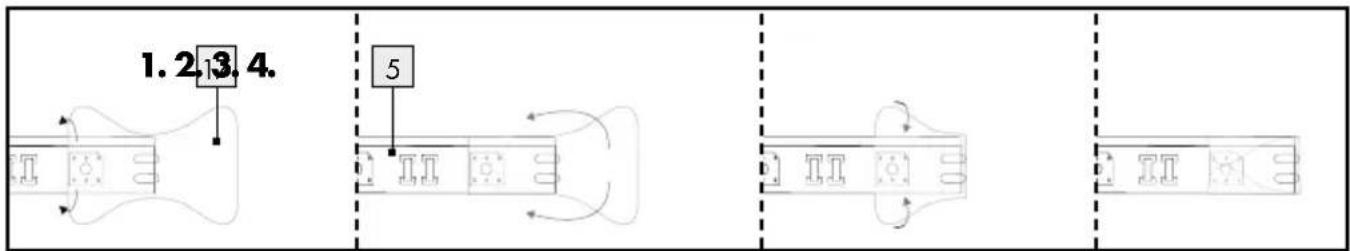

Installing the LED strip/Maintenance and Cleaning/Disposal
- Controlling light effects with the remote control (14125106L)
Note: the transmitter for the remote control 12 is located on the opposite end of the battery compartment 13.
Ensure there are no obstacles between the transmitter and the receiver.
The range of the remote control is approx. 5 m.
Choose from the following functions:
: Increase brightness / increase speed of colour changes / increase music sensor sensitivity
: Decrease brightness / decrease speed of colour changes / decrease music sensor sensitivity
ON: Switch on LED strip
OFF: Switch off LED strip
RED: set red light
GREEN: set green light
BLUE: set blue light
WHITE. set white light
ORANGE set orange light
YELLOW: set yellow light
CNN: set turquoise light
PURPLE: set purple light
JUMF: colour change (3 colours)
JUMP: colour change (7 colours)
FADEI: flowing colour change (3 colours)
FADE: flowing colour change (7 colours)
J: Music programme 1 = slow, flowing colour change with sound induced light reflex
Music programme 2 = flowing colour change with sound induced light reflex
Music programme 3 = colour changes only with sound
J4: Music programme 4 = LED strip will only activate when there's sound.
● Maintenance and Cleaning
WARNING! DANGER TO LIFE BY ELECTRIC SHOCK!
Disconnect the lights from the power supply before performing any work on the LED strip 5. Unplug the mains adapter 2 from the socket to do so.
Do not use solvents, benzene or similar substances. They could damage the light.
☐ Use a dry, lint-free cloth to clean the LED strip 5.
- Disposal
The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.
Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics / 20-22: paper and fibre-board/80-98: composite materials.
The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.
Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.
To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.
Faulty or used batteries / rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries/rechargeable batteries and/or the product to the available collection points.
Environmental damage through incorrect disposal of the batteries / rechargeable batteries!
Batteries / rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries / rechargeable batteries at a local collection point.
● Warranty and Service
Warranty
You receive a 36 month warranty on this product, valid from the date of purchase. The appliance has been carefully produced under strict quality control. Within the warranty period we shall rectify without charge all material and manufacturing defects. In the event of a defect during the warranty period, please send the appliance to the listed Service Centre address, referencing the following item number: 14125106L/14125206L.
Wear parts (such as bulbs) and damage caused by improper handling, non-observance of the operating instructions or unauthorised interference are excluded from the warranty. The performance of services under the warranty does not extend or renew the warranty period.
Serviceaddress
Please have your receipt and the product number (e.g. IAN 12345) available for all queries as proof of purchase.
Declaration of Conformity CE
This product fulfils the requirements of the applicable European and national directives. Conformity has been demonstrated. The relevant declarations and documents are held by the manufacturer.
Manufacturer
NOSTE OCHRANNÉ RUKA- VICE!
BLUE: regular luz azul
WHITE: regular luz branca
ORANGE: regular luz laranja
YELLOW: regular luz amarela
CAN: regular luz turquis
PURPLE: regular luz lilás
JUMPA: Troca de cores (3 cores)
JUMPT: Troca de cores (7 cores)
FADE: Troca contínua de (3 cores)
FADE: Troca contínua de (7 cores)
