| Product type | Pneumatic sandblasting gun |
| Brand | Parkside |
| Model | PDSP 1000 E6 |
| Working pressure | 6.3 bar |
| Air consumption | 320 l/min |
| Reservoir capacity | 900 ml |
| Required air quality | Purified and oil-free |
| Blasting material grain size | 0.2 to 0.8 mm, max. 0.8 mm |
| Sound pressure level | LpA = 84.4 dB(A), K=3 dB |
| Sound power level | LwA = 95.4 dB(A), K=3 dB |
| Vibration level | a ≤ 2.5 m/s² (EN ISO 20643) |
| Included nozzles | For surfaces, spot, outer corners, inner corners |
| Included blasting material | 2 kg |
| Collector bag included | Yes, with screw clamp |
| Power supply | Compressed air (via compressor) |
| Intended use | Removal of rust and paint on metal surfaces |
| Device material | Metal and plastic (not precisely specified) |
| Warranty | 3 years (conditions according to manual) |
| Reference (IAN) | 373219_2104 |
Frequently Asked Questions - PDSP 1000 E6 PARKSIDE
User questions about PDSP 1000 E6 PARKSIDE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Sander in PDF format for free! Find your manual PDSP 1000 E6 - PARKSIDE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PDSP 1000 E6 by PARKSIDE.
USER MANUAL PDSP 1000 E6 PARKSIDE
AIR SANDBLASTING GUN / DRUCKLUFT-SANDSTRAHLPISTOLE / PISTOLET DE SABLAGE PNEUMATIQUE PDSP 1000 E6
GB
AIR SANDBLASTING GUN
Translation of the original instructions
FR
PISTOLET DE SABLAGE PNEUMATIQUE
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.
DE
GB Translation of the original instructions Page 1
Intended use 2
Features 2
Package contents 2
Technical details 2
General safety information 3
Workplace safety 3
Device-specific safety instructions for compressed air sandblasters 4
Operation 5
Mount the collecting bag for sandblasting material 5
Select and fitting attachments 5
Filling the blasting medium container 5
Connecting the compressed air supply 5
Using the compressed air sandblaster gun. 6
Collecting bag for sandblasting material 6
Troubleshooting 6
Maintenance and cleaning 7
Disposal. 7
Kompernass Handels GmbH warranty 8
Service. 9
Importer 9
Translation of the original Conformity Declaration 10

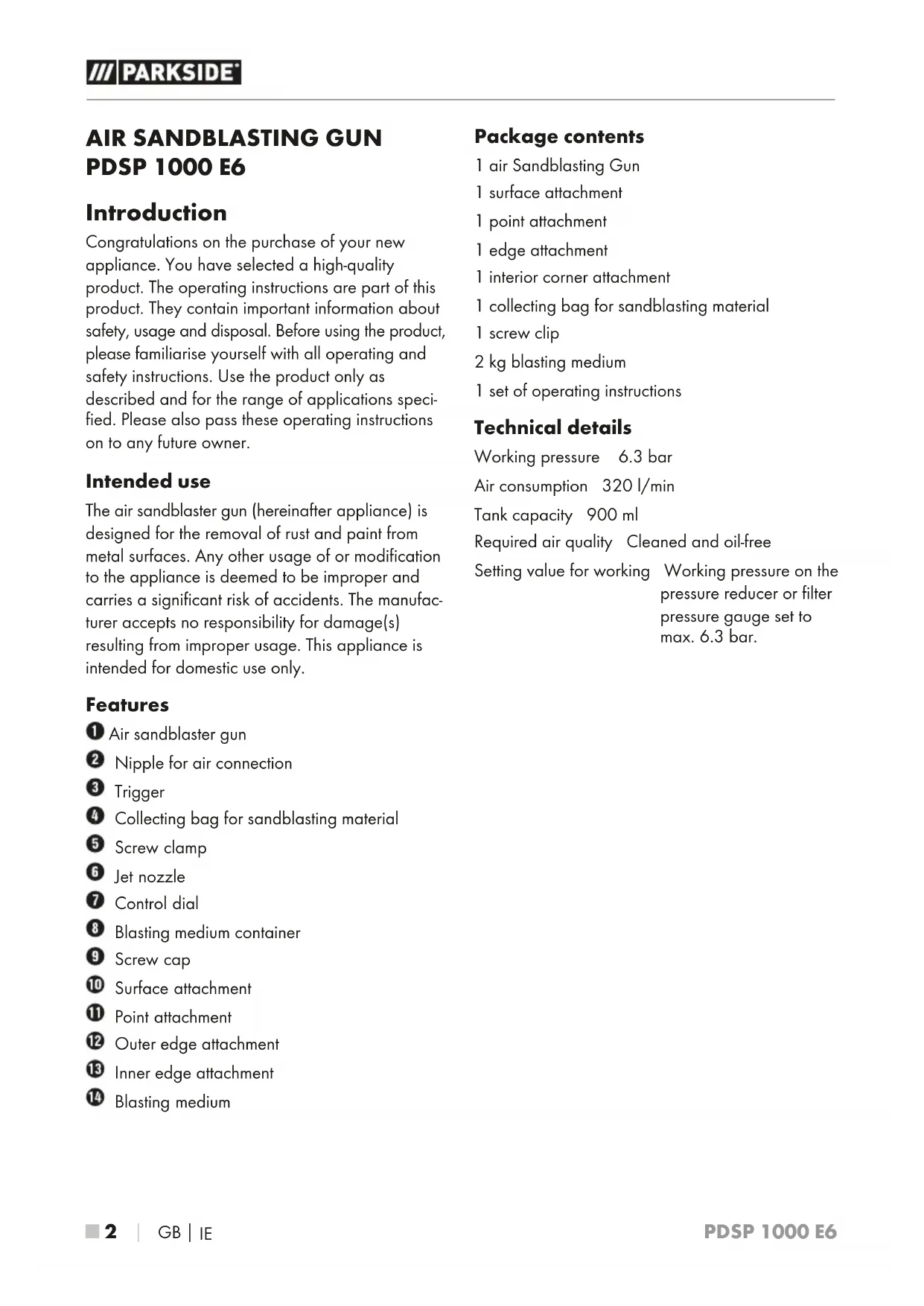

AIR SANDBLASTING GUN PDSP 1000 E6
Introduction
Congratulations on the purchase of your new appliance. You have selected a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner.
Intended use
The air sandblaster gun (hereinafter appliance) is designed for the removal of rust and paint from metal surfaces. Any other usage of or modification to the appliance is deemed to be improper and carries a significant risk of accidents. The manufacturer accepts no responsibility for damage(s) resulting from improper usage. This appliance is intended for domestic use only.
Features
Air sandblaster gun
Nipple for air connection
3 Trigger
4 Collecting bag for sandblasting material
Screw clamp
6 Jet nozzle
Control dial
8 Blasting medium container
Screw cap
Surface attachment
1 Point attachment
12 Outer edge attachment
13 Inner edge attachment
14 Blasting medium
Package contents
1 air Sandblasting Gun
1 surface attachment
1 point attachment
1 edge attachment
1 interior corner attachment
1 collecting bag for sandblasting material
1 screw clip
2 kg blasting medium
1 set of operating instructions
Technical details
Working pressure 6.3 bar
Air consumption 320 l/min
Tank capacity 900 ml
Required air quality Cleaned and oil-free
Setting value for working Working pressure on the pressure reducer or filter pressure gauge set to max.6.3 bar.
Noise emission value
Noise measurement value determined in accordance with EN 1265. The A-rated noise level of this compressed-air tool is typically:
Sound pressure level L
Uncertainty
Sound power level L
Uncertainty
$$ \begin{array}{l} \mathrm {K} _ {\mathrm {p A}} = 8 4. 4 \mathrm {d B (A)} \ \mathrm {K} _ {\mathrm {p A}} = 3 \mathrm {d B (A)} \ \mathrm {W A} = 9 5. 4 \mathrm {d B (A)} \ \mathrm {W A} = 3 \mathrm {d B (A)} \end{array} $$
Wear hearing protection!
Vibration emission value
Vibration values determined in accordance with
EN ISO 20643: a = ≤ 2.5m / s
Uncertainty = 1.5m / s
WARNING!
The vibration level specified in these instructions has been measured in accordance with a standardised measuring procedure specified in EN ISO 20643 and can be used to make equipment comparisons. The specified vibration emission value can also be used to make an initial exposure estimate.
The vibration level varies in accordance with the use of the compressed air tool and may be higher than the value specified in these instructions in some cases. It is easy to underestimate the vibration load if the compressed air tool is used regularly in a certain manner.
NOTE
For an accurate estimate of the vibration load during a specific working period, the periods during which the appliance is switched off or is running but not actually being used must also be taken into consideration. This can significantly reduce the vibration load over the total working period.
General safety information
WARNING!
Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
Workplace safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Appliance can create sparks which may ignite the dust or fumes.
b) Keep children and bystanders away while operating a tool. Distractions can cause you to lose control.
Device-specific safety instructions for compressed air sandblasters
Check the appliance for any possible defects before use. If the appliance exhibits any faults, it should not be used under any circumstances.
- Keep children and bystanders away while operating the tool. Distractions can cause you to lose control.
■ RISK OF INJURY! MISUSE! Do not point the tool towards people or animals!
Wear a dust mask!
ear safety goggles!
ear protective gloves!
Wear suitable protective clothing.
Wear safety shoes!
Wear a safety helmet!
■ RISK OF EXPLOSION! The compressed air sandblaster gun should not be used in areas with gas/open flames/fire/gas-operated water heaters.
SMOKING PROHIBITED!
■ Work only in sufficiently ventilated rooms.
Do not use oxygen or any combustible gas as an energy source.
Never exceed the maximum operating pressure of 6.3 bar.
WARNING!
KICKBACK FORCES! At high working pressures, kickback can occur which can, under certain circumstances, lead to danger due to continuous loads.
■ RISK OF INJURY! Disconnect the appliance from the compressed air source before starting any repairs or maintenance work and before transportation.
■ RISK OF INJURY! Disconnect the appliance from the compressed air source before refilling the blasting medium.
NOTE
- Please heed the safety instructions provided by the manufacturer of the blasting medium.
Use only materials that are suited for use in the compressed air sandblaster gun 1. Do not use quartz sand. This can lead to a dangerous build-up of silicosis-inducing dust.
Take steps to ensure that others are not inconveniencecd (dust formation).
Ensure that the blasting medium is collected so that it can be disposed of in an environmentally friendly manner.
Do not remove any type plates. These contain important information for the safe operation of the appliance.
If you are inexperienced with the appliance, seek training in how to use it safely.
WARNING! TOXIC DUST!
Working with the tool can produce harmful/ toxic dusts which represent a health hazard for the person operating the appliance and for anyone else in the vicinity.
CAUTION!
- Ensure that the appliance is disconnected from the air supply when not in use, when exchanging accessories or during repair work. The air hose should not be under pressure.
Operation
Mount the collecting bag for sandblastingmaterial
Use a screwdriver to attach the collecting bag to the appliance with the supplied screw clip
Select and fitting attachments
Start by selecting the appropriate attachment for the job at hand (10, 11).12 13
Push the selected attachment firmly onto the jet nozzle 6 ensuring that no air can escape from the sides.
Filling the blasting medium container
CAUTION!
Before you open the screw cap on the blasting medium container or make any other settings, the connection to the compressed air hose must be disconnected and all pressure completely discharged.
Use only suitable blasting media for your sandblasting work.
NOTE
We recommend using a blasting medium (ground blast furnace slag) with a grain size of 0.2 - 0.8mm and which has been shown not to cause silicosis.
Please ensure that the blasting medium is totally dry and not too coarse-grained.
NOTE
The maximum grain size is 0.8mm
Open the screw cap on the blasting medium container by turning it anticlockwise.
Fill the required amount of blasting medium into the blasting medium container 8
■ Ensure that you do not exceed the maximum fill level for the container of 900ml
Afterwards, close the screw cap on the blasting medium container by turning it clockwise.
NOTE REGARDING THE BLASTING MEDIUM GRAIN SIZE
The larger/coarser the grain size of the blasting medium used, the coarser the dirt that can be removed using it. The supplied material, on the other hand, is fine and thus more suitable for the removal of items such as paint or rust film. The fine material also causes less damage to the surfaces being treated, meaning a choice can be made regarding these.
For coarse rust, for example, it is best to use a coarser-grained blasting medium which you can buy online (see section "Importer") or in any good specialist retailer. Please observe the guidelines regarding maximum grain size.
Connecting the compressed air supply
NOTE
The compressed air sandblaster gu0 may only be operated on cleaned, condensate and oil-free compressed air and may not exceed the maximum operating pressure of 6.3 bar at the appliance.
To ensure that you can regulate the air pressure, the compressed air source should be equipped with a (filter) pressure reducer.
Connect the compressed air sandblaster gu to a suitable compressed air source by attaching the quick-connect coupling on the supply hose to the nipple 2n the sandblaster gun . The connection locks automatically.
NOTE
- Ensure that the control dioc is set to before connecting the appliance to the compressed air source.
Using the compressed air sandblaster gun
Carefully prepare the workpiece that is to be blasted.
Clean it if necessary.
NOTE
Layers of dust or fat will significantly impair the results.
Carefully cover or mask everything that is not to be blasted.
The distance between the attachment and the surface being worked plays an important role and should be kept as low as possible so that the blasting medium can be collected by the collecting bag
The nearer you are to the workpiece, the smaller the dispersion pattern and vice versa.
Do a test run on an old workpiece to find out the correct distance/working pressure and avoid excessive reflection from your workpiece.
Switching on
Set the control dia to to open the air outlet.
Move the compressed air sandblaste close to the area to be worked.
Press the trigger to start operating the compressed air sandblaster gun 1
Switching off
Release the trigger to switch off of the compressed air sandblaster gun 1
Set the control dia to close the air outlet.
- Disconnect the appliance from the compressed air source after you finish work.
NOTE
- First detach the hose from the compressed air source before disconnecting the supply hose from the appliance.
In this way, you avoid uncontrollable thrashing about of the supply hose.
Collecting bag for sandblasting material
NOTE
Do not re-use surplus sand-blasting material from the collecting bag 4.
You can remove the surplus sand-blasting material which has collected in the collecting bag via the zip fastener or use a screwdriver to undo the screw clamp and remove the collecting bag from the appliance.
Troubleshooting
| Fault/possible cause | Remedy |
| No material flow | |
| The air is not dry enough. | Install a water separator in your compressed air system. |
| Air pressure too low | Increase the output pressure of your compressor. |
| Attachment not sitting correctly | Ensure that the attachment is firmly on the appliance and that no air escapes at the sides. |
| Blocked sand-blasting material pipes | Check that no lumps of sandblasting material are blocking the pipes. Preferably, use a blow-out gun to clean blocked pipes.(Wear safety goggles!) Also check the tank outlet opening. |
| Sand-blasting pattern not as expected | |
| The air is not dry enough. | Install a water separator in your compressed air system. |
| Sand-blasting material grain size not uniform | Replace sand-blasting material. |
| Sand-blasting material impure | Replace sand-blasting material |
| The attachment is worn | Replace the attachment |
| Other defects | |
| Please contact an expert or your retailer. | |
Maintenance and cleaning
WARNING! RISK OF INJURY! ALWAYS disconnect the appliance from the compressed air supply before cleaning it.
Always clean the compressed air sandblaster gun 1 and the blasting medium container 8 immediately after completing your work. To do this, blow out the compressed air sandblaster gun 1nd the blasting medium container 8 with compressed air.
Store the compressed air sandblaster gun only in dry rooms.
Disposal
The packaging is made from environmentally friendly material and can be disposed of at your local recycling plant.
Do not dispose of the appliance in the normal domestic waste!
Your local community or municipal authorities can provide information on how to dispose of the worn-out appliance.
Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material compo
nents for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1-7: plastics, 20-22: paper and cardboard, 80-98: composites.
Your local community or municipal authorities can provide information on how to dispose of the worn-out product.
The product is recyclable, subject to extended producer responsibility and is collected separately.
KompernassHandelsGmbH warranty
Dear Customer,
This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.
Warranty conditions
The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase.
If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion).
This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred.
If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.
Warranty period and statutory claims for defects
The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.
Scope of the warranty
This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.
The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches or parts made of glass.
The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.
This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.
The warranty period does not apply to
Normal reduction of the battery capacity over time
Commercial use of the product
Damage to or alteration of the product by the customer
Non-compliance with safety and maintenance instructions, operating errors
Damage caused by natural hazards
Warranty claim procedure
To ensure quick processing of your case, please observe the following instructions:
Please have the till receipt and the item number (IAN) 373219_2104 available as proof of purchase.
You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product.
If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.
You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.
You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com.
This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 373219_2104.
Service
GB Service Great Britain Tel.:08004047657 E-Mail: kompernass@lidl.co.uk
IE Service Ireland Tel.:1890 930 034 (0,08 EUR/Min.,peak)) (0,06 EUR/Min.,off peak)) E-Mail: kompernass@lidl.ie IAN 373219_2104
Importer
Please note that the following address is not the service address. Please use the service address provided in the operating instructions.
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
Translation of the original Conformity Declaration
We, KOMPERNASS HANDELS GMBH, documents officer: Mr. Semi Uguzlu, BURGSTR. 21, 44867 BOCHUM, Deutschland, hereby declare that this product complies with the following standards, normative documents and the EC directives:
Machinery Directive
(2006/42/EC)
Applied harmonised standards
EN 1248:2001+A1
EN ISO 4414:2010
EN ISO 12100:2010
Type designation of machine: Air Sandblasting Gun PDSP 1000 E6
Year of manufacture: 09-2021
Serial number: IAN 373219_2104
Bochum, 26/08/2021
Semi Uguzlu
Quality Manager
The right to effect technical changes in the context of further development is reserved.
Inhaltsverzeichnis
Einleitung 12
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
DEUTSCHLAND
www.kompernass.com
Chere cliente, cher client,
Chere cliente, cher client,
Grace a ce code QR, youarriverez
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
ALLEMAGNE
www.kompernass.com
WAARSCHUWING! GIFTIGESTOFFEN!
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
DUITSLAND
www.kompernass.com
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
NEMECKO
www.kompernass.com
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
NIEMCY
www.kompernass.com
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
NEMECKO
www.kompernass.com
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
ALEMANIA
www.kompernass.com
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
TYSKLAND
www.kompernass.com
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompermass.com
Last Information Update · Stand der Informationen · Version des informations · Stand van de informatie
Stav informaci - Stan informacioni - Stav informacioni - Estado de las informaciones - Tilstand af information:
09/2021-Ident-No.:PDSP1000E6-082021-1
IAN 373219_2104
