Product type	Mini air cooler
Model	STLH 8 B2
Brand	SilverCrest
Power supply	USB Type-C: 5 V ⎓, 2.0 A
Power adapter	100-240 V ~ 50-60 Hz, 0.4 A, output 5 V ⎓, 2.0 A, 10 W
Protection class	II (double insulation)
Protection rating	IP20
Water tank capacity	700 ml maximum
Autonomy at speed 1	Up to 7 hours
Maximum airflow	4.21 m³/min
Speed levels	3 (low, medium, high)
Power consumption (fan)	8.6 W
Sound power level	61 dB(A)
Operating temperature	+5 °C to +40 °C
LED lighting	Multi-color (7 colors + gradient mode)
Airflow direction	Manually pivoting front grille
Filter replacement	Approximately every 6 months
Tank cleaning	With warm vinegar water
Warranty	3 years
Intended use	Indoor dry, domestic use

Frequently Asked Questions - STLH 8 B2 SILVERCREST

How to fill the water tank?

Remove the front panel by pressing the unlock button, then remove the water tank. Turn the filter to the Unlock position to remove it. Fill the tank with cold tap water up to the MAX mark (700 ml). Replace the filter to the Lock position, wipe the outside and reassemble everything into the device.

Can I use the appliance without water?

Yes, the appliance can work as a simple fan without water. There will be no evaporative cooling effect then.

How to change the light color?

Press the light and color selector button repeatedly to cycle through colors: green, red, blue, yellow, pink, white, turquoise, or activate the automatic color change mode. To turn off, press until it goes out.

How to clean the water tank?

Unplug the appliance. Remove the tank and filter. Empty remaining water, add about 1 tablespoon of vinegar to 500 ml of hot water, shake, then rinse several times with clean water. Let dry completely before reassembling.

How often should the filter be changed?

It is recommended to change the filter every 6 months. Regularly check the condition of the filter; if it is damaged, dirty, or emits an odor, replace it sooner.

What to do if the appliance does not turn on?

First check that the power adapter is properly connected and the socket works. Make sure the front panel is closed properly (it should click into place). If the problem persists, contact customer service.

Is the appliance safe for children?

The appliance can be used by children over 8 years old under supervision. Children should not play with the appliance. Keep the appliance out of reach of young children to avoid any danger.

Can I leave the appliance on at night?

Yes, but make sure not to place the appliance near absorbent materials (carpets, curtains) to avoid moisture. Preferably use without water if ambient humidity is high.

How to adjust the speed?

Press the speed adjustment button repeatedly to cycle through the 3 levels: low (1 flash), medium (2 flashes), and high (3 flashes). The LED flashes red to indicate the level.

Where to order replacement filters?

You can order replacement filters online. Scan the QR code in the manual to access the ordering website, or contact Lidl customer service at the number indicated in the manual.

USER MANUAL STLH 8 B2 SILVERCREST

MINI-LUFTKUHLER STLH 8 B2 MINI AIR COOLER STLH 8 B2 MINI-RAFRAICHSSEUR D'AIR

STLH 8 B2

for EU market: for GB market:

HOYER Handel GmbH Lidl Great Britain Ltd

Taskopstrasse 3 Lid House 14 Kingston Road

22761 Hamburg Surbiton - KTS 9NU

GERMANY

Stand der Informationen - Status of information . Version des informations . Stand van de informatieStan informaci . Slav informaci . Slav informaci - Estado de las informaciones . Informaciones stand .

12/2020 ID:STLH8B2_20_V1.4

GB IE Operating instructions

MINI AIR COOLER

shop.hoyerhandel.com

1. Overview 23
2. Intended purpose 24
3. Safety information 25
4. Items supplied 28
5. Operation 29

5.1 Transporting the device 29
5.2 Setting up the device 29
5.3 Filling the water tank 29
5.4 Connecting the device 30
5.5 Switching the device on/off 30
5.6 Regulating the air flow 31
5.7 Switching on the light and selecting the colour 31

1. Cleaning and care 32

6.1 Cleaning the water tank 32
6.2 Replacing the filter 33
6.3 Housing 33

1. Storage 34
2. Trouble-shooting 34

3. Disposal 35

4. Ordering accessories 36

5. Technical specifications 36
6. Warranty of the HOYER Handel GmbH 39

1. Overview

4 Speed control: Speed 1 (low) - Speed 2 (medium) - Speed 3 (high)

5 Light and colour selector switch: on / colour change - green - red - blue - yellow - pink - white - turquoise / off

1 LED (behind the front protective grid)
2 Release button (for detachable front panel)
3 On/off switch
6 Mini air cooler / device
7 Handle (foldable)
8 Rear protective grid (air inlet)
9 Mains power cable with power unit
10 USB-C plug (of the mains power cable)
11 USB-C port (for the mains power cable)
12 Inspection window with scale for water level
13 Front protective grid (pivoting, air outlet)
14 Front panel (detachable)
15 Filter
16 Water tank

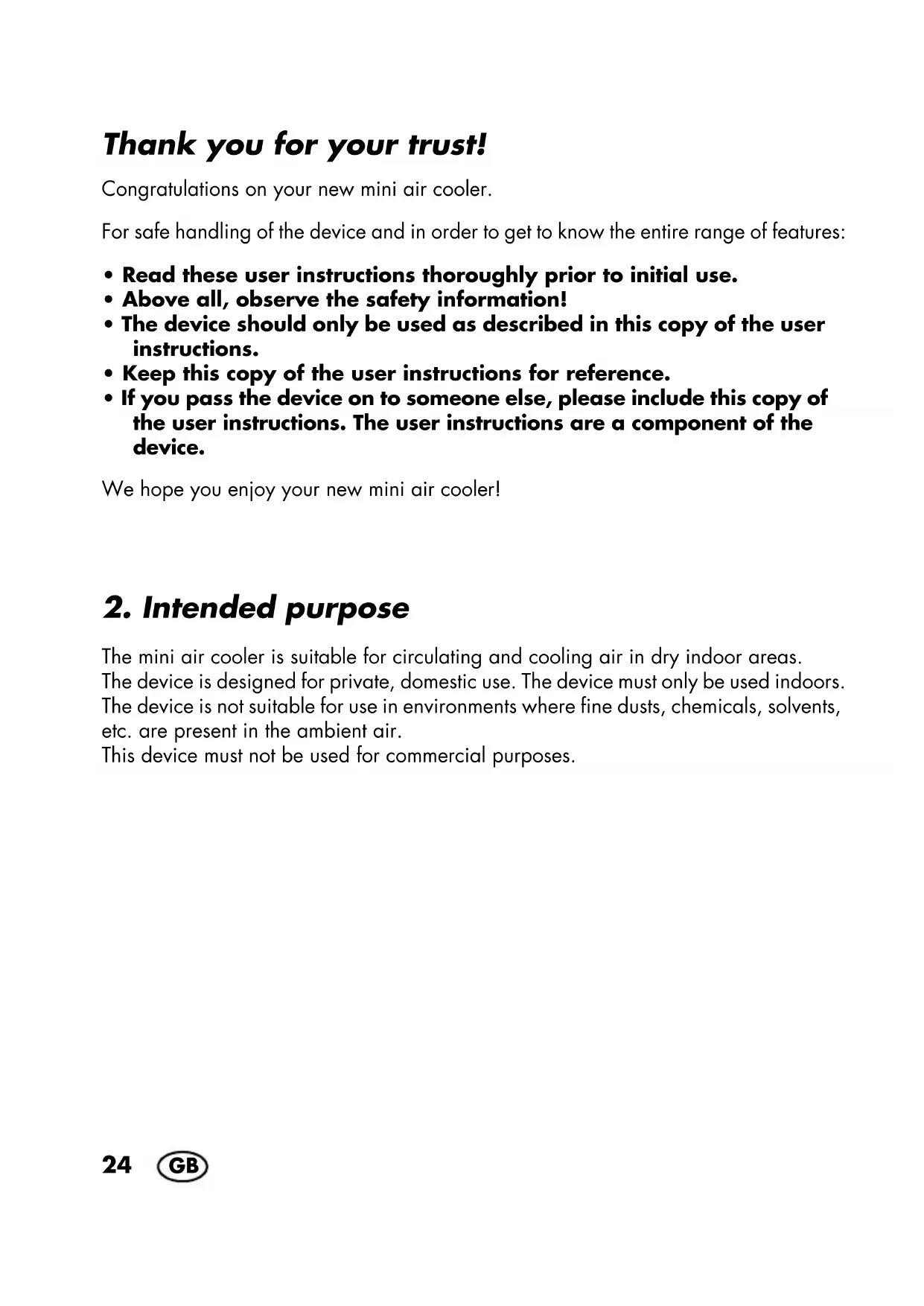

Thank you for your trust!

Congratulations on your new mini air cooler.

For safe handling of the device and in order to get to know the entire range of features:

• Read these user instructions thoroughly prior to initial use.
• Above all, observe the safety information!
• The device should only be used as described in this copy of the user instructions.
• Keep this copy of the user instructions for reference.
• If you pass the device on to someone else, please include this copy of the user instructions. The user instructions are a component of the device.

We hope you enjoy your new mini air cooler!

2. Intended purpose

The mini air cooler is suitable for circulating and cooling air in dry indoor areas.

The device is designed for private, domestic use. The device must only be used indoors.

The device is not suitable for use in environments where fine dusts, chemicals, solvents, etc. are present in the ambient air.

This device must not be used for commercial purposes.

3. Safety information

Warnings

If necessary, the following warnings are used in this copy of the user instructions:

DANGER! High risk: failure to observe this warning may result in injury to life and limb.

WARNING! Moderate risk: failure to observe this warning may result in injury or serious material damage.

CAUTION: low risk: failure to observe this warning may result in minor injury or material damage.

NOTE: circumstances and specifics that must be observed when handling the device.

Instructions for safe operation

• This device can be used by children from the age of 8 and people with restricted physical, sensory or intellectual abilities or people without adequate experience and/or understanding, if they are supervised or instructed on how to use this device safely and if they are aware of the resulting dangers. Children must not play with the device. Cleaning and maintenance by the user must not be performed by children without supervision.
• If you operate the device near children, extreme caution is required.
  The device may only be used with the supplied power unit (see "Technical specifications" on page 36).

If the power unit or the mains power cable is damaged, a new power unit must be reordered from the Service Center to avoid hazards (see "Ordering accessories" on page 36).

• This device is not intended to be operated using an external timer or a separate remote control system.
• Ensure the fan is switched of from the supply mains before removing the gard.

Be aware that high humidity levels may encourage the growth of biological organisms in the environment.
- Do not permit the area around the humidifier to become damp or wet. If dampness occurs, turn the output of the humidifier down. If the humidifier output volume cannot be turned down, use the humidifier intermittently. Do not allow absorbent materials, such as carpeting, curtains, drapes or tablecloths to become damp.
- Unplug the appliance during filling and cleaning.
- Never leave water in the reservoir when the appliance is not in use.
- Empty and clean the humidifier before storage. Clean the humidifier bevor next use.

DANGER for children!

• Packing materials are not children's toys. Children should not be allowed to play with the plastic bags. There is a risk of suffocation.
• Keep the device out of the reach of children.

DANGER to and from pets and livestock!

• Electrical devices can represent a danger to pets and livestock. In addition, animals can also cause damage to the device. For this reason you should keep animals away from electrical devices at all times.

DANGER! Risk of electric shock due to moisture!

• The device, the mains power cable and the power unit must not be immersed in water or other liquids.
• Protect the device from moisture, water drops and water splashes: failure to observe this instruction may result in an electrical shock hazard.
• If liquid gets into the device, immediately disconnect the power unit. Have the device checked before reusing.

• Never touch the device with wet hands.

• If the device has fallen into water, pull out the power unit immediately, and only then remove the device from the water. Do not use the device again, and have it checked by a specialist workshop.
  Pull the water tank out of the device before filling it with water.

• Fill the water tank with a maximum of 700ml of water. Rotate the filter until it stops in the position Lock and dry the outside of the water tank before re-inserting it into the device.
  Move the device carefully with the filled water tank inserted.

DANGER! Risk of electric shock!

• Do not use the device if the device or the mains power cable has any visible damage, or if the device has previously been dropped.
• Only connect the power unit to a properly installed and easily accessible wall socket, whose voltage corresponds to the specifications on the rating plate. The wall socket must still be easily accessible after the device is plugged in.
• Ensure that the mains power cable cannot be damaged by sharp edges or hot points.
• When using the device, ensure that the mains power cable cannot be trapped or crushed.
• Even after it has been switched off, the device is not completely disconnected from the mains. In order to fully disconnect it, pull out the power unit.
• When removing the power unit from the wall socket, always pull the power unit and never the cable.
  Pull the power unit out of the wall socket, ... if there is a fault, ... when you are not using the device, ... before removing the front panel, ... before you clean the device and ... during thunderstorms.
  To avoid any risk, do not make modifications to the product.

WARNING Risk of material damage!

• Never place the device on hot surfaces (e.g. hot plates) or near to heat sources or open fire.
  Only use the original accessories.
  Do not clean using sharp objects or abrasive cleaning agents.

• Ensure that the ambient air is free of dust and dirt particles so that the device does not absorb them with the air.

• Do not cover or block the two protective grids (air inlet and outlet openings). Ensure that there is sufficient clearance around the device.

• Only use the original filter. A damaged or dirty filter must be replaced. You can re-order replacement filters (see "Ordering accessories" on page 36).
  Do not insert any objects through the rear protective grid while the fan is running.
  The device is fitted with non-slip plastic feet. As furniture is coated with a wide array of varnishes and synthetics, and is also treated with different care products, it cannot be fully ruled out that some of these materials contain components that could attack and soften the non-slip plastic feet. If necessary, place a non-slip mat under the device.

NOTES on hygiene:

• Only use cold, fresh tap water without additives.
• Clean the water tank regularly (see "Cleaning and care" on page 32).
• When you are not using the device, be sure ...

... that the water tank is empty,
... that the inside of the device and the filter are completely dry.

This helps avoid the formation of mould or germs (see "Storage" on page 34).

• Replace the filter regularly.

4. Items supplied

1 mini air cooler 6
1 mains power cable with power unit 9
1 copy of the user instructions

Unpacking

1. Remove all parts from the packaging.
2. Check that all accessories are present and undamaged.

5. Operation

5.1 Transporting the device

The handle 7 can be folded up for transport.
- When the water tank 16 is filled, transport the device carefully.

5.2 Setting up the device

DANGER! Risk of electric shock due to moisture!

• If you want to use the device 6 with water: Do not plug the power unit 9 into a wall socket until the device 6 is in its place and the water tank 16 is filled.

• Place the mini air cooler 6 on a level surface where the device can stand securely and cannot be accidentally knocked down.

• Choose a place...

... with sufficient clearance around the device 6.
... at table height (e.g. on a desk or a chest of drawers) for optimum air circulation.
... near the place you want cooled.

5.3 Filling the water tank

Basic functioning of the mini air cooler 6: the filter 15 takes the water in from the water tank 16. Air is passed through the filter 15. The air is cooled by the evaporation of the water.

You can also use the device 6 without water. It then operates as a fan without the described cooling effect.

1. Figure A: push down on the release button 2 and remove the front panel 14.
2. Figure B: pull the water tank 16 with the filter 15 out of the device 6.
3. Figure C: rotate the filter 15 on the water tank 16 anticlockwise until the marking on the filter points to the marking Unlock the water tank. Remove the filter upwards.
4. Fill the water tank 16 at most up to the MAX marking (700 ml). Use cold, fresh tap water without additives.

NOTE: to increase the cooling effect, you can cool the tap water in the refrigerator beforehand. The water tank can be filled with ice cubes – for better cooling.

1. Figure D: place the filter 15 onto the water tank 16. Rotate the filter clockwise until the marking on the filter points to the marking Lock the water tank.
2. Dry the outside of the water tank 16.
3. Push the water tank 16 with the filter 15 back into the device 6.
4. Insert the front panel 14 at the bottom first. Then press it upwards so that the release button 2 engages.

Filling the water tank 16 with 700ml of water is sufficient for up to 7 hours of operation at speed setting 1.

5.4 Connecting the device

1. Plug the power unit 9 into a properly installed, easily accessible mains socket whose voltage corresponds to that specified on the rating plate. The wall socket must still be easily accessible after connection.
2. Insert the USB-C plug 10 into the USB-C port 11 on the back of the device 6. The LED 1 lights up white once.

5.5 Switching the device on/off

NOTES:

• Wait approx. 2 minutes until the filter 15 has absorbed sufficient water. Then you achieve the full cooling effect.

• If the front panel 14 is not closed, the device cannot be switched on. This is a safety function.

• Press the on/off switch ⑤ 3 to switch the device 6 on. The LED 1 flashes red once. The fan starts to operate at speed 1 (low speed).

• Press the on/off switch 3 again to turn off the device 6.

5.6 Regulating the air flow

• Press the speed control 4 several times in succession to switch between the 3 speed settings:

LED 1 flashes red	Speed settings Speed Evaporation volume
1 time 1 low approx. 100 ml/h
2 times 2 medium approx. 125 ml/h
3 times 3	high	approx. 150 ml/h

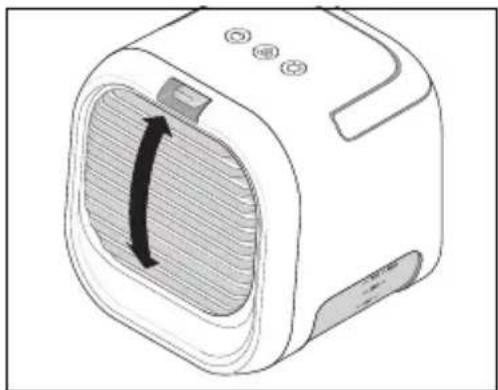

• You can influence the direction of the air flow by angling the front protective grid 13 up or down.

5.7 Switching on the light and selecting the colour

• Press the light and colour selector switch 5 several times in succession to... ... turn on the light in colour change mode (slow transitions, all colours), ... to change the light colour consecutively to green, red, blue, yellow, pink, white and turquoise, ... to turn off the light again.

6. Cleaning and care

DANGER! Risk of electric shock!

Always disconnect the power unit 9 before cleaning.
- Never immerse the device 6 in water.
Do not let water or cleaning agent run into the device 6.

WARNING Risk of material damage!

• Do not clean using sharp objects or abrasive cleaning agents.

NOTE: to ensure that your device 6 always functions hygienically, clean the water tank 16 regularly and replace the filter 15 in a timely manner. Also ensure that all accessories are dry and clean when the device 6 is not in use.

6.1 Cleaning the water tank

After each use, rinse the water tank 16 thoroughly with tap water. If used regularly, rinse the water tank 16 twice a week with warm vinegar water.

1. Pull the power unit 9 out of the wall socket.
2. Figure A: push down on the release button 2 and remove the front panel 14.
3. Figure B: pull the water tank 16 with the filter 15 out of the device 6.
4. Figure C: rotate the filter 15 on the water tank 16 anticlockwise until the marking on the filter points to the marking Unlock on the water tank. Remove the filter upwards.
5. Pour the remaining water out of the water tank 16.
6. Add approx. 1 tablespoon of vinegar to 500ml of warm tap water.
7. Hold the water tank 16 over a sink. Pour the vinegar/water mixture into the water tank and swish it back and forth repeatedly.
8. Then rinse the water tank 16 repeatedly with tap water.
9. If you do not immediately use the device 6 again, allow the water tank 16 to dry completely.
10. Figure D: place the filter 15 onto the water tank 16. Rotate the filter clockwise until the marking on the filter points to the marking Lock on the water tank.
11. Dry the outside of the water tank 16 if necessary.

12. Push the water tank 16 with the filter 15 back into the device 6.

13. Insert the front panel 14 at the bottom first. Then press it upwards so that the release button 2 engages.

6.2 Replacing the filter

Every 6 months or so you should replace the filter 15 with a new one. You can reorder new filters (see "Ordering accessories" on page 36).

• Check the filter 15 regularly for damage, dirt or odours. A damaged, dirty or unpleasant smelling filter 15 must be replaced.

• Pull the power unit 9 out of the wall socket.

• Figure A: push down on the release button 2 and remove the front panel 14.
• Figure B: pull the water tank 16 with the filter 15 out of the device 6.
• Figure C: rotate the filter 15 on the water tank 16 anticlockwise until the marking on the filter points to the marking Unlock the water tank. Remove the filter upwards.
• Figure D: place the new filter 15 onto the water tank 16. Rotate the filter clockwise until the marking on the filter points to the marking Lock on the water tank.
• Push the water tank 16 with the filter 15 back into the device 6.
• Reinsert the front panel 14. The release button 2 must engage.

6.3 Housing

1. Clean the housing from time to time with a damp cloth using a small amount of detergent.
2. Dry with a soft cloth.

7. Storage

If you do not use the device 6 for a longer period of time, the filter 15 must be completely dry for hygienic reasons.

1. Empty the water tank 16.
2. Replace the water tank 16 and filter 15.
3. Run the device 6 at high speed setting for approx. 3 hours until the filter 15 is dry.

DANGER for children!

• Keep the device 6 out of the reach of children.

8. Trouble-shooting

If your device fails to function as required, please try this checklist first. Perhaps there is only a minor problem, and you can solve it yourself.

DANGER! Risk of electric shock!

Do not attempt to repair the device yourself under any circumstances.

Fault Possible causes / Actions
No function	- Has the device been connected to the power supply? - Check the connection.
Bad, musty smell	- Clean the water tank 16. - Always use fresh tap water.

9. Disposal

This product is subject to the provisions of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products identified with this symbol may not be discarded with normal household waste, but must be taken to a collection point for recycling electric and electronic appliances.

This recycling symbol marks e.g. an object or parts of the material as valuable for recycling. Recycling helps to reduce the consumption of raw materials and protect the environment.

Packaging

When disposing of the packaging, make sure you comply with the environmental regulations applicable in your country.

10. Ordering accessories

Replacement filters 15 can be reordered.

Ordering online

shop.hoyerhandel.com

1. Scan the QR code with your Smartphone/Tablet.
2. The QR code will take you to a website where you can place the reorder.

11. Technical specifications

Model: STLH 8 B2
Mini air cooler: Input: USB Type C: 5	V, 2.0 A ---
Power adapter: Dongguan Qiangde Electronic Co., Ltd (MODEL AC05-0502000EU-Z)	Input: 100 - 240 V ~ 50 - 60 Hz, 0.4 A Output: USB Type C: 5 V 2-0 A, 10 W Protection class: II □ Protection type: IP20
Filling volume of the water tank: max	700 ml
Operating temperature: +5 °C to +40 °C

Power adapter

Published data Value and accuracy Unit
Dong Guan Qiangde Electronics Technology Co., Ltd.91441900065116354D143-2 B, Zhuoye, Puxinhu Commercial Street,Tangxia Town, Dongguan, Guangdong,CHINA	-
Model identification: AC05-0502000EU-Z /AC05-0502000UK-Z	-
Input voltage 100 – 240 V
Input AC frequency 50 – 60 Hz
Output voltage 5.0 V
Output current 2.0 A
Output power 10 W
Average efficiency in operation 80.97 %
Efficiency at low load (10 %)	Not applicable %
Power consumption at no load	0.074W

Mandatory specifications for electrical fans

Designation	Symbol	Value	Unit
Maximum volume flow	F	4.21	m³/min
Fan power consumption	P	8.6	W
Service value	SV	0.49	(m³/min)/W
Power consumption in standby mode	PSB	0.133	W
Fan sound power level	WA	61	dB(A)
Maximum speed	c	2.96	m/s
Measurement standard for service value	IEC 60879:2019

Symbols used

	Safety isolating transformer short circuit proof
	Double insulation
	Geprüfte Sicherheit (certified safety). Devices must comply with the gener-ally acknowledged rules of technology and the German Product Safety Act (Produktssicherheitsgesetz - ProdSG).
CE	With the CE marking, HOYER Handel GmbH declares the conformity with EU guidelines.
	Devices with this symbol may only be operated indoors (dry environment).
	Switched-mode power supply
	This symbol reminds you to dispose of the packaging in an environmentally friendly manner.
21PAP	Recyclable materials: cardboard (except corrugated cardboard)
	Direct current
~	AC voltage
π	Note that the power unit may not be used if the contact pins of the plug are damaged.
	It is a recyclable product which is subject to an extended producer responsibility and for which the rules of waste separation apply.

Subject to technical modifications.

12. Warranty of the HOYER Handel GmbH

Dear Customer,

your device is provided with a 3 year warranty starting with the purchase date. In the event of product defects, you are entitled to statutory rights against the vendor. These statutory rights are not restricted by our warranty presented in the following.

Warranty conditions

The warranty period starts with the purchase date. Please keep the original purchase receipt in a safe place. This document is required to verify the purchase.

If within three years from the purchase date of this product a material or factory defect occurs, the product will be repaired or replaced by us – at our discretion – free of charge to you, or the purchase price will be refunded. This warranty implies that within the period of three years the defective device and the purchase receipt are presented, including a brief written description of the defect and the time it occurred.

If the defect is covered by our warranty, the repaired or a new product will be returned to you. No new warranty period starts with a repair or replacement of the product.

Warranty period and statutory claims for defects

The warranty period is not extended when the warranty has been claimed. This also applies to replaced and repaired parts. Any damages and defects already existing at the time of purchase must be reported immediately upon unpacking. Repairs arising after the expiration of the warranty period are subject to a charge.

Warranty coverage

The device was produced carefully according to strict quality guidelines and tested diligently prior to delivery.

The warranty applies to material or factory defects.

Excluded from the warranty are wear parts subject to normal wear and damages to fragile parts, e.g. switches, batteries, lamps or other parts manufactured from glass.

This warranty expires if the product is damaged, not used as intended or not serviced. For the proper operation of the product, all instructions listed in the operating instructions must be observed carefully. Any form of use and handling that is advised against in the operating instructions or warned against must always be avoided.

The product is only intended for private and not for commercial use. In the case of incorrect and improper treatment, use of force and interventions not performed by our authorised Service Centre, the warranty shall cease.

Handling in case of a warranty claim

In order to ensure prompt processing of your matter, please observe the following notes:

• Please keep the article number IAN: 353119_2007 and the purchase receipt as a purchase verification for all inquiries.
• The article number can be found on the rating plate, an engraving, the title page of your instructions (in the bottom left), or as a label on the rear or underside of the device.
• If faulty operation or other defects occur, first contact the Service Centre listed in the following by telephone or email.
• Then, you are able to send a product reported as defective free of charge to the service address specified to you, including the purchase receipt and the information on the defect and when it occurred.

At www.lidl-service.com you can download this and many other manuals, product videos and installation software.

This QR code takes you directly to the Lidl Service website (www.lidl-service.com), where you can enter the article number (IAN) 353119_2007 to open your user instructions.

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

MT Service Malta

Tel.: [phone]

E-Mail: [e-mail]

Cy Service Cyprus

Tel.: [phone]

E-Mail: [e-mail]

IAN: 353119_2007

Supplier

Please note that the following address is no service address. First contact the aforementioned Service Centre.

HOYER Handel GmbH

Taskoprüstraße 3

22761 Hamburg

GERMANY

Sommaire

shop.hoyerhandel.com

Chere cliente, cher client,

Chere cliente, cher client,

shop.hoyerhandel.com

shop.hoyerhandel.com

shop.hoyerhandel.com

shop.hoyerhandel.com

1. Smartfonom alebo tabletom naskenujte QR kód.
2. Pomocou QR kódu sa dostanete na webovú stránku, KDE možete zadać objednévku.

11. Technické udaje

Model: STLH 8 B2
Vzduchový minichladič: Vstup: USB	typ C: 5 V, 2,0 A = = =
Sietový adapter: Dongguan Qiangde Electronic Co., Ltd (MODEL AC05-0502000EU-Z)	Vstup: 100 - 240 V ~ 50 - 60 Hz; 0,4 A Vystup: USB typ C: 5,0 V 2-70 A, 10,0 W Trieda ochrany: II Druh krytia: IP20
Množstvo náplne nádržky na vodu:	max. 700 ml
Prevadzková teplota: +5 °C až +40 °C

Sietovy adaptor

shop.hoyerhandel.com

5.1 Transport of apparatus

5.4 Transport of apparatus

shop.hoyerhandel.com
