Product type	Raclette appliance with grilling stone
Model	SRGS 1400 D4
Brand	SilverCrest
Power supply	220 - 240 V ~, 50 - 60 Hz
Power	1400 W
Dimensions (approx.)	40 x 25 x 15 cm
Weight (approx.)	2.5 kg
Materials	Non-stick grill plate, natural grilling stone, non-stick metal mini pans
Capacity	8 mini pans
Functions	Raclette and grilling
Adjustable temperature	Thermostat with continuous adjustment from 0 to MAX
Indicators	Operation indicator (red) and heating indicator (green)
Safety	Thermostat shut-off, insulated surface, insulated handles
Cleaning	Plate, stone and mini pans hand washable (except spatula: dishwasher safe)
Supplied accessories	8 mini pans, 8 spatulas, grill plate, grilling stone
Warranty	3 years
Repairability	Spare parts available via after-sales service (IAN 389578_2201)
Usage	Indoor only, domestic use

Frequently Asked Questions - SRGS 1400 D4 SILVERCREST

How to turn on the appliance?

Plug the mains plug into a power socket. The red operation indicator lights up. Set the thermostat to the desired position. The green heating indicator shows that the appliance is heating up.

How long does it take to preheat the appliance?

For raclette, about 10 minutes. For the grilling stone, allow about 30 minutes of preheating before you can grill food.

Can I use metal utensils on the grill plate?

No, never use metal utensils (knife, fork, etc.) as they may damage the non-stick coating. Use the supplied plastic spatulas.

How to clean the grilling stone?

Let the stone cool down. Clean it with warm soapy water and a soft sponge. Do not use abrasive products. To remove odors, rub it with lemon juice. Dry it well.

What to do if the appliance does not heat up?

Check that the mains plug is properly inserted and that the socket works. If the problem persists, the appliance may be defective. Contact the after-sales service.

Can I wash the mini pans in the dishwasher?

The mini pans are not dishwasher safe. Wash them by hand with warm soapy water. Only the spatula can go in the dishwasher.

What is the power of the appliance?

The appliance has a power of about 1400 W, allowing rapid and even heating.

Is the appliance safe for children?

The appliance can be used by children over 8 years old under supervision. Never let children play with the appliance. The surfaces become very hot.

What to do in case of smoke odor on first use?

This is normal. Manufacturing residues can cause slight smoke or odor. Ensure sufficient ventilation (open a window) and heat the appliance empty for 20 minutes before first use.

How to store the appliance after use?

Let the appliance cool down. Clean all parts and dry them well. Place the empty mini pans in the appliance for storage. Wind the cord under the appliance and store it in a dry, clean place.

USER MANUAL SRGS 1400 D4 SILVERCREST

RACLETTE GRILL / RACLETTE-GRILL / RACLETTE-GRIL SRGS 1400 D4

GB IE

RACLETTE GRILL

Operating instructions

FR BE

RACLETTE-GRIL

Mode d'emploi

CZ

RACLETTE GRIL

Návod k obsluze

SK

RAKLETOVACI GRIL

Návod na obsluhu

DK

RACLETTE GRILL

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

DE AT CH

GB/IE Operating instructions Page 1

Assembly and setting up 6

Before first use 6

Operation 7

Raclette 7

Grill 8

Cleaning and care 9

Storage 10

Troubleshooting 10

Disposal 10

Kompernass Handels GmbH warranty 11

Service 12

Importer 12

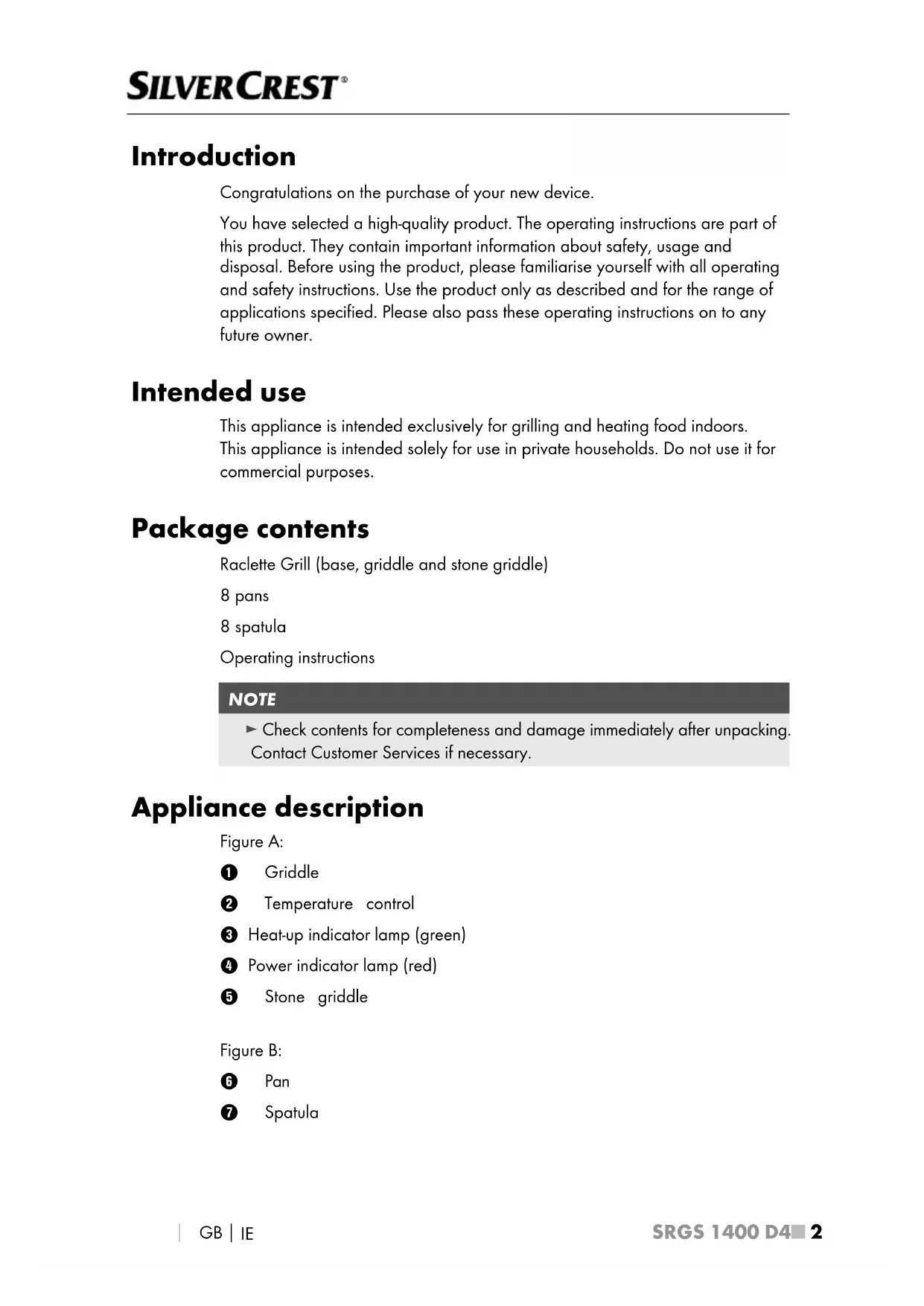

Introduction

Congratulations on the purchase of your new device.

You have selected a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner.

Intended use

This appliance is intended exclusively for grilling and heating food indoors. This appliance is intended solely for use in private households. Do not use it for commercial purposes.

Package contents

Raclette Grill (base, griddle and stone griddle)

8 pans

8 spatula

Operating instructions

NOTE

• Check contents for completeness and damage immediately after unpacking. Contact Customer Services if necessary.

Appliance description

Figure A:

1 Griddle
2 Temperature control
3 Heat-up indicator lamp (green)
4 Power indicator lamp (red)
5 Stone griddle

Figure B:

6 Pan
Spatula

Technical details

Mains voltage 220 - 240 V	~ (alternating current), 50-60 Hz
Power consumption 1400 W
	All parts of this appliance which come into contact with food are food-safe.

Safety information

• To avoid potential risks, if the appliance power cable is damaged, it must be replaced by the manufacturer, its customer service or by a qualified technician.
• Do not allow the power cable to come into contact with hot appliance parts. Never use the appliance near naked flames, a hotplate or a heated oven.
• Do not expose the appliance to rain, and never use it in a humid or wet environment. Ensure that the power cable never becomes wet or moist during operation.
• Check the device for visible external damage before use. Do not operate a device that has been damaged or dropped.
• The power cable must be checked for signs of damage at regular intervals. If the power cable is damaged, the appliance may no longer be used.

The appliance must be connected to a mains socket with a protective earth.
The device must not come into contact with moisture such as rain or water.

Never immerse the appliance in water or any other liquid! There is a risk of fatal electric shock if residual liquids come into contact with live components during operation.

WARNING! RISK OF INJURY!

This appliance may be used by children of the age of 8 years or more and by persons with reduced physical, sensory or mental capabilities or lack of experience and/or knowledge only if they are being supervised or have been instructed with regard to the safe use of the appliance and have understood the potential risks.
Children must not play with the device.
- Cleaning and user maintenance must not be performed by children unless they are older than 8 years of age and are supervised.
Children younger than 8 years must be kept away from the appliance and the power cable.
After use, allow the appliance to cool down completely before cleaning it. Risk of burns!
If possible, set up the appliance close to a power socket. Ensure that the power plug is quickly reachable in case of danger, and that the cable poses no risk of tripping.
- Provide a stable location for the appliance.

WARNING! RISK OF INJURY!

Caution! Hot surface!

• The surfaces of the appliance become very hot during use. While the appliance is in use, touch only the temperature control and the handles at the sides.

CAUTION! PROPERTY DAMAGE!

• Do not use an external timer switch or a separate remote control system to operate the appliance.
• Never leave the device unattended during operation.
• Ensure that the appliance, the power cable and the plug do not come into contact with heat sources such as hotplates or naked flames.
• Do not use charcoal or similar fuels to operate the appliance!
  To protect the non-stick coating on the pans and the grill, do not use metallic tools such as knives, forks, etc.
• Operate the appliance only with the original accessories supplied.

Assembly and setting up

WARNING! RISK OF FIRE!

• Never place the device underneath wall cupboards or next to curtains, cupboard walls or other flammable objects.
  Always place the appliance on a heat-resistant surface.

1) Take all the parts out of the box and remove the packaging material and any protective wrapping or stickers.
2) Clean all of the components as described in the Chapter "Cleaning and care" to remove any packaging residue. Ensure that all parts are completely dry.
3) Place the appliance on a clean and level heat-resistant surface. Do not place the appliance directly next to a wall or a cupboard. Each person should have unimpaired access to the pans 6.
4) Place the stone griddle 5 on one side of the appliance between the guide rails. The fat channel around the edges must face upwards.
5) Place the griddle 1 on the other side. The griddle 1 can be used on both sides. If you use the grooved side of the griddle, your food will have the typical grill pattern.
6) Push the pans into the device.

Before first use

The appliance is assembled and set up as described above.

1) Insert the plug into a mains power socket. The power indicator lamp lights up red to show that the appliance is connected to the mains.
2) Turn the temperature control ② to MAX. The heat-up indicator lamp ③ lights up green to show that the appliance is heating up.
3) After 20 minutes, turn the temperature control 2 to 0.
4) Then pull out the plug and allow the appliance to cool down.

NOTE

The first time the appliance heats up, a small amount of smoke and odour may be generated due to production-related residue. This is normal and is completely harmless. Ensure sufficient ventilation; for example, by opening a window.

5) Clean the griddle 1, the stone griddle 5, the spatula 7 and the pans 6 as described in the section "Cleaning and care".
6) Ensure that all parts are completely dry before operating the device. The appliance is now ready for use.

Operation

WARNING! RISK OF BURNS!

• The surfaces of the appliance become very hot during use. Touch only the temperature control and the handles at the sides.

Raclette

1) Select the side of griddle ① that you want to use.

2) Lightly oil the upper surface of the stone griddle 5 and the griddle 1 with the side you want to use at the top as well as the inside of the pans 6.

3) Insert the plug into a mains power socket. The power indicator lamp lights up red to show that the appliance is connected to the mains.

4) Turn the temperature control 2 to MAX. The heat-up indicator lamp 3 lights up green to show that the appliance is heating up.

NOTE

The heat-up indicator lamp may come on and go out several times during this process. This is not an appliance malfunction! It merely indicates that the appliance is maintaining the set temperature.

Depending on the room temperature, heating up will start at different positions on the temperature control 2.

If you only want to use the raclette, allow the appliance to heat up for 10 minutes. If you want to use the stone griddle at the same time to grill food, wait around 30 minutes until the stone griddle has heated up (see Chapter "Grill").

The pans do not need to be pushed into the appliance while it is heating up.

5) Fill the pans with the desired ingredients. Ensure that the pans are not overfilled otherwise the food could get too close to the heating elements and could even touch them!

6) Place the pans ⑥ into the device. The slight recess in the appliance helps to keep the pans in place.

7) Turn the temperature control 2 towards 0 if you want to reduce the temperature. Turn the temperature control 2 towards MAX if you want to increase the temperature again.

8) Remove the pans 6 from the device as soon as the contents are cooked.

WARNING! RISK OF INJURY!

• Apart from the insulated handles, the pans ⑥ are very hot! Therefore, hold the pans ⑥ only by the handle!

9) Empty the contents of the pan 6 onto your plate using the spatula 7.

You can now refill the pan ⑥ and push it back into the device. Do not push used, but empty pans ⑥ into the device. Any remaining food in the pans ⑥ could burn on.

NOTE

Because of the non-stick coating in the pans 6, it is not necessary to re-grease them before every use.

10) Once you have finished using the appliance, turn the temperature control 2 to "0" and remove the plug from the mains socket.

Grill

Using the griddle 1 and the stone griddle 5, you can simultaneously grill meat, vegetables or small pieces of fruit to accompany the raclette.

NOTE

The griddle 1 takes about 10 minutes to heat up. You cannot cook food on the griddle 1 until then!
The stone griddle 5 takes about 30 minutes to heat up. You cannot cook food on the stone griddle 5 until then!

1) Select the side of griddle ① that you want to use.
2) Lightly oil the upper surface of the stone griddle 5 and the griddle 1 with the side you want to use at the top as well as the inside of the pans 6.
3) Place the food onto the stone griddle 5 and griddle 1 and turn it occasionally as required.

ATTENTION! PROPERTY DAMAGE!

• Do not use metal implements such as knives, forks, etc. when you remove food from the griddle ① as they could damage the non-stick coating. If the non-stick coating is damaged, stop using the appliance.

NOTE

Over time, the stone griddle 5 may become slightly discoloured. This will not impair its functionality.

Cleaning and care

Before cleaning the appliance, disconnect the power plug from the mains power socket! There is a risk of electric shock!

Never immerse the device in water or any other liquid!

WARNING! RISK OF INJURY!

Always allow the appliance to cool down before cleaning it. Otherwise there is a risk of burns!

It is best to clean the device as soon as it has cooled down. This makes food residues easier to remove.

ATTENTION! PROPERTY DAMAGE!

• Do not use abrasive or aggressive cleaning materials. These can damage the surface of the appliance!

• Do not clean the stone griddle ⑤ until it has cooled down. Otherwise the stone griddle ⑤ could crack and break.

■ Wipe the device housing and the heating elements with a moist cloth. If necessary, put a little mild detergent on the cloth and wipe this off afterwards with clear water. Dry everything properly.

Clean the griddle 1, the stone griddle 5, the spatula 7 and the pans 6 in warm soapy water. Dry all parts properly after cleaning.

NOTE

The spatulas ⑦ can be cleaned in the dishwasher. Ensure that they do not get caught in the dishwasher. Use the upper basket in the dishwasher if possible.

You can also use a soft, non-abrasive sponge to clean the stone griddle 5.
To remove undesirable odours such as fish smells, rub the stone griddle 5 down with a little lemon juice.
The stone griddle 5 takes longer to dry.

Storage

■ Allow the cleaned appliance to cool down before putting it away. You can store the empty pans in the appliance.
- Wrap the power cable around the cable retainer on the underside of the appliance.
Store the cleaned device in a clean, dust-free and dry place.

Troubleshooting

Fault Cause The solution
The appliance is not working.	The plug is not connected to the mains power.	Insert the plug into a mains power socket.
	The mains power socket is defective.	Use a different mains power socket.
	The appliance is defective. Co	tact Customer Services.

If the malfunction cannot be corrected using one of the suggestions above, or if you have found some other kind of malfunction, please contact our Customer Service department.

Disposal

The adjacent symbol of a crossed-out dustbin means that this appliance is subject to Directive 2012/19/EU. This directive states that this appliance may not be disposed of in the normal household waste at the end of its useful life, but must be taken to specially set-up collection locations, recycling depots or disposal companies.

The disposal is free of charge for the user. Protect the environment and dispose of this appliance properly.

Your local community or municipal authorities can provide information on how to dispose of the worn-out product.

The product is recyclable, subject to extended producer responsibility and is collected separately.

The packaging is made of environmentally friendly materials which you can dispose of at your local recycling centre.

Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1-7: Plastics, 20-22: Paper and cardboard, 80-98: Composites.

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase.

If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion). This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches, batteries or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (IAN) 389578_2201 available as proof of purchase.
- You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product.
If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.
You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com.

This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 389578_2201.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Servicelreland

Tel.: [phone]

E-Mail: [e-mail]

IAN 389578_2201

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Inhaltsverzeichnis

Einleitung 14

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DEUTSCHLAND

www.kompernass.com

Table des matieres

Puisance absorbee 1400 W

Chere cliente, cher client,

Chere cliente, cher client,

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALLEMAGNE

www.kompernass.com

Inhoud

Inleiding 44

WAARSCHUWING! LETSELGEVAAR!

WAARSCHUWING! LETSELGEVAAR!

WAARSCHUWING! BRANDGEVAAR!

WAARSCHUWING! VERBRANDINGSGEVAAR!

WAARSCHUWING! LETSELGEVAAR!

WAARSCHUWING! LETSELGEVAAR!

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DUITSLAND

www.kompernass.com

Obsah

POZOR! HMOTNÉ ŠKODY!

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NÉMECKO

www.kompernass.com

Spistresci

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NIEMCY

www.kompernass.com

Obsah

Uvod. 82
Použivanie v sulade surcenim 82
Rozsa h dodavky 82
Opis pristroja 82
Technické udaje 83
BezpečnostnéPokyny 83
Zlozenie a postavenie 86
Pred prvym pouzitim 86
Ovladanie 87
Raklet 87
Grl 88
Cistenie a udrzba 89
Uskladnenie 90
Odstrańovanie poruch 90
Likvidácia 90
Záruka spolocnosti Kompernass Handels GmbH 91
Servis 92
Dovozca 92

Uvod

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NEMECKO

www.kompernass.com

Indice

Characteristicas techniques

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALEMANIA

www.kompernass.com

Indholdsfortegnelse

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

TYSKLAND

www.kompernass.com

Indice

Introduzione 118

Uso conforme 118

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANIA

www.kompernass.com

Tartalomjegyzék

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NÉMETORSZÁG

www.kompernass.com

Kazalo

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NEMCIJA

www.kompernass.com

Pooblaščeni serviser

SI ServisSlovenija

Tel.: [phone]

E-Mail: [e-mail]

IAN389578_2201

Garancijski list

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com
