Product Type	Portable stereo radio with FM/DAB/DAB+ receiver and Bluetooth connectivity
Brand	Geneva
Model	TouringL (A130)
Dimensions (approx.)	30 cm × 20 cm × 15 cm
Weight (approx.)	2.0 kg
Power Supply	AC adapter B110-050230-I (output 5V/2.3A) and built-in rechargeable battery
Battery Life	Several hours depending on volume
Radio Bands	FM 67.5-106 MHz, DAB/DAB+ Band III 170-240 MHz
Bluetooth	Version A2DP, class 2, typical range 10 m
Auxiliary Input	3.5 mm stereo jack
Presets	6 FM stations + 6 DAB stations
Display	Backlit LED screen
Cleaning	Soft dry cloth; do not use solvents
Safety	Double insulation (class II), do not open, do not expose to water or excessive heat
Spare Parts	Replacement battery (model A130), AC adapter B110-050230-I
Repairability	Entrust any repair to qualified personnel; contact the retailer
Operating Temperature	5 to 40 °C
Standards	Directive 2014/53/EU (CE), WEEE, recycling

Frequently Asked Questions - TouringL GENEVA

How to pair my phone with the TouringL via Bluetooth?

Press the Bluetooth button until the display shows PAIRING. Turn on Bluetooth on your phone and select TOURING L. If a PIN code is requested, enter 0000.

Why won't my TouringL turn on?

If the display shows LOW BATT, the battery is discharged. Plug in the AC adapter, wait a few minutes then turn on the device. If nothing displays, the battery may be completely empty.

How to save a station as a preset?

Select the desired station, then press and hold PRESET. Use the ◀/▶ keys to choose the number (1 to 6) and press and hold again to confirm.

How to start a scan for DAB stations?

In DAB mode, hold down the ◀ or ▶ key until SCAN appears. The scan starts automatically and saves the found stations.

The volume is limited to 50, what to do?

This is normal when the battery is low. Recharge the device to restore full volume. You can continue listening at reduced volume for a few minutes.

How to connect a non-Bluetooth device?

Use a 3.5 mm stereo audio cable. Plug it into the LINE IN jack on the back of the TouringL and into the headphone output of your device. LINE IN mode activates automatically.

What to do if the display shows 'NO DAB SERVICE'?

Fully extend the telescopic antenna and place it high, near a window. Restart a scan (hold ◀ or ▶). Make sure you are in an area covered by DAB.

How to know if the battery is charging?

A small dot blinks at the bottom right of the display. When the charger is plugged in, CHARGE appears. The dot turns off when the battery is full.

The TouringL turns off by itself, is that normal?

Yes, after a few minutes of inactivity, the device automatically turns off to save battery. You can turn it back on by turning the volume knob.

Where to find support and spare parts?

Go to www.genevalab.com for updates, troubleshooting and dealer locations. For a replacement battery, ask for model A130.

USER MANUAL TouringL GENEVA

DAB: LONG PRESS FM DAB BUTTON UNTIL "SCAN" APPEARS ON THE DISPLAY. THE SCAN PROCESS WILL CONTINUE UNTIL CHANNELS WILL APPEAR.

Bluetooth Mode

PRESS ⚙️ TO PAIR YOUR DEVICE. PLEASE SEARCH FOR "TOURING S" ON YOUR DEVICE BLUETOOTH SETTINGS MENU.

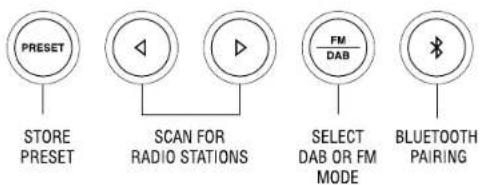

PRESET STORE PRESET SCAN FOR RADIO STATIONS FM DAB SELECT DAB OR FM MODE BLUETOOTH PAIRING

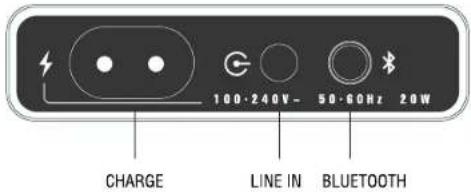

100·240V- 50·60Hz 20W CHARGE LINE IN BLUETOOTH

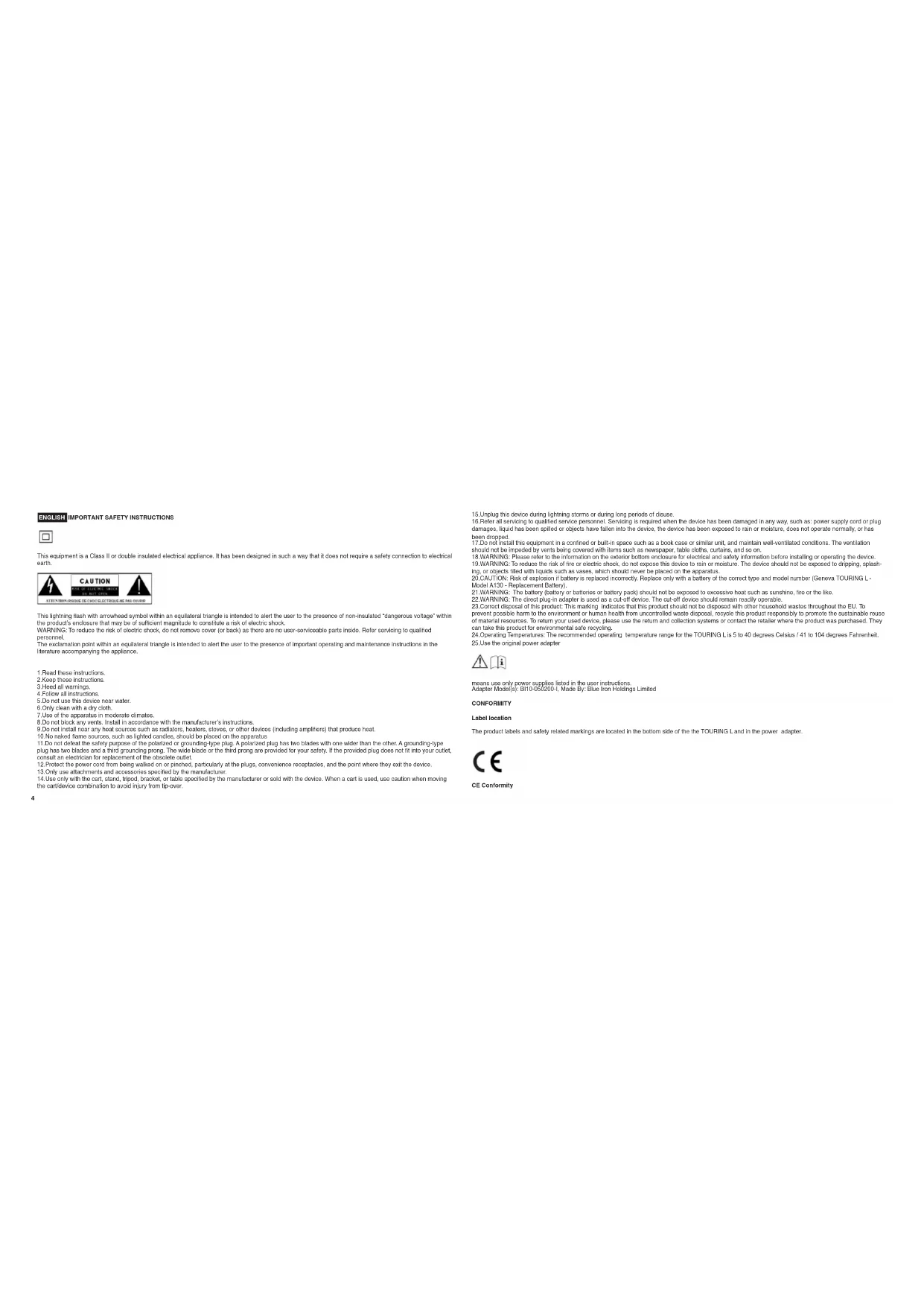

IMPORTANT SAFETY INSTRUCTIONS

This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth.

This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of non-insulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

WARNING: To reduce the risk of electric shock, do not remove cover (or back) as there are no user-serviceable parts inside. Refer servicing to qualified personnel.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the appliance.

1. Read these instructions.

2. Keep these instructions.

3. Use of silver wires

4. Reed all warnings.

4.Follow all instructions.

5.Do not use this device near water.

1. Only clean with a dry cloth.

2. Use of the apparatus in moderate climates.

3. Do not black any vents. Install in accordance with the manufacturer's instructions.

4. Do not install near any heat sources such as radiators, heaters, stoves, or other devices (including amplifiers) that produce heat.

5. No naked flame sources, such as lighted candles, should be placed on the apparatus.

6. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

7. Protect the power cord from being walked on or cinched, particularly at the pipe, convenience receptacles, and the point where they exit the device.

13 Only use attachments and accessories specified by the manufacturer

1. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer or sold with the device. When a cart is used, use caution when moving the car/device combination to avoid injury from tip-over.

2. Unplug this device during lightning storms or during long periods of disuse.

3. Refer all servicing to qualified service personnel. Servicing is required when the device has been damaged in any way, such as: power supply cord or plug damages. Liquid has been spilled or objects have fallen into the device, the device has been exposed to rain or moisture, does not operate normally, or has been dropped.

4. Do not install this equipment in a confined or built-in space such as a book case or similar unit, and maintain well-ventilated conditions. The ventilation should not be impeded by vents being covered with items such as newspaper, table cloths, curtains, and so on.

5. WARNING: Please refer to the information on the exterior bottom enclosure for electrical and safety information before installing or operating the device.

6. WARNING: To reduce the risk of fire or electric shock, do not expose this device to rain or moisture. The device should not be exposed to dripping, splashing, or objects filled with liquids such as vases, which should never be placed on the apparatus.

20.CALUTION: Risk of explosion if battery is replaced incorrectly. Replace only with a battery of the correct type and model number (Genova TOURING L Model A130 - Replacement Battery).

1. WARNING: The battery (battery or batteries or battery pack) should not be exposed to excessive heat such as sunshine, fire or the life.

2. WARNING: The direct plug-in adapter is used as a cut-off device. The cut-off device should remain readily operable.

3. Correct disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle this product responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

4. Operating Temperatures: The recommended operating temperature range for the TOURING L is 5 to 40 degrees Celsius / 41 to 104 degrees Fahrenheit.

5. Use the original power adapter

means use only power supplies listed in the user instructions.

Adapter Model(s): BI10-050200-I, Made By: Blue Iron Holdings Limited

CONFORMITY

Label location

The product labels and safety related markings are located in the bottom side of the the TOURING Land in the power adapter.

CE Conformity

G-Lab GmbH declares that the TOURING Lis in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The declaration of conformity may be consulted at the request to G-Lab GmbH, Zug, Switzerland or on genevalab.com.

RECYCLING

This product can be recycled: Products bearing this symbol must NOT be thrown away with normal household waste. At the end of the product's life, take it to a collection point designated for recycling of electrical and electronic devices.

Find out more about return and collection points through your local authority. The European Waste Electrical and Electronic Equipment (WEEE) Directive was implemented to dramatically reduce the amount of waste going to landfills, thereby reducing the environmental impact.

on the planet and on human health. Please act responsibly by recycling used products. If this product is still usable, consider giving it away or selling it.

Used batteries: Please dispose of used batteries properly, following the local regulations. Do not place the battery in fire.

CARE OF YOUR TOURING L

Wipe with a soft cloth. Do not use cleaners or soleints, they can harm the radio body causing permanent damage. Avoid inserting objects or fingers into the speaker grid. Pressing on the front cover of the speaker may cause damage. Used batteries: Please dispose of used batteries properly, following the local regulations. Do not place the battery in fire.

- Tuner frequency range: FM 87.5-100MHz - DAB BAND III 170MHz - 240MHz - Bluetooth frequency band / Output power: 2.402GHz \~ 2.480GHz ISM Band / ≤ 4dBm (Class 2)

Geneva® is a registered trademark of G-Lab GmbH.

The Bluetooth® word mark and logos are registered Trademarks owned by Bluetooth SIG, Inc. © 2017 G-Lab GmbH. All rights reserved. Under the copyright laws, this manual may not be copied, in whole or in part, without the written consent of G-Lab GmbH.

Geneva TOURING L, User Manual, Version v1, model A130.

GETTING STARTED

Charging the Battery

Plug the power adapter cord into your TOURING L For maximum battery life, charge the battery for at least 8 hours continuously before using your TOURING L for the first time.

Turning the Unit On

Rotate the volume knob clockwise until you hear a 'click'. When the TOURING L is powered for the first time, the display will show 'Welcome to GENEVA'.

OVERVIEW

You can play music from the following sources: • FM radio. • DAB radio. • Mobile phone or computer via Bluetooth. • Other devices with a line-in cable.

USING TOURING L

FM Radio

1. Press FM the display shows "FM" and a frequency, for example "103.2".

2. Select an FM station with 📋 and : ▶ • Use a single touch: change frequency by 0.1MHz. • Hold down for a short time: automatically search for the next or previous station.

3. After a few seconds the display will show the RDS information.

DAB / DAB+

1. Press until the display shows "DAB/DAB+".

2. Select a DAB station with and . TOURING L is compatible with DAB, DAB+, DMR and DMB.

When using your TOURING L for the first time, the radio needs to find available radio stations in your region (a scan function). After a SCAN, the stations will be automatically stored.

- Hold down the button until "SCAN" displays. The indication will blink for a few seconds, then the display will confirm that the first station has been found.

"SCAN" is also needed after traveling to a new location that provides different radio stations, or when you move the radio to a different room with a different radio reception.

Presets

You can save six FM stations plus six DAB stations. To save a preset:

1. Select the station you want to save.

2. Long press prevent the display shows "PRESET 1" as blinking.

3. If you want to save using a different PRESET number, press PRESET again and select the desired number.

4. After, long press preserve the station.

To recall a preset:

1. Short press prethe display will show the first saved preset. If a saved

station is playing, the display will show the next saved preset.

1. If you want to recall a different station, press pregain.

2. Wait two seconds and the unit will play the selected preset station.

Line-in

To connect a source device to your TOURING L, you need a stereo audio cable with 3.5mm jack plug connector.

1. Connect the cable to the audio source device (headphone or line-out plug).

2. Connect the other end of the cable to the line-in socket on the back of the TOURING L. The unit will automatically change mode to LINE IN.

3. By disconnecting the cable from TOURING L, the unit will return to the previously selected mode.

Bluetooth

Mobile phones and computers with Bluetooth can connect to the TOURING L and play music. The mobile phone or computer must support Bluetooth A2DP.

Initial set-up ("pairing"):

1. Press the * key. The display will show "BLUE". Wait for 20 seconds until the display shows "PAIRING" as blinking.

2. Select "settings" on your mobile phone. Select "GeneralBluetooth". Turn on Bluetooth. New Bluetooth devices are discovered automatically (on some devices you will need to press 'scan').

3. After a few seconds, "TOURING L" will appear.

4. Select "TOURING L". The mobile phone is now connecting ("pairing") to the TOURING L.

5. If the mobile phone asks for a PIN, enter "0000" (four zeros).

6. You can now play music on your mobile phone and listen to it on the TOURING L.

Playing music

Most mobile phones will connect automatically to the TOURING L after initial set-up ("pairling").

1. Be sure the Bluetooth setting on your mobile phone is ON.

2. Press the Key. The display will show "BLUE", then will show "SEARCH", as blinking.

3. After a few seconds, TOURING L will automatically connect to your mobile phone. The display will show 'CONNECT'.

4. Play music on the mobile phone and the music will start playing on the TOURING L automatically after a few seconds.

TROUBLESHOOTING

Why is my mobile phone not connecting?

You will find more detailed information on various mobile phones on our support pages at www.genevalab.com.

The TOURING L will not turn on, and the display shows "LOW BATT".

The battery is slow on charge. Connect the power adapter to the TOURING L and the battery will begin charging. You can use the TOURING L while the charger is connected.

The TOURING L will not turn on, and nothing happens.

If the battery is very low, there will not be enough power to even turn on the display. TOURING L can be turned on after it has been

connected for a short while to the power adapter.

Why is the TOURING L turning off after a while?

After a few minutes of inactivity, the device will automatically turn itself off to save battery.

What is the pin for a Bluetooth connection?

The PIN is 0000 (four zeros). Not all computers or mobile phones require a pin code during initial set-up (pairing).

I have an unreliable connection via Bluetooth and there are dropouts.

- Move the mobile phone closer to the TOURING L. - Move or turn off other wireless devices that can disturb a Bluetooth connection (for example Wi-Fi, other mobile phones etc).

How do I know if the battery is charging?

A small dot on the lower right of the display will turn on if the battery is being charged.

When the charger is being connected the display will also show "CHARGE".

How can I check the battery

charge?

A dot on the lower right corner of the display shows the battery status:

• OFF: battery fully charged.

- Blinking: battery is low.

When the battery is low, the volume will automatically be limited to 50. The unit can still play music for some minutes.

If the battery is empty, the display will show "LOW BATT" and TOURING L will automatically turn off.

Display shows 'NO DAB SERVICE' or 'NO DAB SIGNAL'

Extend the antenna. You may have to experiment different positions to find the best reception. Positions higher up or nearer windows may improve reception.

More information, troubleshooting, etc: select "Support" at www.genevalab.com.

Service and repair

If the product is damaged and needs repair, please contact your dealer. Visit www.genevalab.com to find a dealer in your area. Warranty

Warranty See the specific terms for your country at www.genevalab.com.
