| Brand | Parkside |
| Model | PAHE 20Li B2 |
| Product type | Cordless electric branch cutter (pole pruner) |
| Voltage | 20 V |
| Max no-load speed | 2500 min⁻¹ |
| Weight (without battery) | 3.4 kg |
| Cutting length | approx. 200 mm |
| Guide bar | Trilink M1500833-1041TL, 241.3 mm |
| Saw chain | Trilink CL15033TL, pitch 3/8", link thickness 1.3 mm |
| Chain speed | 5 m/s |
| Oil tank capacity | 65 ml |
| Sound pressure level | 77.6 dB(A) (K=3 dB) |
| Guaranteed sound power level | 99 dB(A) |
| Vibrations (handle) | 0.69 m/s² (K=1.5 m/s²) |
| Telescopic pole | Extension approx. 70 cm |
| Head rotation | 4 positions, max angle 60° |
| Protection | IPXO |
| Power supply | Parkside X 20 V TEAM battery (not included) |
| Application | Domestic, cutting branches up to 200 mm |
| Delivery contents | 2-part pole, Allen key, transport strap, protective sheath, 100 ml bio oil, manual |
| Warranty | 3 years (according to terms) |
Frequently Asked Questions - PAHE 20Li B2 PARKSIDE
User questions about PAHE 20Li B2 PARKSIDE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Electric pruner in PDF format for free! Find your manual PAHE 20Li B2 - PARKSIDE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PAHE 20Li B2 by PARKSIDE.
USER MANUAL PAHE 20Li B2 PARKSIDE
Cordless Pole Saw 20V
Translation of the original instructions
NL BE
Accu-telescopische takkenschaar 20 V
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.
FR BE
General Description. 29
Scope of delivery 29
Overview 29
Safety features 30
Description of functions. 30
Technical Data. 30
Notes on Safety 31
Symbols in the manual. 31
Symbols on the Equipment 31
General Notes on Safety. 32
RESIDUAL RISKS 32
General safety instructions for power tools 32
Safety information for chainsaws ....34

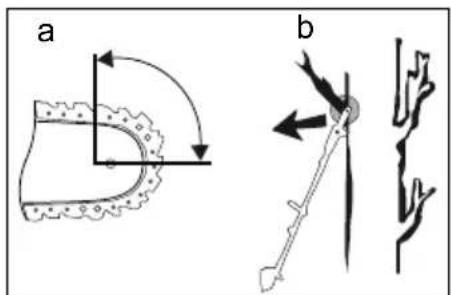

Kickback causes and how to avoid them with pole-mounted pruners.....35
Additional safety instructions 36
Assembly 37
Remove/insert battery 37
Mounting the saw chain 37
Tensioning the saw chain 38
Assembling the motor head. 38
Initial Operation. 38
Chain lubrication 39
Pivoting the pole-mounted pruner ....40
Putting on the carrying strap. 40
Moving the eyelet for the carrying strap. 40
Adjusting/mounting the additional handle 40
Extending the tubular shaft 41
Switching on and off 41
Safe working. 41
Putting down the device. 42

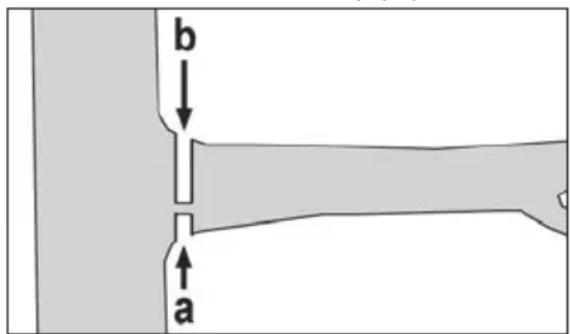

Cutting techniques using the pole-mounted pruner 42
Maintenance/Cleaning 43
Cleaning. 43
Service intervals. 43
Service intervals table. 44
Sharpening the cutting teeth 44
Changing the saw chain. 44
Servicing the blade bar. 44
Turning the blade bar. 44
Storage. 45
Transport 45
Waste Disposal and
Environmental Protection .45
Spare Parts/Accessories. 46
Trouble Shooting. 47
Guarantee 48
Repair Service. 49
Service-Center. 49
Importer 49
Translation of the original EC declaration of conformity ....221
Exploded Drawing 229
Introduction
Congratulations on the purchase of your new device. With it, you have chosen a high quality product.
During production, this equipment has been checked for quality and subjected to a final inspection. The functionality of your equipment is therefore guaranteed. It cannot be ruled out that residual quantities of lubricants will remain on or in the equipment in isolated cases. This is not a fault or defect and it represents no cause for concern.
The operating instructions constitute part of this product. They contain important information on safety, use and disposal.
Before using the product, familiarise yourself with all of the operating and safety instructions. Use the product only as described and for the applications specified.
Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party.
Proper use
The device is intended for trimming large branches and limbs. It is not designed for extensive sawing work, felling trees or cutting materials other than wood.
The device is intended for use in residential applications.
This device is not intended for commercial use. Commercial use will invalidate the guarantee. Any other use that is not expressly permitted in these instructions may result in damage to the device and pose a serious hazard to the user.
The equipment is designed for use by adults. Adolescents over the age of 16 may use the device only under supervision. Local regulations may specify an age limit for the user. Do not use the device in the rain.
The operator or user is responsible for accidents or damage to other people or their property.
The manufacturer is not liable for damages caused by unspecified use or incorrect operation.
The device is part of the Parkside X 20 V TEAM series and can be operated using Parkside X 20 V TEAM series batteries. The batteries may only be charged using chargers from the Parkside X 20 V TEAM series.
General Description
The illustration of the principal functioning parts can be found on the front and back foldout pages.
Scope of delivery
- Cordless pole-mounted pruner (2 parts)
-Allenkey(4mm)
- Carrying strap
- Blade encasing
- 100cm^3 Bio chain oil
- Operating instructions
Battery and charger are not included.
Overview
1 Blade bar
2 Saw chain
3 Wing nut
4 Ring
5 Sprocket cover
6 Coupling nut
7 Tubular shaft
8 Eyelet
9 Push-fit lock
10 Carrying strap
11 Rechargeable battery
12 Storage for Allen key
13 On/Off switch
14 Handle
15 Safety switch
16 Quick-release lever
17 Additional handle
18 Locking mechanism of the telescopic extension
19 Motor head
20 Bio chain oil
21 Allen key
22 Blade encasing
B 23 Oil passage
B 24 Coach screw
B 25 Chain sprocket
C 26 Threaded coupling
27 Extension arm
28 Lug at the extension arm
E 29 Oil tank cover
E 30 Oil level indicator
31 Locking button
32 Hexagon socket screw
33 Locking button for additional handle
Safety features
13 On/off switch
The device switches off immediately once the start switch is released.
15 Safety switch
The switch lock must be unlocked in order to switch on the device.
Description of functions
The device is powered by an electric motor. The device is equipped with a pruner attachment (with blade and saw chain). The device can only be operated whilst the safety switch is pressed to protect the user.
Please refer to the descriptions below for information on how the operating elements work.
Technical Data
Cordless Pole Saw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Motor voltage U 20 V Idling speed n max. 2500 min Protection type IPX0
Weight (without battery) 3.4 kg
Weight (only motor unit) 3.1 kg
Telescopic handle adjustment range approx. 70 cm
Blade bar.......Trilink M1500833-1041TL Blade bar length 241.3 mm Cutting length approx.200 mm Sprocket teeth .7
Chain Trilink CL15033TL Chain speed v_0 . 5 m/s Chain pitch .3/8"
Chain link strength 1.3 mm
Oil tank volume .65 cm/65 ml Vibration on handgrip
(a) 0.69 m/s²; K= 1,5 m/s² Vibration on additional handle
(a) .0.95 m/s2; K= 1,5 m/s2 Sound pressure level
(L_pA) 77,6 dB(A); K_pA = 3 dB Sound power level (L_WA)
measured....93,5 dB(A), K_WA = 3,66 dB guaranteed 99 dB(A)
Attention! An up-to-date list of battery compatibility can be found at: www.lidl.de/akku
Noise and vibration values have been determined according to the standards and regulations mentioned in the declaration of conformity.
The stated vibration emission value was measured in accordance with a standard testing procedure and may be used to compare one power tool to another.
The stated vibration emission value may also be used for a preliminary exposure assessment.
Warning: The vibration emission value may differ during actual use of the power tool from the stated value depending on the manner in which the power tool is used.
Try to keep the exposure to vibrations as low as possible. Examples of measures to reduce vibration exposure are the wearing of gloves when using the tool and limiting the working hours. For this purpose all parts of the operating cycle have to be considered (for example, times when the electric tool is switched off and times when it is switched on but running without any load).
Notes on Safety
This section describes the basic safety rules when working with the device.
This device must not be used by children.
Children should be supervised to ensure that they do not play with the device. Cleaning and maintenance must not be carried out by children.
The device must not be used by persons with impaired physical, sensory or mental capabilities, or anyone who does not have sufficient experience or knowledge.
Symbols in the manual
Warning symbols with information on damage and injury prevention.
Instruction symbols with information on preventing damage.
Wear cut-resistant gloves.
Help symbols with information on improving tool handling.
Symbols on the Equipment
This device is part of the Parkside X 20 V TEAM series
Caution!
Read the instruction manual and follow all warnings and safety instructions.
Wear safety goggles!
Wear hearing protection!
Wear a safety helmet!
Wear cut-resistant gloves.
Wear anti-slip safety shoes.
Keep the equipment away from nearby people.
Do not use the device in the rain or on wet hedges.
Danger of death by electrocution! at least 10m away from power lines.
Caution! Falling objects. Particularly when cutting overhead.
Caution! Risk of injury from blades in operation.
Remove the battery before maintenance work.
Information of the acoustic power level L_WA in dB.
Machines are not to be placed with domestic waste.
Cutting length
Adjusting the chain tension
Loosening/fastening the sprocket cover
Adjusting the cutting angle
Oil tank cover
Direction of travel, saw chain
Attaching/loosening the coupling nut
Oil min
Oil level indicator, minimum mark
General Notes on Safety
Before working with the equipment, familiarise yourself with all operating components. Practice handling the equipment and have the function, operation and working methods explained to you by an experienced user or specialist. Ensure that you can shut off the equipment immediately in an emergency. Inappropriate use of the device may result in serious injury.
In the case of an accident or malfunction during operation, the device must be switched off immediately and the battery removed. Treat injuries appropriately or consult a doctor. For the correction of faults, read the "Troubleshooting" chapter or contact our service centre.
RESIDUAL RISKS
Even if properly operating and handling this electric tool, some residual risks will remain. Due to its construction and build, this electric tool may present the following hazards:
a) Cuts
b) Ear damage if working without ear protection.
c) Damage to your health caused by swinging your hands and arms when operating the appliance for longer periods of time or if the unit is not held or maintained properly.
General safety instructions for power tools
WARNING! Read all safety directions and instructions.
Omissions in the compliance with safety directions and instructions can cause electrical shock, fire and/or severe injuries.
Retain all safety directions and instructions for future use.
The term "Power Tools" used in the safety instructions refers to mains-operated power tools (with power cord) and to battery-operated power tools (without power cord).
1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock
b) Avoid body contact with
earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operation of the power tool in a damp environment is unavoidable, please use a residual current circuitry. The use of a residual current circuitry reduces the risk of an electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention white operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for
appropriate conditions will reduce personal injuries.
c) Avoid starting the device unintentionally. Ensure that the power tool is switched off before you connect it to the power supply and/or before you connect the rechargeable battery, or before picking it up or carrying it. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If dust extraction and collection devices can be installed, make sure that these are connected and used correctly. Using a dust collector can reduce hazards caused by dust.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the
switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Remove the plug from the wall socket and/or remove the rechargeable battery before you change the settings of the device, change accessory parts or put away the device. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
5) Use and treatment of the battery-powered tool
a) Only recharge batteries using chargers recommended by the manufacturer. If a charger that has been designed for a particular type of battery is used to charge other batteries, there is a risk of fire.
b) Only use the battery that is intended in an electric tool. The use of other batteries may create a fire hazard and lead to injury.
c) When not in use, keep batteries away from paper clips, coins, keys, nails, screws or other small metal objects that could cause the contacts to be bridged. A short circuit between battery contacts can result in burns or a fire.
d) When misused, fluid may leak from the battery. Avoid any contact with it. On accidental contact, wash in running water. If the fluid comes into contact with the eyes, seek medical assistance also. Leaking battery fluid can cause skin irritation or burns.
6) Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
Safety information for chainsaws
- When in operation, keep all body parts away from the saw chain. Before you start the saw, ensure that the saw chain is not touching anything. When using a chainsaw, losing concentration for just
a moment can lead to clothing or body parts being caught up in the saw chain.
Always hold the chainsaw with your right hand on the rear handle and left hand on the front handle. Holding the chainsaw the other way around increases the risk of injuries and is not permitted.
-
Wear protective goggles and hearing protection. Further protective equipment for the head, hands, legs and feet is required. Appropriate protective clothing reduces the risk of injury from flying chip material and accidental contact with the saw chain.
-
Do not use the chainsaw to work on trees. Operating a chainsaw on a tree poses the risk of injury.
-
Ensure you are standing firmly and only use the chainsaw if the ground beneath you is solid, secure and even. Slippery ground or unstable surfaces such as on a ladder can lead to loss of balance or loss of control over the chainsaw.
-
If working on a branch under tension, be aware that it will spring back. Once the tension in the wood fibres has been released, the branch may hit the user and/or control over the chainsaw may be lost.
-
Observe the instructions for lubrication, chain tensioning and replacing accessories. An improperly tensioned or lubricated chain may rip apart or increase the risk of kickback.
-
Keep handles dry, clean and free from oil and grease. Greasy, oily handles are slippery and lead to loss of control.
Only saw wood. Do not use the chainsaw for unintended ap
plications - example: do not use the chainsaw to saw through plastic, masonry or construction materials not made from wood.
Use of the chainsaw for unintended applications can lead to hazardous situations.
Kickback causes and how to avoid them with pole-mounted pruners
Caution - kickbacks! Be aware that you may experience kickback while working with the device. There is a risk of injury. Kickbacks can be avoided through taking the appropriate care and using the correct sawing technique.
-
Kickbacks may occur if the tip of the guide rail touches an object, or if the wood bends and the saw chain gets caught in the cut (see Fig. b).
-
Under some circumstances, contact with tip of the rails can lead to an unexpected backwards reaction movement during which the guide rails move upwards and strike the operator (see Fig. a).
-
If the saw chain becomes stuck along the top edge of the guide rail, the rail can kick back heavily towards the operator.
GBIE
Each of these reactions can lead to you losing control of the saw and potentially being seriously injured. Do not rely exclusively on the safety devices built into the chainsaw. As user of the chainsaw, you should undertake various measures to enable accident- and injury-free working.
A kickback is caused by wrongly or incorrectly operating the electric tool. It can be avoided by suitable cautionary measures, such as described below:
- Hold the saw firmly with both hands with thumbs and fingers surrounding the chainsaw handles. Place your body and arms in a position where you can withstand the kickback forces. The user will be capable of withstanding the kickback forces if suitable measures are undertaken. Never let go of the chainsaw.
- Avoid an abnormal body posture. This will enable better control over the chainsaw in unforeseen situations.
Always use the replacement rails and saw chains specified by the manufacturer. Incorrect replacement rails and saw chains can cause the chain to break apart and/or may lead to kickback.
Comply with the manufacturer's instructions for sharpening and maintaining the saw chain. Depth limiters placed too low
increase the potential for kickbacks.
- Do not saw with the tip of the blade bar (see Fig. b). There is a risk of kickback.
- Ensure there are no objects on the ground which could cause you to stumble.
Additional safety instructions
- Hold the power tool only by the insulated gripping surfaces as the cutting blade may come into contact with concealed power lines. Contact with a live wire can also cause a charge in metal parts of the appliance and result in an electric shock.
- Carefully inspect the surface to be cut, and remove all wires and other foreign bodies.
- Check the appliance before each use for obvious defects such as loose, worn or damaged parts. Check the appliance for significant damage or defects if it is dropped.
If the device has been dropped or struck, you must check the device before starting it and ensure it is in a good condition. - Caution! Local regulations may restrict use of the machine.
Always maintain the device and cutting tool in a good condition. - Observe the following: Improper maintenance, the use of non-compliant spare parts or the unauthorised removal or modification of safety equipment can lead to damage to the device
and serious injuries to the person working with the device.
- Secure the device well during transport to prevent damage to the device and injuries.
- Before use, check the device for loose fastenings and damaged parts, such as cracks in the cutting attachments.
- Wear non-slip protective shoes and close-fitting clothing.
- Do not use any accessories that are not recommended by PARKSIDE. This can result in electric shock or fire.
Observe the safety information and notes on charging and proper use as shown in the instruction manual for your battery and charger from the Parkside X 20 V Team series. A detailed description of the charging process and further information can be found in the separate operating instructions.
Assembly
Remove the battery from the device before carrying out any work on the device.
Only use original parts.
Dismantling is carried out in reverse order.
Remove/insert battery
- To remove the battery (11) from the device, press the release button on the
battery and pull the battery out.
- To insert the battery (11), push the battery along the guide rail into the device. You will hear it click into place.
Only insert the rechargeable batteries once the device is completely assembled. Risk of injury!
Mounting the saw chain
Wear cut-resistant gloves while working with the saw chain.
Pay attention to the correct rotation direction of the saw chain (2). This is specified on the chain wheel cover (5) and on the blade (1).
Tension the saw chain in accordance with the first 5-6 steps. See section "Tensioning the saw chain".
- Place the device on a level surface.
- Remove the sprocket cover (5) by loosening the wing nut (3).
- Place the sawing chain (2) into the blade groove. Place the sawing chain (2) into the chain sprocket (25).
- Place the blade bar (1) and saw chain (2) onto the rail bolts (24). When the nose on the right below the guide bolt sits in the lower round recess on the blade bar, the blade bar is placed correctly. It is normal for the saw chain (2) to sag.
- Put the chain wheel cover (5) on. Only lightly tighten the wing nut (3) of the chain wheel cover as the saw chain must still be tensioned.
- Tension the saw chain (2) by turning the ring (4) of the chain tensioning
system Then firmly tighten the chain wheel cover wing nut (3).
Caution! The pole-mounted pruner can be prone to leaks.
Tensioning the saw chain
Regularly tightening the saw chain provides safety for the user and reduces and/or prevents wear and chain damage. Before starting work and at intervals of approx. 10 minute, we recommend the user to examine the chain tension and correct it if necessary.
The saw chain warms up when working with the saw and thus expands slightly. These "expansions" can be expected especially from newer saw chains.
Do not re-tension or change the saw chain when it is hot because it shrinks slightly once it has cooled down. If this is not observed it can lead to damage on the guide rail or the motor because the saw chain is now too taut on the blade bar.
Chain tension and chain lubrication have a significant impact on the service life of the saw chain.
The saw chain is properly tensioned when it does not hang
from the underside of the blade bar and cannot be moved around by a gloved hand. When pulling on the saw chain with 9N approx. 1kg of force, the saw chain and blade bar should not be separated by a distance of more than 2mm .
Risk of injury! Remove the batteries from the device before working on the device.
Tensioning the saw chain
The chain tensioning ring (4) cannot be turned more than three quarters of a turn. When you are tensioning the chain for the first time, the arrow of the ring (4) and the arrow on the housing of the unit must point to each other.
-
Loosen the wing nut (3) 5.
-
Tension the saw chain (2) by turning the ring (4) of the chain tensioning system clockwise .
Reduce the saw chain tension by turning the ring anti-clockwise
- Tighten the wing nut (3)
The chain tension of a new saw chain must be readjusted after a maximum of 5 cuts.
Assembling the motor head
-
Insert the extension arm (27) into the threaded coupling (26) on the motor head (19). The lug on the extension arm (28) must engage in the recess on the threaded coupling!
-
Screw the coupling nut (6) tight.
Initial Operation
Do not use the equipment without the hand guard. Wear suitable clothing and work gloves when working with the equipment.
Ensure that the equipment is functional before each use. The On/Off switch and the safety switch must not be held closed. They must switch off the motor when on is released. Should a switch be damaged, stop working with the equipment. Ensure that the mains voltage value matches the label on the equipment.
Note noise protection and local specifications. The use of the equipment on certain days (e.g. Sundays and national holidays), at certain times of day (lunch times, night time quiet periods) or in special areas (e.g. health resorts, clinics etc.) is restricted or forbidden.
Chain lubrication
The blade bar and saw chain must never be operated without oil. If the pole-mounted pruner is used with too little oil, the cutting performance and lifespan of the saw chain will decrease as the saw chain will become blunt more quickly. You can identify when there is too little oil if smoke develops or the blade bar changes colour.
The oil flows to the blade bar as soon as the motor starts working.
Filling with chain oil:
-
Check the oil level indicator (30) on the oil tank regularly and top up with oil once the minimum mark "OIL min" is reached. The oil tank holds about 65 ml of oil.
-
Use bio-oil containing additives to reduce friction and wear. You can order this from our service centre.
Alternatively, use chain lubricating oil with a low proportion of adhesion additives. -
Empty the oil tank if it will not be used for a prolonged period of time (6-8 weeks).
-
Unscrew the oil tank cap (29) and pour the chain oil into the tank.
- Wipe away any spilt oil and close the oil tank cap (29).
Always turn off the device and let the motor cool down before filling with chain oil. Overflowing oil can cause a fire.
Checking the oil automation
Before starting work, check the oil automation system.
- Push the tubular shaft (7) completely together (see "Extending the tubular shaft"), switch on the device and hold the blade bar (1) over a light background. The device should not touch the ground. If a trace of oil appears, the device is working flawlessly.
If no trace of oil appears, clean the oil passage (23) or have the device repaired by our customer service department.
Clean the oil passage (23) to ensure fault-free, automatic oiling of the saw chain during operation. Use a brush or a cloth to help remove residues from the oil passage (23).
F
Pivoting the pole-mounted pruner
- Press the locking button (31) and hold it down.
- Hold the pole-mounted pruner by the blade encasing (22) and turn it to the desired position.
There are four possible positions. - Fix the pruner by releasing the locking button (31).
- Check that the pruner is locked in the selected position.
！
Do not make a relief cut with the saw head tilted. There is a risk of kickback, which may render the device uncontrollable.
Putting on the carrying strap
！
Never wear the carrying strap diagonally across your shoulders and chest: only wear it on one shoulder to ensure you can detach the device quickly from your body in the event of danger.
i
Pulling the push-fit lock (9) releases the device quickly from the carrying strap. To open the push-fit lock, press the two clamps together.
- Place the carrying strap (10) on one shoulder.
- Adjust the length of the strap so that the snap hook is approximately 10 cm below your hip.
- Attach the snap hook on the eyelet (8) to insert the carrying strap
G
Moving the eyelet for the carrying strap
You can slide the eyelet (8) to better spread the weight of the device.
- Loosen the hexagon socket screw (32) on the eyelet (8) for the carrying strap using the Allen key (21) from the storage (A12) on the handle.
- Slide the eyelet (8) to the appropriate position.
- Re-tighten the hexagon socket screw (32).
H
Adjusting/mounting the additional handle
Mounting the additional handle
- Open the locking button for the additional handle (33) on the bottom of the additional handle (17).
- Push the additional handle (17) onto the tubular shaft (7).
- Fold the locking button for the additional handle (33) to fix the position.
Adjusting the position
- Unfold the locking button for the additional handle (33) on the bottom of the additional handle (17).
- Move the additional handle (17) to the desired position on the tubular shaft [7].
- Fold the locking button for the additional handle (33) to fix the position.
Adjusting the angle
- Loosen the quick-release lever (16) on the handle (17).
- Set to the desired angle.
- Close the quick-release lever.
D Extending the tubular shaft
- Unfold the locking mechanism of the telescopic extension (18) on the tubular shaft (7).
- Set the extension arm (27) to the desired length.
- Fold the locking mechanism of the telescopic extension (18) to fix the length.
Switching on and off
Ensure your stance is stable and hold the appliance tightly with both hands and away from your body. Before switching the apparatus on, make sure that it is not touching any objects.
- Push the battery (11) along the guide rail into the device. You will hear it click into place.
2.Toswitch on, slide the safety switch (15) forwards and press the on/off switch at the same time (13). The device will run at top speed. You can release the safety switch (15) again. - To switch it off, release the on/off switch (13).
Safe working
If the saw chain gets stuck, do not attempt to pull out the pruner with force. There is a risk of injury. Turn the motor off and use a lever arm or wedge to release the pruner.
- To avoid eye injuries, always wear safety goggles while working with the pole pruner.
Always wear the carrying strap pro
vided when operating the device.
In order to detect significant defects, carry out a visual inspection before use, after the device is dropped or if it suffers any kind of impact. In case of any defects, do not use the device. Instead contact.
- Do not use the high pruning saw when standing on a ladder or in an unsafe position.
- Do not be tempted to make unconsidered cuts. Doing so may endanger both yourself and others.
Children must be supervised to ensure that they do not play with the equipment.
- Long use of the equipment can result in vibration-related circulatory disorders in the hands. However, the length of use can be extended by using suitable gloves or taking regular breaks. Note that a personal tendency for poor circulation, low outdoor temperatures, or high gripping forces during work will reduce the length of use.
While using the pole-mounted pruner, pay attention to the specified working angle of max. 60^ in order to ensure that you work safely with the device. (See illustration
Always stand on the slope above or to the side of the branch to be sawn.
- Hold the device as close as possible to your body. This will ensure the best balance.
The saw chain should have reached its maximum speed before you begin sawing.
- Ensure that the saw chain does not get stuck while sawing. The log must not break or splinter.
- If the saw chain gets stuck, switch off the device immediately and remove the rechargeable battery. Then remove the
object that is causing the device to get stuck.
If the blade gets stuck while cutting, switch off the device and remove the rechargeable battery. Free the blade from the cut using a wedge.
- You will have better control over the device if you saw using the lower edge of the blade bar (saw chain in pulling direction) and not using the upper edge of the blade bar (saw chain in pushing direction).
- Please also observe the precautionary measures to protect against kickback (see the safety information).
- Remove branches hanging downwards by sawing from the top of the branch.
Twisted branches must be individually cut down to size. - The saw chain must not touch the ground or any object while sawing through the material or thereafter.
- Due to the risk of flung and falling objects, make sure to keep bystanders away from the device.
- Stay at least 10m away from overhead power lines. Avoid starting the power tool unintentionally.
Putting down the device
- Place the device on the ground with the motor head first.
- The cutting unit must be placed on the ground without being subjected to any pressure.
- Do not apply any static pressure whatsoever to the cutting unit.
Cutting techniques using the pole-mounted pruner
Be aware of the risk of kickback as well as falling branches and branches on the ground.
- Sawing off small branches:
Place the locating surface of the saw against the branch in order to prevent jerky movements of the saw when you begin to cut it. Guide the saw with light pressure from the top to the bottom through the branch.
Watch out for premature breakage of the branch if you have misjudged the size and weight.
- Sawing off larger branches:
In the case of larger branches, select a relief cut first of all to ensure that the sawing process is controlled. To do this, saw an incision (a) into the bottom third of the branch (with the upper side of the blade). Then saw from top to bottom towards the first cut (with the underside of the blade) (b).
- Sawing in sections:
Saw off large or long branches in sections so that you have control over the
place where the branch section lands.
- Saw the lower branches of the tree off first in order to make it easier for the branches that have been cut off to fall to the ground.
After the cut is completed, the weight of the saw increases abruptly for the operator, as the saw is no longer supported on the branch. There is a danger that you will lose control of the device. - You should only pull the saw out of the cut with the saw chain running in order to avoid jamming.
- Do not saw with the tip of the cutting equipment.
- Do not saw the bulge at the base of the branch because this will prevent the tree from healing.
Maintenance/Cleaning
Warning! Risk of injury by dangerous moving parts!
Repair and servicing work not described in this manual should always be carried by our Service Centre. Use only original parts.
Remove the rechargeable battery from the device before cleaning and maintenance.
Wear gloves when handling the saw chain.
Carry out the following maintenance and cleaning work regularly. This will guarantee a long and reliable service life.
Before each use, check the hedge trimmer for obvious defects such as loose, worn or damaged parts. Check the secure seating of the bolts in the cutter bar.
- Do not use the unit if the blades are blunt or worn. This will overstress the motor and gearbox of the machine.
- Check coverings and safety devices for damage and correct seating. Replace these where necessary.
Cleaning
Remove the rechargeable battery from the device before cleaning.
- Clean the appliance after each use. Clean the motor housing with a damp cloth or a brush. The device must neither be sprayed with water nor be put into water.
- Keep the ventilation channels of the device clean. Use a damp cloth or brush to do this.
- Do not use any cleaning agents or solvents. This could damage the device irreparably. Chemical substances may attack the plastic parts of the device.
Service intervals
Carefully perform the maintenance tasks listed in the following table on a regular basis. Regular servicing of your unit will extend the life of your equipment.
Additionally, you will achieve optimum cutting performance and prevent accidents.
Service intervals table
| Machine part Action | Before each use | After 10 hrs of use | |
| Complete machine | Check condition, replace damaged parts as needed | ✓ | |
| Accessible screws and nuts | Tighten | ✓ | |
| Saw chain | Check, apply oil, reground or replace | ✓ | |
| Blade bar Check, rotate, clean, apply oil | ✓ | ✓ | |
Sharpening the cutting teeth
Have the saw chain sharpened by a specialist, or proceed in accordance with the operating manual for your saw chain sharpening device. Sharpening a saw chain requires some practice. Replacing the saw chain is preferable in case of doubt.
Changing the saw chain
Wear gloves when handling the saw chain.
Never attach a new saw chain onto worn teeth, or onto a damaged or worn blade bar.
- Switch off the device and remove the batteries.
- Remove the sprocket cover (5) by loosening the wing nut (3) first
- Remove the old saw chain (2).
The mounting and tensioning of the new saw chain is described in the "Assembly - Mounting the saw chain" and "Tensioning the saw chain" section.
B
Servicing the blade bar
The blade bar has to be reversed every 8-10 operational hours in order to ensure even wear (see the "Servicing and cleaning - rotating the blade bar" chapter").
- Switch off the device and remove the battery.
- Remove the sprocket cover (5), the saw chain (2) and the blade bar (1).
- Check the blade bar (1) for wear. Remove burrs and straighten the guide surfaces with a flat file.
- Clean the oil passage (23) to ensure fault-free, automatic oiling of the saw chain during operation.
- Mount the blade bar, saw chain and sprocket cover and retighten the saw chain (see the "Assembly" chapter).
B
Turning the blade bar
Wear gloves when handling the saw chain.
- Switch off the device and remove the battery.
-
Remove the sprocket cover (5) by loosening the wing nut (3) first
-
Remove the saw chain (2) and the blade bar (1).
- Turn the blade bar (1) once along its horizontal axis.
- Place the saw chain (2) into the blade groove. Place the saw chain (2) into the chain sprocket (25).
- Place the blade bar (1) and saw chain (2) onto the coach screw (24). When the lug to the right of the coach screw sits in the slotted recess on the blade, the blade is placed correctly. It is normal for the saw chain (2) to sag.
- Put the chain wheel cover (5) on. Only lightly tighten the wing nut (3) of the chain wheel cover as the saw chain must still be tensioned.
- Tension the saw chain (2) by turning the ring (4) of the chain tensioning system. Then firmly tighten the chain wheel cover wing nut (3).
When the blade bar is turned (1), the running direction is inverted compared to the pictogram.
Storage
Perform cleaning and maintenance work before storage.
- Store the device with the supplied blade encasing (A 22) in a dry, dust-free location and out of reach of children. Store the appliance in a horizontal position or secured against toppling over.
- Empty the oil tank if it will not be used for a prolonged period of time (6-8 weeks).
- Clean the device and accessories carefully before storage.
- Do not wrap the device in plastic bags as moisture and mildew may form.
Transport
Never transport your appliance while the appliance is turned on! Risk of injury!
Always use the blade encasing (A 22) to transport the device.
Always carry the device with the cutting unit pointing backwards using both hands, one on the handle (A 14) and the other on the additional handle (A 17).
Waste Disposal and Environmental Protection
Remove the batteries from the device and recycle the device, battery, accessories and packaging in an environmentally-friendly manner.
Do not dispose of waste oil in the sewer or your drain system. Dispose of waste oil in an environmentally friendly way - take it to your local recycling centre.
Electrical machines do not belong in domestic waste.
In accordance with the EU directive 2012/19/EU on waste electrical and electronic equipment and its implementation in national law, used electrical devices must be collected separately for disposal and recycled in an environmentally sound manner.
Alternative to returning the device: If not sending back the electrical device, its owner is instead obliged to cooperate with its proper recycling in the event of a change in ownership. The old device can be handed over to a collection facility which will dispose of it in compliance with
the national circular economy and waste legislation.
This does not affect accessories enclosed with the old devices or tools without any electrical components.
- Take the equipment to a waste disposal site. The plastic and metal parts that are used can be separated out into pure grade, which allows recycling. Ask our Service Centre for details.
- We will dispose of any defective devices that you send to us free of charge.
- Feed clippings to composting and do not throw them into the refuse bin.
Spare Parts/Accessories
Spare parts and accessories can be obtained at www.grizzlytools-service.eu
If you have issues ordering, please use the contact form. If you have any other questions, contact the "Service-Center" (see page 49).
| Pos. manual | Pos. exploded drawing | Description | Order No. |
| A 1 | 50 | Blade bar 8" | 30100451 |
| A 2 54 Saw chain 30091329 | |||
| A 5 43-48 Sprocket cover | 91106093 | ||
| A 10 | 13 | Carrying strap | 91106096 |
| A 17 | 34 | Additional handle | 91106092 |
| A 20 | - | Bio chain oil, 180 ml | 30230010 |
| A 21 | 12 | Allen key | 91105852 |
| A 22 | 78 | Blade encasing | 91104368 |
A Trouble Shooting
| Problem Possible cause Troubleshooting | ||
| Device does not start | Discharge the battery (11) | Charge the battery (observe the separate operating instructions for the rechargeable battery and charger) |
| Battery (11) not inserted | Insert the rechargeable battery (observe the separate operating instructions for the rechargeable battery and charger) | |
| On/off switch (13) is broken | Repair by service centre | |
| Defective motor | ||
| Device works with interruptions | Internal loose contact | Repair by service centre |
| On/off switch (13) is broken | ||
| Saw is having difficulties running, chain jumps off | Insufficient chain tension Check | Check chain tension |
| Chain gets hot, smoke develops while sawing, the rail changes colour | Too little chain oil | Check oil level and top of chain oil if necessary, check the oil automation and clean the oil drainage duct as needed, or arrange for repair by customer service |
| Bad cutting output | Saw chain (2) dull | Sharpen or replace saw chain (service centre) |
| Insufficient chain tension Check chain tension | ||
Guarantee
Dear Customer,
This equipment is provided with a 3-year guarantee from the date of purchase. In case of defects, you have statutory rights against the seller of the product.
These statutory rights are not restricted by our guarantee presented below.
Terms of Guarantee
The term of the guarantee begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase.
If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace - at our choice - the product for you free of charge. This guarantee requires the defective equipment and proof of purchase to be presented within the three-year period with a brief written description of what constitutes the defect and when it occurred.
If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee period begins on repair or replacement of the product.
Guarantee Period and Statutory Claims for Defects
The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately after unpacking. Repairs arising after expiry of the guarantee period are chargeable.
Guarantee Cover
The equipment has been carefully produced in accordance with strict quality guidelines and conscientiously checked prior to delivery.
The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may therefore be considered as wearing parts (e.g. chain) or to cover damage to breakable parts (e.g. switches).
This guarantee shall be invalid if the product has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specified in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided.
The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or interventions not undertaken by our authorised service branch.
Processing in Case of Guarantee
To ensure efficient handling of your query, please follow the directions below:
- Please have the receipt and item number (IAN 354671_2010) ready as proof of purchase for all enquiries.
- Please find the item number on the rating plate.
- Should functional errors or other defects occur, please initially contact the service department specified below by telephone or by e-mail. You will then receive further information on the processing of your complaint.
After consultation with our customer service, a product recorded as defec
five can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and specification of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure adequate, safe transport packaging.
Repair Service
For a charge, repairs not covered by the guarantee can be carried out by our service branch, which will be happy to issue a cost estimate for you.
We can handle only equipment that has been sent with adequate packaging and postage.
Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect.
Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted.
We will dispose of your defective devices free of charge when you send them to us.
Service-Center
Service Great Britain
Tel.: 0800 404 7657
E-Mail: grizzly@lidl.co.uk
IAN 354671_2010
Service Ireland
1890 930 034
(0,08 EUR/Min., (peak))
(0,06 EUR/Min., (off peak))
E-Mail: grizzlyy@lidl.ie
IAN 354671_2010
Importer
Please note that the following address is not a service address. Please initially contact the service centre specified above.
Garantie - France. 73
Chere cliente, cher client,
Chere cliente, cher client,
Rychlost refaze v. 5 m/s
Delenie refaze 3/8"
Hrubka pohonneho clanku 1,3 mm
Objem olejovej nadrzky...65 cm / 65 ml Vibraciona drzadle
(a) 0,69 m/s²; K=1,5 m/s²
Vending of svaerd. 189
Opbevaring 189
Transport 189
Kaehehjulets fortanding. 7
Kaepe Trilink CL1503TL
Kaehehastighed v. 5 m/s
Kaededeling 3/8"
1,3 mm
Olietankvolumen 65 cm³ / 65 ml
Spending of savkaeden
Montering at motorhoved
Henstilling of apparatus
| GB IE | Translation of the original EC declaration of conformity |
| We hereby confirm that the Cordless Pole Saw model PAHE 20-Li B2 Serial number 000001 - 157000 conforms with the following applicable relevant version of the EU guidelines: | |
| 2006/42/EC • 2014/30/EU • 2000/14/EC & 2005/88/EC 2011/65/EU* & (EU) 2015/863 | |
| In order to guarantee consistency, the following harmonised standards as well as national standards and stipulations have been applied: | |
| EN 60745-1:2009/A11:2010 • EN ISO 11680-1:2011 EN 55014-1:2017/A11:2020 • EN 55014-2:2015 EN IEC 63000:2018 | |
| We confirm the following in accordance with the 2000/14/EC emissions guideline: Sound power level: measured: 93,5 dB(A) guaranteed: 99 dB(A) | |
| Compliance evaluation process carried out in accordance with Appendix. VI/ 2000/14/EC Registered Office: NB 0123 • TÜV SÜD Product Service GmbH • Zertifizierstelle • Ridlerstraße 65 • 80339 München • Deutschland | |
| Design Type Certificate No.: M6A0366070810 Rev. 00 | |
| This declaration of conformity is issued under the sole responsibility of the manufacturer: | |
| CE Grizzly Tools GmbH & Co. KG Stockstädtler Straße 20 63762 Großostheim, 15.05.2021 Germany | Christian Frank Documentation Representative |
- The object of the declaration described above satisfies the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances.
