| Product Type | Cordless electric branch trimmer (pole pruner) |
| Brand | Parkside |
| Model | PAHE 20Li C3 |
| Rated voltage | 20 V (DC) |
| Compatible battery type | Lithium-ion, X20V Team series (PAP 20 A1/A2/A3/B1/B3, PAPS 204 A1, PAPS 208 A1) |
| No-load speed | 2500 min⁻¹ |
| Max. chain speed | 5 m/s |
| Cutting length | 200 mm |
| Oil tank capacity | 65 ml |
| Weight (without battery and accessories) | approx. 2.6 kg |
| Sound pressure level (LpA) | 82.4 dB(A) (K=3 dB) |
| Sound power level (LWA) | 92.2 dB(A) (K=2.35 dB) |
| Front handle vibration | 2.689 m/s² (K=1.5 m/s²) |
| Rear handle vibration | 2.220 m/s² (K=1.5 m/s²) |
| Bar | 8 inches (200 mm), bar groove |
| Saw chain | 050 33E |
| Telescopic pole | Yes, continuously adjustable |
| Adjustable cutting angle | 3 positions |
| Warranty | 3 years |
| Delivery contents | Saw head, pole, shoulder strap, sheath, bar, chain, 100 ml bio oil, mounting tool, user manual |
Frequently Asked Questions - PAHE 20Li C3 PARKSIDE
User questions about PAHE 20Li C3 PARKSIDE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Electric pruner in PDF format for free! Find your manual PAHE 20Li C3 - PARKSIDE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PAHE 20Li C3 by PARKSIDE.
USER MANUAL PAHE 20Li C3 PARKSIDE
Translation of the original instructions
FR
ELAGUEUSE SUR PERCHESANS FIL 20 V
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.
DE
GB Translation of the original instructions Page 1
| DE | Originalbetriebsanleitung | Seite | 23 | |
| FR | Traduction des instructions d'origine Page 45 | |||
| NL | Vertaling van de originele gebruiksaanwijzing | Pagina 69 | ||
| CZ | Překlad originálniho provozního námovodu Strana 91 | |||
| PL | Tlumaczenie oryginalej instrukcji obstrugi | Strona | 113 | |
| SK | Preklad originálneho námovodu na obsluhu | Strana 135 | ||
| ES | Traduzione del manual de instrucciones original | Pagina 157 | ||
| DK | Oversætelse af den originale driftsvejledning | Side | 179 | |

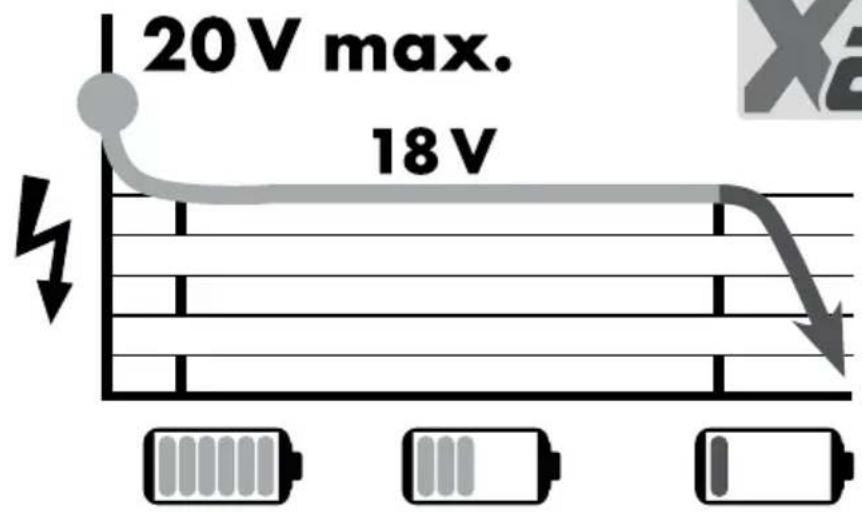

All Parkside tools and the chargers PLG 20 A1/A4/C1/A2/C2/A3/C3/PDSLG 20 A1 of the X20V Team series are compatible with the PAP 20 A1/A2/A3/B1/B3/PAPS 204 A1/PAPS 208 A1 battery pack.
Intended use 2
Features 2
Package contents 3
Technical data 3
General power tool safety warnings 5
1.Work area safety 5
2. Electrical safety 5
3. Personal safety 5
4. Power tool use and care 6
5. Use and handling of the cableless electrical power tool 6
6. Service 6
Appliance-specific safety instructions for cordless pruners. 7
Precautions against kickback 8
Further safety instructions 8
Safety guidelines for battery chargers 9
Original accessories/auxiliary equipment 10
Before initial use 10
Charging the battery pack (see fig. A) 10
Attaching/disconnecting the battery pack to/from the device. 10
Checking the battery charge level 1
Fixing/attaching the shoulder strap 11

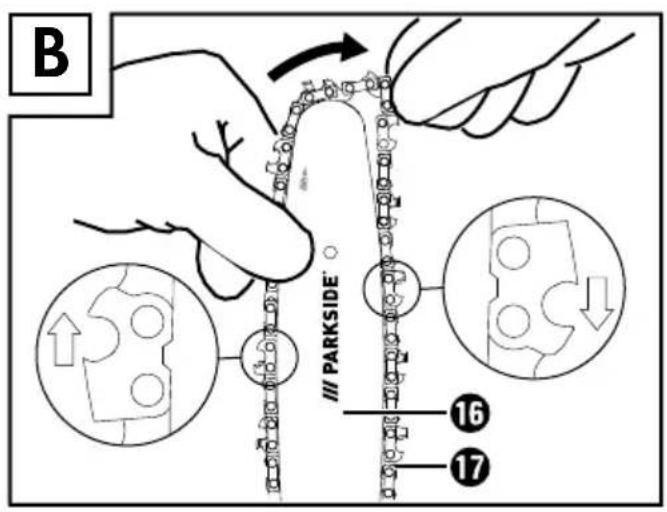

Mounting the saw chain and blade 11

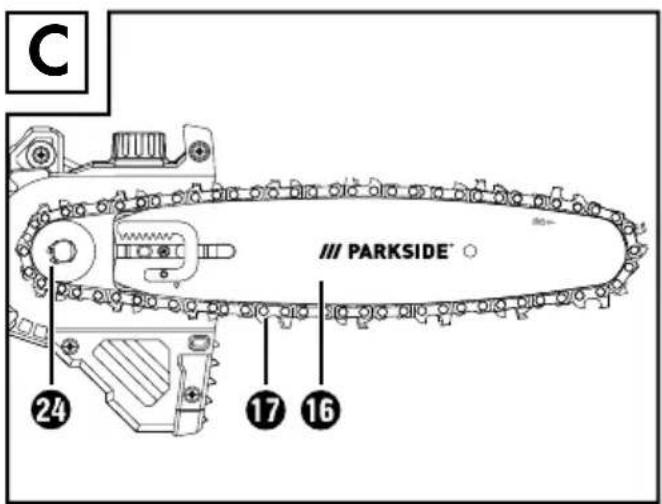

Tightening and checking the saw chain 11
Lubricating the chain 12
Mounting the saw head on the telescopic handle 12
Sharpening the saw chain 12
Initial use 12
Switching on and off 12
Checking the automatic oil system 13
Adjusting the telescopic handle 13
Adjusting the handle 13
Adjusting the cutting angle 13
Sawing techniques 13
Working safely 14
Transport and storage 15
Cleaning and maintenance 15
Troubleshooting: Cordless pruner 16
Maintenance intervals: Cordless pruner 16
Spare part orders 16
Disposal 17
Kompernass Handels GmbH warranty 18
Service 19
Importer
Translation of the original Conformity Declaration 20

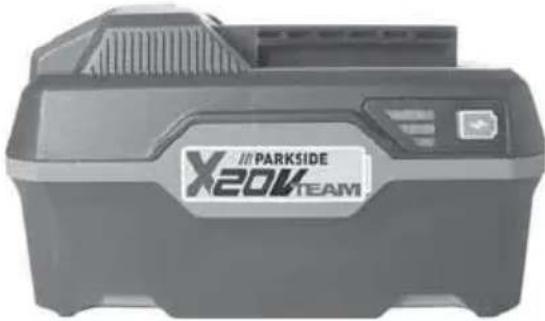

Ordering a replacement battery 21
Telephone ordering 21
CORDLESS POLE SAW 20V PAHE 20-Li C3
Introduction
Congratulations on the purchase of your new appliance. You have selected a high quality product. The operating instructions are part of this product. They contain important information on safety, usage and disposal. Before using the product, familiarise yourself with all handling and safety instructions. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner(s).
Intended use
This appliance is intended for trimming branches in trees. It is not designed for extensive sawing work, felling trees or cutting of materials such as masonry, plastics or foods. Use this product only as described and for the areas of applications specified. The appliance is not meant for commercial use. The appliance is designed for use by adults. This appliance is not intended for use by anyone (including children) with reduced physical, sensory or mental capabilities or lack of experience and/or knowledge. The use of the appliance in rain or in humid environments is prohibited. Avoid using the pole pruner in an ambient temperature of less than 10^ . Any other usage of or modification to the appliance is deemed to be improper and carries a significant risk of accidents. The manufacturer shall assume no liability for damage attributable to misuse.

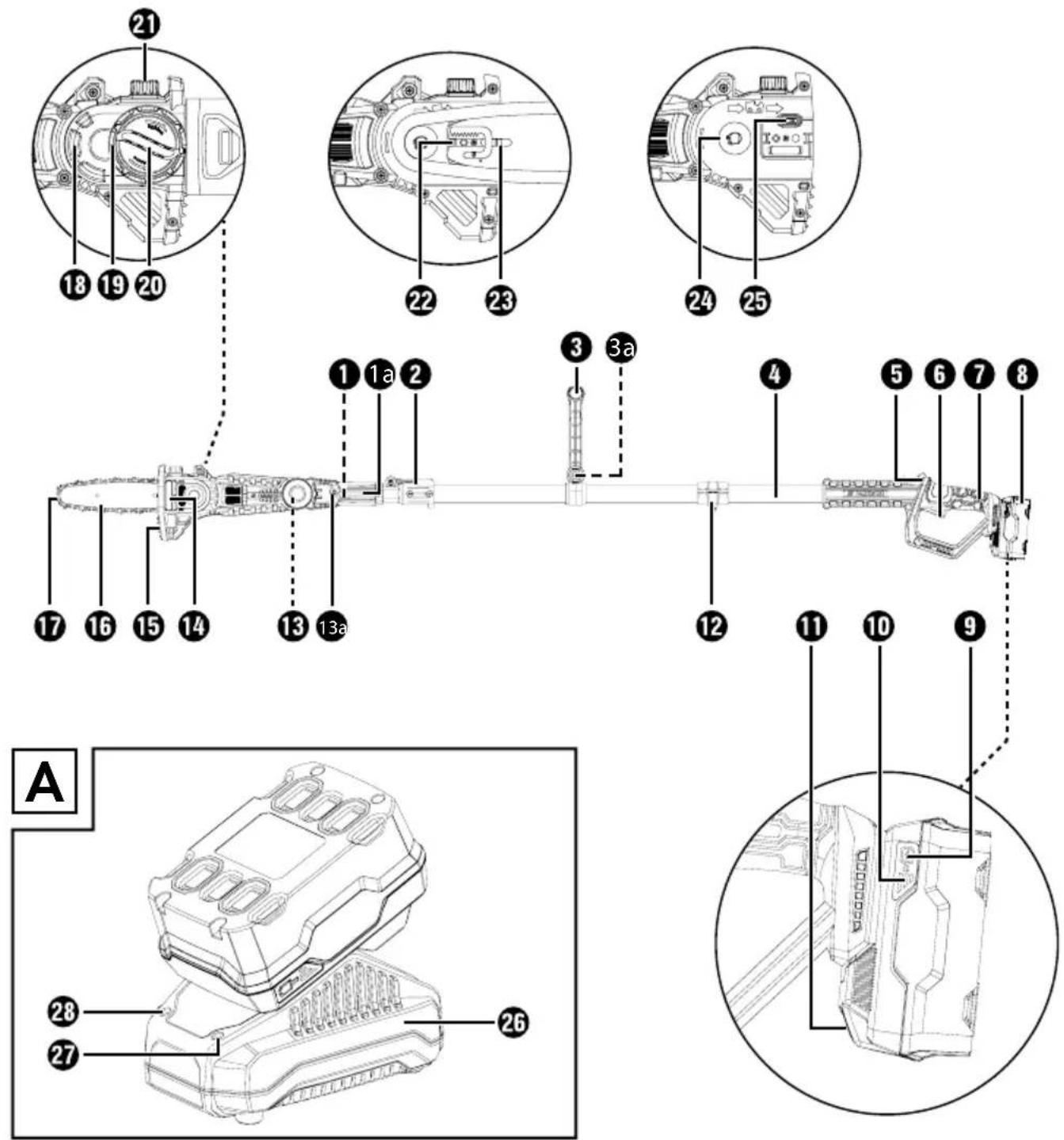

Features
1 Telescopic handle
1a Connecting piece
Quick release for telescopic handle
3 Handle
3a Handle screw
4 Appliance shaft
5 Safety lock-out
6 ON/OFF switch
7 Rear handle
8 Battery pack
Battery charge level button
10 Battery display LED
1 Release button for battery pack
12 Carrying lug
13 Release button for cutting angle
13 Saw head
Viewing window for the oil level
15 Stop
16 Blade
Saw chain
16 Sprocket cover
19 Chainring
20 Mounting screw
2 Oil filler cap
Blade guide
23 Guide rail
24 Chain sprocket
25 Oil dispenser
26 High-speed charger
Red charge control LED
28 Green charge control LED

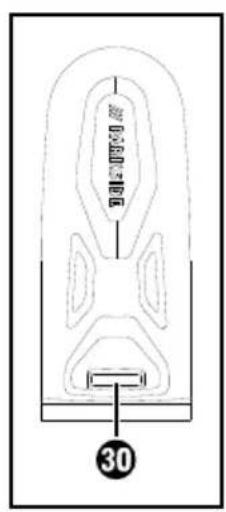

29 Shoulder strap
30 Blade guard
Organic chain oil

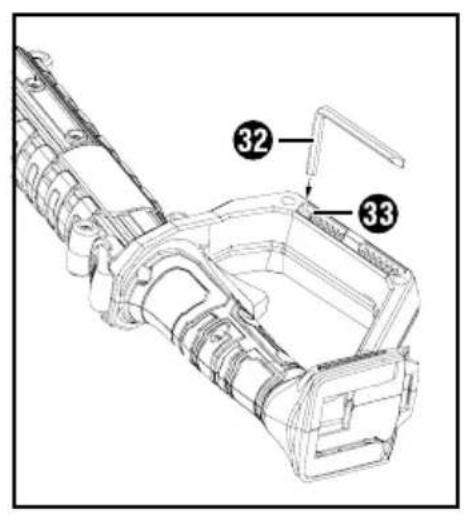

Assembly tool
Mounting bracket for the assembly tool
Package contents
1 cordless pole saw 20V
1 saw head
1 shoulder strap
1 blade guard
1 Blade
1 saw chain
100 ml organic chain oil
1 assembly tool
1 operating instructions
Technical data
Cordless Pole Saw 20V PAHE 20-Li C3
Rated voltage 20V (direct current)
Max. rotational speed 2500 min
No-load speed max. 5m / s
Weight (without battery, cutting tool
and strap) approx. 2.6kg
Oil tank volume 65 cm
Cut length approx. 200mm
Blade 8
Saw chain 05033E
Use only the following battery to operate the cordless tool PAP 20 A3*
Type LITHIUM
Rated voltage 20V (direct current)
Capacity 4000 mAh/80 Wh
Cells 10
Use only the following high-speed battery charger to charge the cordless tool PLG 20 A2*
INPUT
Rated voltage 230-240 V\~, 50 Hz
(alternating current)
Power consumption 85 W
Fuse (internal) 3.15 A
OUTPUT
Rated voltage 21.5V (direct current)
Charging current 3.5 A
Charging time approx. 80 min
Protection class II/ (double shielded)
- BATTERY AND CHARGER NOT INCLUDED IN DELIVERY
Noise and vibration data
Measured values for noise determined in accordance with EN 62841-1 & EN ISO 11680-1. The
A-rated noise level
of the power tool is typically as follows:
Sound pressure level L_PA = 82.4 ~dB(A)
Uncertainty K_pA = 3dB
Sound power level I_VA = 92.2 ~dB(A)
Uncertainty K_WA = 2.35 dB
Guaranteed sound power level L_WA = 95 dB (A)
Wear ear protection!
Vibration values (vector total of three directions) determined in accordance with EN 62841-1 & EN ISO 11680-1:
Vibration at front handle
Vibration emission value q_h,D = 2.689 m/s
Uncertainty K = 1.5m / s^2
Vibration at rear handle
Vibration emission value a_h,D = 2.220 m / s
Uncertainty K = 1.5m / s^2
WARNING!
Depending on the use and the activities to be performed, the sound pressure level must be reduced to a level that does not adversely affect the health of the operator. The sound pressure level at the workplace may exceed 80 dB (A). In this case, sound insulation measures are required for the operator (e.g. wearing hearing protection).
Also reduce the risk of vibration, e.g. the risk of white-finger disease due to frequent breaks in work where like rubbing their palms together! Translated with www.DeepL.com/ Translator (free version)
NOTE
The vibration level specified in these instructions has been measured according to a standardized measurement procedure and can be used for equipment comparison. The vibration emission value given may also be used for an initial assessment of exposure.
WARNING!
The vibration level varies in accordance with the use of the power tool and may be higher than the value specified in these instructions in some cases. There is a risk of underestimation of the vibration load if the power tool is used regularly in this manner. Try to keep the vibration loads as low as possible. Measures to reduce the vibration load are, e.g. wearing gloves and limiting the working time. In this case all states of operation must be included (e.g. times when the power tool is switched off and times where the power tool is switched on but running without load).
Explanation of symbols on the appliance
Read the operating instructions and safety advice before initial operation!
Wear protective gloves!
Wear safety shoes!
Wear ear protection!
Wear a hard hat!
Wear safety goggles!
Keep bystanders away from the appliance!
Do not use chain saw one-handed!
Always use chain saw two-handed!
Beware of chain saw kickback and avoid contact with bar tip!
Protect the appliance against rain or moisture!
Keep at least 10 m away from overhead lines and at least 15 m to other people.
Caution! Falling objects. Especially when cutting above head height.
Beware of thrown objects!
Caution! Risk of injury due to running blades.
Sound power level LWA data in dB.
Turn the device off and remove the battery pack before performing any maintenance work!!
A full tank will last for approx. 15 minutes of continuous operation.
Running direction of the chain!
Oil filler cap
MIN/MAX
Minimum/maximum level indicator of the oil tank.
Tighten!
Release!
The arrow direction marks the selected position.
Press in the direction of the arrow.
! power tool safe
General
WARNING!
Read all safety warnings and all instructions. Failure to follow the safety instructions and other instructions may result in electric shock, fire and/or serious injury.
NOTE
National regulations may restrict the use of the appliance.
Save all safety instructions and other instructions for future reference.
The term "power tool" in the safety instructions refers to your mains-operated (cable) power tools or battery-operated (cableless) power tool.
1. Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2. Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cable. Never use the cable for carrying, pulling or unplugging the power tool. Keep cable away from heat, oil, sharp edges or moving parts. Damaged or entangled cables increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cable suitable for outdoor use. Use of a cable suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3. Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are ill, tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear safety goggles. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection systems can can reduce dust-related hazards.
4. Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch is defective. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children. Do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations other from those intended could result in a hazardous situation.
5. Use and handling of the cableless electrical power tool
a) Charge a rechargeable battery unit using only the charger recommended by the manufacturer. Chargers are often designed for a particular type of rechargeable battery. There is a risk of fire if other types of rechargeable battery are used.
b) Only the rechargeable battery units supplied are to be used with the power tools. The use of other rechargeable battery units may lead to the danger of injury or fire.
c) When they are not being used, store rechargeable battery units away from paper clips, coins, keys, nails, screws or other small metal objects that could cause the contacts to be bridged. Short-circuiting the contacts of a rechargeable battery may result in burns or fire.
d) Fluid may leak out of rechargeable batteries if they are misused. If this happens, avoid contact with the fluid. If accidental contact occurs, rinse the affected area with water. Seek additional medical help if any of the fluid gets into your eyes. Escaping battery fluid may cause skin irritation or burns.
CAUTION! RISK OF EXPLOSION! Never charge non-rechargeable batteries.
Protect the rechargeable, for example, from to sunlight), fire, water a risk of explosion.
6. Service
a) Have your power tool serviced by a qualified repair person using only original replacement parts. This will ensure that the safety of the power tool is maintained.
Appliance-specific safety instructions for cordless pruners
Always wear a hard hat, hearing protection and safety gloves. Also wear eye protection to prevent splashes of oil or saw dust from falling into your eyes. Wear a dust mask to protect yourself from dust.
Never use the appliance while standing on a ladder.
Do not lean too far forwards while using the appliance. Ensure you are standing firmly and keep your balance at all times. Use the supplied carrying strap to spread the weight evenly on the body.
Wear sturdy, non-slip boots.
Do not use the appliance in the rain.
Do not use the appliance near overhead power lines. Maintain a minimum distance of 10m to overhead power lines.
Do not stand under the branches that you want to cut off, to avoid injuries due to falling branches. Be aware of branches that may spring back, to avoid injuries. Work at an angle of approximately 60^ .
■ Be aware that the appliance can kick back.
- Keep an eye not only on the branches being cut, but also on falling material, to avoid tripping.
After 30 minutes' work, take a break of at least one hour.
Always wear protective gloves.
Cover the guide rail and the chain during transport during transport and storage using the cover.
Do not use the appliance in a potentially explosive environment containing flammable liquids, gases or dusts. The sparks generated by the machine could ignite the vapours or gases.
The power outlet used must be suitable for the plug. To avoid electrical shocks, never try to modify the plug.
Never remove the plug from the power supply by pulling on the power cable. Always pull the power plug itself. Do not drag or carry the appliance using the power cable. Keep power cable away from heat, oil, sharp edges or moving parts.
Remove the battery pack from the appliance after completion of work or during cleaning and maintenance.
Avoid unintentional starting of the appliance.
Appliances with defective switches must be repaired immediately to avoid damage or injuries.
Store the appliance outside of the reach of children. Only those who are fully acquainted with these operating instructions and the appliance itself may operate the appliance.
- Maintain power tools carefully. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
Therefore, have the appliance checked by qualified specialists. Use only the replacement parts recommended by the manufacturer.
Precautions against kickback
CAUTION! KICKBACK!
Be aware of the danger of kickback when working with the appliance. There is a risk of personal injury. You can avoid kickbacks by being careful and using the correct sawing technique.
Contact with the tip of the rail can, in some cases, lead to an unexpected rearwards reaction resulting in the guide rail 23 flying upwards towards the operator (see Fig. 1).
Fig. 1
■ Kickbacks can occur if the tip of the guide rail touches an object or if the wood bends and the saw chain gets caught in the cut (see Fig. 2).
Fig. 2
If the saw chain jams in the upper edge of the guide rail the rail can kick back violently towards the operator.
Any such reaction can lead to you losing control over the saw and possibly injuring yourself. Do not rely solely on the chainsaw's built-in safety devices. As the user of a chainsaw, you can take a number of measures to avoid accidents and injury. A kickback is caused by incorrect use or misuse of the power tool. It can be avoided by taking proper precautions as given below:
Hold the saw firmly with both hands, with your thumb and finger around the handles of the chainsaw. Hold your body and arms in a position in which you can withstand kickback forces. If suitable measures are taken, the operator can control the recoil forces. Never let go of the chainsaw.
Avoid an abnormal posture. This will prevent inadvertent contact with the tip of the rail and allows a better control of the chainsaw in unexpected situations.
Always use the replacement rails and saw chains specified by the manufacturer. Incorrect replacement rails and saw chains can lead to a tearing of the saw chain and/or kickback.
Follow the manufacturer's instructions for sharpening and maintenance of the saw chain. Setting the depth stop too low can increase the risk of kickback.
Do not saw with the tip of the blade. This can lead to kickback.
Ensure that there are no objects on the ground that you can trip over.
Further safety instructions
CAUTION! RISK OF INJURY!
To prevent injuries, never touch the appliance above the handle 3 while it is running!
During operation, no other person or animal may be within a radius of 15 metres. The operator is responsible for third parties within the working area.
- Keep the appliance, the cutting mechanism and the blade guard in good condition to prevent injury.
Before each use, check the appliance for worn, loose or deformed parts. This ensures that the safety of the appliance is maintained.
Children should be supervised to ensure that they do not play with the appliance.
Do not use the appliance until you have familiarised yourself with its use.
Do not work with a damaged or incomplete appliance or an appliance that has been modified without the consent of the manufacturer. Never use the unit with defective protective equipment. Do not use the appliance if it has a defective on/off switch. Before use, check the security state of the appliance, especially the blade and the saw chain. If the appliance has been dropped, check for significant damage or defects.
Never start the appliance before the blade, saw chain and sprocket covers have been fitted correctly.
When starting and operating the appliance, ensure that it does not come into contact with the ground, stones, wire or other foreign material. Switch the appliance off before you put it down.
The device is designed for two-handed operation. Never work with one hand.
Hold the appliance only by the insulated handles as the saw chain could come into contact with hidden power lines. Contact between the saw chain and a live wire may make exposed metal parts of the power tool live and could give the operator an electric shock.
Make sure that the appliance is switched off when relocating the appliance and that you cannot accidentally touch the on/off switch. Carry the appliance with the saw chain and blade facing backwards. Fit the blade guard during transportation.
- Attach the bumper spike firmly before every cut and do not start until this has been done.
■ Be extremely careful when sawing small bushes and branches. The thin branches and twigs can catch in the saw and fly in your direction or knock you off balance.
Do not cut any wood that is lying on the ground and do not attempt to saw roots that are protruding from the soil. Avoid immersing the saw chain in the soil at all costs, as this could blunt the saw chain.
When sawing a branch under tension, be aware of the possibility of the branch flying back once the tension is suddenly removed. There is a risk of personal injury.
Do not use force to free the appliance if the cutting tools get caught or jammed in branches. Switch the appliance off immediately and do not switch it on until the blockage has been removed. There is a risk of personal injury!
We recommend attending a course on the use and maintenance of pole pruners and also a first aid course. After prolonged periods of non-use, and for practice, you should always make simple cuts in securely supported wood before starting in order to re-familiarise yourself with the appliance.
Safety guidelines for battery chargers
This appliance may be used by children aged 8 years and above and by persons with limited physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use the appliance safely and are aware of the potential risks. Children must not use the appliance as a plaything. Cleaning and user maintenance tasks may not be carried out by children unless they are supervised.
The charger is suitable for indoor use only.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
RESIDUAL RISKS!
Even if you operate this power tool properly, there will still be residual risks. The following risks can occur in the context of the design and construction of this power tool:
a) Cuts
b) Hearing damage, if no suitable hearing protection is worn.
c) Damage to health caused by hand-arm vibrations if the appliance is used for extended periods or is not properly used and maintained.
WARNING!
Do not operate the appliance with a damaged cable, power cable or power plug. A damaged power cable causes danger to life by electric shock.
Original accessories/auxiliary equipment
Use only the additional equipment and accessories detailed in the operating instructions. The use of tools and accessories other than those recommended in the operating instructions could lead to an increased risk of personal injury for you.
Before initial use
Charging the battery pack (see fig. A)
CAUTION!
Always unplug the appliance before you remove the battery pack 8 or connect the battery pack to the high-speed charger 26
Never charge the battery pac8 when the ambient temperature is below 10^ or above 40^ .
Connect the battery pack to the high-speed charger.
Insert the power plug into the mains power socket. The red control LED will light up.
The green control LED indicates that the charging process is complete and the battery pack ready for use.
CAUTION!
If the red control LED 27 1 flashes, this means that the battery pack as overheated and cannot be charged.
If the red and green control LED37 28 flash simultaneously, this means that the battery pack defective.
Fit the battery pack back onto the appliance.
Attaching/disconnecting the battery pack to/from the device
Attaching the battery pack
Allow the battery pack to click onto the rear handle 7f the appliance.
Removing the battery pack
Press the release button and remove the battery pack 8.
Checking the battery charge level
Press the battery charge level button to check the status of the battery. The status/ remaining charge will be shown on the battery display LED as follows: RED/ORANGE/GREEN = maximum charge/ performance RED/ORANGE = medium charge/performance RED = low charge - charge the battery
Fixing/attaching the shoulder strap
Hook the shoulder strap into the carrying lug 12
Adjust the length of the shoulder strap to your size so that carrying lug at hip height when hooked in place.
In addition, you can adjust the height of the carrying lug 12 on the appliance shaft 4y loosening the screw.
Mounting the saw chain and blade
WARNING!
Wear protective gloves! There is a danger of injury from the sharp cutting teeth!
The sprocket covers together with the chain tensioning ring and the fixing screw are not pre-assembled on the appliance at delivery.
The turning of the blade is not intended by the manufacturer.
The chain travel direction on the blade must be adhered to every assembly.
Place the saw chain 17 on the blade 16. Ensure that the saw chain is rubbing in the correct direction (see Fig. B).
Attach the blade with the labelling facing upwards and guide the saw chain around the chain sprocket. The guide rail must be above the blade guide (see Fig.C).
Put the sprocket cover on.
Tighten the fixing screw slightly.
Now, tighten the saw chain (see section Tightening and checking the saw chain).
Tighten the fixing screw completely.
Tightening and checking the saw chain
WARNING!
Wear protective gloves! There is a danger of injury from the sharp cutting teeth!
Undo the fixing screw20.
Turn the chain tensioning ring in a clockwise direction to increase the tension.
The saw chain must lie against the underside of the blade. Check whether the saw chain can be drawn over the blade by hand 16
Now tighten the fixing screw completely.
NOTE
A new saw chain 1 stretches and must be tightened more regularly.
Lubricating the chain
Remove the oil filler cap.
Fill the oil tank with approx. 65~ml of organic chain oil 31
WARNING!
- Never work without chain lubrication! If the saw chain 1uns dry, the cutting equipment may become irreparably damaged within a short time. Always check chain lubrication and oil level 1h the tank before starting work.
NOTE
Use only saw chain oil. Preferably biodegradable. Do not use waste oil, motor oil, etc.
While working, check whether the automatic chain lubrication is working correctly. Check the chain lubricator before and during work.
Mounting the saw head on the telescopichandle
Place the lower end of the saw head 13a on the upper end of the telescopic handle 1 so that the saw head 13a can be pushed through as far as the black plastic ring. Make sure that the groove and the recess interlock with each other.
Tighten the red connecting piece by turning it towards the symbol on the saw head 13a.
Sharpening the saw chain
NOTE
You will find detailed information on sharpening in the sharpening set.
Alternatively, you can use an electrical saw chain sharpening device and follow the instructions of the manufacturer.
If you have any doubts about implementing the work, the saw chain should be replaced.
Initial use
NOTE
Comply with regulations regarding noise protection and local rules. Using the appliance on certain days (e.g. on Sundays and public holidays), during certain times (midday period, night time) or in certain locations (e.g. health resorts, clinics, etc.) may be restricted or prohibited.
Switching on and off
Switching on
Press the safety lock-out and keep it pressed and then press the on/off switch
After the starting process, the safety lock-out can be released.
Switching off
Release the ON/OFF switch 6.
Checking the automatic oil system
Before starting work, check the window for the oil level and the automatic oil system.
Switch the appliance on and hold it over a lightly coloured floor surface. The appliance must not touch the ground.
If there is an oil trace, the appliance is operating correctly.
If there is no oil trace, clean the oil dispense or have the appliance repaired by our Customer Service.
To clean, wipe the residues from the oil dispenser 25 using a brush or cloth.
Adjusting the telescopic handle
The telescopic handle 1 can be adjusted continuously by means of the quick release 2
Activate the quick release and adjust the length by pushing or pulling as required.
Close the quick release again, thereby fixing the desired working length of the telescopic handle
If the screw of the quick release has loosened, tighten it again with a hex key.
Adjusting the handle
Undo the screw on the handle 3a until the handle can be moved.
Set the handle in the desired position.
Retighten the screw on the handl33.
Adjusting the cutting angle
NOTE
The cutting angle can be adjusted in 3 stages.
Remove the battery pac8 from the appliance.
Press the release button.
Adjust the angle of the motor unit to the required position.
Let go of the release button and the motor unit will click into place.
Insert the battery pack back into the appliance.
Sawing techniques
W
ARNING!
Pay attention to falling clippings.
Be aware of the danger of branches flying back.
NOTE
Place the stop on the branch. This will help you work more safely and quietly.
Now you can begin with the sawing.
Sawing off small branches
Saw small branches (00 - 8cm) from the top down (see figure).
Sawing off larger branches
When sawing larger branches (0 8-20 cm), first make a relief cut A (see figure).
NOTE
A relief cut must not be carried out with an angle-adjusted saw head. There is a risk of kick-back and the device becomes uncontrollable.
A relief cut also prevents peeling of the bark on the main trunk.
Saw from the top B to the bottom A.
Saw in sections
Long or thick branches should be shortened before making the final cut (see figure).
Working safely
- Keep the appliance, the cutting mechanism and the blade guard 30 good condition to prevent injury.
If the appliance has been dropped, check for significant damage or defects.
Maintain the specified angle 60^ ± 10^ to ensure safe working (see figure).
Do not use the appliance while standing on a ladder or with unsteady footing.
Do not be tempted into making a poorly considered cut. You could endanger yourself and others.
Children should be supervised to ensure that they do not play with the appliance.
- Change your working position regularly. Using the appliance for a long time can lead to vibration-related circulation disorders of the hands. You can extend the usage duration by means of appropriate gloves or by taking regular breaks. Note that any personal predisposition to poor blood circulation, low external temperatures or large prehensile forces can reduce the usage period.
Transport and storage
For transport, allow the motor to cool down and secure the machine from slipping before transporting it in a vehicle. This ensures that damage or injury is prevented. The pole pruner should always be transported with the transport protection device attached.
Use the blade guard for transporting the appliance.
Ensure that the appliance cannot switch on during transport (see figure).
Always clean the appliance thoroughly before storing.
Store the appliance in a dry place and out of the reach of children.
Store the appliance horizontally or secured against falling.
Empty the oil tank. Organic chain oil can become resinous.
For better retention of the mounting too You can use this in the mounting bracket 33
Cleaning and maintenance
WARNING! RISK OF INJURY! Always switch the appliance off and remove the battery before carrying out any work on the appliance.
Clean and service the appliance after each use depending on the operating conditions. Failure to clean the appliance may result in material damage and malfunctions.
Never allow fluids to get into the device.
Use a soft, dry cloth to clean the housing. Never use petrol, solvents or cleansers which can damage plastic.
If a lithium-ion battery is to be stored for an extended period, the charge level should be checked regularly. The optimum charge level is between 50% and 80% . The optimum storage climate is cool and dry.
The pole pruner must be cleaned of sawdust at regular intervals. For this purpose, use a compressed air blow gun, for example.
A new saw chain stretches and must be tightened more regularly.
Troubleshooting: Cordless pruner
| Problem Possible cause Troubleshooting | Rating | |
| Saw chain 17uns with difficulty, chain comes off or has extended | Chain tension insufficient Check chain tension | chain tension |
| No progress | Saw chain 18dry/overheating or is sagging | Top up with oil or grind, replace or tighten the saw chain 17 |
Maintenance intervals: Cordless pruner
The figures given here are based on normal operating conditions. In the event of more difficult conditions, such as strong dust generation and longer daily working hours, the given intervals are to be reduced correspondingly.
| Before starting work | Weekly | In the event of faults | In the event of damage | As required | ||
| Appliance part Action | ||||||
| Lubricating the chain check X | ||||||
| Saw chain 17 | check and note sharpness X | |||||
| check chain tension X | ||||||
| sharpen X | ||||||
| Guide rail 28 | check (wear, damage) X | |||||
| clean X X | ||||||
| deburr | X | |||||
| replace | XX | |||||
| Chain sprocket 29 | check | X | ||||
| replace | X | |||||
Spare part orders
Replacement parts can be ordered directly from the service centre. Please provide the following details when making an order: machine type and item number.
NOTE
Replacement parts not listed (such as batteries, switches) can be ordered via our service hotline.
Disposal
The packaging is made from environmentally friendly material which can be disposed of at your local recycling plant.
Do not dispose of power tools in the normal domestic waste!
European Directive 2012/19/EU requires that worn-out power tools
be collected separately and recycled in an environmentally compatible manner.
Li-ion
Do not dispose of batteries in your normal household waste!
Remove the batteries from the tool before disposal. Defective or worn-out rechargeable batteries must be recy
cled according to Directive 2006/66/EC. Take the battery pack and/or tool to a nearby collection facility.
Please contact your local authority or town council for information about disposal options for used power tools/battery packs.
Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material compo
nents for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1-7: plastics, 20-22: paper and cardboard, 80-98: composites.
Your local community or municipal authorities can provide information on how to dispose of the worn-out product.
The product is recyclable, subject to extended producer responsibility and is collected separately.
Dispose of lubricants and cleaning agents in an environmentally friendly manner. Observe the legal regulations.
- Dispose of lubricant residues at a disposal site. Do not allow lubricants to enter drains or waterways. Do not get into the ground/soil. Pay attention to a suitable surface. Disposal according to official regulations.
Dispose of soiled maintenance materials and supplies at a designated collection point.
KompernassHandelsGmbH warranty
Dear Customer,
This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.
Warranty conditions
The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase.
If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion).
This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred.
If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.
X 12 V and X 20 V Team Series battery packs come with a 3-year warranty valid from the date of purchase.
Warranty period and statutory claims for defects
The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.
Scope of the warranty
This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.
The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches or parts made of glass.
The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.
This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.
The warranty period does not apply to
Normal reduction of the battery capacity over time
Commercial use of the product
Damage to or alteration of the product by the customer
Non-compliance with safety and maintenance instructions, operating errors
Damage caused by natural hazards
Warranty claim procedure
To ensure quick processing of your case, please observe the following instructions:
Please have the till receipt and the item number (IAN) 373429_2104 available as proof of purchase.
You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product.
If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.
You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.
You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com.
This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 373429_2104.
WARNING!
Have the power tool repaired by the service centre or a qualified electrician and only using genuine replacement parts. This will ensure that the safety of the appliance is maintained.
Service
GB Service Great Britain Tel.:08004047657 E-Mail: kompernass@lidl.co.uk
IE Service Ireland Tel.:1890 930 034 (0,08 EUR/Min.,(peak)) (0,06 EUR/Min.,(off peak)) E-Mail: kompernass@lidl.ie IAN 373429_2104
Importer
Please note that the following address is not the service address. Please use the service address provided in the operating instructions.
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
Translation of the original Conformity Declaration
We, KOMPERNASS HANDELS GMBH, Custodian of Documents: Mr. Semi Uguzlu, BURGSTR. 21, 44867 BOCHUM, DEUTSCHLAND, hereby declare that this product complies with the following standards, normative documents and the EC directives:
Machinery Directive
(2006/42/EC)
EMC (Electromagnetic Compatibility)
(2014/30/EU)
RoHS Directive
(2011/65/EU)*
- The manufacturer bears the full responsibility for compliance with this conformity declaration. The object of the declaration described above complies with the requirements of the Directive 2011/65/EU of the European Parliament and Council of 8 June 2011 on the limitations of use of certain dangerous substances in electrical and electronic appliances.
Outdoor Directive
(2005/88/EC); (2000/14/EC)
Sound power level LWA
Measured: 92.2 dB (A); Guaranteed: 95 dB (A)
Applied harmonised standards
EN 62841-1:2015
EN ISO 11680-1:2011
EN 55014-1:2017/A11:2020
EN 55014-2:2015
EN IEC 63000:2018
Type/appliance designation: Cordless Pole Saw 20V PAHE 20-Li C3
Year of manufacture: 10-2021
Order number: IAN 373429_2104
Bochum, 29/09/2021
Semi Uguzlu
- Quality Manager -
The right to effect technical changes in the context of further development is reserved.
Ordering a replacement battery
If you want to order a replacement battery for your appliance, you can do so easily via the Internet on www.kompernass.com or by telephone.
Due to limited stocks, this item may sell out in a relatively short time.
NOTE
- Online ordering of replacement parts is not possible in all countries. In this case, please contact the Service hotline.
Telephone ordering
GB Service Great Britain Tel.: 0800 404 7657
IE Service Ireland Tel.: 1890 930 034 (0,08 EUR/Min., peak · 0,06 EUR/Min., off peak)
To ensure a fast processing of your order, have the article number of you appliance to hand (IAN 373429_2104) in case of questions. The article number can be found on the type plate or the title page of these instructions.
Inhaltsverzeichnis
Einleitung 24
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
DEUTSCHLAND
www.kompernass.com
Chere cliente, cher client,
Chere cliente, cher client,
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
ALLEMAGNE
www.kompernass.com
Directive relative aux machines
(2006/42/CE)
- Responsible qualite -
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
DUITSLAND
www.kompernass.com
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
NEMECKO
www.kompernass.com
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
NIEMCY
www.kompernass.com
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
NEMECKO
www.kompernass.com
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
ALEMANIA
www.kompernass.com
(2005/88/CE); (2000/14/CE)
Bestilling of reservedele 193
Bortskaffelse 194
Bestilling of reservebatteri 197
Telefonisk bestilling 197
BATTERIDREVEN STANGSAV 20 V PAHE 20-L i C3
Indledning
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867BOCHUM
TYSKLAND
www.kompernass.com
Original overensstemmelseserklaering
Vi, KOMPERNASS HANDELS GMBH, dokumentansvarlig: Semi Uguzlu, BURGSTR. 21, 44867 BOCHUM, TYSKLAND, erklær hermed, at dette produitstemmer overens med falgende standarder, standardiserede dokumenter og EU-direktiver:
Maskindirektivet
(2006/42/EC)
Elektromagnetisk kompatilitet
(2014/30/EU)
RoHS-direktivet
(2011/65/EU)*
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompermass.com
Last Information Update · Stand der Informationen · Version des informations · Stand van de informatie
Stav informaci - Stan informaci - Stav informacion - Estado de las informaciones - Tilstand af information:
10/2021-Ident-No.:PAHE20-LiC3-102021-1
IAN 373429_2104
