Contents

General notes. 6
Intended use 7
Safety instructions 7
Environmental protection 7
Accessories and spare parts. 7
Scope of delivery. 7
Control elements. 7
Initial startup. 8
Operation 8
Shutting down 9
Transport. 9
Storage. 9
Care and service. 9
Troubleshooting guide. 10
Warranty. 10
Technical data. 10
Declaration of Conformity 11

General notes

Read these original operating instructions and the enclosed safety instructions before using the device for the first time. Proceed accordingly.

Keep both books for future reference or for future owners.

Intended use

Use the device only in accordance with the information in these operating instructions.

This device is suitable for commercial use, e.g. in hotels, schools, hospitals, factories, shops, offices, and rental companies.
The device is suitable for cleaning hard surfaces and carpets.
The device is not suitable for polishing vehicles.
- Only equip the device with original accessories and spare parts.
- Never use the device in potentially explosive atmospheres.

Safety instructions

Before using the device for the first time, read and observe these operating instructions and the accompanying brochure: Safety information for single disc machines, No. 5.956-251.0.

Environmental protection

The packing materials can be recycled. Please dispose of packaging in accordance with the environmental regulations.

Electrical and electronic devices contain valuable, recyclable materials and often components such as batteries,

rechargeable batteries or oil, which - if handled or disposed of incorrectly - can pose a potential danger to human health and the environment. However, these components are required for the correct operation of the device. Devices marked by this symbol are not allowed to be disposed of together with the household rubbish.

Notes on the content materials (REACH) Current information on content materials can be found at: www.kaercher.de/REACH

Accessories and spare parts

Only use original accessories and original spare parts. They ensure that the appliance will run fault-free and safely.

Information on accessories and spare parts can be found at www.kaercher.com.

Scope of delivery

Check the contents for completeness when unpacking. If any accessories are missing or in the event of any shipping damage, please notify your dealer.

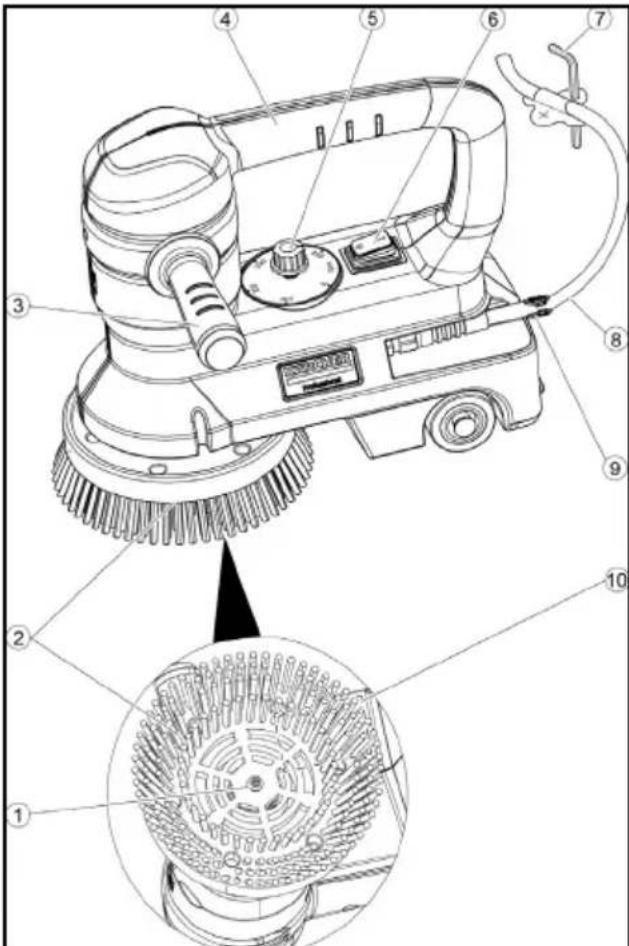

Control elements

Screw, washer (brush attachment)
②Brush
③ Handle,adjustable
④ Handle
⑤Brush speed rotary knob
⑥Power switch
⑦Allen key
8Mains connection cable with mains plug
⑨ Cable clip
⑩ Type plate

Initial startup

Attaching the brush/pad drive plate ATTENTION

Risk of damage

The fastening screw protruding over the brush body can cause scratches on the cleaning object if the brush is too heavily worn.

Replace the cleaning brush in good time before the bristles are too short.

1. Select the brush suitable for the cleaning task or the pad drive plate.
2. Make sure that the mains plug is unplugged.
3. Unscrew the screw for brush attachment. Use the Allen key provided for this.

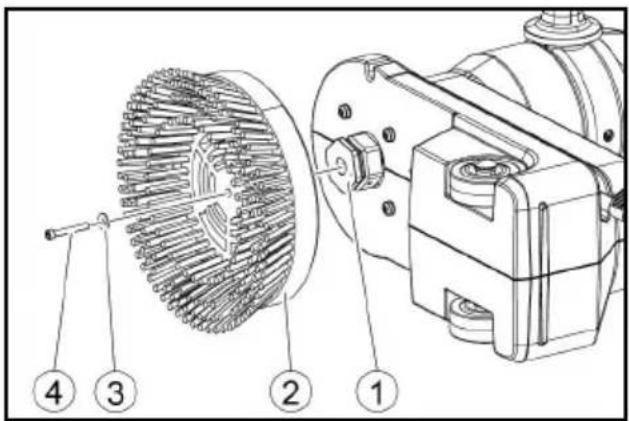

1Driver
②Disc brush/pad
③ Washer
4Screw

1. Place the brush or pad drive board on the driver.
2. Screw in and tighten the screw and washer.
3. Centre and press the pad onto the pad drive plate.

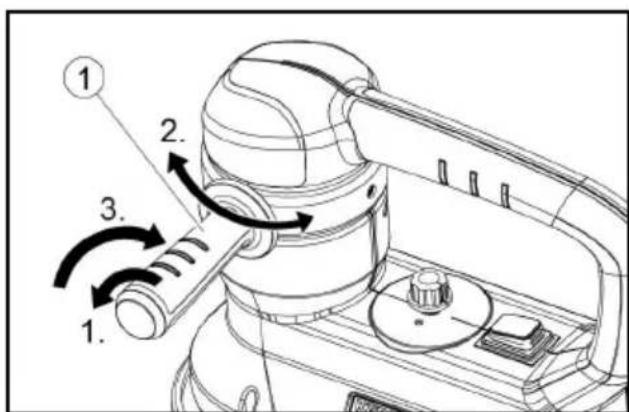

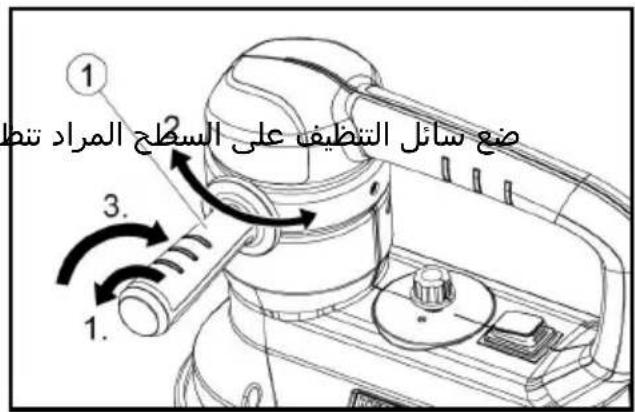

Adjusting the handle

1. Loosen the adjustable handle by turning it anticlockwise.

1 Handle

1. Swivel the handle into the desired position.
2. Tighten the handle by turning it clockwise.

Operation

Power connection

The voltage specified on the type plate must match the voltage of the power source.

Use only extension cables with splash guards. The mains plug/extension cable connection must not be immersed in water.

1. Unwind the extension cable completely from the device.
2. Set the power switch to "0".
3. Plug the mains plug into the socket.

Adjust the speed

Recommended speed:

Application Speed in	rpm
Basic cleaning 350...450
Removing coatings 350...450
Using cleaners 450
Crystallisation 450
Shampooing carpet 350

1. Turn the brush speed rotary knob to the desired value.

Cleaning

△DANGER

Danger of electric shock

The user can receive an electric shock from a damaged cable.

Never wrap the power cord around your body or neck.

Make sure that the power cord never comes into contact with the rotating brush or pad.

ATTENTION

Risk of damage

Working on the same area for too long can damage the floor covering.

Do not operate the device continuously on the same point.

Do not let the device run dry on sensitive floors.

1. Apply the detergent solution to the surface to be cleaned.
2. Hold the device by the handle.
3. Set the trigger to "I".
4. Hold the device with both hands and move the brush/pad over the surface to be cleaned.

Note: Do not press the device onto the surface to be cleaned. The weight of the device is sufficient as contact pressure.

1. Repeat the cleaning process if heavily soiled.
2. Soak up the waste water with a wet vacuum cleaner or wipe it up with a cloth.

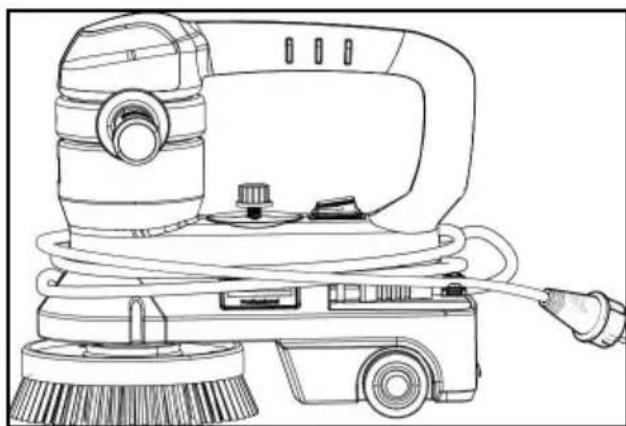

Shutting down

1. Set the power switch to "0".
2. Pull the mains plug out of the socket.
3. Clean the device with a moist cloth.

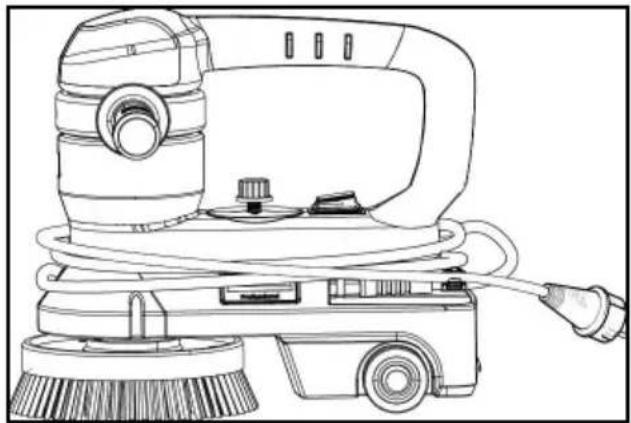

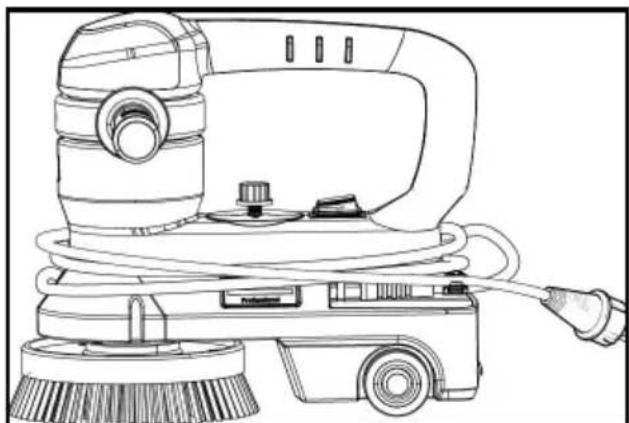

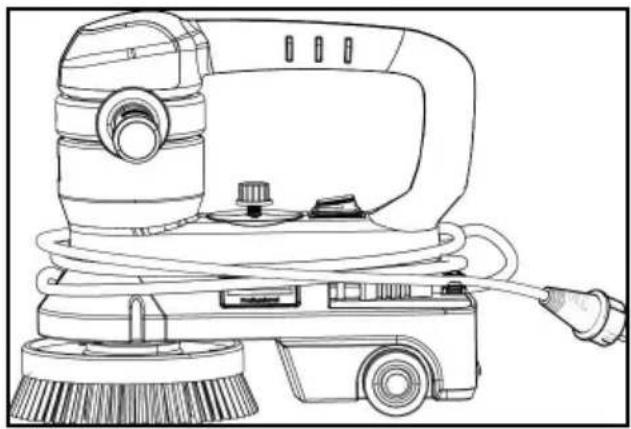

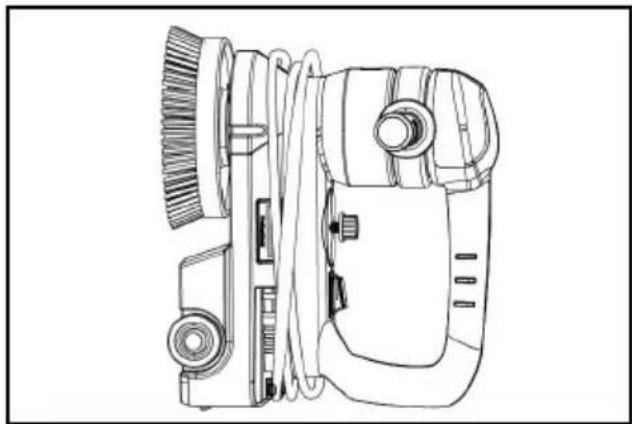

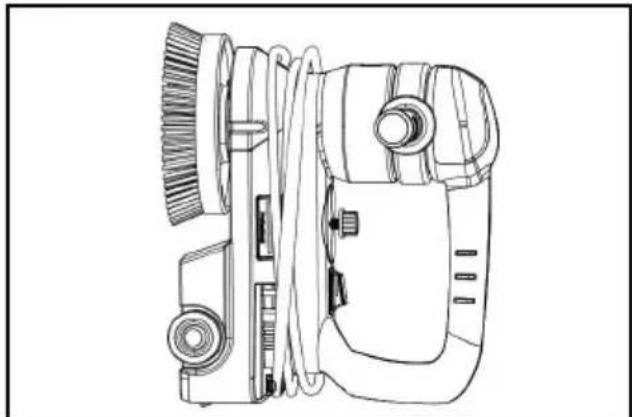

4. Wind the mains cable around the device casing.

1. Secure the end of the cable with the cable clip.

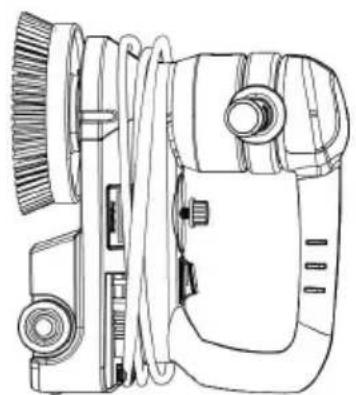

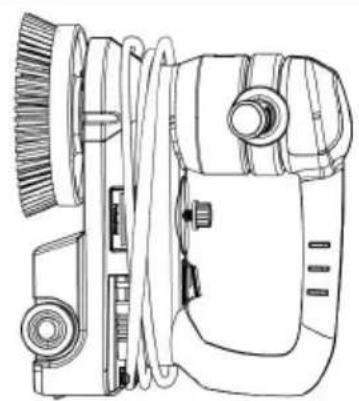

2. Park the device in the parking position. This prevents the brush from becoming deformed.

Transport

CAUTION

Risk of injury, risk of damage

Be aware of the weight of the device during transportation.

1. When transporting in vehicles, secure the device against slipping and tipping over according to the applicable guidelines.

Storage

CAUTION

Risk of injury and damage

Be aware of the weight of the device during storage.

Care and service

△WARNING

Risk of injury

The device may start up unexpectedly. Be sure to pull the mains plug out of the socket before you start working on the device.

1. Wash dirty pads at a maximum of 60^ .
2. Clean the casing of the device with a damp cloth and then rub dry.
3. Check the mains cable for damage.

Troubleshooting guide

WARNING

Risk of injury

The device may start up unexpectedly. Be sure to pull the mains plug out of the socket before you start working on the device.

In the event of malfunctions that cannot be remedied using the following information, please contact customer service.

Unsatisfactory cleaning results

• Replace the soiled pad and wash at a maximum of 60^ .
• Replace a worn brush/pad.
• Check the suitability of the detergent used for the application.
• Check the suitability of the brush/pad used for the application.

The device vibrates strongly

• Check for central positioning of the pad on the pad drive board.
• Check the attachment of the brush/pad.

The pad does not rotate

• Check if foreign objects are blocking the pad drive board. Remove any foreign objects if necessary.
• Plug the mains plug into the socket.

Warranty

The warranty conditions issued by our relevant sales company apply in all countries. We shall remedy possible malfunctions on your appliance within the warranty period free of cost, provided that a material or manufacturing flaw is the cause. In a warranty case, please contact your dealer (with the purchase receipt) or the next authorised customer service site.

(See overleaf for the address)

Further warranty information (if available) can be found in the service area of your local Kärcher website under "Downloads".

Technical data

BD 17/5 C

Device performance data

Voltage

V

240

Phase 1

Frequency Hz 50-60

Power rating W150

Protection type IPX4

Pad

Pad diameter mm 160/

200

Pad speed 1/min 0...450

Environmental conditions

Permissible temperature range	°C	+5...+4
		0

Dimensions and weights

Length mm 330

Width mm 140

Height mm 300

Weight without accessories 5,4

Determined values according to EN 60335-2-72

Overall vibration value m/s2 <2,5 Uncertainty K dB(A) 0,2

Sound level L_pA dB(A) 68,6

Uncertainty K_pA dB(A) 1

Sound power level LWA+ dB(A) 77,2 Uncertainty KWA

Subject to technical modifications.
