M Series PRO X Wired microphones

• Please read this user manual and the safety inructions carefully and completely before using the product.

• Do not give the product to anyone else without the user manual.

• Do not use the product if it is damaged.

• Please observe the relevant country-specific regulations before using the product.

• Take care to lay the connection cable in such a way that no one can trip over it and damage the product.

• Repairs mu only be carried out by authorised speciali personnel. Under no circumances should you open the microphone yourself. The warranty is void for devices that have been opened by the cuomer.

• Do not expose the product to rain, snow, liquids or moiure.

• Only use the product under the conditions specified in the technical data.

• Only use accessories and spare pas approved by the manufacturer.

• Reduce the volume on connected playback devices to prevent hearing damage, acouic feedback and damage to speakers. Intended use Only use the product as described in this product manual. beyerdynamic does not assume any liability for improper use of the product and accessories. Liability

• The company beyerdynamic GmbH & Co. KG accepts no liability for damage to the product or injury to persons caused by careless, improper or incorrect use of the product, or by use for purposes not specified by the manufacturer.

• beyerdynamic is not liable for damage to USB devices that do not comply with the USB specifications. English16/22 Product descriptions Product descriptions M70PROX Scope of delivery

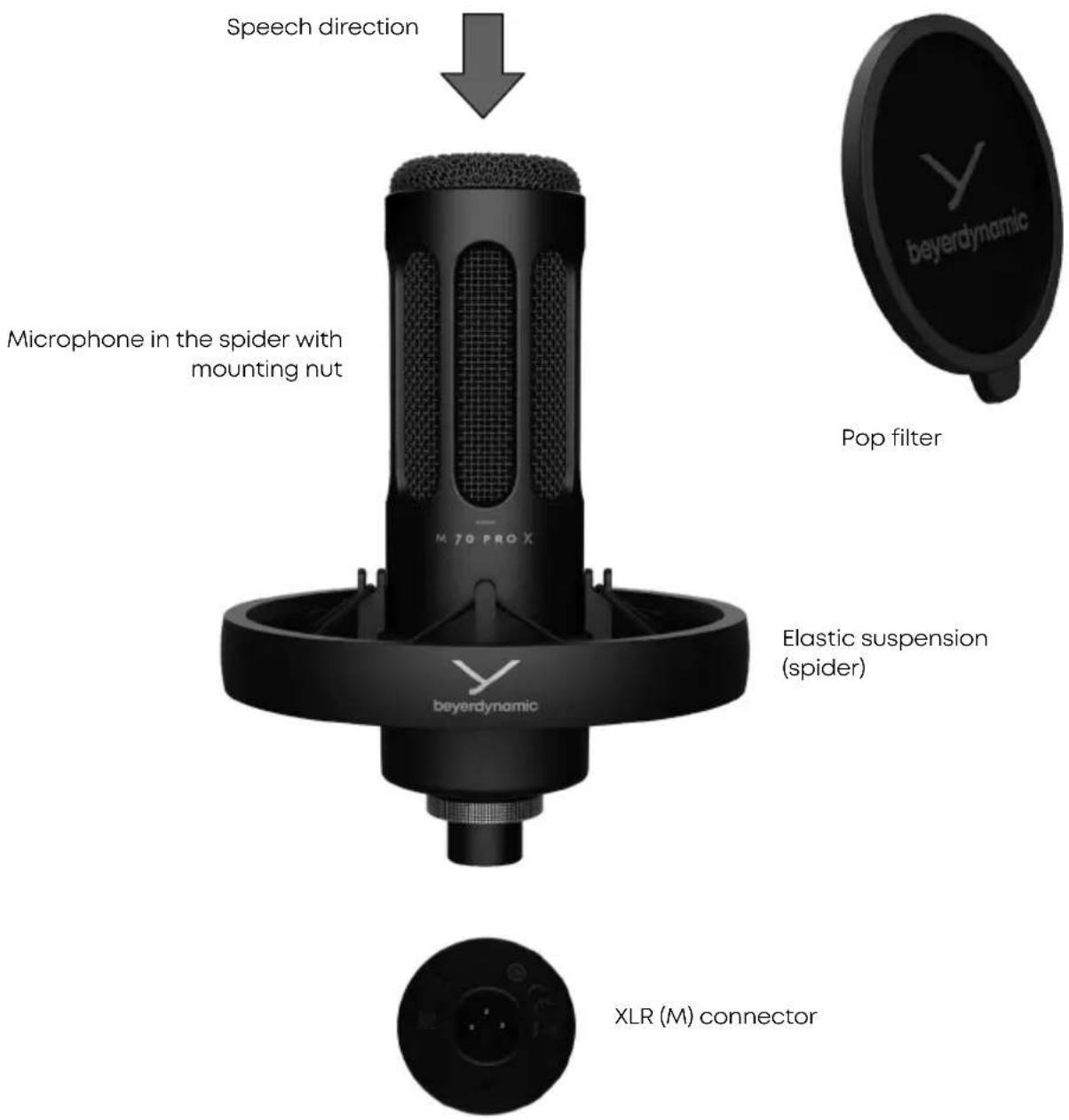

• Protective bag Product overview Speech direction Pop filter Microphone in the spider with mounting nut Elaic suspension (spider) XLR (M) connector17/22Product descriptions Applications The M 70 PRO X dynamic microphone with extended and balanced frequency response has been designed for high-quality recording of speech, vocals and inruments. Unwanted sound waves are eectively suppressed by the pronounced cardioid characteriic, and the precisely tuned proximity eect guarantees consient sound clarity. An extended frequency response provides a dierentiated and high-resolution sound image. The robu design of the M 70 PRO X ensures durability. The integrated elaic syem suspension protects the microphone again ructure-borne noise, and the pop filter supplied largely suppresses plosive sounds. The M 70 PRO X is paicularly suitable for the following sources:

• Speech for broadca applications (radio, podca, reaming)

• Vocals (rock, pop music)

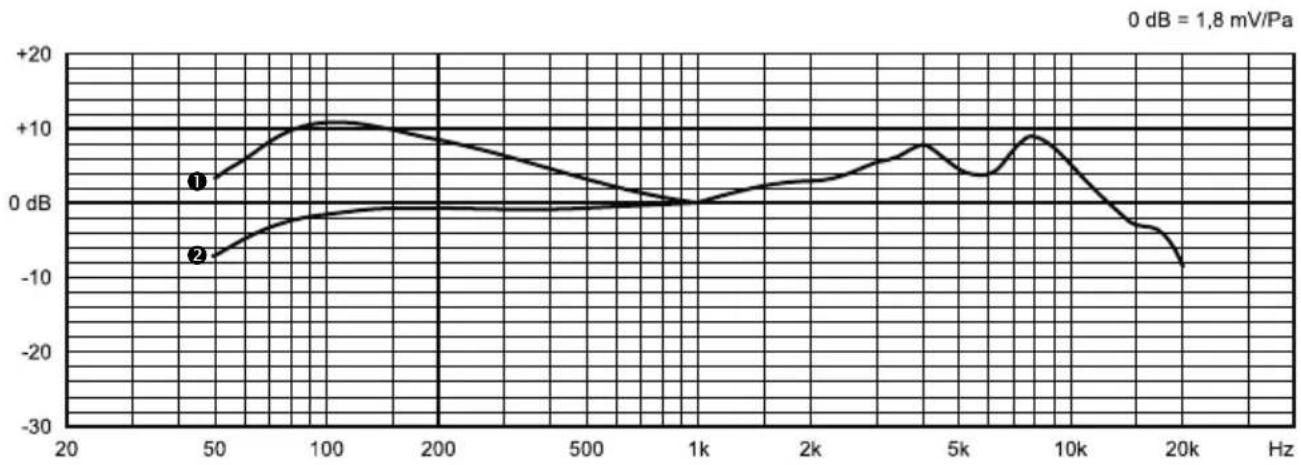

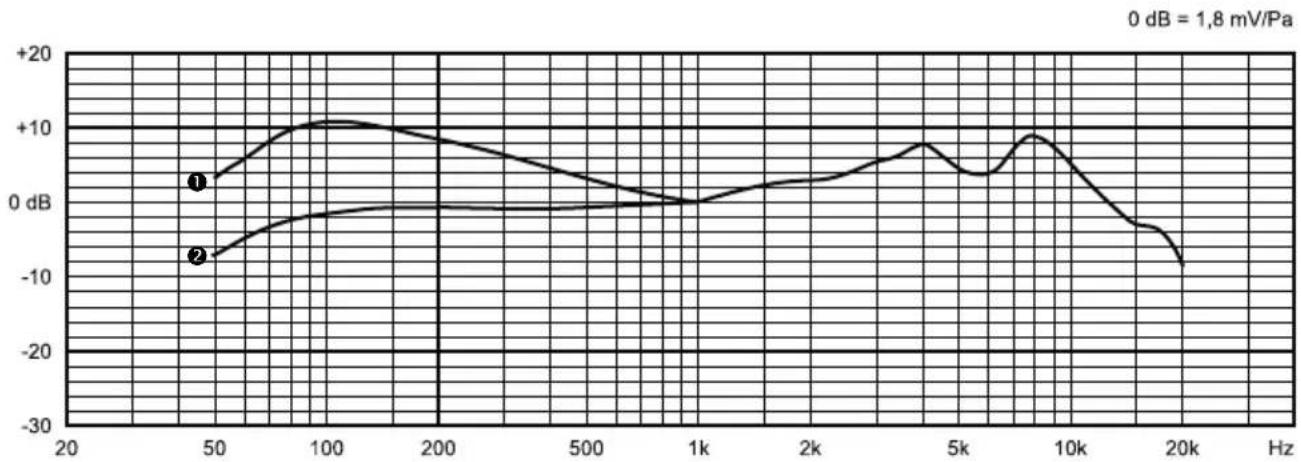

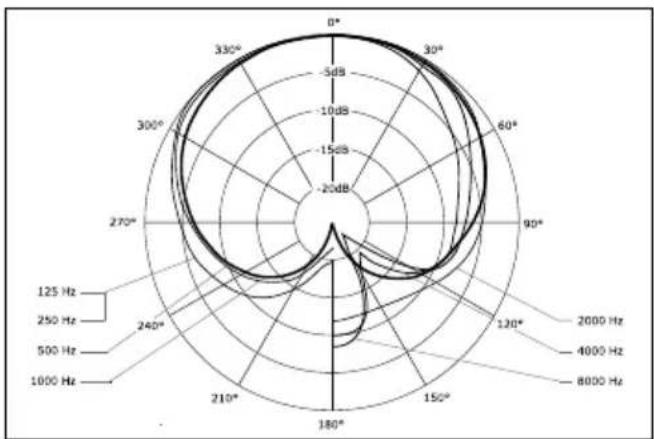

• Guitar and bass amps Technical data Conveer principle Dynamic Operating principle Pressure gradient receiver Polar patternCardioid Frequency response: Near field .................................................................... 25–18,000 Hz Far field (diance 1 m) ..................................... 40–18,000 Hz Open-circuit sensitivity 18 mV/Pa (-550 dBV) ±3 dB Nominal impedance 350 Ω Nominal terminating impedance ≥ 15 kΩ Connection XLR, 3-pin, male Length 185 mm Diameter 52 mm Weight 320 g Polar pattern Target frequency response curve (±3 dB)

Curves for distance = 2cm and = 1m English18/22 Product descriptions M90PROX Scope of delivery

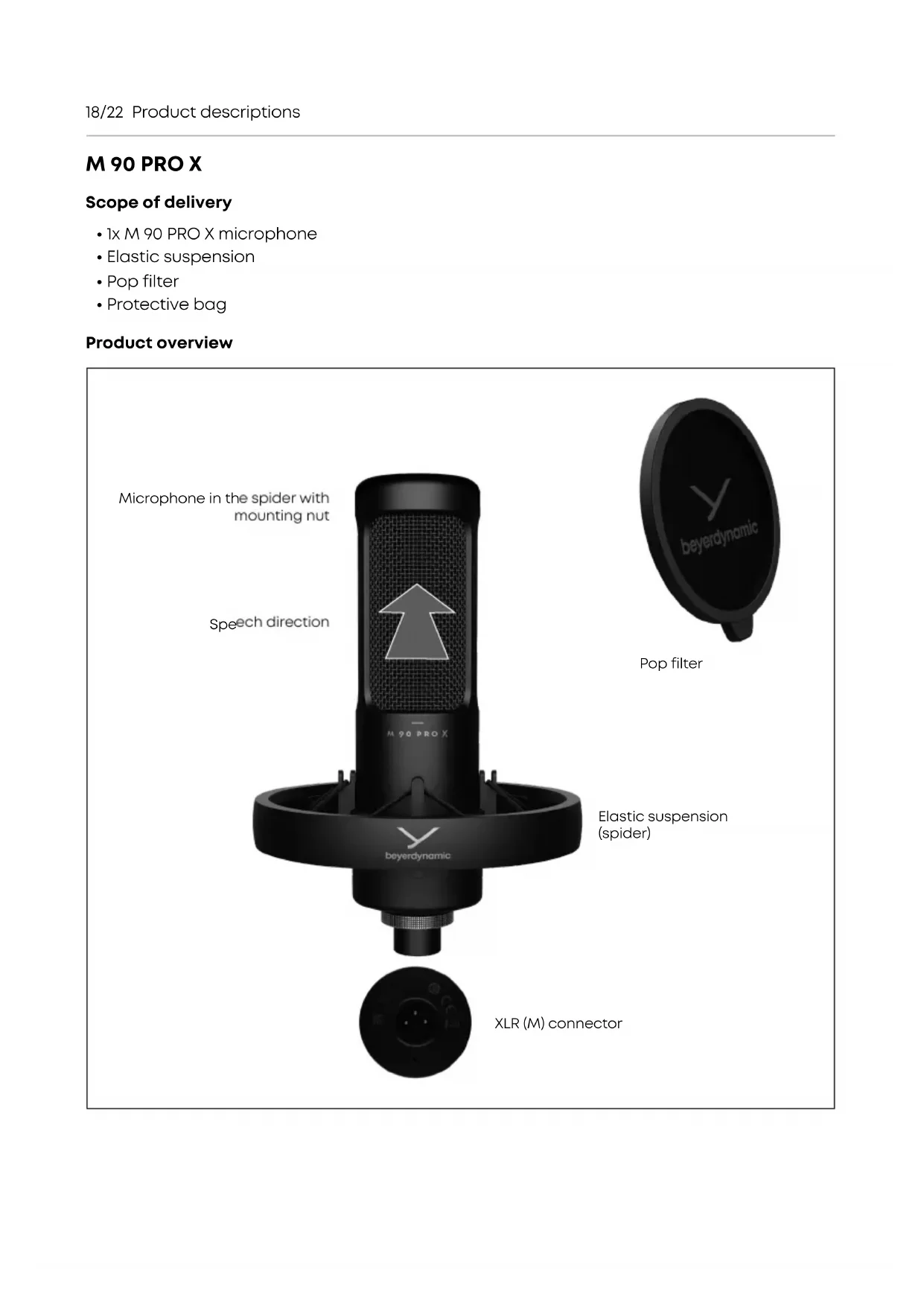

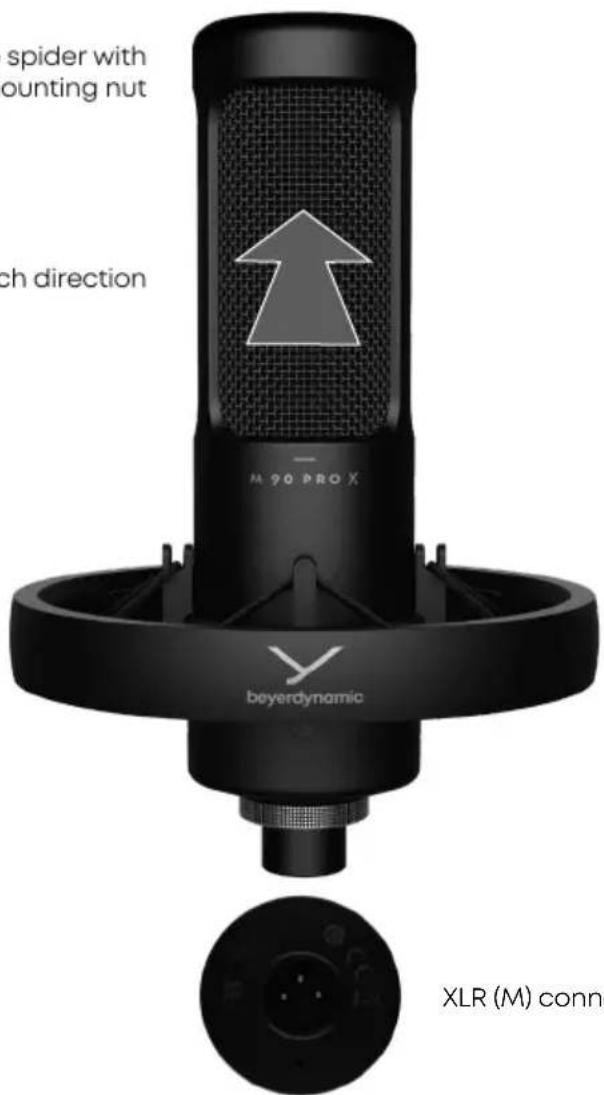

• Protective bag Product overview Pop filter Speech direction Microphone in the spider with mounting nut Elaic suspension (spider) XLR (M) connector19/22Product descriptions Applications With its 34-mm true condenser capsule, the M 90 PRO X condenser microphone has been specially developed for high-quality recording of vocals and inruments but is also suitable for the natural-sounding recording of speech during broadcas. While unwanted sound waves are suppressed eectively by the pronounced cardioid characteriic, the low- noise circuit specially developed by beyerdynamic ensures that the electrical signals are processed to the highe andard. The integrated elaic syem suspension protects the microphone again ructure-borne noise, and the pop filter supplied largely suppresses plosive sounds. The M 90 PRO X is paicularly suitable for the following sources:

• Speech for broadca applications

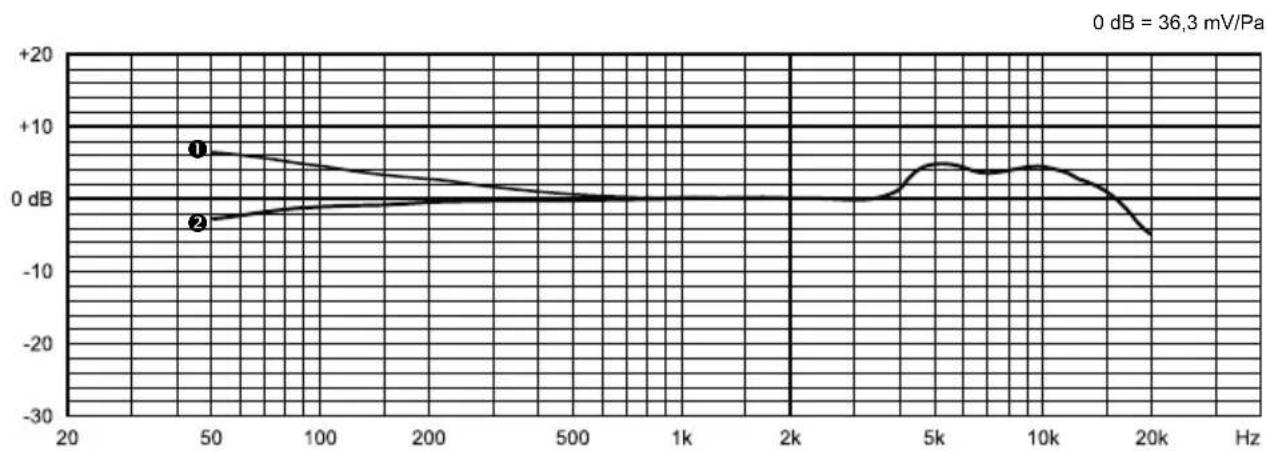

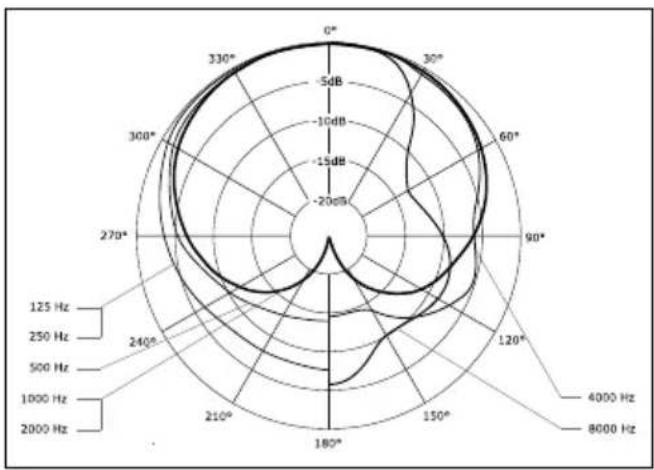

• Universal use (percussion, room miking, choir and orchera) Technical data Conveer principle Condenser Operating principle Pressure gradient receiver Frequency response 20–20,000 Hz Polar patternCardioid Open-circuit sensitivity at 1 kHz (0 dB = 1 V/Pa) 363 mV/Pa = -288 dBV ±2 dB Nominal impedance < 180 Ω Nominal terminating impedance ≥ 1,000 Ω Maximum sound pressure level (at 1 kHz) 133 dB S/N ratio (referenced to 1 Pa) 884 dBA Equivalent sound pressure level (A-weighted) 5,6 dB Power supply 20–52 V (phantom) Current consumption < 62 mA Connection XLR, 3-pin, male Length 197mm Diameter 52mm Weight 296g Polar pattern Target frequency response curve (±2 dB) 0 dB = 36,3 mV/Pa

Curves for distance = 2cm and = 1m English20/22 Inallation and commissioning Inallation and commissioning CAUTION Cable trip hazard Carelessly laid cables pose a trip hazard. This can injure people and damage the microphone. ► Always lay cables so that no one can trip over them. Attaching the microphone

1. Unscrew the mounting nut from the microphone thread.

2. Inse the microphone into the spider with the bottom side fir.

3. Tighten the mounting nut on the thread.

4. Attach the microphone to the and with the and connector.

5. Attach the microphone to the and with the and connector.

Connecting the microphone

• The M 70 PRO X has a 3-pin XLR connector. It can be connected to any microphone input with a suitable microphone cable.

• The M 90 PRO X has a 3-pin XLR connector. It can be connected to any microphone input with phantom power (24–52V) with a suitable microphone cable. You therefore need to activate the phantom power. Aligning the microphone WARNING Unable and An unable and can fall and damage the microphone mounted on it. ► Make sure that the and used and the microphone mounted on it are able. ► Position the microphone so that the speech direction is opposite that of the source of inteerence to achieve the be possible noise suppression. Disposal At the end of its life, this product should not be disposed of with normal household wae but should be taken to a recycling facility for electric and electronic devices. This symbol on the product, inructions for use or packaging indicates this. WEEE Troubleshooting If you have technical problems while using the microphones or need fuher guidance, please visit our FAQ website at suppo.beyerdynamic.com21/22Service Service ► If service is required, please contact an authorised speciali. Never open the microphone yourself. You could lose all warranty claims otherwise. Please refer to our website www.beyerdynamic.de for information about service and spare pas. Fuher information If you require fuher information, please visit our website at www.beyerdynamic.com/microphones.html. For tutorials and inructions on using your microphone, please visit our YouTube channel at www.youtube.com/beyerdynamic. Cleaning ► Use a so cloth moiened with water to clean the suace. ► Make sure that no water enters the microphone. ► Do not use cleaning agents containing solvents. Warranty beyerdynamic provides a limited warranty of 2 years on the purchased beyerdynamic product. The exact warranty conditions can be found on our website at www.beyerdynamic.de/service/garantie. Compliance Information about the product’s compliance can be found on our website at www.beyerdynamic.com/downloads. English22/22Série M PRO X Microphones filaires
