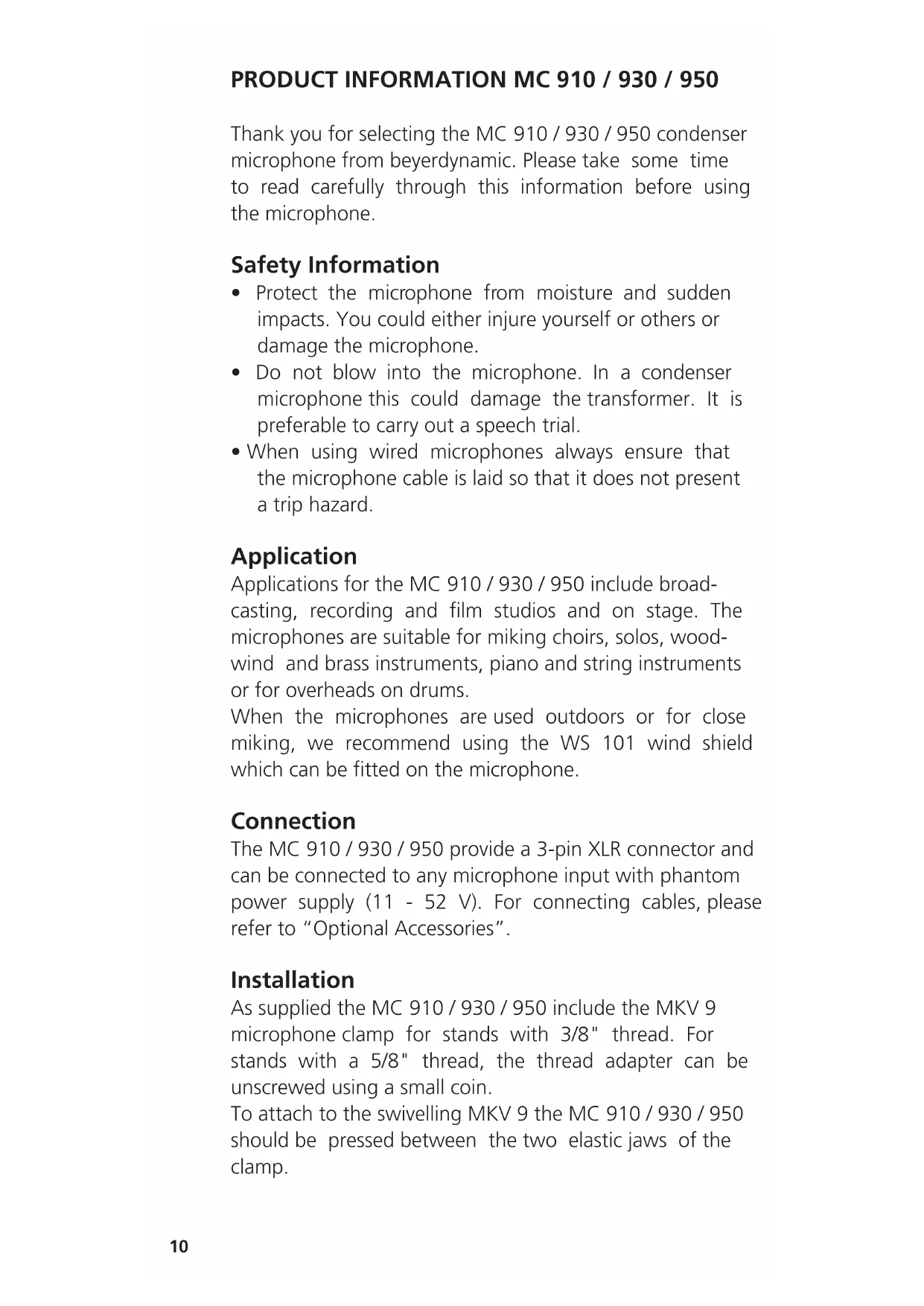

Thank you for selecting the MC 910 / 930 / 950 condenser microphone from beyerdynamic. Please take some time to read carefully through this information before using the microphone.

Safety Information

• Protect the microphone from moisture and sudden impacts. You could either injure yourself or others or damage the microphone.
• Do not blow into the microphone. In a condenser microphone this could damage the transformer. It is preferable to carry out a speech trial.
• When using wired microphones always ensure that the microphone cable is laid so that it does not present a trip hazard.

Application

Applications for the MC 910/930/950 include broadcasting, recording and film studios and on stage. The microphones are suitable for miking choirs, solos, woodwind and brass instruments, piano and string instruments or for overheads on drums.

When the microphones are used outdoors or for close miking, we recommend using the WS 101 wind shield which can be fitted on the microphone.

Connection

The MC 910/930/950 provide a 3-pin XLR connector and can be connected to any microphone input with phantom power supply (11 - 52 V). For connecting cables, please refer to "Optional Accessories".

Installation

As supplied the MC 910 / 930 / 950 include the MKV 9 microphone clamp for stands with 3/8'' thread. For stands with a 5/8'' thread, the thread adapter can be unscrewed using a small coin.

To attach to the swivelling MKV 9 the MC 910 / 930 / 950 should be pressed between the two elastic jaws of the clamp.

How to select the Pre-attenuation

For higher sound pressure levels a pre-attenuation of 15 dB can be applied with the right slide switch on the front of the microphones (imprint: -15 dB).

How to select the Low-cut Filter

If a directional microphone (pressure gradient) is used for close vocal miking the low frequencies are pre-emphasised; this is known as proximity effect. To compensate this effect, the MC 930 and MC 950 provide a switchable low-cut filter on the front (left) below 250Hz with 6 dB/octave. With the MC 910 the sound characteristic of the microphone can be changed with this switch.

Maintenance

For cleaning metal surfaces, use a soft, damp cloth using only gentle cleansing agents (such as washing-up liquid). Make sure that no water drops into the microphone and do not use any solvent cleansers.

Clean the WS 101 wind shield in clear, warm water. It should be completely dry, before it is used again.

Service

Servicing must be carried out by qualified service personnel only. Dismantling the microphone yourself will invalidate the guarantee.

Versions

Model Description . Order #

MC 910 Condenser microphone, omnidirectional, with MKV 9 microphone clamp with 3/8'' - 5/8'' internal thread, for microphone shaft diameter 19 - 21 mm .499.986

MC 930 Condenser microphone,
cardioid, with MKV 9
microphone clamp with 3/8'' - 5/8'' internal thread,
for microphone shaft diameter
19 - 21 mm .465.267

Model Description .Order #

MC 930 Stereo-Set with 2 matched MC 930, 2× EA 19/25 and 2× WS 53 in a plastic case .471.968
MC 950 Condenser microphone, supercardioid, with MKV 9 microphone clamp with 3 / 8'' - 5 / 8'' internal thread, for microphone shaft diameter 19 - 21 mm .499.862

Optional Accessories

Wind shield

WS 101 Wind shield, charcoal-grey . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. WS 53 Wind shield, small, charcoal-grey .. 436.607

Microphone clamp

EA 19/25 Elastic suspension 19 - 25 mm, incl. MKV 11 microphone clamp .407.194

MAV 800 Clip 3/8" for hanging
installation of microphones
(from the ceiling) .448.133

Disposal

This symbol on the product, in the instructions or on the packaging means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product.

Technical Specifications

Type: MC 910 MC 930			MC 950
Transducer type:	Condenser	Condenser	Condenser
Operating principle: Pressure Pressure gradient Pressure gradient
Frequency response: 30 - 20,000 Hz 40 - 20,000 Hz
Polar pattern: Omnidirectional		Cardioid Supercardioid
Open circuit voltage at 1 kHz: 25 mV/Pa = -32 dBV 30 mV/Pa = -30.5 dBV			35 mV/Pa = -29 dBV
Nominal impedance: 180 Ω180 Ω180 Ω
Load impedance:	1000 Ω1000 Ω1000 Ω
Max. sound pressure level at 1 kHz: with pre-attenuation:	127 dB142 dB	125 dB140 dB	124 dB139 dB
Signal-to-noise ratio rel. to 1 Pa:	69 dB	71 dB	72 dB
A-weighted equivalent SPL: 18 dB		16 dB	15 dB

english

Type:	MC 910	MC 930	MC 950
Low-cut filter: switchable, 6 dB/octave at 250 Hz		switchable, 6 dB/octave at 250 Hz	switchable, 6 dB/octave at 250 Hz
Power supply: 11 - 52 V phantom power 11 - 52 V phantom power			11 - 52 V phantom power
Current consumption:	4.6 mA	4.6 mA 4.6 mA
Connector: 3-pin XLR 3-pin XLR 3-pin XLR
Dimensions
Length:	128 mm	128 mm	128 mm
Diameter:	21 mm	21 mm	21 mm
Weight: 115 g 115 g			115 g

english

INFORMATIONS PRODUIT MC 910 / 930 / 950

WS 101 Bonnette anti-vent, anthracite .111.244
WS 53 Bonnette anti-vent, petite, anthracite .436.607

Pince de microphone

Specifications techniques

± 2 dB 0 dB = 25 mV/Pa MC 910

± 2 dB 0dB = 30mV / Pa MC930

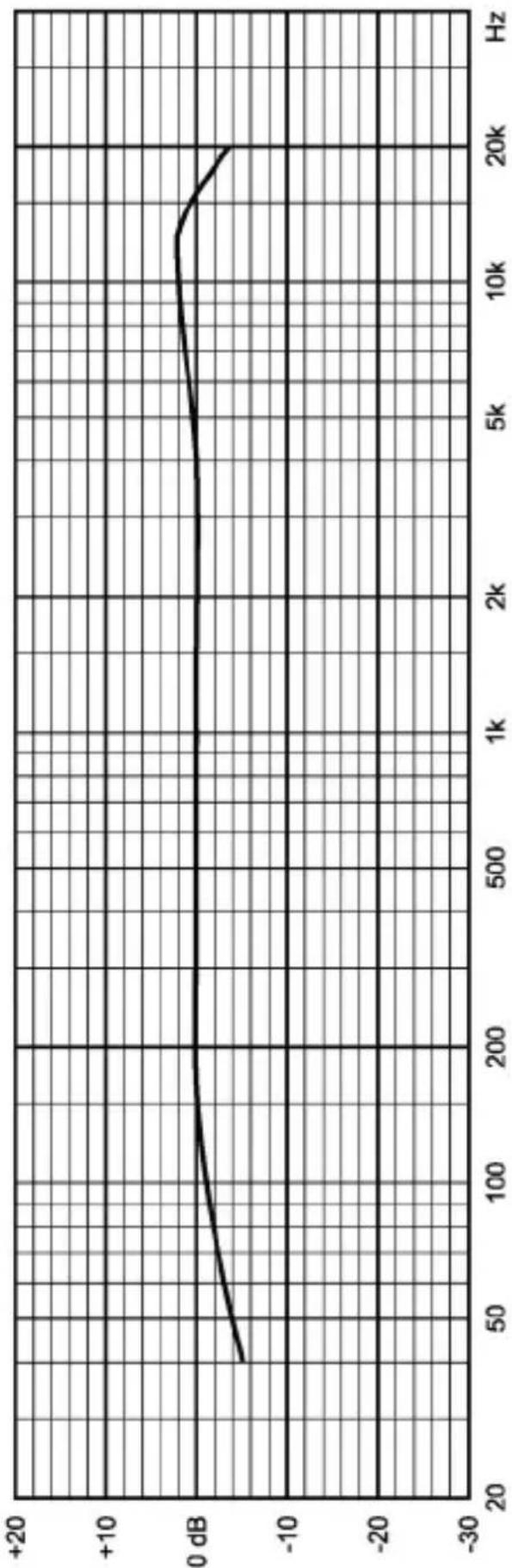

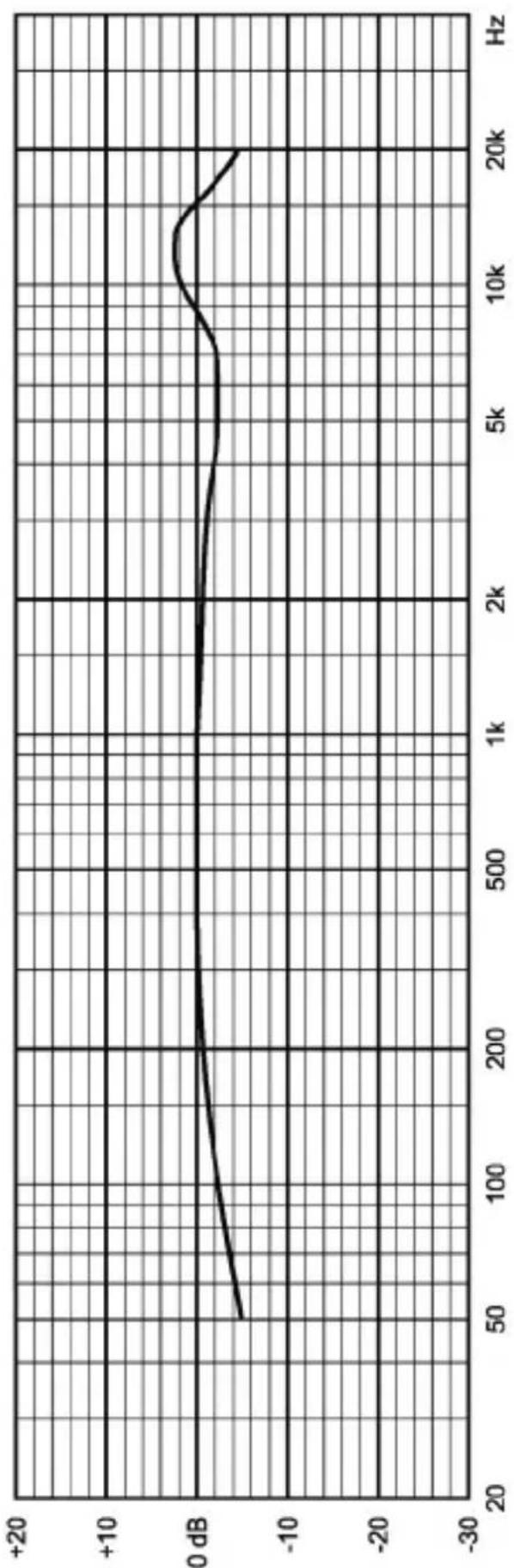

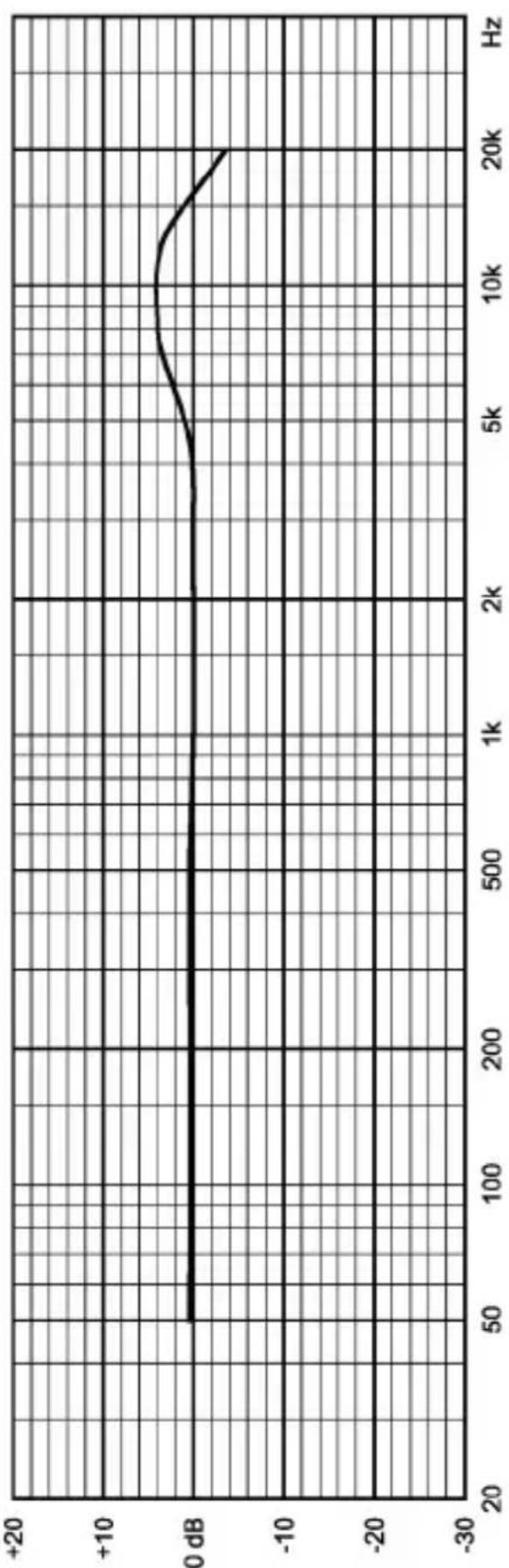

Frequenzkurven / Frequency Response Curves / Courbes de fréquence

± 2 dB 0 dB = 35 mV/Pa MC 950

For further distributors worldwide, please go to

www.beyerdynamic.com
