USER MANUAL M 201 BEYERDYNAMIC

Safety instructions 3
Box contents 3
Optional accessories 3
Features. 3
Application. 4
Technical specifications 4
Frequency response & polar pattern 4
Wiring diagram 4
Installation and operation 5
Maintenance 5
Disposal. 5
Troubleshooting and service 5
Further information 5
Warranty 5
Conformity 5

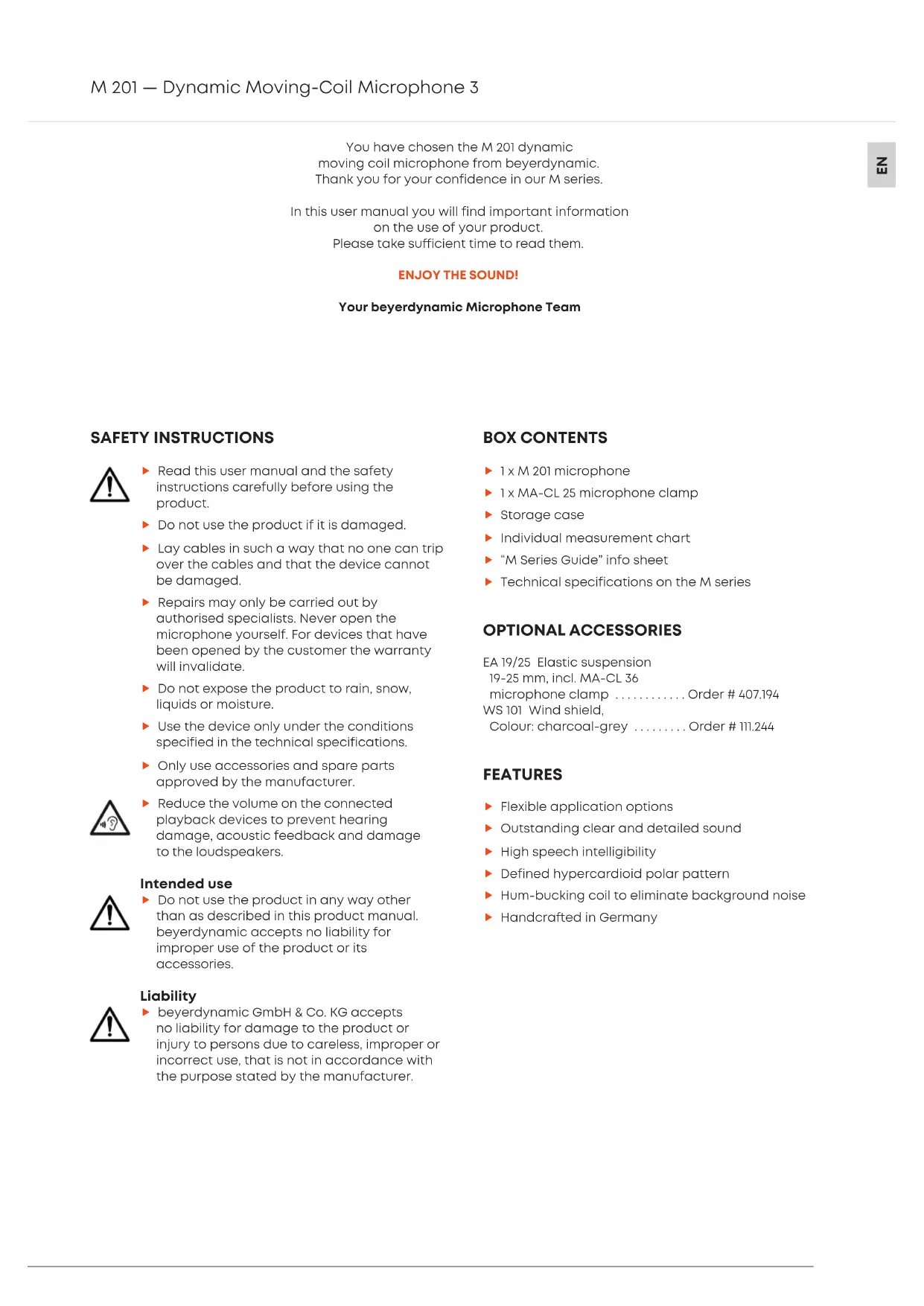

You have chosen the M 201 dynamic moving coil microphone from beyerdynamic. Thank you for your confidence in our M series.

In this user manual you will find important information on the use of your product. Please take sufficient time to read them.

ENJOY THE SOUND!

Your beyerdynamic Microphone Team

SAFETY INSTRUCTIONS

Read this user manual and the safety instructions carefully before using the product.
Do not use the product if it is damaged.
Lay cables in such a way that no one can trip over the cables and that the device cannot be damaged.
Repairs may only be carried out by authorised specialists. Never open the microphone yourself. For devices that have been opened by the customer the warranty will invalidate.
Do not expose the product to rain, snow, liquids or moisture.
Use the device only under the conditions specified in the technical specifications.
Only use accessories and spare parts approved by the manufacturer.
Reduce the volume on the connected playback devices to prevent hearing damage, acoustic feedback and damage to the loudspeakers.

Intended use

Do not use the product in any way other than as described in this product manual. beyerdynamic accepts no liability for improper use of the product or its accessories.

Liability

beyerdynamic GmbH & Co. KG accepts no liability for damage to the product or injury to persons due to careless, improper or incorrect use, that is not in accordance with the purpose stated by the manufacturer.

BOX CONTENTS

1xM201microphone
1xMA-CL25microphoneclamp
Storage case
Individual measurement chart
M Series Guide"info sheet
Technical specifications on the M series

OPTIONAL ACCESSORIES

EA 19/25 Elastic suspension
19-25 mm, incl. MA-CL 36
microphone clamp Order # 407.194
WS 101 Wind shield,
Colour: charcoal-grey Order # 111.244

FEATURES

Flexible application options
Outstanding clear and detailed sound
High speech intelligibility
Defined hypercardioid polar pattern
Hum-bucking coil to eliminate background noise
Handcrafted in Germany

APPLICATION

Whether in the studio or on stage, the precise sound and linear frequency response of the M 201 result in a signal that consistently stands out in the mix and leaves all post-processing options open. The M 201's slim design also makes it easy to position the microphone, giving the users the best possible support in their search for the perfect sound.

Due to its hypercardioid polar pattern and the hum-bucking coil, the M 201 is ideal to successfully avoid noise and feedback. In addition to this, crosstalk is reduced as best as possible. This is another reason why this microphone is a popular companion for drums. The M 201 is appreciated for the use with acoustic guitars because of its clear and detailed sound reproduction. The M 201 can also be used for vocals or speech.

TECHNICAL SPECIFICATIONS

Transducer type Dynamic
Operating principle Pressure gradient
Polar pattern Hypercardioid
Frequency response. 40 - 18,000 Hz
Rear attenuation at 1 kHz >20 dB at 120^ Sensitivity (0 dB = 1 V/Pa). 1.2 mV/Pa (= -58 dBV)
Magnetic field suppression >18 dB at 50 Hz
Nominal impedance 200 Ω
Load impedance ≥ 1000 Ω

Diaphragm Hostaphan
Case/finish Brass
Connector XLR,3-pin,male
Dimensions:
Length 147 mm
Shaft diameter 24mm
Head diameter 24 mm
Weight 228g

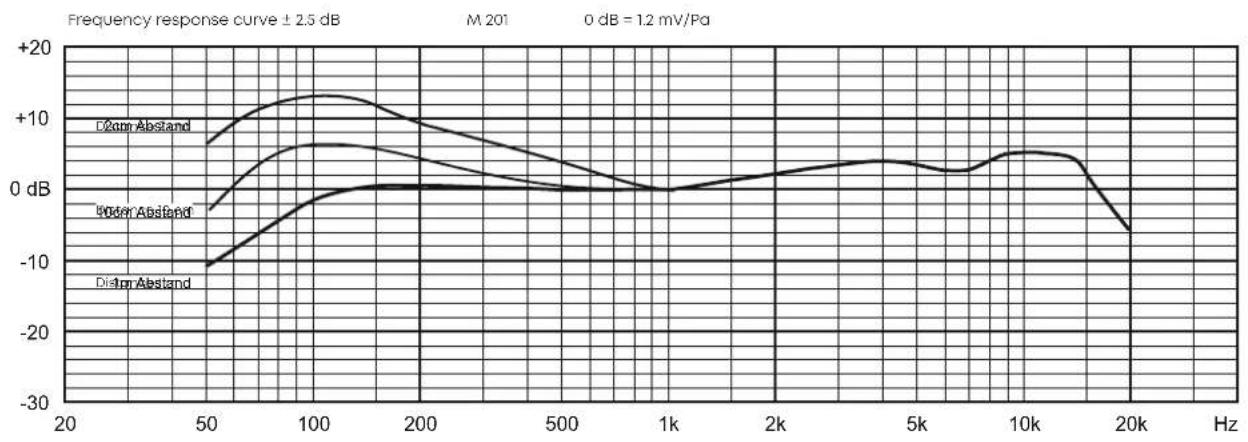

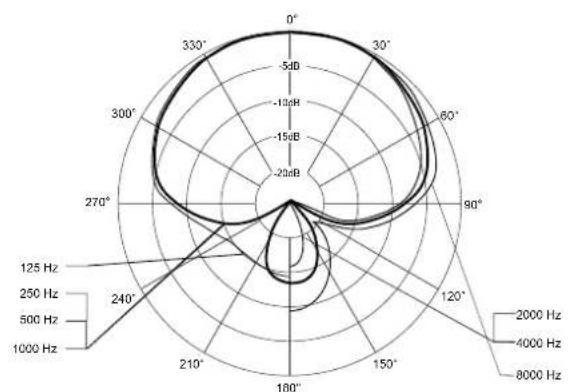

FREQUENCY RESPONSE & POLAR PATTERN

This polar pattern and frequency response curve correspond to a typical production sample for this microphone.

WIRING DIAGRAM

INSTALLATION AND OPERATION

Connection

The M 201 is equipped with a 3-pin XLR connector. You can connect it to any microphone input using a suitable microphone cable.
Caution: Carelessly laid cables are a trip hazard. People can be injured and the microphone can be damaged.

Operation

The M 201 features a hypercardioid polar pattern and a high gain before feedback.
In order to avoid feedback and other disturbing noise as best as possible, you should position the microphone so that monitor speakers and other sound sources radiate laterally from behind (angle approx. 120^ ) onto the microphone.
The M 201 is supplied with the MA-CL 25 microphone clamp for tripods with 3/8 thread. For tripods with a 5/8 thread, you can unscrew the threaded insert.
Caution: A tripod with an insecure stand can fall over and damage a microphone mounted on it. Make sure the tripod stands stable.

MAINTENANCE

Use a soft cloth moistened with water to clean the microphone shaft and grille.
Make sure that no water enters the microphone.
Do not use cleaning agents containing solvents.

DISPOSAL

This symbol on the product, in the operating instructions or on the packaging means that electrical and electronic devices must be disposed of separately from household waste at the end of their life cycle.
Always dispose of used equipment in accordance with applicable regulations.
- Dealers for electronic equipment are generally obliged to take back waste electrical/electronic equipment free of charge. This obligation also applies to sales via remote communication.
For further information, please contact the local authorities or the dealer from whom the product was purchased.

TROUBLESHOOTING AND SERVICE

Should you have technical problems when using the microphone or should you need more instructions, please visit our FAQ website at https://support.beyerdynamic.com
In case of service, please contact authorised service personnel. Never open the microphone yourself, as this could invalidate all warranty claims. Please visit our website https://www.beyerdynamic.com for service and replacement parts.

FURTHER INFORMATION

If you need further information, please visit our website. On our product detail page https://www.be-yerdynamic.com/m-201.html you will also find sound samples.
If you would like to learn more about beyerdynamic microphones for various applications, please visit https://www.beyerdynamic.com/microphones-made-in-germany

WARRANTY

beyerdynamic offers a limited warranty of 2 years on the purchased beyerdynamic product. The exact warranty conditions can be found on our website at https://www.beyerdynamic.com/service/warranty

CONFORMITY

Information on the conformity of the product can be found on our website at https://www.beyerdynamic.com/downloads
