M 90 Pro X - Microphone BEYERDYNAMIC - Free user manual and instructions

Product Type	Condenser Microphone
Brand	Beyerdynamic
Model	M 90 Pro X
Transducer Principle	Condenser
Directional Pattern	Cardioid
Frequency Response	20 - 20 000 Hz
Transmission Factor (1 kHz)	36.3 mV/Pa (-28.8 dBV) ±2 dB
Maximum Sound Pressure Level	133 dB (for 1 kHz)
Signal-to-Noise Ratio	88.4 dBA (for 1 Pa)
Equivalent Sound Pressure Level	5.6 dB (A-weighted)
Power Supply	Phantom Power 20-52 V
Current Consumption	< 6.2 mA
Connector	XLR, 3-pin, male
Dimensions (length × diameter)	197 mm × 52 mm
Weight	296 g
Included Accessories	Elastic suspension, pop filter, carrying case
Recommended Use	Vocals, strings, acoustic guitar, speech (broadcast), piano, universal use
Maintenance and Cleaning	Soft cloth slightly dampened, avoid solvents and moisture inside the microphone
Safety	Do not open, use only with approved accessories, follow safety instructions
Warranty	2 years (conditions at www.beyerdynamic.de/service/garantie)

Frequently Asked Questions - M 90 Pro X BEYERDYNAMIC

What type of power supply does the M 90 Pro X microphone require?

The M 90 Pro X microphone requires a phantom power supply of 20 to 52 V. It must be connected to a microphone input compatible with this power supply, and it must be activated.

What is the directivity of the M 90 Pro X?

The M 90 Pro X has a cardioid directional pattern, which allows it to primarily capture sound coming from the front while attenuating side and rear noise.

Can I use the M 90 Pro X to record instruments?

Yes, the M 90 Pro X is particularly suitable for vocals, strings, acoustic guitar, piano, and universal use (drums, choir, orchestra).

How to clean the M 90 Pro X?

Use a soft cloth slightly dampened with water. Make sure water does not enter the microphone. Do not use cleaners containing solvents.

What is included in the box?

The box contains the M 90 Pro X microphone, an elastic suspension (spider), a pop filter, and a protective case.

What maximum sound pressure level can the M 90 Pro X handle?

The microphone can handle a maximum sound pressure level of 133 dB (for 1 kHz), making it suitable for powerful sound sources.

What type of cable is needed for the M 90 Pro X?

The M 90 Pro X is equipped with a male 3-pin XLR connector. Use a suitable XLR microphone cable to connect it to a microphone input with phantom power.

Is the M 90 Pro X compatible with audio interfaces without phantom power?

No, the microphone requires phantom power of 20 to 52 V. It will not work properly without this power.

Where can I find tutorials or additional information?

Visit the beyerdynamic YouTube channel (www.youtube.com/beyerdynamic) for tutorials, and the website www.beyerdynamic.com/microphones.html for more information.

Is the microphone under warranty?

Yes, beyerdynamic offers a limited warranty of 2 years on the product. Detailed conditions are available at www.beyerdynamic.de/service/garantie

USER MANUAL M 90 Pro X BEYERDYNAMIC

Safety instructions 15

Intended use 15
Liability 15

Product descriptions 16

Installation and commissioning 20

Attaching the microphone 20
Connecting the microphone 20

Aligning the microphone 20

Disposal 20

Troubleshooting 20

Service 21
Further information 21

Cleaning 21

Warranty 21

Compliance 21

Thank you for choosing a product from beyerdynamic.

This user manual contains important information about using your product. Links with further information on the use of microphones or headphones from beyerdynamic can be found under "Further information" on page 21.

Safety instructions

• Please read this user manual and the safety instructions carefully and completely before using the product.
• Do not give the product to anyone else without the user manual.
• Do not use the product if it is damaged.
• Please observe the relevant country-specific regulations before using the product.
• Take care to lay the connection cable in such a way that no one can trip over it and damage the product.
• Repairs must only be carried out by authorised specialist personnel. Under no circumstances should you open the microphone yourself. The warranty is void for devices that have been opened by the customer.
• Do not expose the product to rain, snow, liquids or moisture.
• Only use the product under the conditions specified in the technical data.
• Only use accessories and spare parts approved by the manufacturer.
• Reduce the volume on connected playback devices to prevent hearing damage, acoustic feedback and damage to speakers.

Intended use

Only use the product as described in this product manual. beyerdynamic does not assume any liability for improper use of the product and accessories.

Liability

• The company beyerdynamic GmbH & Co. KG accepts no liability for damage to the product or injury to persons caused by careless, improper or incorrect use of the product, or by use for purposes not specified by the manufacturer.
• beyerdynamic is not liable for damage to USB devices that do not comply with the USB specifications.

Product descriptions

M70PROX

Scope of delivery

• 1x M 70 PRO X microphone
• Elastic suspension
• Pop filter
• Protective bag

Product overview

Applications

The M 70 PRO X dynamic microphone with extended and balanced frequency response has been designed for high-quality recording of speech, vocals and instruments. Unwanted sound waves are effectively suppressed by the pronounced cardioid characteristic, and the precisely tuned proximity effect guarantees consistent sound clarity. An extended frequency response provides a differentiated and high-resolution sound image.

The robust design of the M 70 PRO X ensures durability. The integrated elastic system suspension protects the microphone against structure-borne noise, and the pop filter supplied largely suppresses plosive sounds.

The M 70 PRO X is particularly suitable for the following sources:

• Speech for broadcast applications (radio, podcast, streaming)
  Vocals (rock, pop music)
• Guitar and bass amps

Technical data

Converter principle Dynamic
Operating principle.. Pressure gradient receiver
Polar pattern. Cardioid
Frequency response: Near field 25-18,000 Hz Far field (distance 1 m) 40-18,000 Hz Open-circuit sensitivity. 1.8mV / Pa (-55.0 dBV) ± 3 dB Nominal impedance . 350Ω Nominal terminating impedance ≥ 1.5k Connection XLR, 3-pin, male Length . 185 mm Diameter . 52 mm Weight . 320 g

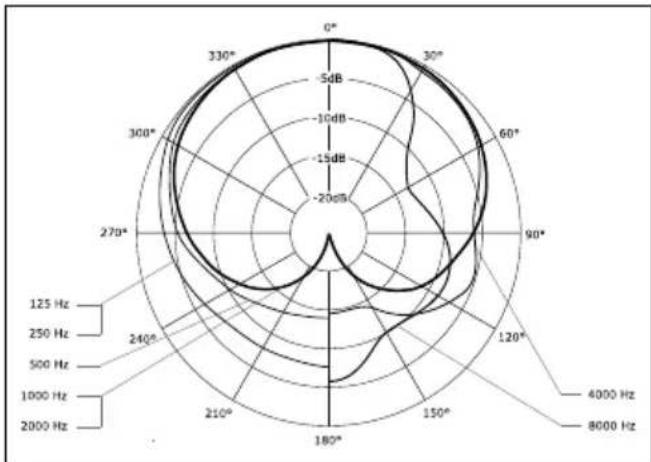

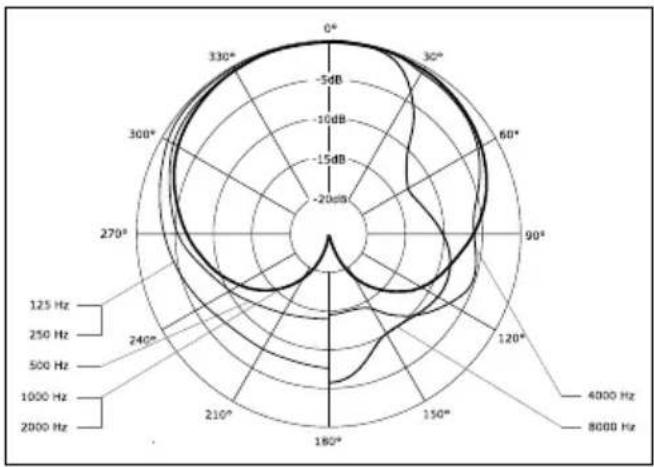

Polar pattern

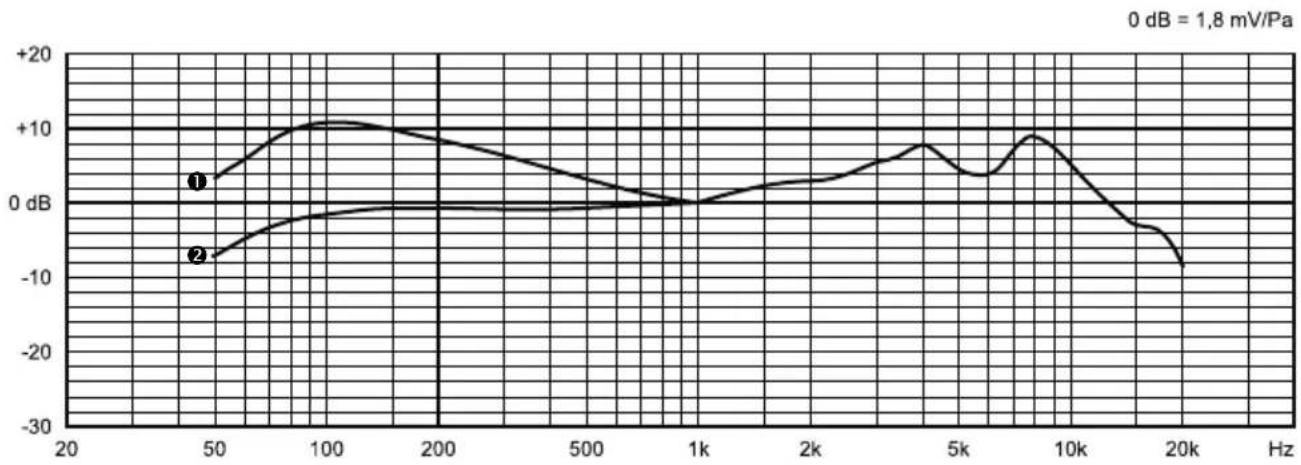

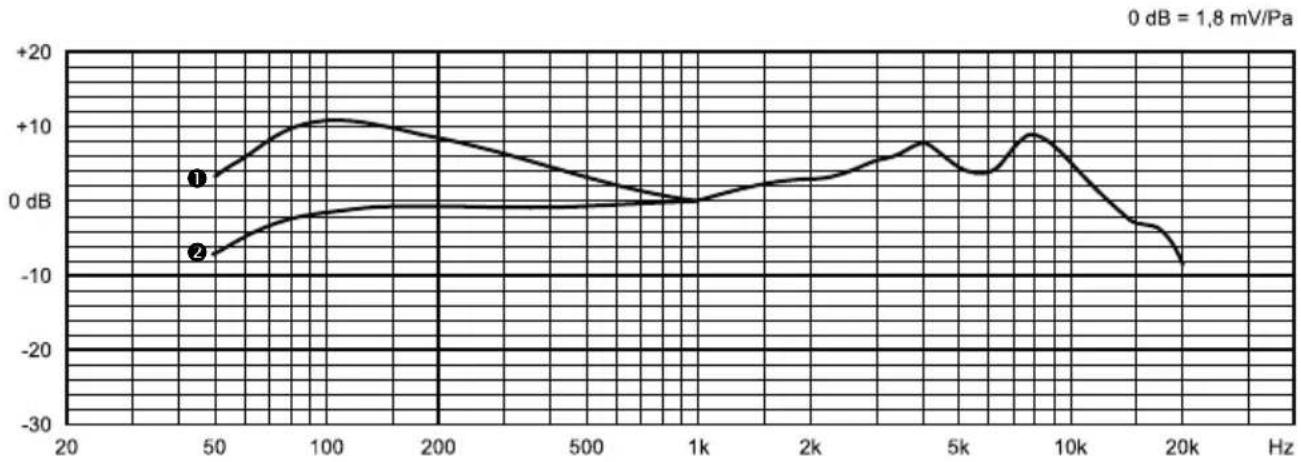

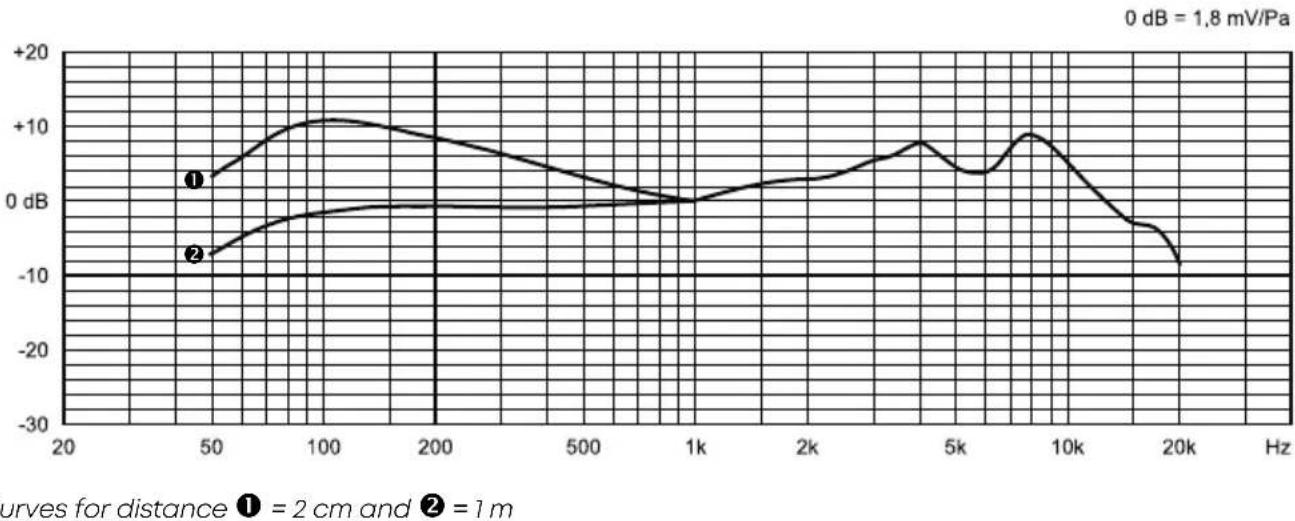

Target frequency response curve (±3 dB)

M 90 PROX

Scope of delivery

• 1x M 90 PRO X microphone
• Elastic suspension
• Pop filter
• Protective bag

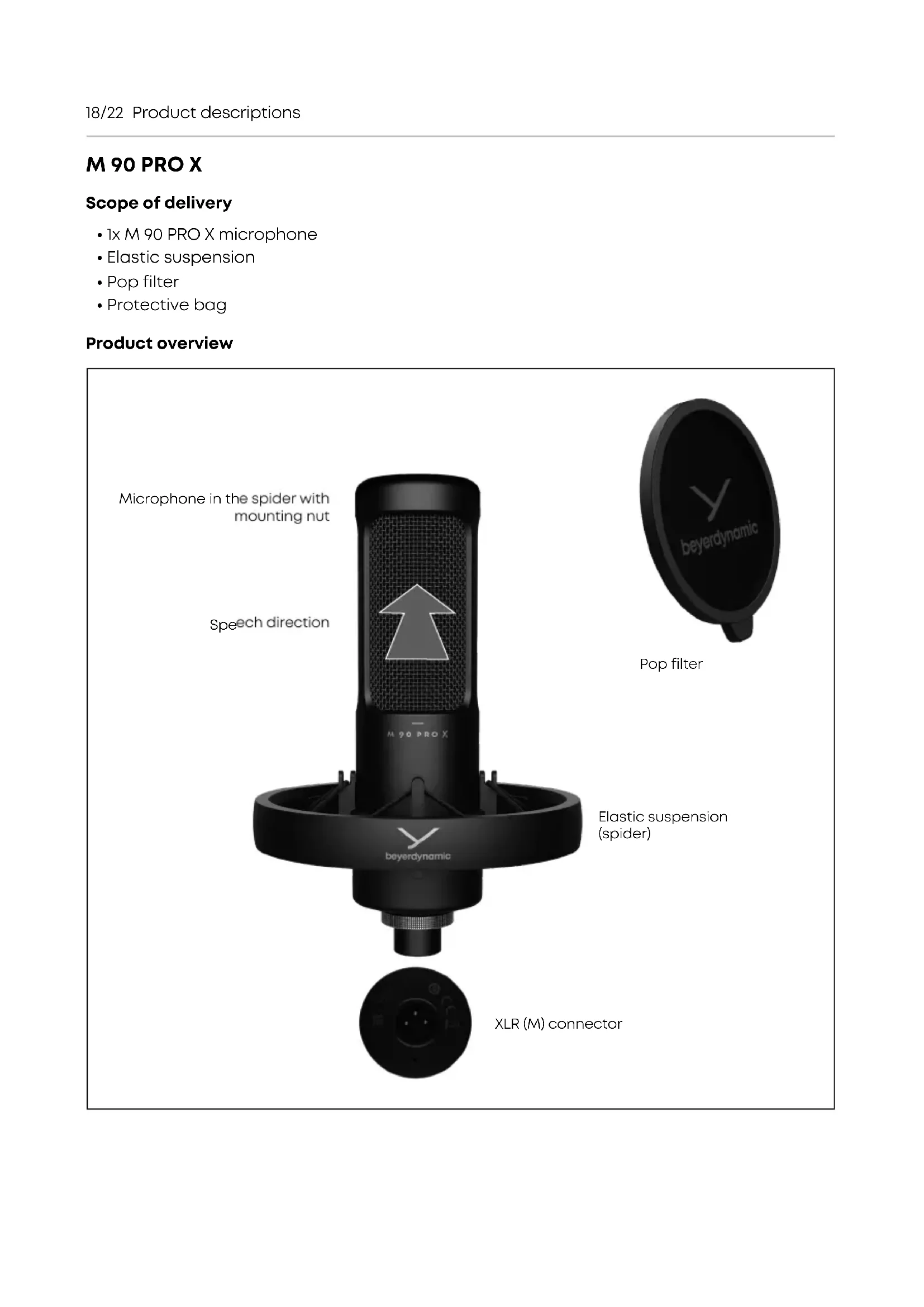

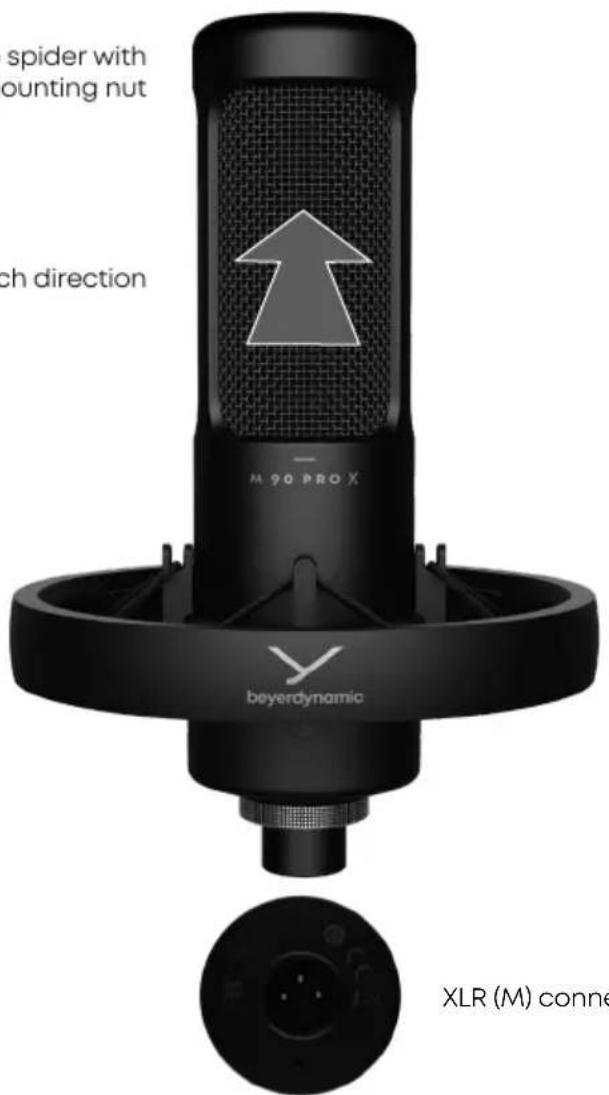

Product overview

Microphone in the spider with mounting nut

Speech direction

Pop filter

Elastic suspension (spider)

Applications

With its 34-mm true condenser capsule, the M 90 PRO X condenser microphone has been specially developed for high-quality recording of vocals and instruments but is also suitable for the natural-sounding recording of speech during broadcasts. While unwanted sound waves are suppressed effectively by the pronounced cardioid characteristic, the low-noise circuit specially developed by beyerdynamic ensures that the electrical signals are processed to the highest standard. The integrated elastic system suspension protects the microphone against structure-borne noise, and the pop filter supplied largely suppresses plosive sounds.

The M 90 PRO X is particularly suitable for the following sources:

Vocals

• Strings

• Acoustic guitar

• Speech for broadcast applications

• Piano

• Universal use (percussion, room miking, choir and orchestra)

Technical data

Converter principle Condenser Operating principle Pressure gradient receiver

Frequency response. 20-20,000 Hz

Polar pattern. Cardioid

Open-circuit sensitivity

at 1 kHz (0 dB = 1 V/Pa) 36.3 mV/Pa = -28.8 dBV ±2 dB

Nominal impedance. 180

Nominal terminating impedance. 1,000 Ω

Maximum sound pressure level

(at 1 kHz) 133 dB

S/N ratio (referenced to 1 Pa). 88.4 dBA

Equivalent sound pressure level

(A-weighted) 5.6 dB

Power supply. 20-52 V (phantom)

Current consumption. < 6.2 mA

Connection. XLR, 3-pin, male

Length 197 mm
Diameter 52 mm
Weight 296 g

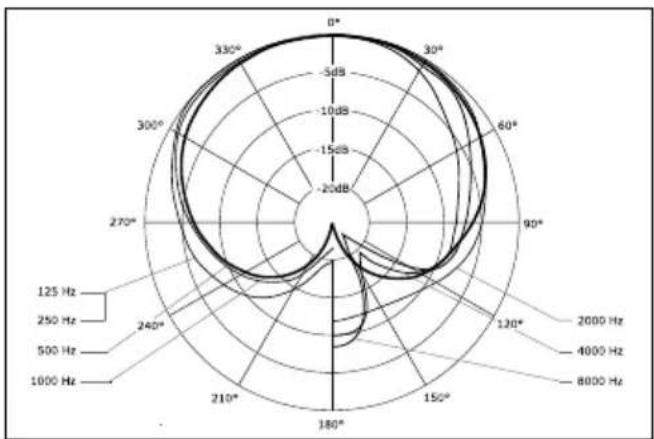

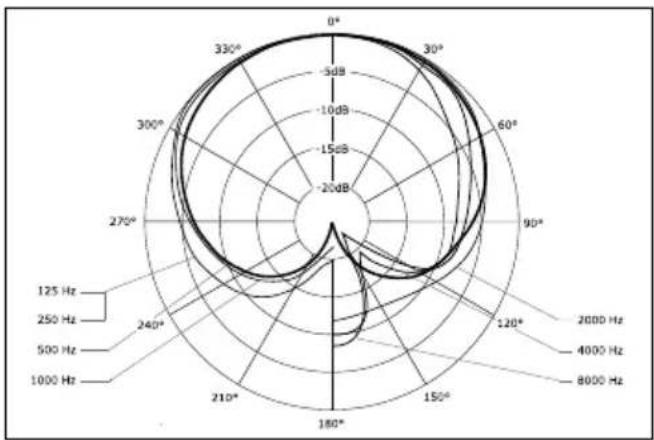

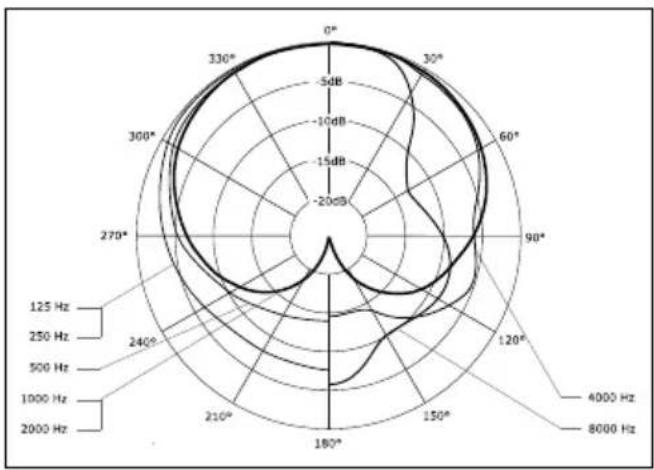

Polar pattern

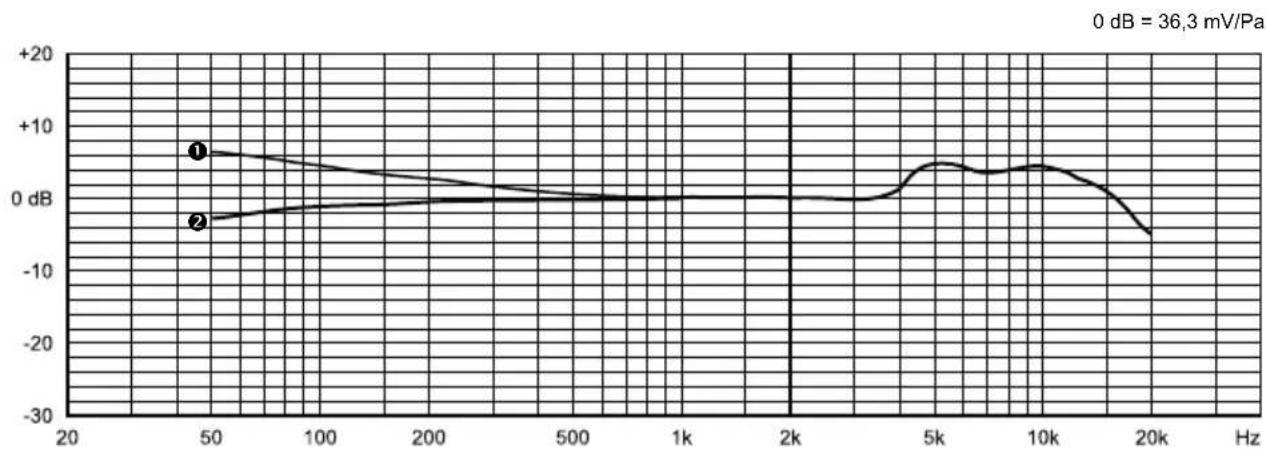

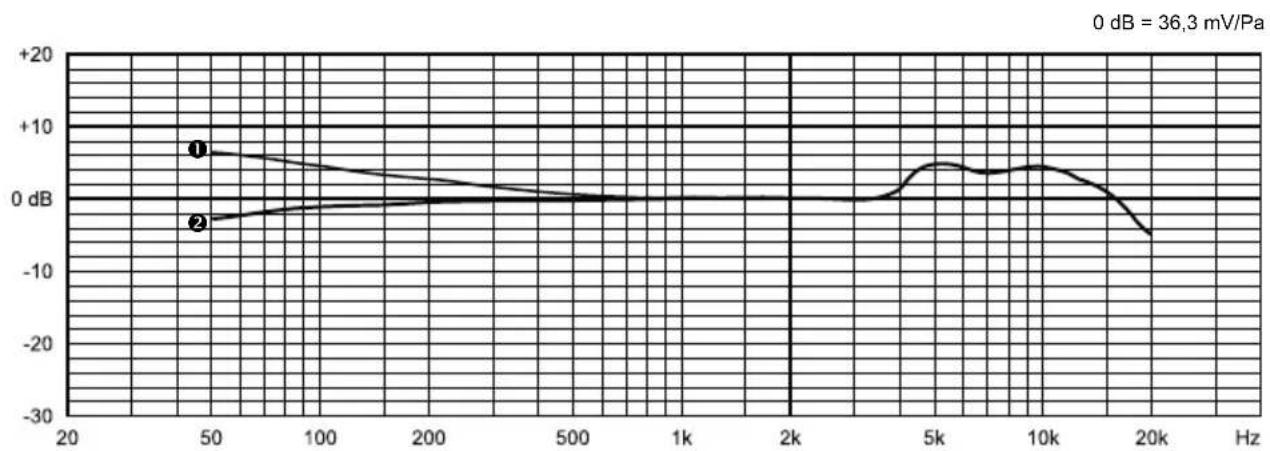

Target frequency response curve (± 2dB)

Curves for distance 1 = 2cm and 2 = 1m

Installation and commissioning

CAUTION

Cable trip hazard

Carelessly laid cables pose a trip hazard. This can injure people and damage the microphone.

Always lay cables so that no one can trip over them.

Attaching the microphone

1. Unscrew the mounting nut from the microphone thread.
2. Insert the microphone into the spider with the bottom side first.
3. Tighten the mounting nut on the thread.
4. Attach the microphone to the stand with the stand connector.
5. Attach the microphone to the stand with the stand connector.

Connecting the microphone

• The M 70 PRO X has a 3-pin XLR connector. It can be connected to any microphone input with a suitable microphone cable.
• The M 90 PRO X has a 3-pin XLR connector. It can be connected to any microphone input with phantom power (24-52V) with a suitable microphone cable. You therefore need to activate the phantom power.

Aligning the microphone

WARNING

Unstable stand

An unstable stand can fall and damage the microphone mounted on it.

Make sure that the stand used and the microphone mounted on it are stable.
Position the microphone so that the speech direction is opposite that of the source of interference to achieve the best possible noise suppression.

Disposal

At the end of its life, this product should not be disposed of with normal household waste but should be taken to a recycling facility for electric and electronic devices. This symbol on the product, instructions for use or packaging indicates this.

WEEE

Troubleshooting

If you have technical problems while using the microphones or need further guidance, please visit our FAQ website at support.beyerdynamic.com

Service

If service is required, please contact an authorised specialist. Never open the microphone yourself. You could lose all warranty claims otherwise.

Please refer to our website www.beyerdynamic.de for information about service and spare parts.

Further information

If you require further information, please visit our website at www.beyerdynamic.com/microphones.html.

For tutorials and instructions on using your microphone, please visit our YouTube channel at www.youtube.com/beyerdynamic.

Cleaning

Use a soft cloth moistened with water to clean the surface.
Make sure that no water enters the microphone.
Do not use cleaning agents containing solvents.

Warranty

beyerdynamic provides a limited warranty of 2 years on the purchased beyerdynamic product. The exact warranty conditions can be found on our website at www.beyerdynamic.de/service/garantie.

Compliance

Information about the product's compliance can be found on our website at www.beyerdynamic.com/downloads.
