USER MANUAL Grand Elite 3 Connect Plus Luvion

Exterior view of a white LUVION brand smart camera with blue base (no text or symbols on device body)

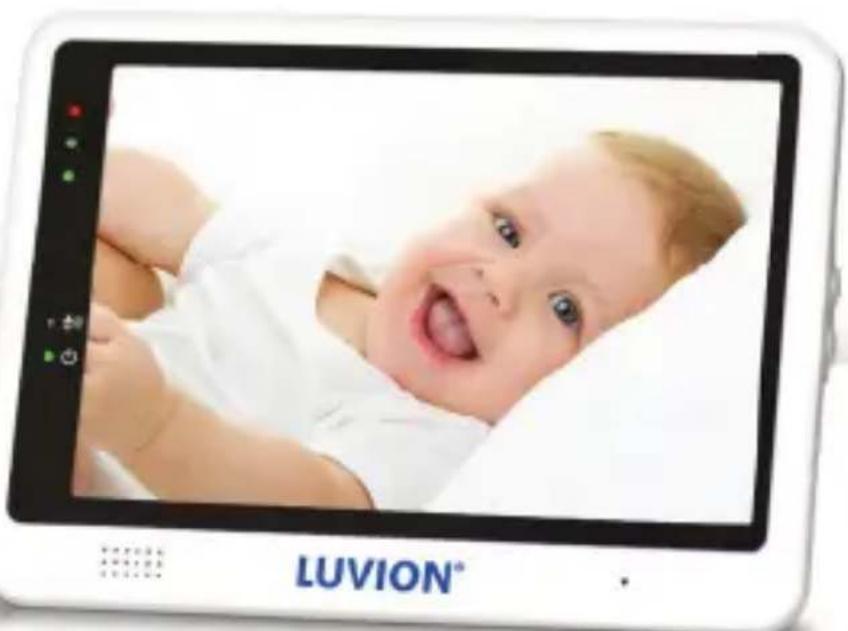

Digital tablet displaying a smiling baby photo on its screen (no text or symbols on the device itself)

CHINA GAS EXCHANGE

HANDLEIDING

INSTRUCTION MANUAL

MANUAL D'INSTRUCTIONS

ИНСТРУКЦИИ

BENUTZERHANDBUCH

INSTRUKCJA

NÁVOD K OBSLUZE

QUICK GUIDE: FIGUREN EN VERKORTE HANDLEIDING / FIGURES AND QUICK GUIDE / FIGURES ET GUIDE D'UTILISATION RAPIDE / CXEMA И КРАТКОЕ РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ / RYSUNKI I KRÓTKI PRZEWODNIK....4

NEDERLANDS....12

ENGLISH 24

FRANÇAIS....36

РУССКИЙ....48

DEUTSCH....60

POLSKI....72

ČEŠTINA....84

PRODUCTOVERZICHT/ PRODUCT LAYOUT / DESCRIPTION DU PRODUIT / ОПИСАНИЕ УСТРОЙСТВА / PRODUKTBESCHREIBUNG / OPIS PRODUKTU / NÁKRES VÝROBKU

Technical diagram of a dual-camera device with numbered parts for identification

Technical diagram of a circular mechanical component with mounting holes and a central rectangular block (no text or symbols)

Fig 1.
MONITOR / MONITEUR / MOHITOP / MONITOR

9 10 11 12 1 2 3 4 5 6 7 8 13 14

Fig 2.

INSTALLATIE/ SETUP / INSTALLATION / ВКЛЮЧЕНИЕ УСТРОЙСТВА / INSTALLATION / USTAWIENIE / NASTAVENÍ

1. CAMERA EN MONITOR INSTALLEREN/ CAMERA AND MONITOR SETUP / CONFIGURATION DE LA CAMÉRA ET DU MONITEUR / ВКЛЮЧЕНИЕ КАМЕРЫ И МОНИТОРА / KAMERA UND MONITOR INSTALLIEREN / USTAWIENIE KAMERY I MONITORA / NASTAVENÍ KAMERY A MONITORU
   1.1 Stroomvoorziening - Gebruik van netstroom / Power Supply - Using AC Power Alimentation - Utilisation de l'alimentation secteur / Источник питания устройства – Семевой аданмep / Stromversorgung mit Wechselstrom / Zasilanie - stosowanie zasilania AC - Napájecí Zdroj – Používá AC Napájení (Sít)

Diagram of a device with labeled parts including a power outlet, switch, and cable connection

Fig 3.

1.2 Accu aansluiten / Connecting the battery / Installation de la batterie / Подключение батареи / Anschluss der Batterie / Podłączanie akumulatora

Fig 4.

1. MONITOR KNOPPEN / MONITOR BUTTONS / BOUTONS DU MONITEUR / KHOPKI UYPRAVLEHNA MOHITOPA / MONITORTASTEN / PRZYCISKI ZNAJDUJACE SIĘ NA MONITORZE / TLAČÍTKA MONITORU
   2.1 Volume instellen / Volume Setting / Réglage du volume / Регулятор громкости / Lautstärke einstellen / Ustawienie głośności / Nastavení hlasitosti

Diagram showing a hand interacting with a device screen displaying a baby image, with an inset close-up highlighting the button.

Fig 5.

2.2 Terugspreek functie / Talkback function / Fonction de réponse / Обратная связь / TalkBack Funktion / funkcja mówienia / Funkce Zpětného hovoru (obousměrného)

Diagram showing a hand interacting with a device screen and a lock, with Chinese labels indicating '3' and 'm2'

Fig 6.

1. TOUCH SCREEN MENU OPTIES / TOUCH SCREEN MENU OPTIONS / OPTIONS DU MENU DE L'ÉCRAN TACTILE / ПАРАМЕТРЫМЕНЮ СЕНСОРНОГО ЭКРАНА / TOUCHSCREEN MENÜOP-TIONEN / OPCJE W MENU EKRANU DOTYKOWEGO / VOLBY MENU DOTYKOVÉ OBRAZOVKY

Illustration of a sleeping baby on a bed inside a tablet device, with no visible text or symbols.

Fig 7.

3.1 Alleen geluid modus / Sound only function / Fonction audio seulement / Режим радионяни (энергосбережение) / Nur-Ton-Funktion / Funkcja samego dźwięku / Funkce pouze zvuk

Illustration of a hand interacting with a tablet displaying a sleeping baby (no text or symbols visible)

Fig 8.

Illustration of a hand interacting with a tablet displaying a baby image, with Chinese UI elements visible.

Fig 9.

Illustration of a hand interacting with a tablet displaying a sleeping person's face, with control buttons and playback controls visible.

Fig 10.

3.4 Pan tilt functie / Pan tilt function / Fonction panoramique inclinaison / Вращение камеры / Schwenk/Neige-Funktion / Funkcja obracania i pochylania / Funkce naklápění otáčení kamery

Tilt Pan

Fig 11.

1. MENU OPTIES / MENU OPTIONS / OPTIONS DE MENU / ФУНКЦИИ МЕНЮ / MENÜOPTIONEN / OPCJE W MENU / VOLBY MENU

Scanned screenshot of a mobile device displaying a Chinese UI window with icons for user, profile, and settings.

Fig 12.

4.1 VOX functie (Activeren van monitor d.m.v. geluid) /VOX (Voice-Operated Transmission) Function / Fonction VOX (Transmission á commande vocale) / Режим VOX (датчик звука) / VOX (Sprachgesteuerte Aktivierungsfunktion) / Funkcja VOX (przesył obsługiwany głosem) / Funkce VOX (Zvukem-Aktivovaný Přenos)

VOX gevoeligheid / VOX Sensitivity / Sensibilité VOX / Регулировка чувствительности VOX / VOX Empfindlichkeit / Czuloseć VOX / Citlivost VOX

34°C 1200

Fig 13.

4.2 Helderheid instellen / Brightness Setting / Réglage de la luminosité / Haстройka яркости экрана / Helligkeit einstellen / Ustawienie jasności / Nastavení jasu

Fig 14.

Screenshot of a mobile device interface showing a progress bar with icons and a plus sign, likely from an older application.

4.3 Temperatuur instellen / Temperature Setting / Réglage de la température / Насмройка датчика температуры / Temperatur einstellen / Ustawienie temperatury / Nastavení teploty

Fig 15.

4.4 Camera Selectie / Camera Selection / Sélection de la caméra / Выбор камеры / 3 Kamera Auswahl / Wybór kamery / Výběr kamery

Fig 16.

1 2 3 4

4.5 Camera instellen / Camera Setting / Paramètre caméra / Подключение камер (PAIRING) / Kamera einstellen / Ustawienia aparatu / Nastavení kamery

盘1 盘2 盘3 盘4 Fig 17.

1. BEELDSCHERM WEERGAVE / SCREEN DISPLAY / ÉCRAN D' AFFICHAGE / ИНДИКАТОРЫ НА ЭКРАНЕ / BILDSCHIRMANZEIGE / WYŚWIETLACZ / OBRAZOVKA

2 4351011 6 7 8 91 1 24°C 1 Fig 18.

FCC Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna
- Increase the separation between the equipment and receiver
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
- Consult the dealer or an experienced radio/TV technician for help

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Caution

• To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm must be maintained between the antenna of this device and all persons.
- This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
- Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment.

INHOUD DOOS:

Illustration of a hand using a tool to inspect or adjust a circular component, with no visible text or symbols.

LUVION® Premium Babyproducts

QR AN

QR code image containing encoded data, no visible human-readable text

QR iOS

A3A2A1

1. Top search & select your WiFi network 2. Enter the password of WiFi network. WiFi networks Password Next

A5

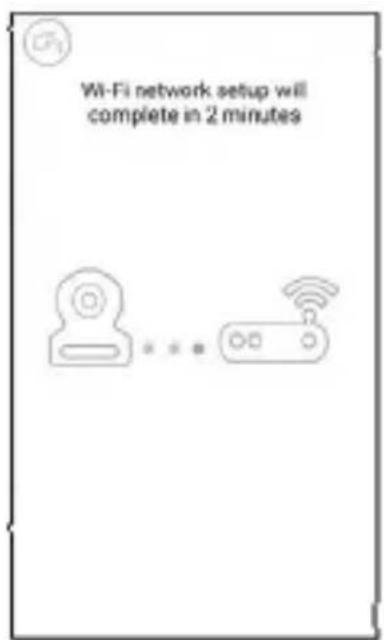

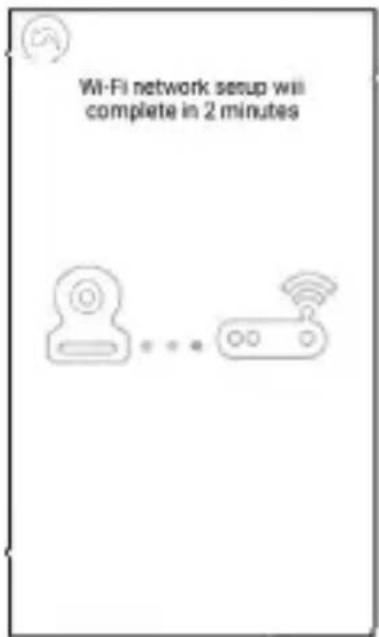

WiFi network setup will complete in 2 minutes

A6

Open Save

A7

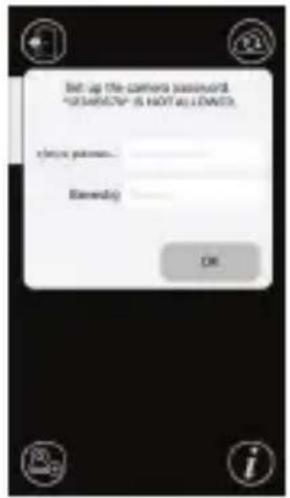

Set up the camera password. "CHANGE" SNOT ALLOWED. OK

A8

7 PROBLEEM & OPLOSSING

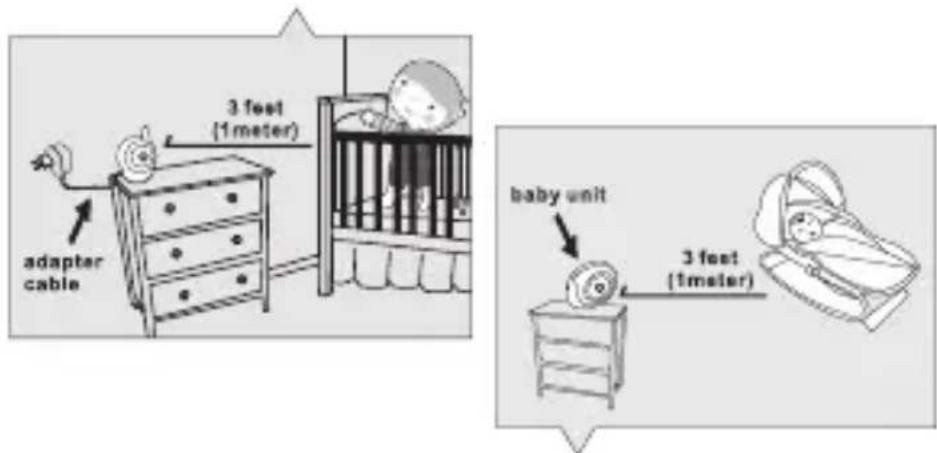

3 feet (1meter) adapter cable baby unit 3 feet (1meter)

This device is for indoor use only

BOX CONTENTS:

• 1 camera
• 1 monitor
• 2 power adapters
  • 1 screw, 1 plug en 2 cable binders
• This user manual
• WIFI/APP pairing quickstart manual

PRODUCT LAYOUT

Camera (Fig. 1)

1. Light sensor
2. Microphone
3. Lens
4. Infrared LEDs
5. Speaker
6. Power adapter plug
7. Wifi pairing button (to connect the camera to the router)
8. Antenna
9. Temperature sensor
10. Power indicator LED

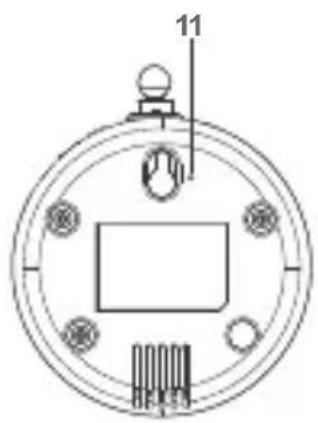

11. Monitor pairing button (to connect the camera to the monitor)

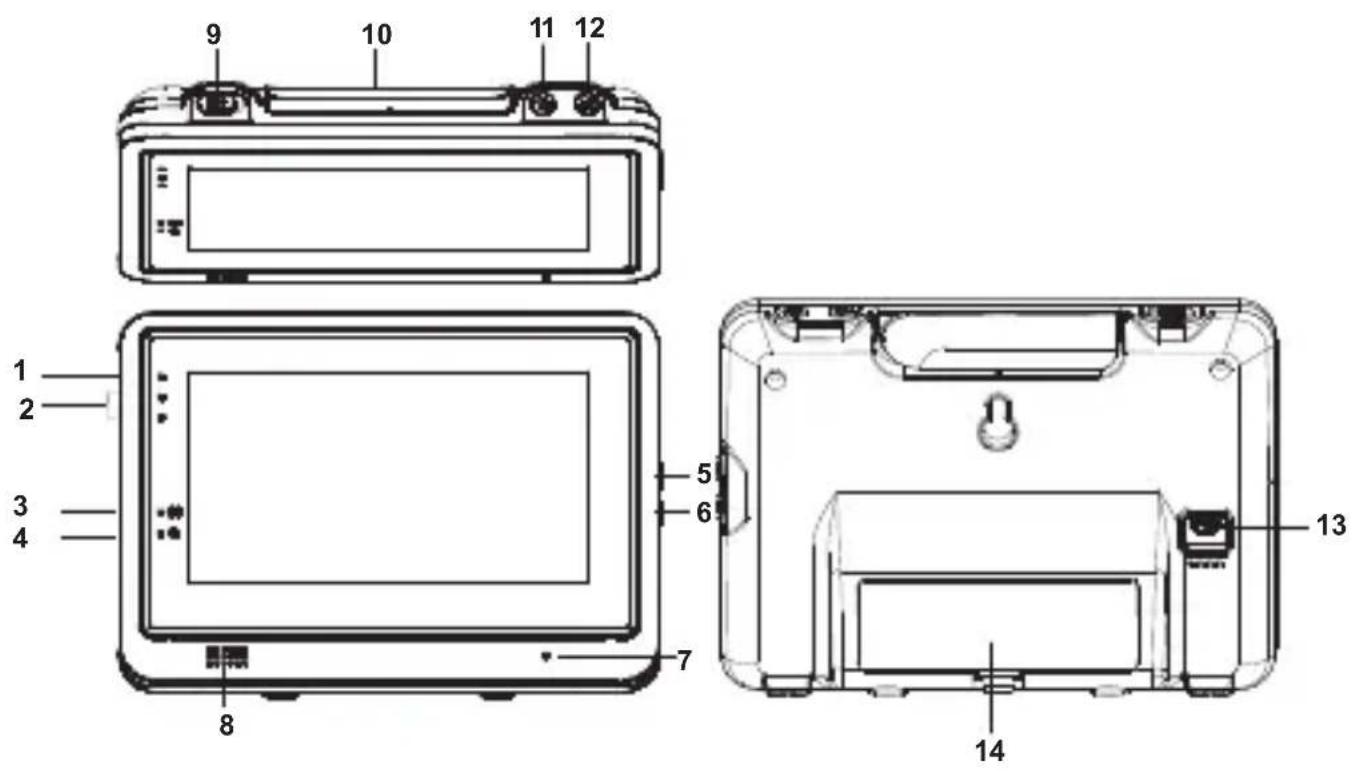

Monitor (Fig. 2)

1. LCD screen
2. Volume indicator LEDs
3. VOX indicator LED
4. Power indicator LED
5. Volume up button
6. Volume down button
7. Microphone
8. Speaker
9. Power ON/OFF switch
10. Antenna
11. Menu button
12. Talkback button
13. Power adapter plug
14. Battery compartment

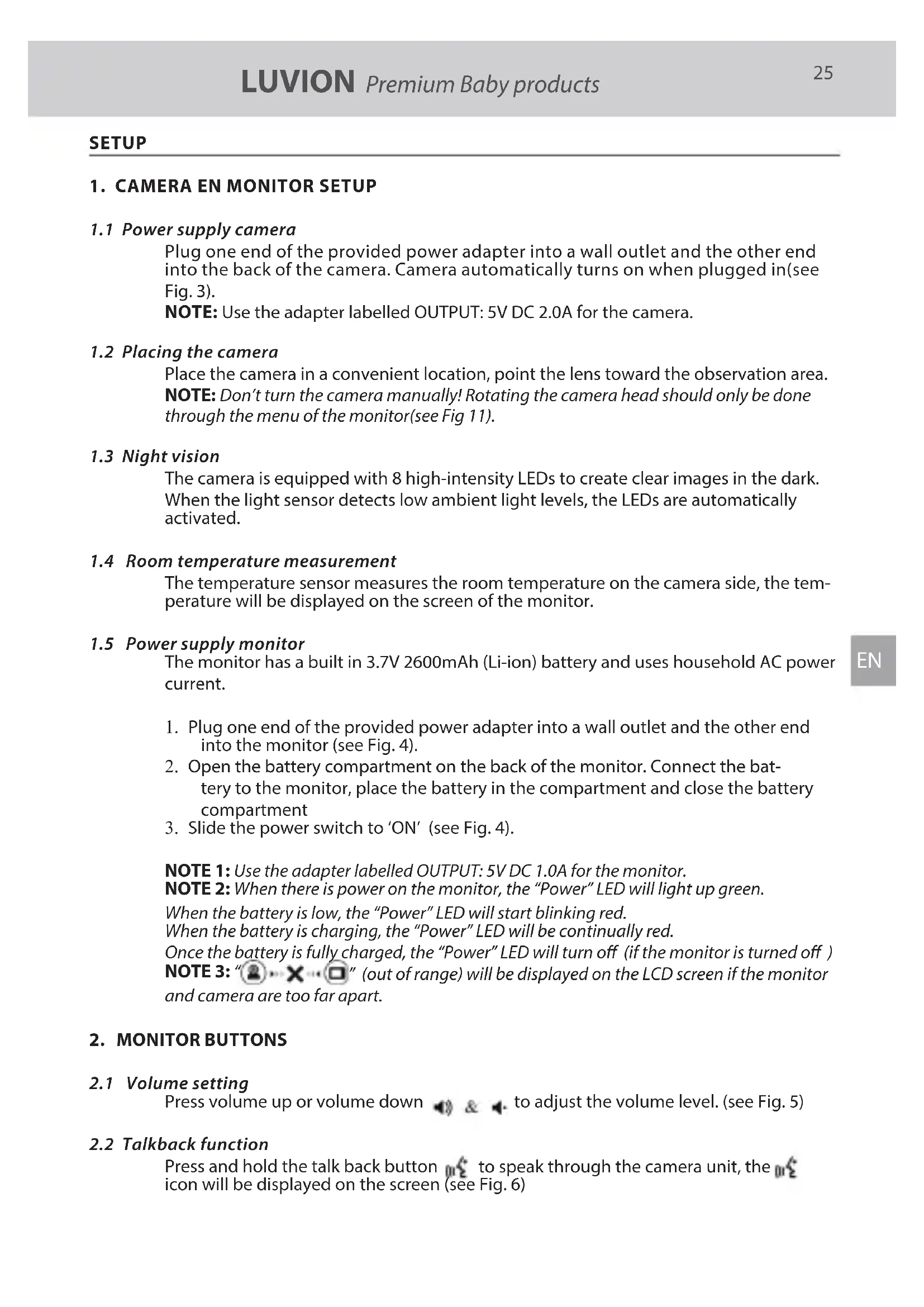

SETUP

1. CAMERA EN MONITOR SETUP

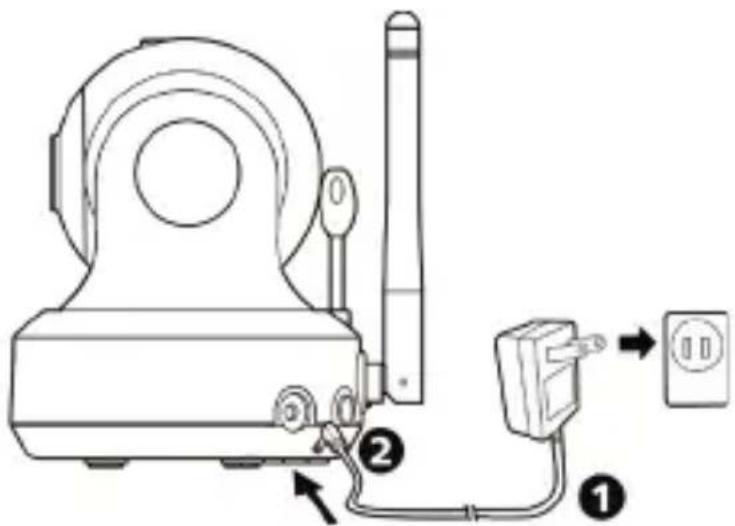

1.1 Power supply camera

Plug one end of the provided power adapter into a wall outlet and the other end into the back of the camera. Camera automatically turns on when plugged in(see Fig. 3).

NOTE: Use the adapter labelled OUTPUT: 5V DC 2.0A for the camera.

1.2 Placing the camera

Place the camera in a convenient location, point the lens toward the observation area.

NOTE: Don't turn the camera manually! Rotating the camera head should only be done through the menu of the monitor(see Fig 11).

1.3 Night vision

The camera is equipped with 8 high-intensity LEDs to create clear images in the dark. When the light sensor detects low ambient light levels, the LEDs are automatically activated.

1.4 Room temperature measurement

The temperature sensor measures the room temperature on the camera side, the temperature will be displayed on the screen of the monitor.

1.5 Power supply monitor

The monitor has a built in 3.7V 2600mAh (Li-ion) battery and uses household AC power current.

1. Plug one end of the provided power adapter into a wall outlet and the other end into the monitor (see Fig. 4).
2. Open the battery compartment on the back of the monitor. Connect the battery to the monitor, place the battery in the compartment and close the battery compartment
3. Slide the power switch to 'ON' (see Fig. 4).

NOTE 1: Use the adapter labelled OUTPUT: 5V DC 1.0A for the monitor.

NOTE 2: When there is power on the monitor, the "Power" LED will light up green.

When the battery is low, the "Power" LED will start blinking red.

When the battery is charging, the "Power" LED will be continually red.

Once the battery is fully charged, the "Power" LED will turn off (if the monitor is turned off)

NOTE 3: "☐→X→☐" (out of range) will be displayed on the LCD screen if the monitor and camera are too far apart.

2. MONITOR BUTTONS

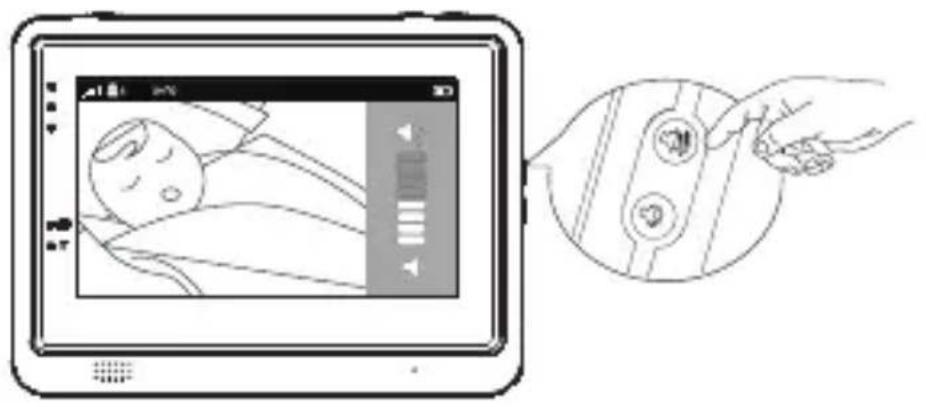

2.1 Volume setting

Press volume up or volume down 🔊 & 🔒 to adjust the volume level. (see Fig. 5)

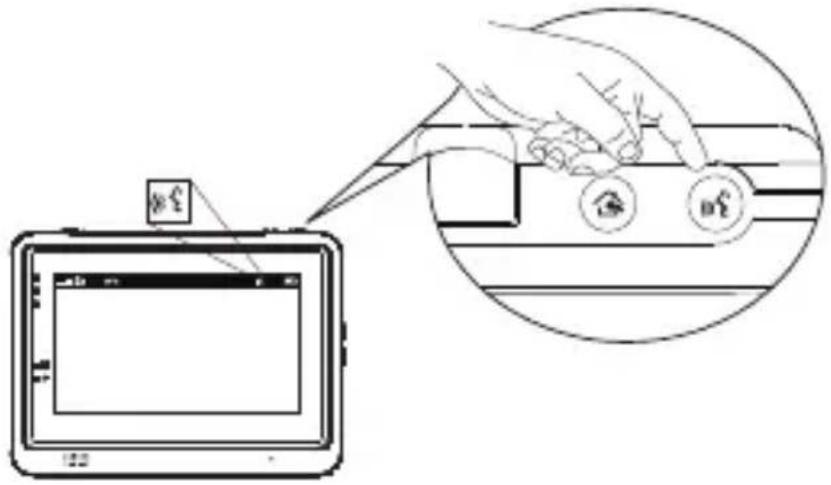

2.2 Talkback function

Press and hold the talk back button _ to speak through the camera unit, the _ icon will be displayed on the screen (see Fig. 6)

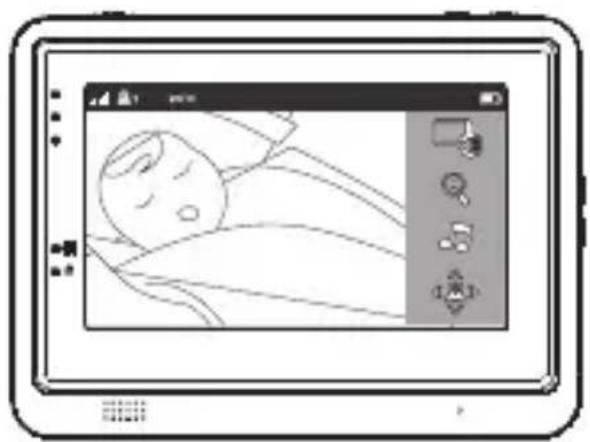

3. TOUCH SCREEN MENU OPTIONS

1. Tap the screen and the touch screen menu will be displayed on the right side of your screen (see Fig. 7).
2. Tap on the menu function you wish to adjust to select it.

NOTE: Touch screen settings need to be completed within 5 seconds. After 5 seconds the screen will return to live view automatically.

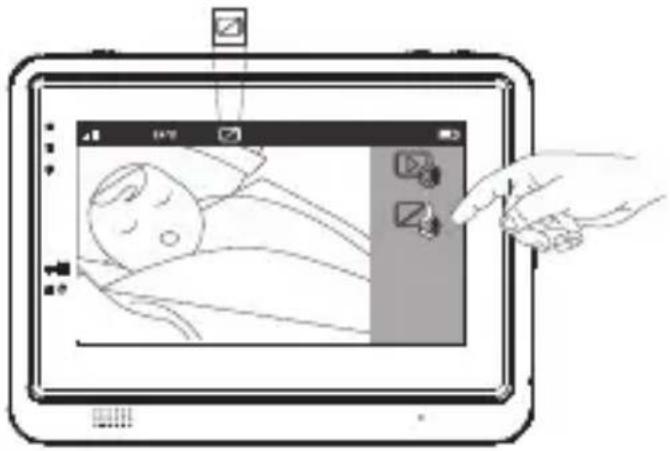

3.1 📋 Sound only mode

Tap the icon to activate the sound only mode. The video feed will then be turned off after 10 seconds, the sound will continue to work. When you touch the screen the screen will be activated for 15 seconds. (see Fig. 8)

3.2 Zoom function

Tap the zoom 🔒 icon once to enter zoom mode, the screen will display 2x zoom image, tap the zoom 🔒 icon again to return to normal (non-zoomed) view (see Fig. 9).

3.3 Music Function

The camera can play 10 different lullabies.

1. Tap the music 🎧 icon on your screen and tap ➤ to choose the song you want to be played on the camera. The camera will now continue to play the selected song. Tap ➤ to play all tracks one after the other (see Fig. 10).

2. Tap 📋 to turn the music off again (see Fig. 10).

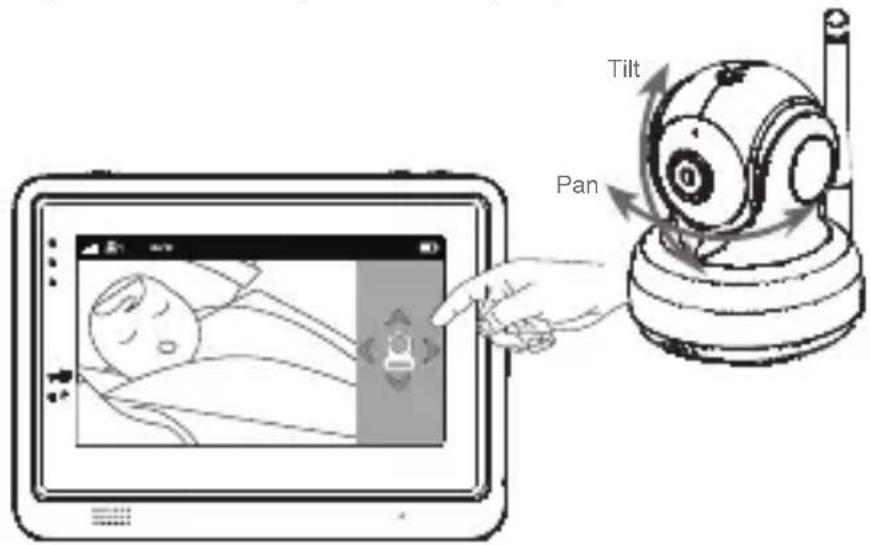

3.4 <â> Camera Pan/Tilt remote control function

On the monitor you can remotely control the camera. The camera head has the ability to rotate up, down, right and left. Tap the up or down icons on your screen to move the camera up or down. Tap the left or right icons on your screen to move the camera to the left or right (see Fig. 11).

NOTE: The monitor will be in silent mode when the camera rotates.

4. MENU OPTIONS

1. Press the menu button on top of the monitor to display the main menu on the screen.

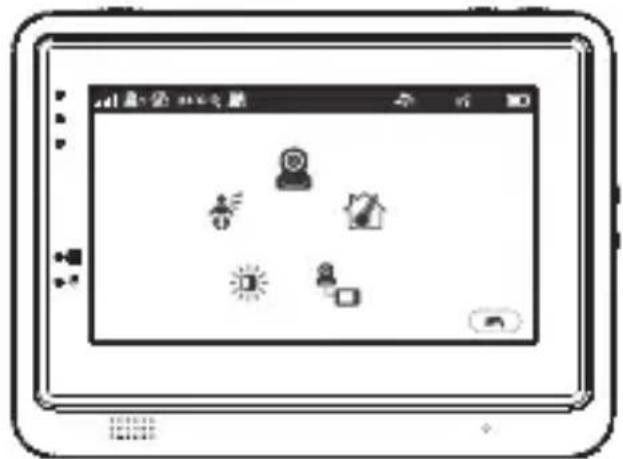

2. The main menu contains 3 submenus (see Fig. 12).

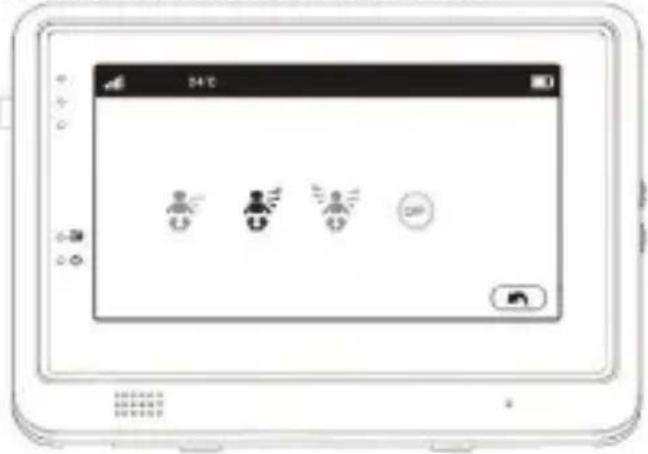

4.1 VOX-function (Activating the monitor by sound)

1. Select VOX in the menu of the monitor. Here you can activate the VOX mode, when 'ON' is selected the VOX mode is active and when 'OFF' is selected the VOX mode is not active. When VOX mode is active the screen will automatically turn off after 10 seconds, the VOX-LED on the side of the screen will then light up (see Fig. 13).

2. When the sound level near the camera reaches the pre-set level (see Fig. 13), the screen will automatically re-activate. After 20 seconds the screen will automatically turn off again.

3. The VOX-Sensitivity can be set to three different levels, high 🔍, medium and low 🔍, the higher the sensitivity the lower the sound level needs to be at the camera side for the monitor to activate.

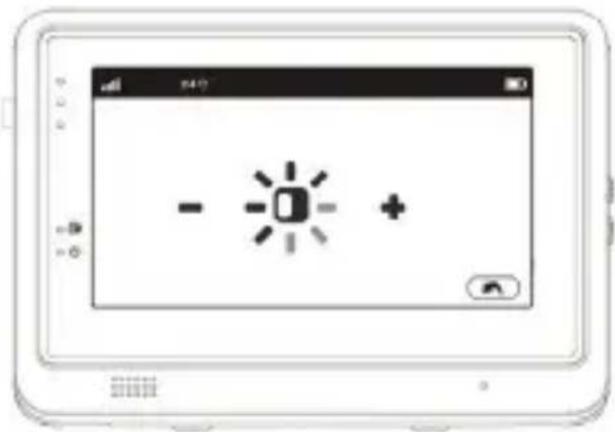

4.2 Brightness settings

To adjust the screens brightness you select the 📄 icon in the menu, here you can make

the screen brighter by tapping + or darker by tapping the - (see Fig. 14).

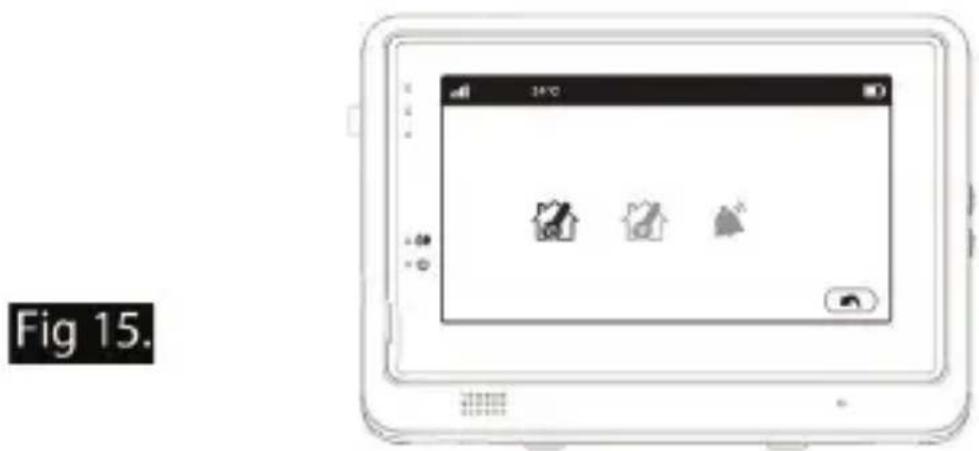

4.3 Temperature settings

1. Select the temperature settings submenu in the menu screen, here you can choose if you want the temperature to be displayed in Celsius or Fahrenheit (see Fig. 15).
2. You can also set the temperature range for the temperature alert. If you select "Alert On" to activate the temperature alert, a warning sound will be emitted by the monitor unit when the measured temperature is outside the pre-set parameters. (See Fig. 15).

4.4 📁 Camera selection

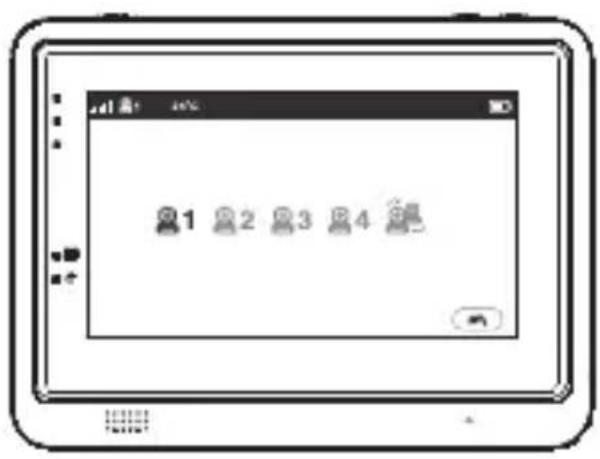

1. In this submenu you can choose between multiple connected cameras. (See Fig. 16).
2. Tap the auto-scan icon 📁 for the auto-scan feature, this will display images from each camera in eight-second intervals. See Fig. 16).

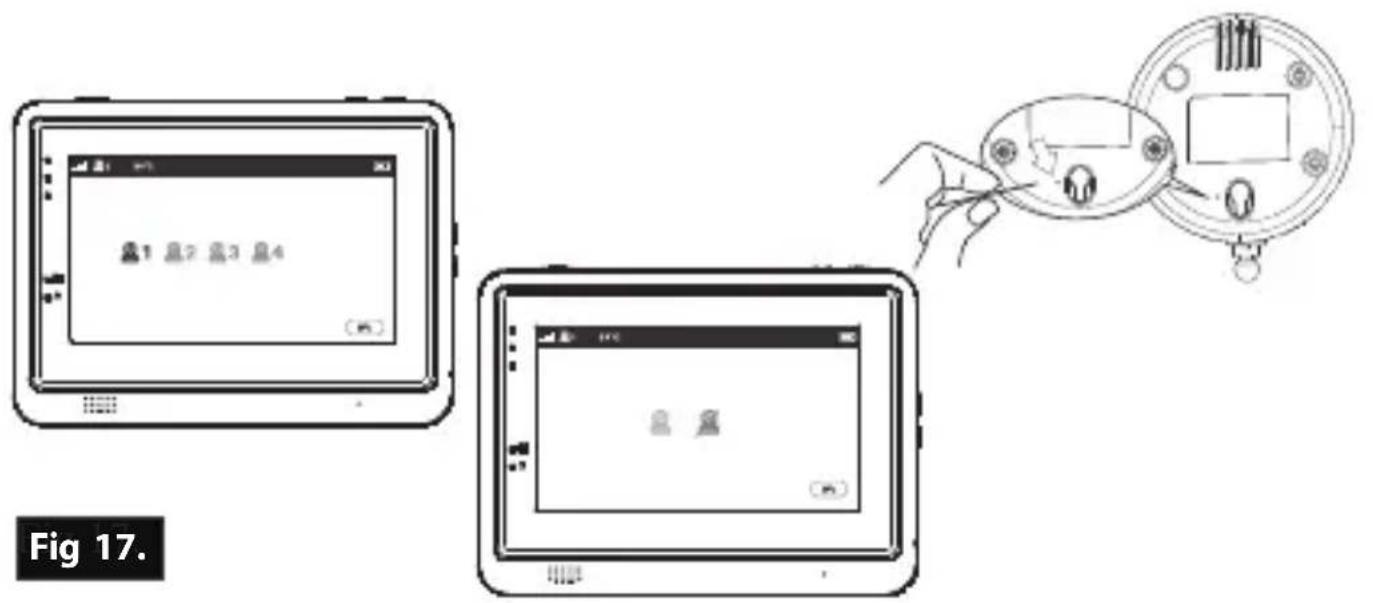

4.5 Camera setting

In the "Camera Setting" menu you can connect each camera to a separate channel on the monitor. You can add up to 4 cameras to a monitor. Always connect the first camera to channel one, any subsequent extra cameras can be added to channel 2 through 4 in any order you please.

1. First, you need to connect the camera to your Wifi router via smartphone/tablet before you pair the camera with the monitor. The camera loses its connection with the monitor when connecting to the WiFi router. To connect the camera to a Wifi router please refer to Section 6.
2. Select the channel on which you want to connect the camera to the monitor (for the first camera always choose channel 1). Then press the "add camera" icon. The monitor will try to connect to the camera, an animation will appear on the monitor screen.

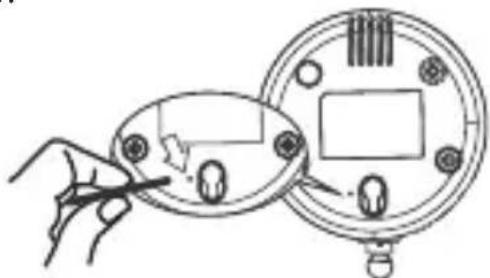

3. Press and hold the monitor pair button in the pinhole on the bottom of the camera with the provided pin for at least 3 seconds. The camera is now connected to the monitor.

Illustration of a hand using a tool to inspect or inspect a circular electronic meter (no text or symbols visible)

1. If you want to delete a paired camera, select the channel of the camera you would like to delete and tap the delete camera icon 📄 Camera 1 can only be overwritten but not removed.

NOTE: When (re)connecting a camera onto the monitor's first channel all channels will be reset, meaning all other previously connected cameras will also have to be connected again.

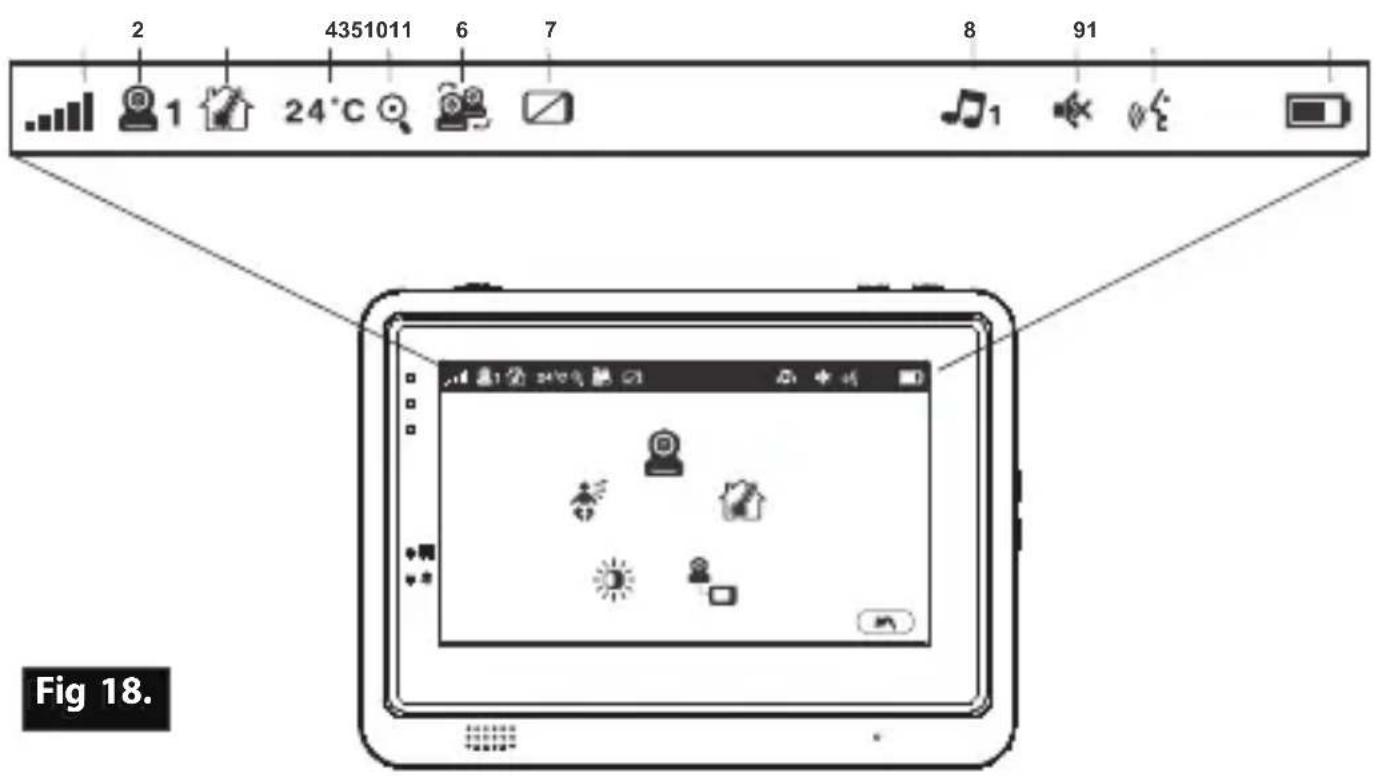

5. STATUS INFORMATION

The status bar will be displayed on the top of the screen (See Fig. 16).

1. Signal strength indicator
2. Number activated camera
3. Temperature alert on/off indicator
4. Room temperature indicator
5. Zoom in indicator
6. Auto-scan indicator
7. Audio only mode indicator
8. Music indicator
9. Mute indicator
10. Talkback indicator
11. Battery status / charging indicator

6. TELEPHONE/TABLET SETUP

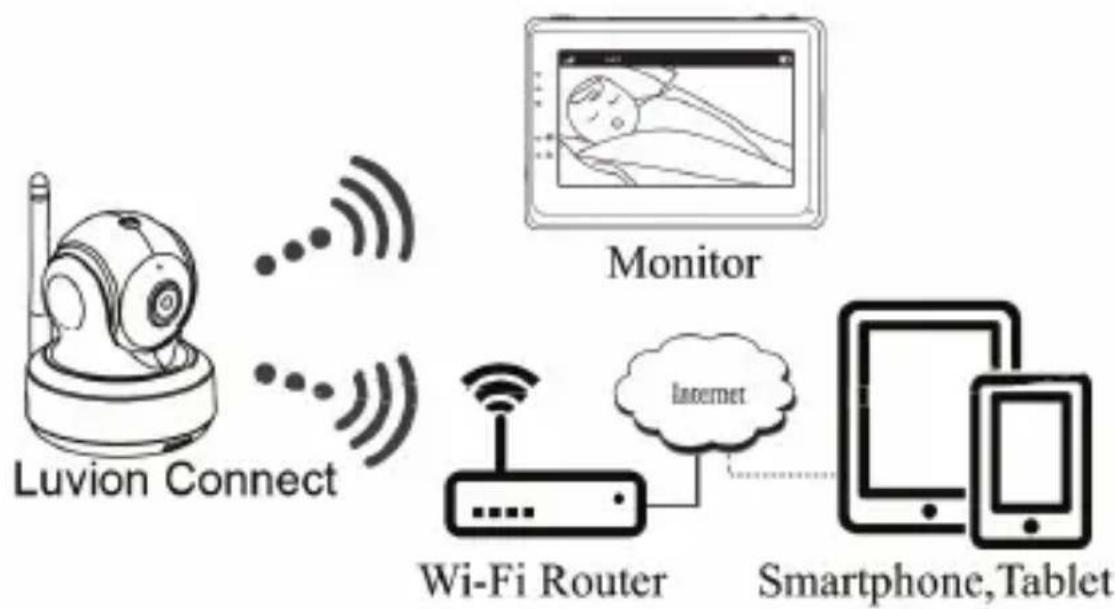

6.1 Check up on your baby anytime and anywhere you want!

6.2 Before you start you need

Two stylized devices, one tablet and one smartphone, shown in line drawing style (no text or symbols)

iPhone, iPad, Android smartphone or Android tablet

Line drawing of a mechanical device with a cylindrical component and a base (no text or symbols)

Luvion Connect

Wi-Fi Router

6.3 Download and run the Luvion Connect app

Android: Go to the Google Play Store and search for 'Luvion Connect' and install.

iOS: Go to the App Store and search for 'Luvion Connect' and install.

LUVION® Premium Babyproducts

QR
ANDROID
QR
ios

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

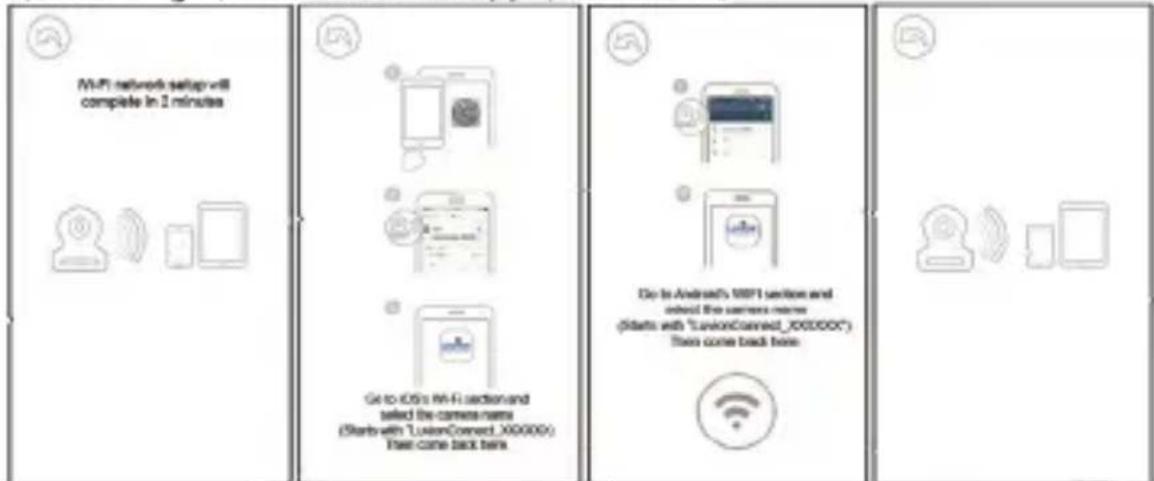

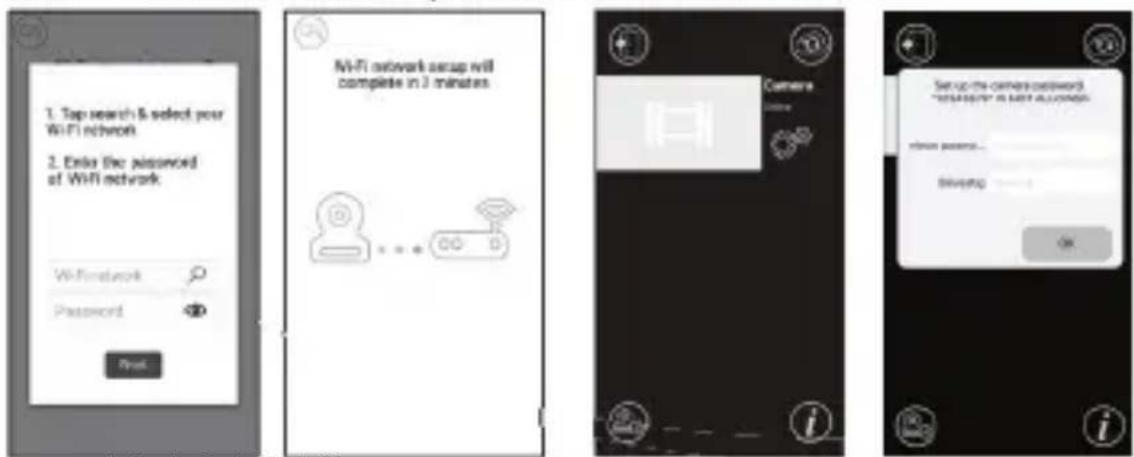

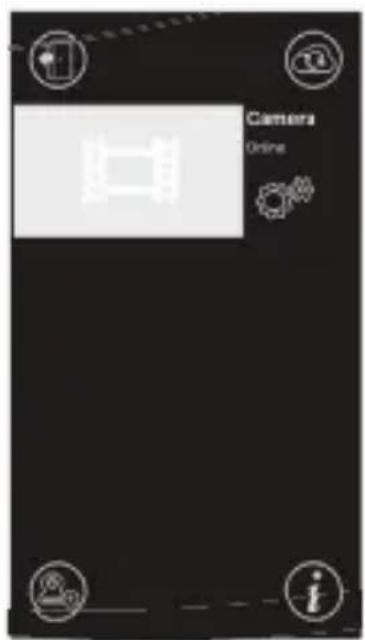

6.4 Add and connect camera wirelessly to your router

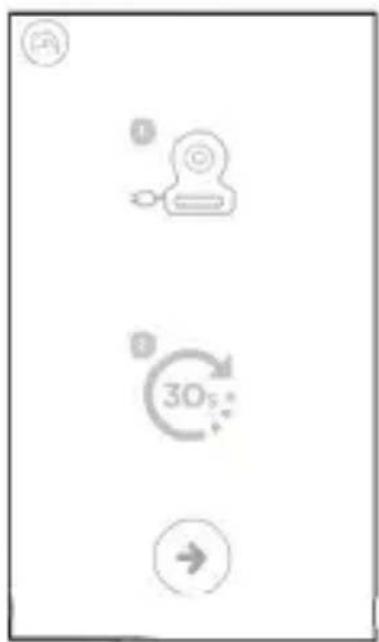

1. Tap the 📄 icon to add the camera. Tap the icon above 'connecting camera to the internet' (see fig. A1).
2. Plug one end of the provided power adapter into a wall outlet and the other end into the camera.
3. The camera will automatically turn on after connecting the power adapter, after 30 seconds the camera will be ready.
4. Tap ⬆ to go to the next step (see fig. A2).

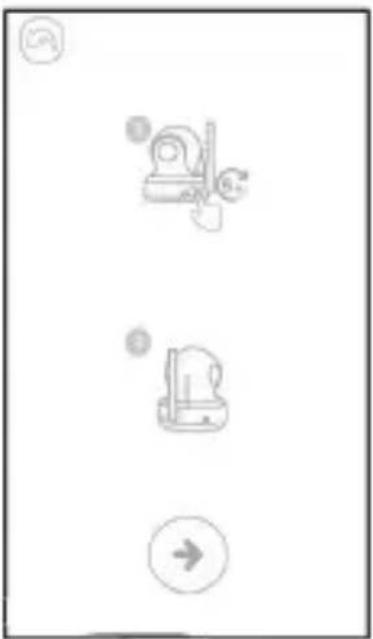

Press and hold the PAIR button on the camera until the LED indicator light start blinking in green (+ - 5 seconds).

1. Tap ⬆ to go to the next step (see fig. A3).

NOTE 1: If your monitor is on, the monitor will disconnect and reconnect in approximately 5 seconds.

NOTE 2: If the camera was registered to your app previously, the new pairing will overwrite the previous registration.

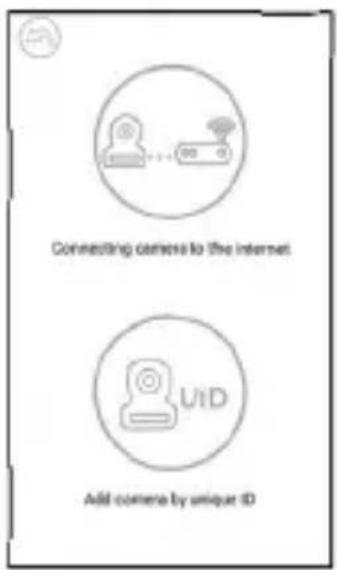

Connecting devices to the internet Add camera by unique ID

Three simple line icons representing industrial machines, one with a circular arrow, no text or symbols present

A1 A2 A3

1. a. Press the 'home button' on your phone and go to 'settings'

b. Go to 'Wi-Fi' (If Wi-Fi is turned off, please turn it back on).

c. Tap on the name of the camera 'LuvionConnect-XXXXXX' in your Wi-Fi list.

d. After the camera is connected, please return to the LuvionConnect app.

(see fig. A4)

NOTE: In the Android app you can also use the WiFi hot key ⓕ, after choosing the name of the camera from the WiFi list and use the back key of your phone (bottom right) to return to the app. (Also see A4)

iOS
Android

1. The app/camera will scan all available Wi-Fi networks within range. Select your home Wi-Fi network and enter the correct password for this Wi-Fi network. (See fig. A5).

NOTE: Please make sure you enter the correct password for the Wi-Fi network otherwise a connection error will occur.

NOTE 2: It can take a few minutes before the camera is connected to your Wi-Fi network, until that time the status "Connect" is displayed.

1. The standard password "12345678" must now be changed to a secure personal password, enter your new password and repeat it for verification. (see fig. A8).

Only uppercase, lowercase, numbers and the following special characters are supported: "!#\$%&'()*+,-./;;<=>?@[]^_{|}\~"

NOTE: If you get the "wrong password" status, you have probably used an unsupported character, remove the camera and follow the steps from 6.4 again.

1. In the app you will now see the new camera added to the list, tap the camera here to start watching the live video feed. (see fig. A7)

NOTE: If your monitor is on during this process, the monitor will disconnect from the camera and automatically reconnect in around 10 seconds.

1. Tap search & select your WiFi network 2. Enter the password of WiFi network WiFi network Password First WiFi network setup will complete in 3 minutes Camera + - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

A5 A6 A7 A8

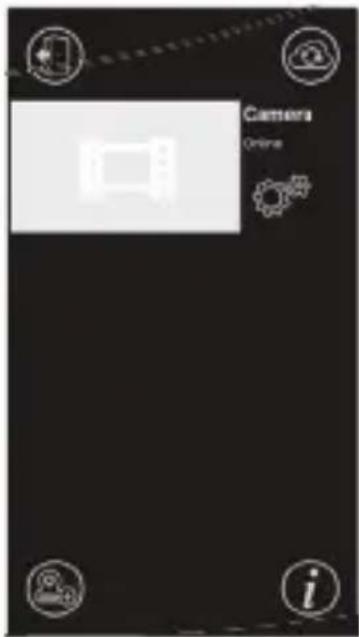

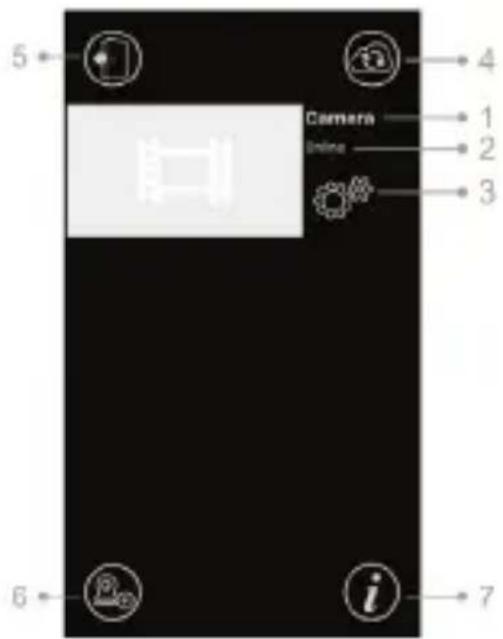

6.5 Start screen app (see fig. A9)

1. Camera name
2. Connection status
3. Settings menu
4. Refreshing the screen
5. Close the app
6. Add camera
7. App information

5 Camera Online 4 1 2 3 6 i 7

A9

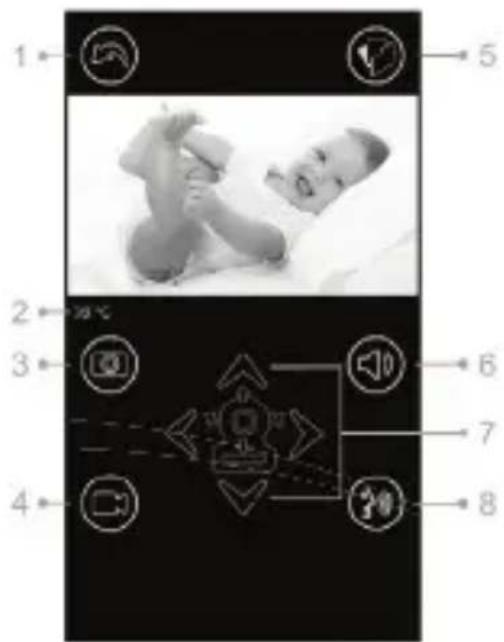

6.6 Live video screen functions (see fig. A10)

1. Back: Tap the back icon to go back to the start screen.
2. Temperature measurement: The temperature will be displayed here, below the live view.
3. Photo: Tap the photo icon to take a picture and save it to your smartphone / tablet.
4. Video: Tap the video icon to start / stop a video recording. (each video recording can be a maximum of 3 minutes)

NOTE: Photos and videos will be stored on the internal memory of your smartphone or tablet.

1. Photo/video album: Tap the map icon to view and manage your videos/photos.

To remove photos/videos on android devices tap and hold the photo/video, on iOS you press edit at the top of the screen.

1. Volume: Tap the speaker icon to adjust the volume.

2. Pan/Tilt remote control: Tap the up ▲, down ▼ left ◀ and right ▶ icons to rotate the camera.

3. Talk back: Tap the icon once to activate talk back toward the camera. Tap again to close the talk back connection.

NOTE: While talk back is activated the sounds from the camera side won't be available in the app.

0)

1 2 3 4 5 6 7 8

A10

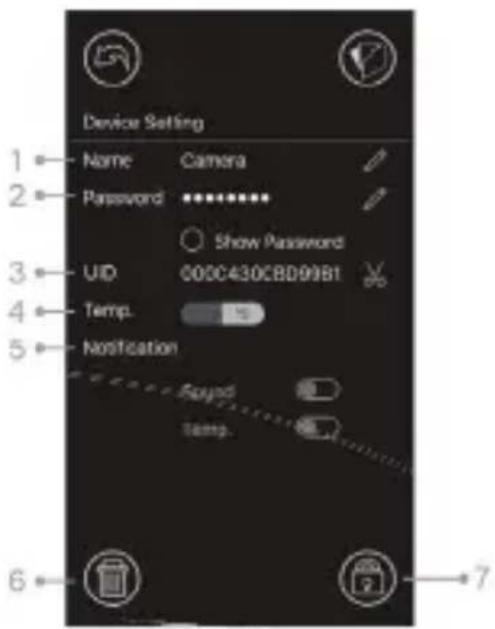

6.7 The app settings menu functions (see fig. A11)

Tap the setting icon 📋 on the start screen (see fig. A9)

1. Name: Camera name, tap the icon to change the name of the camera.

2. Password: Enter the correct password to access the camera.

3. UID: Each camera has a unique ID(UID). By sharing this UID code and your password you can share the video feed.

4. Temperature: Tap the switch icon to switch between Celsius and Fahrenheit. The value that is shown on the switch is currently selected.

5. Notifications: Tap the switch icon next to 'Sound' and 'Temp' to activate or deactivate push notifications based on sound and/or temperature. If active you will receive a push notification from the app when the sound or temperature reaches the level that you have set on the monitor.

6. Delete camera: Tap the bin 📄 icon to remove the camera from the app.

7. Change password: Tap the lock icon to change the password. This icon will only be available

when your phone is connected to the same network as the camera. The default password is '12345678', change the default password when you first use the camera!

Device Setting 1 Name Camera 2 Password ******** Show Password 3 UID 000C430CBD99B1 4 Temp. 5 Notification 6 Found Temp.

A11

6.8 LED indicator (camera)

Indication	Status
Blinking Green	Camera is ready for pairing
Solid Green	Camera is linked to the Internet
Solid Orange	Lost connection to the Internet
Solid Red	Lost connection to the Wi-Fi router (refer to troubleshooting 7.5)

7 TROUBLESHOOTING

7.1 No video on the monitor

- Make sure the camera's power plug is pushed all the way in.

• Make sure the monitor has enough battery power and is turned on.

- Restart your camera, please unplug the power adapter and reconnect. The will reboot and restart within 25 seconds.

- If the power indication LED is on but only the audio can be heard, the sound only or VOX mode could be active. Press the menu button to turn the screen back on. For instructions to turn these functions off please check section 3.1 (Sound only) or 4.1 (VOX) of this manual.

7.2 (Noise) Interference on your monitor

• Make sure there is at least a 5 feet (1.5m) distance between the camera and other 2.4GHz products, such as Wi-Fi routers, Bluetooth devices or microwave ovens.
- When a microwave or oven is in a direct line between the camera and monitor this can negatively influence the signal strength. To solve this make sure the device is no longer in a direct line between the camera and the monitor or turn it off.
- Make sure the camera and the monitor are within range of each other (The range is maximum 300 meters in open field or around 50 meters inside a house).

7.3 Camera has no connection with the app

• Timeout: Make sure your smartphone or tablet is connected to a Wi-Fi router or 4G network.
  • Offline: Make sure the camera is on and connected to the internet.

7.4 Video problems inside the app

• No video play: Please check the camera status on the app's start screen.
• Video streaming is not smooth: The video performance is related to your internet bandwidth and possible interference.

7.5 The camera's LED indicator stays solid red

The camera has failed to connect to the Wi-Fi router or the connection was lost.

• Please make sure your Wi-Fi router is working correctly and then restart your camera, please unplug the power adapter and reconnect.
• Make sure the camera is paired with your Wi-Fi router with the correct password for the Wi-Fi router. If you are not sure, please delete the camera from the app and follow the steps from section 6.4 of this manual again.
• Please make sure the camera is within Wi-Fi range. Please move the camera closer to the Wi-Fi router and try again.

7.6 Forgot your password (app)

- Please delete camera from the start screen list and proceed the steps from section 6.4 of this manual again.

CARE AND MAINTENANCE

• Keep all parts and accessories out of children's reach.
• Fingerprints or dirt on the lens surface can adversely affect camera performance. Avoid touching the lens surface with your fingers.
• Avoid touching the lens surface with your fingers.
• Use a soft, dry cloth to wipe off the lens.
• Keep the camera dry. Precipitation, humidity and other liquids contain minerals that will corrode electronic circuits.
• Do not use or store in dusty, dirty areas.
• Do not store in hot areas. High temperature can shorten the life of electronic devices and warp or melt certain plastics.
• Do not store in very cold areas. When the system warms up (to its normal temperature), moisture can form inside the case, this could damage the electronic circuit boards.
• Do not attempt to open the case! Non-expert handling of the device may damage the system and the warranty is voided.
• Avoid dropping or strong shocks
• Use this product only with the included power adapters or provided as an accessory.
  • Do not overload electrical outlets or extension cords this can result in fire or electric shock
  • The system operates on 2.4 GHz.

Follow these safety precautions to avoid injuries associated with baby monitor cords:

• Make sure the baby unit and AC adapter cords are always out of reach from the baby, at least 3 feet (1 meter) away.

Note: It's important even if your baby is not yet standing or mobile.

- Never place the camera or cables inside the baby's bed.

3 feet (1 meter) adapter cable baby unit 3 feet (1 meter)

• Make sure the adapter cords are safely tucked away. Bundle long wires using tape or cable clips.
• Use a wireless baby monitor to avoid risk of strangulation.
• Never use extension cords with AC adapters. Only use the AC adapters provided.

General safety precautions:

• Read the user manual carefully and follow the instructions.
• Keep the manual for future reference.
• Please ensure the heat can dissipate easily; never cover the baby-unit, parent unit and or power adapter.
• Make sure the wires can't get damaged and make sure you can't be tripped by them.
• Keep small parts out of children's reach.
• This product is not a toy, don't let children play with it.
  • This baby monitor is not a replacement for parental oversight.
• Don't use the monitor in close proximity to water.
• Test this baby monitor and all its functions before use, to ensure you are familiar with all it functions.
• Never touch the power contact points with sharp or metal objects.

SPECIFICATIONS

Camera

Frequency	2.4 GHz
Image Sensor	CMOS image sensor
Lens	f4.4mm, F 2.4
IR LED	8 pcs
Dimensions	85(W) x 110(H) x 100(D) mm
Weight	225g ±5g
Power Adapter	Input: 100-240V AC, 50/60Hz, 0.5A Output: 5.0V DC, 2.0A
Operating temperature	0°C ~ 40°C (32°F ~ 104°F)

Monitor

Frequency	2.4 Ghz
Display	5" TFT LCD touch screen
Display colors	Full-color
Brightness Control	8 levels
VOX	Voice activation, Audio mode
Dimensions	150 (W)x 106.6 (H) x 49 (D) mm
Weight	272g±5g
Power Adapter Battery Capability	Input: 100-240V~0.2A, 50/60Hz 12-16VA Output: 5.0V DC, 1.0A 3.7V, 2600mAh (Li-ion)
Operating temperature	0°C ~ 40°C (32°F ~ 104°F)

Specifications subject to change without prior notice

This item is in compliance with the essential requirements and other relevant provisions of European Directives. The declaration of conformity is available through: https://www.luvion.nl/doc/Grand-Elite-3-Connect-Plus

* iPhone, iPad are trademarks of Apple Inc.

* Google Play is a trademark of Google Inc.

This device is for indoor use only

CONTENU DE LA BOÎTE:

4.3 Temperature settings

Diagram showing a hand inserting a small component into a circular device with a screen and buttons (no text or symbols present)

Connecting camera to the internet UID Add camera by unique ID

Three simple line drawings of mechanical devices with directional arrows, no text or symbols present

A1 A2 A3

A4

1. Tap search & select your WIFI network 2. Enter the password of WIFI network WiFi network Password Save WiFi network setup will complete in 2 minutes Camera Enter Set up the camera password. "minutes" is not as follows: Search password... Setting OK

A5 A6 A7 A8

Device Setting 1 Name Camera 2 Password ******** Show Password 3 UAD 000C430C8D96B1 4 Temp 5 Notification Sound Temp 6

A11

3 feet (1meter) adapter cable baby unit 3 feet (1meter)

This device is for indoor use only

В КОМПЛЕКТ ВХОДИТ:

Diagram showing a hand connecting two circular components to a device, with no visible text or symbols.

LUVION® Premium Babyproducts

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Connecting camera to the Internet Add camera by unique ID

AI

A2

A3

iOS
Android

A4

1. Tap-search & select your WiFi network 2. Enter the password of WiFi network WiFi network Password! Next

A5

WiFi network setup will complete in 2 minutes

A6
A8

Camera Online i

Let up the camera password. "Get before?" IS NOT AS DATA. Close password: Remember: OK

3 feet (1 meter) adapter cable baby unit 3 feet (1 meter)

Diagram showing a hand inserting a component into an oval device with a rectangular component on top (no text or symbols)

Two stylized devices, one tablet and one smartphone, shown in line art style (no text or symbols)

iPhone, iPad, Android smartphone or Android tablet

Luvion Connect

Wi-Fi Router

LUVION® Premium Babyproducts

QR
ANDROID
QR
ios

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Connecting cameras to the internet UID Add objects by unique ID

Three simple line icons representing mechanical devices or tools, with no visible text or symbols.

A1 A2 A3

A4

7.4 Video problems inside the app

3 feet (1 meter) adapter cable baby unit 3 feet (1 meter)

Two stylized devices, one tablet and one smartphone, shown in line drawing style (no text or symbols)

iPhone, iPad

Android smartfon

i Android Tablet

Luvion Connect

Ruter Wi-Fi

LUVION® Premium Babyproducts

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Connecting cameras to the internet Add camera by unique ID

AI

A2

Three simple line drawings of a washing machine with directional arrows, no text or symbols present.

A3

1. Tap search & select your Wi-Fi network 2. Enter the password of WiFi network Wi-Fi network Password Next

A5

Wi-Fi network setup will complete in 2 minutes

A6

Camera Online i

A7

3 feet (1 meter) adapter cable baby unit 3 feet (1 meter)

This device is for indoor use only

OBRAZOVKA

Illustration of a hand inserting a small component into an electrical meter (no text or symbols visible)

Two stylized devices, one tablet and one smartphone, shown in line drawing style (no text or symbols)

iPhone, iPad,

Android smartphone

or Android tablet

Line drawing of a mechanical device with spherical components and a cylindrical shaft (no text or symbols)

Luvion Connect

Wi-Fi Router

6.3 Stáhnout a spustit aplikaci Luvion Connect

LUVION® Premium Babyproducts

QR
ANDROID
QR
ios

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Connecting cameras to the internet UID Add camera by unique ID

AI

A2

Three simple line drawings of mechanical devices or tools, one with a circular arrow indicator (no text or symbols)

A3

6.

A4

1. Tap search & select your Wi-Fi network 2. Enter the password of WiFi network Wi-Fi network Password Next

A5

Wi-Fi network setup will complete in 2 minutes

A6

Camera Online

A7

3 feet (1meter) adapter cable baby unit 3 feet (1meter)

Luvion Premium Babyproducts

Delft, The Netherlands

Visit us on www.Luvion.com
