USER MANUAL Essential Plus Luvion

MANUAL D'INSTRUCTIONS

BENUTZERHANDBUCH

Power Supply - Using AC Power

Illustration of a hand interacting with a device labeled 'Fig. 4', showing a button and two circular insets (no text or symbols on the device itself)

Gebruik van netstroom / Using AC Power / Utilisation de l'alimentation secteur / Netzstrom verwenden / Uso de la alimentación de CA / Uso dell'alimentazione CA / Napájení ze sítě

Fig. 5 1 2 3

Out of Range

Illustration of a digital device connected to a control panel with buttons and a display screen (no text or symbols)

2.6 Terugspreek Functie/ Talkback Function / Fonction de réponse/ GegensprechfunktionFunción de intercomunicador / Funzione interfono / Funkce obousměrné komunikace

Diagram showing a hand inserting a device into a control panel with buttons, alongside a close-up of the device's screen.

Fig. 10

2.7 Muziek Functie / Music Function / Fonction de musique / Musikfunktion / Función de música / Funzione musica / Funkce spuštění melodíí

Diagram showing a hand inserting a device into a music player interface, with an analog display screen nearby.

Fig. 11

1. MENU OPTIES / MENU OPTIONS / OPTIONS DU MENU / MENÜOPTIONEN / OPCIONES DEL MENÚ / OPZIONI DEL MENU / MOŽNOSTI MENU

Cam Select 24°C 电容 800:00 元/瓦 Lightness Noise Rating 100% (50%) O=

Fig. 1 2

3.1 Camera Select / Camera Selection / Sélection de la caméra / Kameraauswahl / Selección de la cámara / Selezione telecamera / Volba kamery

Cam Select 1 2 3 4 OK Cancel

Fig. 1 3

3.2 Voedingstijden timer instellen / Feed Timer Setting / Paramètre du minuteur d'alimentation / Fütterungstimer-Einstellung / Configuración del temporizador de fuentes/ Impostazione timer alimentazione / Nastavení časovače krmení

Feed Timer 3.0 hrs 4.0 hrs 2.0 hrs 5.0 hrs Setting

Fig. 1 4

3.3 Temperatuur instellen / Temperature Setting / Réglage de la température/ Temperatureinstellung / Configuración de la temperatura / Impostazione temperatura / Nastavení teploty

Temp. Setting Alert On 2 ms Open

Fig. 1 5

3.4 Camera instellen / Camera Setting / Paramètre caméra/ Kameraeinstellung / Configuración de la cámara / Impostazione videocamera / Nastavení kamery

Cam Setting 1 2 3 4

Fig. 1 6

3.5 Helderheid instellen / Brightness Setting / Réglage de la luminosité/ Helligkeitseinstellung / Configuración del brillo / Impostazione della luminosità / Nastavení jasu

41 ℃: 35℃ Brightness 6.0x

Fig. 1 7

3.6 VOX gevoeligheid / VOX Sensitivity / Sensibilité VOX / VOX Empfindlichkeit / Sensibilidad de VOX / Sensibilità VOX / Citlivost VOX

VOX Sensitivity High Medium Low

Fig. 18

1. BEELDSCHERM WEERGAVE

SCREEN DISPLAY

AFFICHAGE DE L'ÉCRAN

BILDSCHIRMANZEIGE

PANTALLA

adapter cable 3 feet (1 meter) baby unit 3 feet (1 meter)

1 Camera
1 Monitor
• 2 Power Adapters
• 1 Screw, 1 Wall Anchor and 2 Cable Clips
• This User's Manual

Product Layout

Camera (Fig. 1)

1. Light sensor
2. Microphone
3. Lens
4. Infrared LEDs
5. Speaker
6. Power adapter plug
7. Power/Pairing button
8. Antenna
9. Temperature sensor
10. Power indicator LED

Monitor (Fig. 2)

1. LCD screen
2. Left button
3. Up button
4. Zoom/OK button
5. Right button
6. Down button
7. Speaker
8. Microphone
9. Power indicator LED
10. VOX indicator LED
11. Volume indicator LEDs
12. Power/VOX button
13. Music button
14. Volume setup button
15. Talkback button
16. Menu button
17. Built-in battery
18. Power adapter plug

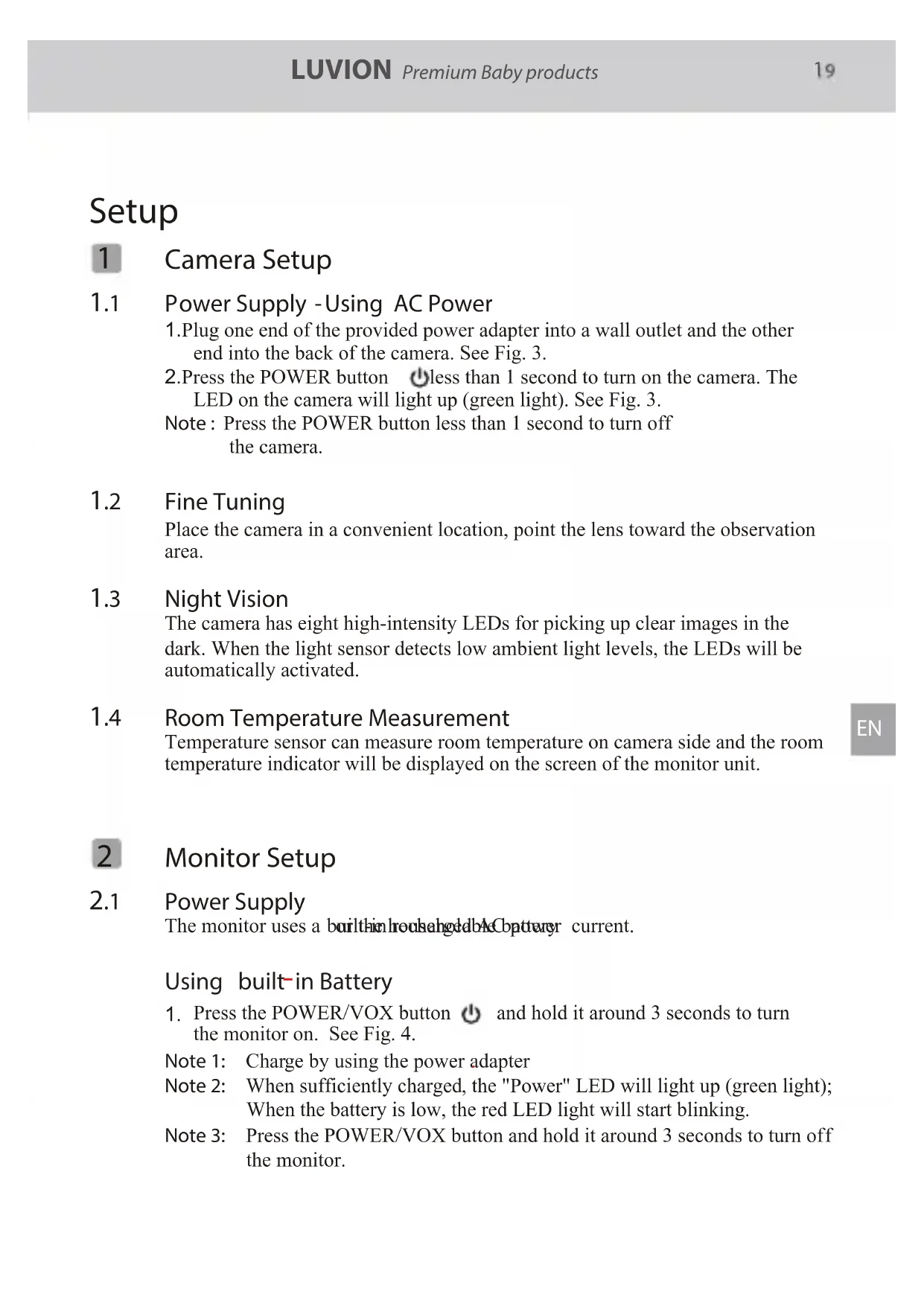

Setup

1 Camera Setup

1.1 Power Supply - Using AC Power

1. Plug one end of the provided power adapter into a wall outlet and the other end into the back of the camera. See Fig. 3.
2. Press the POWER button ⏻ less than 1 second to turn on the camera. The LED on the camera will light up (green light). See Fig. 3.

Note : Press the POWER button less than 1 second to turn off the camera.

1.2 Fine Tuning

Place the camera in a convenient location, point the lens toward the observation area.

1.3 Night Vision

The camera has eight high-intensity LEDs for picking up clear images in the dark. When the light sensor detects low ambient light levels, the LEDs will be automatically activated.

1.4 Room Temperature Measurement

Temperature sensor can measure room temperature on camera side and the room temperature indicator will be displayed on the screen of the monitor unit.

2 Monitor Setup

2.1 Power Supply

The monitor uses a builthihrochahgdbAcbptwr current.

Using built-in Battery

1. Press the POWER/VOX button ⏻ and hold it around 3 seconds to turn the monitor on. See Fig. 4.

Note 1: Charge by using the power adapter

Note 2: When sufficiently charged, the "Power" LED will light up (green light); When the battery is low, the red LED light will start blinking.

Note 3: Press the POWER/VOX button and hold it around 3 seconds to turn off the monitor.

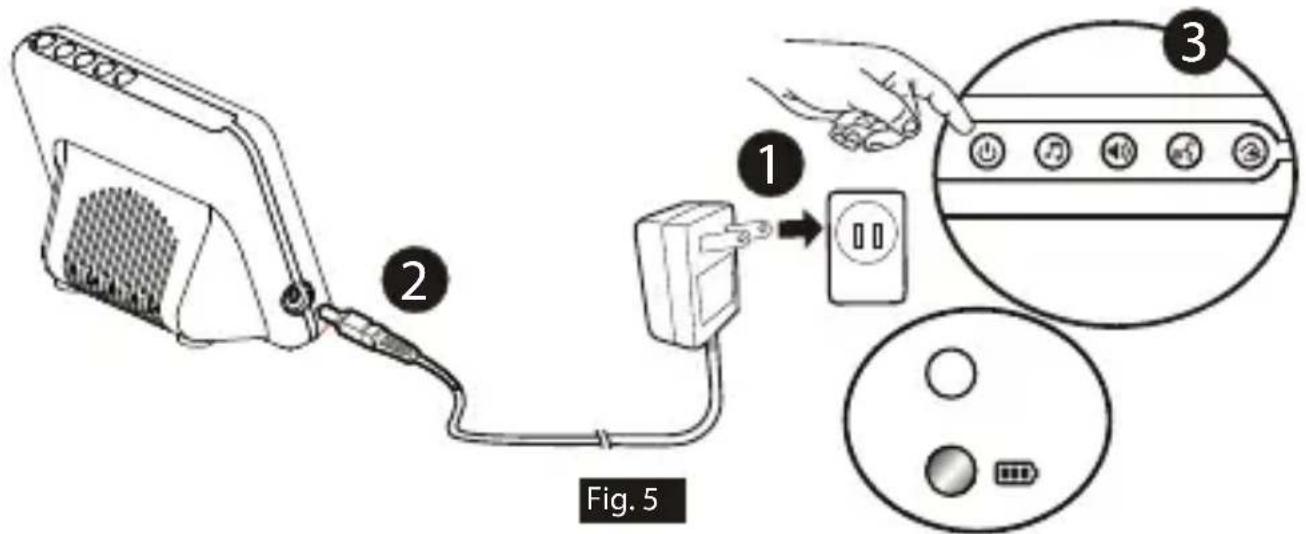

Using AC Power

1. Plug one end of the provided power adapter into a wall outlet and the other end into the monitor. See Fig. 5.
2. Press the POWER/VOX button ⏻ and hold it around 3 seconds to turn the monitor on. See Fig. 5.

Note 1: When power on the monitor, "Power" LED will light up (green light).

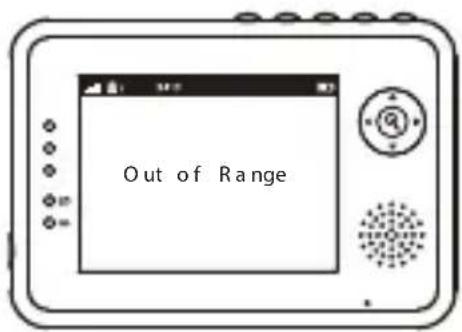

Note 2: "Out of Range" will be displayed on the LCD screen if the monitor exceeds the range (unlink).

Note 3: Press the POWER/VOX button and hold it around 3 seconds to turn off the monitor.

2.2 Monitor Remote Control Function

The monitor can control the movement of the camera. The camera head has the ability to rotate up, down, right and left. Press the up ▲ or down ▼ buttons on the monitor to move the camera up or down. Press the left ◀ or right ● buttons on the monitor to move the camera to the left or to the right. See Fig. 6.

Note : The audio will be muted when motor rotates.

2.3 Zoom in Function

Press the Zoom/OK button 🔒 on monitor once for 2X zoom of the image and press again to change back to normal view. See Fig. 7.

2.4 VOX (Voice-Operated Transmission) Function

1. Press and hold the POWER/VOX button ⏻ for less than one second on the monitor unit to enable the VOX function. This will turn the screen OFF but the VOX LED ⏻ will remain ON (green) to remind the user that the VOX function is enabled. Please see Fig. 8.

2. When the sound from the camera reaches the pre-set level (See Fig. 18), the screen will turn ON automatically. It will turn OFF again after 30 seconds. If the sound from the camera still reaches the pre-set level during these 30 seconds, the screen will stay on a further 30 seconds from this voice event before turning of the screen.

2.5 Volume Setting

1. Press the volume setup button ◀to enter volume setup. See Fig. 9.

2. Press up ▲ or down ▼ buttons to adjust volume level, and then press ok button 🔒 to confirm the setting. Fig. 9.

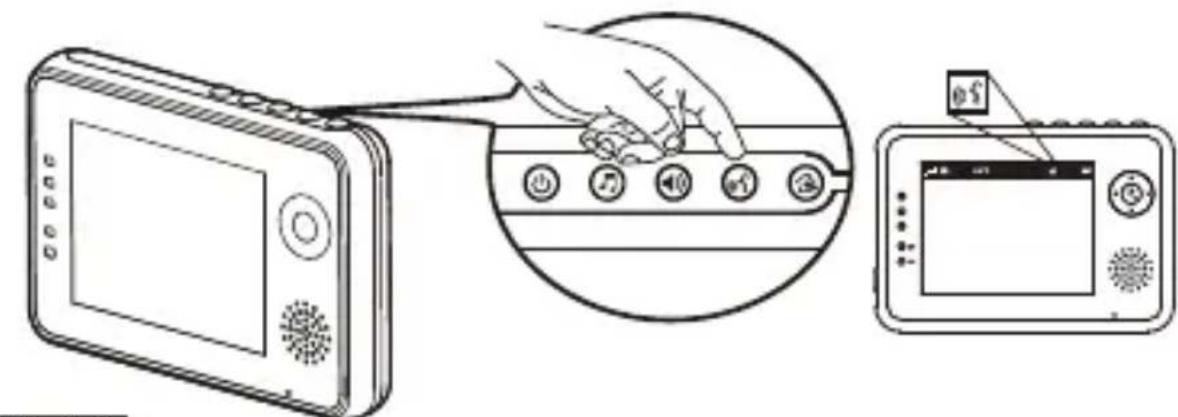

2.6 Talkback Function

Press the talkback button ⬆ to speak through the camera unit, and the ⬆ icon will then be displayed on the screen. See Fig. 10.

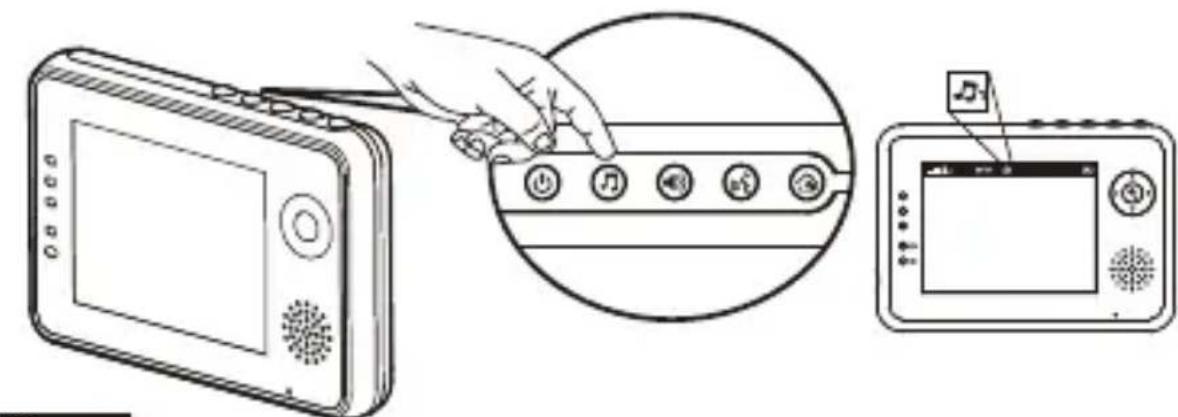

2.7 Music Function

You can activate the music(three different lullabies) through the monitor.

1. Press the music button 🎥, the camera will play music. See Fig. 11.
2. Press the music button 📂 again, the camera will play the next song.

Note: To switch off the music, press music button until it turns off.

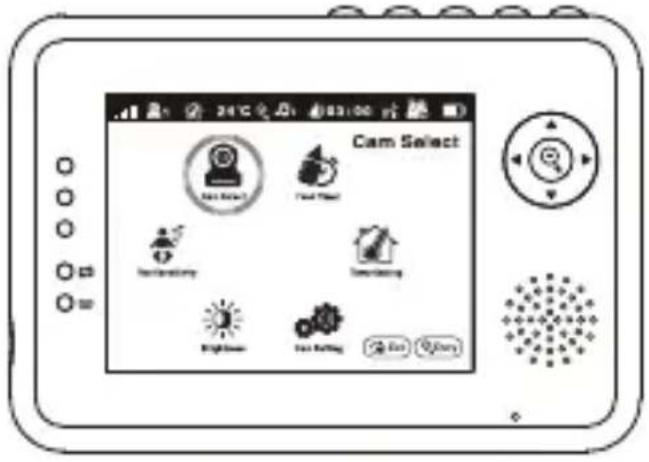

3 Menu Options

1. Press the menu button on the monitor unit to display the main menu on the screen. See Fig. 12.
2. Use the left ◀ and right ▶ buttons to navigate through the menu.
3. Press the Zoom/OK ☐ button to confirm a setting.
4. The main menu contains 6 submenus.

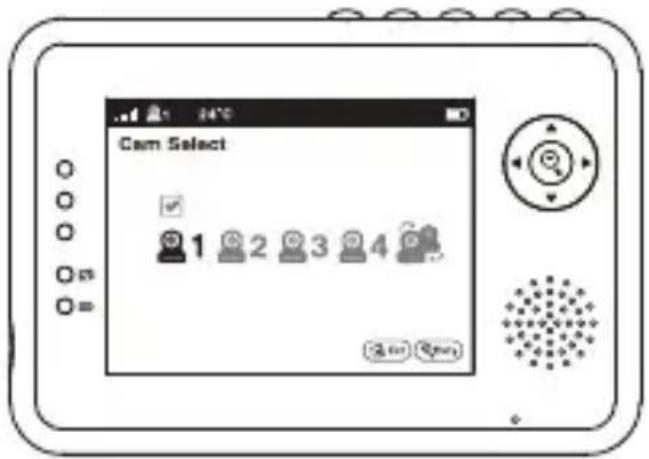

3.1 Camera Selection (Camera Select)

In this submenu you can switch between all cameras that have been paired.

You can also tap the auto-switch icon 📄 for autotomatic switching.

When in auto switch mode the images from the cameras will be shown in eight-second intervals. See Fig. 13.

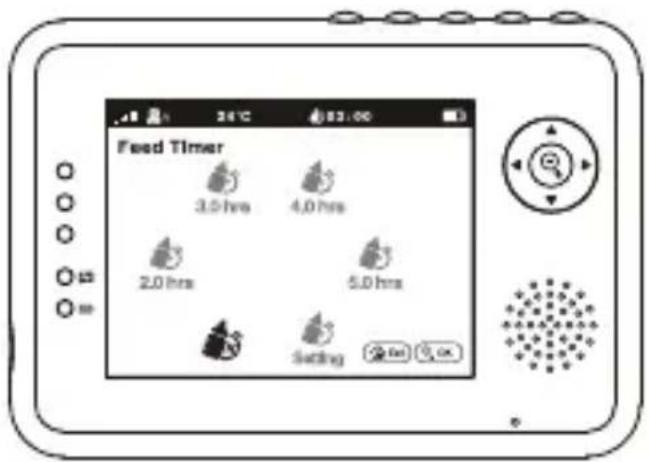

3.2 Feed Timer Setting (Feed Timer)

In this submenu you can set up the feed timer to remind you when to feed the baby. See Fig. 14.

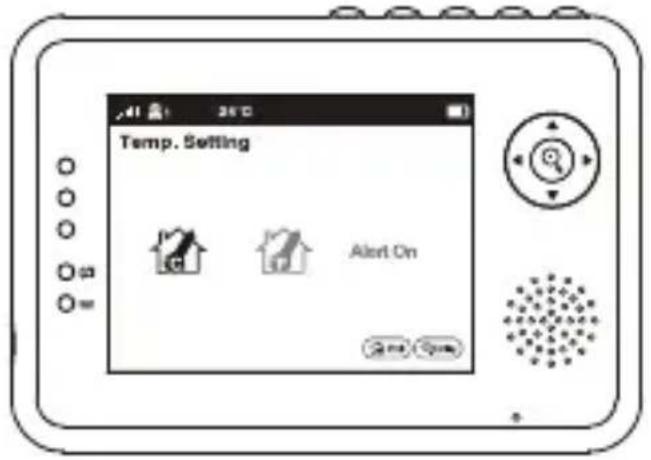

3.3 Temperature Setting (Temp. Setting)

1. In this submenu you can choose the preferred temperature unit, you can choose between Celsius or Fahrenheit. See Fig. 15.
2. You can set the temperature range for the temperature alert. If you select "Alert On" you activate the temperature alert and if the temperature is outside the range, a warning sound will be emitted from the monitor unit. See Fig. 15.

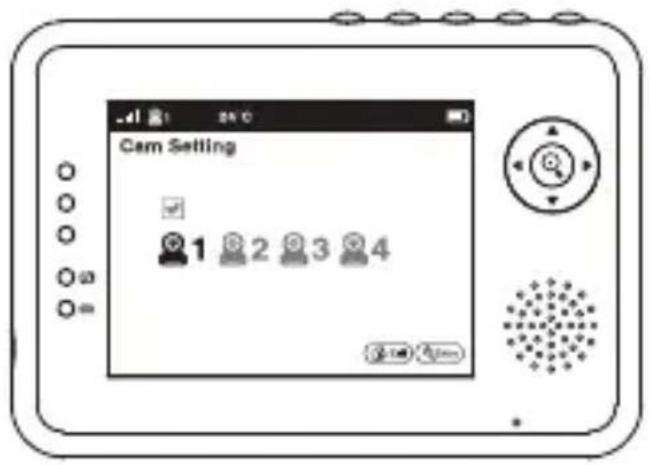

3.4 Camera Setting (Camera Setting)

The system comes with a camera unit that has already been paired with the monitor unit. The "Cam Setting" function gives each baby unit a separate channel on the monitor unit. This is necessary for configuring additional camera units.

1. If you want to add a new camera, please choose a free channel to add the camera. Then select the add camera icon 📄 and press the 🔒 button to confirm your selection (See Fig. 16).
   The screen will show "Press the pairing button on the Baby unit", at this time please press and hold the camerapower button for around 3 seconds.
2. If you want to delete a paired camera, please choose the number of the camera you want to delete, and then select delete camera icon 📄 to delete the camera (See Fig. 16).

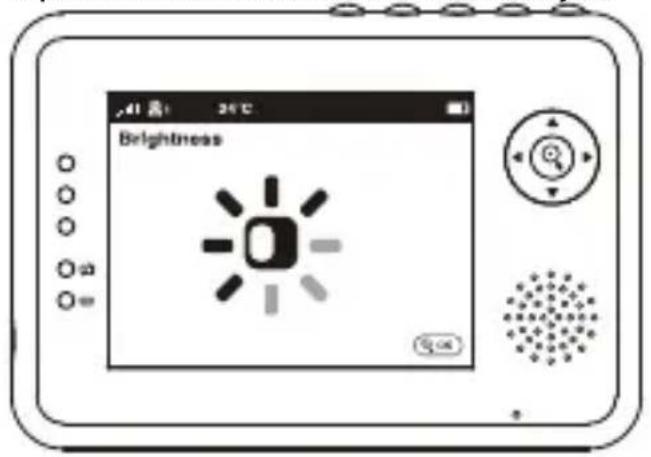

3.5 Brightness Settings (Brightness)

In this submenu you can adjust the brightness of the screen. See Fig. 17.

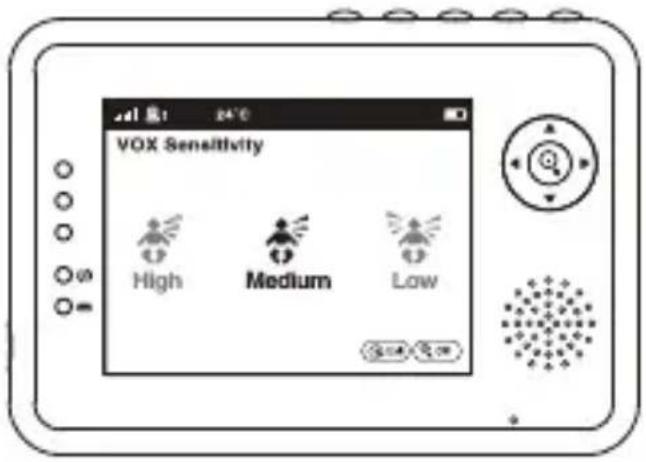

3.6 VOX Sensitivity (VOX Sensitivity)

This submenu allows you to choose the VOX (voice activation) sensitivity level. When the level set to high, the screen will be turned on by lower-softer sounds.

See Fig. 18.

4 Status Information

The status bar is displayed on the top of the screen. See Fig. 19.

1. Signal strength indicator
2. Camera number indicator
3. Temperature alert on/off indicator
4. Room temperature indicator
   5 Zoom in indicator
5. Music indicator
6. Feed timer
7. Talkback indicator
8. Auto-switch indicator
9. Battery status/Charging indicator

Troubleshooting

You don't getting any signal at all

• Make sure the camera and the monitor are turned on.
• Make sure the power plugs are pushed all the way in.

If the signal is poor, or there is interference

• If there is a microwave oven in use in the path between the camera and monitor, remove the microwave oven or turn it off.
• Make sure the camera and the monitor are within range of each other (range of approximately 1000 feet; 300 meters in a clear line of sight).
• If the power LED is on but only voice signal input is detected, the monitor can be in voice-activated mode. Press the VOX button to turn on the screen.

Care and Maintenance

• Keep all parts and accessories out of children's reach.
• Fingerprints or dirt on the lens surface can adversely affect camera performances. Avoid touching the lens surface with your fingers.
• Should the lens become dirty, use a blower to blow off dirt and dust, or a soft, dry cloth to wipe off the lens.
• Keep the camera dry. Precipitation, humidity, and other liquids contain minerals that will corrode electronic circuits.

• Do not use or store in dusty, dirty areas.

- Do not store in hot areas. High temperatures can shorten the life of electronic devices and warp or melt certain plastics.

- Do not store in very cold areas. When the system warms up (to its normal temperature), moisture can form inside the case, which may damage electronic circuit boards.

- Do not attempt to open the case. Non-expert handling of the device may damage the system.

- Avoid dropping or strong shocks.

- Operate this product using only the power supply that is included or provided as an accessory.

- Do not overload electrical outlets or extension cords this can result in fire or electric shocks.

- Do remember that you are using public airwaves when you use the system and that sound and video may be broadcast to other 2.4 GHz receiving devices. Conversations, even from rooms near the camera, may be broadcast. To protect the privacy of your home, always turn the camera off when not in use.

FCC Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna
- Increase the separation between the equipment and receiver
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
- Consult the dealer or an experienced radio/TV technician for help

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Caution

• To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm must be maintained between the antenna of this device and all persons.
• This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
• Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment.

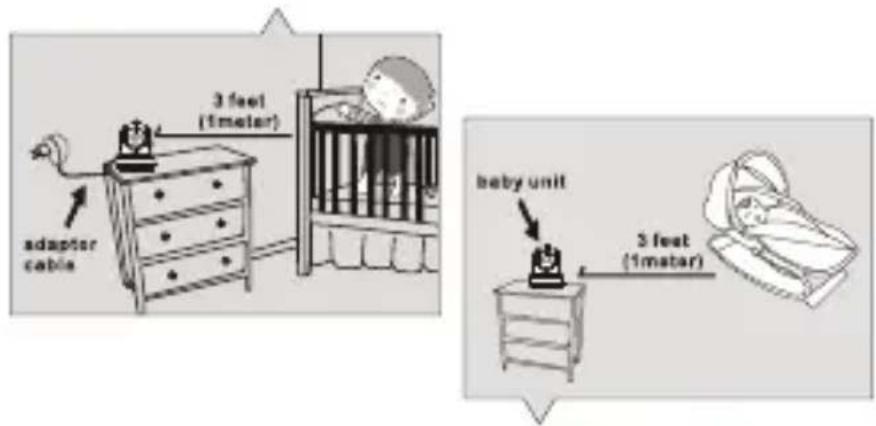

Following the safety tips

To prevent deaths and injuries associated with baby monitor cords :

• Make sure the baby unit and AC adapter cords are always out of reach of the baby and at least 3 feet (1 meter) away.

Not important even if your baby is not yet standing or mobile.

adaptor cable 3 feet (1 meter) baby unit 3 feet (1 meter)

• Use a wireless baby monitor to avoid risk of strangulation.
- Never use extension cords with AC adapters. Only use the AC adapters provided.

Specifications

Camera

Frequency

Antenna

Transmission distance

Modulation

Image Sensor

Lens

IR LED

Dimensions

Weight

Power

Operating temperature

2.4 GHz

Dipole antenna

300 M (Line of Sight)

GFSK, FHSS

CMOS image sensor

f 3.0mm, F 2.4

8 pcs

8.5(W) x 11(H) x 10(D) cm

216g

DC 6V, 800mA

0^ 40^ (32°C \~ 104°F)

Monitor

Frequency

Antenna

Modulation

Display

Display colors

Brightness Control

VOX

Dimensions

Weight

Battery Capability

Power

Operating temperature

2.4 GHz

Monopole antenna

GFSK, FHSS

3.5" LCD panel

Full-color

8 levels

Voice activation

12(W) x 8.3(H) x 2.6(D) cm

176g

3.7V 2200mAh (Li-ion)

DC 6V, 800mA

0^ 40^ (32°C \~ 104°F)

Specifi cati ons s ubject to cha nge without notice

This device is for indoor use only

This item is in compliance with the essential requirements and other relevant provisions of European Directives. The declaration of conformity is available through: https://www.luvion.nl/doc/Essential-Plus

Luvion Premium Babyproducts

Delft, The Netherlands
