USER MANUAL SEW122595 Emerio

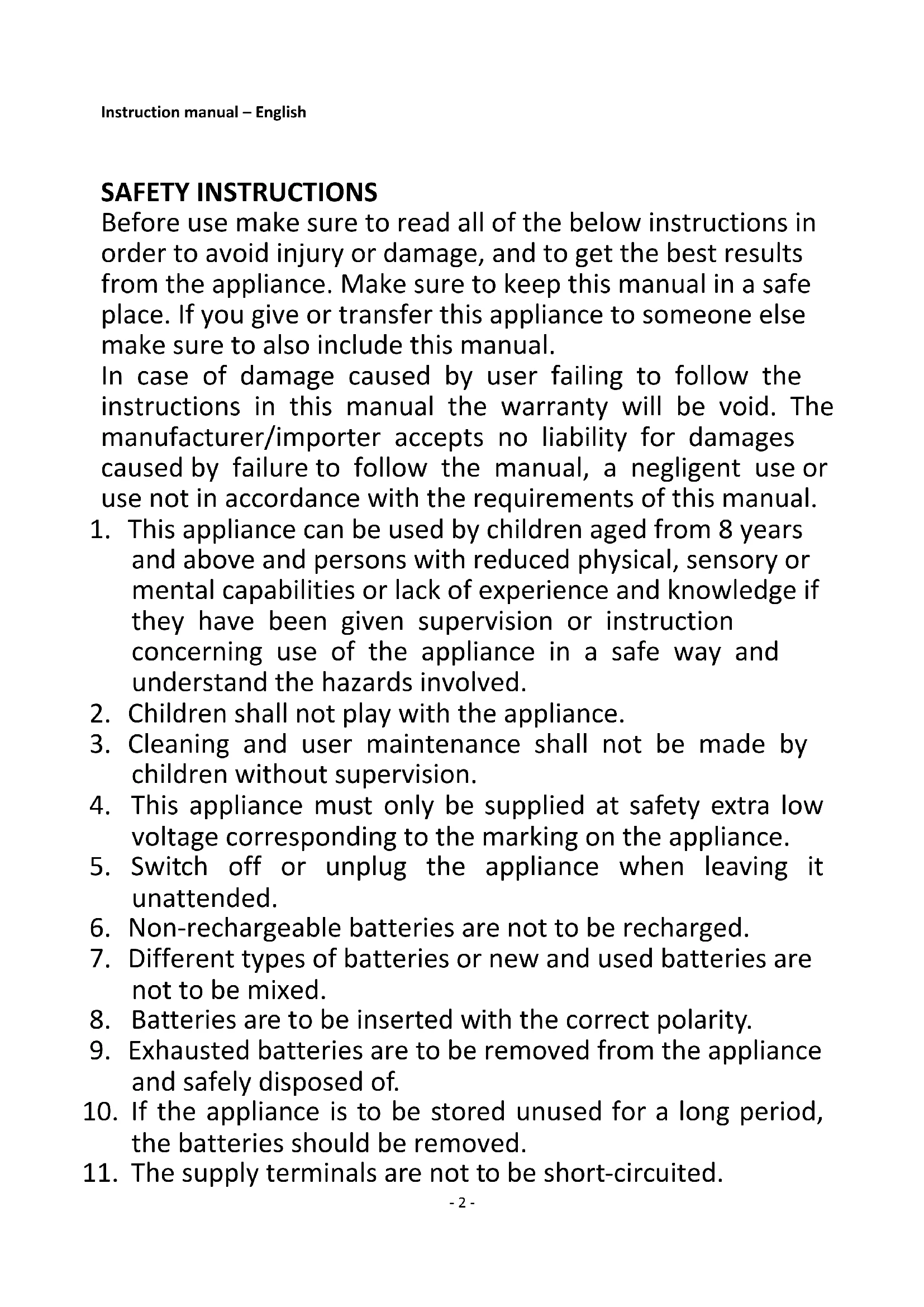

1. This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

2. Children shall not play with the appliance.

3. Cleaning and user maintenance shall not be made by

children without supervision.

4. This appliance must only be supplied at safety extra low

voltage corresponding to the marking on the appliance.

5. Switch off or unplug the appliance when leaving it

6. Non-rechargeable batteries are not to be recharged.

7. Different types of batteries or new and used batteries are

8. Batteries are to be inserted with the correct polarity.

9. Exhausted batteries are to be removed from the appliance

and safely disposed of.

10. If the appliance is to be stored unused for a long period,

the batteries should be removed.

11. The supply terminals are not to be short-circuited.- 3 -

12. Never run the machine when there’s thread in the needle,

but no fabric on the machine. This could damage the machine.

13. Always keep your hands away from the needle, bobbin,

rotary wheel when the appliance is running.

14. Never attempt to open the housing of the appliance, or to

repair the appliance yourself. This could cause electric shock.

15. Never leave the appliance unattended during use.

16. Switch off the appliance and take off the batteries/ unplug

the appliance before carrying out maintenance.

17. This appliance is not designed for commercial use.

18. Do not use the appliance for other than intended use.

19. Never use the appliance if damaged in anyway.

20. Whenever the appliance is not in use make sure it is

switched off and the batteries are taken out /unplugged from the power supply.

21. Keep the machine in a dry and ventilated place.

22. Needle is sharp. Use care when working with needle to

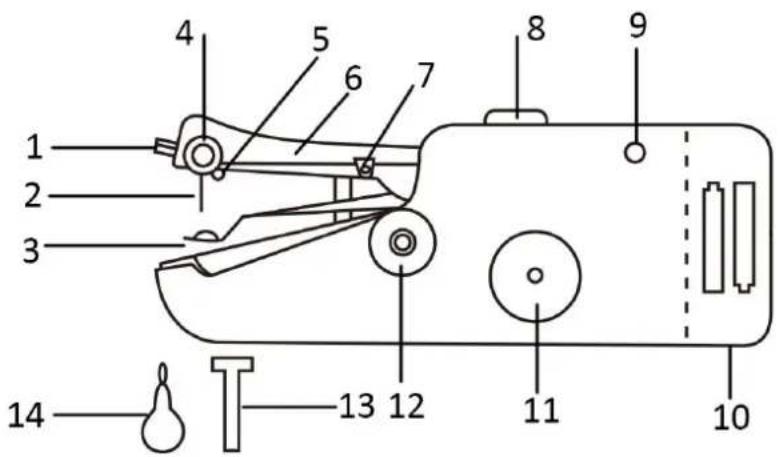

1. Set screw for needle

10. Battery compartment

Note: always use the rotary wheel to move needle arm. Never press or pull directly on the needle arm to avoid damages to the internal mechanism. On/off switch: (Fig. 1) Slide to position A: ON Slide to position B: OFF (Fig. 1)

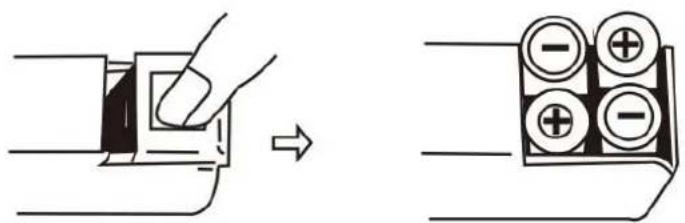

INSTALL THE BATTERIES

1. Make sure the “On/off switch” is on the OFF position

2. Open the battery compartment cover.

3. Insert 4xAA batteries into the compartment and close the battery cover.

Caution: To prevent the accidental start-up of the appliance, always make sure that the “on/off switch” is on the OFF position when inserting or removing the batteries. When using the adapter, remember to remove all batteries from the machine.

AC/DC ADAPTER (NOT INCLUDED) Adapter must be 6V 800mA and must use plug with 1/8”/3.5 mm diameter. Plugging an adapter into a socket that has different ratings could damage the socket and adapter.- 5 -

IMPORTANT NOTES FOR FIRST USE: When operating the appliance for the first time, you can run the appliance on a test material to get to know well of the operation. DIRECTIONS FOR USE:

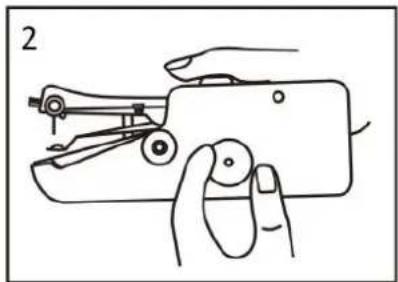

1. Make sure the appliance is in OFF position. Raise the needle arm to the highest postion by turning the

rotary wheel. Note: the rotary wheel can be turned in either direction. Fig. 2

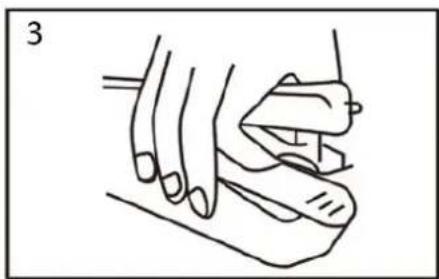

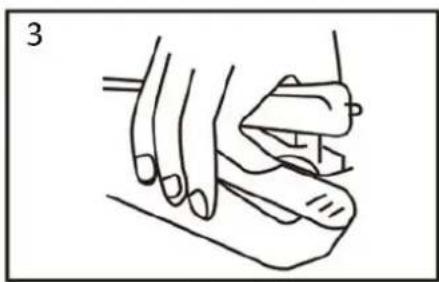

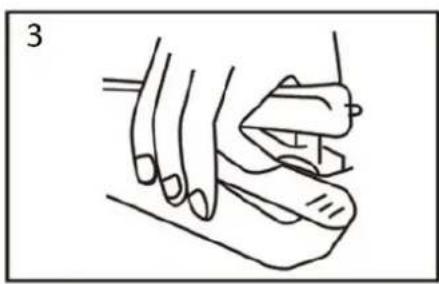

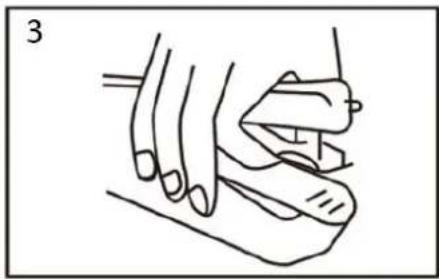

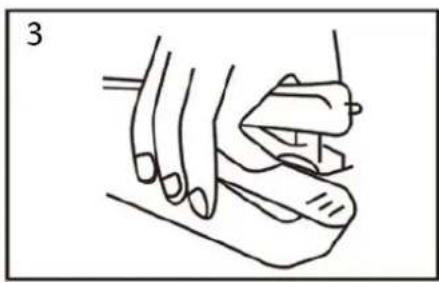

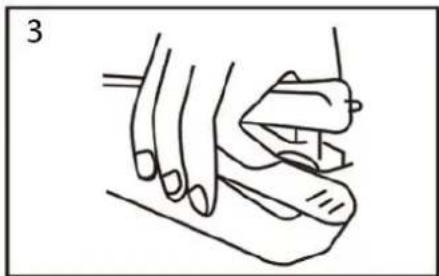

2. Lift the fastening plate, making sure not to push down on the needle arm (the arm can still be moved

manually even when the appliance is in the locked postion). Place cloth underneath the fastening plate. Release the fastening plate. Fig. 3

3. Pull at least 2 inches of thread through the needle, from back to front, prior to starting to sew. If the

needle needs to be threaded, please refer to “HOW TO THREAD” section.

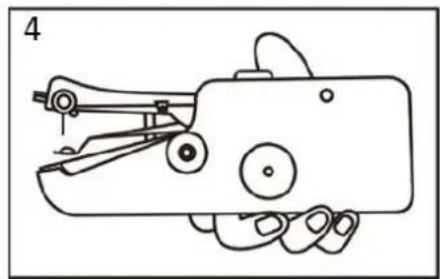

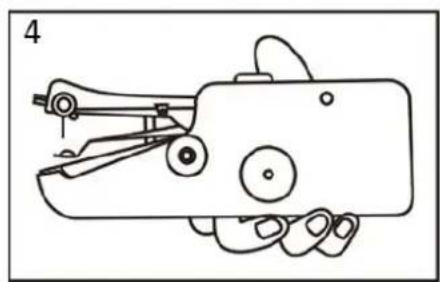

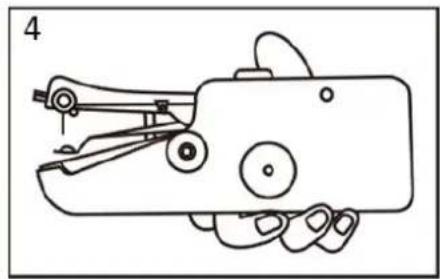

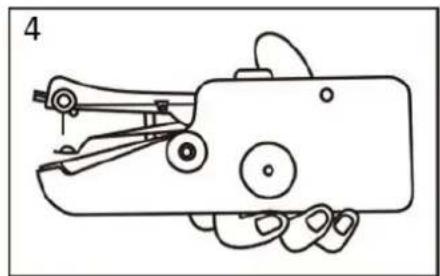

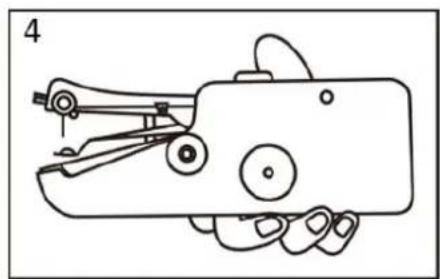

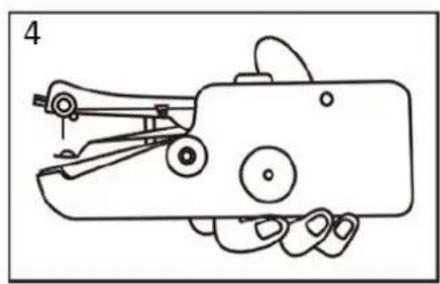

4. Hold the appliance with right hand. Place thumb by the on/off switch while other fingers support the

bottom of the appliance. Fig. 4

5. Turn the appliance on by sliding the on/off switch forward with the thumb. Use your left hand to hold the

cloth and to control the direction and speed as you pull it through the appliance. Be careful not to pull the material through the appliance too quickly. You can follow the centerline on fastening plate to ensure straight stitching.

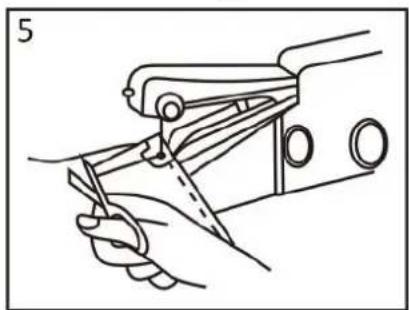

6. When finished sewing, raise the needle arm to the highest position by turning the rotary wheel, then use

the back of a seam ripper or scissors to pull the thread out about 3 inches. Cut thread. Fig. 5

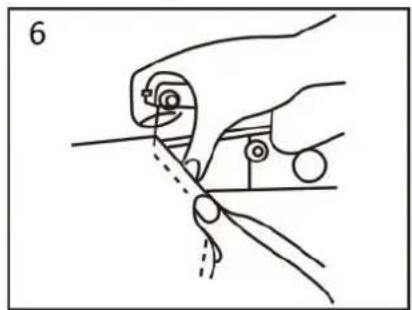

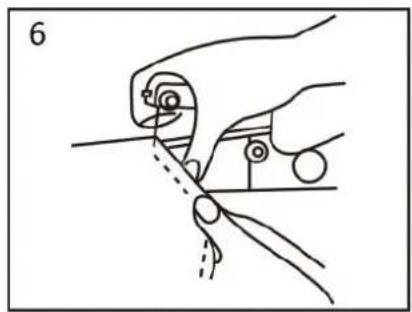

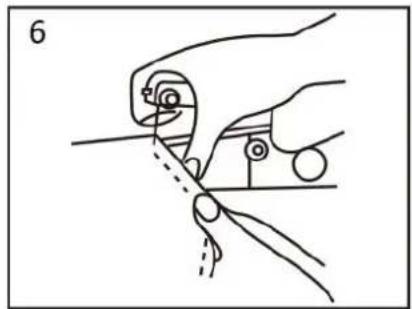

7. Lift the fastening plate and take off the cloth. Fig. 6

1. Make sure not to pull the thread. If the reserved 3 inches thread is in the front side of the cloth,

when pull the thread, the seam will unravel.

2. The reserved 3 inches thread shall be in the back side of the cloth, if not, please turn to the back

side of the cloth, and then pull the thread out to the back side.

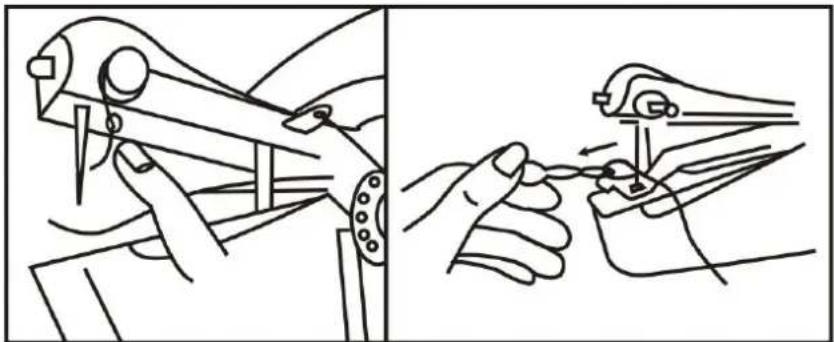

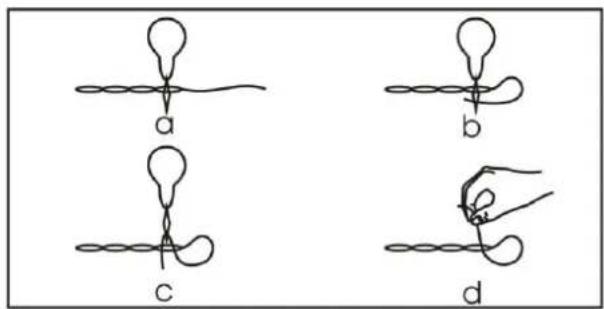

8. Tieing a knot in thread

Turn to back side of the cloth and guide the reserverd 3 inches of thread according to the following directions and corresponding drawings: Fig. 7 a) Pass the threader through to the last stitch. b) Put the thread into the threader and pull out about 1 inch. c) Guide the thread through the loop. d) Pull the thread tight to finish the knot- 6 - Fig. 7 HOW TO THREAD: Thread should flow from the top right of the bobbin. Spring must be in place before installing the bobbin. (Fig.

1. Pass thread upward through the eyelet of the thread guide 1. From bottom to top.

2. Pass thread over top of tension control between the two silver discs.

3. Pass thread through the eyelet of the thread guide 2, from front to back.

4. Pass thread through the eye of the needle, from right to left. You can use the threader to help you.

Fig. 5 ADJUSTING THREAD TENSION:

1. If stitching is too tight, turn tension control slightly to the left.

2. If stitching is too loose, turn tension control slightly to the right.

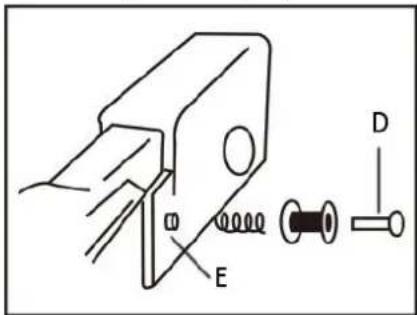

TO REPLACE A NEW BOBBIN

1. Lossen the bobbin shaft (D) and take off the used bobbin.

2. Slide the new bobbin and the sping into the bobbin shaft. Then connect to the bobbin nut (E).

3. When purchasing replacement bobbins for this appliance, please note it uses a class 15 metal bobbin.

1. Lossen the bobbin shaft and take off bobbin.

2. Slide the thread spool into the extension spindle. Do not forget the sping.

Loose the set screw with a screwdriver and take off the old needle. Always use a standard sewing machine needle (#14). Needle must be installed with flat side of needle shank facing the front of the appliance.

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee: For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase. Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can’t claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.
