VS125682 - Vacuum packaging machines Emerio - Free user manual and instructions

Product Type	Vacuum Sealer
Brand	Emerio
Model	VS125682
Power Supply	220-240 V ~ 50-60 Hz
Power	95 W
Main Functions	Vacuuming, sealing, dry/moist food selection, cancel button
Dimensions (approx.)	38 x 15 x 8 cm (approx.)
Weight (approx.)	1.2 kg (approx.)
Cord length	Approx. 1 meter
Max bag width	300 mm
Recommended bag thickness	0.1 to 0.2 mm
Housing material	Plastic
Sealing strip	Heats, burn risk
Foam gasket	Yes, subject to compression; unlock lid after use
Thermal protection cycle	Forced shutdown after 15 cycles, 2-minute break
Interval between cycles	60 seconds minimum
Use with external accessories	Possible via suction port (not included)
Suitable for	Solid non-liquid, non-sharp foods
Do not use for	Liquid foods, fresh mushrooms, onions, garlic, soft cheese
Care and cleaning	Unplug, allow to cool, wipe with a damp cloth, clean vacuum chamber after each use
Safety	Do not immerse, do not open housing, keep out of reach of children, do not use with wet hands
Warranty	2 years (subject to conditions)
Recycling	European Directive 2012/19/EU, do not dispose with household waste
General information	Manufactured for Fun Nordic ApS, Denmark

Frequently Asked Questions - VS125682 Emerio

What bags to use with the appliance?

Use vacuum bags or textured rolls with a thickness of 0.1 to 0.2 mm and a maximum width of 300 mm. Bags that are too thin may allow air to pass through.

How to make a bag from a roll?

Cut the roll to the desired size (at least 6 cm longer than the food). Place one end in the vacuum chamber, lock the lid, then press Seal. Once the indicator goes off, the bag is sealed.

What to do if the vacuum pump works but air is not removed?

Check that the bag is properly sealed at one end (if using a roll), that the open end is at the bottom of the suction channel, and that there are no folds or debris on the seals. Ensure the lid is locked on both sides.

Why does the bag not seal properly?

This may be due to excess liquid, food debris on the sealing area, or a fold in the bag. Freeze moist foods before vacuum sealing and clean the sealing area.

What to do if the sealing gasket is loose or torn?

Remove the gasket, clean it, and reinsert it. If damaged, contact the manufacturer for a replacement.

Why does air re-enter the bag after vacuum sealing?

Check the seal: a fold, moisture, or food residues can compromise the seal. Sharp foods may have punctured the bag. Natural fermentation of some foods can also cause re-inflation.

The bag melts during sealing, what to do?

The sealing strip is too hot. Wait about 60 seconds between each cycle to allow the appliance to cool. Do not exceed 15 cycles without a break.

The appliance does not turn on, no indicator lights

Check that the appliance is plugged into a working outlet. If the appliance has been stored in a humid environment, moisture may damage the circuit; move it to a dry place and try again. Contact the manufacturer if the problem persists.

Can you vacuum seal liquid foods?

No, the appliance is not designed for liquid foods. They can damage the pump or prevent proper sealing. Freeze moist foods first.

How to clean the appliance?

Unplug it and let it cool. Wipe the exterior with a soft damp cloth. Clean the vacuum chamber after each use with a cloth or paper. Leave the lid unlocked to preserve the foam gasket.

USER MANUAL VS125682 Emerio

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
2. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.
3. If an extension cord is used it must be suited to the power consumption of the appliance, otherwise overheating of the extension cord and/or plug may occur. There is a potential risk of injuries from tripping over the extension cord. Be careful to avoid dangerous situations.
4. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.

5. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.

6. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!

7. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.
8. Do not touch the appliance if it falls into water. Remove the plug from its socket, turn off the appliance and send it to an authorized service center for repair.
9. Do not plug or unplug the appliance from the electrical outlet with a wet hand.
10. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.
11. Children are unable to recognize the hazards associated with incorrect handling of electrical appliances. Therefore, children should never use electric household appliances unsupervised.
12. Never leave the appliance unattended during use.
13. This appliance is not designed for commercial use.
14. Do not use the appliance for other than intended use.
15. Do not wind the cord around the appliance and do not bend it.
16. Do not place the appliance in wet, dusty or easily wet place.
17. Do not shake or drop the appliance, and prevent the appliance from being impacted.
18. Please do not place the appliance near the gas furnace or heat dissipation items.
19. The appliance is not suitable for vacuuming liquid food.
20. The sealing strip of the vacuum sealer will become hot during use. Even if the lid is open, the sealing strip may become hot. There is a burn hazard.

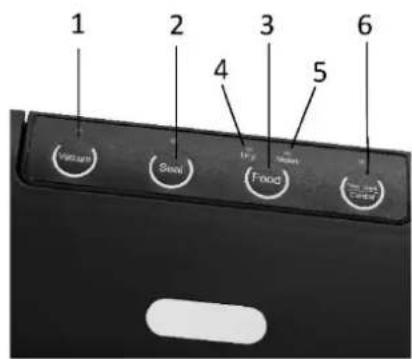

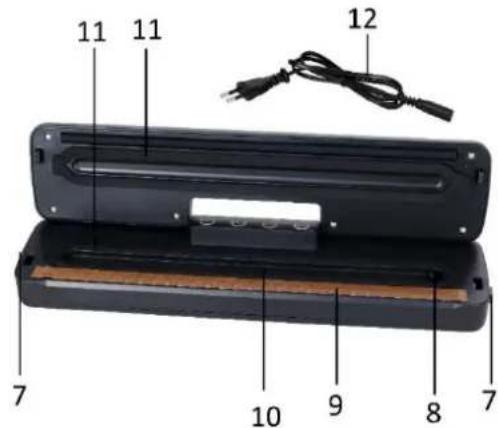

PARTS DESCRIPTION

1. Vacuum button and its indicator light
2. Seal button and its indicator light
3. Food type button
4. Indicator light for dry food
5. Indicator light for moist food
6. Vacumm seal button with indicator light / cancle button
7. Unlock button
8. Air suction hole
9. Sealing strip
10. Vacuum chamber
11. Foam gasket
12. Power cord

BEFORE USE

Prepare vacuum bags or bag roll with emboss (0.1-0.2mm thickness and less than 300mm width) for vacuum seal. If the plastic bag is too thin, the air may penetrate the bag.

Remark: Please unlock the lid after use. That will prevent pressure from being applied to the foam gasket.

OPERATION

1. Seal function

How to make a bag from bag roll:

1) Unroll the bag roll and cut the bag to an appropriate size you desired (at least 6cm longer than the food). Be sure to cut straight and flat.
2) Open the lid and put one end of the bag into the vacuum chamber.
3) Press the lid down firmly on both sides at the same time until you hear a click, which indicates the lid is completely locked.
4) Connect the power cord to the appliance and power supply, press button "Seal". The corresponding indicator light will light up. When the indicator turns off, the bag is sealed.
5) Press the two release buttons to open the lid. Now you have a custom-sized bag.
6) Wait about 60 seconds before using the appliance again.

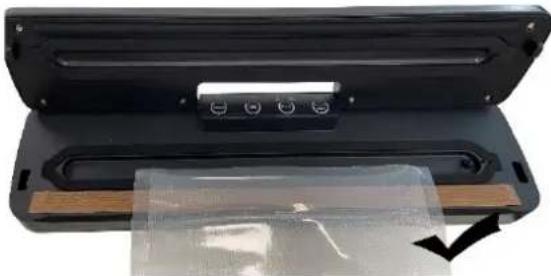

2. Vacuum seal function

1) Fill the vacuum bag with the food to be vacuum-sealed, and leave enough space for vacuum seal.
2) Open the lid of the appliance, and place the open side of bag into the vacuum chamber. Make sure the open side is all inside the foam gasket.

3) Press the lid down firmly on both sides at the same time until you hear a click, which indicates the lid is completely locked.
4) Connect the power cord to the appliance and power supply.
5) Press the button "Food" to choose "Dry" or "Moist" according to the type of your food. Press the button "Vac Seal". The corresponding indicator light will light up. The appliance begins with vacuum procedure. Once it is done, it will stop automatically and the indicator will be off.
6) Press the two release buttons to open the lid, take out the vacuum-sealed bag.
7) Wait about 60 seconds before using the appliance again. Unplug the appliance after use.

3. Vacuum function (accessories are not provided with the appliance)

1) Place the item you wish to seal inside a container/ vacuum bag, leaving at least 3cm space between the contents and the top rim of the container.
2) Insert an accessory hose into the air suction hole on your appliance.
3) Insert another end of the accessory hose into the vacuum valve on the container lid/ vacuum bag, press firmly on all corners to ensure lid is properly closed, then press "Vacuum" button to start vacuum process
4) Wait until the vacuum process stops automatically, now the lid can't be opened, which means the air was removed from the container.
5) To release the vacuum in the container/vacuum bag, simply lifting the vacuum valve gently.

Note:

1) Make sure the vacuum bag is not covering the air suction hole.
2) Press the "Cancel" button to stop the appliance during any procedure.

Safety Protection:

The interval between two working cycles shall be about 60 seconds. The "Vac Seal" and "Seal" function will start safety protection every 15 complete working cycles. The "Vac Seal" or "Seal" indicator light flashes, and the appliance is forced to stop for 2 minutes before it can resume normal use.

VACUUM PACKAGING AND FOOD SAFETY

1) The vacuum packaging process extends the life of foods by removing most of the air from the sealed container, thereby reducing oxidation, which affects nutritional value, flavor and overall quality. Removing air can also inhibit growth of microorganisms, which can cause problems under certain conditions.
2) To preserve foods safely, it is critical that you maintain low temperatures. You can significantly reduce the growth of microorganisms at temperatures of 4^ (40^) or below. Freezing at -17^ (0^) does not

kill microorganisms, but stops them from growing. For long-term storage, always freeze perishable foods that have been vacuum packaged, and keep refrigerated after thawing.

3) It is important to note that vacuum packaging is NOT a substitute for canning and it cannot reverse the deterioration of foods. It can only slow down the changes in quality. It is difficult to predict how long foods will retain their top-quality flavor, appearance or texture because it depends on age and condition of the food on the day it was vacuumed packaged.
4) IMPORTANT: Vacuum packaging is NOT a substitute for refrigeration or freezing. Any perishable foods that require refrigeration must still be refrigerated or frozen after vacuum packaging.
5) The Vacuum Sealer also protects non-food items from oxidation, corrosion and moisture. Simply follow the directions to vacuum package items using vacuum bags, canisters and accessories.

Tips

• Although the plastic material of the bags is quite strong, it can be punctured by sharp items. So if you are sealing foods with sharp edges (pasta, dried fruits, bones, etc.), use some common plastic wrap before vacuum sealing. This will protect the bag from being punctured.
• If the vacuum pump continues to run. Press the "cancel" button to make it stop. Check if the condition of the sealed seal is good. Then place the open end of the bag smoothly and correctly, and lock the cover. Start the appliance again.
• Clean and straighten the open end of the bag before sealing. Foreign objects or wrinkles may cause difficulty to seal tightly.
• To vacuum seal the foods not frozen, two extra inches are required for bag length to allow for expansion while freezing.
• To vacuum package silver, wrap fork tines in soft cushioning material, such as a paper towel, to avoid puncturing bag.
• Due to the risk of anaerobic bacteria, fresh mushrooms, onions, garlic and soft cheese should never be vacuum packaged.
• All vegetables (including broccoli, Brussels sprouts, cabbage, cauliflower, kale, turnips) naturally emits gases and swells the vacuumed bag after a few days, it is recommended to pre-freeze them and keep them refrigerated after vacuum packaging.
• Do not vacuum package powder or liquid food.

Storage

For vacuum-packed food (except dehydrated food), frozen storage is advised.

For packaged vegetables, please eat in 2 weeks, to avoid rot.

Microwave

If you want to put the vacuum-packed food in a microwave, prick a hole in the plastic bag first. SUITABLE FOR THAWING IN THE MICROWAVE TO MAX. 70^ C.

CLEANING

1. Unplug the appliance. Always let the appliance cool off completely before you clean it.
2. Wipe the appliance with a soft damp cloth.

3. During the vacuum sealing process, small amount of liquids, crumbs or food particles can be inadvertently pulled into the vacuum channel. Empty the vacuum chamber after each use with a piece of cloth or paper.

4. Unlock the lid after use. That will prevent pressure from being applied to the foam gasket.

PROBLEMS AND SOLUTIONS

Vacuum Pump is running, but bag is not evacuating	1.If making a bag from a roll, make sure one end of bag is sealed. 2 Adjust the bag and try again. Make sure the open end of the bag is down inside the Vacuum Channel. 3.Leave 5-7cm space between open end of bag and bag contents. 4.Checked for wrinkles in bag along Sealing Strip. 5.Open unit and make sure Gaskets are inserted properly and there are no foreign objects, dirt or debris on the Upper or Lower Gasket. 6.Gaskets may be compressed. Unlock the lid and allow 10 to 20 minutes for Gaskets to expand. 7.Make sure the lid is locked properly. If the two sides of the lid are not locked entirely, there will be a leak between the Gaskets.
Bag is not sealing properly	1.Too much liquid in bag, freeze before vacuuming. 2.Checked for food debris around seal area. If present, take out the Gasket, clean it and reinsert Gasket into Vacuum Channel. 3.Bag has wrinkles.
Gasket is loose or has a tear	1.Take out the Gasket, clean it and reinsert the Gasket. 2.Contact an authorized party or the manufacturer for replacement.
No lights on the Control Panel	1.Make sure unit is plugged in and wall outlet is functional. 2.Make sure appliance is turned on. 3.If appliance is not in use for a long time and being kept in a humid environment, the humidity may cause crash/damage to the circuit board. Move appliance to dry and restart. 4.Contact an authorized party or the manufacturer for replacement.
Air was removed from the bag, but now air has re-entered	1.Examine the seal. A wrinkle along the seal may cause air to re-enter the bag. 2.Sometimes moisture or food material along seal prevents bag from sealing properly. Cut bag open, wipe top inside of bag and reseal. 3.Sharp food items may have punctured bag. 4.Fermentation or the release of natural gases from inside the foods may have occurred. When this happens, food may have begun to spoil and should be discarded.
Bag melts	Sealing strip may have become too hot. Always wait about 60 seconds for appliance to cool down before you vacuum package another item.

TECHNICAL DATA

Operating voltage: 220 - 240V 50 - 60Hz

Power consumption: 95W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable.

Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling - European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product

was purchased. They can take this product for environmental safe recycling.

Fun Nordic ApS

Egelund 8

6200 Aabenraa

Denmark

www.funnordic.dk
