Product type	Portable charger for Li-Ion batteries
Brand	Hilti
Model	VC 75122 (compatible with C 6-22 / C 8-22 chargers)
Weight	0.84 kg (C 6-22) / 1.45 kg (C 8-22)
Power supply	100-127 V or 220-240 V AC
Nominal output voltage	10.8 V - 21.6 V
Maximum output power	240 W (C 6-22) / 450 W (C 8-22)
Operating temperature	-17 °C to 60 °C
Storage temperature	-20 °C to 70 °C
Compatible battery types	Hilti 21.6 V Li-Ion batteries
Main functions	Li-Ion battery charging, LED status indicator, wall-mountable
LED display	Green LED (ready), flashing for charging/error
Safety	Double insulation, short-circuit protection, overheat shutdown
Maintenance	Cleaning with damp cloth, brush for ventilation slots
Spare parts available	Replaceable power cable (references depending on country)
Repairability	Cable replacement by a Hilti authorized professional
Manufacturer warranty	Yes, contact your local Hilti partner
Standards	Compliant with FCC (USA) and IC (Canada)

Frequently Asked Questions - VC 75122 HILTI

How to start charging the battery?

Plug the charger into a power outlet (the green LED lights up). Insert the Hilti Li-Ion battery onto the interface. Charging starts automatically, indicated by the battery LEDs.

What do the flashing LEDs on the battery mean during charging?

A slow flashing green LED indicates charging in progress. The number of solid green LEDs indicates the charge level (e.g., 4 solid green LEDs = >80%). A flashing yellow LED means interruption due to out-of-range temperature. A fast red LED indicates a locked battery (contact Hilti service).

The charger does not turn on (LED off), what to do?

Check that the plug is properly connected. If yes, unplug and re-plug the charger. If the LED remains off, the power cable may be defective (replace it) or the charger is defective (contact Hilti service).

How to clean the charger?

Always unplug the charger before cleaning. Use a slightly damp cloth for the housing. For ventilation slots, use a dry soft brush. Do not use silicone-based cleaners.

Can I leave the battery on the charger after charging?

No, it is recommended to remove the battery from the charger after full charging. Do not store the battery on the charger.

What types of batteries can I charge with this charger?

This charger is designed exclusively for Hilti Li-Ion batteries with a nominal voltage of 21.6 V. Do not use other batteries. Check the list of approved batteries in your Hilti Store.

Can the charger be wall-mounted?

Yes, the charger is designed for wall mounting. Use the designated holes and secure it firmly. Observe safety distances.

How to replace the power cable?

Replacement must be carried out by a Hilti authorized professional. Unplug the charger, open the cover, remove the old cable and install the new one following the references in the manual.

What to do if the battery is hot to the touch during charging?

If the battery is too hot to touch, stop charging and place it in a non-flammable area, away from combustible materials. Let it cool down. If after one hour it is still hot, it is likely defective. Contact Hilti service.

How to check the battery condition?

Press and hold the battery release button for more than 3 seconds. The LEDs will run, then one LED stays on: green (usable), flashing yellow (check failed), red (capacity <50% or end of life).

USER MANUAL VC 75122 HILTI

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger

Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	x	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	x	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

These Tabelle gilt fur den Markt China.

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1 wt%"及"超出0.01 wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	x	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	x	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

These Tabelle gilt fur den Markt China.

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺鈕Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Original operating instructions

1 Information about the operating instructions

1.1 About these operating instructions

• Warning! Read and understand all accompanying documentation, including but not limited to instructions, safety warnings, illustrations, and specifications provided with this product. Familiarize yourself with all the instructions, safety warnings, illustrations, specifications, components, and functions of the product before use. Failure to do so may result in electric shock, fire, and/or serious injury. Save all warnings and instructions for future reference.
• products are designed for professional users and only trained, authorized personnel are permitted to operate, service and maintain the products. This personnel must be specifically informed about the possible hazards. The product and its ancillary equipment can present hazards if used incorrectly by untrained personnel or if used not in accordance with the intended use.
• The accompanying documentation corresponds to the current state of the art at the time of printing. Please always check for the latest version on the product's page on Hilti's website. To do this, follow the link or scan the QR code in this documentation, marked with the symbol
• Ensure that these operating instructions are with the product when it is given to other persons.

1.2 Explanation of symbols

1.2.1Warnings

Warnings alert persons to hazards that occur when handling or using the product. The following signal words are used:

DANGER

DANGER！

Draws attention to imminent danger that will lead to serious personal injury or fatality.

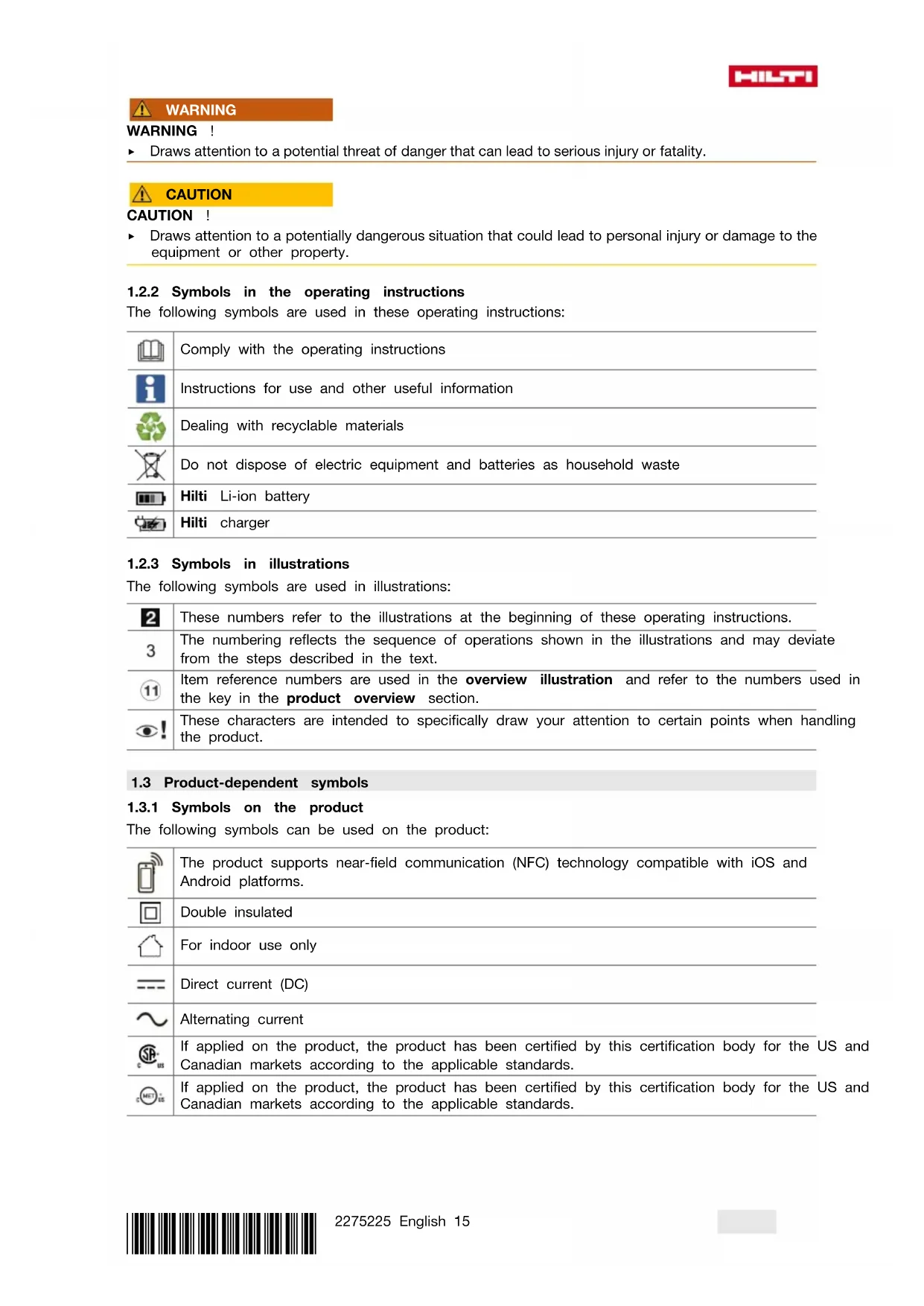

WARNING

WARNING

Draws attention to a potential threat of danger that can lead to serious injury or fatality.

CAUTION

CAUTION！

Draws attention to a potentially dangerous situation that could lead to personal injury or damage to the equipment or other property.

1.2.2 Symbols in the operating instructions

The following symbols are used in these operating instructions:

Comply with the operating instructions

Instructions for use and other useful information

Dealing with recyclable materials

Do not dispose of electric equipment and batteries as household waste

Hilti Li-ion battery

Hilti charger

1.2.3 Symbols in illustrations

The following symbols are used in illustrations:

These numbers refer to the illustrations at the beginning of these operating instructions.

3

The numbering reflects the sequence of operations shown in the illustrations and may deviate from the steps described in the text.

11

Item reference numbers are used in the overview illustration and refer to the numbers used in the key in the product overview section.

These characters are intended to specifically draw your attention to certain points when handling the product.

1.3 Product-dependent symbols

1.3.1 Symbols on the product

The following symbols can be used on the product:

The product supports near-field communication (NFC) technology compatible with iOS and Android platforms.

Double insulated

For indoor use only

Direct current (DC)

Alternating current

If applied on the product, the product has been certified by this certification body for the US and Canadian markets according to the applicable standards.

If applied on the product, the product has been certified by this certification body for the US and Canadian markets according to the applicable standards.

2 Safety

2.1 General safety instructions

WARNING Study all safety instructions and other instructions, images and technical data with which this power tool is provided. Failure to observe the instructions below can result in electric shock, fire and/or serious injury.

Keep all safety instructions and instructions for future reference.

• Persons (including children) with reduced physical, sensory or mental abilities or lack of experience and knowledge are not permitted to use this product.
  Do not allow children to play with the product.
  Install the charger in such a way that a battery inserted into it cannot fall out.

2.2 Battery charger use and care

To avoid injury, use the charger only to charge Hilti Li-ion batteries approved for use with this charger.
The location at which the charger is used should be clean, cool, dry and protected from frost.
- The charger must be able to emit heat while in operation. The air vents must therefore remain unobstructed. Do not operate the charger inside a closed container.
- Maintain the product carefully. Make sure that no parts are broken or damaged in such a way that the product no longer functions correctly. If parts are damaged or broken, have the product repaired prior to further use.
- Use chargers and the corresponding batteries in accordance with these instructions and as is specified for this particular model. Use of chargers for applications different from those intended could result in hazardous situations.
- Recharge the batteries only with the chargers specified by the manufacturer. A charger that is suitable for a certain type of battery may present a risk of fire when used with other types of battery.
- When not in use, keep the battery and the charger away from paper clips, coins, keys, nails, screws or other small metal objects that could cause a short circuit at the battery terminals or the charging contacts. A short circuit between the battery terminals or charging contacts may cause injuries (burns) and result in fire.
- Do not store the battery on the charger. Always remove the battery from the charger when the charging operation has completed.

2.3 Careful handling and use of batteries

• Comply with the following safety instructions for the safe handling and use of Li-ion batteries. Failure to comply can lead to skin irritation, severe corrosive injury, chemical burns, fire and/or explosion.
  Use only batteries that are in perfect working order.
• Treat batteries with care in order to avoid damage and prevent leakage of fluids that are extremely harmful to health!
  Do not under any circumstances modify or tamper with batteries!
  Do not disassemble, crush or incinerate batteries and do not subject them to temperatures over 80^ (176 F).
• Never use or charge a battery that has suffered an impact or been damaged in any other way. Check your batteries regularly for signs of damage.
• Never use recycled or repaired batteries.
• Never use the battery or a battery-operated power tool as a striking tool.
• Never expose batteries to the direct rays of the sun, elevated temperature, sparking, or open flame. This can lead to explosions.
• Do not touch the battery poles with your fingers, tools, jewelry, or other electrically conductive objects. This can damage the battery and also cause material damage and personal injury.
• Keep batteries away from rain, moisture and liquids. Penetrating moisture can cause short circuits, electric shock, burns, fire and explosions.
• Use only chargers and power tools approved for the specific battery type. Read and follow the relevant operating instructions.
  Do not use or store the battery in explosive environments.

If the battery is too hot to touch, it may be defective. Put the battery in a place where it is clearly visible and where there is no risk of fire, at an adequate distance from flammable materials. Allow the battery to cool down. If it is still too hot to touch after an hour, the battery is faulty. Consult Hilti Service or read the document entitled "Instructions on safety and use for Hilti Li-ion batteries".

Observe the special guidelines applicable to the transport, storage and use of lithium-ion batteries. Read the instructions on safety and use of Hilti Li-ion batteries that you can access by scanning the QR code at the end of these operating instructions.

3 Description

3.1 Product overview

① Battery
② Battery status indicator
③ Battery release button
④ Charger operating status indicator
⑤ Holes for wall-mounting
6 Air exit
⑦ Air intake
⑧ Battery interface

3.2 Intended use

The product described is a portable battery charger for Hilti Li-ion batteries with a rated voltage of 21.6 volts. It is designed to be connected to power outlets providing an AC (alternating current) voltage of 100 to 127 volts or 220 to 240 volts (depending on country-specific version).

The charger can be set on a flat surface or mounted on the wall.

• The Hilti Li-ion batteries approved for use with this product can be found in this list.
• Not all batteries are available in all markets.

Product information

Charger C 6-22 | C 8-22
Generation 01
Serial no. 1 - 999999999999

3.3 Operating status indicator of the charger

Status Meaning
LED shows green. Charger is ready for use.
LED doesn't light.	Charger is not ready for use.

3.4 Status indicators of the Li-ion battery during charging

When a Hilti Nuron Li-ion battery is connected to a Hilti charger, the status indicator of the battery shows the state of charge and also fault messages, if applicable.

Status Meaning
One (1) LED slow-flashes green	The battery is being charged, state of charge: ≤ 20 %
One (1) LED shows green, one (1) LED slow-flas green	the battery is being charged, state of charge: 21 % to 40 %
Two (2) LEDs show green, one (1) LED slow-flas green	the battery is being charged, state of charge: 41 % to 60 %
Three (3) LEDs show green, one (1) LED slow-flashes green	The battery is being charged, state of charge: 61 % to 80 %
Four (4) LEDs show green The battery is being charged, state of charge: ≥ 80 %
No LED showing The battery is fully charged, charging has ended.
One (1) LED quick-flashes yellow, then one or more LEDs show green	Charging interrupted. The battery might be outside the permissible temperature range. Charging resumes automatically as soon as the applicable parameters return to specification. If necessary, bring the battery to the recommended charging temperature.
One (1) LED quick-flashes red The Li-ion battery	is locked and cannot be used. Consult Hilti Service.

3.5 Indicators showing the state of health of the Li-ion battery

Hilti recommends checking the state of health of the Li-ion battery every time before charging.

To check the battery's state of health, press the release button of the battery and hold it down for longer than three seconds. The system does not detect a potential malfunction of the battery due to misuse, for example battery dropped or pierced, external heat damage, etc.

Status Meaning
All LEDs show in sequence, followed by one (1) LED showing constantly green.	The battery can remain in use.
All LEDs show in sequence, followed by one (1) LED quick-flashing yellow.	The check to ascertain the battery's state of head did not complete. Repeat the procedure, or consult Hilti Service.
All LEDs show in sequence, followed by one (1) LED showing constantly red.	If a connected product can still be used, the remaining battery capacity is below 50%. If a connected product can no longer be used, battery has reached the end of its useful life and has to be replaced. Consult Hilti Service.

3.6 Items supplied

Charger, operating instructions.

Other system products approved for use with this product can be found at your local Hilti Store or at: www.hilti.group

4 Technical data

	C 6-22 C 8-22
Weight in accordance with EPTA Pro dure 01	Pro84 kg(1.852 lb)	1.45 kg(3.197 lb)
Rated output voltage	10.8 V ... 21.6 V 10.8 V ...	21.6 V
Maximum output power	240 W 450 W
Storage temperature	-20 °C ... 70 °C(-4.0 °F ... 158.0 °F)	-20 °C ... 70 °C(-4.0 °F ... 158.0 °F)
Ambient temperature for operation	-17 °C ... 60 °C(1.4 °F ... 140.0 °F)	-17 °C ... 60 °C(1.4 °F ... 140.0 °F)

WARNING

A damaged supply cord presents a hazard! If the supply cord or extension cord is damaged while work is in progress, immediately disconnect the product and the cord from the electricity supply. Do not touch the damaged part of the cord!

Regularly check all supply cords.
Replace defective extension cords.
- Otherwise, contact Hilti Service.

Use of a ground fault circuit interrupter (residual current device, RCD) with a maximum tripping current of 30mA is recommended.

5.1 Switching on charger and charging battery

WARNING

Explosion hazard if any attempt is made to charge unapproved batteries. Injuries and damage to the charger can result.

• Do not attempt to charge non-rechargeable batteries.
  Use only Hilti-approved batteries with this charger.

CAUTION

Short-circuit due to moisture or dampness Damage to the product is the result.

Use the product only indoors.
- Keep the product away from moisture and dampness.

1. Plug the supply cord into the power outlet.
   The LED shows green.

2. Engage the battery on the battery interface.
   The battery is charging.

3. When the battery is fully charged, remove it from the charger.

6 Care and maintenance

WARNING

Electric shock hazard! Attempting care and maintenance with the supply cord connected to a power outlet can lead to severe injury and burns.

Always unplug the supply cord before carrying out care and maintenance tasks.

Care

• Carefully remove stubborn dirt from the tool.
• Clean the air vents carefully with a dry brush.
• Use only a slightly damp cloth to clean the casing. Do not use cleaning agents containing silicone as they can attack the plastic parts.

Maintenance

• Check all visible parts and controls for signs of damage at regular intervals and make sure that they all function correctly.
• Do not operate the product if signs of damage are found or if parts malfunction. Have it repaired immediately by Hilti Service.
  After cleaning and maintenance, fit all guards or protective devices and check that they function correctly.

To help ensure safe and reliable operation, use only genuine Hilti spare parts and consumables. Spare parts, consumables and accessories approved by Hilti for use with the product can be found at your local Hilti Store or online at: www.hilti.group.

DANGER

Risk of injury! Risk of electric shock.

The product may be serviced and repaired only by authorized, trained personnel! This personnel must be specially informed of any possible hazards.

If it is damaged, the supply cord has to be replaced.

Comply with the country-specific regulations for electrical safety.

1. Unplug the charger's supply cord from the power outlet.
2. Pull the rubberized foot out of the cover and remove the securing screw exposed by removal of the rubberized foot.

Materials

Torx screwdriver T10

1. Flip the cover open.
2. Take a photo or draw a sketch so that you will be able to recall the routing and conductor-to-terminal assignment of the supply cord.
3. Carefully depress one of the terminal clips with a flat screwdriver to release the conductor. Disengage the conductor from the terminal clip. Repeat this step for the second conductor and then remove the faulty power cord.
4. Install the new supply cord. Depress one terminal clip with a flat screwdriver and insert the end of the conductor into the terminal clip. Release the terminal clip and check that the conductor is secure in the terminal clip. Repeat this step for the second conductor.

Materials

Supply cord C 6-22

2289588 (EU, 220-240V)
2289589 (US, 110-120V)
2289910 (GB, 220-240V)
2300624 (GB, 100-120V)
2289911 (KR, 220-240V)
2289912 (RU, 220-240V)
2289914 (JP, 100-120V)
2289915 (AUS 220-240V)
2289916 (TW, 100-120V)
2300625 (CH, 220-240V)

Supply cord C 8-22
2289589 (US, 110-120V)
2289910 (GB, 220-240V)
2300624 (GB, 100-120V)
2289912 (EU, KR, RU, 220-240V)
2289913 (BR, 220-240V)
2289914 (JP, 100-120V)
2289915 (AUS 220-240V)
2289916 (TW, 100-120V)
2289917 (ARG, 220-240V)
2300625 (CH, 220-240V)

Select the supply cord of a type suitable for use with this charger from this table or contact Hilti Service.

1. Seat the supply cord in the cable guide exactly as the original cable was routed prior to replacement. Use the photo taken beforehand or the sketch you drew as reference.

2. Flip the cover closed and re-install the securing screw.

3. Push the rubberized foot back into the cover.
4. Plug the supply cord into a power outlet and check that the charger is in full working order.

LED shows: Charger is in full working order.
LED does not light up: Charger is not in full working order.

Contact Hilti Service.

7 Transport and storage

Transport

Make sure that the equipment is held securely throughout all transport operations.
After transporting, always check all visible parts and controls for signs of damage and make sure that they all function correctly.

Storage

Always store this product with the electric supply cable unplugged from the electricity supply.
- Store this product in a dry place, where it cannot be accessed by children or unauthorized persons.
After a long period of storage, always check all visible parts and controls for signs of damage and make sure that they all function correctly.

8 Troubleshooting

If the trouble you are experiencing is not listed in this table or you are unable to remedy the problem by yourself, contact Hilti Service.

Malfunction Possible cause	Action to be taken
LED doesn't light. Supply cord not connected to elec-tricity supply.		Plug the supply cord into the power outlet.
Product malfunction. Unplug the product and then plug it back in. If the LED remains off, consult Hilti Service.
Supply cord faulty.		Replace the supply cord.→ page 20
The charger is defective.		Have the product repaired by Hilti Service.

9 Disposal

Most of the materials from which Hilti tools and appliances are manufactured can be recycled. The materials must be correctly separated before they can be recycled. In many countries, your old tools, machines or appliances can be returned to Hilti for recycling. Ask Hilti Service or your Hilti representative for further information.

• Do not dispose of power tools, electronic equipment or batteries as household waste!

10 FCC statement (applicable in US) / IC statement (applicable in Canada)

This device complies with Part 15 of the FCC Rules and RSS-210 of IC. Operation is subject to the following two conditions:

1. this device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired operation.

11 Manufacturer's warranty

• Please contact your local Hilti representative if you have questions about the warranty conditions.

C 6-22 (01)

RoHS (Restriction of Hazardous Substances)

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	X	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	X	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

This table is valid for the China market.

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substanceexceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage ofreference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

This table is valid for the Taiwan market.

C 8-22 (01)

RoHS (Restriction of Hazardous Substances)

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr(VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics(PCBs)	x	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl.plug	x	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

This table is valid for the China market.

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Battery Charger 型號(型式): C 8-22 01 Equipment name: Type designation:
單元 Unit	限用物質及其化學符號 Restricted substances and its chemical symbols
	鉛 Lead (Pb)	汞 Mercury (Hg)	鎘 Cadmium (Cd)	六價鉻 Hexavalent Chromium (Cr (VI))	多溴聯苯 Polybrominated biphenyls (PBB)	多溴二苯醚 Polybrominated biphenyletherts (PBDE)
殼體 Housing	0	0	0	0	0	0
橡膠腳 Rubber foot	0	0	0	0	0	0
電子產品(PCB) Electronics (PCBs)	-	0	0	0	0	0
螺釘 Screws	0	0	0	0	0	0
電力連接線 Wiring	0	0	0	0	0	0
電池接口 Battery interface	0	0	0	0	0	0
電源接口包括插頭 Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"係指限用物質之百分比含量超出百分比含量基準值。 Note 1: "Exceeding 0.1wt.% and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition. 備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。 Note 2: "o" - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence. 備考3. "一"係指該項限用物質為排除項目。 Note 3: The "-" indicates that the restricted substance corresponds to the exemption.

This table is valid for the Taiwan market.

13 Hilti Li-ion batteries

Instructions for safety and use

This documentation uses the term battery to describe rechargeable Hilti Li-ion battery packs containing several Li-ion cells joined together. These batteries are to be used in Hilti power tools exclusively. Use only genuine Hilti batteries!

Description

Hilti batteries have cell-management and cell-protection systems.

The batteries are composed of cells that contain lithium-ion storage materials capable of providing high specific energy density. Li-ion cells have a minimal memory effect, but they are very susceptible to external impact, deep discharge, and high temperatures.

The products approved for use with Hilti batteries can be found in your Hilti Store or at: www.hilti.group

Safety

Comply with the following safety instructions for the safe handling and use of Li-ion batteries. Failure to comply can lead to skin irritation, severe corrosive injury, chemical burns, fire and/or explosion.
Treat batteries with care in order to avoid damage and prevent leakage of fluids that are extremely harmful to health!
Do not under any circumstances modify or tamper with batteries!
Do not disassemble, crush or incinerate batteries and do not subject them to temperatures over 80^
- Never use or charge a battery that has suffered an impact or been damaged in any other way. Check your batteries regularly for signs of damage.
- Never use recycled or repaired batteries.

HILTI

• Never use the battery or a battery-operated power tool as a striking tool.
• Never expose batteries to the direct rays of the sun, elevated temperature, sparking, or open flame. This can lead to explosions.
• Do not touch the battery poles with your fingers, tools, jewelry, or other electrically conductive objects. This can damage the battery and also cause material damage and personal injury.
• Keep batteries away from rain, moisture and liquids. Penetrating moisture can cause short circuits, electric shock, burns, fire and explosions.
• Use only chargers and power tools approved for the specific battery type. Read and follow the relevant operating instructions.
• Do not use or store the battery in explosive environments.
  If the battery is too hot to touch it may be defective. Put the battery in a place where it is clearly visible and where there is no risk of fire, at an adequate distance from flammable materials. Allow the battery to cool down. If it is still too hot to touch after an hour, the battery is faulty. Follow the instructions in the section headed What to do in case of a battery fire.

What to do in case of damaged batteries

Always contact Hilti when a battery is damaged.
- Never use a battery that is leaking fluid.
- Avoid direct eye and/or skin contact with fluid leaking from a battery. Always wear protective gloves and eye protection when undertaking tasks involving battery fluid.
- Use a chemical spill cleanup kit to remove leaked battery fluid. Comply with the locally applicable cleanup regulations for battery fluid.
To store a damaged battery, place the battery in a non-flammable container and cover the battery with dry sand, chalk powder (CaCO3) or silicate (Vermiculite). Then seal the lid air-tight and store the container away from flammable gases, liquids or objects.
- Dispos of the container at your Hilti Store, or consult your local governmental garbage disposal or public health and safety resources for disposal instructions. Comply with the locally applicable regulations for transporting damaged batteries!

What to do in case of dysfunctional batteries

• Watch for abnormal battery behavior, such as faulty charging, unusually long charging times, noticeable power loss, unusual LED activity, or leaking fluids. These are signs of an internal problem.
  If you suspect an internal battery problem, contact Hilti Service.
  A battery that no longer works, cannot be recharged or leaks fluid has to be disposed of correctly. See the section headed Maintenance and disposal.

What to do in case of a battery fire

WARNING

Battery fire hazard! A burning battery releases hazardous and potentially explosive liquids and fumes that can lead to corrosion injuries, burns or explosions.

Wear your personal protective equipment when you tackle a battery fire.

• Provide sufficient venting to permit hazardous and potentially explosive fumes to escape.
• Leave the room immediately in case of intense smoke emission.
• Consult a doctor in case of any skin or respiratory irritation.
• Alert the fire service before you start tackling the fire.
• Use only water to tackle a battery fire and keep as far from the fire as effective extinguishing permits. Powder fire extinguishers and fire blankets are ineffective with Li-ion batteries. Fire in nearby materials can be extinguished with appropriate extinguishing agents.
• Do not try to move large quantities of burning batteries. Instead, isolate the batteries by removing unaffected materials from the immediate vicinity.

In the case of a battery that does not cool down, or a smoking or burning battery:

• Scoop the battery up with a shovel and drop it into a bucket of water, which will reduce the risk of igniting adjacent cells that have not yet reached run-away temperature.
  Leave the battery in the bucket for at least 24 hours until it has cooled down completely.
  See the section headed What to do in case of damaged batteries.

Shipping and storage

• Ambient operating temperature to be kept between -17^ and +60^ / 1^ and 140^ .
  Storage temperature to be kept between -20^ and +40^ / - 4^ and 104^ .

• Do not store batteries on the charger. Always remove the battery from the charger when the charging operation has completed.

• Store batteries in a cool and dry place. Cool storage will increase battery life. Never store batteries where they are exposed to direct sunlight, on sources of heat or behind glass.
  Do not send batteries through the mail. Consult your shipper for instructions on how to ship undamaged batteries.

• Never transport batteries in bulk form (loose, unprotected). During transport, batteries should be protected from excessive shock and vibration and isolated from any conductive materials or other batteries that may come in contact with the terminals and cause a short circuit. Comply with the locally applicable regulations for transporting batteries.

Maintenance and disposal

• Keep the battery free of oil and grease. Do not permit dust or dirt to accumulate unnecessarily on the battery. Clean the battery with a dry, soft brush or a clean, dry rag.
• Never use a battery with clogged ventilation slots. Clean the ventilation slots carefully using a dry, soft brush.
• Prevent unnecessary exposure of the battery to dust or debris and never subject the battery to soaking moisture (e.g., submerged in water or left out in the rain).
  If a battery is exposed to soaking moisture, treat it as a damaged battery and isolate it in a non-flammable container.

See the section headed What to do in case of damaged batteries.

• Improper disposal may cause health hazards from leaking gases or fluids. Dispos of the battery at your Hilti Store, or consult your local governmental garbage disposal or public health and safety resources for disposal instructions. Comply with the locally applicable regulations for transporting damaged batteries!
• Do not dispose of batteries as household waste.
• Dispose of your battery out of the reach of children. Cover the terminals with a non-conductive material (such as electrical tape) to prevent short circuiting.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger

Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	x	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	x	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1 wt%"及"超出0.01 wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	x	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	x	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. "-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1 wt%"及"超出0.01 wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	x	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	x	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. "-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	x	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	x	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. "-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

4 Characteristicas techniques

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	X	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	X	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1 wt%"及"超出0.01 wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. "-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger

Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substanceexceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage ofreference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr(VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	X	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	X	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Battery Charger 型號(型式): C 8-22 01 Equipment name: Type designation:
單元 Unit	限用物質及其化學符號 Restricted substances and its chemical symbols
	鉛 Lead (Pb)	汞 Mercury (Hg)	鎘 Cadmium (Cd)	六價鉻 Hexavalent Chromium (Cr (VI))	多溴聯苯 Polybrominated biphenyls (PBB)	多溴二苯醚 Polybrominated biphenyletherts (PBDE)
殼體 Housing	0	0	0	0	0	0
橡膠腳 Rubber foot	0	0	0	0	0	0
電子產品(PCB) Electronics (PCBs)	-	0	0	0	0	0
螺釘 Screws	0	0	0	0	0	0
電力連接線 Wiring	0	0	0	0	0	0
電池接口 Battery interface	0	0	0	0	0	0
電源接口包括插頭 Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"係指限用物質之百分比含量超出百分比含量基準值。 Note 1: "Exceeding 0.1wt.% and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition. 備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。 Note 2: "o" - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence. 備考3. "-"係指該項限用物質為排除項目。 Note 3: The "-" indicates that the restricted substance corresponds to the exemption.

Lader, brugsanvising.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger

Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	x	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	x	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Denne tabel gelder kun for markedet Taiwan.

C 8-22 (01)

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	x	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	x	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Denne tabel gelder kun for markedet Taiwan.

13 Hilti Li-lon-batterier

Kontakta Hilti-service.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger

Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	X	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	X	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substanceexceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage ofreference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Denna tabell gäller für den taiwanesiska marknaden.

C 8-22 (01)

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	X	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	X	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Battery Charger 型號(型式): C 8-22 01 Equipment name: Type designation:
單元 Unit	限用物質及其化學符號 Restricted substances and its chemical symbols
	鉛 Lead (Pb)	汞 Mercury (Hg)	鎘 Cadmium (Cd)	六價鉻 Hexavalent Chromium (Cr (VI))	多溴聯苯 Polybrominated biphenyls (PBB)	多溴二苯醚 Polybrominated biphenyletherts (PBDE)
殼體 Housing	0	0	0	0	0	0
橡膠腳 Rubber foot	0	0	0	0	0	0
電子產品(PCB) Electronics (PCBs)	-	0	0	0	0	0
螺釘 Screws	0	0	0	0	0	0
電力連接線 Wiring	0	0	0	0	0	0
電池接口 Battery interface	0	0	0	0	0	0
電源接口包括插頭 Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"係指限用物質之百分比含量超出百分比含量基準值。 Note 1: "Exceeding 0.1wt.% and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition. 備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。 Note 2: "o" - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence. 備考3. "-"係指該項限用物質為排除項目。 Note 3: The "-" indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Denne tabellen gjelder for markedet Kina.

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1 wt%"及"超出0.01 wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Denne tabellen gjelder for markedet Taiwan.

C 8-22 (01)

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	x	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	x	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Denne tabellen gjelder for markedet Kina.

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. "-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Denne tabellen gjelder for markedet Taiwan.

13 Hilti Li-lon-batterier

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr(VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	x	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	x	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	X	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	X	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Battery Charger 型號(型式): C 8-22 01 Equipment name: Type designation:
單元 Unit	限用物質及其化學符號 Restricted substances and its chemical symbols
	鉛 Lead (Pb)	汞 Mercury (Hg)	鎘 Cadmium (Cd)	六價鉻 Hexavalent Chromium (Cr (VI))	多溴聯苯 Polybrominated biphenyls (PBB)	多溴二苯醚 Polybrominated biphenyletherts (PBDE)
殼體 Housing	0	0	0	0	0	0
橡膠腳 Rubber foot	0	0	0	0	0	0
電子產品(PCB) Electronics (PCBs)	-	0	0	0	0	0
螺釘 Screws	0	0	0	0	0	0
電力連接線 Wiring	0	0	0	0	0	0
電池接口 Battery interface	0	0	0	0	0	0
電源接口包括插頭 Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"係指限用物質之百分比含量超出百分比含量基準值。 Note 1: "Exceeding 0.1wt.% and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition. 備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。 Note 2: "o" - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence. 備考3. "-"係指該項限用物質為排除項目。 Note 3: The "-" indicates that the restricted substance corresponds to the exemption.

1.3 Tootepohised sumbolid

1.3.1 Sumbolid tootel

Tootel voib kasutada jargmisisumboleid:

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1 wt%"及"超出0.01 wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	x	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	x	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. "-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr(VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	x	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	x	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Šī tabula attiecas uz Kinas tirgu.

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Sī tabula attiecas uz Taivānas tirgu.

C 8-22 (01)

RoHS (direktiva par bistamo vielu izmantošanas ierobežošanu)

根据 SJ/T 11364-2014 的有害物质材料披露
Hazardous substances material disclosure according to SJ/T 11364-2014
Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr(VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics(PCBs)	X	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl.plug	X	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Šī tabula attiecas uz Kinas tirgu.

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Battery Charger 型號(型式): C 8-22 01 Equipment name: Type designation:
單元 Unit	限用物質及其化學符號 Restricted substances and its chemical symbols
	鉛 Lead (Pb)	汞 Mercury (Hg)	鎘 Cadmium (Cd)	六價鉻 Hexavalent Chromium (Cr (VI))	多溴聯苯 Polybrominated biphenyls (PBB)	多溴二苯醚 Polybrominated biphenyletherts (PBDE)
殼體 Housing	0	0	0	0	0	0
橡膠腳 Rubber foot	0	0	0	0	0	0
電子產品(PCB) Electronics (PCBs)	-	0	0	0	0	0
螺釘 Screws	0	0	0	0	0	0
電力連接線 Wiring	0	0	0	0	0	0
電池接口 Battery interface	0	0	0	0	0	0
電源接口包括插頭 Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"係指限用物質之百分比含量超出百分比含量基準值。 Note 1: "Exceeding 0.1wt.% and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition. 備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。 Note 2: "o" - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence. 備考3. "-"係指該項限用物質為排除項目。 Note 3: The "-" indicates that the restricted substance corresponds to the exemption.

Ši tabula attiecas uz Taivanas tirgu.

13 Hilti litija jonu akumulatori

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger

Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr(VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Si lentele galoja Taivano rinkai.

C 8-22 (01)

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	x	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	x	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. "-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Si lentele galoja Taivano rinkai.

13 Hilti ličio jonu akumuliatoriali

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1 wt%"及"超出0.01 wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	x	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	x	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. "-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger

Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	X	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	X	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substanceexceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage ofreference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Tato tabulka plati pro trh na Tchaj-wanu.

C 8-22 (01)

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr(VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics(PCBs)	x	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl.plug	x	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Battery Charger 型號(型式): C 8-22 01 Equipment name: Type designation:
單元 Unit	限用物質及其化學符號 Restricted substances and its chemical symbols
	鉛 Lead (Pb)	汞 Mercury (Hg)	鎘 Cadmium (Cd)	六價鉻 Hexavalent Chromium (Cr (VI))	多溴聯苯 Polybrominated biphenyls (PBB)	多溴二苯醚 Polybrominated biphenyletherts (PBDE)
殼體 Housing	0	0	0	0	0	0
橡膠腳 Rubber foot	0	0	0	0	0	0
電子產品(PCB) Electronics (PCBs)	-	0	0	0	0	0
螺釘 Screws	0	0	0	0	0	0
電力連接線 Wiring	0	0	0	0	0	0
電池接口 Battery interface	0	0	0	0	0	0
電源接口包括插頭 Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"係指限用物質之百分比含量超出百分比含量基準值。 Note 1: "Exceeding 0.1wt.% and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition. 備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。 Note 2: "o" - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence. 備考3. "-"係指該項限用物質為排除項目。 Note 3: The "-" indicates that the restricted substance corresponds to the exemption.

Tato tabulka plati pro trh na Tchaj-wanu.

13 Lithium-iontoy akumulator Hilti

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	x	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	x	0	0	0	0	0
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Tato tabulka plati pre trh Ciny.

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1 wt%"及"超出0.01 wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Tato tabulka plati pre trh Taiwanu.

C 8-22 (01)

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	X	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	X	0	0	0	0	0
以下表格均依据 SJT 11364 通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572.X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Tato tabulka plati pre trh Ciny.

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. "-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Tato tabulka plati pre trh Taiwanu.

13 Hilti Littium-ionovy akumulátor

Hilti litium-ion akku

Hilti toltokeszulek

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger

Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	x	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	x	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. "-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger

Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	X	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	X	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substanceexceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage ofreference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr(VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics(PCBs)	X	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl.plug	X	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Battery Charger 型號(型式): C 8-22 01 Equipment name: Type designation:
單元 Unit	限用物質及其化學符號 Restricted substances and its chemical symbols
	鉛 Lead (Pb)	汞 Mercury (Hg)	鎘 Cadmium (Cd)	六價鉻 Hexavalent Chromium (Cr (VI))	多溴聯苯 Polybrominated biphenyls (PBB)	多溴二苯醚 Polybrominated biphenyletherts (PBDE)
殼體 Housing	0	0	0	0	0	0
橡膠腳 Rubber foot	0	0	0	0	0	0
電子產品(PCB) Electronics (PCBs)	-	0	0	0	0	0
螺釘 Screws	0	0	0	0	0	0
電力連接線 Wiring	0	0	0	0	0	0
電池接口 Battery interface	0	0	0	0	0	0
電源接口包括插頭 Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"係指限用物質之百分比含量超出百分比含量基準值。 Note 1: "Exceeding 0.1wt.% and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition. 備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。 Note 2: "o" - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence. 備考3. "-"係指該項限用物質為排除項目。 Note 3: The "-" indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	x	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	x	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Ova tablica vrijedi samo za kinesko trziste.

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1 wt%"及"超出0.01 wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	x	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	x	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Ova tablica vrijedi samo za kinesko trziste.

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. "-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger

Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	X	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	X	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Ova tabelu vazi za trziste Kine.

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substanceexceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage ofreference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr(VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics(PCBs)	X	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl.plug	X	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Ova tabelu vazi za trziste Kine.

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Battery Charger 型號(型式): C 8-22 01 Equipment name: Type designation:
單元 Unit	限用物質及其化學符號 Restricted substances and its chemical symbols
	鉛 Lead (Pb)	汞 Mercury (Hg)	鎘 Cadmium (Cd)	六價鉻 Hexavalent Chromium (Cr (VI))	多溴聯苯 Polybrominated biphenyls (PBB)	多溴二苯醚 Polybrominated biphenyletherts (PBDE)
殼體 Housing	0	0	0	0	0	0
橡膠腳 Rubber foot	0	0	0	0	0	0
電子產品(PCB) Electronics (PCBs)	-	0	0	0	0	0
螺釘 Screws	0	0	0	0	0	0
電力連接線 Wiring	0	0	0	0	0	0
電池接口 Battery interface	0	0	0	0	0	0
電源接口包括插頭 Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"係指限用物質之百分比含量超出百分比含量基準值。 Note 1: "Exceeding 0.1wt.% and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition. 備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。 Note 2: "o" - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence. 備考3. "-"係指該項限用物質為排除項目。 Note 3: The "-" indicates that the restricted substance corresponds to the exemption.

1.1 K HactoIeMy pyKOBOdCTBy no 3KcnIyatauH

EAC

HmnpTeP n ynoJHMOeHHa H3rOToBHTeJIem opraHH3aunH

(RU) Pocsncka Phedepaun AO "XnITI DnCTpn6bHn JTT", 141402, MockOBcka oBnaCTb, r. XmKn, yI. JeHHrpaDcKa, cTp. 25, KOMhata 15.26
(BY) Pecny6nka Benapycb HOOO "XuTTi BuYa", 222750, MnHcKa o6laCTb,ДзeprKHHcKm paOH, P-1, 18-н KM, 2 (okono d. Cno6oJa), nomeueHne 1-34
(KZ) Pecny6nka Ka3axctan
TOO "XInn Ka3axCTaH", 050057, r. AnMaTbI, BoCTaHDbIKcKn paOH, yI. TmNpR3eBa, dom 42/15, nItep
012 (kopnyc15)
- (AM) Pecny6nka Apmehn OOO "3H4-KOH", 0070, r. EpeBaH, yI. EpBaHaJa Koyapa 19/28

CtpaHa npOn3BOcTBA: CM. MapKnpoBOOHyTO Ta6JNUKy Ha o6OpdyoBaHm.

Iata npo3BOcTBa: CM. MapKnpoBocHyu Ta6nUky Ha obOpydoBaHH.

COOTBeTCTByIOUcHn cepTHNkAaMOnKHO HaHTn no aDpecy: www.hilti.ru

CneunalbHbIX Tpe6oBaHn K yCIOBnM XpaHeHH, TpaHCnOpTnpOBKn HcNoJIb3OBAHH, KpOME yKa3aHHbIX B pykoBOdCTBe NO 3KcPnyaTaUN, HeT.

Cpok cnjx6bI n3dennn COCTaBnHET 5 net.

HILTI

• IpeynpeKdHne! Npeid nCnoJb3ObaHnem n3denny y6eIntecb B TOM, qTO Bbl noJHOCTbIO h3yuINn npInnaEMOe K HeMy pyKOBOcTBO NO 3KcNpyaTuIN, BKIOUaR npINBOHMble TaM INHCTpyKcIN, yKa3aHNn PO texHnke 6e3oNaChOCTHn INpeynpeXdHn, INJIocTpaunn INTexHnueckn XapaKtepncTKn. B qactHoCTn, O3HaKOMbTEcB CO BCEMN INCHTpYkCUNM, yKa3AHmNn PO TexHnke 6e3oNaChOCTHn INpeynpeKdEHnMn, INJIocTpaunm, TexHnueckmXapaKtepncTknAm, a TAKKe KOMNoHEtAmn INyHKuINM. HecobJIODeHne 3TNX TpeBOaHnn MoKeT npINBeCTn K nopAKeHHIO 3JeKTPnuEckm TOkOM, BO3rOpAHNO n/nn CepBe3HbIM TpaBMam. XpaHnTe pyKOBOcTBO NO 3KcNpyaTuIN, BKIOUaR BCE INHCTpyKcIN, yKa3AHnNn PO texHnke 6e3oNaChOCTHn INpeynpeXdHn, INJIocTBAHnn.
• 13dennn npedhaeHbI nIpoceccnoHaBHO rncnoB3OBaHna, POToM y OH DoJHHbIOcbyKHBATBCr ToIbKO yNoHOMOeHHbIM o6yehbbm nepcoHbOM. 3TOT nepcoHaONKeHNpOHtncneuaHBHyHcHTpykTaXnke 6e3oNacHocTH. HcNoB3OBaHne 3dJIHn Iero OCHACTKHe No Ha3HaueHIO nn erO 3KcNpyatauH HeOByeHHbIM nepcoHbOM MOryt ppeCTabTb ONaCHOCTb.
• PpHnaraemoe pyKOBODCTBO NO 3KcNpyatauHN COOTBETCTByET yPOBHO TexHnueckoro nporpecca Ha MOMENT cdaH N neaTb. AkTyanbHa BepCna Bcerda Doctynha B peXnme OHnH Ha Be6-caTe Hlti C ONHCAHnEM n3dJIHa. IInr 3TOrnopeuHnte no CcbJIke nIN QR-KOy, pPbOIMbIM B HAcToIeM pyKOBODCTBE NO 3KcNpyatauHN C O6O3HaueHnE M CmBOLOM
• Ppi CmeHe Bnaedbua 063aTeIbHo nepedaBaiTe HactoIuee pyKOBOdCTBO NO 3KcPiyaTauN INMeCTe Cn3deHnEM.

1.2 IORcHHeNk 3HaKaM

1.2.1 PpeynpeKdaoune yka3aHn

PpeynpeKdaOuIe yka3AHn Cnykat nI npEynpeKdHn O6 onachoctx npn o6paueHH c H3dennm. IcnoJIb3yOTc cIeMyoUne cnHaJIbHbIe cNoBa:

ONACHO

ONACHO！

O6uee 063haeHHe HnocpeCTBeHHo ONaCHO CHTyaun, KOtopa BneyET 3a co6oTae TpaBmblnn Cmeptelhny nCXoJ.

PENEYUNPEXDEHNE

PNEyIPEKDEHNE！

Ooue o03aHene noTeuaHbNo onaHcHn cTuauH, KOtOpA MoKet NOBneu 3a cooTae TpaBMblnn CMepeIbHbIn HCxOd.

OCTOPOXHO

OCTOPOXHO！

Ooee 063NaHHe NToeHuaJIbHO OAnCHO CnTuaUN, KOtOpA MoKeT NOBLey 3a Co6oTpaBMblnnnoBpeKdHHe O6OpUdoBaHN (MaTePnaJIbHbI yuep6).

1.2.2 CnMBOJbl, HcNoJIb3yeMbIe B pyKOBODCTBE

B 3TOM pyKOBODCTBe HcNoJIb3yIOTc CNeIyIOUHe CmMBOJIbI:

Co6HoaTb pyKOBoDCTBO no 3KcNpyatauH

Yka3aHnno 3Kcnnyatauun n pyraonone3na HOpMaun

O6paueHHe c MaTePnHaIaMn, npiroDhbIMn Ira BToPnUHO npepeabotkn

He BbI6paBbIaIe 3JIekTpOHnHCTpyMeHTbI n aKKyMylrTopbI BmEcTe C O6bIHyIM MycOpOM!

Hilti NHTI-NOHbI aKcMyrTOp (Li-Ion)

3apnHoe yctpoCTBO Hitti

1.2.3 CnMBoJIbI Ha H3o6paJxHnIX

Ha n3o6paXeHHAX HcNoJb3yIOTc CJeNyUOJIue cHMBOJIb:

3.3 HndnkaTop pa6oery coctoHHa 3apHOrO yctpoCTBa

3.5 INHnKauncoCToHHN JHTN-HOHHO AKKymyIaTOPa

Hilti peKOMeHdyET npOBepaYpOBeHb 3apraJa IHTn-NOHOro aKKyMyrATopa nepeI KaJdbIM npOceCCOM 3apAdkn.

I3a 3anpoca coctoHHn aKKymyIaTopa ydePKBaTe KONky de6nOKIpOBKn HaxaToi 60one 3 c. CnCTema He paCno3Haet noteHuaNBHOe HApUWeHne pa6Obl aKKymyIaTOpHoi 6aTapen BCJeCDTBHe HnpabNbHoro 6paueHH, HapnPMEp, NaDeHH, npokolOB, BHeuHero TepMueeCKoro Bo3dEChTBn I T. d.

8 POMOUIB npH HeHCnpaBHOCTAX

B cnyuae HenncnpabHocte, KOtOpbIe He yka3aHb I B 3ToI Ta6nue nN KOTOpbIe Bbl He MoKTe yCTpaHITb camOCToTEnbHO, O6paauaTEcb B 6nKaun CepBnchbl ceHTp Hilti.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger

Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

3Ta Ta6nua DeIcTBnteBHa dIpaBHka Krtan.

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1 wt%"及"超出0.01 wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

3Ta Ta6nua DeiCTBnTeIbHa dIpaHka TaBaHa.

C 8-22 (01)

RoHS (DnpekTnBa 06 orpaHneHH npHMeHeHH onacbix BeuecTB)

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger

Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	x	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	x	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

3Ta Ta6nua DeIcTBnteBHa dIpaBHka Krtan.

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Ta Ta6nua DeiCTBnTeBHa dIpaHka TaBaHa.

13 JIHTH-NOHHbIe aKKyMyJrTOpbI Hilti

Yka3aHnnoTexHnke 6e30nachOCTn HcNoJb3OBaHHIO

B 3OM DoKymHe TepMHN «aKKMyJnTOp» IcNoIb3yETcI dIe NOD3apAkaEMbIX IITNI-NOHbIX aKKMyJnTOpob HIti, coCToHux n3 MHOxEcTBa IITNI-NOHHbIX 3IeMeHTOB (ryeek). OHI npEJa3HaueHbI dIe 3NeKTPOHNCTpyMeHTOB HIti n DOJIxHbI IcNoIb3ObaTbcra ToIbKO c HIMN. IcNoIb3yTe ToIbKO opINHahNbHbIe aKKMyJnTOpbl HIti!

OncanHe

AkkymyIaTOpbHilt OchaueHcNCTeMaMn ynpaBHeHH N 3aunTu aKKMyIaTOphbx 3JeMeHTOB.

AkkymyantopbI COCToT I3 NITN-NOHHbIX aKKMyaTOpHbIX (HaKONNTeJIbHbIX) 3JeMeHTOB, KOTOpBie o6ecneYnBaOT BbICOKyO ydeJIbHyO IIIOTHOCtB 3HeprH. NITN-NOHHbIE 3JeMeHTbl IpaKTNUeCKn HE IMeOT «3ΦΦeKTA NaMAtn', HO OHN OUYBcTBNTeJIbHbIK CINIOBBIM BO3dEJCTBnAM, rIy6OKOMy pa3pRy Hn BO3dEJCTBnBO BbICOKNX TEMNEpaTyp.

H3eHHa, donyueHHie K nCnOJIb3OBaHHIO C aKKMyIaTOpamH Hilti CM. B Hilti Store nn Ha www.hilti.group

Be30nachoctb

Co6nIaTe cneDyUoHne yka3AHn no TexHHke 6e3OnacHOCTn dN 6e3OnachOro 6paueHn HcNoJIb3OBaHnAHTn-HOHbIXaKKymJATOpOB. XhEco6nIOJeHne MOKeTnpBecTH Kpa3dpaxHeHN M KOHN, cepBe3HbIM TpaBMam, XMmUeCKM OKOrAM, BO3ropaHIO N/IN B3pbIBaM.
O6paaHTecb c aKKyMnyTOpAMN OCTOPOKHO, YTO6b He dOnyCTnB NOBpeKHeH N ppeDTBpaTnTB BixoJ XIKOCTei, npeCTaBnHOx Cepbe3HyOnaCHOCTb DnA 3DopOBBa!
Kateropueckn 3anpeuaeTcB HOCHTb N3MeHeHnB KOHCTpyKUHO aKKyMyrTOPOB NIN BbINOJIHTb HeDOnyCTMble MaHInyIaCn C HmN!

3aIpeaaetcpa36npaTb, cIaBnBaTb, HarpeBaTb do TeMnepaTypb CBblwe 80 ^ C nnn CxNraTb aKKMy- JIATOpbl.
He nCnoJIb3yIte Hn He 3apJkaTe aKKMyIaTOpbl, KOToPbIe NODBepraIncb MexAHueckIM (ydpHbIM) Harpy3kAM Hn NOnUynnn NoBpeKdEHe KaKM-Im60 INbIM O6pa3OM. PeryIrpHO npOBepRrTe HcNoJIb3yEmble Bamn aKKMyIaTOpbl Ha npN3HaKn NOBpeKdEHH.
Kateropnueckn 3anpeuaetc nCnoB30BaTb BocctaHOBHeHHbIe aKKyMyJrTOpbl NIN aKKyMyJrTOpbl NOcne BToPnuHoi nepepa6oTK.
Kateropnueckn 3anpeaetcnaCNoIb3OBaTb aKKyMylrTop nIpaOtaUcne ot aKKyMylrTopa 3JIeKTpoHHCTpyMeHTb B KaueCTBe ydapHOro IHCTpyMeHTa.
▶ Kateropnueckn 3anpeaetcnoDBepraTb aKKyMnyTopb Bo3deNCTBIO npAMoro cOnHeHoro n3nyehn, BbICOKo TeMnepaTybl, NCKp HIN OTKpbITOrO pnaMeHN. 3TO MOKeT pNBecrN K B3pbIBaM.
He kacaTecb akKymIaTOpHbIX KJIeMM (nonIOcOB) naIbIaMn, pa6OuIMn IHCTpyMeHTaMn, yKpaIeHnA M INI INbIMN TOKOpBOaIzIMN npeImTaMn. 3To MoJHO NOBpeIb aKKyMyIaTOp, a TaKKe npINBeCTN K MaTePnaIbHomy yUep6y n TpaBMam.
PpeOxApaHnTe aKcMylAToPbI OTdoXdI, NOBbIeHHo BnaKHOCTn JxNIOcTe.IpoHnKwA Bnara MoKeT npNBecTN K KOpOTKnM 3aMbikAHm, yDapam 3JIeKTpueeCKm TOKOM, OxKOrAm, BO3rOpAHIO nIN B3pbiBaM.
HcnoIb3yIe TOnbKO dOnyueHHie Ia DaHHoro Tnna aKKMyIaTOPOB 3apAHIbe yCTPOINCTpyMeHTb. Co6IIOdaTe yka3aHH, npHBODIMbE B COOTBeTCTByOuIX pyKOBoDCTBax no 3Kcnnyataun.
He nCnoIb3yIte HnH He xpaHnte aKKymyIaTOp BO B3pbIBOOnaChbIX 3oHaX.
CnIshKOM CnIbHb HArpeB aKKymJrTopa (TaKo, YTo Do Hero HeBO3MOxHO DToPOHyTcR) yKa3bIbAeT Ha erO Bo3MOxHyo HeNCpabNocTb. Pa3MeCTnte aKKymJrTop Ha 6e3OnaChom pacCToHHN OT BOCnla-MeHHOuXcMATEpHaIOB B XopoIo IPOCMATPnBaEMOM N NOxapOBe3OnaChom MeCTe. DaTe OCTbITb aKKymJrTopy. EcnI no HCTeHeHm OndHOrO yaca aKKymJrTop BCE eSe ocTaeTcR TaKIM TOpAHM, YTO erO HeJIb3B3rB b pyKN, 3To O3HauaeT, YTo OH HeNCpabEH. CneDyIte yKa3aHnM B rNaBe Mepbl npn BO3ROPaHH aKKymJrTopa.

Popraok DeHCTBn B cnyae NOBpeKdeHna aKKymyIATopoB

Bcerda obaaatae b CepBnchb yentp Hilti, ecn aKymyIaTOp noBpeKeH.
He nCnoB3yIte aKkMyIATOp, n3 KOTopOro BbITEKaET 3neKTPOJIHT.
H36eraTe nonadaHn BbTEkaHoIero 3neKtpoNtA B rna3a N/nn Ha Koxy. Ppr o6paueHn c 3neKtpoNtOM Bcerda HadeBaIte 3aunTHbIe nepuATKn 3aunTHbIe OUYKn.
-Дя удалень ВITEKшero 3neKtpoHNTa HcnoIb3yHTe pa3peWSeHHoe XmMnueckoe YnCTraee CpeDCTBO. Co6IIOdaIte MeCTHbe npednncAHn no ydaleHIO BITeKshero 3neKtpoHNTa.
-ПометиTe NOBpeKdEHHbI aKKyMylrTOp B NOxkapocToHKn KOHTeHep n 3acBInbTe aKKyMylrTOp cyXIM neckOM, MeIOBbIM NopoWkOM (CaCO3) nII IN CNIKKaTOM (BepMNkylntOM). 3aTeM IIOTHO 3aKpOte KpbIswKy I depKHTe KOHTeHep Ha 6e3oNaCHom pacCToRHHn OT BOCNJaMeHraUHXc rA3OB, JINIKOcTeI nII npEdMeTOB.
YtHn3npyTe KOHTeHepYepe3 Hilti Store nIbO6paTntecB CneuaJI3n3pOBaHHyIO KOMNaHIO NO yTHn3aun OTXoIDOB. Co6NJaTe MeCTHbIe npednncaHn no TpaHCnOpTnpoBke nobpeKJdeHHbIX aKKymyIATopoB!

Iopraok DeiCTBn npn Hepa6oTaIOxNx AKKymyIaTOpax

Obpaaatae BnMaHne Ha HeCTaHapTHoe NOBeHeHne AkKymyIaTopo, HApNpMeP OUn6Kn np3apAKe, HepnPBbUHO DoJIrOe BpeM 3apHKn, 3aMeTHOE CHNKeHne MOuHocTn, HeHTaTHbIe Cpa6aTbIBaHHcBToIOHOH INDkaCmH Nn BbTEKaHne 3JeKTpoJNTa. Bce 3TO yKa3bBaet Ha HAnuHne HenCnpaBHOctTe BHyTpni AKKymyIaTopa.
EcnBb npednojaraete, yTo npo6nema CB3aHa C BHyTpHHei 6aTapee, o6paHTecb B cepBncbI uehtp Hilti.
- EcInn aKKymyIaTOp 6oJIbWe He paOtaeT, 6oJIbWe He 3apJkaTe CnN H3 Hero BblTeKae TneKtpoNT, yTHIN3npyIte TaKoi aKKymyIaTOp. CM. rnaBy TexHnueckoe 0cCnyKnBaHne n yTHIN3aQnA.

MepbI B clyuae BO3ropaHn aKKymyTota

PENyPENKDEHNE

Onachoctb BCJIeCTBHe BO3ropaHnA aKKymyIaTopa! N3 ropae aKKymyIaTOpHO 6aTapen BbIXoJr (B3pbIBO)ONACHbIE JNkIOCTn I napbl, KOtOpblc MOrY T pINBeCTN K NOBJIeHIO Kopp03nn, BO3ropaHnAM NII B3pblBaM.

• Ppi TyuheHH aKKyMyIaTopa B clyuae ero BO3ropaHH noJIb3yIteCb cpeIcTBamn HINBnDyaIbHOH 3aunbl.
  OepeTe IOCTaTOHyIO BEHTINRAUIO IIN BO3MOKHOCTN yIeTyUBAHnB (B3pblBO)OnaChbIX napOB.
  Pn HHTeHCBHOM DbIMOO6pa3OBaHN HeMeIeHNO NOKINbTe NOMUeHHe.

HILTI

Bcnyae pa3paKeHHaBxateBbXpyTe npOKHcybTnpyIeTc bpaOM.
Bb3OBHTe NOKapHyIO KOMaHdy, npEKeJe Yem Haayt b TyueHne NoXapa.
TyuTe 3aRopeBwHeeac aKkMyIITOpbToIbKO BoOo, HaxOJaCb OT Hx KaK MoKHO daJIbWe. NcNoIb3OBAHne NOPoWKOBbIX OrHeTuWInTeJe n npOTnIOBOXapHbIX NpONTeHN TUYeHHN JNTNI-HOHbIX aKKyMylrTOPOB B Cnyae IHX BO3ROPaHnHE RaJIeTcR 3ΦΦeKTINHBHIM. OuaRN BO3ROPaHn BOKpyr aKKyMyIATOPa MOKHO TyuHTb ObUHbIMn CpeCTBaMn.
He cIeNyET nbIaTbCn nepMeuataB 6oJIbWne KOJInueCTBa rOpAunx aKKMyJrTOPOB. YdaJIte HeNoBpeKJdeHHble MaTePnaJIb, HaxOJaUncEeB HEnOcpeDCTBeHHoN 6JIN3OCTN OT BO3rOpAHn, YTObI TeM CaMbIMH3OJInpOBaTb 3aRopeBUnneCe aKKyMuJrTOpbl.

Ecnn aKkymyIaTOp He octbIbaeT, dbIMHTcHn ropnt:

• POnHnMHTe aKkyMnyIaTOp c nOmoUbIO IOnaTbI n 6pocbTe erO B BeDpo C BoDo. BlaRoaapr oxJaKaIaMeMy DeIcTBIO BObl npeIoTbPaauaetcnapeKeNbIbBaHne noXapa Ha aKKyMnyIaTOpHbIe 3JeMeHTbl, KOTOpBIE eue He DoCTnTJIN KpnTnuecko TEmnpaTypbI, pnN KOtOpO INPONCXODNT IX BO3ropaHne.
  OCTaBbTe aKKMyJrTOp B KOHTeHHepe No MeHSeMepHa 24 u, noka OH nIOJIHOCTbU He OCTbIeH.
  CM. Nopraok DeiCTBn B Cnyae nobpeKdeHna aKKymyIaTOPOB.

Yka3aHH no TpaHCnOpTHpOBKe H XpaHeHHIO

Pa6ooya tempepatya BHeHne cpebl: ot-17 ^ C do +60^ /ot 1F do 140^
TeMnepaIpa xpaHEnHa: oT -20 ^ C do +40 ^ C / oT -4 F do 104 F.
He xpaHnte aKKyMnyIaTOPbHa 3apAaHOM yCTpoNCTBe. Iocne 3apAaBcERda H3BleKaIte aKKyMnyIaTOp n3 3apAaHoro yCTpoNCTBa.
IIO BO3MOXHOCTn XpaHnte aKKymyIaTOPbI B cyXOM n IpoxnaIahom MeCTe. XpaHeHne B npoxnaIahom NOMeueHHN yBeHnUHBAe T cPOK cnJxK6bl aKKymyIaTOPa. HIKoRa He octabJIaTe aKKymyIaTOPbHa coHNc, Ha HarpeBaTeJIbHbIX/OTOnNIteJIbHbIX 3JeMeHTax INN 3a CTEKlOM.
3anpeaetcna nepecbIaNb aKymyIATOpbl no noTte. O6paTnTeCb B TpaHCnOpTHO-3KcnEduHNOHYo KOMNaHHO, ecN Bbl XOTnTE nepecbIb NOBpeKdEHHbe aKKymyIATOpbl.
Kateropnueckn 3anpeaetcra TpaHcnoptnpoBaTb aKKymyIATOpb63 ynaKOBKn (6ecTapbIM cnocobom). Bo Bpemr TpaHcnoptnpoBKN HeoBXoDIMO npHHaTb Mepbl NO 3aunTe aKKymyIATOpOB OT CnIbHbIX yapOB n BnbpauN H3OJIHpOBaTb IX OT IIObIX TOKONPOBOAUX MaTePnaJIOB INN DpyrNX aKKymyIATOpOB, YTObI He dOnyCTNTb IX KOHTaKTa C KJIeMMAmN dpyrNX aKKymyIATOpOB N, KaK cNeIcTBne 3TOTO, KOPOTKO 3aMbKaHnR. Co6nDaIte DeIcTBYouune npedncaHn no TpaHcnoptnpoBKe aKKymyIATOpOB.

TexHnueckoe 06cIyKHBaHne n yTHIN3aun

AkkymyIaTOp DOJKeH 6bITb UcTbIM, 6e3 CneIOB MaCna HnN Jkpa. He dOnyckaTe NOBHeHn HEnyKHOI nblnn HnI rpa3n Ha aKKymyIaTope. OChCTnTe aKKymyIaTOp cyXoM MrgKoN KcTbIO nn ChCTOIN cyXOIK TaHaBIO.
3KcNpyataaayakkymyIaTopa c 3acopeHHbIMn BEHTNIAUHOHbIMn npope3mKaTeOpHueckn 3anpeHa!OctopoxKHO ouHCTne BeHTNIAUHOHbIe npope3n cyxO MrgkO uTeKoN.
3aunuate akkymyntop ot nonadahn BHytpb noctopoHHx qactn.
He donyckaIte nonadaHn BnaHn BHTpb aKymyIaTOPa. B npotNBHom cnyae o6paauTeCb C Hm KaK c NOBpeKdEHHbIM aKKMyIaTOpOM n H3OJIpyIe TaKoAkkymyIaTOp IyTeM erO pa3MeUeHn B noXkapocToiKOM KOHTHepe.

CM. NopAOK DeIcTBn B Cnyae NOBpeKDeHnA aKKMyJrTOPOB.

BcneDCTBnE BbIXoHa ra3OB Hnn KngKocTe npn HnnpaBnIbHO yTINH3aunn BO3MOxHa yrpo3a dna 3doPoBb. YtINH3npyu Te aKKyMynlTop uepe3 6nKaunn Hilti Store nno 6paTntecb B cneuaHn3npoBaHHyoΦnpy no yTINH3aunn. Co6NIOaJte MeCThble npeDncaHn no TpaHCnOpTnPOBke nobpejDeHHbx aKKymyIaTOPOB!
He BbIbpaBbAaTe aKKyMnTOpb BMeCTe C o6bHbIM MycopoM!
YTNIN3HpyTe aKKyMnIaTOpbTaK, YTO6bI NCKNHOHTb IN NOaHaHne B pyKn DeTee. 3aKpbBaIte aKKMyJIaTOpHbIE KOHTaKTbI He IPOBOaIcIM TOK MaTePnaIaOM, YTO6bI N36ExaTb KOpOTkX 3aMbKaHNI.

3.3 INdkaTop po6oOro cTany 3apHOrO npHcTpoH

Ka6eB JnBHeHn NOkOKeHn, NOro He0xIDHO 3AmHHTN.

Dotpmytec yHHnx y Baui KpaHi Bka3iBok 3 eJeKtpnuho6eNeKn.

1. BnMItb 3 po3eTkn WTeNceIbHy BnIky 3apJdHOro npncTpO.
   2.ДicTaHbTe rMoBaHy HIXKky 3 KpIuKn Ta BnKpyTITb KpiINbHN rBHT, RKn 3HaXoDntbcr NiD HeO.

Matepian

Bukpytka Tny TorT10

1. BiikpnTe KpnuKy.
2. Cφotorpaφynte a6o HamaHouTe, ἀκ προκλaDeHην Ka6ebb KxNBJeHHa.

3. OepeKHO HATNCHtB Ha oINH i3 3aTnCKaivB 3a DOnOMoRO BnKpyTKN 3 NIOCKHM uIiOm, uO6 BnBilbHHTu dpit. DiCTaHbTe dpit i3 3aTnCKaay. NobTopitb zuo onepauio dny Dpyroro npoty, nicna yoro Bid'edHaite noWKoJKeHn Kaebb BiD IHCTpymEHTa.

4. Ппсднайт Новий Кабел Киньгеля. 3a ДОПOMORО ВИКРУТК 3 ПLOСКИМ WЛICOM HAТСИТБ HA OДИH i3 3ATNCKAчВ I BCTAВTE B HbOrO DpIT. BiDnycITb 3ATNCKAч I nepekoHaTecR, lo DpIT 3aKpinIeHn HaJIeKHIM YHOM. ПOBTOPiTB zuо onepaizio dny Dpyroro DpoTy.

Materiel

Кабел кинова С 6-22

2289588 (EU, 220-240V)

2289589 (US, 110-120V)

2289910 (GB, 220-240V)

2300624 (GB, 100-120V)

2289911 (KR, 220-240V)

2289912 (RU, 220-240V)

2289914 (JP, 100-120V)

2289915 (AUS 220-240V)

2289916 (TW, 100-120V)

2300625 (CH, 220-240V)

Кабел кинова С 8-22

2289589 (US, 110-120V)

2289910 (GB, 220-240V)

2300624 (GB, 100-120V)

2289912 (EU, KR, RU, 220-240V)

2289913 (BR, 220-240V)

2289914 (JP, 100-120V)

2289915 (AUS 220-240V)

2289916 (TW, 100-120V)

2289917 (ARG, 220-240V)

2300625 (CH, 220-240V)

Bn6epitb i3 uei Ta6nui Ka6enb XnBneHHa, AKN niXoHntb Do IHCTpyMeHTa, a6o 3BepHITbcra do cepBicHO CIyK6n KOMnaHII Hilti.

1. Ppoknaidtb Ka6eIb JnBHeHH y Ka6eIenpoBOi TaKHM YHOM, Rk Bih 6yB npoknaedHn Do 3amHn. Y Kocti npNKnady ckOpncTaTec 3po6neHm paHIe fOto a6o pncyhkom.
2. 3akpnnte Kpnuky Ta 3akpyitb Kpinnbln rBHT Ha Miche.

3. 3HOBy BCTaBTe rMoBaHy HiKky y KpnIshKy.

4. YcTaBTe UTeNceIbHy BnKy B po3eTky Ta nepeBipTe, YI npaHoe 3apAHH npnCTpi HaneJHHM YIHOM.

CbitnoioIopntb:3apHn npncptpi npaep HaneKHM YHOM.
CbitnoioiD He roputb: 3apHn npucpi npaue HehaeHHM YHOM.

3BepHItbcn do cepBicHo cnyx6n kOmnaHii Hilti.

7 TpaHcnpTyBaHH Ta 36epiraHH

TpaHcnoptyBaHH

HaHIO 3akPINHOte IHCTpyMeHT nID yac TpaHCnOpTyBaHHa
- Picnra TpaHcnopTyBaHHI HCTpyMeHTa 3abKdn nepeBipRte yci Noro 3OBHIHi YactuHn Ha HaraBHicTb noWKoJKeHb, a opraHn KepyBaHH - Ha npedmet cnpaBHOi po6OtN.

36epiraHH

Ha yac 36epirahnIHcTpymeHTa3abKIN BnMaIte Ioro ITeNCEbHy BnIKy 3 po3etKn.
36epiraite hctpymEny cyxomy micu, HeoocynHomy dna iTeen Ta cToPOHHix oci6.
Kuio hctpymert 3haxoDBcH a 36epiraHH npotraom TpBaIoro yacy, 3aBKnnepeBipnTe yci Ioro 30bHIiHi YactHH Ha HABHicTb NookoJKeHb, a OpraHH KepyBaHH - Ha npedmet cnpabHOi po6OTn.

8 Donomora y pa3i BHHKHeHH HecnpaBHocTei

Y pa3i BnHnKHeHH HeCnpaBHOte, Aki He 3a3NaeHi y ciI Ta6Nci a6o Aki Bn He MoKeTe noJarOHTn camocTiHo, 3BepHITbCdo cepBicHO CIyK6 KOMnaHII Hlti.

Hecnpabhnicb Moxlnba npnunna Piushenra
Світлodiod He roрпь. Kaбел bЖИВLEHЯ He nprieДнани DoМерекiЖИВLEHЯ.	«Уставоштencьну Виши КабелюЖИВLEHЯВ розтук.
Hecnpabhnicb InctrpymeNTa.» BiD	«Едайte InctrpymeNT BiD МерекiЖИВLEHЯ, a notimПриеднaite НOrO 3NoBv.Яksio niciяцboro CBITLOdIOн He 3aropЯсьс, 3BepHITbcn Do cepBicHOI clyJbN kompanii Hilti.
Kaбел bЖИВLEHЯ ПОшКoДжeHЯ.	«Замініт b Kaбел bЖИВLEHЯ.→ storp. 301
Зapяdnii prinstpiñ He cncpabHni.	«ПerepaÎte InctrpymeNT Do cepBicHOI clyJbN kompanii Hilti Дэзісенну ремontу.

9 Ytunlaiai

BinbwcIb MaTepiab, 3 kKx BnroTOBHeIO IHCTpyMeHTN KOMNaHII Hlti, npHaTHi dJI BTOpinHOI nepepo6Kn. NpeyMoBOIO dIg IXhOoi BTOpHHOI nepepo6Kn E HaJeKHe copTyBaHNB BIXoDIB 3a TINOM MaTepiay. Y 6araTbox KpaIHax CBity KOMNaHII Hlti npHMaEc CTapi IHCTpyMeHTN dJI IXhOoi yTHJl3auii. Lio6 OTPMATN DoatKOBy IHOpMaqIO 3 cBOrO nHTAHH, 3BeptaITecr do cepBicHOI cnyK6N KOMNaHII Hlti a6o do CBOROToproBOro KOHCyNbTaHTa.

He BnKndaTe eNeKTpoHCTpyMeHTn, eNeKTPOHHI npHCTpoi Ta akymyJIaTOpHi 6aTaapei y 6akn dna no6yToBOrO cmTT!

10 Dieknapaia BiiNobiHocTi npabnam FedepaIbHOI Komicii 3 paio3B'3ky (FCC) Dieknapaia BiiNobiHocTi npabnam MinictepctBa npomncIOBOcTi KaHaHN (IC)

Ley npictpiBnpo6IeHn 3riDHO 3auchtnHOIO 15 JeKnapaui npo BiNobiiHicb BmOram FCC ta RSS-210 DeKnapaui npo BiNobiiHicb BmOram IC. Eknnyataia ngor npictpoMOke BiDyBaTHcra 3a TaKnx DBOX yMOB:

1. Pnictpii He e dzpejom HeraTbHnx eJeKtpomarHITHX nepeuKOa.
2. Pnnctpi noBHeH npOoBxByaTH npauOBaTH HabiTb 3a HaBBOCTe eNeKTPoMaHrHINx nepeuKO, y Tomy Yncni Taknx nepeuKO, kI MoKyTB cnpunHHIn HeHaJeXHy po60Ty npncTpOIO.

11 TapaHTiHi 306OB'3aHHBnpo6HnKa

3 nntaHb rapaHTi, 6yNb Iacka, 3BeptaTeCg Do hai6nKOro napTHepa KOMnaHii Hilti.

12 DoataKoBa iHphiMaui

C 6-22 (01)

RoHS (HpeKTHBa KHP npo 06MeXeHHBnKOpHCTaHH He6e3neuHNx peOBOH)

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr(VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Ltaabnue eHHHO dpaHky Kntaio.

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substanceexceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage ofreference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Lra TaBnua e YHHIO dIa PnHKy TaBaHIO.

C 8-22 (01)

RoHS (HpeKTHBa KHP npo 06MeXeHHBnKOpHCTaHH He6e3neuHNx peOBOH)

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr(VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics(PCBs)	X	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl.plug	X	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Ltaabnue eHHHO dpaHky Kntaio.

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱: Battery Charger 型號(型式): C 8-22 01 Equipment name: Type designation:
單元 Unit	限用物質及其化學符號 Restricted substances and its chemical symbols
	鉛 Lead (Pb)	汞 Mercury (Hg)	鎘 Cadmium (Cd)	六價鉻 Hexavalent Chromium (Cr (VI))	多溴聯苯 Polybrominated biphenyls (PBB)	多溴二苯醚 Polybrominated biphenyletherts (PBDE)
殼體 Housing	0	0	0	0	0	0
橡膠腳 Rubber foot	0	0	0	0	0	0
電子產品(PCB) Electronics (PCBs)	-	0	0	0	0	0
螺釘 Screws	0	0	0	0	0	0
電力連接線 Wiring	0	0	0	0	0	0
電池接口 Battery interface	0	0	0	0	0	0
電源接口包括插頭 Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"係指限用物質之百分比含量超出百分比含量基準值。 Note 1: "Exceeding 0.1wt.% and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition. 備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。 Note 2: "o" - indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence. 備考3. "-"係指該項限用物質為排除項目。 Note 3: The "-" indicates that the restricted substance corresponds to the exemption.

Lra Ta6nuae eHHHO DJIa PNHKy TaBaNIO.

13 Jiriñ-iohHi akymyIaTOpHi 6aTapei Hilti

Yka3iBKn 0oO texhikn 6e3nekn Ta HanexHoE kcnnyatauji

Y cIbOMy dOKymEnTI TepMIn *akymnTOpHa 6aTapee" BHKOpNCTOByeTbcra IINo3HaeHHN IITi-iOHHX akymnTOpHnx 6bapee Hilti, kki e npndaTHmN Do NOBtOPHO 3apRJaHHa Ta CknaAdaOTbc3 DeKilbKOX liti-IOHHx enEmeHtIB. Li akymnTOpHi 6bapei np3HaueHi dJIeEKeTPOHcTPyMeHtIB Hilti ta MoxyTB BHKOpNCTOByBaTnC 1INbKn 3 HmN. 3AcTOcoByte nIwe opurihalbhi akymnTOpHi 6bapei Hilti!

Onnc

AkymynTophi 6atapei Hilti ochauyotbcnCTeMaMn KOHTpOIO, KepyBaHHra Ta 3axncty enemntib.

AkymynTopHi 6atapei cKaIaIauTbcra 3 eIemEnHIB, aKi MCTaB Nii-iOHHI MaTePiaH, IIO HAKOnuYHTb EneKtpnHn 3apRd, 3aBe3neUyOuN BnCOky rCyTHHy eHeprII. Nii-iOHHM aKyMyIaTOpHm 6batapeM npITamaHHn IInue He3HaHn eFekt NaM'Ati, npote BOH n dYxke yTJIINBMn Do 3OBHIuHix HaBaHTaXeHb, Tn6OKoro po3pIaXaHHa 6o BnCOKnx TemnepaTpyp.

I3 nepeiikom IHctpymeHTIB, npn3haueHIN dJI BnKOpNCtAHH 3 aKyMylTopHm6aTapeHMI Hilti, Bu MoKeTe O3HaOMITnCRA y Ha6bNkUcMy MaarAHI Hilti Store a6o HA Be6-caTI www.hilti.group.

Bezieka

IOTpHMyTEcH HabeHeHX Hxue Bka3iBOK 3 Texhki 6e3neK, 0o6 rapaHTyBaTH 6e3neUhe TpaHC-nOpTyBaHH Ta BHKOpNCtAHN IITi-IOHHHX akymyTAOPHX 6atape. HeBHKoHaHH cIXx Bka3iBOK MOKe npn3BeCTn Do NOpa3HeHH HxipN, cepNo3Hx TpaBM BHaCNIkOK KOHTaK TY 3 Kopo3iHMM peO-BHAMn, a TAKoK Do XIMiHnx OnikB, NokeKi Ta/a6o Bb6yxy.
ObepexHo nooBbTeC3 aKymIaTOpHm6aTapeMn, 06 yHKHytn ixHbOro NOUKoJKeHHa6o BHTOKy piHN, kE dyke He6e3neuHmN dIra 3dopoB'!
3a60pOHaETbCBAHcNt 3mHn DO KOHCTpykui aKymyIaTOPHnx 6aTapea a6o MoiNphiKyBaTu iX!

HILTI

Akymyntophi 6atapei 3a6opoHcTbCp03bnp, po3bApTN, pO3daBIOBaTN, HarpibATn Do TemnepaTyPi NoHaD 80^ a6o cnaIOBaTN.
He BnKOpNCTOByIte Ta He 3apJdxJaTe aKymJITopHi 6aTapei, kI 3a3HaJIb BnJIbBy ydApHOro HabaHTa-KeHHa6 6yIn NoWKoJKeHi iHsIM qHOM. PeryIrpHO nepeBipRNe aKymJITopHi 6aTapei Ha HABHicTh bNoWKoJKeHb.
Hikon He BnKOpNCTOByIe aKymJrTOpHi 6aTapei i3 BToHHnx MATEpiaIIB a6o BiDpeMOHToBaHi aKymJrTOpHi 6aTapei.
He 3actocobyte akymyIaTOpy 6atapeo afo akymyIaTOpHn eJeKtpoiHCTpyMeHT y kOcti yapHOI HCTpyMeHTa.
Hikon He niDaaBte akymyTOpHi 6aTapei BnNBy npMnx COHnHx npOMEHB, BUCOKHX TemnepaTp, ickop a6o BiKpntoro BorHIO. HeBnKoHaHH zuie BmOrn MoKe np3BecTu Do Bb6yxy.
He TopkaTeCn nonHocB enemeTIB XINBLeHH naIbIaMn,po6OuHMn IHCTpyMeHTaMn,pNHKpaCaMn,a TAKoX iHsIMn npEdMaTAM 3i cTpymOnpOBIdHnx MaTePiaJIb. HeBnKOHaHH ciEi BmOrn MoKe npNBecTu Do noShKoDxHHeAkyMnyIaTOPHOI 6aTapei, MaTePiaJIbHx 36NTkIB I TpaBM.
3axuane akymyaTOpHi 6atapei BiD BnNBy Douy, BOJOrn Ta piin. RaIoo BCEpeHy akymyaTOpHOI 6atapei notpanntb Bonora, ce MoKe CnpHHTn KopoTke 3amKahHa, ypaKeHHeJeKTPnHm CTpyMOM, onIKn, noKexy abo Bnbyx.
BnKOpNCTOByIte akyMylAToPHy 6aTaapeIO tINbKn 3 TMM eJeKtPoIHCTpyMeHTaM Ta 3apAHHMn npNCtpoAMN, dIra Knx BOHa pns3NayeHa. Ppi cIbOMy TaKoK dOtpmMyTEcRa3iBOk, HabeDeHnx B IHCTpyKciAx 3 ekCnnyatauii BiINObIDHnx Bnpoib.
He BnKOpncToBnyTe Ta He 36epiraTe akymyIaTOpHi 6aTapei y Bn6yXoHc6e3neuHOMy cepedOBnui.
RaKuo aKyMnyrTopHa 6atapeH rapaHa ha doTnK, BOHa MoKe 6yTu NooKoJKeHa. 3aNtTe aKyMnyrTopHy 6atapeU y 3axuheHomy BiD BOrHIO Micui Ha DoCTaTHI BiDCTaHI BiD rOPOuX MATEpianIB, De 3a Heo MOxHa cNoctepiratn. 3aueKaIte, DOKN aKyMnyrTopHa 6atape H oe OxoIone. RaKuo YpeE3 roDInHy aKyMnyrTopHa 6atapeBce Ue 3aJIuHaecTBraPauO Ho DoTnK, ue CbiDHTb Ipo II HecnPabHicTh. DotpmyTeCn Bka3iBok, HabeDeHNx y po3dini «3axOn6e3neKn y pao3aImaHHa aKyMnyrTopHoI 6atapei|.

Dii y paizi nouKoJKeHHaKymIaTOpHoI 6aTapei

Y pa3i noWKoJKeHHaKMyJIaTOpHO batapei 3BepHITbCn do cepBicHO cnyK6n KOMNaHII Hlti.
He BnKOpNCToBvIe akymyIaTOpHy 6aTapeIO, kAIO 3 He I BnCTynaC piDHa.
- RaKuo 3 akymyIaTOPHOI 6aTapei BnCTynae piHa, He donyckaIte II 6e3nocepeHbOro KOHTaKy 3 ouHMa Ta/a6o shkpio. PiJ uac BnDaJIeHH pIINH, Rka BntekJa 3 akymyIaTOPHOI 6aTapei, 3aBKnBn BHKOpNCTOByTe 3axNCHI OKyIaRpn Ta 3axNCHI pyKaBnCi.
Lio6 BuaaHn piHny, kA BnteKla 3 akyMylrTopHOi 6atapei, ckOpNCTaTEcH cneiaIbHM 3acobom Ira npuBpaHH xIMiHnx peOBoHH. DToPmYIteC HmicEbx npabH, 1o perIamEnyOTb nopAdoK npuBpaHH pIDHH, kA BnteKla 3 akyMylrTopHOi 6atapei.
- POKlaIb noWKoJKeHy aKMyJrTOpy 6aTaapeIO y KOHTeHep 3 He3aMHcTOrO MaTepiAly Ta 3acnIte II cyXHM nickOM, KpeiHaHm npopoWKOM (CaCO3) a6o cnlkaTOM (BepMKNyITOM). Nicna Iboro rePMeTHUHO 3aKpNHe KOHTeHep KpNIkoIO Ta TpMaIte NoDanI BiD 3aMHcTnx Ra3IB, pIDNH Ta npEmdTeIB.
LIO6 yTHNI3yBaTH KOHTeHep, nepeaIte Horo Do NaHbNkQrO Ma3nHy Hilti Store a6o 3BepHITbcndo npedCTaBHnka BiIDNoBIdHOi KOMNaHII 3 yTHni3aui BIXoDIB. DToPmMyTeCn MicueBn npabHn, nki perlameHTyOTb nopAOK nepeBe3eHHn NowKOdKeHNx akymyTAOPHnx 6aTape!

Ii y paizi BHXOdy akymyraTopHO 6atapei 3 naNy

3BepTaIte yBary Ha HeHOpMaIbHy po60Ty akymyIaTOpHOi 6aTapei, HapnKnaI Ha BnIaKn HenOBHoro 3apJxHaHH a6o 3aHaITo DOBnY qac 3apJxHaHH, 3HaUHe 3HIXKeHH NOTyXHocTi, He3BnauHy po60Ty cBtIOIOHNHX IHINKaTOpIB a6o pIDHy, 1O BNXOHTb 3 akymyIaTOpHOi 6aTapei. Lc e O3HaKn BHyTpIihBoi HeCnpabHocti.
Ku Bo nio3pOe TBHyTpHIO HecnpaBHCb akymyAToPHO6aTapei, 3BepHiTbcn do cepBicHO cnyK6n KOMNaH Hilt.
Akyuynrtopha 6atapere He yHKioHy, He 3apRJaetcbra 0 He Bnctynae piHna, Heo6xihOytinisybatn. IodatkOBa IHopMaui HaBeedeHa y po3ini «Texhiue O6cnyroByaHH Ta ytniiaqir

3axoyn 6e3nekn y pa3i 3aImaHHn akymyIaTropHoI 6aTapei

PONEPEKXEHNA

He6e3neka 3aImaHnAkyMnyIaTOPHOI 6atapei! Ako aKymyIaTOPHa 6atapea 3aropinac, 3 Hei do HABKOJIuHbOre cepedOBuHa nOTpanJIaHT bKiIDJIbI Ta BNoxyoHe63neHi pIDHn Ta Bnnap. Ce MoKe npIN3BeCTn Do cepio3Hnx onIKIB i TpaBM, o6ymOBHeHX KOHTAKTOM i3 Kopo3iHmN peOBOHAMn, a6o Do BNoxy.

PiHac raciHHaKymyIaTOPHX 6aTapeBnIKOpNCTOBYte 3ac0b iHNiBlyabHbHO 3axHcy.
3a6e3neue HaneKHy BeHTnlaIIO npMiuEHH, 0o6 BuaNTn 3 HbOTo WkIdNBI Ta Bn6yXHe63neuHi Bnnapn.

Y pa3i iHTeHCBHORO yTBOpEHnA dMy HeaHo 3aIuTe npMiuEHH.
Ypa3i noDpa3HeHHaXaJIbHIX XJIaIXIB 3BepHiTbcra Do Iikapra.
3BepHItbcn do noKekHoI cnyKb, nepu Hix HaMaratnc 3aracntn noKexy.
Длг racinну akymуларони 6aatae вькориctobуte tinbky BODy Ta 3haxodbteca npu cby My Ha kOMor a 6iIbii BiDCTahi BiD BORHIO. 3actocvbaHHЯ Дя zuoro npoowkoBx BorHeracnKIB Ta npOTINOJKeHHnx nOKpnbal e HeepeKTHBHM. BorOH, lo pO3noBcOINBCra Ha iHwi npedmetn Ta mATEpiAIn, MOxHa rACHTN 3a DOnomorHO 3BnuayHnx 3ac06iB.
He hamaraTeCn nepecyBatn BeiNky KInbKiCTb akymyIaTOpHx 6batae, 10 roptb. Pnp6epitb noaB iD dKepeHa 3aMaHHe He nouKoJKeHi BOrHem npedMeTu MaTepiAn, 106 izonIOBaTH nouKoJKeHi akymyIaTOpHi 6bataeI.

Kkto TemnepaTypa akymyIaTOpHoi 6aTapei He naaε, Kkto 3 akymyIaTOpHoi 6aTapei BHXoNtB a6o Kaio akymyIaTOpHa 6aTaper 3aropinac:

3a donomoroio nonatn nomictb akymyIaTOpHy 6atapeo y BiDpo 3 BDOIO. OxonoJkyOuH BnINB BOIN DOnOMOKe CNOBIbHNr PO3NOBcIOJKeHHB BOrHHO Ha akymyIaTOpHi elemEHn, kI ue He Harpinncd oKpHTNuHOI Temnepatypn 3aMaHH.
3aIHTe akymyntopHy 6aTapeu y Biipi npHaumHi Ha 24 roDHH, DOKn BOHa He oxOIOHe NOBHCIO.
- OdaTkoBa iHopMaui HaBeHeHa y po3ini «Dii y pa3i nowKOxehnAkyMnyTopHO6aTaapei».

Yka3iBkn 1oDo TpaHcnopTyBaHHa Ta 36epiraHHA

-17 ^ C do +60^ / BiD 1 ^ do 140^
-Пд ус 3берiraнг Temпатура Habkoиньо сеpeobица NOBHHa 3haxoHTnca y diana30Hi BiD -20°Cdo +40°C / BiD -4°F do 104°F.
He 36epiraIte akymyIaTOpHi 6batapei Ha 3apHdHomy npunctpoI. Iicnla 3akHcHHeNHa npoccy 3apJxHaHH 3abKdn BiD'EDHyTe akymyIaTOpHy 6batapeIO BID 3apHdHOro npunctpoIO.
36epiraTe akymyIaTOPHi 6aTapei y kOMora 6bH npoxoHOmy Ta cyxomy Micui. 36epiraHHy y npoxoHOmy Micui noobKye cTPOK cnK6n akymyIaTOPHO 6aTapei. 3a6opohcTBca 36epirAtn akymyIaTOPHi 6aTapei Ha coHci, Ha onaIOBaJIbHnx npnaJax a6o Ha niDbikoHHi.
3a6opohaeTbcepecnatnakmyanTophi 6atapei noToIO. JnnepecnnaHHeNooKoJKeHX akMyIaTOPHIX 6atapee 3BepHItbcdo Kyp'epcbkoCnyx6n.
3a6opohetbcnnepeBOHTNakmyIATOPHIbatapei y He3anaKOBAHOMyBnHdi.Iid qac nepeBe3eHHa kymyIATOPHI batapei nobHHi 3axuichi BID cnblnx NowTOBXIB Ta Biopaui, a TAKOX iOJbOBAHi Bid 6yd-b-AXX CTpyMONpOBDHX MaTePianIB Ta BID IHxkAkyMnTOpHnx 6batape. Lc Do3BOITb yHKHyTN KOPOTKORO 3AMKAHHRAKe MoKe cTaTNCaYepe3 KOHTAKT NIOUCiPiHx akMyIATOPHX 6batape.

IotpHmYtecMicueBx npabn, kiperrnaMeHTyOTb nopAOK nepeBe3eHHa akymyIATOPHX 6atapei.

Texhiue 06cnyrobyBaHH Ta ytni3aui

CniikkyIte 3a Tm, uo6 akymyIaTOPHa 6bapee 6yna uHCTOIO, Ta He donyckaiTe II 3abpydHeHHa MactINOM. Ynkaite KOHTAKTy aKymyIaTOPHOi 6bapei 3 NInom a60 bpydom. BndanrTe 3abpydHeHHa 3 aKymyIaTOPHOi 6bapei cyxOIO M'AKOIO UITKOIO a60 uHCTOIO cyxOIO TkAHHOIO.
He npaioIte 3 BiDnOBiHm akymyTOpHm iHCTpyMeHTOM, kUIO Ioro BeHTnAuiHi npopis3n 3a6noKoBahi. ObepeKHO npouuauTe BEHTnAuiHi npopisiM'RAKO cyxO uitko.
Cniikkyte 3a Tm, uo6 ycepeiny He notpannnc tOPOHHi npedMeTn.
He donyckaite notpannaHHBONOR Bcepeiny akymyntopho6atapei. Raio BOIora notpannna BCEpeinyakymyntopHO6atapei, 3 HeIO cnID NOBOINTNcRAIK 13 nowKOJKeHOa kymyntopHO6bataeEO Ta izHOBATny KOHTEHepi 3 He3aMnCToro MATEpiany.

IodatkoBaHOpMauiHaBeHea y po3ini «ii y pazi nowKOxehnAkyMnyTopho6aTaapei

Y pa3i HeHaleJHOI yTHNI3aII akMynATOPHOI 6aTapei 3 HeI MoKytB BHXODHTN He6e3neuHi dIra3n a6o pIDHH. LIO6 yTHNI3yBaTN akMynATOPHy 6aTapeIO, nepeaIte II do Hau6nKQOrO MaRa3nHy Hilti Store a60 3BepHITbCRdo npedCTaBNHa BIDNOBIDHOI KOMNaHI 3 yTHNI3aII BIXOXIB. DOpHMy- Tecra MicueBx npabHJI, Aki pernaentyOTb nopAOK nepeBe3EHn NOIKoJKeHNx akMynATOPHnx 6aTapeI!
He KndaTe aKymyIaTOpHi 6atapei y 6aKn IIN NObYTOBOro CMITTR.
Ytni3yIte akymnyTOpH6bataei taKIM uHHOM, 0o6 BOHN He nOtpaunHn Do pyk diTe. 3akpnTe KOHTaKTHn akymnyTOpHx 6batae eNEKTPOHeNpOBIHN MaTePiaJOM, 0o6 3ano6iTr NKOPOTKOMy 3AMKaHHIO.

Tynhyska naiaanany 6oHbIHwa HycKayIbIK

1 PnIaHaHy 6oBbHwa HycKayIbIK TypaIbI mAniMeTTeP

1.1 Ocbi naIdaIaHy 6oIbIHwa HycKayIbIK Typalbi

EAC

HmnpTaybiXeHe eHdpywiHin ekinetti YbIMbl

(RU) Pecen Φeepaunrcbl

"XInTNI NInctpn6bIoH JNTd" AK, 141402, Mockey o6JIbIcbl, XmKn K., JeHHrpaIckaK-ci, 25-6et, 15.26-Kypblmbbl

(BY) Bénapycb PecnybniKacbl

"XInn Bnya" KLC, 222750, MnHcK o6nbCbI, I3epxH aydaHbI, P-1, 18 KM, 2 (Cno6oJa aybIbIHbH KaHbHa), 1-34 KypblbMbI

(KZ) Ka3aKcTah PeCy6nKacbl

"XnTn Ka3aKCTaH" KLIc, 050057, AImatbI K., BoCTaHdbI k aydaHbI, Tmnpra3eB K-ci, 42/15 yi, IInTeP 012 (15 Kopnyc)

(KG) Kbipfb3 Pecny6nkacbi

T AND T' XLIK, 720021, Kbipfb3ctah, Biiueke K., N6paHMOB Keu., 29 A yni

• (AM) Apmehra Pecnybukacbi

"3H- KOH" KLIJK, 0070, EpeBaH K., EpMaHaJa Koayap K-ci, 19/28

HdpinreH eni: Ka6bKtaFb6enrirey TaKaTaaCbH KapaHb3.

THdpinreH KyHi: Ka6bIKTaBb6enriny TaKaTaNacbIH KapaHbI3.

Tnicti ceptnФнкattbMbHa MekeHka 6oBbIHwa Ta6yfa 6oJa: www.hilti.ru

CaTay, TacbMaJday JHe naDanaHy 7apTTapbHa naDanaHy 6oBbHsa HyCKaybKta 6enrIeHReHHe Baca apHaBt TaanTap KoBIMaMdbI.

ΘhimHKnB3MeT ety Mep3imi 5 Kbln.

Eckepty! Ohimdi naaandaanb6ac 6ypbH eHIMMeh 6ipre 6epinren naaandahy 6oBbHwa HcKayblkbl, coBbH iwiHde Hcaynap, Kayinci3ik JxHe eckepTy Hcaynapbl, cpeTtep MeH CneuФkaunapbl MinDeTTI type ObIn 6bfbHb3 JxHe TyciHn AblHb3. BapbIK Hcaynap, Kayinci3ik JxHe eckepTy Hcaynapbl, CpeTtep, CneuФkaunap, CoDaN-aK KypamdaC 6eJIweKtep JxHe FyHKUHApMeH TaHbICbINbIFbIH3. ByHcayopbIHdAnMaHaKaFaDaIda,TOK COFy, ept JxHe/Hemeceaybp JapaKaT any Kayni TybHdaDb. NaaandaHy 6oBbHwa HcaylnbKtbl, CoBbH iwiHde 6apblk Hcaynapbl, Kayinci3ik JxHe eckepTy Hcaynapbln KeiH naaandaHy wih CaKtan KoBbHb3.
HIMdepi Kcicn naDanaHybnapFa apHaFanJxHe OnapBb TEK KaHa eKeiTeTI, 6iikTi Kbl3MeTKePlep NaDanaHyb, KyTIm XHe TexHnKaIbIK KbI3MeT KepeTy i Tnic. KbI3MeTKePlep Kayinc3dik TexHnKacb 6oBbIHwa apNaBHyckay aNyBepek. EHM MeH OHbH Kocalkb KypaIapbH 6acka MaKcaTTa KOJaHy Hemece OnapBbOH OkItbIMFaH KbI3MeTKePlepH TapabHaH naDanaHbNybl Kayinti.
Bepinre naiandaany boBHwa HcyKaynbik bacbin uibfapbnfAH Me3eTTe TexHnKaHbH aFBIMdaFbI KaDaBHa caikec Kelei. AfbIMdaFbI Hcyka epaibm Hilti eHimdepiHH Be6-caTbHa KOJXetIMdi. On yuiin ocbi naiandaany boBHwa HcyKaynbikTaFbI den benrinehreh cintemere etiH3 hemece QR KoDbHcKaHepeJI3.
- ΘΗΜΙ δας τυναλαρατεκ Κόβι παιδαληγ Μουήλινης ὄχκaynbikπει έρ्र εφερίπιδ.

1.2 WapTTb6enrinepein aHbIKTaMaCbI

1.2.1 Eckepty

EckepTyneHIMdi KOndaHy 6apbcbHdaFb KayinTepe TpaIbe eceptei. TeMeHderi cHnblk ce3dep naDanaHbIaNbl:

KAYINTI

KAYINTI！

Aybp KapakapTAPFA eKeIeIH Hemece empre Kayin TeHdpetih Tikeen Kayinti KaFaadbH Jaannb6elrileHyi.

ECKEPTY

ECKEPTY！

Aybp Kapakapapfa ekenyi Hemece empre Kayin Tepdipyi Mymkih biktman Kayinti KaFdaibH kannb6enrilehyi.

ABAHJIAHbI3

A6AJIaHbI3！

KapaKaT anyFa Hemece MyiKiTH 3aKbIMdanybHa eKenyi MymKiH bIKTmAl Kayinti KaFdaNdbH KaJIbI 6enrIneHy.i

1.2.2 NaiDanaHy 6oBbHwa HcKaynbKaTafbl 6enrinep

By naaanahy 6oBbHua HcaybIkTa TEmeHderi Bnirine naDanaHbna:

Painanany 6oBihwa Hcykayblktb yctahy

AcnantbI naDanaHy 6oBihua Hcyckaynap KHe 6acka naDabl aKnapat

KaIra naIanaHya 60NaTbIH MaTePhaIapMeH JyMbIC icTeY

3neKtp acnanTapbl JHe aeKKyMnyTopnapbl TyPbictbIK KOkbicKa TactaMaHbI

Hilti Li-Ion aKyyMnyTOpbl

Hilti 3apraTaFblI KpybInFbIcBi

1.2.3 Cypertepderi 6enrinep

CypeTepTe TEmHeeri 6enrinep KonDaHbnaIaIbI:

Byn caHap ocbi naIandaIahy 6oBbIHwa HcyckaybIKtbH 6acbIHdaFbl Tnicti cpeTke caiKec keJIeI.

3

Hemipney cypeTeri Kymbic Kaamapbihh peTinirih 6inipeidi XeHe mtiHeri Kymbc KaamapbHaH e3reWeneHy MyMKIn.

11

POnHnHemipnepi LOny cypTeIHne KOnDaHbIaIbI XeHe ΘHimre LOny MaKaIaNHaFbI aapTbI 6enrinepHn Hemipnepine cintei.

AaIbIe 6enrinepeHIMdi KOndAny 6apbcihda aPbIKwa Ha3apbIHb3bl aydpTaBbl.

1.3 Θhimre KaTbictb6enrinep

1.3.1 ΘHmDi eri 6enrinep

ThimTeMeHderiBenrinep naDanaHbiny MyMkiH:

ΘHim iOS XəHe Android natafopMaIapbIMeH yInecimDi NFC texHONrncbH KOnlaaBbl.

Koc okwayny

Tek 6emeneepin iwiHne kondaHyfa apHaHanfah

TypaKtbi TOK

AinbImaJIb TOK

EHIM 6ap 6oJFaH JkaFdaIa, eHIM AKUINeH KaHaIaNbIK HApblKTap yuH OcbI cepTnΦNkattay opraHdApbIHDA KOnDaHbICTaftcTaHdpTTapFa CeykeC cepTnΦNkattanaIbI.

EHIM 6ap 6oIraH JkaFdaJa, eHIM AKU nn KaHaIaNbIK HApbIKTap yuiH ocbl cepTnΦnKaTTay opraHdApbIHDa KOnDaHbICTaftcTaHdAPTTapFa caikec cepTnΦnKaTTanaDb.

2.1 Kayinci3ik 6oBihwa Jannb HycKaynap

ECKEPTY Byn 3neKtp KypanbHa apHAnFaH 6apIbIK Kayinci3ik HcckaynapBn, HcckaynapDbI, CpeTepiXHe TexHNKaIbKdpeKTePioKbIN WbIfbHb3. TeMeHne6epinReHHcckaynapDbIOpBbHaMAY 3neKtp TOrbIHbH COfYbHa, optKe eKeJy I MymKIn HcHe/HemeCe aybp JapaKaTTapDbI TydbpyI MymKiH. Kayinci3ik 6oBbHwa 6apIbIK HcckaynapDbI XHe XaNNbl HcckaynapDbI Keneci naDanaHybI ywiH caKaTaHbI3.

AtaImbiEhimDi DeHe, cesIM HeMece akbl-oi Ka6JIeTepi WeKTeyIi Hemece ToxKipn6eci MeH 6inimi KETKIikci3 aamdapfa (cohhi ihiDe 6ananasfra) naDaHaFy Taibim calbHaB.
- Ebalanapra eHimMeH oHayFa pyKcat 6epMeH3.
3apraTafbiu KpybIIFbHb OHbIH iWHe caBihfah aKKyMylatop JKepe TycneTihde eTIN MoTaKaDaHbI.

2.2 3apraTafbiu Kypbnfblnapfa KytimmeH Kapay He onapdbI npbc naaanaHy

Kapakattapbih andbih any ywiH 3apraTaBliu KypblfBIme Hek pykcat etiren Hilti Li-lon aKKyMyIITOpIaBHH 3apraTahbi3.
3apraTafbi KypbIbfy yuih Ta3a, cankih, Kypfak epi Kbpaycb3 opbHbTaHaHaBb3.
Akkymytnopdb3apdty KeiHne 3apntaftbI KpybIbIaH JbIyIbKeTipy yHIn JeNdeTy caHbIaynap6oc 60nybKepeK. Ta3a aya afbHbIKOK Kepe 3apTaMaHbI3.
- ΘHIMRE MyKnHT Kytim KepcTeiH. BəniKTepdiH, eHIM apbl kapa JxMbic icTeMeiTiHed etin cbH6aHaBHa Hemece 3aKbIMdaImaHaBHa Ke3 KeTki3iH3. BəiKtep 3aKbIMdaIraH Hemece cbIHFaH JaFdaJa, eHIMApbl kapa NaDanaH6ac 6ypbH KeHDetiH3.
AcnantbKHe cKeKc aKKMyIaTOpIapbl Ocb HcyKaynapfa ca KHe Ocb apHaBb acnan typi yuH Ka3bIaHaDai KOnlaHaHbHb3. 3apraTaftbIu Kypblfbnapbl 6acka MaKaTTapMeH KondaHy Kayinti Ka4dainapFa eKeJy MyMKIH.
AkkymyntopdbI Tek eHdipywi YcbIHFaH 3apraTaBli KypblfbnapbH Kemerime H 3apraTbIi. 3apraTbIi KypblfbiHbI Tnicti EMEc aKKymyntop Tpypepih 3apraTay yuH KOndaHFAHaOp TbyHdaByMymkiH.
PaindaHbImMaTbH aKKMyIaTOPnapDb KoHTaKTinepH TybIKaIyBHBnCe6e6i 6onyb MyMKIH cKpenkapanpaH, TbHapdH, KITTEpeH, HHepeH, bpaHdaIapHa JHe 6aKa MeTAn 3aTTapHa apbYcTaHbI. AKKMyIaTOP MeH 3apraTafbl W KOHTaKTinepi apacbHdaFb Kbicka TybIKaIy KyikTepre Hemece TyTaHyFa eKenyi MyMKIH.
- AkMyIaTOpBb 3apRtaFbIi KypblfBbHbH iwiHde caKaTaMaHbI3. AkMyIaTOpBb 3apRtaFaHHaH KeiH epaBIM 3apRtaFbIi KypblfBdaH WbIFapbHbI3.

2.3 AkkymyIaTOPMeH IpybIC Kymbic icTey XaHe OHbl dypbc naIanaHy

• IHTH-NHOHBK, aKKyMylrTOPnapdb naDanaHy KHe KyTy 6oBbHwa TEmeHderi Kayinc3ik WapapanpBH OPbIHDaHbI3. HyckaynapdbOpbIHdAmay Tepi TitipKeHyIe, aybpTOT 6aCKbIu KaapaKaTTapFa, XmNIAblk KyIKTepre, epeHyTe KHe/Hemece KaapbIbicka anapbn COFybl MyMKiH.
  AkkymyIaTOpnapbI TeK TexHkaIbIK MInci3 KyiHde KOndaHbIbI3.
  3aKbIMdanydb60ndbpMay XHe DeHcaybIKKa KaTbI 3nH KeTIpe aIaTbIH CybIKTBkTapDbIH WbIFybiHa K0J 6epMey yuH akKymyIaTOPnapdbI a6aIIan KOndaHbHbI3!
  AkkymyIopJapdbI e6bip KafdaJaMoNfKaunayFa Hemece KypblmbHa 3repic enri3yre 60maDbI!
  Akkymytnopnapb6bnweKteyre, KbcIcyfa, 80°C (176°F) wamacbHaH Jxofapbl TeMnepaTpaFa deHH Kbl3dbpyfKaHe XaFyTa TbiBIM caBHaDbI.
  Cokkbl Tureh Hemece 6acka7a 3akbmdanfah aKKymyITopnapdb naDanaHb3 Hemece 3apraTamaHb3. AKKymyIaTOpnapda 3akbmdany 6enrinepiH 6ap-koBH Jkyeni Typde Tekcepin TypbHb3.
  EwKaFaDnDa KaTaNHeDenReH HEmeCKeHEnJreH aKKymyIaTOpnapbNaaJaHa6aHb3.
  Eukaan akkymyTopbHemece akkymyTopbIK 3neKtp KpaBn COkna KypaP peHne naJaHaH6aHbI3.
  Akkymytnopnapa eukawah TiKeNe Kyn Cayneci, KOFapb TeMnepaTypa, uKbH Hemece aUbIK KaBHe cepin Turi36eH3. ByJ Kapblbcka anapbn corby MymkH.
  Batape noHocHe caycaKeH, KpaanIapMeH, aWekeMeH HeMece 6aCaJa da 3JeKtp TorbH eTKi3eIH 6eIe 3aTAPMeH TmEHI3. Byn aKKyMyJrTOpRa 3aKbIM KeNTipy, coHaa-ak MyNIkke 3ana I KeNTipy JxHe Jkapat anyra eKeeny MyMKIn.

AkkymyIaTOpIaBbJHaHbIp, bInFaI MeH cyNbIKTbIKTapda aIwaK YCTaHbI3. Ehin KeTKeH bINFaI KbICKa TybIKTany, TOK cOry, Kynin KaNy, ePteHy XaHe JApblbc KayiH TydbpyMiYMkIH.
TeK ocb aKKymnTOp tyi yuih Ke3dienre 3apraTfblu KypblfnbInap MeH 3neKtp KpaIapbH naaIa- nahbIbI3. Byn pette Tniicti naIanahy 6oBihwa HcKaynbIKTapdaFbMJIIMeTTepre Ha3ap aydpbHbI3.
AkkymyIaTOpdbI JapbIbIuopTaIaPda naIdaIaNbHbI3 Hemece caKtAmHaB13.
Erep Turen Ke3e aKkymyIaTOp TBIM bCTbIK 60nc, on akaybl 60nybl MyMKIN. AkkymyIaTOpdb tyTaHbI MaTePnaIapdAn JeTKJIiKTI KaBbIKTBtKa opHaIackaH, KAKcbl KePiHrH TyTaHbAITbH JKepe KoBbIb3. AkkymyIaTOpdb cybItbH3. AkkymyIaTOp 6ip cafTah KeIH eNI de KOJFa bCTbIK 60bIn Typca, 6yI OHbI aKaybl eKeHdirH 6inipei. Hilti Kb3MeT KepeCy opTaBIFbHa KOnbIFbHb3 HeMece «Kayinci3ik KHe Hilti Li-Ion aKKymyIaTOpbH naDanaHy 6oBbIHwa Hyckaynap» aTbI KyKaTTb OkBIn 8bIFbHb3.

IHTH-NHOHBK,AKKMyNtOpnapbTaTacMbAnay，CaKtayKHe naDanaHy yuH KOnDaHbInaTBn apHaBblnpeKTINBaIapDbI eckepiHi3.

Atanmbi naindaanhy boinbHwa HcaynbIKtbH cohbnHdafb QR kOdbH cKahepey apkblb Ta6yfa 60aTbH Hitti Li-Ion aKKymyIaTOPnapbHa apHaIraH kayinc3ik XeHe naDanaHy 6oBihwa HycKaynapbl OKbl WblfblH3.

3 Chnattama

3.1 Θhimre wony

① AkkymyIaTOp
② AKKyMnyTopdbH Ky INHnKaTOpbl
③ AkkymyTopdb6ocaty Tymecci
3apraTafbiW KypbIJIbI XyMbIC KyiHINHNKATOpbl
⑤ Ka6bipFaFMOHTaXday caHbInaynapbl
⑥ Aya wblapy caHbInaybl
⑦ Aya Kipici
⑧ AKKMyIATopFa apHaIFaH yAUBIK

3.2 MaKcatbHa caN KOJdaHy

Cnatafah 21,6 B wamacbHdaftb HOMHaIbI kepHeyre He Hilti Li-Ion aKKymyTOpIapbHa apHaIFaH nopTaHTBti 3apaTbFbW KpybInfb60bn Ta6bIaNb. OJ YTTbK, WbIFapblbIM HcckacbiHa kapa 100 - 127 B Hemece 220 - 240 B aHaImaIbI kepHeymeh po3eKaIapFa KaNfayFa apHaIFaH.

3apraTafbiu KypbInfbHb Jannak 6eTepre KOHofa Hemece Ka6bipfara MOHTaKdayfa 6oJabl.

• AtaImbIw eHIM yuiH pyKcat etinreH Hilti Li-Ion aKKyMnyTOpnapbH 6epinre TizimHeN KapaHbI3.
• Benrini 6ip HapbikTapda Ke6ip akkymyntopnap KonKeTimdi emec.

ΘHIM TypaIbI MOniMeTTeP

Зарадаftыш Крълъг C 6-22 | C 8-22
Бухи 01
Сереньки Немір	1 - 999999999999

3.3 3apraTaBbI Kypblfbl KyMbIC KyHHHnHaKATopbl

Куралын 6өлөөтөрì	СнпаTTмасьì
Жарык дinoны жасын түсpenж санады.	ЗapяДТаБыш КурынБы КуMbICKa дaиын.
Жарык дinoны жанбайы.	ЗapяДТаБыш КурынБы КуMbICKa дaиын emec.

3.4 3apTay npouecinH 6apbcihdafl Li-Ion akKymyIaTopnapbHbN HndKaTopnapbl

Erep Hilti Nuron Li-Ion aKKMyIaTOPb Hitti 3apraTafbi W KpybnfbicbHa KaIFaHFaH 6oJca, aKKMyIaTOPdbH Ky INdNkATOpb 3apn DeHrein HKeHe bIKtIman Kate TypaBxabapnapbKepcetei.

Куралдын 6өлшөтөр i Chinnattamасi
Бip (1) карык диodы касын түсөн 6ауЖылblыктайды	АKKумларop зардалуда, зард Deнгий: ≤ 20%
Бip (1) карык диodы касын түсөн канын тyp,бip (1) карык диodы касын түсөн 6ауЖылblыктай тyp	АKKумларop зардалуда, зард Deнгий: 21%Жэne 40% apalbifbHda
Eki (2) карык диodы касын түсөн Канын тyp,бip (1) карык диodы касын түсөн 6ауЖылblыктай тyp	АKKумларop зардалуда, зард Deнгий: 41%Жэne 60% apalbifbHda
Yш (3) карык диodы касын tүсөн Канын typ,бip (1) карык диodы касын tүсөн 6ауЖылblыктай typ	АKKумларop зардалуда, зард Deнгий: 61%Жэne 80% apalbifbHda
Тэр (4) карык диodы касын tүсөн Канын typ	АKKумларop зардалуда, зард Deнгий: ≥ 80%
Ешбip карык диodы Канбai typ АKKумларot	толык зардалfax, зард Tayapnoцci anktaIadby.
Бip (1) карык диodы capы tүсөн КылдамЖылblыктай typ, садан keiin bip He mecebipHEseжарык диodы касын tүсөн Канады	Зардay proцeci tokтaltiHaN. АKKумларop руkscat etiInreн TemnepaTypa dinana3oHbHan Tbc6bonybl biktmaJl.Зардay prozeci kajketti napametprpe KaiaTadaehpetteReHHeKeyiH abTomaTTb Tpyde JuaIraFacaIb.Κakket 6oIca, AkKуmларopdBi YcblbIFraH zapd-Tay TemnepaTypacbHa Hketki3iHiz.
Бip (1) карык диodы Кызын tүсөн КылдамЖылblыктайды	Li-lon akkymларopb KylblntaylbyЖeHe Ohbl6yDah6bla naidalaH yMmKiH emec. Hilti Kbl3MeT Kepcety optalbIfbHa xabapnaLbHb3.

3.5 Li-Ion akKymyIaTOpbl KyHInH HnDnKaTOpIaPbI

Hilti komnaHnrcb Li-Ion aKKymyIaTObIHbN KYiH o3aprTay npouciciH anDbHa 6in anyFa KeHeC 6epeDi. AKKymyIaTOpDbH KyiH uKbipy ywiH aKKymyIaTObIH KYbIHTanb 6ocaty TuMeci H WcKyHdTaH apTBk 6acbl TpybH3. XyHe Kynaty, Tcy, cbIPKbI XblNydaH 3aKbIM KeNTipy XeHe T.C.C. KaTe KOJaHyDaH TyBHdaFAn 6aTapeAHbHn akaybIFbH anbIKTaMaDbl.

3.6 KTeK3iIm HnHaFbl

3apntaftbIi KpybIIFbl, naIdaIaNHy 60nBnHwa HcykayIbIK.

OraH KocA eHIMiH3 yWIn pyKcat etinreH kYneIe HImepdi Hilti Store dyKeHHde Hemece MbHa Be6-caTTaH Ta6yfa 60nAbI: www.hilti.group

4 TexHnKaIbIK cnNaTtAmaJap

	C 6-22 C 8-22
EPTA Procedure 01 60bHnHa caIma	84 Kr(1,852 ΦyHT)	1,45 Kr(3,197 ΦyHT)
HomHaJIbI ŠbIFbIC KepHeY	10,8 B ... 21,6 B 10,8 B ...	21,6 B
MaKcHMaJIbI ŠbIFbIC KyaT	240 Bt 450 Bt
CaKtay Tempepatypacbl	-20 °C ... 70 °C(-4,0 °F ... 158,0 °F)	-20 °C ... 70 °C(-4,0 °F ... 158,0 °F)
ЖуMbIc KeziHderi KoprShaFaH opTa Tempepatypacbl	-17 °C ... 60 °C(1,4 °F ... 140,0 °F)	-17 °C ... 60 °C(1,4 °F ... 140,0 °F)

5 Kbl3MeT KepceTy

ECKEPTY

3aKbIMdAnFaH Ka6eNbDeH Kayin 6ap! Erep KymbIc 6apbcihda JeJIiK Hemece y3apTKbIw Ka6enbre 3aKbIM TnCe, eHIM MeH Ka6eNbDi Depey JeJIeH aKbIpaTbHbI3. ByiHReH JepNepre TImeHi3!

Bapbik kaiFaBbIc bIMapdbj KyneI Type TeKcepin TypbHb3.
Byinireh y3apTkblkabebdi anMaCTbipbHb3.
Kepi KaFdaJa Hilti KbImet KepeTy opTaIbIbHa xa6apIacblb3.

TeMaKc. eWipy Torbl 30 MA WAMacbHda 6oJFaH Ke3de JkbIbictay TorbHaH Kopfay aBtOMaTbH (RCD) KOJaHy YcbHbIaNbl.

5.1 3apnTaBbI KypblfBiHbI Kocy XeHe aKKymyTopbl 3apnTay

ECKEPTY

Maynan6aHan 6aTapeenapb3apdTay Ke3iHne TybHdaTbH Xapblbc Kayni. HtNHexinde naDanaHybJ KapaKaT anyB JxHe 3aprTaFbI W KpbIJIbI 3AkBIMdAnybl MymKIn.

KaiaTa 3apraTayFa 6oImaHbIH 6aTapeaHaApDbI 3apraTAmHaB3.
Bny 3apaTafbiu KypbInfb ywiH TeK Hilti MaKyndaFaHaAkkymyIaTopnapdb naDaIaHbIbI3.

ABAHJIAHbI3

blnfaanah Hemece bIMkblndaH Kbicka Tybiktany HeTnxecinhe eHIMRe 3akbim Tnei.

• ΘHimDi TeK Ka6bik KaJnapda naJaIaHaHbIb3.

• ΘHimDi bInFaM MeN dBIMKbIaHa aIIwaKa Kepde caKaTaHbI3.

• Xenjinik ka6eBb aawacbiH po3eTKaFa caJIbHbI3.
  KapbIK DnOdbI Kacbl TycneH KaHaDbI.

• AkKMyJrTOPdbI aKKMyJrTOP INThepFeiCHe KaJFaHbI3.
  AkkymyIaTOp 3apraTaIyda.
• AkkymyIaTOp 3apAraTaFaHHaH KeiH, OHbI 3apAraTbIu KypblfBldaH WbIFapbHbI3.

6 KyTim XaHe TeXHHKaIbIK KbI3MeT KepceTy

ECKEPTY

Tok cory kayni 6ap! Keiinik awa eHHsinn typfaH Ke3e Kyim KHe TexHKanbIK KbImET Kepcety aybp KaapaKaTAPFa He npke anapbn COybi MymkiH.

Ke3 KeIreH Kytim XHe TexHkAblk KbI3MeT KepceTy KymbIcBn OpbHaMaC 6ypbH Keiinik aWahbI epaibIM cybpIn albiHbI3!

Acnantbl kyty

KaTbI KaaBicKaH KipDi MyKnrt KeTipiH3.
- KeIeTeY OyIbIKTapbIH KypFaK KbIIaKaNen KaIaN Ta3aJaHbI3.
KopnycTb TEK cunyanaHn y6epeKeNHe Ta3aHaBIs. EuknHaan CnIKoH KaMTtBn Kytim KypaIapbH naDaaHbAhi, eHTkeHi onap nactMacca 6eKTePi 3aKbIMdaybl MyMKiH.

TexHHkAnbIK Kbl3MeT KepceTy

• BapnIbIKKe3ReKepiHietiH6eIeKTepe3aKbIMdApdbH6ap-KOFbIHKeHe6ackapyaIemHTepiHi aKaycbI3 KymbcBih Kni Tekcepin TypbHbI3.
• ΘHIM 3aKbIMdaIaN HxHe/Hemec e akaybl 6onFaH xKaFdaIa OHbl naIdaIaHyIbI 6oImHaI3. BipdeH Hilti Kbl3MET Kepcety optalbIbHa XeHdTeHi3.
• KyTIm JxHe TexHnKanbIK Kbl3MeT KepeCy JyMbICTapbIHah KeiH 6apbIK KopFaybiW KypblfBnapdbOpHaTbIN, JyMbICbIH TeKcepiHi3.

Kayinci3 KOnlaHy yuih Tek TynHcyka Kocalkb 6eIweKtep MeH KymcanaTbH MaTePnAaDapbl KOndaHbHb3. Ei3 pyKcat etKeH Kocalkb 6eIweKtep, uBfBt H MaTePnAaDapbl MeH eHIMRE apHaJFaH KepeKjXapakTap Hilti Store dyKeHHde HeMece KeNeci Be6-caTTa KOnKetimDi: www.hilti.group.

6.1 Kekinik ka6ebni aybictbipy

KAYINTI

KapaKaT any Kayni 6ap! Tok cory Kayni.

• ΘHIMdi TEK ΕKineTti, 6iNkTI KbI3MeTKePnep KyTy i XeHe XeHDey i MymKiH! KbI3MeTKePnep Kayinci3K TeXHnKacbl 6oBbHwa apHaBl HyCKay anybl Tnic.

Keniiik Ka6eBb 3aKbIMdaFah 6oNca, OHbl aybictby Kepek.

3neKtpnik Kayinci3ik 6oBbHwa JkeprinikTi tananTapdbOpbHdaHb3.

1. 3apraTafbiI KypbIIFbIHbH JeNlIiK Ka6eJIb aawacbH po3eTKaDaH WbIFapbHbI3.
2. PeSEHKe TIpeKTI KaKnaKTaH TaPTbIn IbIFapbIbI3 XHe iwiHderi 6eKITkiu 6ypaHaDaHi 6JIWeKeTeH3.

MaTePhan

Torxraika 6ypaybIbI T10

1. KaKaNaKtbi aWbHbI3.
2. Keniik ka6ebnbiH kanaai etkiisirehi ecte caKayuH photocypet Hemece cb36a Kaacahb3.

3. CbIMdb6ocaty yuH KbICbIHTapDbH bipH oMakITeKTI rauKa 6pyaybiBIme H a6aJlan KbICbIH3. CbIMdb KblCKbIHTAH TapTbIn aHbH3. OpeKeTTi eKHIa CBIMFa KaIraHaH3 XHe CoaH KeHH 6y3bIFaH JxeniiK Ka6eJIdi aHbN TactaHbI3.

4. KaHa JeHinik Ka6eBdi opHaTbHb3. Bip Kblckbltbi OmaKInTeKTI raKa 6ypayblbImeH KbICbn, cbIMdbI Kbickblka Kiprisihi3. Kbickbltbi 6ocatbin, cbIMhBi, bepiK opHaTbInfahbIn TeKcepihi3. OpeKeTTi ekHHwi CbIMFa KaHTanaHb3.

Матерnam

Женист кабель С 6-22

2289588 (EU, 220-240V)

2289589 (US, 110-120V)

2289910 (GB, 220-240V)

2300624 (GB, 100-120V)

2289911 (KR, 220-240V)

2289912 (RU, 220-240V)

2289914 (JP, 100-120V)

2289915 (AUS 220-240V)

2289916 (TW, 100-120V)

2300625 (CH, 220-240V)

Женист кабель C 8-22

2289589 (US, 110-120V)

2289910 (GB, 220-240V)

2300624 (GB, 100-120V)

2289912 (EU, KR, RU, 220-240V)

2289913 (BR, 220-240V)

2289914 (JP, 100-120V)

2289915 (AUS 220-240V)

2289916 (TW, 100-120V)

2289917 (ARG, 220-240V)

2300625 (CH, 220-240V)

3apHtafbiu KypbIbHbI 3 yuih Jkapambl Jkeniik Ka6eIbI OcbI KeCTeEH TaHaHbI Hemece Hilti Kbl3Met KepcTeOpTaIbIFbHa XONbIFbHbI3.

1. Keninik kaebbdi anmactbpy andbihda kaebnbafbTTaybIbHda eTKi3irHee eTKi3iH3.Andh ana kacaanfah photocypetti Hemece cb36aHb aHbIKtama petiHde KOndaHbHbI3.
2. KaNaKaTbI KAYbIn, 6eKITKiU 6ypaHaDaHb KaTa 6eKiriHi3.
3. Pe3eHke tipeKti KaTadaHa KaKaNaKa eHri3iHi3.
4. Kenjinik Kaebnb aushcbin Kaiaadah po3eTKaFa caBn, 3apHraTbH KypblfBHBn akaycbi3 Kymbic icTeN TypFaHbIH TeKcepHj3.

KapbIK DnOdbI KaHbIN Typ: 3apraTafbl KpybInfbI aKaycbI 3 Kymbic icten Tp.
KapbIK dnoobj kah6aTYP:3apraTaBll KpybIIFbi akaycbi Kymbic icTeMei Typ.

Hilti Kbl3MeT KepeCy opTaIbIfbHa xa6apnaCbHb3.

7 TacbImaJnay XHe caKtay

TacbImaay

TacbImaJay Ke3iHde eHIMHi6epik 6eKITinReHHe Ke3 KTeKl3iH3.
- Θp TacbMaIdaFaHHaH KeiH Ke3re KepiHeTih 6apNbIK 6eNIkTepeJe 3aKbIMdApDbH 6ap-KoFbIH KHe6ackapy 3JeMeHTepHiH akaycbI3 6yMbICbIH TeKcepin TypbHbI3.

CaKtay

AtanmbiEhimepdaiBIM Keninik aawacbH axbipatbn caKaTaHb3.
AtaIbIeHIMdi KypFak KyiHde XHe 6anap MeH pyKcaTbi JOK aadmnapbIH KOJIb JeTneTIN HKepe CaKaTaHb3.
￥3ak yaKbIT caKaTaFaHHan KeiH Ke3re KeipHeTin 6apNbIK 6oikTepe 3aKbIMapDbIH 6ap-KOFbIH KHe 6ackapy 3neMeHTepHiH akayCbI 3KMBICBH TEkcepin 1bFbHbI3.

8 AkaynbikTapdaFbi KEmek

Bn KcTee KeTipinMereH Hemece 3iH3 Ty3e TaMaIbIH aKaayIbIKTap opbH aIFaHda, Hilti KbI3MeT KepCETy optanbIbHa xa6apnaCbHbI3.

Акayлы, bilityman ceben	Шебим
Жарык дioны жанбайд.Ж	Желінік aша жалганбаган.»Желінік kaсыь aшасьи posеTKara calыныз.
	Θнім'deri akayлы.»Θніm'di axыр'tын, кai'ta Косыныз.Жарык дioны кeін эрдайыm ewipулі бOLca, Hilti КызMet керсету optalыfbiHa ЖOLыfblHbI3.
	Желінік kaсыь 6уЗылган.»Желінік kaсыьді ayыICTыры- ныз.→БET 316
	Зар'dтay Куралы 3aКыIMdaIFan.»Θніm'di Hilti КызMet керсету optalыfbiHdaжehdeHiz.

9 KaDere KapaTy

Hilti acnantapb KaTaNHey ywiH japaMdbKeNTereH MaTePnAaPdbH caHBn KaMTNb.KeDee JapaTy anDbHaMaTePnAaPdbMyKnT CypbInTay KepeK.KeTereH eJepde Hilti KomnaHrcbcki acna6bHb3db KaTa eHcyiHaKaBnDaai. Hilti KbI3MeT Kepcety optaibfbHah HeMece DnnepiHcH cypaHb3.

3neKtp Kypapnapdb, 3eKtpoHdbK KypbInfbnap MeH aKKMyIaTOpnapdb TypMbicTBk KOkbicHe 6ipre TactamaHbI

10 FCC / IC Deekapaucnacbl

AtaIbI acan FCC epeKenepiH 15-6eNIMHe Jxhe IC epeKenepiH RSS-210 6eNIMHe cek Kenei.
XyMbic icTeey yuH TeMeHderi eki wapr opbHdanybTnic:

1. AtaIbIa acnan eKHaDai 3nHdbKepeprine TdybpMaIdbI.
2. AtaIbIa acan Ke3 KeIreH KeeprInepdi, ecipece, KaaynbI JyMbicka Keepri KeTipe aataBnKeeprInepdi Ka6blndaybTnic.

RoHS (3nHbI 3aTKeTpIn naDanaHbInyBH WeKTey HpeKTHBaCbI)

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Eyn kecte KbtaHapbIfbHa KondaHbIaIbI.

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1 wt%"及"超出0.01 wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

EynKeCTe TaBaaHb HapbIfbHa KOndaHbIaIaIbI.

C 8-22 (01)

RoHS (3nHdbi 3aTKeTpDin naDanaHbinybH WeKTey DnpeKTHBaCbI)

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger

Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	x	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	x	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Eyn kecte KbtaHapbIfbHa KondaHbIaIbI.

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. "-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

EynKeCTe TaBaaHb HapbIfbHa KOndaHbIaIaIbI.

13 Hilti NHTH-NHOHBik aKKymyIaTOpnapbl

Kayinci3ik KHe KonlaHy 60bHwa Hyckaynap

Ocb kyKaattamada «aKKymyIATOp» tepMHI biPHeWe Li-Ion 3neMeHTepiH baHaNbIcTbPaTbH KaTa 3aprTayfa 6oNaBtH Hilti Li-Ion aKKymyIATOpnapbHa KOnDaHbIaNabi. Onap Hilti 3eKtp KypanDapbHa apHaJFaH JKeH TeK Ocb KypaIapmeh bipre naJaIaNbIyI Tnic. Tek TynHycKa Hilti aKKymyIATOpnapbH KOJIaHaHbIbI3!

ChnataTama

Hilti akKymyIaTOPnapbI 3neMeHTepdi 6ackapy KHe 3neMeHTepdi KopFay KByeepimEn KAbkTaNFaH. AkKymyIaTOPnap apHaBbl KOFapbl 3Heprn TaFb3dbfbH MymKIn eTeIH NtN-NOHBK XnHayuB MaTePnAaDapbl KaMTNbH 3neMeHTepdEh TpaDbI. NtN-NODbIK 3neMeHTep eTe TEmeH Xad ecepine He, anaDa Kyye ocepHe, KaTbI 3apRd TaCyblbHa Hemece Kofapbl Tempepatypanapra eTe ceImtan 60JIbI Ta6bina,bI.

Hilti aKKyMyIaTOpnapbI ysiH pKcAT etinreH eHIMepdi Hilti Store dyKeHHde Hemece MbiHa caTTa Ta6yFa 6oJabl: www.hilti.group

Kayinci3ik

JHTH-NHOHBK,AKKymIaTOpNapbI naDanaHy KHe KYTy 6oBihwa TeMeHderi Kayinci3ik WapanapbH OPbIHdaHbI. HyckaynapbI opBHdAmay Tepi TitipkeHyiHe, aybp tot 6ackbls KapaKaTTapFa, XMMnJIbIK KyIiKTePRe, epeHyre KHe/Hemece KApblbicka anapbn COFybl MymkIn.
3aKbIMdanydb6onDbipMay xHe DeHcaybIKKa KaTb3nH KeTIpe aIaTbIH CyhblKTbIKTapdbIH blyiHa kon 6epmey ywiH akkymyIHTopnapdbI abaian KOndaHbHbI3!
AkkymyTopnapdbie6ip kafdaa MoNfKaunayFa Hemece KypblmbHa e3repic enri3yre 60nmaDb!

AkkymyIaTOpIaPb6eIeKTeYre, KbcIcyra, 80^ -TaH KOfApbl TemnepaTypa deiH Kb3dbpyFa JHe KaIyFa TbIbIM CaIbHaDbI.
Cokkbl Tureh Hemece 6ackaasa 3akbIMdaIFaH akMyIaTOpIapdbI naIdaIaH6aHbI3 Hemece 3apraTamaHbI3. AkymyIaTOpIaPda 3akbIMdany 6eIriepiH 6ap-koBIn JxyeJI Typde Tekcepin TypbHbI3.
EwKaFaDnA KaTaNHeIeRHeHemeceKHeIeRHeaKKyMylrTopnapbI naDaIaN6aHb3.
Ewkaan aKKymyIaTOPbI Hemece aKKymyIaTOPbIK 3neKtp KypalbH cokna Kypan petiHne naDaaHaB13.
AkkymyIaTOpnapFa eKkaWah TiKeNe Kyn Ceyneci, Kofapb TeMnepaTypa, YsKbH HeMece aWbIK KaJIbH ecepIn Turi36eHi3. Eyn KapblBcKa anapbn corybl MyMKiH.
Batape nnoniohe caycaKeH, KypaandapMeH, ewekeMeH HeMece backa da 3neKtp TorbH etKi3iH 6eIe 3aTAPMeH TImeH3. Byn aKKymyIaTOpFa 3akbIM KeNTipy, coHaa-ak MyNIkke 3anaan KeNTipy JHe Jkapakat anyra eKenyi MymkiH.
AkkymyIaTOpIaBbJ KaHbIp, BinFaI MeH cyuBkTbIKTapda aIIwak YCTaHbI. Ehin KeTKeH bINFaI KblcKa TynbIKTany, TOK COFy, Kyin KaNy, ePteHy XHe Jkapblbc KayiH TydbpyMiYMkiH.
TeK ocb aKKymnTOp tyi yuiH Ke3dIreH 3apraTbIu Kypblfbnap MeH 3neKtp KpaanapbH naaHaHbIbI3. By peTte Tnicti naDanaHy 6oBihua HcckaybIKTapdaFbMImimetpeRe Ha3ap aydpbHbI3.
AkkymyIaTopbI JkapBnFbIOpTanapda naIdaIaH6aHbI Hemece caKaTaMaHbI.
Erep TReH Ke3e aKKymJrTOP TBIM bCTbIK 6oNca, OI aKayIbI bOlyb MyMKIH. AKKymJrTOPbI TyTaHbI MaTePnAaRapDaH JeTkiNtI KaBbIKTBkTA opHaIaCKaH, KAcCbI KePiHeiH, TyTaHbAaTbIH Jepre KoBbH3. AKKymJrTOPdb cybIbH3. AKKymJrTOP bip caFaTTah KeiH eJI de KOJIFa bCTbIK 6oNbI typcA, 6yI OHbH aKayIb IekHdiir H biDipei. AKKymJrTOP eptehren XaFdaJaBfI Waapanap 6enimHderi HycKaynapra caikec opeket etiH3.

AkkymyIaTOpIap 3akbIMdaIaHaJ KaFdaIaIaFlb IopeKeTTep

AkkymyIaTOp 3aKbIMdaFaH XaFdaIa, ePdaiBIM Hilti Kbl3MeT KepeCy To pTaIbIbHa xa6apIacblbI3.
CytbIKTBik, LbIfaTbIH aKKMyIaTOpDbI naDanaH6aHbI3.
CytbIKtik, uBkKan JkaFdaJa, Ke3re XHe/Hemec TepiR tiKeen TIOH 60JbIpMaH3. Batape CytbIKtIbIMe H KMBic icTeReH Ke3de epaBIM Kopfaybiu KOJFaNTbl KeHe Ke3 KopfaHbcih KNIN KypiH3.
Lbfbn ktaKan 6aTaper cybIKbH Ketipy yuih apHaBly pyKcT etinreH xMmNbIK Ta3anaFbIi KypanDbI naDanaHbIb3. Bataper cybIKbHbHa apHaFah kepriniKi T a3anay epexenepi H caKaTaHbI3.
AkaIbI aKKMyIaTOpIbI XaHfblIeMec KOHTeHepre caIbHb3 XaHe KypFaK KymMeH,6OpNbYHTaKneH (CaCO3) Hemece cIIINKaTneH (BepMNkyIIT) XayBn KOBbHb3. CoaH KeiH KaKnafBt TbFb3 XayBn, KOHTeHepdI XaHfblIra3dap, cyblkTbIKTap Hemece 6erde 3aTTapDaH anJwaK CaKTaHb3.
KoHTeHepDi Hilti Store dyKeHHde KeDeere JkapaTbHb3 HeMece JeepriNkTI KeDeere JkapaTy KcCinOpHbHa xa6apnacBbI3. 3aKbIMdAnFaH aKKyMyJrTopnapfa apHaNfAH JeepriNkTI TacbImday epeXeJIepi CaKaTaHbI3!

AkkymyIaTOp 6yaH 6bIaI Kymblc icTeMeReH KaFdaIaFbl epeKeTTep

3apTany, Wamadah aptbk 3apTay yaKbItbl, Ke3re aHbIK Kyat TeMeHneyi, KApblk HIOBbHbH eTteriHe TBIC epeket etyi HeMece bIfbn KeTKeH cybIKTBk CNaKTbI aKKMyrTopDbH KaaycbIs epeketepine Ha3ap aydapbHbI. Bynap iWki akaynbKtbl 6inipeidi.
AkkymyIopda iwi KaaybikTap aHbIKtaIHa HkaFdaJa, Hilti Kbl3MeT KepeCy opTaIbIFbHa xa6apnacblHbI3.
AkkymyIaTOP 6yDah 6bIaN Kbl3MeT eTnerEh, AKKMyIaTOp 3apHdTaIIma KaIFaH HeMeCe cyBikTBiK aKkaH JkaFdaJa, OHbl KeDeRe JkapaTybIbI3 KepeK. TexHHKaIbIK KbI3MeT Kepcety HeHe KeDeRe JkapaTy 6eimH KapaHbI3.

AkkymyIaTOp eptHeR HafdaIaFbI waapanap

ECKEPTY

AkkymyIaTOpdbH eptHyiHeh Kayin 6ap! KaHbIa AKKMyIaTOp TOT bacbIa JkapaKaTTap, KyIKTepe Hemece KApblbICTapDbI TydbIpby MymKIn Kayinti XeHe Jkapblfbi CybIKbIKTap MeH 6ydbI IbIFapaDbI.

AkkymyIaTOp eptehyIH cHdipreH Ke3e JeKe KOpFaHbI Wka6dbIKtB Taftbn KypiH3.

Kayinti JHe Japblfbi 6bnapdbu bIfapy ywiH JeKtiikTi KeJedTydi KaTAMacb13 etiH3.
Tytihhi nainda 6onybkapkbiHdb6oHaDapeey6eMeDeHwblb3.
TbHbc KOndapbl titipkeHren KaFaadaa da apirepmeh Kehecihi3.
- Ept cHdpy apeketih 6actamac 6ypbH ept cHdpy Kbl3MeTih WakbpbHbI3.
AkkymyIaTOp eptehin 6apbIHwa yNkeh apakaBkTBkTaH cyMeH faHa cHdiPiH3. YHTaKtbl ept ceHdipriuTep MeH ept cHdiPriiX kAnkbIuTap Li-lon aKKymyIaTOpnapbi yuiH naIaNbIeMec. KopuaFaH optadaFbI ePTTI dctypni CHeDipriu KypanlapMeH cHdipyre 6oanaBl.

• EprHeR aKyuMylrTopnapbH yKeH MeIeepH KblkBlyfA apKeTHeH6eH3. 0cep TnreH aKKyMylrTopnapbIOkUaynay yuiH aHaIaDaFbOpTaan ecep TmReH Ke3 KeIreH MaTePnIapDbI 1bIfapbn aJIbHbI3.

CybimaraH, TyTih WbIFaTBH Hemece XaHbIN TypfAn aKKyMnyTopnap XaFdaBbIHDa:

• OHby Kypekeh anbIn, cyfa ToIbOxayFa IaKtbIbHbI3. CydbH caKbIHDaTy ocepineH xahydbH wekTik TemnepatypacbHa eJI jKeTneren akkymyIaTOp 3JeMeHTepeihe ePTIH tapaNybl a3aIbI.
  AkkymyIaTOpbl, on ToIbIKTaI cyIbHaHwa, KEM dereHde 24 caraTka weneK iwiHne KaIdbipblHb3.
  AkkymyTopnap 3aKbIMdaIFaH KaFdaIaIaFbI epeKeTTeP 6eImiH KapaHbI3.

TacbImanay He caTay 6oBbHwa Hycaynap

Kopuafah opTa TemnepaTypaCbI -17°C JHe +60°C / 1°F JHe 140°F apaJIbIbIHJa.
CaKay TemnepaTpaCb -20°C KHe +40°C / -4°F KHe 104°F apaBifHda.
- AkKymIyTopnapb3 3apTafbiW KypBnFbHbH iuiHne caKaTaMaHb3. AkKymIyTopdb3 3apTafHaHHaH Kein ePdaiBIM 3apTafbiW KypBnFbDaH WbIFapbHb3.
- AkkyMnyrTopnapbI MymKHHirHwe caKbIH KHe KpyFaK Jepde caKaTbH3. CaKbIH Jepde caKtay aKKyMnyrTopdbH Kb3MeT ety MeP3imH apTTbipaDbI. AKKyMnyrTopnapdbI eH JaFdaJa KaH, Kblny Ke3depHIn actbHda Hemece bHbH eHHeK apTbHda caKaTaMaHbI3.
AkkymyIaTOPnapbI NOHTaMeH KI6epyre 6oMaIbI.3aKbIMdaIImaFaH AKKymyIaTOPnapbI JI6epy KaKeT 6oIHaJa, JeTeKi3yUi KeCinOpbIHapPa Xa6apNaCbHbI3.
AkkymyIaTOpJapBleWkaaHwMeJeTaBImaDamaHb3. TaBImaJay bapbcihdaakKMyIaTOpnapdbi 1aMaJah apTbIK COKkBi MeH dipinDeH Kopray KHe OlanpBuH backa baTaper noIOCTepimEn KaHaCyBaHa KHe Kbicka TBybIKTaJyDbH TybHdAybHa Jxol BePmey yuH Ke3 KeIreH ToK eTKiRiM MaTePnAnJaPaH HeMece baca aKKymyIaTOpJapDaH Okwaaylay KepeK. AkkymyIaTOpJapFa apHaIraH JeepriNikTi TaCbIMaNay epKeJIepi H cKaTaHbI3.

TexHnKaIbIK Kbl3MeT KepeTy XHe KeDere XapaTy

AkkymyIaTOpbTa3a Kynde JHe MaM MeH JxafapMaJdaH 6oc yCTaHbI3. AkkymyIaTOpda KaKetci3 WaH He KipdiH JHHaJIbHa Jxon 6epMeHi3. AkkymyIaTOpDbI Kypfak, KymCaK KbIIkaJAMMeH Hemece Ta3a, Kypfak, Wy6epeKeNeh Ta3aJaHaB13.
XeNdety caHbInaynapb6iteTReH aKKymyIaTOpDbl KOnlaHyFa 6oMaIbI. XeNdeTy caHbInaynapbH Kypfak, KymcaK, KbluakneH KaKcbIan Ta3anaHbI3.
Iwki 6eirine 6ege 3aattapdbn Kipyih 6oJnbipMaHb3.
AkkymyIaTOpFa eUkaHdai cybIKtbiKTapdbiH kipyHe kon 6epMeH3. AkkymyIaTOpFa bIFan Tureh KaIdaJa, oFah 3akbIMdaIFaH aKKymyIaTOpFa ceiJDi wapa KOnDaHbIn, OHbl epTeH6eTih KOHTeHepre caIbIN OKwaaylaHaB3.

AkkymyIaTOpnap 3aKbIMdaFaH XaFdaIaFbI epeKeTTep 6eimH KapaHbI3.

Hyckaynapan TBIC Keere Jkapaty HETNHexeHr de3 He cyBtBtBtBn 6ocTaBnyb DeHCaybIKKa Kayin THeDipy MyMKIn. AkymyIaTOpDbHlti Store dyKeHHde Keere JkapatbHb3 Hemece JeeprinikTi Keere Jkapaty KecinopHbHa xaapnacbHb3. 3akbIMdanFaH akymyIaTOpnapra aphanfah JeeprinikTi tacbImanday epexenepi cKaTaHb3!
AkkymyIaTOpIaPdbTyPmbICTbIK KOKbICKa naKtbpMaHbI3.
AkkymyIaTOpIaIbI 6aIaIapdbIH KOJIbHa KcTeNtIHDeeEtIN KdEre JapaTbHb3. KbICKa TynbIKaIyFa KON 6epMey ywiH, KocblnIMapdbI TOK eTKi36eHTIH MATEpHaJMeH JaybI KOnbHb3.

OpHnHaJIHo PbKOBOdCTBO 3a ekCnIooatauia

1 DaHHn 3a PbKOBOIDCTBOTO 3a ekCnIIOaTauH

1.1 3a pkoBODCTBOTO 3a eknnoatauHa

• Ppdeynpejckdne! Ppein da BkIIOHTe npOdyKTA, ce yBepete, ye npInIOKeHOTo KbM npOdyKta pBkoBOdCTBO 3a ekCnloatauH, BkIOHTeJIHO IHCTpyKcNITE, yka3aHnraT a 3a 6e3oNaCHOCT n PpeDynpedTeHNTE yka3aHH, fHyprn HcEeHfKaun, ca npOteHn H pa36paHn. 3aOn3HaIe Ce C BCNUKN HCTpyKcUN, yka3aHH 3a 6e3oNaCHOCT n PpeDynpedTeJIH N yka3aHH, fHyprn, cNeUfKaun, KaKTO n CbCTABHn qactn n FyHKUn. Ppr HeCna3BaHe HMa ONaCHOCT OT eJeKtpnueCKn Udap, NoXkap N/INn TeKKn HapaHBAHn. CbxpaHnBaIte pBkoBOdCTBOTO 3a EKCNOATAuH, BkIOHTeJIHO BCNUKn IHCTpyKcUN, yka3aHH 3a 6e3oNaCHOCT n PpeDynpedTeJIH N yka3aHH 3a NocLeDBAUO h3NoJ3BaHe.
  HILPnOpyKTHe ca npEHa3NaueHn 3a npofoecnoHaHn nOtpe6nteHn mOrat da 6bDaT o6cnyBaHH, NOdIbprkaHH B n3npaBHOCT n peMOHTnpaHH cAmO OTOpH3npaH KOMNeTeHtEN nepcoHAn. To3n nepcoHAn Tp6Ba Da 6bDe CneuHaHn HNCTpyKTIpaH 3a Bb3MoXHNte OAnCHOCTn. PpOpyKTbT N HerOBtE

npncno6neneH MOraT da 6bDat onaChn, ako 6bDat eKcNloaTnpaHn HEnpaBOMepHO OT HeKBaHnPau nepcoHaJI nn aKO 6bDat n3NoJ3BaHn He no npedHa3NaueHne.

• PpHIOXeHOTo pKOBODCTBO 3a eKcNlOaTauIg OTROBAp Ha aKTyAINHO TcBCTOHHe Ha TEXHkata MoMeHTa Ha OTNeuATBaHe. BnHaI Nc HamePte aKTyAINHATA BepCn HA npOdyKTobata CTpaHnca Ha Hilti. IocneDbaiTe 3a Ta3n cen Bp3kata nN QR KOna B HactOuTO pKOBODCTBO 3a ekCnloaTaun, O603NaueH CbC CmBOnla
• PpdaBaIte npodykTa Ha npyHa cmo 3aeHc HactoHcTO pKOBODCTBO 3a ekCnloatauHa.

1.2 YcIOBHN 6O63HaueHn

1.2.1 PpeynpeintenHu yka3aHn

IpeynpeintenHnte yka3aHH npeynpexkdaBat 3a onachocB 3ohata OKONo npodykta. NsnoJ3Bat ce CneHNTE cnHaJIHy dym:

ONACHOCT

ONACHOCT！

Othacr ce 3a HnocpeCTBeHa OnaCHOCT O3annaxa, KOHO BOH Do TeKKn TeneCHn HapAHBaHn IIN CMbpt.

IPENPENKDEHNE

PENyPExKDEHNE！

Othacr ce 3a Bb3MOxHa onachocr ot 3anlaXa, KOHO MOKe da DOBeE Do TEKKN TeneCHn HapaHBAHn nn CMBpT.

PNEI3NBOCT

BHIMAHNE！

Othacr ce 3a Bb3MOxHa onacha cHTyaun, KOTo MoKe da Iobede Do TeleChn HapaHBAHH MATEpnaHnI uetn.

1.2.2 Chmboln B PkoBODTBOTo 3a ekcnnoatauHa

B HactoIOTOpbkoBOdCTBO 3a ekCnIOaTauHce n3NOJ3BaT cneHNITE CmBOJIH:

Ia ce c6bHIOdaBa PkoBOdCTBOTO 3a EKcIIoatau

Ppenopbkn npn ynoptpe6a n dpyra noJe3Ha HhOpMaun

BopaBeHe c peuiknpyem MatepnaI

He n3xBbPnIte eneKtpOpyeIN aKymyIaTOPN B 6ntOBITE OTnaDbu

Hilti JntneBO-HOHeh akymynaTop

Hilti 3apAHO yCTpOHTBO

1.2.3 ChmboBn BB HpyPte

BbBΦnpypTe ce H3NOJ3BaT CneDHnTe CMBOJN:

2.3 BHHMaTeJHo 6opabeHe n H3non3BaHe Ha akymyNaTOpH

Cb6IIOaBaTe CLEHHTe yka3aHHa 6e3oNaCHOCT 3a HadeJHO 6OpabeHe n H3NoJI3BaHe Ha IHTHeBO-IOHHn akymlyaTopn. Hecna3BaHTo mM MoKe da npedN3BnKa dpa3HeHe Ha KOxKaTa, TeKKn KOP03NBn yBpeKdAHH, XmMnHn n3rapHn, NOkap n/nnn ekCnlo3nN.
- ⅢnON3BaIte akyMylaTopHTE cMo B TEXHnueckn H3npaBHO cbCTOHRHe.
Pa6oTe BnMaTeHc AkyMynatOpHTe, 3a Da n36erHeTe NOBpeHn I da npedOTbpaTne H3n3aHTo Ha TeuHOCTN, KOHTO ca MHoro BpeHN 3a 3dpaBeTo!
Akymyataopnte He Tp6Ba No HKKbB HaunHa 6bDaT npomeHn nn MaHnynpaH!
AkymnyatopnTe He Tp6Ba Da ce pa3rno6BaT, cMaKBaT, da ce HarpBaT Ha8 80^ (176 F) nIa ce 3rapT.
He n3non3BaIte nn He 3apeKdaTe akyMylatOpn, KOIO ca 6nn yIapEnn nn ca NOpeHn no npyn HauHH. PpOBepraBte peoBHO Baunte akyMylatOpn 3a npn3hauHa noOBpeHa.
Hnkora He n3no3BaIte peuKlnpaHn nn peMOHTnpaHn akyMynaTopn.
Hikora He n3no3BaTe akymylaTopa nIaakymylaTope H eJeKtpOnHCTpyMeHT KaTo ydapeH MexaHaN3bM.
Hnkora He n3naraite akymyataopnte Ha npka CbHyeBa CBETnHa, NOBnueHa TemnepaTpa, 6pa3yBaHe Ha nCKpn nn OTkptn nnMbK. ToBa MoKe da DoBeede eo EKCnIO3nn.
He donnpaTe nIoocTe Ha 6atePnnte C npbCTn, INCHtpMeHTn, yKpaSeHn Hnn dpyrE eneKtpoBODIMn npedMeTn. Toba MoKe da noBpeDn akymylaTopa, KaKTo I da npuHH MaTePhaJIHn 9eTn HapaHBAHn.
-Дрьжte akymylatopnte daneeOT dbxk, Bnara n TeuHoctn. Проннкhalata Bnara moKte da npunnn Kbcn CbeDInHeHn, eNeKtpnueckn ydapn, n3rapaHn, noKap n ekCnlo3nn.
H3noJIbAaTe cAmO 3apRdHn yCTpoNCTBa H eNEKTPoHNCTpyMeHTn, npEHa3HaueHn 3a To3n Tn aKymyIaTOpn. 3a Ta3n ue Cb6NIOdaBaIte DaHHTE B CbOTBETHTE PbkOBODCTBa 3a ekCnloataaH.
He n3non3BaIte Hn He cBxpaHbAite aKymyIaTopa BbB B3pNBOONacHa cpeJa.
Ako akymylatopbTe mHoro ropeu Ha donnp, ToM MoKe Da HMa DeFeKT. NocTaBete akymylatopa Ha BnIMo, He3anlmo MRCTO C DoCTaTbUHO pa3cToHHe Do 3anaHm MaTePnAn. OctaBeTe akymylatopa da Ce oxlan. Ako cneE dInH yac akymylatopbTe e BCE Oue TBbPde ropeu Ha donnp, ToI e Hen3npaBeH. O6bpHeTe ce KbM cepBn3 Ha Hilti nnn npOyTeTe DOkUMeHTa "Yka3aHn 3a 6e3onachoct n npinarahe Ha Hilti nITneBO-IOHH aKymylatopn".

Cna3BaIte cneuHaHnTe DnpeKTHBn, npInoXmM 3a TpaHCnOpTnpaHeTo, cbxpaHeHHeTo n H3noJ3-BAHeTO Ha IHTHeBO-IOHH aKyMyNaTOPn.

Ipooyete yka3aHnra 3a 6e3oNaCHOCT n npJlaRaHe Ha Hilti JNTHeBO-IOHH aKymyIaTOPn, KOHTO MoKeTe da HamePte, KaTo cKaHnpate QR KoDa B KpaHa HAcToAto PbKOBoDCTBO 3a ekCnloatau.

3 OnncanHe

3.1 PperneHa npodykTa

① AkymytaTop
② HndkaTop 3a cTaTyc Ha aKymylaTopa
③ ByToH 3a De6IoknpaHe Ha aKymyNaTopa
④ Hndkatop 3a pa60HTOTo cBCTOHNHe Ha 3a-pHNOYyCTPOIcTBO
⑤ OTBOPN 3a CTeHEH MOHTaX
6 H3xOДВb3dnyx
⑦ BxoBb3dyx
8 INTepeic3aakymnatop

3.2 Ynotpe6a no npedHa3HaueHHe

OnncAHnT npOdyKT e npEHO 3apRdH OyCTPOcTBO 3a Hilti NHTHeBO-IOHH aKymNaTOpN C HOMHaHnHO HanpeJKeHne 21,6 BOLTa. To e npEHa3HaueHo 3a CBbP3BaHe KbM KOHTaKTN C IpOMeHnBO HAnpeJKeHne OT 100 do 127 BONTa nn ot 220 do 240 BONTa, cNopeD MoJeB B CbOTBeTHaTa CTpHa.

3apHnHOy yCtpoIcTBO MoKe da ce noCTaBn Ha paBHa NOBbpxHOCT nn da ce MOHTnpa Ha cTeHa.

B Hactoian CnncbK ige HamepeHte 3a To3n npOdyk Hilti NHTneBO-IOHH aKyMynaTopn.
He BCnukn akymypatopn ca HauuHn Ha BCnKn na3apn.

JaHHn 3a npoDyKta

Зарадно устrodu С 6-22 | C 8-22
Поколени 01
Сер就近 № 1 - 999999999999

3.3 HndkaTop 3a peKHM Ha pa6ota Ha 3apHNOy yCTPOCTBO

3.5 INHnKaTOp 3a CbCToHHHeTo Ha NHTHeBO-NOHHN aKymNaTOp

Hilti npenopbya da npoBepTe cBcTOHHeTo Ha IHTHeBO-IOHnAkyMylatop npedn BCEKn npocec Ha 3apeKdahe.

3a da npOBepnTe CbCToHHHe To hAkyMylatopa, 3aDpBkTe HaTNCHaT De6IOKupaun 6yTOH 3a NOBEue OT TPN cekyn. CnCTeMaTa He pa3No3HaBa NotEHuaJHa HEn3npaBHOCT Ha 6aTepeYta nopadN 3IOyNtpe6a, KaTo HApN. n3NyCKaHe, npo6uBaHe, BbHUnn TOONHHN NOBpeNi np.

Състорн(e 3начен(e)
Вс neurop(CBETODIOI CBETT KATO 68raa CBTINH и сд.TOBA eDIN (1) CBETODIOI CBETN NOCTOHN В зелени.	aKumylnatopbT Bce OSe MOnke da ce H3noJ3Ba. a3anITBAHETO 3a CbCToHnETo Ha akymylnatopa He mОKe da 6bDe OcBseCTBeHo. ПobTOpTe npOuec nIIe Ce OБpHete KbM cepBn3 Ha Hilti.
Вс neurop(CBETODIOI CBETT KATO 68raa CBTINH и сд.TOBA eDIN (1) CBETODIOI MIna 6bP30 B Жыltо.
Вс neurop(CBETODIOI CBETT KATO 68raa CBTINH и сд.TOBA eDIN (1) CBETODIOI CBETN NOCTOHN В черveho.	aKo CBp3AHnT PpOdyKT MOnke Bce OSe da 6b nO3NoJ3BaH, OCTaBaunr T KaNaUnTe Ha akymylnatopa e No-MaJbK OT 50%. aKo CBp3AHnT PpOdyKT BeYe He MOnke da 6b n3NoJ3BaH, akymylnatopbT e B Kpar Ha CBOY ekC- nIooatauHOHe JxHBOT n TpR6Ba Da 6bDe CMeHeH. MOLn, OБрHete ce KbM cepBn3 Ha Hilti.

3.6 06em Ha doCTabkata

3apnHO yctpoCTBO, PkoBoCTBO 3a eknoaatau.

Ipyn cnCTeMHn npOyKTH, pa3peSeHn 3a Baun npOdyKT, ue HamepuTe BbB Baun Hilti Store nn Ha: www.hilti.group

4 TexHnueckn daHHN

	C 6-22 C 8-22
Терлесно EPTA Procedure 01	0,84 кг(1,852 Фунт)	1,45 кг(3,197 Фунт)
Номнално Изховно Наржени	10,8 B ... 21,6 B 10,8 B ...	21,6 B
Мakсимална Изховна моцноct	240 Bt 450 Bt
Temпeparота на съхарене	-20 °C ... 70 °C(-4,0 °F ... 158,0 °F)	-20 °C ... 70 °C(-4,0 °F ... 158,0 °F)
Temпeparота на okолна за раша	рша 17 °C ... 60 °C(1,4 °F ... 140,0 °F)	-17 °C ... 60 °C(1,4 °F ... 140,0 °F)

5 Eknoataa

PENyPExJDEHNE

Onachoc nopaHn nobpeHn Ka6eH! Ako npa pabota ce nobpeHmpeKOBHT nn ydbJHKTeHNrKa6eH, H3KIOUcTe He3a6aBHO npOdykTa n Ka6eHa ot MpeKaata. He donnpaTe HEn3npaBHOto MRCTO!

PpOBepeBaTe peoBHO BCnKn CbeHNHTeHn PPOBOHn.
IopMeHETe HEn3npaBHnTe ydbJNKeTIHN Ka6eJI.
B npoTBeH cIyau Ce CbPKeTe CbC cepBn3 Ha Hilti.

O6nKHOBeHo ce npenopbUba ynoTpe6aTa Ha nephiekTHOTOKOBa 3auNTa (RCD) c MaKcHMaJIeH TOK Ha n3KnHouBaHe 30 mA.

5.1 BkIIOUeTe 3apAnHOTo yCTpoNCTBO n 3apeTe akymyNaTopa

PPEyIpyEJHNE

Pnck ot ekcnno3n npn 3apekdahe Ha 6aTePN, KOtO He ca oDo6peHn. PesytatbT MoKe da npi HapaHraBaHn n 3apdHOTo yCTpOcTB0.

He 3apeKdaIte npEaepKaun ce 6aTePN.
3a TOBA 3apAHO yCTPOIcTBO H3NoJ3BaIte cAmO Oo6peHn OT Hilti akymyIaTOPN.

PNEI3NBOCT

KbcO CbeHHeHne nopadn BnaXHOCT nnn MOKpoTa PesyntaTbTe noBpeDa Ha npoDyKta.

H3noJ3BaIte npOdyKta cAmO B 3aTBopeHN NOMeUeHHA.
-ДрьхteурdaдалеоТВлжнocиMOKpoTa.

1. BkIIOUeTe MpeXOBnA Yencen B KOHTaKaTa.

CBETOANOBT CBETH B3eJeHO.
2. BkIIOUeTe akyMylaTopa KbM INHTepFeiCa Ha akyMylaTopa.
Akymyataopbt ce 3apekda.

1. Korato akymyataopbTe 3apeDen, n3BaTeTe akymyataTopa OT 3aprHOTO yCTpoCTBO.

6 O6cnyKbaHe n noIdpbXka

PNEUINPEXDEHNE

Onachoct ot eNeKtpueckn ynap! O6cnykBaHTo n noDpBkkata c NoctabeH MpekoB uenceMorat da npuHHaTeKKn HapaHaBaHn N3rapAHHa.

PpeBn BcKa DeHoc n O6cnyKbaHe n NOdprbKb BAHaHn H3BaXdaTe MpeXOBn Uencen!

06cnyXBaHe

• OTepaHbBaIe BHMaTeHnHO HAnlaCTeHnTe 3aMbpcBaHa.
  -Поунстытей Виимателно ВENTINALIOHHTe OTBOPn CbC cyxa Yetka.
  -Почистваши Корпуca само с leко hablaжнма кьрna. He n3no3baite npenapatn 3a nouHCTBaHe c6c cnIKOH,Ть KaTO Te MOraT Da yBpeIrt NlaCTMaCOBITE qactn.

PnDpBxKa

• PeoBHO npOBepBaTe BcHKn BnIMn Yactn 3a HAnuHe Ha Nobpei, a eJeMeHTnte 3a ynpabJIeHne -3a n3npaBHO fYHKcnoHnpaHe.
  He pa6oTe c npOyKta npn HauHnue Ha noBpeHn Hn CMyeHn BbB yHKunTe. He3a6abHO ro npdaIte B cepBn3 Ha Hilti 3a peMOHT.
  Cnei n3BbPwBaHe Ha deHocn no o6cnyKBaHe n noaepbKa MOHTpaIte BCuN 3aunTH yCTpOCTBa n npOBepTe HKunTe.

3a 6e3oNa cha pa60ta n3non3BaHte cAmO opnHaJIHH pe3epBHN qactN KOHCymATNB. Pa3peJeHtTe ot Hac pe3epBHN qactN, KOHCymATNB i npHaJdIeKHOCTN 3a Baun npOdyKT ue HaMePHTe BbB Baun Hilti Store nn Ha: www.hilti.group.

6.1 CMHa Ha MpeKOB Ka6e

ONACHOCT

Onachoct ot HapaHbaHe! OnachocT OT eJektpueeckn yap.

PpOdyKtB MoKe Da Ce EKcNlloaTnpa, O6CnykBa N NOdIbPka B H3npaBHOCT CaMO OT OTOpHnpan H o6yHeh nepcoHa! PepcoHaJbT Tpr6Ba Da 6bJe CneuaJIHO INHCTpyKTHpah 3a Bb3MOxHIne OnaCHOCTn.

Ako MPeXOBnT Ka6eI e NOBpeH, ToI Tp6Ba Da ce NoDMHeN.

CnasaBae cneuΦnHnte 3a BaWata nbpKaBa pa3nope6n 3a eNeKtpnuecka 6e3oNaCHOCT.

1.ИЗваде Мржови сеньл На Зардно устpoиТВО OT KOHTAKTA.
2. N3dbpnaite rymeHOTOnopHO Kpaue OT Kanaka n OTCpaHete Jekauinr OTdony 3akpenBaun BHT.

MaTePhan

Torx°OTBepTka T10

1. OToBopeTe KaNaKa.

2. HanpaBete Chmka nnn ueptk, 3a da 3anomHnte MappyTa 3a nonaraHe Ha MpeKOBn Ka6en.

3. BHIMaTeHnHaTnCHeTe eHa ot cKo6nte C OTBepTKa C 7JIuOBA rnaBa, 3a da OCBO6OnTe npOBODnka. N3dbpNaIte npOBODnka ot cKo6ata. NObTopeTe CTbPkata 3a BToPnNpOBODnK n CneI ToBa H3BaJeTe HeIN3npaBHnMpeXOB Ka6en.

4. MoHTnpaIte HOBnMpeKOB Ka6e. HaTNCHeTe eHa cKO6a C OTBePtKa C 7JIuOBA rIaBa N IITb3HeTe npOBoHNka B cKO6ata. OcBO6oTe cKO6ata n npOBepete 3a HAdEJHhOTo 3akpenBaHe Ha npOBoHNka. NobTopete CTbNkata 3a BTOpn npOBoHNk.

MaTePnAn

Мергеля Кабел С 6-22

2289588 (EU, 220-240V)

2289589 (US, 110-120V)

2289910 (GB, 220-240V)

2300624 (GB, 100-120V)

2289911 (KR, 220-240V)

2289912 (RU, 220-240V)

2289914 (JP, 100-120V)

2289915 (AUS 220-240V)

2289916 (TW, 100-120V)

2300625 (CH, 220-240V)

Мергеля Кабел C 8-22

2289589 (US, 110-120V)

2289910 (GB, 220-240V)

2300624 (GB, 100-120V)

2289912 (EU, KR, RU, 220-240V)

2289913 (BR, 220-240V)

2289914 (JP, 100-120V)

2289915 (AUS 220-240V)

2289916 (TW, 100-120V)

2289917 (ARG, 220-240V)

2300625 (CH, 220-240V)

OHaCToHuaTa TaBnua H36epTe NOxOaunMpeKOB Ka6e 3a BaWeTo 3apAHO yCTpOcTBO nIe o6bPHeTe KbM cepBn3 Ha Hilti.

1. NocTabete MpeKOBn Ka6eB Ka6eHnB OdaTaka, KaKTo e 6nI IonoKeH B Ka6eHnB Odau npedn noDMHaTa. KaTO opHeTHnp H3NoJ3BaTe HAnpaBeHnte npedeN TOBa CHIMKa nn YepTeK.
2. 3aTbOpete Kanaka n OTHOBO NOCTaBeTe 3aKpeNbaUINBHT.
3. NocTaBete TympaHTo OnpHo Kpaue 6paTHo B KaNaKa.
4. BkIIOHTempeXOBnAeIeNcEIoTHOBK KOHTaTaN pOBepTe daNN 3apHNOyCTPOINCTBO yHKnHOHPa npabnHo.

CBeToIIOIbT CBeTI:3apIHOTo yCTpoIcTBO FyHKUHOHpa npaBnHO.
CBeToOnIObT He CBETn: 3apAnHOTo yCTpoCTBO He fynKcNoHpa npaBnHO.

CbpxKeTe ce cbc cepBn3 Ha Hilti.

7 TpaHcnpT n cBxpaHeHne

TpaHcnopt

Pn TpaHcnpOpTupaHe BHMMaBaIte 3a HaJeKdHOTo 3aKpeiBaHe.
CneBcKo TpaHcnpTnpaHe npOBepBaIte BcNcKN BuIM qactn 3a noBpeNi Ce yBepTe BN3npabHOTo fHKIOHpaHe Ha enemEnITE 3a ynpaBHeHne.

CbXpaHHeH

CbxpaHbAte To3n npOdyKT BHaHc c 3BaJeH MpeKOB uenceJ.
CbXpaHbAaTe To3n IpOdyKT Ha cyxo MxCTO, daJeU OT DoCTbNa Ha Deca H HeOTOpn3npaH Nua.
Cne npoIbIKNTeHNO cbxpaHHe NpoBepraBe BCnKu BnIM qactN 3a NOBpeN n 3a H3npaHO yHKUOHpAHe Ha enemeHTe 3a ynpabHeHne.

8 Tomoц npn Hauuue Ha cmyuene

Пи НИЧЕ Ha CmUSeHЯ, KOntO He ca NocOeHb TaBnIaTa HIn KOntO BHe camn He moKTe da OTCTpaHte, MoJIa, OБьPheTe ce KbM HaIIN cepBn3 Ha Hitti.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Ta3n Ta6nua ce npunara 3a na3apa B Knta.

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Ta3n Ta6nua ce npnara 3a na3apa B TaBaN.

C 8-22 (01)

RoHS (HapeKTHBa 3a orpaHnUbaHe Ha ynotpe6ata Ha onachn BeuecTba)

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	x	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	x	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Ta3n Ta6nua ce npunara 3a na3apa B Knta.

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. "-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Ta3n Ta6nca ce npnilara 3a na3apa B TaBaN.

13 Hilti NHTHeBO-NoHHn akymyNatOpH

Yka3aHn 3a 6e3onacHOCT npnlaraHe

B Hactoata DOKyMeHTaun TepMnHbT akymnatop ce n3noJ3Ba 3a npesapeKdaCce nHTneBO-HOHe akyMnatop Ha Hilti, B KOTo ca Cbbp3aHH NKoJIKO NHTeBO-NOHNN KNETKN. Te ca npedHa3NaueHN 3a eNEKtpOnHCTpymEnHa Hilti nMorat da 6bDet n3noJ3BaHn cAmO CTAX. N3noJ3BaIte cAmO opRnHaHn Hilti akymnatopn!

OncanHe

Hilti akymynaTopnTE ca obopydbaHcBc cnCTeMn 3a ynpaBHeHne n 3auNTa Ha KNeTKnTe.

Akymnyatopnte ce cctoT OT KnetK, cBbPkaun nHTneBO-NOHN MaTepnaH 3a cbxpaHeHne, KOHTO NO3BOJRABAT rONMA CNEUΦNHa eHepnHa NtBTHOCT. IITneBO-NOHNTe KNETK Ca NOJNOKeHn Ha MHOrO HNCbk eFekt Ha naMeTTA, Ho ca MHORO yBCTBHTENH KbM Bb3DeIcTBHeTO Ha Cnla, Dbl6OKo pa3peKdaHe HIN BVCOKI Temnepatypu.

Pa3peSeHEnTe npOdyKTH 3a Hilti akymylaTOpN ige HamePHTe BB Baunr Hilti Store nn Ha: www.hilti.group

Be3onachoc

Cb6IIOaBaTe cneHnTE yka3aHH 3a 6e3oNaCHocT 3a HadeJHKHO 6OpabeHe n H3non3BaHe Ha IHTHeBO-IOHH aKymylatopn. Hecna3BaHTo m MOKe Da npEiN3BnKa Dpa3HeHe Ha KOxKaTa, TeKKn Kopo3NBn YBpeKDaHH, XmMnHH n3rapHn, NOkap N/INn EKcNIO3nN.
Pa6oTe BnMaTeHcAkymaTOpHTe,3a Da n36erHeTe NOBpeHn Da IpeDToBpaTHe N3n3aHTo Ha TeuHOCTN, KOINTO Ca MHOrO BpeHN 3a 3dpaBeto!
Akymynatopnte He Tp6Ba no HNKbKbB HaunHa 6bDat npomeHn nn MaHnynpaH!
- AkymylatopHTe He Tp6Ba Da ce pa3rno6RaB, CmaKBA, Da ce HarpBaH a80°C nIa da Ce n3rapT.

He n3no3BaIte Hn He 3apeKdaTe akyMylatOpH, KOHTo Ca 6nH yIapeHN nn ca NOpeDeHn no npyr NaHH. PpOBepaBaiTe peIOBHO BaIIne akyMylatOpH 3a npn3Haun Ha nobpeDa.
Hikora He n3non3BaIte peuzkInpaHn nn peMOHTnpaHn aKymyIaTOPn.
Hikora He n3no3BaTe akyMylatopa nn eneKtpOnHCTpyMeHT, 3axpaHbaH OT akyMylatop, KaTO ydapeH MEXAH3bM.
Hnkora He n3naraite akymyataopnte Ha npka CbHyeBa CBETnHa, NOBnueHa TemnepaTpa, 6pa3yBaHe Ha nckpn nn OTkpt n lambK. Toba MoKe da DoBeDe do EKCnIO3nn.
He donnpaTe noIOcTe Ha 6atePHTe C npbCTn, INHCTpyMeHTn, yKpaSeHHN IIN dpyrn eNEkTPOpOBoDMn npedMeTN. Toba MoKe Da NOBpeDN aKymNaTopa, KaKTo N da npuHN MaTePNaHn UeTn HapaHBAHn.
-Дрьжт ekумларotite Далаче OT ДьЖД, Вага и TeчhoeТ. Проннкhalata Bnara може длрннн Ксн СбднHeHЯ, eNeKtpnueckn ydapn, n3rapaHn, noxkap n EKCnNo3nN.
H3noJ3BaIe cmo 3apAHN yCTpoNCTBa n eEKeTPOHnCTpyMeHTn, npEJaHa3NaHeH 3a To3n Tn aKymnaTOpn. 3a Ta3n ue Cb6KnOdaBaIte daHHTE B cbOTBeTHNE PbkOBoDCTBa 3a ekCnNoataun.
He n3non3BaIte Hn He cXpaHbAaTe aKymyNaTopa BbB B3pNBOOnaCha Cpea.
Ako akymylatopbTe mHoro ropeu Ha nHaHe, ToM MoKe Da e Hn3npaBeH. NocTaBeT aKymylatopa Ha BnIMo, He3aNaJIIMO MRCTO C DOCTaTBUHO pa3CTOHHe Do 3aNaIIMMaTePnaIIN. OCTaBeTe aKymylatopa Da ce OxlaDN. Ako cNeE edHN yac akymylatopbTe E BCE OSe TBbPde ropeu Ha donip, Toi e Hn3npaBeH. NocTbNbaIte CbrIaCHO yka3aHnHTa B Pa3dEn MepKn npn ropau akymylatop.

PobedeHne npn nobpeHn akymyataOpH

BnHaHc Ce CbP3BaIe CbC cepBn3 Ha Hilti, aKO mAn NOBpeH aKymnatop.
He n3non3BaIte akyMylaTOP,OT KOITo n3n3a TeHOCT.
H36aRbAte dIpeKTeH KOHTaC KOKaTa H/INn OUnTe, aKO TeuHOCTTa H3TuHa. BnHaHn HocTe 3aunTHn pbKaBnU n 3aunTa 3a OUnTe npn pa6oTa c 6aTepHu TaeHoCT.
3a ceIHa 3nON3BaIte ODo6peH XmMueeCKn NouchBaU npenapA, 3a Da OTCTpaHIne 3nN3aUata 6aTeepHa TeuHOCT. Cna3BaIte MeCTHne pa3nope6n 3a NouchBaHe Ha 6aTeepHa TeuHOCT.
IocabeTe He3npaBnna akymyIaTOp B He3anaJIIM KOHeIeHep Iro NOKpHte CbC cyx nCbK, C KpeDa Ha npax (CaCO3) Hn cHnKaT (BepMnkyIIT). CneToBa 3aTBopeTe Kanaka xepMeTueckn n CbXpaHaBaIte KOHeIeHa daJeve ot 3anaJIIMn ra3OBe, TeuHOCTn nn npEdMeTH.
H3XbBpIeTe KOHTeHepa BbBaIIra Hilti Store nIc cBbpxTe C MeCTHaTAKOMnHn 3a ynpabHeHn Ha OTnAdbu. Cna3BaIte MeCTHITpe pa3npoe6n 3a nobpeHn akymyIaTOPn!

IobedeHne npn Beue hepaboTeu n akymyNatOpn

BHMaBaTe 3a HeoBuAioHO NOBeHHe Ha aKymNaTopa KaTo HnPaBnHO 3apeJaHe, HeoBuAioHO bIbn BpeMeHa Ha 3apeJdaHe, 3abeJeKm CnaB MoUHocTa, HeoBuAia Ha AKTHNBOCT Ha CBETODnOda nn n3TnuAe Ba TeuHocTn. Toba ca HnDnKaun 3a HauHne Ha BbTppeWeH npo6Jem.
Ako npednonarate,ye HMa npo6nem C BbTpewHnAkyMylaTOp,CbbpKeTe ce cbc cepBn3 Ha Hilti.
Ako akyMynatopbT cnpe da pa60TH, Beue He MoKe Da ce 3apeKda HnN aKO n3TuHa TeuHocT, Tp8Ba da ro n3xBpInTe. BnK Pa3denn POndpBkKa n TpeTpnahe Ha otNaDbun.

Mepkn npn ropaakymynatop

PNEyPEXDEHNE

Onachoct ot noxap Ha akymnatopa! Pn noxkap B akymnatopa ce OTdienr T onachn EKCnIO3NBHn TeuHOCTn n napn, KOeTO MOKe Da DOBeJe Do Kopo3NOHHyBpeJDAHn, n3rapRn Hn EKCnIO3nn.

Hocete cpeCTBaTa cn 3a nepcoHaHa 3auHtA, KOrato racnte ropua akyMynaTOp.

OcnrypeTe noDxOJaBa BeHTnlaa, KOrTO n03BOJBa Da ce n36eHrTa ONaCHN I NOTeHuaHNO ekCnIO- 3NBn rA3OBe.
Pn HHTeH3NBHO pa3npocTpaHeHne Ha dIM HanycheTe He3a6aBHO NOMeJeHHeTO.
Pn npa3He He Ha dHexaTeHHTe TbTnua ce KOHCyTnpaIe C nekap.
- IOBnKaIte Ha nOMOu NOKaHata KOMHa IpeN da 3anoHHe OINr 3a raceHe.
FaceTe ropAunr akymyIaTOp cAmO C B0Da OT Bb3MOxHO Ha-ROJMo pa3CToRHe. IpaxOBtne noXapo-racHTeHn I npOTNBONOKapHnte OdeHna Ca HeeFekTHBHN 3a JInTHeBO-IOHHn AkymyIaTOpn. Ha OKOHnTeNoXapn MoKe Da ce IpOTNbOeIcTBa C KOHBeHcNHOHaJIHn CpeIcTba 3a raceHe.
He ce onntbaite da npemectbate rolemn kolnuectba ropau n akymynatopn. Octpahe Te BCuKHe3acerHaTn MaTePnAnN OT Hau-6nn3kata OKonHa cpeDa, 3a Da H3OnnpaTe 3acerHaTne akymynatopn.

B cnyuai, koroato akymylaTopnte He ce oxlaqat, nyuata Hnn ropr:

B3eMeTe akymyIaTopa c nonata n ro xbbpneTe B kOpa c BOda. OxnaJdaUTo Bb3JeCTBHe orpaHnuaBa pa3npocTpahEnHeTo Ha noKapa Bbpxy akymyIaTopH N KNeTKn, KOnto BCE Oue He ca DoctnHaNk PHTuHaTa Tempepatya Ha 3anaIbaHe.

OCTaBeTe akymyIaTopa B Kofo 3a Hau-MaIko 24 Yaca,doKaTo ce OxnaIHaHbJIHO.
BnK Pa3dien NobeHne npn nobpeHn akymyataOpn.

ДаHHn 3a TpaHcNopt n CbXpaHeHne

EkncnloaatauOnHa temnepatypa Ha OKoJHaTa cpea MeKdy -17°C n +60°C / 1°F n 140°F.
TeMnepaIpyaHa cxbxpaHeHne MeKdy-20°C n +40°C / -4°F n 104°F.
He cbxpaHbAaTe akymyIaTOPte B 3apHdHOTO yCTPOiCTBO. CneI 3apeKdahe BnHaRn n3BaJdaIte akymyIaTopo ot 3apHdHOTO yCTPOiCTBO.
IIO Bb3MOKHOCT CbXpaHbAaTe akymyIaTOPte Ha XnaHIO n cyxo MAcTO. CbXpaHeHneTo Ha XnaHOMACTO yDblNkaBa JHBota Ha akymyIaTOPa. HNKora Ha ocTabaHte akymyIaTOPte Ha cTbHcE, BbpxOToPJIteHNu YpeDNn nn 3aD CTbKla Ha npo3Opu.
- Akymyatape He Tp6Ba Da ce n3npaat no noata. CbpxKeTe ce cbc cnepntopka hnpma, aoknckate da n3npaate nobpeHn akymyataopn.
Hnkora He tpaHcnopTnpaTe akymyNaTopnTe B HacnHb CbctOAHne. Pnp TpaHcnopTnpaHe akymyNaTopnTe Tp6Ba Da 6bDaT 3aunTeHN OT ppeKomepn Yuapn N Bn6paunn N 3oJnPaHn OT BCraKaBn npoBoJauMATEpHaJIu HIN dpYn AkymyNaTopn, 3a Da He ce OcbIeCTBN KOHTc C dpyrN nonIOCh Ha 6aTePNn I da Ce H36BerHe KbCo CbeDInHeHne. Cna3BaIte MeCTHnE pa3npoe6n 3a TpaHcnopTnpaHe Ha akymyNaTopn.

Iopdpbcka H TpeTnpaHe Ha otnaDbu

• IopdtpkaTe akyMylatopa uHCTn HHe3aMbpcen OT Macna n Cma3Kn. H36rBaTe HeHyKeH npax nn 3ambpcBaHnB bpxy akyMylatopa. NocntBaTe akyMylatopa cbc cyxa, MeKa YetKa C BlaCnHKn nn C cHCTa, cyxa Kbpna 3a NoocntBaHe.
  He pa6oTe c akymyntopap npn 3anyuene HBeHTnlaucnoHHN OTbOpn. NocCTBaIe BeHTnlaucnoHHnTe OTbOpn BHNMaTeJIHO Cbc Cyxa, Meka YetKa.
  He donyckaite nonadaHTo Ha yKdTea BbB BbTpueHocTtA.
  He donyckaTe npoHnKBaHeTo Ha BlaRa B aKymaIaTopa AkoB aKymaIaTopa e npoHnKHana Blaara, TpeTnpaTe CbUra KaTO NOBpeDeH aKymaIaTop H To N3OlnpaTe B He3anAIm KOHTeHep.

BnK Pa3JeI NobeHHe npn nobpeHn akymlaTopn.

Iopadn HnpabnHNO 3xBpJHe MOKe Da Bb3HKnHe onaCHOCT 3a 3dpaBeTo npn H3nn3aHe Ha ra3OBe nn TeuHOCTn. N3xBpNe akymnatopa BB Baun Hilti Store nn Ce CBpKTe C MeCTHaTakOMpaHn 3a ynpablenHe Ha OTNaDbnte.Cna3BaTe MeCTHne pa3nope6n 3a nobpeHn akymnatOp!
He n3xBbplnTe akymylatopn 3aedno c bntobn otnaDbu.
H3xBbPnIe aKymaTopne No TaKbB NaHH, Ye da He Morat da nonaHaT B pbcTe Ha deua. POKPBaNte Bp3knte C HnpoBOHM MaepnA, 3a Da N36erHete KbcN CbeDInHeHH.

Manual de'utilizare original

1 Date referitoare la manual de'utilizaré

1.1 Referitor la'acest manual deutilizare

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	x	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	x	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明.)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572.X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	x	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	x	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572.X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. "-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger

Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Autoc o nivakac ixue yia tyn ayopac KivaC.

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Autoc o nivakac ixue yix tyv ayopox Tc Taibv.

C 8-22 (01)

RoHS (oynia yia tov nepioppo Tc xponc emkivuvw ouaiow)

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	x	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	x	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Autoc o nivakac ixue yia tyn ayopac KivaC.

用物質含有情況標示聲明書

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. "-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Autoc o nivaKac 1oxue yix axopaxo Tc Taibv.

13 EAnovaoopntzouevc matapiec Li-Ion Hilti

Ynoeic yia thv oopaleix kai tn xpon

TnV TApouoA TeKunpiwn, XpnoiOnoiEitai o opoc Etnavaoopntioevn mataipia yia eTnvaopoptioevec mataapiec Li-Ion TnC Hilti, otic onoiec ivai auovodoevec nepiaotepc kupeae Li-Ion. PooopiOvrai yia nEktpiké npaaelia Hilti kai emiptetai va xnpaipoioiouvtai movo pe auta. XpnoiOnoiite movo yvnaies c npavaopptioevec mataapiec Hilti!

Nepiypao

OeTavopTcpevesmuatapies Hilti elvai Egonlaueves ouotnmaata diaxepionc kai npootaoia KUeaw.

OeTavaoptioevecmuatapieacntoaleouvtai ano kupeae, nou Tepexouv uikoxuuaawpeunocivtow Ailou, ta onoi aenipentouv ia uynn ebioknv evpyiaekn mukvotnta. Okupeae Li-on unokivtoa e Evaa nou kpo qanovoe vnuuc, avtibpouv oomega e nou ueyaln euaotheoi a e nippaon biac, baoiak EKpoption n uynlcs eepokpaoiesc.

Ta npoiovr taou evai ekyekpiieva yia eanovopotizoevec mataxie Hilti Ta Bpeite oTo Hilti Store n otn diuuvon: www.hilti.group

AoopaAeia

PooEET Tc akoloue c unoBleic aopaaieac yia ToV aoopaan Xepiio Kai Tn xphon enava- oapticoeuv matapiov Li-Ion. Ano TuXov npapbaevn mOpel va POKAnBoov depaTikoi epeiogoi, 0oBapoi biapwIKoi TpaUauatiauoi, xNuiKx EYkaUaTa, /kai EKnEeic.
Xeipicote oxoaootik ta navaopoptioevc matapiec, ia v a anopuyte tneuiie kai tnv eEdo uypov nou embaow yia tyn uyia oac!
EITIeTtai e Kuaia nepiTTwn n tatponn n npatooin Tw v aopoptoevw mataipov!

ev EITIeTAtv aTOoUAPoAOyEITE, vO uumieTe, vO ePuaiveTe naww anTo Touc 80^ n va Kaite TIC eTavoxopotIOeveEc mTApieC.
MnV xnoiopoioite n ophiTeE eTavaooppticouvec uatapiec, o onoie cexouv dextei xTuTnua ixouv unoatei zmuiae biapotikto pOIO. EeyxTe TAKTIa TIC eTavaooppticouvec matapiec yia anuadix zmuiaes.
Mynxnpoipoiote note avakukwuevesc n EIOKEuaauevee eTAAVAPOpTizouevcmuatapiies.
Mnv xnpoiouoiei Tnv eTavoxoaptioevn mataipia n eva eTavoxoptioevo nektpiko epyaaio notc Kpouatik oepyaaio.
Mnv EKHTETNE TIC ENAOXOPOTICOVECmuTAPIECS OE aEONnAIAKn AKTIVoBOLa,auENeVn 3epoKpaia, OIVHpeC n yuuec PfoE. MnpEi va npokAnBov ekpEic.
MnV aountte Tou nolouc tnc mntatpiac me ta dxtua, me epyaia, kogunmuata n alaa nEeKtpia axwyim avtikieva. Etai mtopei va npokan thei ngia otnv enavapoptioevn mtaipia, kaohc kai ulikec ngie c kai troauuataoai.
Kpatae Tc eTAAovapopticvec mtaopie cakpi a npoxn uypaa Kai uypaH Eiaxwnuypaaic mtopei va pokalaei bpaxukukwata, nektponlqia, ykaumat, qwi kai ekpneis.
Xpnaioioite MVO Touc optotc KAI ta nAekptik aepyaaia Tou npoBtovrai yia autov tov tTOIaTAPiAc. PooEgTe axetik ta oToixia otic avtoioxc odnyie xphnC.
Mynxnpoioite n ao0nkeu e Te n y enovopotcmev n atopiae ekpiia npiabaaovta.
Eav n mntapia kaii utepoikot av tykouptate, evexetai vexu untoei zmu.Toontheta tny uataipia oe vxa onueio oto onolo exete opatotnta, m euokto kai e npakn aootaan aTo eukkta uik. Ane Tnv enavaopotizoevnn uataipia va kpuwoei. Eav n mntapia eakolouesi va kaii utepoikot metao ano miawpaa otav ny akoupiata, toe exui untoei zmu.Akoauote tic odnyies cto kepaalao Metrae ne pintwn qwioc envaopotizoevnc mntatipiac.

Ueepipopoeepintwn enavaoaptioevwuvntapiov nou exouv unootei nia

Anuovte navto oepic nHilti,otuv unooet i niia evaopoptoevn matapia.
MnV npoiouoeite iia eTavoxoepntzoeyn mTalpha, anTo nvo onoia eEepetai uypo.
AnopuyETnV aueon eTaoTou eEepxoevou uypou m ta tia n/kai T o depua. OpatTe npovtntuETUKa yavTIA kai yuaAia katoyn epyaia m uypa nataipwv.
Xpnaioioiote evxnnikok kaoipoiévo yiautov tov oKo, ia vaoaoukpuve Ta Eepoxeva upa aatapiw. Aβete unoyn Tc tonike diataeic kaoipiou ia uypa natapiow.
ToTNOeTHoTe TIV eAATTWUATIKn EINAVXOPOTIQeVn MTAPOIA eEVA m EUPAEKTO DoxEIO KAI KAALUyTE TIV ME OTEYvN amuo, KIomega (CaCO3) n npuTIKO aac (Vermiculit). KLeiote OTn ouvExia epuntikto KaTAKI KAI quAaTe To DoxEio paKpiα ano EUPAEkTa aepia, uypn avtikleEvA.
Anoppiye To doxio oTo Hilti Store n aneunovthe tny apodia enixepion dio thec anoppiuaw. Aae TIOUyn TIG TONIKec npodiaypaopec metapopac yia e naovapoptizoeves matapiec nou exouv unooTei Znui:

Sigmaepiopaxeavaoxopotizoevec matapieoc nou dev eitoupyouv neov

PooEe Eav unapxie aphiakn ouinepipopax nC eanovopntioevnc matapiaoc, oWc λavthetaevn foption n aouvnbiotaaeyaloi xpovoi foptianc, aiogtnn meiwn tnc andoanc, aouvnbiotec evdeIeic LED n Eeepxóvea uyα. Autα elvai evdeIeic yia eowtepiKIO npβλμα.
Eav unoiocote otunapxei eowtepiok npoBnau stnv enovxopotcoueyn nataipia, aenuuvtheite oTo aepis tns Hilti.
Eav dev aeitoupyei n eov n eivavopoticiouevn mataipia, ev popti neeov n enavopotcoupvni mataipia n eepxetai uypo, npentie v a tnv tetae. BAEIE KEPAAIO SuVTnpon kai dioeon cTAtoppipmuat.

Ariza Olasi sebepler Çozüm

LED yanım;yor. Şebeke fişi®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®. LED yanım;yor. Şebeke fişi®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®, ®. LED yanım;yor. Şebeke fişi®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®. LED yanım;yor. Şebeke fiçi®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®, ®. LED yanım;yor. Şebeke olusi, Şebeke olusi®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,©. LED yanım;yor. Şebeke olusi, Şebeke olusi®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®. LED yanım;yor. Şebeke olusi, Şebeke olusi®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®,®, ®. LED yanım;yor. Şebeke olusi, Şebeke olisi, Şebeke olisi®. LED yanım;yor. Şebeke olisi, Şebeke olisi®. LED yanım;yor. Şebeke olisi, Şebeke olisi®. LED yanım;yor. Şebeke olisi, Şebeke olisi®. LED yanım;yor. Şebeke olisi, Şebeke olisi®. LED yanım;yor. Şebeke olisi, Şebeke olisi®. LEDA: 100% of the products in this study are from the US. All rights reserved.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C6-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	○	○	○	○	○	○
橡胶脚Rubber foot	○	○	○	○	○	○
电子元件(PCBs)Electronics (PCBs)	×	○	○	○	○	○
螺钉Screws	○	○	○	○	○	○
电气连接线Wiring	○	○	○	○	○	○
电池接口Battery interface	○	○	○	○	○	○
电源接口包括插头Supply cord incl. plug	×	○	○	○	○	○
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 6-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3."-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.

Hazardous substances material disclosure according to SJ/T 11364-2014

Product type: Battery Charger
Products: C8-22 01

零件名称Part name	有害物质Hazardous substances
	铅Lead(Pb)	汞Mercury (Hg)	镉Cadmium (Cd)	六价铬Hexavalent Chromium (Cr (VI))	多溴联苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
壳体Housing	0	0	0	0	0	0
橡胶脚Rubber foot	0	0	0	0	0	0
电子元件(PCBs)Electronics (PCBs)	x	0	0	0	0	0
螺钉Screws	0	0	0	0	0	0
电气连接线Wiring	0	0	0	0	0	0
电池接口Battery interface	0	0	0	0	0	0
电源接口包括插头Supply cord incl. plug	x	0	0	0	0	0
以下表格均依据SJT 11364通则制定。0:表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572标准规定的限量要求以下。X:表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572标准规定的限量要求。(企业可基于其实际情况在包装箱内提供“X”标识的详细技术说明。)The following tables are prepared in accordance with the provision of SJT 11364.O:Indicates that said hazardous substances contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572X:Indicates that said hazardous substances contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.(Enterprises may further provide in this box technical explanation for marking “X” based on their actual circumstances.)

Declaration of the Presence Condition of the Restricted Substances Marking

設備名稱:Equipment name:	Battery Charger型號(型式):Type designation:C 8-22 01
單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead (Pb)	汞Mercury (Hg)	鎘Cadmium (Cd)	六價鉻Hexavalent Chromium (Cr (VI))	多溴聯苯Polybrominated biphenyls (PBB)	多溴二苯醚Polybrominated biphenyletherts (PBDE)
殼體Housing	0	0	0	0	0	0
橡膠腳Rubber foot	0	0	0	0	0	0
電子產品(PCB)Electronics (PCBs)	-	0	0	0	0	0
螺釘Screws	0	0	0	0	0	0
電力連接線Wiring	0	0	0	0	0	0
電池接口Battery interface	0	0	0	0	0	0
電源接口包括插頭Supply cord incl. plug	-	0	0	0	0	0
備考1. "超出0.1wt%"及"超出0.01wt%"像指限用物質之百分比含量超出百分比含量基準值。Note 1:"Exceeding 0.1wt.%and exceeding 0.01wt%" indicate that the percentage contain of the restricted substance exceeds the reference percentage value of presence condition.備考2. "○"係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2:"o"-indicates that the percentage contain of the restricted substance does not exceeds the percentage of reference value of presence.備考3. "-"係指該項限用物質為排除項目。Note 3:The "-"indicates that the restricted substance corresponds to the exemption.
