Product type	Diamond drill bit set
Brand	Parkside
Model	PDBK 3 A1
Usage	Dry drilling of porcelain, granite, marble, stoneware, tiles and similar materials
Available diameters	HG08259A: 30 mm, 68 mm; HG08259B: 18 mm, 22 mm, 27 mm, 35 mm; HG08259C: 45 mm, 53 mm
Maximum rated speed	13300 rpm
Working depth	Approximately 35 mm
Compatible materials	Porcelain, granite, marble, stoneware, tiles
Mounting	Attaches to an angle grinder with M14 thread using a tightening wrench
Safety	Wear hearing protection, gloves, goggles, dust mask; read the angle grinder instructions
Package contents	Depending on variant: 2 or 4 diamond drill bits
Maintenance	Clean debris after drilling with a pencil or screwdriver
Warranty	Legal warranty of conformity (2 years) and warranty for hidden defects
Spare parts	Available during the warranty period
After-sales service France	Tel.: [phone], Email: [e-mail]
After-sales service Belgium	Tel.: [phone], Email: [e-mail]
Disposal	Recyclable packaging; product to be deposited at a waste collection point

Frequently Asked Questions - PDBK 3 A1 PARKSIDE

How to install the diamond drill bit on the angle grinder?

Loosen the grinder nuts counterclockwise. Tighten the drill bit clockwise using a tightening wrench. Ensure it is securely fastened to prevent detachment.

What materials can I drill with this diamond drill bit?

It is designed for dry drilling of porcelain, granite, marble, stoneware, tiles and other similar materials.

What is the maximum recommended speed?

The maximum rated speed is 13,300 rpm. Do not exceed this speed to avoid damaging the product.

What is the maximum drilling depth?

The working depth is approximately 35 mm.

How to avoid overheating the drill bit during drilling?

Turn the angle grinder in circular motions during drilling. This distributes heat and prevents overheating.

What protective equipment should I wear during use?

Wear hearing protection, protective gloves, eye protection and a dust mask. Also read the angle grinder instructions.

How to clean the drill bit after use?

After drilling, remove debris with a pencil or the tip of a screwdriver.

Can I use this drill bit with a regular drill?

No, this product is designed exclusively for use with an angle grinder equipped with an M14 thread. Do not use it on a drill.

What is the warranty period?

The legal warranty of conformity is 2 years from delivery. The warranty against hidden defects also runs for 2 years after the defect is discovered.

How to contact after-sales service?

In France, call 0800904879 or email [e-mail]. In Belgium, call 080071011 (Luxembourg: 80023970) or email [e-mail].

USER MANUAL PDBK 3 A1 PARKSIDE

Assembly, operating and safety instructions

NE BE

DIAMANT-BOORKRONEN

GB/IEAsembly,operating and safety instructions Page 16

(18 mm/22 mm/27 mm/35 mm)

(HG08259B)

2Diamant-Bohrkronen

(45 mm/53 mm) (HG08259C)

- Technische Daten

Intended use Page 19

Scope of delivery .......Page 19

Technical data .........Page 20

Safety notes......Page 21

Use Page 22

Disposal... Page 23

Service... Page 25

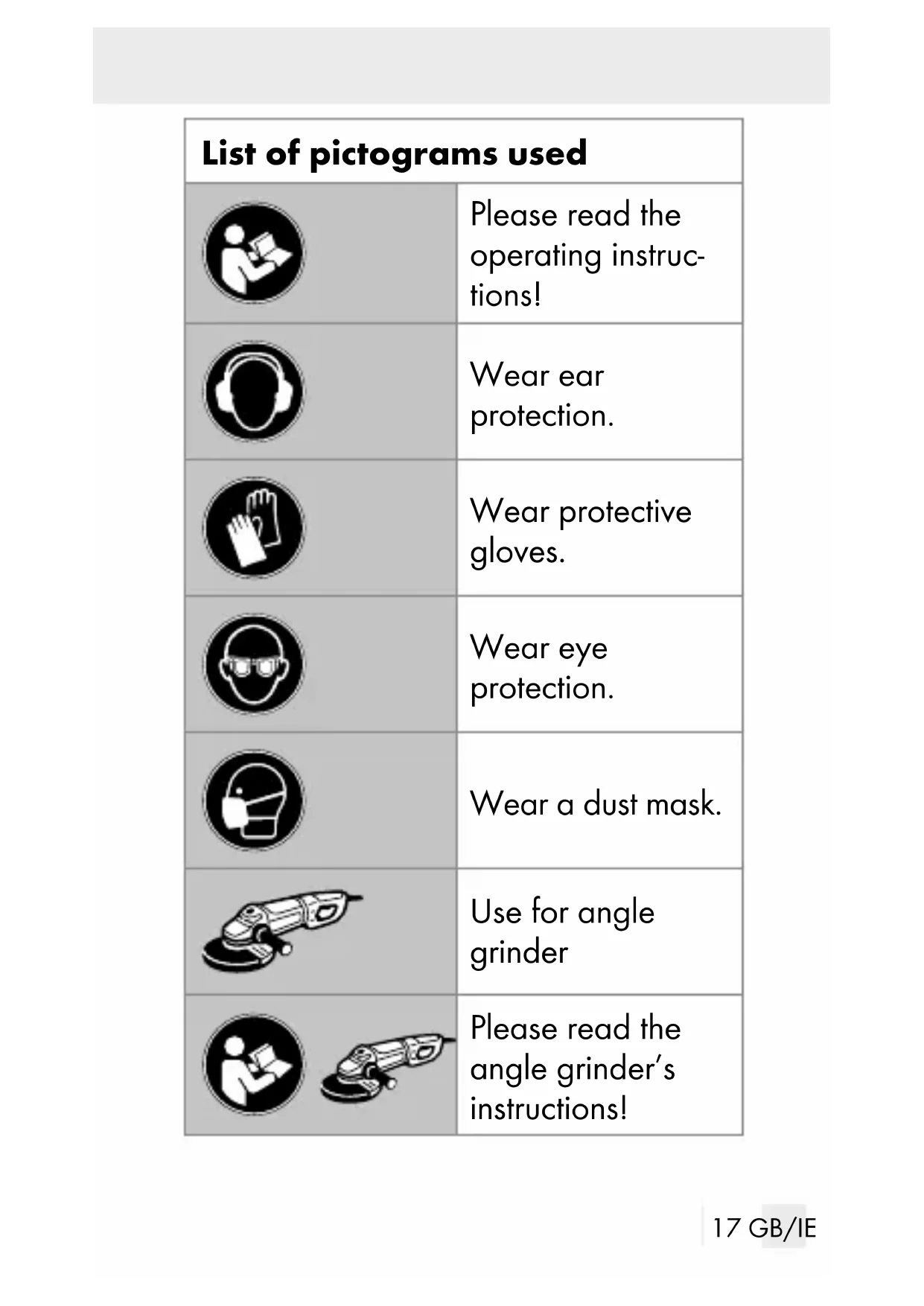

List of pictograms used
	Please read the operating instructions!
	Wear ear protection.
	Wear protective gloves.
	Wear eye protection.
	Wear a dust mask.
	Use for angle grinder
	Please read the angle grinder's instructions!

List of pictograms used

Safety information Instructions for use

Diamond drill bits

Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality

product. Familiarise yourself with the product before using it for the first time. In addition, please carefully refer to the operating instructions and the safety advice below. Only use the product as instructed and only for the indicated field of application. Keep these instructions in a safe place. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

The product is designed for use with common angle grinders with an M14 mount for dry drilling (HG08259A/HG08259B: for dry drilling porcelain, granite, marble, bricks and all similar materials, HG08259C: for dry drilling porcelain stoneware, granite, marble and similar materials). This product is intended for private household use only and is not suitable for commercial use.

Marble /

ite /

Porcelain stoneware

- Scope of delivery

2 Diamond drill bits

(30mm/68 mm) (HG08259A)

4 Diamond drill bits

(18 mm/22 mm/27 mm/35 mm)

(HG08259B)

2 Diamond drill bits (45 mm/53 mm) (HG08259C)

- Technical data

Diameter: 30 ~mm / 68 ~mm (HG08259A), 18 ~mm/ 22 ~mm / 27 ~mm / 35 ~mm (HG08259B), 45 ~mm/ 53 ~mm (HG08259C)

Max. rated rotation speed: 13300 rpm Working depth: approx. 35mm

Diameter Cutting speed
18 mm 12.5 m/s
22 mm 15.3 m/s
27 mm 18.8 m/s
30 mm 20.9 m/s
35 mm 24.4 m/s
45 mm 31.3 m/s
53 mm 37.0 m/s
68 mm 47.4 m/s

Safety notes

WARNING!

DANGER OF DEATH AND ACCIDENTS FOR

TODDLERS AND CHILDREN!

Never leave children unsupervised with the packaging material. The packaging material represents a danger of suffocation. Children frequently underestimate the dangers. Please keep children away from the product at all times.

This product is not a toy and should not be played by children. Children are not able to understand the dangers that can occur when handling this product.

• Keep your working area clean and well lit. Untidy or poorly lit working areas can lead to accidents.
  When using the angle grinder with the product, turn it in a circular motion to prevent the product from overheating (fig. D1).
  Always hold the angle grinder with both hands when using it to ensure stability when drilling (fig. D2).
  Make sure that the angle grinder itself can be used with a diamond drill bit.

Use

• Secure material to be drilled/the workpiece with clamp on working table (fig. A).
  Unscrew nuts anti-clockwise from angle grinder (fig. B).
  Install the product clockwise to the angle grinder using wrench. Always

use wrench to tighten the product to prevent it from loosening (fig. C).

• Keep turning the angle grinder in a circular motion to prevent overheat of the product during drilling the hole, otherwise, the product may become damaged (fig. D).
  □ After drilling, turn off the angle grinder before pulling it out of the previously drilled hole (fig. E).
  Remove the product from the angle grinder by turning counterclockwise with a wrench (fig. F).
  □ If there is dirt on the product after drilling, remove it, e. g. using a pen or the tip of a screwdriver (fig. G).

Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

The product and packaging materials are recyclable, subject to extended manufacturer responsibility. Dispose it separately, following the illustrated packaging symbols, for better waste treatment. The Triman logo is valid in France only.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.:[phone]

E-Mail: [e-mail]
