USER MANUAL PBSPA 12 B2 PARKSIDE

• Service Schweiz Tel.: 0800 56 44 33 E-Mail: grizzly@lidl.ch IAN 392982_2201 Importeur Bitte beachten Sie, dass die folgende Anschrift keine Serviceanschrift ist. Kon- taktieren Sie zunächst das oben genannte Service-Center. Grizzly Tools GmbH & Co. KG Stockstädter Straße 20 D-63762 Großostheim GERMANY www.grizzlytools.de18 GB MT Content Introduction p. 18

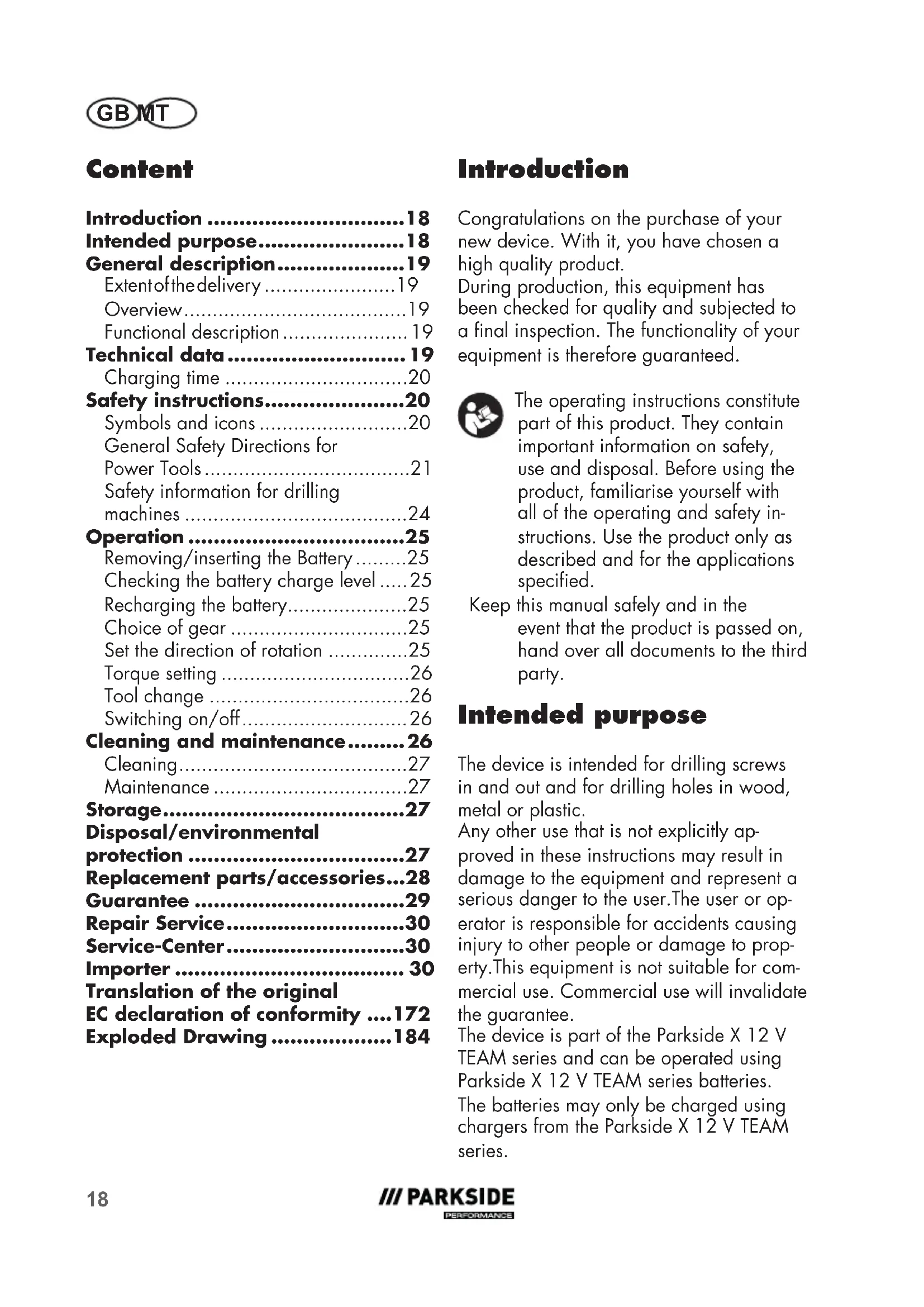

• Intended purpose p. 18
• General description p. 19
• Extent of the deliver y p. 19
• Overview p. 19
• Functional description p. 19
• Technical data p. 19
• Charging time p. 20
• Safety instructions p. 20
• Symbols and icons p. 20
• General Safety Directions for Power Tools p. 21
• Safety information for drilling machines p. 24
• Operation p. 25
• Removing/inserting theBattery p. 25
• Checking the battery chargelevel p. 25
• Recharging the battery p. 25
• Choice of gear p. 25
• Set the direction of rotation p. 25
• Torque setting p. 26
• Tool change p. 26
• Switching on/off p. 26
• Cleaning and maintenance p. 26
• Cleaning p. 27
• Maintenance p. 27
• Storage p. 27
• Disposal/environmental protection p. 27
• Replacement parts/accessories p. 28
• Guarantee p. 29
• Repair Service p. 30
• Service-Center p. 30
• Importer p. 30

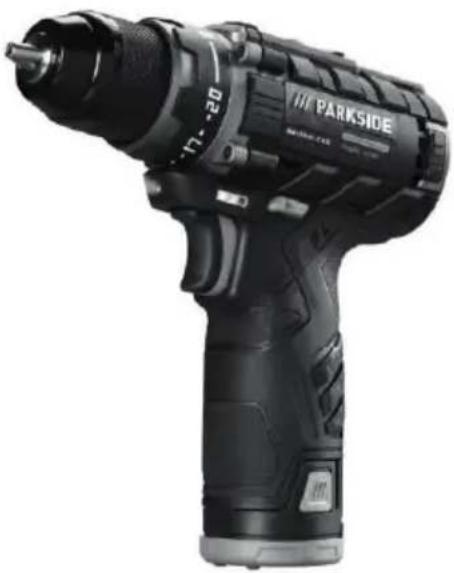

• Introduction Congratulations on the purchase of your new device. With it, you have chosen a high quality product. During production, this equipment has been checked for quality and subjected to a nal inspection. The functionality of your equipment is therefore guaranteed. The operating instructions constitute part of this product. They contain important information on safety, use and disposal. Before using the product, familiarise yourself with all of the operating and safety in- structions. Use the product only as described and for the applications specied. Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party. Intended purpose The device is intended for drilling screws in and out and for drilling holes in wood, metal or plastic. Any other use that is not explicitly ap- proved in these instructions may result in damage to the equipment and represent a serious danger to the user.The user or op- erator is responsible for accidents causing injury to other people or damage to prop- erty.This equipment is not suitable for com- mercial use. Commercial use will invalidate the guarantee. The device is part of the Parkside X12V TEAM series and can be operated using Parkside X12VTEAM series batteries. The batteries may only be charged using chargers from the Parkside X12V TEAM series. Translation of the original EC declaration of conformity p. 172
• Exploded Drawing 9 GB MT General description An illustration of the most im- portant functional components can be found on the fold-out page. Extent of the delivery Carefully unpack the appliance and check that it is complete: - Cordless Drill - 7 wood drill bits (3/4/5/6/7/8/10mm) - 25-part bit set - Storage box - Battery - Charger - Instruction Manual Overview 1 Keyless drill chuck 2 Torque adjustment ring 3 Speed selector 4 Direction of rotation switch 5 Battery 6 Battery release button 7 Handgrip area 8 On/off switch 9 Battery Indicator 10 LED working light 11 Drill chuck aperture 12 Bit holder 13 Bits 14 Wood drill bits 15 Storage bag 16 Charger Functional description The cordless drill with two-speed gearing has a 20+1 level torque adjustment, left/ right running, and an LED working light. Please refer to the descriptions below for information on how the operating elements work. Technical data Cordless Drill p. 1841
• PBSPA 12 B2 Motor voltage U V Idling speed n p. 12

Maximum torque ..........................35 Nm Span-chuck ............................ 0.8-10 mm Weight (with batter y) .... approx. 0.945 kg Weight (accessories only) .. approx. 1.3 kg Drilling capacity for wood .....max. 19 mm Sound pressure level

= 5 dB Sound power level

Temperature.......................... max. 50°C Charging process .................. 4 - 40°C Operation ..........................-20 - 50°C Storage ................................ 0 - 45°C Battery ........................................... Li-Ion The specied total vibration value and the stated noise emission value have been measured according to a standardised test method and can be used to compare one power tool with another. The specied total vibration value and the stated specied noise emission value can also be used for a provisional assessment of the load.20 GB MT

The vibration and noise emissions may deviate from the specied val- ues during actual use of the power tool, depending on how the power tool is being used and, in particu- lar, what kind of material is being worked on. Safety measures for the protection of the operator are to be determined that are based on an estimate of the actual vibration load under the real operating conditions (for this, all parts of the operating cycle are to be taken into account, for example, times in which the electric tool is turned off, and those during which it is turned on but running without a load). Charging time The device is part of the Parkside X12V TEAM series and can be operated with batteries of the Parkside X12V TEAM series. Batteries of the Parkside X12V TEAM series may only be charged using chargers of the Parkside X12V TEAM series. We recommend that you operate this ap- pliance with the following batteries only: PAPK12 A3; PAPK 12 B3; PAPK 12 D1. We recommend charging these batteries with the following chargers: PLGK12A2; PLGK12A3; PLGK 12 B2, PDSLG 12 A1, PDSLG 12 A2. An up-to-date list of battery compatibility can be found at: www.lidl.de/akku Charging time (min) PAPK12A1 PAPK12A3 PAPK12A2 PAPK12B1 PAPK12B2 PAPK12B3 PAPK12D1 PLGK12A1 60 60 120 150 PLGK12A2 60 60 120 150 PLGK12A3 60 60 120 150 PLGK12B2 30 45 60 80 PDSLG12A1 PDSLG12A2

Safety instructions Ensure that the safety instructions are ob- served when operating the appliance. Symbols and icons Symbols on the appliance: Carefully read these operating instructions. Charge level indicator Drilling Electrical appliances must not be disposed of with the domestic waste. Symbols on the accessories: Wear safety goggles21 GB MT b) Do not operate power tools in explosive atmospheres, such as in the presence of ammable Iiquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) ELECTRICAL SAFETY

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodi- ed plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and re- frigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pull- ing or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operation of the power tool in a damp environment is unavoid- Wear hearing protection Wear a face mask Symbols in the manual Warning symbols with in- formation on damage and injury prevention Hazard symbol with infor- mation on the prevention of personal injury caused by electric shock Instruction symbols with information on preventing damage Help symbols with information on improving tool handling General Safety Directions for Power Tools WARNING! Read all safety notices, instructions, illustra- tions and technical data that have been provided with this power tool. Omissions in the compliance with safety directions and instructions can cause electrical shock, re and/or severe injuries. Retain all safety directions and instructions for future use. The term „power tool“ in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool).

a) Keep work area clean and well lit. Cluttered or dark areas invite ac- cidents.22 GB MT able, please use a residual cur- rent circuitry. The use of a residual current circuitry reduces the risk of an electric shock.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the inu- ence of drugs, alcohol or medi- cation. A moment of inattention white operating power tools may result in serious personal injury. b) Use personal protective equip- ment. Always wear eye protec- tion. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appro- priate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off- position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your nger on the switch or energising pow- er tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the pow- er tool on. A wrench or a key left at- tached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If dust extraction and collection devices can be installed, make sure that these are connected and used correctly. Use of dust collection can reduce dust-related haz- ards. h) Do not allow yourself to be lulled into a false sense of se- curity and do not disregard the safety rules for power tools, even if you are familiar with the power tool after using it many times. Careless action can lead to serious injuries within a fraction of a second.

4) POWER TOOL USE AND CARE

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Remove the plug from the wall socket and/or remove the re- chargeable battery before you change the device’s settings, change accessory parts or put away the power tool. Such pre- ventive safety measures reduce the risk of starting the power tool accidentaIly. d) Store idle power tools out of the reach of children and do not al- low persons unfamiliar with the power tool or these instructions to operate the power tool. Power23 GB MT tools are dangerous in the hands of untrained users. e) Look after the power tool and application tool carefully. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less Iikely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working condi- tions and the work to be per- formed. Use of the power tool for op- erations different from those intended could result in a hazardous situation. h) Keep handles and grip surfaces dry, clean and free from oil and grease. Slippery handles and grip surfaces do not permit safe operation and control over the power tool in un- expected situations.

a) Charge the batteries only in chargers that are recommended by the manufacturer. Risk of re if a charger that is suitable for a specic type of battery is used with other bat- teries. b) In the power tools, use only the batteries designed for the pur- pose. The use of other batteries may result in injuries and risk of re. c) Keep the unused battery away from paper clips, coins, keys, nails, screws and other small metal objects, which could cause bridging of the contacts. A short circuit between the battery contacts may cause burns or re. d) If used incorrectly, liquid may leak from the battery. Avoid contact with this. In the event of accidental contact, rinse off with water. If the liquid gets into eyes, seek medical assistance. Leaking bat- tery uid may cause skin irritations or burns. e) Do not use damaged or altered batteries. Damaged or altered batter- ies can be unpredictable and lead to re, explosion or risk of injury. f) Do not expose batteries to re or elevated temperatures. Fire or temperatures over 130°C can cause an explosion. g) Follow all instructions for charg- ing and never charge the bat- tery or the battery-powered tool outside the temperature range stated in the operating instruc- tions. Incorrect charging or charging outside the permitted temperature range may destroy the battery and in- crease the risk of re.

a) Have your power tool serviced by a qualied repair person us- ing only identical replacement parts. This will ensure that the safety of the power tool is maintained. b) Never repair damaged batter- ies. All battery repairs should be car- ried out by the manufacturer or author- ised customer service centres only.24 GB MT Safety information for drilling machines

1) Safety instructions for all work

a) Hold the appliance by the insu- lated gripping surfaces when performing work in which the tool may come into contact with hidden wiring. Contact with a live wire can also cause a charge in metal parts of the appliance and result in an electric shock. b) Do not use any accessories that are not recommended by PARKSIDE. This can result in electric shock or re.

2) Safety information for using

long drills a) Do not work at a speed higher than the maximum permissible speed for the drill. Higher speeds can cause the drill to bend slightly when rotating freely without contact with the workpiece and can also cause injury. b) Always begin drilling at a low speed and when the drill is in contact with the workpiece. Higher speeds can cause the drill to bend slightly when rotating freely with- out contact with the workpiece and can also cause injury. c) Do not apply excessive pressure to the drill. Only apply pressure lengthwise along the drill. Drills can bend and break or cause a loss in control, thus resulting in injuries.

Even if properly operating and handling this electric tool, some residual risks will remain. Due to its construction and build, this electric tool may present the following hazards: a) Cuts b) Ear damage if working without ear pro- tection. c) Damage to your health caused by swinging your hands and arms when operating the appliance for longer pe- riods of time or if the unit is not held or maintained properly. Warning! During operation, this electric tool generates an electro- magnetic eld which, under certain circumstances, may impair the functionality of active or passive medical implants. To reduce the risk of serious or lethal injuries, we rec- ommend that persons with medical implants consult their doctor and the manufacturer of their medical implant before operating the ma- chine. Observe the safety informa- tion and notes on charging and proper use as shown in the instruction manual for your battery and charger from the Parkside X12V Team series. A detailed description of the charging process and further information can be found in the separate operating in- structions.25 GB MT Operation Remove the rechargeable battery from the device to prevent accidental operation. Risk of injury! Ensure that the ambient tem- perature does not exceed 50°C or fall below -20°C dur- ing work. Removing/inserting theBattery

1. To remove the battery (5) from the ap-

pliance, press the release button (6) on the battery and pull out the battery.

2. To insert the battery (5), place it on the

guide track and push it into the appli- ance. It will audibly snap in. Checking the battery chargelevel The battery’s (5) charge level is indicated by the charge state indicator (9). The LEDs indicate the battery’s charge level, when the device is in operation. Press and hold the power button (8). red-yellow-green => Battery fully charged red and yellow => Battery half charged red => Battery needs to be charged Recharging the battery Allow a hot battery to cool before charging. Charge the battery (5) when only the red LED on the level indicator is illuminated.

1. Remove the battery (5) from the appli-

2. Insert the battery (5) in the charging com-

partment of the battery charger (16).

3. Plug the battery charger (16) into a

4. Unplug the battery charger (16) from

5. Pull the battery (5) out of the battery

charger (16). Overview of the LED indicators on the charger (16): Green LED illuminated while the rechargeable battery is not inserted: Charger is ready Green LED lights up: Battery is charged Red LED lights up: Battery charging Red LED ashes: Error Choice of gear Slide the gear selector (3) to 1 or 2, corresponding to a low or high torque selection. 1st gear ............................ 0-460 min

A gear change may only be performed in standstill mode! Set the direction of rotation You can select the direction of rotation with the direction switch (clockwise and anti- clockwise direction) and secure the device against accidental start up. The arrow on the direction switch indicates the working direction.26 GB MT

1. Wait for the device to shut-down.

2. Clockwise direction: Press

direction switch (4) to the left.

3. Anticlockwise direction: Press

direction switch (4) to the right.

4. Switch lock: Bring direction switch

(4) to neutral position. The direction changed may only be performed in standstill mode. Torque setting You can preset the maximum torque by rotating the torque adjustment ring (2). 20+1 torque levels are provided.

1. Turn the adjusting ring (2) to select the

desired torque: Step 1 --> lowest torque, Step --> highest torque. Screws: Steps 1 - 20 Drilling: Step

2. Start with a lower torque step and in-

crease according to requirement. Torque adjustment should only be performed in standstill mode. Reaching the preset torque limit pro- duces a noticeable rasping sound. This sound is caused by the slip clutch. Tool change The automatic spindle lock enables the tool to be changed even when the motor is at a standstill.

1. Rotate the keyless chuck (1) towards

RELEASE until the drill chuck aperture (11) is large enough to accommodate the tool.

2. Push the tool as far as possible into the

3. Turn the keyless chuck towards

order to clamp the tool.

4. To remove the tool again, rotate the

keyless chuck (1) and pull out the tool. Switching on/off By using the on/off switch (8) you can progressively control the speed. The longer you push the on-off button, the higher the speed.

1. Press the on/off switch (8) to start the

device. The LED work light (10) lights up during operation.

2. To turn it off, release the on/off switch

(8). The working light (10) remains il- luminated for around 10 seconds after releasing the on/off switch (8). When you move the direction switch (4) to the middle position, the device is secured against being switched on. Cleaning and maintenance Contact our Service Centre about repairs and servicing not described in this manual. Only use OEM parts. Risk of injury! Turn off the appliance and, before doing any servicing, remove the battery. The following cleaning and servicing should be done regularly. This will ensure a long and reliable service life.27 GB MT Cleaning Do not spray the appliance with water and do not im- merse it in water. Electric shock hazard!

• Keep clean the ventilation slots, motor housing and handles (7) of the appli- ance. Use a damp cloth or a brush. Do not use cleaning agents or solvents. You may otherwise irreparably dam- age the appliance. Maintenance The appliance cleaner is maintenance free. Storage

• Store the equipment in a dry place well out of reach of children.

• The storage temperature for the battery is between 0°C and 45°C. Avoid ex- treme cold or heat during storage to en- sure the battery output is not adversely affected. Disposal/environmental protection Remove the battery from the device and re- cycle the device, battery, accessories and packaging in an environmentally-friendly manner. Electrical devices do not belong in domestic waste. Do not throw batteries into domestic waste, re (risk of explosion) or wa- ter. Damaged batteries can harm the environment and your health if poisonous fumes or liquids escape. Directive 2012/19/EU on waste electrical and electronic equipment: Used electrical devices must be collected separately for disposal and recycled in an environmen- tally sound manner. Depending on the implementation in na- tional law, you may have the following options:

• Return to a shop: Food retailers with a total sales area of at least 800 square metres that offer electric and electronic devices multiple times a year or perma- nently and distribute them on the market are obligated to take back old electric and electronic devices at no charge. When handing a new electric or elec- tronic device to an end user, they have to take back an old device of the same kind from the end user that essentially ful- ls the same functions as the new device at the site of handover or in the immedi- ate vicinity at no charge as well as take back up to three old devices per device type with external dimensions no larger than 25 centimetres in the retail shop or the immediate vicinity at no charge without the purchase of an electric or electronic device at the request of the end customer.

• Hand over to an ofcial collection point: Take the device to a recycling plant. The plastic and metal parts used on your de- vice can be properly sorted according to materials and grades and efciently re- cycled. Please contact our service centre for more information.

• Return to the manufacturer/distributor: We will dispose of any defective de- vices that you send to us free of charge. Please contact our service centre for more information.28 GB MT This does not affect accessories enclosed with the old devices or tools without any electrical components. Dispose of the batteries according to local standards. Defective or used batteries must be recycled in accordance with Directive 2006/66/EC. Hand in the batteries at a used battery collection point where they are recycled in an environmentally friendly manner. For more information, please con- tact your local waste management provider or our service centre. Dispose of batteries in a discharged state. We recommend covering the contacts with an adhesive strip to protect against short circuits. Do not open the battery. Replacement parts/ accessories Spare parts and accessories can be obtained at www.grizzlytools.shop If you have issues ordering, please use the contact form. If you have any other questions, contact the ”Service-Center” (see page 30). 1 Keyless drill chuck ..............9110589129 GB MT Guarantee Dear Customer, This device comes with a 5-year warranty from the date of purchase. In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below. Terms of Guarantee The warranty period begins upon the date of purchase. Please retain the original re- ceipt. This documentation will be required as proof of purchase. If a material or manufacturing defect oc- curs within ve years from the date of purchasing of this product, the product will be repaired or replaced by us for free – according to our choice. This warranty service requires you to present the defec- tive device and proof of purchase (sales receipt) within ve years and describe briey in writing the nature of the defect and when it occurred. If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee pe- riod begins on repair or replacement of the product. Guarantee Period and Statutory Claims for Defects The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately af- ter unpacking. Repairs arising after expiry of the guarantee period are chargeable. Guarantee Cover The equipment has been carefully pro- duced in accordance with strict quality guidelines and conscientiously checked prior to delivery. The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may there- fore be considered as wearing parts (e.g. drill) or to cover damage to breakable parts (e.g. switches). This guarantee shall be invalid if the prod- uct has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specied in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided. The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or inter- ventions not undertaken by our authorised service branch. Processing in Case of Guarantee To ensure efcient handling of your query, please follow the directions below:

• Please have the receipt and item num- ber (IAN392982_2201) ready as proof of purchase for all enquiries.

• Please nd the item number on the rat- ing plate.

• Should functional errors or other de- fects occur, please initially contact the service department specied below by telephone or by e-mail. You will then receive further information on the pro- cessing of your complaint.

• After consultation with our customer service, a product recorded as defec- tive can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and30 GB MT specication of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure adequate, safe transport pack- aging. Repair Service For a charge, repairs not covered by the guarantee can be carried out by our service branch, which will be happy to issue a cost estimate for you. We can handle only equipment that has been sent with adequate packaging and postage. Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect. Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted. We will dispose of your defective devices free of charge when you send them to us. Service-Center

Translation of the original EC declaration of conformity We hereby conrm that the Cordless Drill model PBSPA 12 B2 Serial number 000001 - 161000 conforms with the following applicable relevant version of the EU guidelines: 2006/42/EC • 2014/30/EU • 2011/65/EU* & (EU) 2015/863 In order to guarantee consistency, the following harmonised standards as well as na- tional standards and stipulations have been applied: EN 62841-1:2015 • EN 62841-2-1:2018/A11:2019 • EN 62471:2008 EN 55014-1:2017/A11:2020 • EN IEC 55014-1:2021 • EN 55014-2:1997/A2:2008

EN IEC 55014-2:2021 • IEC 62471:2006 • EN IEC 63000:2018

This declaration of conformity is issued under the sole responsibility of the manufacturer: Grizzly Tools GmbH & Co. KG Stockstädter Straße 20 63762 Großostheim Germany

• The object of the declaration described above satises the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances. Christian Frank Documentation Representative173

GB / MT Translation of the original instructions Page

• Service Schweiz Tel.: 0800 56 44 33 E-Mail: grizzly@lidl.ch IAN392982_2201 Importeur Bitte beachten Sie, dass die folgende Anschrift keine Serviceanschrift ist. Kon- taktieren Sie zunächst das oben genannte Service-Center. Grizzly Tools GmbH & Co. KG Stockstädter Straße 20 DE-63762 Großostheim DEUTSCHLAND www.grizzlytools.de15 GB MT Contents Introduction p. 15
• Intended purpose p. 15
• General description p. 16
• Extent of the deliver y p. 16
• Overview p. 16
• Technical data p. 16
• Charging time p. 16
• Safety instructions p. 16
• Symbols in the manual p. 17
• Symbols on the batter y p. 17
• Symbols on the recharger p. 17
• General Safety Directions p. 17
• Correct handling of the battery charger p. 19
• Charging the battery p. 20
• Inserting/removing the batter y p. 20
• Checking the battery charge level p. 20
• Recharging the battery p. 20
• Used batteries p. 21
• Storage p. 21
• Wall mounted charger p. 21
• Cleaning p. 22
• Maintenance p. 22
• Disposal/environmental protection p. 22
• Replacement parts p. 23
• Guarantee p. 23
• Repair Service p. 24
• Service-Center p. 24
• Importeur p. 24
• Introduction Congratulations on the purchase of your new device. With it, you have chosen a high quality product. During production, this equipment has been checked for quality and subjected to a nal inspection. The functionality of your equipment is therefore guaranteed. The operating instructions constitute part of this product. They contain im- portant information on safety, use and disposal. Before using the product, fa- miliarise yourself with all of the operating and safety instructions. Use the product only as described and for the applications speci- ed. Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party. Intended purpose The rechargeable battery and charger are to be used in conjunction with a device from the Parkside X12V Team series. The rechargeable battery compatible with all devices in the Parkside X12V TEAM series. The battery may only be charged using chargers from the Parkside X 12 V TEAM series. Any other use that is not ex- plicitly approved in these instructions may result in damage to the equipment and rep- resent a serious danger to the user. This equipment is not suitable for commer- cial use. Commercial use will invalidate the guarantee. The manufacturer is not liable for damages caused by an improper use or incorrect operation of this device. Translation of the original EC declaration of conformity 6 GB MT General description The illustrations are on the front fold-out page. Extent of the delivery - Rechargeable battery - Charger - Instruction Manual Dispose of the packaging material correctly. Overview 1 Rechargeable battery 2 Battery release button 3 Charger 4 Red LED 5 Green LED Technical data Rechargeable battery (Li-ion) p. 1401
• PAPK 12 A3 Number of cells p. 3
• Nominal voltage p. 12
• V Capacity p. 2
• .0 Ah Energy Wh Charging time ca. 1 h Temperature p. 24
• max. 50 °C Charging process - 40 °C Operation p. 4
• -20 - 50 °C Storage - 45 °C Charger p. 0
• PLGK 12 A3 Rated input p. 50
• W Input voltage p. 220
• -240 V~, 50-60 Hz Output Output voltage p. 12
• V Output current .4 A Device fuse T2A Protection class p. 2

Charging time We recommend that you operate this ap- pliance with the following batteries only: PAPK12 A3, PAPK 12 B3, PAPK12D1. We recommend charging these batteries with the following chargers: PLGK12A2, PLGK12A3, PLGK 12 B2, PDSLG12A1, PDSLG12A2. An up-to-date list of battery compatibility can be found at: www.lidl.de/akku Charging time (min) PAPK12A1 PAPK12A3 PAPK12A2 PLGK12A1 60 60 PLGK12A2 60 60 PLGK12A3 60 60 PLGK12B2 30 45 PDSLG12A1 60 45 Charging time (min) PAPK12B1 PAPK12B2 PAPK12B3 PAPK12D1 PLGK12A1 120 150 PLGK12A2 120 150 PLGK12A3 120 150 PLGK12B2 60 80 PDSLG12A1 60 80 Safety instructions This appliance can be used by chil- dren aged from 8 years and above and persons with reduced physi- cal, sensory or mental capabilities or lack of experience and knowl- edge if they have been given su- pervision or instruction concerning use of the appliance in a safe way and understand the hazards in- volved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.17 GB MT Symbols in the manual Warning symbols with information on damage and injury prevention Hazard symbol with information on the pre- vention of personal in- jury caused by electric shock Help symbols with informa- tion on improving tool han- dling Symbols on the battery The rechargeable bat- tery is part of the Park- side X12VTEAM se- ries. Read the operating instruc- tions carefully. Do not dispose of batteries in house- hold waste, re or water. Do not subject the battery to strong sunlight over long pe- riods and do not leave it on a heater (max. 50 °C). Take batteries to an old bat- tery collection point where they will be recycled in an environmentally friendly man- ner. Electrical devices must not be disposed of with domestic waste. Symbols on the recharger The recharger is part of the Parkside X12VTEAM series. Warning! Read the operating instruc- tions carefully. The charger is only suitable for use indoors. Device fuse Protection class II (Double insulation) Electrical devices must not be disposed of with domestic waste. LED display while charging. General Safety Directions Caution! When using power tools, observe the following basic safety measures for the prevention of electric shocks and the risk of injury and re. Please read all these instructions before us- ing this electric tool and please keep the safety instructions.18 GB MT Careful handling and use of battery devices

• Charge the batteries only in chargers that are rec- ommended by the manu- facturer. Risk of re if a charger that is suitable for a specic type of battery is used with other batteries.

• In the power tools, use only the batteries de- signed for the purpose. The use of other batteries may result in injuries and risk of re.

• Keep the unused battery away from paper clips, coins, keys, nails, screws and other small metal ob- jects, which could cause bridging of the contacts. A short circuit between the battery contacts may cause burns or re.

• If used incorrectly, liquid may leak from the bat- tery. Avoid contact with this. In the event of ac- cidental contact, rinse off with water. If the liquid gets into eyes, seek medical assis- tance. Leaking battery uid may cause skin irritations or burns.

• Do not use damaged or altered batteries. Damaged or altered batteries can be un- predictable and lead to re, explosion or risk of injury.

• Do not expose batteries to re or elevated tempera- tures. Fire or temperatures over 130°C can cause an explo- sion.

• Follow all instructions for charging and never charge the battery or the battery-powered tool outside the temperature range stated in the oper- ating instructions. Incorrect charging or charging outside the permitted temperature range may destroy the battery and in- crease the risk of re. Service

• Never repair damaged batteries. All battery repairs should be carried out by the manufacturer or authorised cus- tomer service centres only. Special safety directions for battery-operated tools

• Ensure that the device is switched off before insert- ing the battery. Inserting a battery into a power tool that is switched on may result in acci- dents.

• Recharge the batteries indoors only because the battery charger is designed for indoor use only.

• To reduce the electric shock hazard, unplug the battery charger from the mains before cleaning the charger.

• Do not subject the battery to strong sunlight over long periods and do not leave it on a heater. Heat damages the battery and there is a risk of explosion.19 GB MT

• Allow a hot battery to cool before charging.

• Do not open up the bat- tery and avoid mechanical damage to the battery. Risk of short circuit and fumes may be emitted that irritate the respiratory tract. Ensure fresh air and seek medical assistance in the event of discomfort.

• Do not use non-rechargea- ble batteries! Correct handling of the battery charger

• Keep the equipment away from children and pets. Children must be supervised to ensure that they do not play with the de- vice.

• Before each use, check the charger, cable and plug and have them repaired by qualied profession- als and only with original parts. Do not use a defective charger and do not open it up yourself. This ensures that the safety of the device is main- tained.

• Connect the charger only to a socket with an earth. Ensure that the mains volt- age matches the specica- tions on the charger rating plate. Risk of electric shock.

• Disconnect the charger from the mains before closing or opening con- nection to the battery / power tool/ device.

• Keep the charger clean and away from wet and rain. Do not use the charg- er outdoors. Dirt and the en- try of water increase the risk of electric shock.

• Operate the charger only with the appropriate origi- nal batteries. Charging other batteries may result in injuries and risk of re.

• Avoid mechanical damage to the charger. This can result in internal short circuits.

• The charger must not be operated on or in the im- mediate vicinity of am- mable surfaces (e.g. pa- per, textiles). Risk of re due to heating caused by charging.

• If the connection cable of this device is damaged, it must be replaced by the manufacturer or their customer service or by a similarly qualied person in order to avoid hazards.

• The battery of your device is only partially pre-charged upon delivery and must be fully charged before being used for the rst time. Insert the battery into the base and connect the charger to the mains.

• Remove the mains plug when the battery is fully charged and disconnect the battery from the charger.

• Do not attempt to charge non- rechargeable batteries in the charger.

• Do not use any accessories that are not recommended by PARKSIDE. This can result in electric shock or re.20 GB MT Charging the battery Do not expose the battery to extreme conditions such as heat or impact. Risk of injury from escaping electrolytic solution! After eye/skin contact, rinse the affected areas with water or a neutraliser and consult a doctor. Charge the battery in a dry room only. Prior to attaching the charger, check that the battery‘s outer sur- face is clean and dry. There is a risk of injury due to elec- tric shock. Switch off the device and remove the battery before carrying out any maintenance work. The rechargeable battery only reaches its full capacity once it has been charged several times.

• Charge the battery before using it for the rst time.

• Only use chargers from the Parkside X12 V Team series to recharge the bat- tery.

• If the operating time is considerably shortened despite charging, this shows that the rechargeable battery is de- pleted and must be replaced. Only use an original replacement battery from the Parkside X 12 V Team series, which can be purchased from the online shop (see the “Spare parts” section).

• Always comply with the latest safety information, as well as the regulations and information relating to environmen- tal protection.

• Defects resulting from improper han- dling are not covered by the guaran- tee. Inserting/removing the battery

1. To remove the battery (1) from the de-

vice, press both release buttons (2) on the battery and pull the battery out.

2. To insert the battery (1), push the bat-

tery along the guide rail into the de- vice. You will hear it click into place. Only insert the rechargeable battery once the battery-op- erated tool is ready for use. Checking the battery charge level The battery’s (1) charge level is indicated by the charge state indicator.

• The charge level of the battery is indi- cated by illumination of the correspond- ing LED lights while the device is in operation. Press and hold the power button to view. red-yellow-green => Battery fully charged red and yellow => Battery half charged red => Battery needs to be charged Recharging the battery If warm, allow the battery to cool before charging. Charge the battery (1) when only the red LED on the level indicator is illuminated. The battery’s (1) charge level is indi- cated by the charge state indicator.21 GB MT

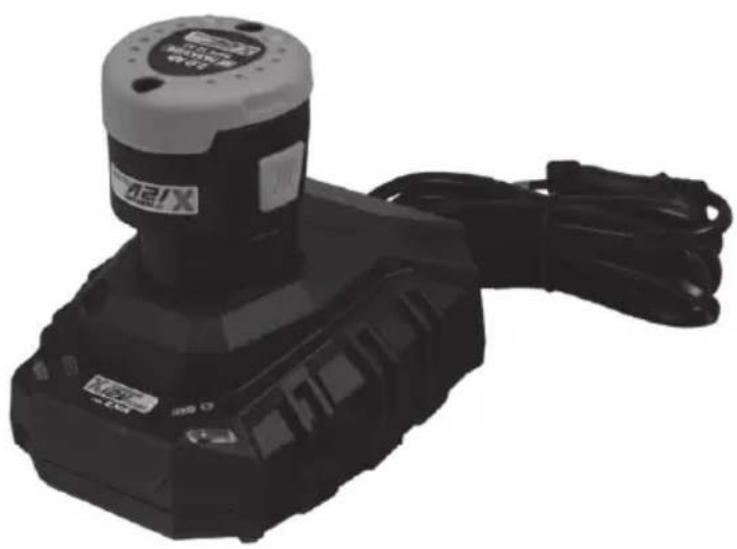

1. Remove the battery (1) from the appli-

2. Plug the battery charger (3) into a

3. Insert the battery (1) in the charging

compartment of the battery charger (3).

4. Pull the battery (1) out of the battery

5. Unplug the battery charger (3) from the

mains. Overview of the LED indicators on the charger (3): Green LED (5) lights up without bat- tery inserted: Charger ready. Green LED (5) lights up: Battery such alleged charged. Red LED (4) lights up: Battery charging. Red (4) and green (5) LEDs ash: Error Used batteries

• If a fully recharged battery lasts for considerably shorter operating times, the battery is used up and needs to be replaced. Only use an original replace- ment battery from the Parkside X 12 V Team series, which can be purchased from the online shop (see the “Spare parts” section).

• Always take heed of the applicable safety instructions as well as the envi- ronmental protection regulations and information (see “Cleaning and Mainte- nance”). Storage

• Remove the battery before storing the unit for longer periods of time.

• During a longer storage period, check the state of charge of the battery and recharge if necessary roughly every 3 months.

• The storage temperature for the battery is between 0 °C and 45 °C. Avoid ex- treme cold or heat during storage to en- sure the battery output is not adversely affected.

• Only store the batteries in the partially- charged state. During prolonged stor- age, 2 to 3 LEDs should be illuminated. The battery charge status indicator of the cordless tool signalises the state of charge of the battery (1). Wall mounted charger (optional) You can also mount the charger (3) on thewall.

• Using dowels, place two screws 54mm apart at the desired position of a wall.

• The screw head can have a diameter of 7 - 9 mm

• Leave the screw heads protruding at a distance of approx. 10 mm from the wall.

• With the openings of the wall bracket, you can attach the charger (3) to the two screws and pull the charger down until it stops. When drilling, be careful not to damage any supply lines. Use suitable search devices to nd these or consult an installation plan for guidance. Contact with electrical cables can lead to electric shock and re. Contact with a gas pipe can result in an explosion. Damage to a water pipe can lead to proper- ty damage and electric shock.22 GB MT Cleaning Clean the charger and the battery with a dry cloth or with a paint brush. Do not use water or metal objects. Maintenance

• The appliance cleaner is maintenance free. Disposal/environmental protection Remove the battery from the device and re- cycle the device, battery, accessories and packaging in an environmentally-friendly manner. Electrical devices do not belong in domestic waste. Do not throw batteries into domestic waste, re (risk of explosion) or wa- ter. Damaged batteries can harm the environment and your health if poisonous fumes or liquids escape. Directive 2012/19/EU on waste electrical and electronic equipment: Used electrical devices must be collected separately for disposal and recycled in an environmental- ly sound manner. Depending on the implementation in na- tional law, you may have the following options:

• Return to a shop: Food retailers with a total sales area of at least 800 square metres that offer electric and electronic devices multiple times a year or perma- nently and distribute them on the market are obligated to take back old electric and electronic devices at no charge. When handing a new electric or elec- tronic device to an end user, they have to take back an old device of the same kind from the end user that essentially ful- ls the same functions as the new device at the site of handover or in the immedi- ate vicinity at no charge as well as take back up to three old devices per device type with external dimensions no larger than 25 centimetres in the retail shop or the immediate vicinity at no charge without the purchase of an electric or electronic device at the request of the end customer.

• Hand over to an ofcial collection point: Take the device to a recycling plant. The plastic and metal parts used on your de- vice can be properly sorted according to materials and grades and efciently re- cycled. Please contact our service centre for more information.

• Return to the manufacturer/distributor: We will dispose of any defective de- vices that you send to us free of charge. Please contact our service centre for more information. This does not affect accessories enclosed with the old devices or tools without any electrical components. Dispose of the batteries according to local standards. Defective or used batteries must be recycled in accordance with Directive 2006/66/EC. Hand in the batteries at a used battery collection point where they are recycled in an environmentally friend- ly manner. For more information, please contact your local waste management pro- vider or our service centre. Dispose of batteries in a discharged state. We recommend covering the contacts with an adhesive strip to protect against short circuits. Do not open the battery.23 GB MT Replacement parts Spare parts and accessories can be obtained at www.grizzlytools.shop If you have issues ordering, please use the contact form. If you have any other questions, contact the ”Service-Center” (see page 24). Battery PAPK 12 A3 ........................ 80001264 PAPK 12 B3 ........................ 80001265 PAPK 12 D1 ........................ 80001270 Charger

Guarantee Dear Customer, These devices come with a 3-year warranty from the date of purchase. In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below. Terms of Guarantee The term of the guarantee begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase. If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace – at our choice – the product for you free of charge. This guarantee requires the defective equipment and proof of pur- chase to be presented within the three-year period with a brief written description of what constitutes the defect and when it oc- curred. If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee pe- riod begins on repair or replacement of the product. Guarantee Period and Statutory Claims for Defects The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately af- ter unpacking. Repairs arising after expiry of the guarantee period are chargeable. Guarantee Cover The equipment has been carefully pro- duced in accordance with strict quality guidelines and conscientiously checked prior to delivery. The warranty is only valid for material or manufacturing defects. This warranty does not extend to consumable parts exposed to normal wear and tear (e.g. battery capac- ity). This guarantee shall be invalid if the prod- uct has been damaged, used incorrectly or not maintained. Neither does it extend to damage resulting from water, frost, light- ning and re or improper transport. Precise adherence to all of the instructions speci- ed in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categori- cally avoided. The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or24 GB MT improper handling, use of force, or inter- ventions not undertaken by our authorised service branch. Processing in Case of Guarantee To ensure efcient handling of your query, please follow the directions below:

• Please have the receipt and item num- ber (IAN 392982_2201) ready as proof of purchase for all enquiries.

• Please nd the item number on the rat- ing plate.

• Should functional errors or other de- fects occur, please initially contact the service department specied below by telephone or by e-mail. You will then receive further information on the pro- cessing of your complaint.

• After consultation with our customer service, a product recorded as defec- tive can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and specication of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure adequate, safe transport pack- aging. Repair Service For a charge, repairs not covered by the guarantee can be carried out by our ser- vice branch, which will be happy to issue a cost estimate for you. We can handle only equipment that has been sent with adequate packaging and postage. Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect. Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted. We will dispose of your defective devices free of charge when you send them to us. Service-Center

Translation of the original EC declaration of conformity We hereby conrm that the Charger /Battery design series PLGK 12 A3/PAPK 12 A3 IAN 392982_2201 conforms with the following applicable relevant version of the EU guidelines: 2014/30/EU • 2014/35/EU • 2011/65/EU* & (EU) 2015/863 In order to guarantee consistency, the following harmonised standards as well as na- tional standards and stipulations have been applied: EN 60335-1:2012/A2:2019 • EN 62233:2008 EN 60335-2-29:2004/A11:2018 • EN 62841-1:2015 Appendix K EN 55014-1:2017/A11:2020 • EN 55014-2:2015

This declaration of conformity (22)** is issued under the sole responsibility of the man- ufacturer: Grizzly Tools GmbH & Co. KG Stockstädter Straße 20 63762 Großostheim GERMANY

• The object of the declaration described above satises the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances. ** The last two digits of the year in which the CE marking was afxed. Christian Frank Documentation Representative 140FR
