| Brand | Parkside |
| Model | PHPA 4 C4 |
| Product type | Cordless engraver |
| Battery nominal voltage | 4 V (DC) |
| Battery capacity | 1500 mAh (built-in Lithium-ion) |
| Speed range | 6000 - 19000 rpm (6 levels) |
| Compatible materials | Metal, plastic, glass, ceramic, wood, leather, stone |
| Tip types | Tungsten carbide engraving tip (interchangeable) |
| Included accessories | 5 engraving templates, micro-USB-C charging cable |
| Charging power supply | Mains adapter 100-240 V~, 50/60 Hz, output 5 V / 1.7 A (not included, model HG06825/HG06825-BS) |
| Sound pressure level | LpA = 76 dB (K = 3 dB) |
| Sound power level | LWA = 87 dB (K = 3 dB) |
| Vibration total value | < 2.5 m/s² (K = 1.5 m/s²) |
| Charging temperature range | +10 °C to +40 °C |
| Storage temperature range | 0 °C to +50 °C |
| Recommended usage time | Maximum 30 minutes per session |
| Warranty | 3 years (wear parts excluded) |
| Care and cleaning | Clean with a dry cloth only |
| Storage | In a dry place, out of direct sunlight |
Frequently Asked Questions - PHPA 4 C4 PARKSIDE
User questions about PHPA 4 C4 PARKSIDE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Wireless engraver in PDF format for free! Find your manual PHPA 4 C4 - PARKSIDE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PHPA 4 C4 by PARKSIDE.
USER MANUAL PHPA 4 C4 PARKSIDE
Operation and safety notes Translation of the original instructions
FR BE
4 V GRAVEUR SANS FIL
4V ACCU-GRAVEERAPPARAAT
| V°/Parts |
| PPP 53013A:2019 |
Warnings and symbols used. Page 42
Introduction 44
Intended use. Page 44
Notes on trademarks . Page 44
Scope of delivery . Page 45
Description of parts . 45
Technical data. Page 46
Safety instructions Page 48
General power tool safety warnings . Page 48
Battery tool use and care . Page 52
Safety instructions for all applications . Page 53
Additional safety instructions for all applications . . Page 56
Safety guidelines for battery chargers . Page 57
Safety warnings specific for carving operations.. . Page 58
Before use. Page 60
Charging the battery. Page 60
Battery level display . Page 61
Operation. Page 61
Switching on/off . Page 62
Setting the penetration depth of the engraving . . . Page 62
Changing the engraving tips. Page 62
Working procedures. 63
Cleaning and maintenance . Page 64
Cleaning . Page 64
Storage. Page 64
Transportation. Page 64
Disposal. Page 64
Warranty. Page 66
Warranty claim procedure. . Page 67
Service 67
EU declaration of conformity . Page 68

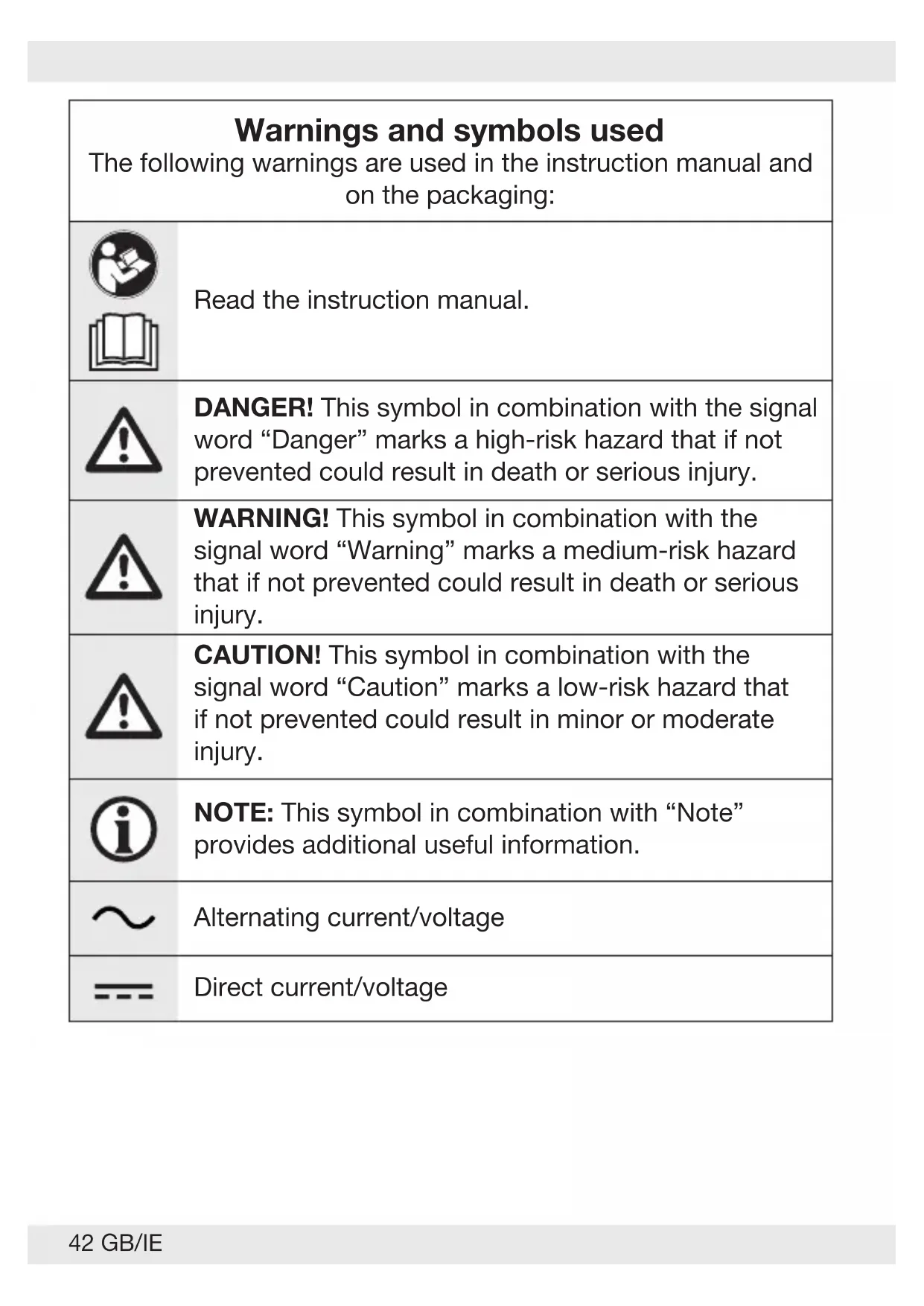

| Warnings and symbols used The following warnings are used in the instruction manual and on the packaging: | |
| Read the instruction manual. | |
| DANGER! This symbol in combination with the signal word “Danger” marks a high-risk hazard that if not prevented could result in death or serious injury. | |
| WARNING! This symbol in combination with the signal word “Warning” marks a medium-risk hazard that if not prevented could result in death or serious injury. | |
| CAUTION! This symbol in combination with the signal word “Caution” marks a low-risk hazard that if not prevented could result in minor or moderate injury. | |
| NOTE: This symbol in combination with “Note” provides additional useful information. | |
| Alternating current/voltage | |
| Direct current/voltage | |
| Wear hearing protection! | |
| Wear eye protection! | |
| Wear dust protection! | |
| Protect the battery pack against heat and continuous intense sunlight. | |
| Protect the battery pack against water and moisture. | |
| Protect the battery pack from fire. | |
| No-load speed | |
| Revolutions per minute | |
| Use the product in dry indoor spaces only. | |
| Safety information Instructions for use | |
| CE | CE mark indicates conformity with relevant EU directives applicable for this product. |
4V CORDLESS ENGRAVER
Introduction
We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.
Intended use
This cordless engraver (hereinafter "product" or "electric tool") is designed for engraving or decorating materials such as metal, plastic, glass, leather and stone.
Any other usage or modification of the product is deemed to be improper and carries a significant risk of accidents. The manufacturer is not liable for any damages caused by improper use. The product is not intended for commercial use.
Notes on trademarks
USB a registered trademark of USB Implementers Forum, Inc.
Any other names and products may be trademarks or registered trademarks of their respective owners.
Scope of delivery
WARNING!
The product and the packaging are not children's toys! Children must not play with plastic bags, sheets and small parts! There is a danger of choking and suffocation!
1 4V Cordless engraver
1 Charging cable
5 Engraving templates
1 Instruction manual
Description of parts
Before reading, unfold the page containing the illustrations and familiarise yourself with all the functions of the product.
1 On/off switch
2 Battery capacity/charge level indicator
3 3x indicator LEDs (2 stroke rate levels per LED)
4 +/- speed control buttons (stroke rate)
5 Micro-USB-C socket
6 Mains adapter
7 USB plug of the charger cable
8 Charging cable
9 Micro-USB-C plug of the charging cable
10 Engraving tip lock
11 Engraving tip
12 Engraving templates
- A mains adapter is not included. You can order a mains adapter via our Service Centre (see "Service"). Model number of a suitable mains adapter: HG06825/HG06825-BS
Technical data
| Cordless engraver PAGG 4 | B2 |
| Nominal battery voltage: 4 V | (DC)--- |
| Cells: 1 | |
| Battery (integrated): Lithium ion | |
| Battery capacity: 1500 mAh | |
| 6 stroke rate levels | |
| Stroke rate: n | 0 6000 to 19000 min-1 |
| Mains adapter | HG06825, HG06825-BS * |
| Input | |
| Rated voltage: | 100–240 V~, 50/60 Hz (AC) |
| Rated power: | 16 W |
| Output | |
| Rated voltage: 5 V (DC) | --- |
| Charging current: | 1.7 A |
| Protection class: | II / double insulation) |
- A mains adapter is not included. You can order a mains adapter via our Service Centre (see "Service"). Model number of a suitable mains adapter: HG06825/HG06825-BS
Noise emission value
The measured values have been determined in accordance with EN 62841. The A-rated noise level of the product is typically as follows:
| Sound pressure level: L | pA = 76 dB |
| Uncertainty: K | pA = 3 dB |
| Sound power level: L | WA = 87 dB |
| Uncertainty: K | WA = 3 dB |
| Total vibration value | ||
| Vibration emission value ah: <2.5 | m/s | 2 |
| Uncertainty K: 1.5 m/s | 2 | |
WARNING!
Wear hearing protection!
NOTE
The declared vibration total value and the declared noise emission value have been measured in accordance with a standard test method and may be used for comparing one tool with another.
The declared total vibration value and the declared noise emission value may also be used for a preliminary assessment of exposure.
WARNING!
The vibration and noise emissions during actual use of the product can differ from the declared values depending on the manner in which the tool is used, especially what kind of workpiece is processed.
Try to minimise exposure to vibration and noise. Examples of measures to reduce vibration include wearing gloves when using the tool and limiting working time. All parts of the operating cycle must be taken into account (e.g. times when the product is switched off and when it is running idle in addition to the trigger time).
Safety instructions
- General power tool safety warnings
WARNING!
Read all safety warnings, instructions, illustrations and specifications. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) electric tool or battery-operated (cordless) power tool.
Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
Battery tool use and care
a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
e) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130^ may cause explosion.
g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.
CAUTION! Risk of explosion!
Never charge non-rechargeable batteries.
CAUTION! Risk of explosion!
Protect the rechargeable battery from heat.
For example, from continuous exposure to sunlight, fire, water and moisture.
Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.
- Safety instructions for all applications
General safety instructions for milling
1) This power tool is intended for use as an engraver tool. Follow all safety instructions, instructions, diagrams and data that you receive with the appliance. If you do not observe the following instructions, this can lead to electrical shock, fire and/or serious injuries.
2) This power tool is not suitable for sanding, sandpaper grinding, wire brushing, polishing or cut-off grinding.
Applications for which the power tool is not intended may cause hazards and injuries.
3) Do not use any accessories that have not been provided or recommended by the manufacturer for this power tool.
Just because you can attach the accessories to your power tool, does not ensure they are safe to use.
4) Grinding discs, sanding drums or other accessories must match the grinding spindle or collet chuck of your power tool exactly. Accessory tools which do not fit precisely into the take-up of the power tool will rotate unevenly, vibrate severely and can lead to a loss of control.
5) Discs, grinding cylinders, cutting tools or other accessories mounted on a mandrel must be completely inserted in the collet or chuck. Any "protrusion" or exposed parts of the mandrel between the grinding tool and the collet or chuck must be kept to a minimum. If the mandrel is not sufficiently tightened or the grinding tool protrudes too far, the tool could come loose and be thrown out at high speed.
6) Wear personal protective equipment. Depending on the application, ensure that you use full face protection, eye protection or goggles. If required, use a dust mask, ear protectors, protective gloves or a special apron to protect you from grindings and material particles. Protect your eyes from flying debris that may be created during certain applications. Dust or filter masks must be used to filter any dust created by the application. If you are exposed to loud noise for any length of time, you may suffer hearing loss.
7) Ensure that other people remain at a safe distance from your workspace. Anyone who enters the workspace must wear personal protective equipment. Fragments of the work piece or broken accessory tools can fly off and cause injury – even outside the immediate working area.
8) Always hold the power tool firmly. When running up to full speed, the torque of the motor can cause the power tool to twist.
9) If possible, use clamps to hold the workpiece in position. Never hold a small workpiece in one hand and the power tool in the other while you are using it. By clamping small workpieces, you keep both hands free for better control of the power tool. When cutting round workpieces such as dowels, rods or pipes, be aware that these can roll away and this can cause the tool to jam and be thrown towards you.
10) Never put the power tool down until the accessory tool has come to a complete standstill. The rotating accessory tool can come into contact with the surface and cause you to lose control of the power tool.
11) When changing accessory tools or changing settings, tighten the collet nut, the chuck or other fixing elements tightly. Loose fastening elements can shift unexpectedly and lead to loss of control; unsecured, rotating components will fly off violently.
12) Do not leave the power tool running whilst carrying it. Accidental contact between your clothing and the rotating accessory tool could lead to physical injury.
13) Clean the ventilation slits of your power tool regularly. The engine fan draws dust into the housing and a strong accumulation of metal dust can cause electrical hazards.
14) Do not use the power tool in the vicinity of flammable materials. Sparks can ignite such materials.
15) Do not use any accessory tools which require liquid coolant. The use of water or other liquid coolants may lead to electric shock.
Additional safety instructions for all applications
Kickback and corresponding safety instructions
Kickback is a sudden reaction caused when a rotating accessory tool, e.g. grinding disc, grinding band, wire brush, etc., catches or jams and leads to an abrupt stop of the rotating accessory tool. If this happens, an uncontrolled power tool will turn rapidly against the direction of rotation of the accessory tool.
If, for example, a grinding disc catches or jams, the edge of the grinding disc that is projecting into the workpiece can get caught and break off the grinding disc or cause a kickback. The grinding disc can then fly in the direction of the operator or away from him, depending on the direction of rotation of the disc at the blockage. This can also break grinding discs. A kickback is caused by improper or incorrect use of the power tool. This can be avoided by taking proper precautions as described below.
1) Hold the power tool firmly in both hands and position your body and arms so they can absorb the force of a kickback. By taking adequate precautions, the operator can stay in control of the kickback forces.
2) Take special care when working on corners, sharp edges, etc. Avoid allowing the accessory tool to bounce back from the workpiece or jam in the workpiece. The rotating accessory tool is more likely to jam in corners or sharp edges or if it rebounds off them. This can cause a loss of control or kickback.
3) Do not use toothed saw blades. Such accessories often cause a kickback or loss of control over the power tool.
4) Always move the accessory tool in the same direction in the material in which the cutting edge leaves the material (in other words, the same direction in which the dust is thrown out). Guiding the power tool in the wrong direction will cause the cutting edge of the accessory tool to jump out of the workpiece which can lead to the accessory tool being pulled in this direction.
5) Always clamp the workpiece when using rotary files, cutting discs, high-speed milling tools or hard-metal tools. Even a minimal tilting in the groove can cause these tools to jam and lead to a kickback. When a cutting disc jams, it usually breaks. When a rotary file, high-speed milling tool or hard-metal milling tool jams, the accessory tool can jump out of the groove and lead to loss of control of the power tool.
Safety guidelines for battery chargers
This appliance may be used by children aged 8 years and above and by persons with limited physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use the appliance safely and are aware of the potential risks. Do not allow children to use the appliance as a toy. Cleaning and user maintenance tasks may not be carried out by children unless they are supervised.
The specified mains adapter (not included) is suitable for indoor use only.
If you are using a USB power supply, the mains socket used must always be easily accessible so that the USB power supply can be quickly disconnected from the socket in a hazardous situation.
WARNING!
Use only the specified mains adapter 6 to charge this product.
Do not operate the mains adapter (not included) with a damaged mains plug. Damaged mains plugs are hazardous to life due to the risk of electric shock.
Safety warnings specific for carving operations
a) Do not use the product for more than 30 minutes.
b) This power tool is intended to function as a carving tool. Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
c) Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of stopping small abrasive or workpiece fragments.
The eye protection must be capable of stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtrating particles generated by your operation. Prolonged exposure to high intensity noise may cause hearing loss.
d) Keep bystanders a safe distance away from work area. Anyone entering the work area must wear personal protective equipment. Fragments of workpiece or of a broken accessory may fly away and cause injury beyond immediate area of operation.
e) Position the cord clear of the spinning accessory. If you lose control, the cord may be cut or snagged and your hand or arm may be pulled into the spinning accessory.
f) Never lay the power tool down until the accessory has come to a complete stop. The spinning accessory may grab the surface and pull the power tool out of your control.
g) Do not use accessories that require liquid coolants. Using water or other liquid coolants may result in electrocution or shock.
Before use
- Charging the battery
NOTE
The battery is suitable for dry indoor spaces only.
The battery is supplied partially charged. Charge the battery before first use. Li-ion batteries can be charged at any time without adversely affecting their service life. Interrupting the charging process does not damage the battery.
The specified mains adapter 6 is only suitable for charging this product.
Never charge the battery pack if the ambient temperature is below +10^ or above +40^ . If a lithium-ion battery is to be stored for an extended period, the charge level should be checked regularly. The optimum charge level is between 50% and 80% . For both product and built-in battery, the storage climate should be cool and dry and the ambient temperature should be between 0^ and +50^ .
Starting charging
- Connect the micro-USB-C plug of the charging cable to the micro-USB-C socket on the product.
- Connect the USB plug of the charger cable 7 to the mains adapter 6.
- Connect the mains adapter 6 to a 100 - 240V , 50 / 60~Hz power source.
The battery charge level indicator 2 indicates the charge status as shown in below table:
| Battery charge level indicator 2 | Charge status | ||
| Red Yellow Green | |||
| Flashing Off Off Low | |||
| Lights up Flashing Off Medium | |||
| Lights up Lights up Flashing Almost full | |||
| Lights up Lights up Lights up Full | |||
Stopping charging
- The battery charge level indicator [2] stops flashing and all 3 LEDs remain lit when the battery is fully charged. The product is ready for use.
- Disconnect the mains adapter 6 from the power supply.
Battery level display
The battery charge level indicator 2 indicates the charge level using 3 LEDs as shown in below table:
| LEDs lighting Battery charging status | |
| Red LED only Low | |
| Red and yellow LED Medium | |
| Red, yellow and green LED | Fully charged |
Operation
- Never use the product for other purposes and only use original parts/accessories. Using attachments or accessory tools other than those recommended in the operating instructions can lead to a risk of injury.
- Switching on/off
Switching on
Press and hold the on/off switch 1.
Switching off
Release the on/off switch 1.
- Setting the penetration depth of the engraving
Use the + / - speed control buttons 4 to set the penetration depth of the engraving. A low setting is usually sufficient for the most common applications.
Press the + speed control button 4 to increase the penetration depth.
Press the - speed control button 4 to decrease the penetration depth.
NOTE
The indication of the LED indicators 3 are changing according to the speed adjustment (2 stroke rate levels per LED): At maximum speed, all 3 LEDs 3 are brightly lit. At lowest speed, 1 LED 3 is dimly lit.
Changing the engraving tips
CAUTION! Risk of injury!
Always switch the product off before carrying out any work on it.
- Change the engraving tip [11] as soon as it becomes worn and no longer delivers the desired engraving results. Turn the engraving tip lock [10] anticlockwise until the engraving tip lock [10] can be removed. From below, remove the engraving tip [11] from the engraving tip lock [10].
-
Remove the spring and washer.
-
Slide the washer and spring onto a new engraving tip [11]. Then insert it into the product and turn the engraving tip lock [10] clockwise to lock the tip in place.
- Ensure that the engraving tip [11] is fixed correctly in place.
Working procedures
You can use the product to create imaginative and unique engravings. For example, you can permanently mark valuable items. You can engrave numbers and letters onto metal, glass, wood, plastic, ceramics, stone and leather. To do this, use the supplied engraving templates [12].
Hold the product at an angle, in the same way you would hold a pen.
□ Your arm should be resting on the table.
- Move the engraving tip [11] over the workpiece while applying gentle pressure. To find out the ideal engraving speed, practice on a spare piece of material.
NOTE
The supplied engraving tip 11 is made of tungsten steel. It is therefore not suitable for engraving electronic media such as CDs, DVDs, etc. These materials and their readability could be damaged.
A workpiece securely held by a clamping device or vice is much safer than one held in your hand. Securing the workpiece in this way is also helpful for one-handed operation.
- Cleaning and maintenance
Cleaning
WARNING! Risk of injury!
Switch off the product before carrying out any cleaning or maintenance work.
The product is maintenance-free.
Use a dry cloth to remove all dirt from the product.
Do not allow any liquids to get into the product.
Storage
Store the product and its accessories in a dry indoor location protected from direct sunlight, preferably in its original packaging.
- Transportation
Transport the product in its carrying case. Protect the product from any heavy impact or strong vibrations which may occur during transportation in vehicles. Secure the product to prevent it from slipping or falling over.
Disposal
The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.
Observe the marking of the packaging materials for
waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7:
plastics/20-22: paper and fibreboard/80-98: composite materials.
Product:
The product incl. accessories and packaging materials are recyclable and are subject to extended producer responsibility. Dispose them separately, following the illustrated Info-tri (sorting information), for better waste treatment.
The Triman logo is valid in France only.
Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.
To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.
Faulty or used batteries/rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries/rechargeable batteries and/or the product to the available collection points.
Environmental damage through incorrect disposal of the batteries/rechargeable batteries!
Remove the batteries/battery pack from the product before disposal.
Batteries/rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries/rechargeable batteries at a local collection point.
Warranty
The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of material or manufacturing defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.
The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Keep the original sales receipt in a safe location as this document is required as proof of purchase.
Any damage or defects already present at the time of purchase must be reported without delay after unpacking the product.
Should the product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. The warranty period is not extended as a result of a claim being granted. This also applies to replaced and repaired parts.
This warranty becomes void if the product has been damaged, or used or maintained improperly.
The warranty covers material or manufacturing defects. This warranty does not cover product parts subject to normal wear and tear, thus considered consumables (e.g. batteries, rechargeable batteries, tubes, cartridges), nor damage to fragile parts, e.g. switches or glass parts.
Warranty claim procedure
So that your request can be processed quickly, please observe the following instructions:
For all inquiries, please have the receipt and item number (IAN 457891_2401) ready as proof of purchase.
The article number can be taken from the identification label on the product, engraving on the product, the front cover of your manual (at the bottom left), or the sticker on the back or bottom of the product.
If malfunctions or other defects arise, first contact the service department indicated below by phone or email.
You can then send a product recorded as defective to the communicated service address postage-free, making sure to enclose proof of purchase (receipt) and information on the details of the defect and when it occurred.
You can download and view this and numerous other manuals at parkside-diy.com. This QR code takes you directly to parkside-diy.com. Choose your country and use the search screen to search for the operating instructions. Entering the item number (IAN) 457891_2401 takes you to the operating instructions for your item.
Service
GB
Service Great Britain
Tel.: 0800 0569216
E-Mail: owim@lidl.co.uk
IE
Service Ireland
Tel.:1800200736
E-Mail: owim@lidl.ie
EUdeclarationofconformity
EU DECLARATION OF CONFORMITY (No IAN:457891_2401)
IAN:
457891_2401
Product identification:
"Parkside" Cordless Engraving Tool 4V
Model Number:
HG09433
The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:
| Directive 2006/42/EC |
| Directive 2014/30/EC |
| Directive 2011/65/EU and all related amendments |
References to the relevant harmonised standards used or references to the other technical specifications in relation to which conformity is declared:
| N° / Parts |
| Directive 2006/42/EC |
| EN ISO 12100:2010 |
| Directive 2014/42/EC |
| EN IEC 55014-1:2021 |
| EN IEC 55014-2:2021 |
| EN IEC 61000-3-2:2019/A1:2021 |
| EN 61000-3-3:2013/A2:2021 |
The object of the declaration described above is in conformity with Directive 2011/ 65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment:
| N°/Parts |
| Directive 2011/65/EU |
| EN IEC 63000:2018 |
Additional information - Further related standards:
| N° / Parts |
| PPP 53013A :2019 |
Keeper of the technical documentation: OWIM GmbH & Co.KG
Signed for and on behalf of:
This declaration of conformity is issued under the sole responsibility of the manufacturer.
Translation of the original declaration of conformity
Neckarsulm 01.03.2024
Place
Date
ppa. Stefan Haensel
Authorised Signatory Authorised Signatory
EN
| V°/Parts |
| PPP 53013A:2019 |
4 V ACCU-GRAVEERAPPARAAT
Inleiding
WAARSCHUWING! Verwondingsgevaar!
Productidentification:
"Parkside"Accu-graveerapparaat 4 V
Modelnummer:
HG09433
EU PROHLASENI O SHODE (c.IAN:457891_2401)
IAN:
457891_2401
USes unamarcacommercial registrada de USB Implementers Forum, Inc.
- **Losotros nombres y productosSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEO SEOseoSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOEO
| V°/Partes |
| EN IEC 63000:2018 |
