USER MANUAL ANGLE EXACT 12V3600 Professional BOSCH

3D rendering of a handheld electric shaver with a metallic tip and black casing (no text or symbols visible)

English ...... Page 16

Français......Page 24

ANGLE EXACT 12V-12-400

ANGLE EXACT 12V-6-600

ANGLE EXACT 12V-3-600

3D rendering of a handheld electronic device with a labeled component (10), no visible text or symbols on the device itself.

4

A (12) (13)

B

(17) (3) (14) (15) (16)

180 W Winkelkopf

(2) (3) (18) a b c d

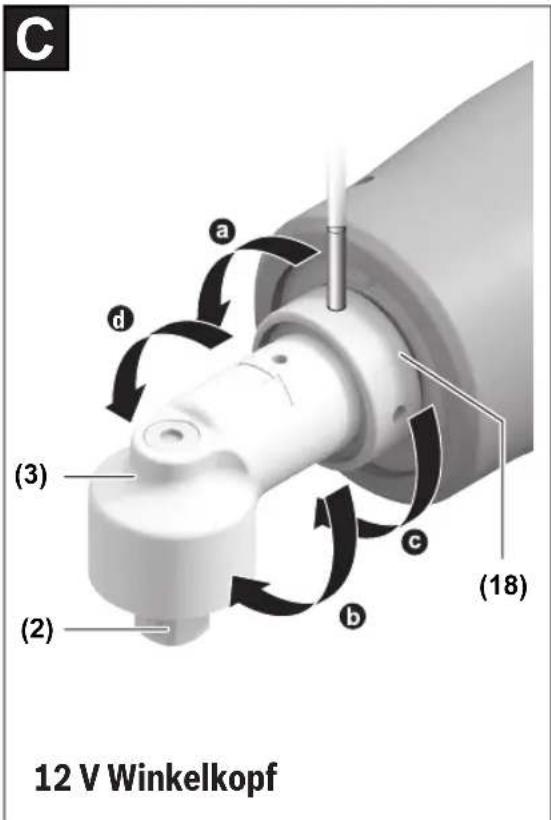

C 12 V Winkelkopf (2) (3) a d b c (18)

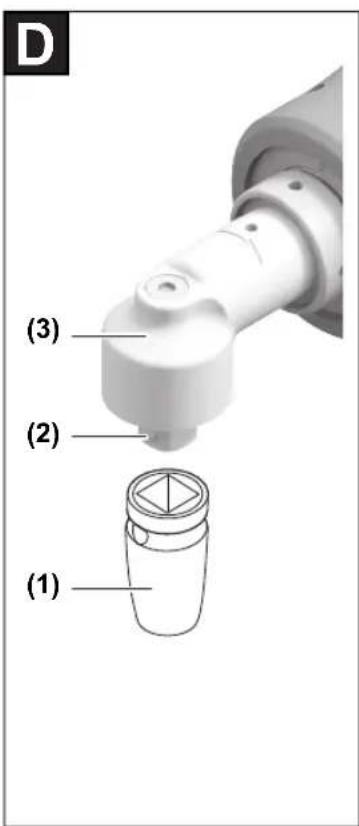

(3) (2) (1)

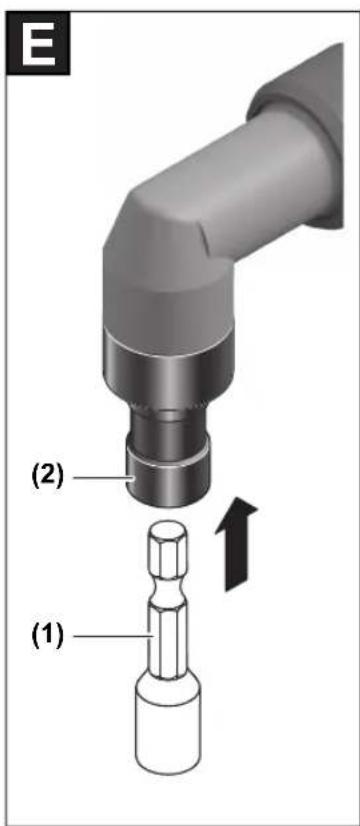

E (2) (1)

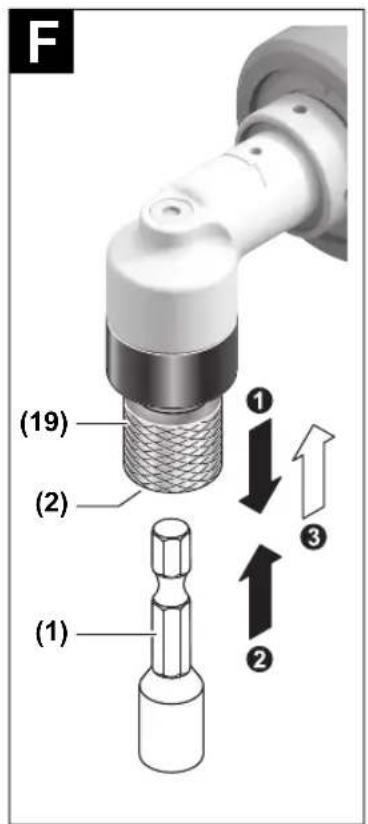

(19) (2) (1) ① ② ③

6

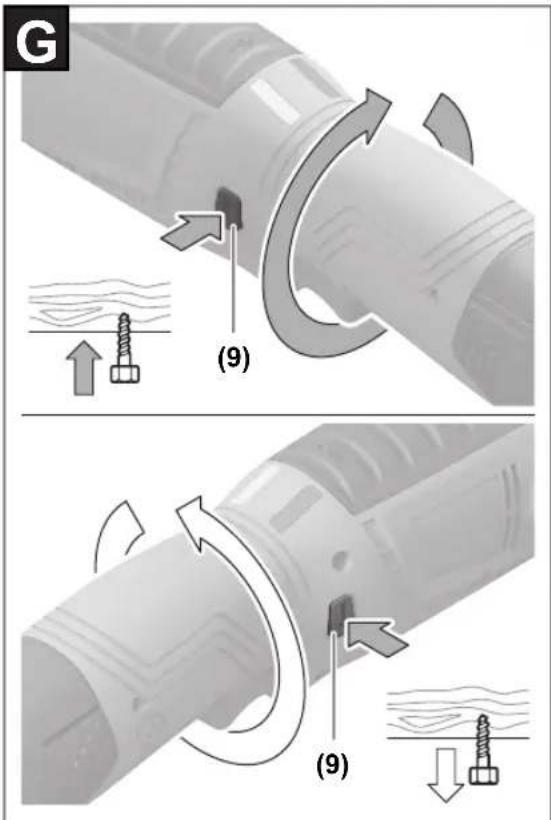

G (9) (9)

(1) (20) (21) (4) (20) +

Deutsch

Sicherheitshinweise

www.bosch-pt.com/serviceaddresses

Transport

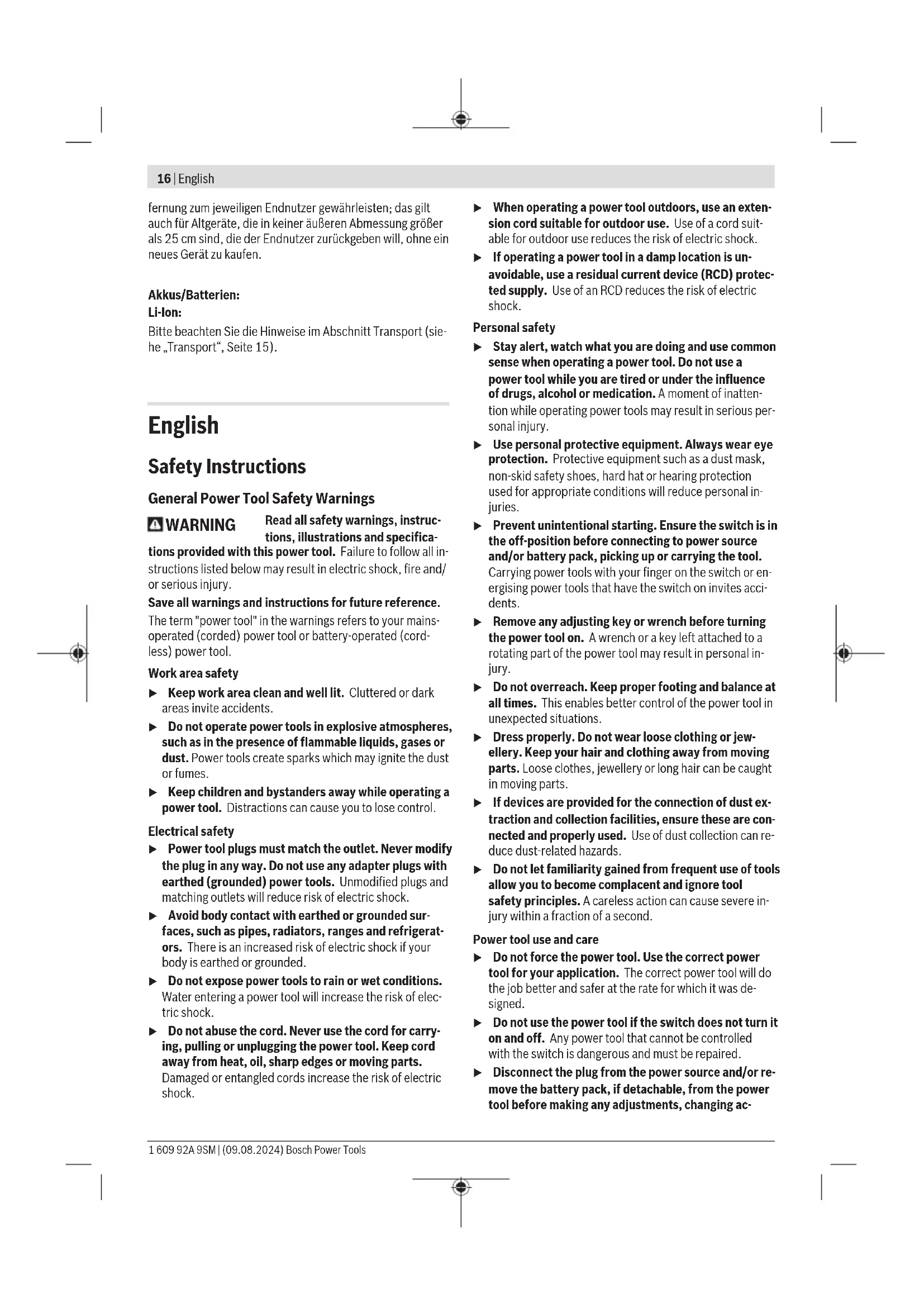

General Power Tool Safety Warnings

WARNING

Read all safety warnings, instructions, illustrations and specifica-

tions provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

▶ Keep work area clean and well lit. Cluttered or dark areas invite accidents.
▶ Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
▶ Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety

▶ Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
▶ Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
▶ Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
▶ Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of electric shock.

When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Personal safety

▶ Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
▶ Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
▶ Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
▶ Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
▶ Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
▶ Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
▶ Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
▶ Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing ac-

Power tool use and care

cessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

▶ Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
- Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
▶ Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
▶ Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
▶ Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

Battery tool use and care

▶ Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
▶ Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
▶ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
▶ Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
▶ Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130°C may cause explosion.
▶ Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

Service

▶ Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
▶ Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

Safety Warnings for Screwdrivers

▶ Hold the power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring. Fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
▶ Use suitable detectors to determine if there are hidden supply lines or contact the local utility company for assistance. Contact with electric cables can cause fire and electric shock. Damaging gas lines can lead to explosion. Breaking water pipes causes property damage.
▶ Hold the power tool securely. When tightening and loosening screws be prepared for temporarily high torque reactions.
▶ Secure the workpiece. A workpiece clamped with clamping devices or in a vice is held more secure than by hand.
▶ Always wait until the power tool has come to a complete stop before placing it down. The application tool can jam and cause you to lose control of the power tool.
In case of damage and improper use of the battery, vapours may be emitted. The battery can set alight or explode. Ensure the area is well ventilated and seek medical attention should you experience any adverse effects. The vapours may irritate the respiratory system.
▶ Do not modify or open the battery. There is a risk of short-circuiting.
The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit may occur, causing the battery to burn, smoke, explode or overheat.
▶ Only use the battery in the manufacturer's products. This is the only way in which you can protect the battery against dangerous overload.

Protect the battery against heat, e.g. against continuous intense sunlight, fire, dirt, water and moisture. There is a risk of explosion and short-circuiting.

▶ Switch the power tool off immediately if the application tool becomes blocked. Be prepared for high torque reactions which cause kickback. The application tool becomes blocked when it becomes jammed in the workpiece or when the power tool becomes overloaded.

WARNING

The dust produced by sanding, sawing, grinding, drilling and

other similar activities may cause cancer, congenital defects or genetic mutations. Some of these dusts contain

18 | English

substances such as:

Lead in lead-based paint and varnish; crystalline silica in bricks, cement and other building materials; arsenic and chromate in chemically treated wood. The risk of becoming ill depends on how frequently you are exposed to these substances. To reduce the potential danger, you should always wear adequate personal protective equipment (e.g. specially made breathing apparatus that can filter out even the smallest of dust particles) and work only in well-ventilated areas.

▶ Avoid switching on the tool accidentally. Make sure that the on/off switch is set to the off position before inserting a battery. Accidents can occur as a result of carrying the power tool with your finger on the on/off switch or inserting the battery while the power tool is switched on.
▶ Do not use application tools that are worn or in otherwise less than perfect condition. Defective application tools can break, for example, causing material damage and personal injury.
When fitting an application tool, make sure that it is held securely in the tool holder. If the application tool is not held securely in the tool holder, it may become loose and consequently uncontrollable.
▶ Be careful when screwing in long screws – there is a risk of slipping when using particular screws and application tools. Long screws are often difficult to control and there is a danger that you will slip and hurt yourself when screwing them in.
▶ Check which rotational direction is set before switching on the power tool. If you want to loosen a screw but the rotational direction is set to tighten the screw, for example, the power tool may move violently and uncontrollably.
▶ Do not use the power tool as a drill. Power tools with a shut-off clutch are not suitable for drilling. The clutch can shut off automatically and without warning.

Product Description and Specifications

Read all the safety and general instructions.

Failure to observe the safety and general instructions may result in electric shock, fire and/or serious injury.

Please observe the illustrations at the beginning of this operating manual.

Intended Use

The power tool is intended for tightening and loosening screws, bolts, nuts and other threaded connectors in the specified power and dimension ranges.

The power tool is suitable only for use in industrial environments.

The power tool is not suitable for use as a drill.

Product Features

The numbering of the product features refers to the diagram of the power tool on the graphics page.

(1) Application tool ^a)
(2) Tool holder ^a)
(3) Angled screw head ^a)
(4) Slider for preselecting the torque
(5) LED indicator for screwdriving applications
(6) Battery charge indicator
(7) Rechargeable battery ^a)

(8) On/off switch

(9) Rotational direction switch

(10) Handle (insulated gripping surface)

(11) Rechargeable battery release button ^a)

(12) Hanging hook ^a)

(13) Holes for hanging hook

(14) Spanner flat on cap nut ^a)

(15) Spanner flat on angled head flange ^4

(16) Open-ended spanner (27 mm width across flats) ^a)

(17) Open-ended spanner (22 mm width across flats) ^a)

(18) Lock nut ^a)

(19) Quick-change chuck ^a)

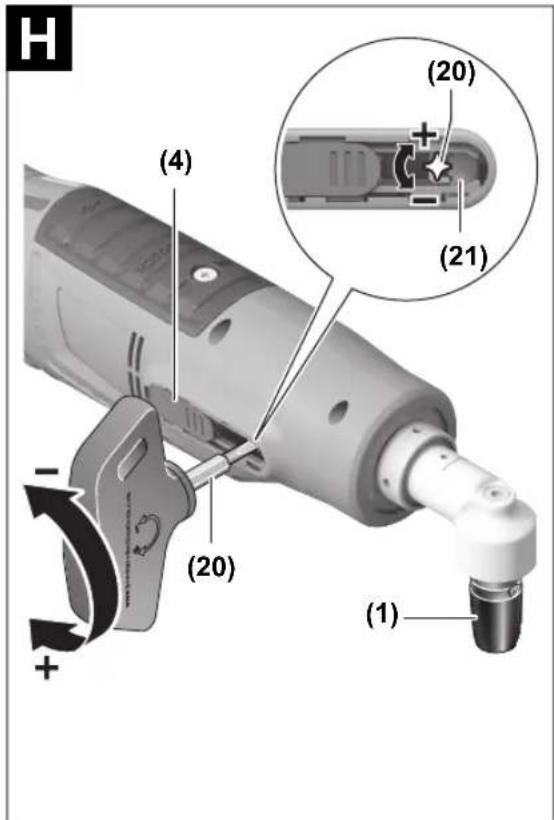

(20) Adjustment tool ^a)

(21) Setting disc

(22) USB cover

a) This accessory is not part of the standard scope of delivery.

Technical Data

Industrial cordless screwdriver
ANGLE EXACT 12V-12-400 12V-6-600 12V-3-600
Article number	3 602 D96 6.0 3 602 D96 6.1 3 602 D96 6.2
Rated voltage V= 12 12 12
Protection rating IP 20 IP 20 IP 20
Weight kg 0.7 0.7 0.7
Rechargeable battery (not included in the scope of delivery)	Li-ion Li-ion Li-ion

Industrial cordless screwdriver
ANGLE EXACT 12V-12-400 12V-6-600 12V-3-600

Recommended ambient temperature during charging	°C 0 to +35 0 to +35 0 to +35
Permitted ambient temperature during operationa) and during storage	°C -20 to +50 -20 to +50 -20 to +50
Recommended rechargeable batteries GBA 12V... GBA 12V... GBA 12V...
Recommended chargers GAL 12...		GAL 12...	GAL 12...
	GAX 18...	GAX 18...	GAX 18...

Technical data without angle head

No-load speed n_0^B)	min^-1	134-670 220-1100 220-1100
Maximum Power Boost speed ^B)C)	min^-1	910 1450 1450
Max. torque, hard/soft screwdriving application according to ISO 5393 ^B)	Nm 1.5-6.0 1.0-3.0 0.5-2.0
Maximum torque ^B)D)	Nm 6.5 3.0 2.0
Weight ^E)	kg 0.9-1.1 0.9-1.1 0.9-1.1

Technical data with 12 V angle head

Article number		0 602 496 020	0 602 496 020	0 602 496 020
		0 602 496 021	0 602 496 021	0 602 496 021
No-load speed n_o^B)	min^-1	74-370 120-600 120-600
Maximum Power Boost speed ^B)C)	min^-1	500 800 800
Max. torque, hard/soft screwdriving application according to ISO 5393^B)	Nm 3.0-10.0 2.0-6.0 1.0-3.5
Maximum torque ^B)D)	Nm 12.0 6.0 3.5
Weight ^E)	kg 0.9-1.3 0.9-1.3 0.9-1.3

Technical data for 180 W angle head

Article number		0 607 453 617	-	-
		0 607 453 618
		0 607 453 620
		0 607 453 630
		0 602 496 022
No-load speed n_0^B)	min^-1	95-480--
Maximum Power Boost speed ^B)(C)	min^-1	650--
Max. torque, hard/soft screwdriving application according to ISO 5393 ^B)	Nm 2.5-8.0--
Maximum torque ^B)(D)	Nm 9.0--
Weight ^E)	kg 1.0-1.4--

A) Limited performance at temperatures < 0 °C

B) Measured at 20–25 °C with rechargeable battery GBA 12V 6.0Ah

C) Limited performance at speeds < 50 %)

D) Only possible in cycle operation: < 5 screws driven in per minute

E) Depends on battery in use

20 | English

Angled screw head Adapter
	1/4"	3/8"	1/4" QC	1/4"	3/8" QC	1/4"
Article number	0 607 453617	0 607 453620	0 607 453618	0 607 453630	0 602 496020	0 602 496021	0 602 496022
Torque, hard/soft screwdriving application according to VDI 2647^A)	Nm 27 27 27 27 15 15 20
Tightening torque at the flange Nm 20 20 20 20 15 15 20
Weight kg 0.20 0.20 0.20 0.20 0.15 0.15 0.05

A) The homologation according to VDI 2647 can be downloaded from www.bosch-professional.com. Values can vary depending on the product, scope of application and environmental conditions. To find out more, visit www.bosch-professional.com/wac.

Noise/vibration information

Noise emission values determined according to EN 62841-2-2.

Typically, the A-weighted sound pressure level of the power tool is less than 70 dB(A). The noise level when working can exceed the volume stated. Wear hearing protection!

Vibration total values a_n (triax vector sum) and uncertainty K determined according to EN 62841-2-2:

Impact tightening of fasteners of the maximum capacity of the tool: a_h < 2.5 m/s^2 , K = 1.5 m/s^2

The vibration level and noise emission value given in these instructions have been measured in accordance with a standardised measuring procedure and may be used to compare power tools. They may also be used for a preliminary estimation of vibration and noise emissions.

The stated vibration level and noise emission value represent the main applications of the power tool. However, if the power tool is used for other applications, with different accessories or is poorly maintained, the vibration level and noise emission value may differ. This may significantly increase the vibration and noise emissions over the total working period.

To estimate vibration and noise emissions accurately, the times when the tool is switched off or when it is running but not actually being used should also be taken into account. This may significantly reduce vibration and noise emissions over the total working period.

Implement additional safety measures to protect the operator from the effects of vibration, such as servicing the power tool and accessories, keeping their hands warm, and organising workflows correctly.

Notes on Accuracy

The reduction in speed (especially below 50 %) can lower the maximum torque. The increased speed when using Power Boost may affect the accuracy and shut-off behaviour. The clutch may be released.

Machine capability tests are usually done at 600 rpm in accordance with VDI 2647.

Changes to the speed and/or torque may affect the accuracy.

The machine capability must be checked with the relevant setting.

Rechargeable battery

Bosch sells some cordless power tools without a rechargeable battery. You can tell whether a rechargeable battery is included with the power tool by looking at the packaging.

Charging the battery

▶ Use only the chargers listed in the technical data. Only these chargers are matched to the lithium-ion battery of your power tool.

Note: Lithium-ion rechargeable batteries are supplied partially charged according to international transport regulations. To ensure full rechargeable battery capacity, fully charge the rechargeable battery before using your tool for the first time.

Inserting the Battery

Push the charged battery into the battery holder until it clicks into place.

Removing the Battery

To remove the rechargeable battery, press the battery release buttons and pull the battery out. Do not use force to do this.

Battery charge indicator (yellow LED)

Battery charge indicator	Meaning
Flashing light + sound	Charge the battery:You can only drive in 6 to 8 more screws.
Continuous light + sound	There is not enough capacity left to drive in another screw or the power tool has overloaded:The power tool can no longer be switched on.- Remove the battery and replace it with a battery that is fully charged.
Flashing light	The power tool has overheated and switched itself off:- Wait a short while for the light to stop flashing before switching the power tool on again.

When the rechargeable battery (7) is inserted and the on/off switch (8) is pressed, the battery charge indicator displays the battery's state of charge for 5 seconds.

Rechargeable battery charge indicator	Capacity
Green 60–100 %
Yellow 30–60 %
Red 0–30 %

Recommendations for Optimal Handling of the Battery

Protect the battery against moisture and water.

Only store the battery within a temperature range of -20 to 50°C. Do not leave the battery in your car in the summer, for example.

A significantly reduced operating time after charging indicates that the battery has deteriorated and must be replaced. Follow the instructions on correct disposal.

Assembly

▶ Before carrying out any work on the power tool (e.g. maintenance, tool change etc.), remove the battery from the power tool. There is risk of injury from unintentionally pressing the on/off switch.

Operating and storage conditions

The power tool is suitable only for operation at enclosed work sites.

To ensure smooth operation, the permitted ambient temperature should be between 0 °C and +45 °C, at a permitted relative humidity of between 20 and 95%, free of condensation.

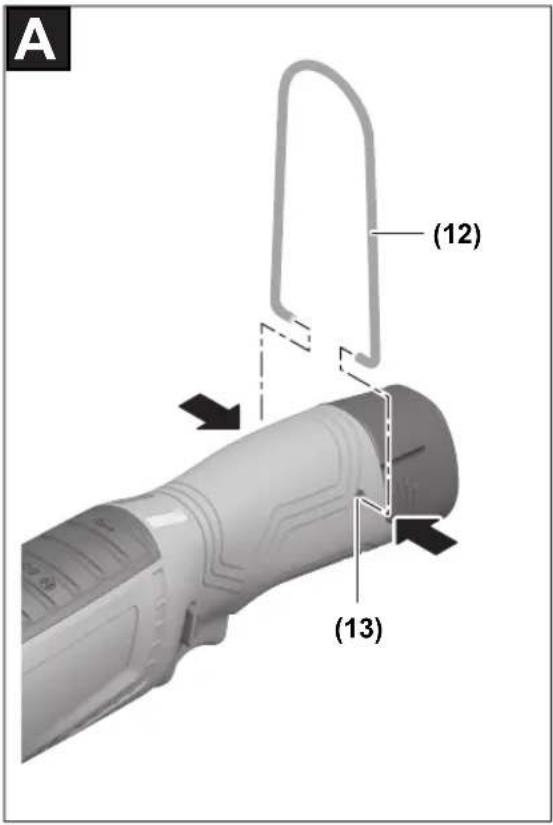

Suspension device (see figure A)

You can use the hanging hook (12) to attach the power tool to a suspension device.

- Fit the hanging hook (12) onto the power tool and make sure it engages in the holes (13).

▶ Regularly check the condition of the hanging hook and the catch in the suspension device.

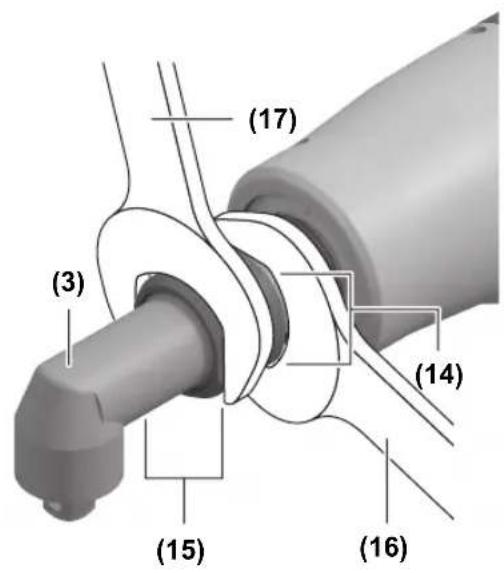

Fitting the 180 W angle head (see figure B)

These industrial cordless angle wrenches must be fitted with an adapter and a compatible angled screw head (see "Technical Data", page 18) first.

• Place the 180 W angle head on the adapter and tighten it with an open-ended spanner (16) against the spanner flat on the cap nut (14). Hold the open-ended spanner (17) against the spanner flat of the adapter (15).
  The thread and flange thread must be free from grease and the correct torque (see "Technical Data", page 18) must be used so that the angle head cannot come loose.
• Turn the lock nut (18) all the way back in the direction of the arrow a (left-hand thread).
• Then turn the adapter all the way back in the direction of the arrow a (left-hand thread).
  ▶ Never clamp the power tool to the housing shells.
• Turn the adapter back to the right until the angle head is in the required position, a maximum of 360^ .
• Fix the adapter in this position by turning the lock nut (18) in the direction of the arrow c against the adapter using a suitable tool (hook spanner DIN 1810 form B size 25/28). Tighten the lock nut (18) to the correct tightening torque (see "Technical Data", page 18). While doing so, you must hold with a suitable tool.
  The thread and flange thread must be free from grease and the correct torque (see "Technical Data", page 18) must be used so that the angle head cannot come loose.
• Hold the power tool with the open-ended spanner (17) against the spanner flat (15) of the adapter.

Fitting the 12 V angle head (see figure C)

These cordless angle wrenches must be fitted with a compatible angled screw head (see "Technical Data", page 18) first.

The angled screw head (3) with tool holder (2) can be continuously adjusted by 360^ .

• Turn the lock nut (18) all the way back in the direction of the arrow a (left-hand thread).
  ▶ Never clamp the power tool to the housing shells.
• Turn the angled screw head (3) in the direction of the arrow d as far as it will go onto the flange. Then turn back in direction b until the required working angle is reached; however, it should only be turned a maximum of one 360^ rotation.
• Fix the angled screw head (3) in this position by turning the lock nut (18) in the direction of the arrow c against the angled screw head using a suitable tool (hook spanner DIN 1810 form B size 25/28). Tighten the lock nut (18) to the correct tightening torque (see "Technical Data", page 18). While doing so, a suitable tool (hook spanner DIN 1810 form B size 20/22) must be hooked into an opening on the angle head and held.
  The thread and flange thread must be free from grease and the correct torque (see "Technical Data", page 18) must be used so that the angle head cannot come loose.

22 | English

Adjusting the 12 V angle head

The angled screw head (3) with tool holder (2) can be continuously adjusted by 360^ .

- Loosen the lock nut (18) by hooking a suitable tool (hook spanner DIN 1810 form B size 25/28) into an opening on the lock nut and turning it in the direction of the arrow a (left-hand thread). While doing so, a suitable tool (hook spanner DIN 1810 form B size 20/22) must be hooked into an opening on the angle head and held.

▶ Never clamp the power tool to the housing shells.

• Turn the angled screw head (3) in the direction of the arrow b until the required working angle is reached; however, it should only be turned a maximum of one 360^ rotation.
• Fix the angled screw head (3) in this position by turning the lock nut (18) in the direction of the arrow c against the angled screw head. Tighten the lock nut (18) to the correct tightening torque (see "Technical Data", page 18) again. While doing so, a suitable tool must be hooked into an opening on the angle head and held.
  The thread and flange thread must be free from grease and the correct torque (see "Technical Data", page 18) must be used so that the angle head cannot come loose.

Configuring the power tool

You can configure various settings on the power tool (e.g. rotational speed, screwing stage, repeat protection) using BOSCH EXACT Configurator software of version 5.2 or higher. The power tool must be connected to a PC via its USB port in order to do this. Use a USB cable for this: USB 2.0 Type A/Micro-USB 2.0 Type B

• Double-shielded
• Max. length 1 m

When configuring via the USB port, radio interference may occur outside the industrial environment.

▶ Observe all safety notes and instructions in the software operating instructions.

Changing the tool at the screw head with external square (see figure D)

Inserting the application tool

- Press the pin into the square of the tool holder (2), e.g. using a narrow screwdriver, and slide the application tool (1) over the square. Ensure that the pin engages in the recess of the application tool.

Removing the application tool

- Press the pin into the recess of the application tool (1) and pull the application tool off of the tool holder (2).

Changing the tool at the screw head with internal hexagon (see figure E)

Inserting the application tool

- Insert the application tool (1) into the internal hexagon of the tool holder (2) until it audibly engages.

Removing the application tool

- Pull the application tool (1) off of the tool holder (2), using pliers if necessary.

Changing the tool at the screw head with quick-change chuck (see figure F)

Inserting the Application Tool

Only use application tools with the matching shank (1/4" hexagon).

– Pull the sleeve of the quick-change chuck forwards.
- Place the application tool into the tool holder (2) and release the quick-change chuck again.

Removing the application tool

– Pull the sleeve of the quick-change chuck forwards.
- Take the application tool out of the tool holder(2) and release the quick-change chuck again.

Operation

Always set the rotational direction using the rotational direction switch (9) before starting the power tool:
The power tool will not start if the rotational direction switch (9) is in the centre (lock-off button).

Setting the rotational direction (see figure G)

• Clockwise: To drive in screws, press the rotational direction switch (9) through as far as possible to the left.
• Anti-clockwise: To loosen or unscrew screws, press the rotational direction switch (9) through as far as possible to the right.

Setting the torque (see figure H)

The torque depends on the spring preload of the shut-off clutch. The shut-off clutch is triggered upon reaching the set torque, both in clockwise and anticlockwise rotation.

Only use the supplied adjustment tool (20) to set the individual torque.

• Push the cover for the clutch back.
• Insert the application tool (20) into the small protrusion (setting disc (21)) of the clutch and turn the adjustment tool (20).

Turning clockwise will result in a higher torque; turning anticlockwise will result in a lower torque.

- Remove the adjustment tool (20). Push the cover for the clutch until the opening is closed to protect the clutch from contamination.

Note: The required setting is dependent on the type of threaded connector and can be best determined by practical trials. Check a trial screw application with a torque spanner.

▶ If you set the torque to a value outside the specified power range, the shut-off clutch will not be triggered.
▶ Check the torque on the screw connection regularly and readjust the shut-off clutch if necessary.

Switching on/off

The screwdrivers have a torque-dependent shut-off clutch that can be set to a value in the specified range. It responds when the set torque is reached.

• To switch on the power tool, press the on/off switch (8) as far as it will go.
• The power tool will switch off automatically when the set torque is reached.
  ▶ If the on/off switch (8) is released too early, the pre-set torque will not be reached.
  ▶ Check the torque on the screw connection regularly and readjust the shut-off clutch if necessary.

Temperature Dependent Overload Protection

In the event of overload, the power tool switches off until it returns to the optimum operating temperature range. Release the on/off switch (8) and switch the power tool back on to continue working.

The power tool is not operated at optimum efficiency at rotational speeds lower than 50 %. This may cause the temperature dependent overload protection to be activated sooner. Set the output speed higher than 50 % or reduce the maximum torque used if you have problems with these settings.

Practical advice

▶ Only apply the power tool to the screw/nut when the tool is switched off. Rotating tool inserts can slip off.

Screwdriving indicator (green/red LED)

The shut-off clutch is triggered upon reaching the preset torque. The LED indicator (5) lights up green.

If the preset torque has not been reached, the LED indicator (5) lights up red and the tool emits a sound. The screw must be driven in again.

Repeat protection

If the shut-off clutch is triggered while driving a screw, the motor will switch off. You will need to wait 0.7 seconds before you can switch the tool on again. This prevents you from accidentally retightening screws that are already firmly in place.

Maintenance and Service

Maintenance and Cleaning

Before carrying out any work on the power tool (e.g. maintenance, tool change etc.), remove the battery from the power tool. There is risk of injury from unintentionally pressing the on/off switch.
▶ To ensure safe and efficient operation, always keep the power tool and the ventilation slots clean.
▶ Check the entire power tool for damage and wear every 100,000 screw connections at the latest and check all functions. Then set the torque of the clutch again.

After-Sales Service and Application Service

Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. You can find explosion drawings and information on spare parts at: www.bosch-pt.com

The Bosch product use advice team will be happy to help you with any questions about our products and their accessories.

In all correspondence and spare parts orders, please always include the 10-digit article number given on the nameplate of the product.

Malaysia

Robert Bosch Sdn. Bhd.(220975-V) PT/SMY

No. 8A, Jalan 13/6

46200 Petaling Jaya

Selangor

Tel.: [phone]

Toll-Free: 1800 880188

Fax: [phone]

E-Mail: [e-mail]

www.bosch-pt.com.my

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O. Box 98

Broadwater Park

North Orbital Road

Denham Uxbridge

UB 9 5HJ

At www.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair.

Tel. Service: [phone]

E-Mail: [e-mail]

You can find further service addresses at:

www.bosch-pt.com/serviceaddresses

Transport

The recommended lithium-ion batteries are subject to legislation on the transport of dangerous goods. The user can transport the batteries by road without further requirements.

When the batteries are shipped by third parties (e.g. air transport or forwarding agency), special requirements on packaging and labelling (e.g. ADR regulations) must be met. A dangerous goods expert must be consulted when preparing the items for shipping.

Dispatch battery packs only when the housing is undamaged. Tape or mask off open contacts and pack up the battery in such a manner that it cannot move around in the packaging. Please also observe the possibility of more detailed national regulations.

Disposal

Power tools, rechargeable batteries, accessories and packaging should be sorted for environmental-friendly recycling.

24 | Français

Do not dispose of power tools and batteries/rechargeable batteries into household waste!

Only for EU countries:

Power tools that are no longer suitable for use and defective or used batteries must be disposed of separately. Use the designated collection systems.

If disposed incorrectly, waste electrical and electronic equipment may have harmful effects on the environment and human health, due to the potential presence of hazardous substances.

Only for United Kingdom:

According to The Waste Electrical and Electronic Equipment Regulations 2013 (SI 2013/3113) (as amended) and the Waste Batteries and Accumulators Regulations 2009 (SI 2009/890) (as amended), products that are no longer usable must be collected separately and disposed of in an environmentally friendly manner.

Battery packs/batteries:

Li-ion:

Please observe the notes in the section on transport (see "Transport", page 23).

Français

Robert Bosch Morocco SARL

53, Rue Lieutenant Mahroud Mohamed

20300 Casablanca

Tel.: [phone]

E-Mail : [e-mail]

France

Robert Bosch (France) S.A.S.

www.bosch-pt.com/serviceaddresses

Transport

Calle Robert Bosch No. 405

www.bosch-pt.com/serviceaddresses

Transporte

www.bosch-pt.com/serviceaddresses

Transporte

www.bosch-pt.com/serviceaddresses

Trasporto

www.bosch-pt.com/serviceaddresses

Vervoer

Bosch Service Center

Telegrafvej 3

2750 Ballerup

På www.bosch-pt.dk kan der online bestilles reservedele eller oprettes en reparations ordre.

Tlf. Service Center: 44898855

Fax: [phone]

E-Mail: [e-mail]

Yderligere serviceadresser findes under:

www.bosch-pt.com/serviceaddresses

Transport

Bosch Service Center

Telegrafvej 3

2750 Ballerup

Danmark

Tel.: [phone] (inom Sverige)

Fax: [phone]

Vidare serviceadresser finner du under:

www.bosch-pt.com/serviceaddresses

Transport

www.bosch-pt.com/serviceaddresses

Transport

www.bosch-pt.com/serviceaddresses

Kuljetus

www.bosch-pt.com/serviceaddresses

Μεταφορά

www.bosch-pt.com/serviceaddresses

Taşıma

Robert Bosch Sp. z o.o.

www.bosch-pt.com/serviceaddresses

Transport

Bosch Service Center PT

K Vápence 1621/16

692 01 Mikulov

www.bosch-pt.com/serviceaddresses

Přeprava

m = 311

1/4"

Hmotnost kg 0,20 0,20 0,20 0,20 0,15 0,15 0,05

www.bosch-pt.com/serviceaddresses

Preprava

www.bosch-pt.com/serviceaddresses

Szállítás

www.bosch-pt.com/serviceaddresses

www.bosch-pt.com/serviceaddresses

Транспортування

www.bosch-pt.com/serviceaddresses

Service scule electrice

Strada Horia Măcelariu Nr. 30-34, sector 1

013937 Bucureşti

www.bosch-pt.com/serviceaddresses

Transport

Service scule electrice

Strada Horia Măcelariu Nr. 30–34, sector 1

013937 Bucureşti, România

www.bosch-pt.com/bg/bg/

www.bosch-pt.com/serviceaddresses

Транспортиране

www.bosch-pt.com/serviceaddresses

Транспорт

www.bosch-pt.com/serviceaddresses

Transport

Sadržani litijum-jonski akumulatori podležu zahtevima zakona o opasnim materijalima. Korisnik može da transportuje akumulatore kopnenim putem bez dodatnih uslova.

Kod slanja preko posrednika (npr.: vazdušnim transportom ili otpremom) treba poštovati posebne zahteve u pogledu pakovanja i označavanja. Pri tome je kod pripreme pošiljke potrebno angažovati stručnjaka za opasne materijale.

www.bosch-pt.com/serviceaddresses

Transport

www.bosch-pt.com/serviceaddresses

Transport

www.bosch-pt.com/serviceaddresses

Transport

www.bosch-pt.com/serviceaddresses

Transportešana

www.bosch-pt.com/serviceaddresses

Transportavimas

www.bosch-pt.com/serviceaddresses

運搬

www.bosch-pt.com/serviceaddresses

搬运

www.bosch-pt.com/serviceaddresses

搬運

www.bosch-pt.com/serviceaddresses

운반

www.bosch-pt.com/serviceaddresses

การขนสง

Arkadia Green Park Tower G - 7th floor

Jl. Let. Jend. TB. Simatupang Kav.88 Jakarta 12520

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

www.bosch-pt.co.id

www.bosch-pt.com/serviceaddresses

Transport

www.bosch-pt.com/serviceaddresses

Vận chuyển

Robert Bosch Morocco SARL

53.شارع الملازم محمد محرود

20300 الدار البيضاء

www.bosch-pt.com/serviceaddresses

النقل

(B.GBA 12V 6.0Ah شار

www.bosch-pt.com/serviceaddresses

334 | Legal Information and Licenses

Legal Information and Licenses

Open Source Software Attributions for Embedded: PT Exact12 Angle 44 Release

PT Scan codes : R43_MCU_v2_1297 and R43_IFU_v1_1295

This document is provided as part of the fulfillment of OSS license conditions and does not require users to take any action before or while using the product.

1 Appendix - License Text

1.1 Infineon BSD3-Clause (BSD-3-Clause\_Infineon)

Copyright (©) 2015, Infineon Technologies AG All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
3. Neither the name of the copyright holders nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

1.2 License: Infineon BSD3-Clause (BSD-3-Clause\_Infineon)

Copyright (©) 2012-2013 Infineon Technologies AG. All rights reserved.

Infineon Technologies AG (Infineon) is supplying this software for use with Infineon's microcontrollers.

This file can be freely distributed within development tools that are supporting such microcontrollers.

THIS SOFTWARE IS PROVIDED "AS IS". NO WARRANTIES, WHETHER EXPRESS, IMPLIED OR STATUTORY, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE APPLY TO THIS SOFTWARE. INFINEON SHALL NOT, IN ANY CIRCUMSTANCES, BE LIABLE FOR SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, FOR ANY REASON WHATSOEVER.

1.3 License: ARM Cortex-Mx Proprietary (ARM-Cortex-Mx-Proprietary)

ARM Limited (ARM) is supplying this software for use with Cortex-Mx processor based microcontrollers. This file can be freely distributed within development tools that are supporting such ARM based processors.

THIS SOFTWARE IS PROVIDED "AS IS". NO WARRANTIES, WHETHER EXPRESS, IMPLIED OR STATUTORY, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE APPLY TO THIS SOFTWARE. ARM SHALL NOT, IN ANY CIRCUMSTANCES, BE LIABLE FOR SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, FOR ANY REASON WHATSOEVER.

1.4 License: Grigori Goronzy MIT License (MIT\_Grigori\_Goronzy)

The MIT License (MIT)

Copyright (©) 2015 Grigori Goronzy

Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:

The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software.

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

1.5 License: STMicroelectronics Adapted BSD3-Clause (BSD-3-Clause\_Adapted\_STM)

This notice applies to any and all portions of this file that are not between comment pairs USER CODE BEGIN and USER CODE END. Other portions of this file, whether inserted by the user or by software development tools are owned by their respective copyright owners. Copyright (©) 2018 STMicroelectronics International N.V. All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted, provided that the following conditions are met:

1. Redistribution of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

3. Neither the name of STMicroelectronics nor the names of other contributors to this software may be used to endorse or promote products derived from this software without specific written permission.

4. This software, including modifications and/or derivative works of this software, must execute solely and exclusively on microcontroller or microprocessor devices manufactured by or for STMicroelectronics.

5. Redistribution and use of this software other than as permitted under this license is void and will automatically terminate your rights under this license.

THIS SOFTWARE IS PROVIDED BY STMICROELECTRONICS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS, IMPLIED OR STATUTORY WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NON-INFRINGEMENT OF THIRD PARTY INTELLECTUAL PROPERTY RIGHTS ARE DISCLAIMED TO THE FULLEST EXTENT PERMITTED BY LAW. IN NO EVENT SHALL STMICROELECTRONICS OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

1.6 License: STMicroelectronics BSD3-Clause (BSD-3-Clause\_STM)

COPYRIGHT (©) 2017 STMicroelectronics

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
3. Neither the name of STMicroelectronics nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

1.7 License: STM\_NonStandard (MCD St Liberty Software License Agreement v2 (MCD-ST))

COPYRIGHT 2012 STMicroelectronics

Licensed under MCD-ST Liberty SW License Agreement V2, (the "License");

You may not use this file except in compliance with the License. You may obtain a copy of the License at:

http://www.st.com/software_license_agreement_liberty_v2

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.

See the License for the specific language governing permissions and limitations under the License.

1.8 License: Public Domain DJ Bernstein MIT (Grigori Goronzy MIT License)

The MIT License (MIT)

Copyright (©) 2015 Grigori Goronzy [e-mail]

Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:

The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software.

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE.

Warranty Disclaimer

This product contains Open Source Software components which underly Open Source Software Licenses. Please note that Open Source Licenses contain disclaimer clauses. The text of the Open Source Licenses that apply are included in this manual under "Licenses".

336 | Legal Information and Licenses

CE

1

de	EU-Konformitätserklärung		Wir erklären in alleiniger Verantwortung, dass die genannten Produkte allen einschlägigen Bestimmungen der nachfolgend aufgeführten Richtlinien und Verordnungen entsprechen und mit folgenden Normen übereinstimmen.Technische Unterlagen bei:*
	Industrie-AkkuschrauberANGLE EXACT	Sachnummer
en	EU Declaration of Conformity		We declare under our sole responsibility that the stated products comply with all applicable provisions of the directives and regulations listed below and are in conformity with the following standards.Technical file at:*
	Industrial cordless screwdriverANGLE EXACT	Article number
fr	Déclaration de conformité UE		Nous déclarons sous notre propre responsabilité que les produits décrits sont en conformité avec les directives, règlements normatifs et normes énumérés ci-dessous.Dossier technique auprès de:*
	Visseuse industrielle sans fil ANGLE EXACT	N° d'article
es	Declaración de conformidad UE		Declaramos bajo nuestra exclusiva responsabilidad, que los productos nombrados cumplen con todas las disposiciones correspondientes de las Directivas y los Reglamentos mencionados a continuación y están en conformidad con las siguientes normas.Documentos técnicos de:*
	Atornilladora industrial accionada por acumulador ANGLE EXACT	N° de artículo
pt	Declaração de Conformidade UE		Declaramos sob nossa exclusiva responsabilidade que os produtos mencionados cumprem todas as disposições e os regulamentos indicados e estão em conformidade com as seguintes normas.Documentação técnica pertencente à:*
	Aparafusadora sem fio industrial ANGLE EXACT	N.° do produto
it	Dichiarazione di conformità UE		Dichiariamo sotto la nostra piena responsabilità che i prodotti indicati sono conformi a tutte le disposizioni pertinenti delle Direttive e dei Regolamenti elencati di seguito, nonché alle seguenti Normative.Documentazione Tecnica presso:*
	Avvitatore industriale a batteria ANGLE EXACT	Codice prodotto
nl	EU-conformiteitsverklaring		Wij verklaren op eigen verantwoordelijkheid dat de genoemde producten voldoen aan alle desbetreffende bepalingen van de hierna genoemde richtlijnen en verordeningen en overeenstemmen met de volgende normen.Technisch dossier bij:*
	Industrie-accuschroevendraaier ANGLE EXACT	Productnummer
da	EU-overensstemmelseserklæring		Vi erklærer som eneansvarlige, at det beskrevne produkt er i overensstemmelse med alle gældende bestemmelser i følgende direktiver og forordninger og opfylder følgende standarder.Tekniske bilag ved:*
	Industriel akku-skruemaskine ANGLE EXACT	Typenummer
sv	EU-konformitetsförklaring		Vi förklarar under eget ansvar att de nämnda produkterna uppfyller kraven i alla gällande bestämmelser i de nedan angivna direktiven och förordningarnas och att de stämmer överens med följande normer.Teknisk dokumentation:*
	Sladdlös industri-skruvdragare ANGLE EXACT	Produktnummer
no	EU-samsvarserklæring		Vi erklærer under eneansvar at de nevnte produktene er i overensstemmelse med alle relevante bestemmelser i direktivene og forordningene nedenfor og med følgende standarder.Teknisk dokumentasjon hos:*
	Batteridrevet skrumaskin for industri ANGLE EXACT	Produktnummer
fi	EU-vaatimustenmukaisuusvakuutus		Vakuutamme täten, että mainitut tuotteet vastaavat kaikkia seuraavien direktiivien ja asetusten asiaankuuluvia vaatimuksia ja ovat seuraavien standardien vaatimusten mukaisia.Tekniset asiakirjat saatavana:*
	Teollisuusakkuru uvinväännin ANGLE EXACT	Tuotenumero

||

CE

el	Δήλωση πιστότητας ΕΕ		Δηλώνουμε με αποκλειστική μας ευθύνη, ότι τα αναφερόμενα προϊόντα αντιστοιχούν σε όλες τις σχετικές διατάξεις των πιο κάτω αναφερόμενων οδηγιών και κανονισμών και ταυτίζονται με τα ακόλουθα πρότυπα.Τεχνικά έγγραφα στη:*
	Βιομηχανικόκατσαβίδιμπαταρίας ANGLEEXACT	Αριθμός ευρετηρίου
tr	AB Uygunluk beyanı		Tek sorumlu olarak, tanimlanan ürünün aşağıdaki yönetmelik ve direktiflerin geçerli bütün hükümet av hükümlerine ve aşağıdaki standartlara uygun olduğunu beyan ederiz.Teknik belgelerin bulunduğu yer:*
	Endüstriyel aküliü vidalamamakinesi ANGLEEXACT	Ürün kodu
pl	Deklaracja zgodności UE		Oświadczamy z pełną odpowiedzialnością, że niniejsze produkty odpowiadają wszystkim wymaganiom poniżej wyszczególnionych dyrektyw i rozporządzeń, oraz że są zgodne z następującymi normami.Dokumentacja techniczna:*
	Wkrętarka akumulatorowado zastosowańprzemysłowychANGLE EXACT	Numer katalogowy
cs	EU prohlášení o shodě		Prohlašujeme na výhradní zodpovědnost, že uvedený výrobek splňuje všechna příslušná ustanovení níže uvedených směrnic anařízení aje vsouladu snásledujícími normami:Technické podklady u:*
	Průmyslový akumulátorovýšroubovák ANGLEEXACT	Objednací číslo
sk	EÚ vyhlásenie o zhode		Vyhlasujeme na výhradní zodpovednosť, že uvedený výrobok splňa všetky príslušné ustanovenia nižšie uvedených smerníc anariadení aje vsúlade snasledujúcími normami:Technické podklady má spoločnosť:*
	Priemyselný akumulátorovýskrutkovačANGLE EXACT	Vecné číslo
hu	EU konformitási nyilatkozat		Egyedüli felelőséggel kijelentjük, hogy a megnevezett termékek megfelelnek az alábbiakban felsorolásra kerülő irányelvek és rendeletek valamennyi idevágó előírásainak és megfelelnek a következő szabványoknak.Műszaki dokumentumok megőrzési pontja:*
	Ipari akkumulátoroscsavarozógépANGLE EXACT	Cikkszám
ru	Заявление о соответствии EC		Мы заявляем под нашу единоличную ответственность, что названные продукты соответствуют всем действующим предписаниям нижеуказанных директив и распоряжений, а также нижеуказанных норм.Техническая документация хранится y:*
	Промышленный аккумуляторныйшуруповертANGLE EXACT	Tоварный No
uk	Заява про відповідність ЄС		Мизаявляємо під нашу одноособову відповідальність, що названі вироби відповідають усім чинним положенням нищеозначених директив і розпоряджень, а також нижчеозначеним нормам.Технічна документація зберігається y:*
	Промисловий аккумуляторнийшурупокрутANGLE EXACT	Tоварний номер
kk	EO сәйкестік мағлумдамасы		Өз жауапкершілікпен біз аталған өнімдер төменде жзылған директикалар мен жарлықтардың тиісті қағидаларына сәйкестігін және төменdegі нормаларға сай екенін білдіреміз.Техникалық құжаттар:*
	Өнеркәсіптік аккумуляторлықбурауыш ANGLEEXACT	Өнім нөмірі
ro	Declaratie de conformitate UE		Declarăm pe proprie răspundere că produsele menționate corespund tuturor dispozițiilor relevante ale directivelor și reglementărilor enumerate în cele ce urmează și sunt în conformitate cu următoarele standarde.Documentаție tehnică la:*
	Maşină de însurubatindustrială cuacumulatorANGLE EXACT	Număr de identificare

CE
III

bg	EC декларация за съответствие		С пълна отговорност ние декларираме, че посочените продуктиотговарят на всички валидни изисквания на директивите и разпоредбите по-долу и съответства на следните стандарти.Техническа документация при:*
	Индустриални акумулаторни винтовертиANGLE EXACT	Каталожен номер
mk	EU-Изјава за сообразност		Со целосна одговорност изјавуваме, дека опишаните производи се во согласност со сите релевантни одредби на следните регулативи и прописи и се во согласност со следните норми.Техничка документација кaj:*
	Индустриски батериски одвртувачANGLE EXACT	Број на дел/артикл
sr	EU-izjava o usaglašenosti		Na sopstvenu odgovornost izjavljujemo, da navedeni proizvodi odgovaraju svim dotičnim odredbama naknadno navedenih smernica u uredaba i da su u skladu sa sledećim standardima.Tehnička dokumentacija kod:*
	Industrijski akumulatorski odvrtač ANGLE EXACT	Broj predmeta
sl	Izjava o skladnosti EU		Izjavljamo pod izključno odgovornostjo, da je omenjen izdelek v skladu z vsemi relevantnimi določili direktiv in uredb ter ustreza naslednjim standardom.Tehnična dokumentacija pri:*
	Industrijski akumulatorski vijačnik ANGLE EXACT	Številka artikla
hr	EU izjava o sukladnosti		Pod punom odgovornošću izjavljujemo da navedeni proizvodi odgovaraju svim relevantnim odredbama direktiva i propisima navedenima u nastavku i da su sukladni sa sljedećim normama.Tehnička dokumentacija se može dobiti kod:*
	Industrijski akumulatorski odvijač ANGLE EXACT	Kataloški br.
et	EL-vastavusdeklaratsioon		Kinnitame ainuvastutajatena, et nimetatud tooted vastavad järgnevalt loetletud direktiivide ja määruste köikidele asjaomastele nõuetele ja on kooskõlas järgmiste normidega.Tehnilised dokumentid saadaval:*
	Tööstuslik aukruvikeeraja ANGLE EXACT	Tootenumber
lv	Deklaracija par atbilstību ES standartiem		Mês ar pilnu atbildību paziņojam, ka šeit aplūkotie izstrādājumi atbilst visiem tālāk minētajās direktivās un rīkojumos ietvertajām saistošajām nostādnēm, kā arī sekojošiem standartiem.Tehniskā dokumentācija no:*
	Rūpnieciskais akumulatora skrūvgriezis ANGLE EXACT	Izstrādājuma numurs
lt	ES atitikties deklaracija		Atsakingai pareiškiame, kad išvardyti gaminiai atitinka visus privalomus žemiau nurodytų direktyvų ir reglamentų reikalavimus ir šiuos standartus.Techninė dokumentacija saugoma:*
	Pramoninis akumuliatorinis suktuvas ANGLE EXACT	Gaminio numeris
	ANGLE EXACT12V-12-400	3 602 D96 600	2006/42/EC2014/30/EU2011/65/EU	EN 62841-1:2015+A11:2022EN 62841-2-2:2014EN IEC 61000-6-4:2019EN IEC 61000-6-2:2019EN 55032:2015+A11:2020+A1:2020EN 55035:2017+A11:2020EN IEC 63000:2018
	ANGLE EXACT12V-6-600	3 602 D96 601
	ANGLE EXACT12V-3-600	3 602 D96 602
			* Robert Bosch Power Tools GmbH(PT/ECS)70538 StuttgartGERMANY

IV

CE

Thomas Donato

Helmut Heinzelmann

Chairman of the

Head of Product Certification

Management Board

i.v. k=m

Robert Bosch Power Tools GmbH, 70538 Stuttgart, GERMANY

Stuttgart, 13.06.2024

Declaration of Conformity
Industrial cordless screwdriver ANGLE EXACT Article number

ANGLE EXACT 12V-12-400	3 602 D96 600
ANGLE EXACT 12V-6-600	3 602 D96 601
ANGLE EXACT 12V-3-600	3 602 D96 602

We declare under our sole responsibility that the stated products comply with all applicable provisions of the regulations listed below and are in conformity with the following standards.

Technical file at: Robert Bosch Ltd. (PT/SOP-GB), Broadwater Park, North Orbital Road, Uxbridge UB9 5HJ, United Kingdom

The Supply of Machinery (Safety) Regulations 2008

The Electromagnetic Compatibility Regulations 2016

The Restriction of the Use of Certain Hazardous Substances in

Electrical and Electronic Equipment Regulations 2012

EN 62841-1:2015+A11:2022

EN 62841-2-2:2014

EN IEC 61000-6-4:2019

EN IEC 61000-6-2:2019

EN 55032:2015+A11:2020+A1:2020

EN 55035:2017+A11:2020

EN IEC 63000:2018

BOSCH

Vonjy Rajakoba

Managing Director - Bosch UK

Robert Bosch Power Tools GmbH, 70538 Stuttgart, Germany represented (in terms of the above regulations) by

Robert Bosch Limited, Broadwater Park, North Orbital Road,

Uxbridge UB9 5HJ, United Kingdom

Damm J. W. W. W.

Martin Sibley

Business Operations and Aftersales Director

lunla dly

Robert Bosch Ltd. Broadwater Park, North Orbital Road, Uxbridge UB9 5HJ, United Kingdom, as authorised representative acting on behalf of Robert Bosch Power Tools GmbH, 70538 Stuttgart, Germany

Place of issue: Uxbridge Date of issue: 13/06/2024
