USER MANUAL J4105ITX ASROCK

Version 1.0 Published December 2017 Copyright©2017 ASRock INC. All rights reserved. Copyright Notice: No part of this documentation may be reproduced, transcribed, transmitted, or translated in any language, in any form or by any means, except duplication of documentation by the purchaser for backup purpose, without written consent of ASRock Inc. Products and corporate names appearing in this documentation may or may not be registered trademarks or copyrights of their respective companies, and are used only for identication or explanation and to the owners’ benet, without intent to infringe. Disclaimer: Specications and information contained in this documentation are furnished for informational use only and subject to change without notice, and should not be constructed as a commitment by ASRock. ASRock assumes no responsibility for any errors or omissions that may appear in this documentation. With respect to the contents of this documentation, ASRock does not provide warranty of any kind, either expressed or implied, including but not limited to the implied warranties or conditions of merchantability or tness for a particular purpose. In no event shall ASRock, its directors, ocers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of prots, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the documentation or product. is device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance controlled in Perchlorate Best Management Practices (BMP) regulations passed by the California Legislature. When you discard the Lithium battery in California, USA, please follow the related regulations in advance. “Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/ perchlorate” ASRock Website: http://www.asrock.comAUSTRALIA ONLY Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage caused by our goods. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. If you require assistance please call ASRock Tel : +886-2-28965588 ext.123 (Standard International call charges apply) e terms HDMI™ and HDMI High-Denition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.English

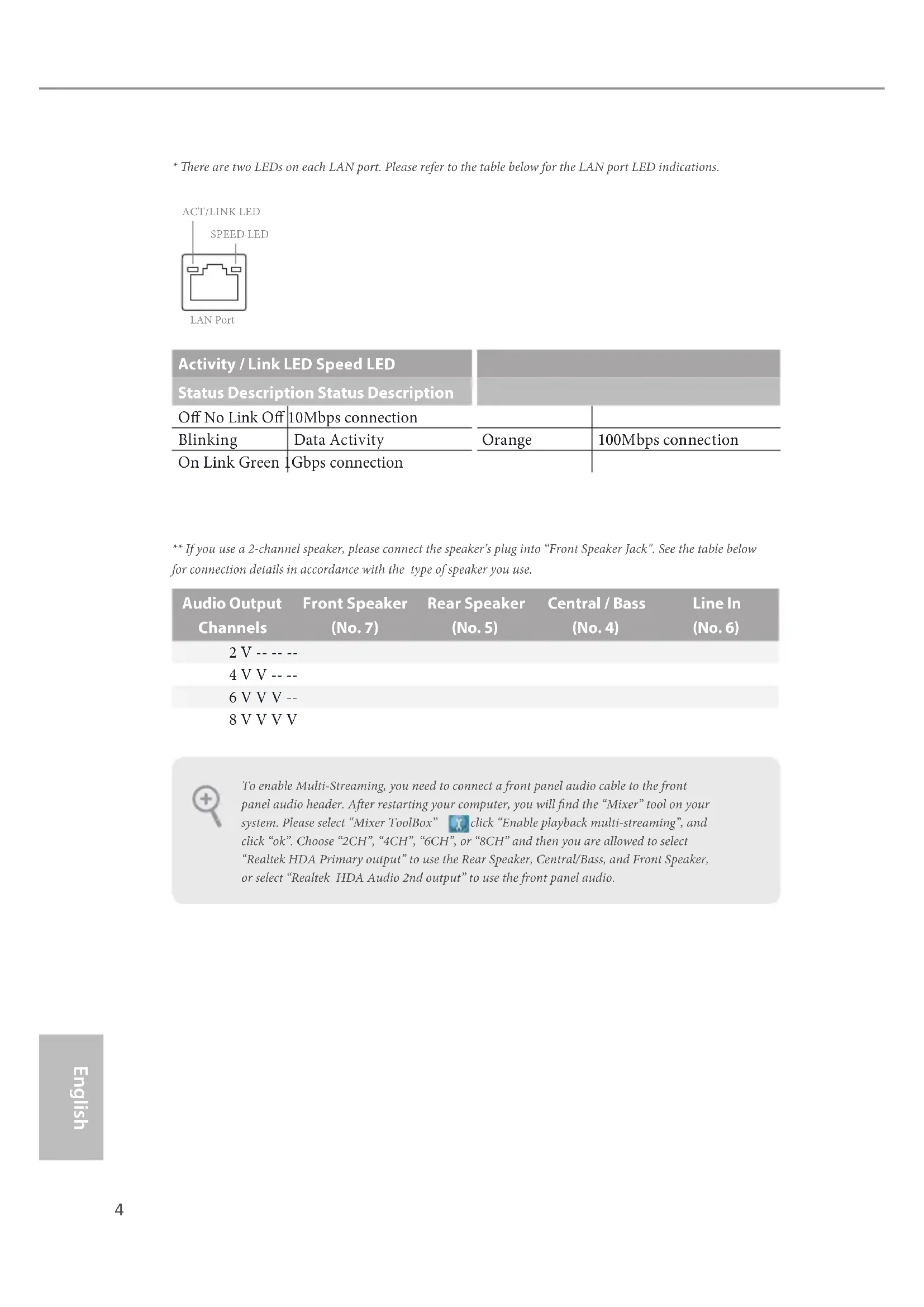

• ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications. Activity / Link LED Speed LED Status Description Status Description O No Link O 10Mbps connection Blinking Data Activity Orange 100Mbps connection On Link Green 1Gbps connection ** If you use a 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”. See the table below for connection details in accordance with the type of speaker you use. Audio Output Channels Front Speaker (No. 7) Rear Speaker (No. 5) Central / Bass (No. 4) Line In (No. 6) 2 V -- -- -- 4 V V -- -- 6 V V V -- 8 V V V V To enable Multi-Streaming, you need to connect a front panel audio cable to the front panel audio header. Aer restarting your computer, you will nd the “Mixer” tool on your system. Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and click “ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select “Realtek HDA Primary output” to use the Rear Speaker, Central/Bass, and Front Speaker, or select “Realtek HDA Audio 2nd output” to use the front panel audio.ACT/LINK LEDSPEED LEDLAN Port

Chapter 1 Introduction

ank you for purchasing ASRock J5005-ITX/J4105-ITX motherboard, a reliable motherboard produced under ASRock’s consistently stringent quality control. It delivers excellent performance with robust design conforming to ASRock’s commitment to quality and endurance.

1 x I/O Panel Shield

ank you for purchasing ASRock J5005-ITX/J4105-ITX motherboard, a reliable motherboard produced under ASRock’s consistently stringent quality control. It delivers excellent performance with robust design conforming to ASRock’s commitment to quality and endurance.

1 x I/O Panel Shield

1 x Screw for M.2 Socket (Optional) Because the motherboard specications and the BIOS soware might be updated, the content of this documentation will be subject to change without notice. In case any modications of this documentation occur, the updated version will be available on ASRock’s website without further notice. If you require technical support related to this motherboard, please visit our website for specic information about the model you are using. You may nd the latest VGA cards and CPU support list on ASRock’s website as well. ASRock website http://www.asrock.com.English

Solid Capacitor design CPU

Intel® Quad-Core Pentium® Silver Processor J5005 (up to 2.8 GHz) (for J5005-ITX)

Intel® Quad-Core Processor J4105 (up to 2.5 GHz) (for J4105-ITX) Memory

Dual Channel DDR4 Memory Technology

Supports DDR4 2400/2133 non-ECC, un-buered memory

Max. capacity of system memory: 8GB Expansion Slot

• Integrated Intel® UHD Graphics 605: 18 EUs inside (Up to 800MHz) (for J5005-ITX)

• Integrated Intel® UHD Graphics 600: 12 EUs inside (Up to 750MHz) (for J4105-ITX)

• Supports Triple Monitor

• Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 60Hz

• Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz

• Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz

• Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)English

• Supports HDCP with DVI-D and HDMI Ports

• Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports Audio

7.1 CH HD Audio with Content Protection (Realtek ALC892

Supports Surge Protection

Supports Wake-On-LAN

Supports Lightning/ESD Protection

Supports Energy Ecient Ethernet 802.3az

Supports PXE Rear Panel I/O

2 x USB 2.0 Ports (Supports ESD Protection)

2 x USB 3.1 Gen1 Ports (Supports ESD Protection)

1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone Storage

2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug

2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug Connector

1 x Chassis Intrusion and Speaker Header

1 x CPU Fan Connector (3-pin)

1 x Chassis Fan Connector (3-pin)

2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection)

1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)

• USB3_0_1 is shared with USB_0_1. BIOS Feature

AMI UEFI Legal BIOS with GUI support

Supports Plug and Play

ACPI 5.0 compliant wake up events

SMBIOS 3.0 support Hardware Monitor

CPU/Chassis temperature sensing

CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)

CPU/Chassis Fan multi-speed control

ErP/EuP ready (ErP/EuP ready power supply is required)

• For detailed product information, please visit our website: http://www.asrock.comEnglish

J5005-ITX J4105-ITX is is a Mini-ITX form factor motherboard. Before you install the motherboard, study the conguration of your chassis to ensure that the motherboard ts into it. Pre-installation Precautions Take note of the following precautions before you install motherboard components or change any motherboard settings.

Make sure to unplug the power cord before installing or removing the motherboard. Failure to do so may cause physical injuries to you and damages to motherboard components.

In order to avoid damage from static electricity to the motherboard’s components, NEVER place your motherboard directly on a carpet. Also remember to use a grounded wrist strap or touch a safety grounded object before you handle the components.

Hold components by the edges and do not touch the ICs.

Whenever you uninstall any components, place them on a grounded anti-static pad or in the bag that comes with the components.

When placing screws to secure the motherboard to the chassis, please do not over- tighten the screws! Doing so may damage the motherboard.

is motherboard provides two 260-pin DDR4 (Double Data Rate 4) SO-DIMM slots, and supports Dual Channel Memory Technology. Supported DDR4 Non ECC SODIMM Raw Card A (1Rx8) B (2Rx8) C (1Rx16) Dual Channel Memory Conguration DDR4_A1 Populated DDR4_B1 Populated

1. It is not allowed to install a DDR, DDR2 or DDR3 memory module into a DDR4

slot; otherwise, this motherboard and SO-DIMM may be damaged.

2. e SO-DIMM only ts in one correct orientation. It will cause permanent damage

to the motherboard and the SO-DIMM if you force the SO-DIMM into the slot at incorrect orientation.English

ere is 1 PCI Express slot on the motherboard. PCIe slot: PCIE1 (PCIe 2.0 x1 slot) is used for PCI Express x1 lane width cards.

To ensure better graphics compability, the BIOS is set to "boot from Onboard VGA" as default even the user install a VGA card on PCIe slot. Before installing an expansion card, please make sure that the power supply is switched o or the power cord is unplugged. Please read the documentation of the expansion card and make necessary hardware settings for the card before you start the installa- tion.English

J5005-ITX J4105-ITX If you clear the CMOS, the case open may be detected. Please adjust the BIOS option “Clear Status” to clear the record of previous chassis intrusion status.

e illustration shows how jumpers are setup. When the jumper cap is placed on the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper is “Open”. Clear CMOS Jumper (CLRCMOS1) (see p.1, No. 6) Short: Clear CMOS Open: Default CLRCMOS1 allows you to clear the data in CMOS. e data in CMOS includes system setup information such as system password, date, time, and system setup parameters. ere are two ways for you to clear and reset the system parameters to the default setup. Please turn o the computer and unplug the power cord, then you may either short the solder points on CLRCMOS1 by using metal material, e.g., a paper clip for 3 seconds; or you may use a jumper cap to short the pin on CLRCMOS1 for 3 seconds. Please remember to remove the paper clip or the jumper cap aer clearing the CMOS. 2-pin Jumper *e jumper cap is not provided.English

2.4 Onboard Headers and Connectors

System Panel Header (9-pin PANEL1) (see p.1, No. 3) Connect the power button, reset button and system status indicator on the chassis to this header according to the pin assignments below. Note the positive and negative pins before connecting the cables. Chassis Intrusion and Speaker Header (7-pin SPK _CI1) (see p.1, No. 5) Please connect the chassis intrusion and the chassis speaker to this header. PWRBTN (Power Button): Connect to the power button on the chassis front panel. You may congure the way to turn o your system using the power button. RESET (Reset Button): Connect to the reset button on the chassis front panel. Press the reset button to restart the computer if the computer freezes and fails to perform a normal restart. PLED (System Power LED): Connect to the power status indicator on the chassis front panel. e LED is on when the system is operating. e LED keeps blinking when the system is in S1/S3 sleep state. e LED is o when the system is in S4 sleep state or powered o (S5). HDLED (Hard Drive Activity LED): Connect to the hard drive activity LED on the chassis front panel. e LED is on when the hard drive is reading or writing data. e front panel design may dier by chassis. A front panel module mainly consists of power button, reset button, power LED, hard drive activity LED, speaker and etc. When connecting your chassis front panel module to this header, make sure the wire assignments and the pin assignments are matched correctly. Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage to the motherboard. GND RESET

J5005-ITX J4105-ITX Serial ATA3 Connectors (SATA3_1: see p.1, No. 12) (SATA3_2: see p.1, No. 13) (SATA3_A1: see p.1, No. 15) (SATA3_A2: see p.1, No. 14) ese four SATA3 connectors support SATA data cables for internal storage devices with up to

6.0 Gb/s data transfer rate.

• To minimize the boot time, use Intel® SATA ports (SATA3_1~2) for your bootable devices. USB 2.0 Headers (4-pin USB_2) (see p.1, No. 11) (9-pin USB_0_1) (see p.1, No. 9) ere are two headers on this motherboard. USB 3.1 Gen1 Header (19-pin USB3_0_1) (see p.1, No. 10) ere is one header on this motherboard. is USB 3.1 Gen1 header can support two ports. Front Panel Audio Header (9-pin HD_AUDIO1) (see p.1, No. 16) is header is for connecting audio devices to the front audio panel.

Chassis Fan Connector (3-pin CHA_FAN1) (see p.1, No. 7) Please connect fan cable to the fan connector and match the black wire to the ground pin. CPU Fan Connector (3-pin CPU_FAN1) (see p.1, No. 1) Please connect the CPU fan cable to the connector and match the black wire to the ground pin. ATX Power Connector (24-pin ATXPWR1) (see p.1, No. 4) is motherboard pro- vides a 24-pin ATX power connector. To use a 20-pin ATX power supply, please plug it along Pin 1 and Pin

1. High Denition Audio supports Jack Sensing, but the panel wire on the chassis must

support HDA to function correctly. Please follow the instructions in our manual and chassis manual to install your system.

2. If you use an AC’97 audio panel, please install it to the front panel audio header by

the steps below: A. Connect Mic_IN (MIC) to MIC2_L. B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L. C. Connect Ground (GND) to Ground (GND). D. MIC_RET and OUT_RET are for the HD audio panel only. You don’t need to con- nect them for the AC’97 audio panel. E. To activate the front mic, go to the “FrontMic” Tab in the Realtek Control panel and adjust “Recording Volume”.

e M.2, also known as the Next Generation Form Factor (NGFF), is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. e M.2 Socket (Key E) supports type 2230 WiFi/BT module and Intel® CNVi (Integrated WiFi/BT).

• e M.2 socket does not support SATA M.2 SSDs. Installing the WiFi/BT module Step 1 Prepare a type 2230 WiFi/BT module and the screw. PCB Length: 3cm Module Type: Type2230

Step 2 Find the nut location to be used.

Step 3 Gently insert the WiFi/BT module into the M.2 slot. Please be aware that the module only ts in one orientation.English

Supporto WOL (Wake-On-LAN)

Supporto Energy Ecient Ethernet 802.3az

1 x porta mouse PS/2

2 x connettori SATA3 6,0 Gb/s supportano NCQ, AHCI e Hot Plug

Supporta “Plug and Play”

Responsible Party Name: ASRock Incorporation Address:13848 Magnolia Ave, Chino, CA91710+1-909-590-8308/+1-909-590-1026 Phone/FaxNo: hereby declares that the product

Product Name : Motherboard Model Number : Conforms to the following specications:

FCC Part 15, Subpart B, Unintentional Radiators

Supplementary Information: is device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) is device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Representative Person’s Name: James Signature : Date : May 12, 2017

J5005-ITX/J4105-ITXEU Declaration of Conformity

For the following equipment:Motherboard(Product Name)J5005-ITX/J4105-ITX/ ASRock(Model Designation / Trade Name)ASRock Incorporation(Manufacturer Name)2F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District, Taipei City 112, Taiwan (R.O.C.)(Manufacturer Address)ASRock EUROPE B.V.(Company Name)Bijsterhuizen 1111 6546 AR Nijmegen e Netherlands(Company Address)Person responsible for making this declaration:(Name, Surname)A.V.P(Position / Title)January 9, 2017(Date)P/N: 15G062063000AK V1.0 EMC

LVD —Directive 2014/35/EU (from April 20th, 2016) EN 60950-1 : 2011+ A2: 2013 ☐

(EU conformity marking)
