USER MANUAL H410MHDVP2 ASROCK

Version 1.0 Published April 2020 Copyright©2020 ASRock INC. All rights reserved. Copyright Notice: No part of this documentation may be reproduced, transcribed, transmitted, or translated in any language, in any form or by any means, except duplication of documentation by the purchaser for backup purpose, without written consent of ASRock Inc. Products and corporate names appearing in this documentation may or may not be registered trademarks or copyrights of their respective companies, and are used only for identication or explanation and to the owners’ benet, without intent to infringe. Disclaimer: Specications and information contained in this documentation are furnished for informational use only and subject to change without notice, and should not be constructed as a commitment by ASRock. ASRock assumes no responsibility for any errors or omissions that may appear in this documentation. With respect to the contents of this documentation, ASRock does not provide warranty of any kind, either expressed or implied, including but not limited to the implied warranties or conditions of merchantability or tness for a particular purpose. In no event shall ASRock, its directors, ocers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of prots, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the documentation or product. is device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance controlled in Perchlorate Best Management Practices (BMP) regulations passed by the California Legislature. When you discard the Lithium battery in California, USA, please follow the related regulations in advance. “Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/ perchlorate” ASRock Website: http://www.asrock.comAUSTRALIA ONLY Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage caused by our goods. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. If you require assistance please call ASRock Tel : +886-2-28965588 ext.123 (Standard International call charges apply) e terms HDMI® and HDMI High-Denition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.English

** Function of the Audio Ports in 7.1-channel Conguration: Port Function Light Blue (Rear panel) Rear Speaker Out Lime (Rear panel) Front Speaker Out Pink (Rear panel) Central /Subwoofer Speaker Out Lime (Front panel) Side Speaker Out

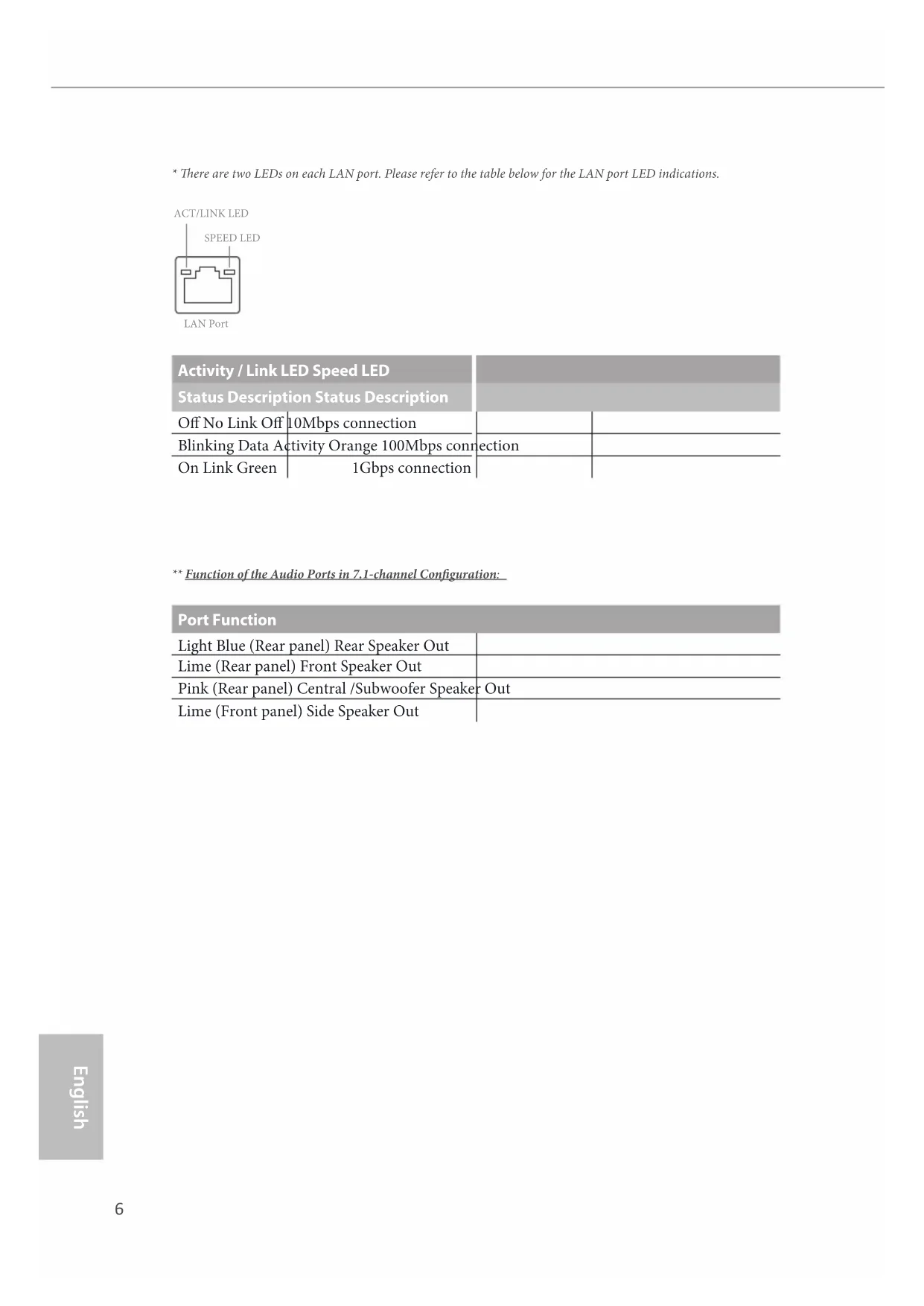

• ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications. Activity / Link LED Speed LED Status Description Status Description O No Link O 10Mbps connection Blinking Data Activity Orange 100Mbps connection On Link Green 1Gbps connection

ank you for purchasing ASRock H410M-HDVP / H410M-HDVP2 motherboard, a reliable motherboard produced under ASRock’s consistently stringent quality control. It delivers excellent performance with robust design conforming to ASRock’s commitment to quality and endurance.

1 x I/O Panel Shield Because the motherboard specications and the BIOS soware might be updated, the content of this documentation will be subject to change without notice. In case any modications of this documentation occur, the updated version will be available on ASRock’s website without further notice. If you require technical support related to this motherboard, please visit our website for specic information about the model you are using. You may nd the latest VGA cards and CPU support list on ASRock’s website as well. ASRock website http://www.asrock.com.English

Solid Capacitor design CPU

7 Power Phase design

Supports Intel® Turbo Boost Max 3.0 Technology Chipset

Dual Channel DDR4 Memory Technology

Supports DDR4 2933/2800/2666/2400/2133 non-ECC, un- buered memory

• Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/)

(i9/i7) support DDR4 up to 2933; Core

(i5/i3), Pentium® and Celeron® support DDR4 up to 2666.

Supports ECC UDIMM memory modules (operate in non- ECC mode)

Supports Intel® Extreme Memory Prole (XMP) 2.0

• Supports NVMe SSD as boot disks

Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

• VP9 10bit and VC-1 are for decode only.

• VP8 and VP9 encode are not supported by Windows OS.English

• Supports up to 2 displays simultaneously

Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz

Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz

Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz

Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)

Supports HDCP 2.3 with DVI-D and HDMI 1.4 Ports

Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port Audio

Supports Surge Protection LAN

Supports Wake-On-LAN

Supports Lightning/ESD Protection

Supports Energy Ecient Ethernet 802.3az

Supports PXE Rear Panel I/O

2 x USB 3.2 Gen1 Ports (Supports ESD Protection)

1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

HD Audio Jacks: Line in / Front Speaker / Microphone Storage

4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug*

• If M2_1 is occupied by a SATA-type M.2 device, SATA3_3 will be disabled.

1 x M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)** ** Supports NVMe SSD as boot disks ** Supports ASRock U.2 Kit Connector

1 x Chassis Intrusion and Speaker Header

1 x CPU Fan Connector (4-pin)

• e CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

• e Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.

• CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.

1 x Front Panel Audio Connector

1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) (H410M-HDVP)

2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) (H410M-HDVP2)

1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)English

AMI UEFI Legal BIOS with multilingual GUI support

ACPI 6.0 Compliant wake up events

CPU Core/Cache, GT, DRAM, VCCSA, PCH, VCCST Volt- age Multi-adjustment Hardware Monitor

Quiet Fan (Auto adjust chassis fan speed by CPU tempera- ture): CPU, Chassis, Chassis/Water Pump Fans

CPU Core, DRAM, PCH, VCCSA Voltage Multi-adjustment

ErP/EuP ready (ErP/EuP ready power supply is required) Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using third-party overclocking tools. Overclocking may aect your system’s stability, or even cause damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for possible damage caused by overclocking.

• For detailed product information, please visit our website: http://www.asrock.comEnglish

is is a Micro ATX form factor motherboard. Before you install the motherboard, study the conguration of your chassis to ensure that the motherboard ts into it. Pre-installation Precautions Take note of the following precautions before you install motherboard components or change any motherboard settings.

Make sure to unplug the power cord before installing or removing the motherboard components. Failure to do so may cause physical injuries and damages to motherboard components.

In order to avoid damage from static electricity to the motherboard’s components, NEVER place your motherboard directly on a carpet. Also remember to use a grounded wrist strap or touch a safety grounded object before you handle the components.

Hold components by the edges and do not touch the ICs.

Whenever you uninstall any components, place them on a grounded anti-static pad or in the bag that comes with the components.

When placing screws to secure the motherboard to the chassis, please do not over- tighten the screws! Doing so may damage the motherboard.

2.1 Installing the CPU

1. Before you insert the 1200-Pin CPU into the socket, please check if the PnP cap

is on the socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not force to insert the CPU into the socket if above situation is found. Otherwise, the CPU will be seriously damaged.

Please save and replace the cover if the processor is removed. e cover must be placed if you wish to return the motherboard for aer service.English

2.2 Installing the CPU Fan and Heatsink

is motherboard provides two 288-pin DDR4 (Double Data Rate 4) DIMM slots, and supports Dual Channel Memory Technology. e DIMM only ts in one correct orientation. It will cause permanent damage to the motherboard and the DIMM if you force the DIMM into the slot at incorrect orientation.1. For dual channel conguration, you always need to install identical (the same brand, speed, size and chip-type) DDR4 DIMM pairs. 2. It is unable to activate Dual Channel Memory Technology with only one memory module installed.3. It is not allowed to install a DDR, DDR2 or DDR3 memory module into a DDR4 slot; otherwise, this motherboard and DIMM may be damaged.

2.4 Expansion Slots (PCI and PCI Express Slots)

ere are 1 PCI slot and 3 PCI Express slots on the motherboard. PCI slot: e PCI1 slot is used to install expansion cards that have 32-bit PCI interface. PCIe slots: PCIE1 (PCIe 3.0 x16 slot) is used for PCI Express x16 lane width graphics cards. PCIE2 (PCIe 3.0 x1 slot) is used for PCI Express x1 lane width cards. PCIE3 (PCIe 3.0 x1 slot) is used for PCI Express x1 lane width cards. Before installing an expansion card, please make sure that the power supply is switched o or the power cord is unplugged. Please read the documentation of the expansion card and make necessary hardware settings for the card before you start the installation.English

e illustration shows how jumpers are setup. When the jumper cap is placed on the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper is “Open”. Clear CMOS Jumper (CLRMOS1) (see p.1, 3, No. 10) Short: Clear CMOS Open: Default CLRMOS1 allows you to clear the data in CMOS. e data in CMOS includes system setup information such as system password, date, time, and system setup parameters. To clear and reset the system parameters to default setup, please turn o the computer and unplug the power cord, then use a jumper cap to short the pins on CLRMOS1 for 3 seconds. Please remember to remove the jumper cap aer clearing the CMOS. If you need to clear the CMOS when you just nish updating the BIOS, you must boot up the system rst, and then shut it down before you do the clear-CMOS action. 2-pin Jumper If you clear the CMOS, the case open may be detected. Please adjust the BIOS option “Clear Status” to clear the record of previous chassis intrusion status.English

2.6 Onboard Headers and Connectors

System Panel Header (9-pin PANEL1) (see p.1, 3, No. 11) Connect the power button, reset button and system status indicator on the chassis to this header according to the pin assignments below. Note the positive and negative pins before connecting the cables. Chassis Intrusion and Speaker Header (7-pin SPK_CI1) (see p.1, No. 15 or p.3, No. 16) Please connect the chassis intrusion and the chassis speaker to this header. GND R ESET#P WRBTN#P LED-P LED+ GND

GND Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage to the motherboard. PWRBTN (Power Button): Connect to the power button on the chassis front panel. You may congure the way to turn o your system using the power button. RESET (Reset Button): Connect to the reset button on the chassis front panel. Press the reset button to restart the computer if the computer freezes and fails to perform a normal restart. PLED (System Power LED): Connect to the power status indicator on the chassis front panel. e LED is on when the system is operating. e LED keeps blinking when the system is in S1/S3 sleep state. e LED is o when the system is in S4 sleep state or powered o (S5). HDLED (Hard Drive Activity LED): Connect to the hard drive activity LED on the chassis front panel. e LED is on when the hard drive is reading or writing data. e front panel design may dier by chassis. A front panel module mainly consists of power button, reset button, power LED, hard drive activity LED, speaker and etc. When connecting your chassis front panel module to this header, make sure the wire assignments and the pin assignments are matched correctly.

Serial ATA3 Connectors (SATA3_0: see p.1, 3, No. 8) (SATA3_1: see p.1, 3, No. 9) (SATA3_2: see p.1, 3, No. 7) (SATA3_3: see p.1, 3, No. 6) ese four SATA3 connectors support SATA data cables for internal storage devices with up to

6.0 Gb/s data transfer rate.

• If M2_1 is occupied by a SATA-type M.2 device, SATA3_3 will be disabled. USB 2.0 Headers (9-pin USB_4_5) (see p.1, No. 14 or p.3, No. 15) (9-pin USB_6_7) (see p.3, No. 14) ere is one header on H410M-HDVP and two headers on H410M- HDVP2. Each USB 2.0 header can support two ports. USB 3.2 Gen1 Header (19-pin USB3_2_3) (see p.1, 3, No. 5) ere is one header on this motherboard. is USB 3.2 Gen1 header can support two ports. Front Panel Audio Header (9-pin HD_AUDIO1) (see p.1, No. 19 or p.3, No. 20) is header is for connecting audio devices to the front audio panel.

1. High Denition Audio supports Jack Sensing, but the panel wire on the chassis

must support HDA to function correctly. Please follow the instructions in our manual and chassis manual to install your system.

2. If you use an AC’97 audio panel, please install it to the front panel audio header by

the steps below: A. Connect Mic_IN (MIC) to MIC2_L. B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L. C. Connect Ground (GND) to Ground (GND). D. MIC_RET and OUT_RET are for the HD audio panel only. You don’t need to connect them for the AC’97 audio panel. E. To activate the front mic, go to the “FrontMic” Tab in the Realtek Control panel and adjust “Recording Volume”. DUMMY GND GND

H410M-HDVP H410M-HDVP2 Chassis/Water Pump Fan Connector (4-pin CHA_FAN1/WP) (see p.1, No. 18 or p.3, No. 19) is motherboard provides one 4-Pin water cooling chassis fan connector. If you plan to connect a 3-Pin chassis water cooler fan, please connect it to Pin 1-3. Chassis Fan Connector (4-pin CHA_FAN2) (see p.1, 3, No. 12) Please connect fan cables to the fan connector and match the black wire to the ground pin. CPU Fan Connector (4-pin CPU_FAN1) (see p.1, 3, No. 2) is motherboard provides a 4-Pin CPU fan (Quiet Fan) connector. If you plan to connect a 3-Pin CPU fan, please connect it to Pin 1-3. ATX Power Connector (24-pin ATXPWR1) (see p.1, 3, No. 4) is motherboard pro- vides a 24-pin ATX power connector. To use a 20-pin ATX power supply, please plug it along Pin 1 and Pin

ATX 12V Power Connector (8-pin ATX12V1) (see p.1, 3, No. 1) is motherboard provides a 8-pin ATX 12V power connector. To use a 4-pin ATX power supply, please plug it along Pin 1 and Pin 5. *Warning: Please make sure that the power cable connected is for the CPU and not the graphics card. Do not plug the PCIe power cable to this connector.

SPI TPM Header (13-pin SPI_TPM_J1) (see p.1, 3, No. 13) is connector supports SPI Trusted Platform Module (TPM) system, which can securely store keys, digital certicates, pass- words, and data. A TPM system also helps enhance network security, protects digital identities, and ensures platform integrity. Serial Port Header (9-pin COM2) (see p.1, No. 17 or p.3, No. 18) is COM2 header supports a serial port module. Print Port Header (25-pin LPT1) (see p.1, No. 16 or p.3, No. 17) is is an interface for print port cable that allows convenient connection of printer devices.

SL CTCCTS#1RRTS#1DDSR#1DDTR#1RRXD1

GND TTXD1DDCD#1 RRI#1

2.7 M.2_SSD (NGFF) Module Installation Guide

The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. e M.2 Socket (M2_1) supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s).

• If M2_1 is occupied by a SATA-type M.2 device, SATA3_3 will be disabled. Please refer to our user manual for details of M.2 module installation guide. For the latest updates of the support list, please visit our website: http://www.asrock.com23 H410M-HDVP H410M-HDVP2 Deutsch Technische Daten Plattform
