USER MANUAL A520MHVS ASROCK

Version 1.0 Published July 2020 Copyright©2020 ASRock INC. All rights reserved. Copyright Notice: No part of this documentation may be reproduced, transcribed, transmitted, or translated in any language, in any form or by any means, except duplication of documentation by the purchaser for backup purpose, without written consent of ASRock Inc. Products and corporate names appearing in this documentation may or may not be registered trademarks or copyrights of their respective companies, and are used only for identication or explanation and to the owners’ benet, without intent to infringe. Disclaimer: Specications and information contained in this documentation are furnished for informational use only and subject to change without notice, and should not be constructed as a commitment by ASRock. ASRock assumes no responsibility for any errors or omissions that may appear in this documentation. With respect to the contents of this documentation, ASRock does not provide warranty of any kind, either expressed or implied, including but not limited to the implied warranties or conditions of merchantability or tness for a particular purpose. In no event shall ASRock, its directors, ocers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of prots, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the documentation or product. is device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CALIFORNIA, USA ONLY

e Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance controlled in Perchlorate Best Management Practices (BMP) regulations passed by the California Legislature. When you discard the Lithium battery in California, USA, please follow the related regulations in advance. “Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/ perchlorate” ASRock Website: http://www.asrock.comAUSTRALIA ONLY Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage caused by our goods. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. If you require assistance please call ASRock Tel : [phone] ext.123 (Standard International call charges apply) e terms HDMI® and HDMI High-Denition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.English

• ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications. Activity / Link LED Speed LED Status Description Status Description O No Link O 10Mbps connection Blinking Data Activity Orange 100Mbps connection On Link Green 1Gbps connection

SPEED LED LAN Port ** Function of the Audio Ports in 7.1-channel Conguration: Port Function Light Blue (Rear panel) Rear Speaker Out Lime (Rear panel) Front Speaker Out Pink (Rear panel) Central /Subwoofer Speaker Out Lime (Front panel) Side Speaker OutEnglish

ank you for purchasing ASRock A520M-HDV / A520M-HVS motherboard, a reliable motherboard produced under ASRock’s consistently stringent quality control. It delivers excellent performance with robust design conforming to ASRock’s commitment to quality and endurance.

1 x I/O Panel Shield

1 x Screw for M.2 Socket (Optional) Because the motherboard specications and the BIOS soware might be updated, the content of this documentation will be subject to change without notice. In case any modi-cations of this documentation occur, the updated version will be available on ASRock’s website without further notice. If you require technical support related to this mother-board, please visit our website for specic information about the model you are using. You may nd the latest VGA cards and CPU support list on ASRock’s website as well. ASRock website http://www.asrock.com.English

Solid Capacitor design CPU

6 Power Phase design Chipset

Dual Channel DDR4 Memory Technology

• Please refer to Memory Support List on ASRock’s website for more information. (http://www.asrock.com/)

• Please refer to page 21 for DDR4 UDIMM maximum frequency support.

• Supports NVMe SSD as boot disks

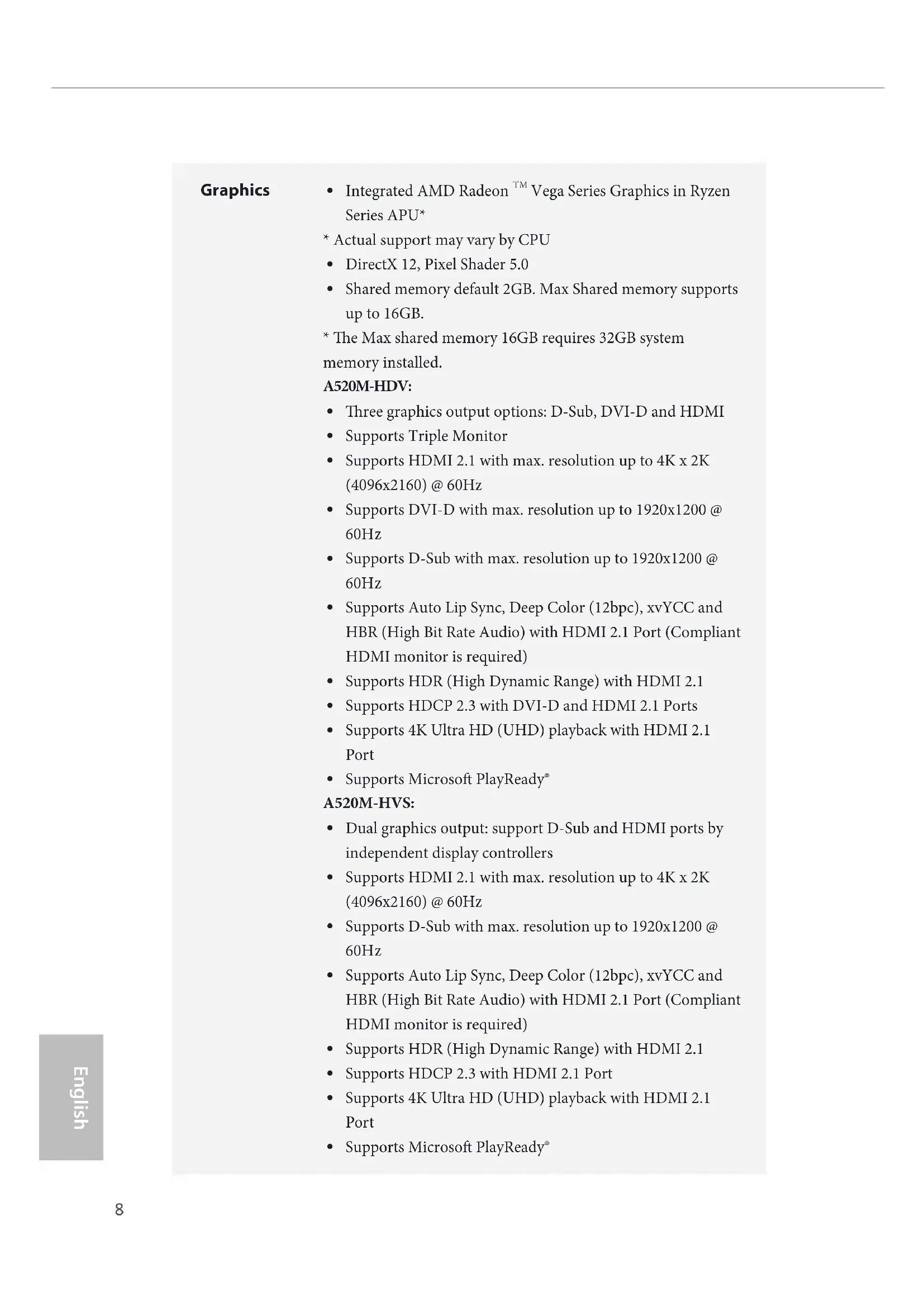

Integrated AMD Radeon

Vega Series Graphics in Ryzen Series APU*

• Actual support may vary by CPU

Shared memory default 2GB. Max Shared memory supports up to 16GB.

• e Max shared memory 16GB requires 32GB system memory installed. A520M-HDV:

Supports Triple Monitor

Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz

Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz

Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz

Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)

Supports HDR (High Dynamic Range) with HDMI 2.1

Supports HDCP 2.3 with DVI-D and HDMI 2.1 Ports

Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port

Supports Microso PlayReady® A520M-HVS:

Dual graphics output: support D-Sub and HDMI ports by independent display controllers

Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz

Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz

Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)

Supports HDR (High Dynamic Range) with HDMI 2.1

Supports HDCP 2.3 with HDMI 2.1 Port

Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port

Supports Microso PlayReady®English

Supports Surge Protection LAN

Supports Wake-On-LAN

Supports Lightning/ESD Protection

Supports Energy Ecient Ethernet 802.3az

Supports PXE Rear Panel I/O

2 x USB 2.0 Ports (Supports ESD Protection)

4 x USB 3.2 Gen1 Ports (Supports ESD Protection)

1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

HD Audio Jacks: Line in / Front Speaker / Microphone A520M-HDV:

4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug

• Supports NVMe SSD as boot disks

• Supports ASRock U.2 Kit Connector

1 x Chassis Intrusion and Speaker Header

1 x CPU Fan Connector (4-pin)

• e CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

• e Chassis Fan supports the water cooler fan of maximum 1A (12W) fan power.

• CHA_FAN2 can auto detect if 3-pin or 4-pin fan is in use.

1 x Front Panel Audio Connector

2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)

1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) BIOS Feature

AMI UEFI Legal BIOS with GUI support

Supports “Plug and Play”

ACPI 5.1 compliance wake up events

CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi- adjustment Hardware Monitor

Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis Fans

ErP/EuP ready (ErP/EuP ready power supply is required) Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using third-party overclocking tools. Overclocking may aect your system’s stability, or even cause damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for possible damage caused by overclocking.

• For detailed product information, please visit our website: http://www.asrock.comEnglish

A520M-HDV A520M-HVS is is a Micro ATX form factor motherboard. Before you install the motherboard, study the conguration of your chassis to ensure that the motherboard ts into it. Pre-installation Precautions Take note of the following precautions before you install motherboard components or change any motherboard settings.

Make sure to unplug the power cord before installing or removing the motherboard. Failure to do so may cause physical injuries to you and damages to motherboard components.

In order to avoid damage from static electricity to the motherboard’s components, NEVER place your motherboard directly on a carpet. Also remember to use a grounded wrist strap or touch a safety grounded object before you handle the components.

Hold components by the edges and do not touch the ICs.

Whenever you uninstall any components, place them on a grounded anti-static pad or in the bag that comes with the components.

When placing screws to secure the motherboard to the chassis, please do not over- tighten the screws! Doing so may damage the motherboard.

2.1 Installing the CPU

Unplug all power cables before installing the CPU.

2.2 Installing the CPU Fan and Heatsink

Aer you install the CPU into this motherboard, it is necessary to install a larger heatsink and cooling fan to dissipate heat. You also need to spray thermal grease between the CPU and the heatsink to improve heat dissipation. Make sure that the CPU and the heatsink are securely fastened and in good contact with each other. Installing the CPU Box Cooler SR1 Please turn o the power or remove the power cord before changing a CPU or heatsink.

*e diagrams shown here are for reference only. e headers might be in a dierent position on your motherboard.

A520M-HDV A520M-HVS *e diagrams shown here are for reference only. e headers might be in a dierent position on your motherboard. Installing the AM4 Box Cooler SR3

A520M-HDV A520M-HVS *e diagrams shown here are for reference only. e headers might be in a dierent position on your motherboard.

is motherboard provides two 288-pin DDR4 (Double Data Rate 4) DIMM slots, and supports Dual Channel Memory Technology. AMD non-XMP Memory Frequency Support Ryzen Series CPUs (Matisse): Ryzen Series APUs (Renoir):

1. For dual channel conguration, you always need to install identical (the same

brand, speed, size and chip-type) DDR4 DIMM pairs.

2. It is unable to activate Dual Channel Memory Technology with only one memory

3. It is not allowed to install a DDR, DDR2 or DDR3 memory module into a DDR4

A520M-HDV A520M-HVS e DIMM only ts in one correct orientation. It will cause permanent damage to the motherboard and the DIMM if you force the DIMM into the slot at incorrect orientation.

ere are 2 PCI Express slots on the motherboard. PCIe slots: PCIE1 (PCIe 3.0 x1 slot) is used for PCI Express x1 lane width cards. PCIE2 (PCIe 3.0 x16 slot) is used for PCI Express x16 lane width graphics cards. Before installing an expansion card, please make sure that the power supply is switched o or the power cord is unplugged. Please read the documentation of the expansion card and make necessary hardware settings for the card before you start the installation. For a better thermal environment, please connect a chassis fan to the motherboard’s chassis fan connector (CHA_FAN1 or CHA_FAN2 ) when using multiple graphics cards.English

e illustration shows how jumpers are setup. When the jumper cap is placed on the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper is “Open”. Clear CMOS Jumper (CLRMOS1) (see p.1 or 2, No. 14) Short: Clear CMOS Open: Default CLRMOS1 allows you to clear the data in CMOS. To clear and reset the system parameters to default setup, please turn o the computer and unplug the power cord from the power supply. Aer waiting for 15 seconds, use a jumper cap to short the pins on CLRMOS1 for 5 seconds. However, please do not clear the CMOS right aer you update the BIOS. If you need to clear the CMOS when you just nish updating the BIOS, you must boot up the system rst, and then shut it down before you do the clear-CMOS action. Please be noted that the password, date, time, and user default prole will be cleared only if the CMOS battery is removed. Please remember toremove the jumper cap aer clearing the CMOS. 2-pin Jumper If you clear the CMOS, the case open may be detected. Please adjust the BIOS option “Clear Status” to clear the record of previous chassis intrusion status.English

2.6 Onboard Headers and Connectors

System Panel Header (9-pin PANEL1) (see p.1 or 2, No. 8) Connect the power switch, reset switch and system status indicator on the chassis to this header according to the pin assignments below. Note the positive and negative pins before connecting the cables. PWRBTN (Power Switch): Connect to the power switch on the chassis front panel. You may congure the way to turn o your system using the power switch. RESET (Reset Switch): Connect to the reset switch on the chassis front panel. Press the reset switch to restart the computer if the computer freezes and fails to perform a normal restart. PLED (System Power LED): Connect to the power status indicator on the chassis front panel. e LED is on when the system is operating. e LED keeps blinking when the system is in S3 sleep state. e LED is o when the system is in S4 sleep state or powered o (S5). HDLED (Hard Drive Activity LED): Connect to the hard drive activity LED on the chassis front panel. e LED is on when the hard drive is reading or writing data. e front panel design may dier by chassis. A front panel module mainly consists of power switch, reset switch, power LED, hard drive activity LED, speaker and etc. When connecting your chassis front panel module to this header, make sure the wire assign- ments and the pin assignments are matched correctly. Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage to the motherboard.

GNDR ESET#PWRBTN#PLED-

A520M-HDV A520M-HVS Chassis Intrusion and Speaker Header (7-pin SPK_CI1) (see p.1 or 2, No. 9) Please connect the chassis intrusion and the chassis speaker to this header. Serial ATA3 Connectors Vertical: (SATA3_1: see p.1 or 2, No. 7) (Upper) (SATA3_2: see p.1 or 2, No. 7) (Lower) (SATA3_3: see p.1 or 2, No. 6) (Upper) (SATA3_4: see p.1 or 2, No. 6) (Lower) ese four SATA3 connectors support SATA data cables for internal storage devices with up to

6.0 Gb/s data transfer rate.

USB 2.0 Headers (9-pin USB_3_4) (see p.1 or 2, No. 11) (9-pin USB_5_6) (see p.1 or 2, No. 12) ere are two headers on this motherboard. Each USB 2.0 header can support two ports. USB 3.2 Gen1 Header (19-pin USB3_5_6) (see p.1 or 2, No. 5) ere is one header on this motherboard. is USB 3.2 Gen1 header can support two ports. Front Panel Audio Header (9-pin HD_AUDIO1) (see p.1 or 2, No. 15) is header is for connecting audio devices to the front audio panel. SATA3_3 SATA3_4 SATA3_1 SATA3_2

1. High Denition Audio supports Jack Sensing, but the panel wire on the chassis must

support HDA to function correctly. Please follow the instructions in our manual and chassis manual to install your system.

2. If you use an AC’97 audio panel, please install it to the front panel audio header by

the steps below: A. Connect Mic_IN (MIC) to MIC2_L. B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L. C. Connect Ground (GND) to Ground (GND). D. MIC_RET and OUT_RET are for the HD audio panel only. You don’t need to con- nect them for the AC’97 audio panel. E. To activate the front mic, go to the “FrontMic” Tab in the Realtek Control panel and adjust “Recording Volume”. Chassis Fan Connectors (4-pin CHA_FAN1) (see p.1 or 2, No. 17) (4-pin CHA_FAN2) (see p.1 or 2, No. 10) Please connect fan cables to the fan connectors and match the black wire to the ground pin. CPU Fan Connector (4-pin CPU_FAN1) (see p.1 or 2, No. 2) is motherboard pro- vides a 4-Pin CPU fan (Quiet Fan) connector. If you plan to connect a 3-Pin CPU fan, please connect it to Pin 1-3. ATX Power Connector (24-pin ATXPWR1) (see p.1 or 2, No. 4) is motherboard pro- vides a 24-pin ATX power connector. To use a 20-pin ATX power supply, please plug it along Pin 1 and Pin

A520M-HDV A520M-HVS ATX 12V Power Connector (4-pin ATX12V1) (see p.1 or 2, No. 1) Please connect an ATX 12V power supply to this connector. *e power supply plug ts into this connector in only one orientation. Serial Port Header (9-pin COM1) (see p.1 or 2, No. 13) is COM1 header supports a serial port module. SPI TPM Header (13-pin SPI_TPM_J1) (see p.1 or 2, No. 16) is connector supports SPI Trusted Platform Module (TPM) system, which can securely store keys, digital certicates, pass- words, and data. A TPM system also helps enhance network security, protects digital identities, and ensures platform integrity. CCTS#1 RRTS#1 DDSR#1 DDTR#1 RRXD1 GND TTXD1 DDCD#1

RST# RSMRST# TPM_PIRQEnglish

The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The Ultra M.2 Socket supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s). Installing the M.2_SSD (NGFF) Module Step 1 Prepare a M.2_SSD (NGFF) module and the screw. Step 2 Depending on the PCB type and length of your M.2_SSD (NGFF) module, nd the corresponding nut location to be used. No. 1 2 3 Nut Location A B C PCB Length 4.2cm 6cm 8cm Module Type Type 2242 Type2260 Type 2280

A520M-HDV A520M-HVS Step 3 Move the stando based on the module type and length. e stando is placed at the nut location C by default. Skip Step 3 and 4 and go straight to Step

if you are going to use the default nut. Otherwise, release the stando by hand. Step 4 Peel o the yellow protective lm on the nut to be used. Hand tighten the stando into the desired nut location on the motherboard. Step 5 Gently insert the M.2 (NGFF) SSD module into the M.2 slot. Please be aware that the M.2 (NGFF) SSD module only ts in one orientation. ABC ABC ABC ABC

Step 6 Tighten the screw with a screwdriver to secure the module into place. Please do not overtighten the screw as this might damage the module. NUT1NUT2 CEnglish

CPU, CPU VDDCR_SOC, DRAM, VDDP

Supporto WOL (Wake-On-LAN)

Supporto Energy Ecient Ethernet 802.3az

Supporta “Plug and Play”

(Voltage Multi-adjustment)

Responsible Party Name: ASRock Incorporation Address:13848 Magnolia Ave, Chino, CA91710+1-909-590-8308/[phone] Phone/FaxNo: hereby declares that the product

Product Name : Motherboard Model Number : Conforms to the following specications:

FCC Part 15, Subpart B, Unintentional Radiators

Supplementary Information: is device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) is device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Representative Person’s Name: James Signature : Date : May 12, 2017

A520M-HDV / A520M-HVSEU Declaration of Conformity

For the following equipment:Motherboard(Product Name)A520M-HDV / A520M-HVS / ASRock(Model Designation / Trade Name)ASRock Incorporation(Manufacturer Name)2F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District, Taipei City 112, Taiwan (R.O.C.)(Manufacturer Address)ASRock EUROPE B.V.(Company Name)Bijsterhuizen 1111 6546 AR Nijmegen e Netherlands(Company Address)Person responsible for making this declaration:(Name, Surname)A.V.P(Position / Title)May 27, 2020(Date)P/N: 15G062243010AK V1.0 EMC

LVD —Directive 2014/35/EU (from April 20th, 2016) EN 60950-1 : 2011+ A2: 2013 ☐

(EU conformity marking)
