X370M-HDV - Motherboard ASROCK - Free user manual and instructions

Product Type	Motherboard
Brand	ASRock
Model	X370M-HDV
Form Factor	Micro ATX
Socket	AMD AM4
Chipset	AMD X370
Supported Processors	AMD Ryzen 1000 series (Summit Ridge), 2000 series (Pinnacle Ridge), Raven Ridge APU and Bristol Ridge APU
Supported Memory	DDR4, up to 3200 MHz (OC), 2 slots
Max Memory Capacity	32 GB
Number of Memory Slots	2 x DIMM DDR4
Expansion Slots	1 x PCIe 3.0 x16 (depending on CPU), 1 x PCIe 2.0 x1
Integrated Graphics	Yes (depending on APU processor)
Video Outputs	1 x D-Sub, 1 x DVI-D, 1 x HDMI (4K @ 30 Hz)
Audio	Realtek ALC887, 7.1 channel HD
Network	Realtek RTL8111H, Gigabit Ethernet
SATA Storage	4 x SATA3 (6 Gbit/s), RAID 0/1/10 support
M.2 Storage	1 x Ultra M.2 (SATA3 or PCIe Gen3 x4, type 2242/2260/2280)
USB Ports (total)	6 x USB 3.1 Gen1 (4 rear + 2 via header), 6 x USB 2.0 (2 rear + 4 via headers)
Internal Connectors	2 x USB 2.0, 1 x USB 3.1 Gen1, 1 x COM, 1 x LPT, 1 x TPM
Power Supply	ATX 24-pin + 1 x 4-pin CPU
Dimensions	244 mm x 244 mm (Micro ATX)
Weight	~0.5 kg
Operating System	Windows 10 64-bit
Protection	Solid capacitors, overvoltage and electrostatic discharge protection
Maintenance	Dry cleaning with a soft, antistatic cloth

Frequently Asked Questions - X370M-HDV ASROCK

What is the memory compatibility of the ASRock X370M-HDV?

The motherboard supports DDR4 memory in dual channel configuration. With a Ryzen 2000 series (Pinnacle Ridge) processor, frequencies can reach 3200 MHz when overclocking. For Raven Ridge APUs, the limit is 3200 MHz (OC). Maximum capacity is 32 GB distributed across 2 slots. Check the compatibility list on ASRock's website for certified modules.

Can I use a Ryzen 5000 processor on this board?

No, this motherboard is designed for AMD Ryzen 1000 and 2000 series processors and A-series APUs. Ryzen 5000 requires a newer chipset such as B550 or X570. Check the supported processor list on ASRock's website.

How to update the BIOS?

Download the latest BIOS version from ASRock's website. Place the file on a USB stick formatted in FAT32. Restart and enter UEFI (F2 or Del key). Use the 'Instant Flash' tool to select the file and start the update. Never cut power during the process.

Does the board support overclocking?

Yes, the UEFI allows overclocking of the CPU (via multiplier and voltage) and memory (via XMP profiles or manual). The 7-phase Digi Power power supply ensures increased stability. Monitor temperatures with a good fan.

What type of M.2 connector is supported?

The Ultra M.2 socket accepts M.2 modules type 2242, 2260 and 2280. It supports SATA3 (6 Gbit/s) and PCIe Gen3 x4 (up to 32 Gbit/s) interfaces with Ryzen processors. It is ideal for fast NVMe SSDs.

Can I use a CPU fan with a 4-pin connector?

Yes, the CPU fan connector (CPU_FAN1) is a 4-pin connector compatible with PWM. It can deliver up to 1 A (12 W). Use a PWM fan to benefit from automatic speed control in UEFI.

How many USB 3.0 ports are there?

The board offers 4 USB 3.1 Gen1 (USB 3.0) ports on the back and 2 additional ports via an internal header (for front panel). There are also 2 USB 2.0 ports on the back and 4 ports via two internal headers.

What video outputs are available?

The video outputs are: one D-Sub (VGA), one DVI-D, and one HDMI. HDMI supports 4K resolution at 30 Hz. You can use up to three monitors simultaneously if the processor has an integrated GPU.

Does this motherboard support RAID?

Yes, the 4 SATA3 ports support RAID 0, RAID 1, and RAID 10. You can configure RAID via UEFI or Windows Disk Manager. Note that RAID is not supported on the M.2 port.

What to do if the board does not start?

First, check that all power cables are properly connected (ATX 24-pin and CPU 4-pin). Reseat the RAM and graphics card if present. Reset the CMOS by removing the coin battery for 30 seconds. Consult the manual for diagnostic LED indicators.

USER MANUAL X370M-HDV ASROCK

Copyright©2018 ASRock INC. All rights reserved.

Copyright Notice:

No part of this documentation may be reproduced, transcribed, transmitted, or translated in any language, in any form or by any means, except duplication of documentation by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this documentation may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners' benefit, without intent to infringe.

Disclaimer:

Specifications and information contained in this documentation are furnished for informational use only and subject to change without notice, and should not be constructed as a commitment by ASRock. ASRock assumes no responsibility for any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide warranty of any kind, either expressed or implied, including but not limited to the implied warranties or conditions of merchantability or fitness for a particular purpose.

In no event shall ASRock, its directors, officers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the documentation or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance controlled in Perchlorate Best Management Practices (BMP) regulations passed by the California Legislature. When you discard the Lithium battery in California, USA, please follow the related regulations in advance.

"Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/perchlorate"

ASRock Website: http://www.asrock.com

AUSTRALIA ONLY

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage caused by our goods. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. If you require assistance please call ASRock Tel: [phone] ext.123 (Standard International call charges apply)

The terms HDMI ^™ and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

HIGH-DEFINITION MULTIMEDIA INTERFACE

Motherboard Layout

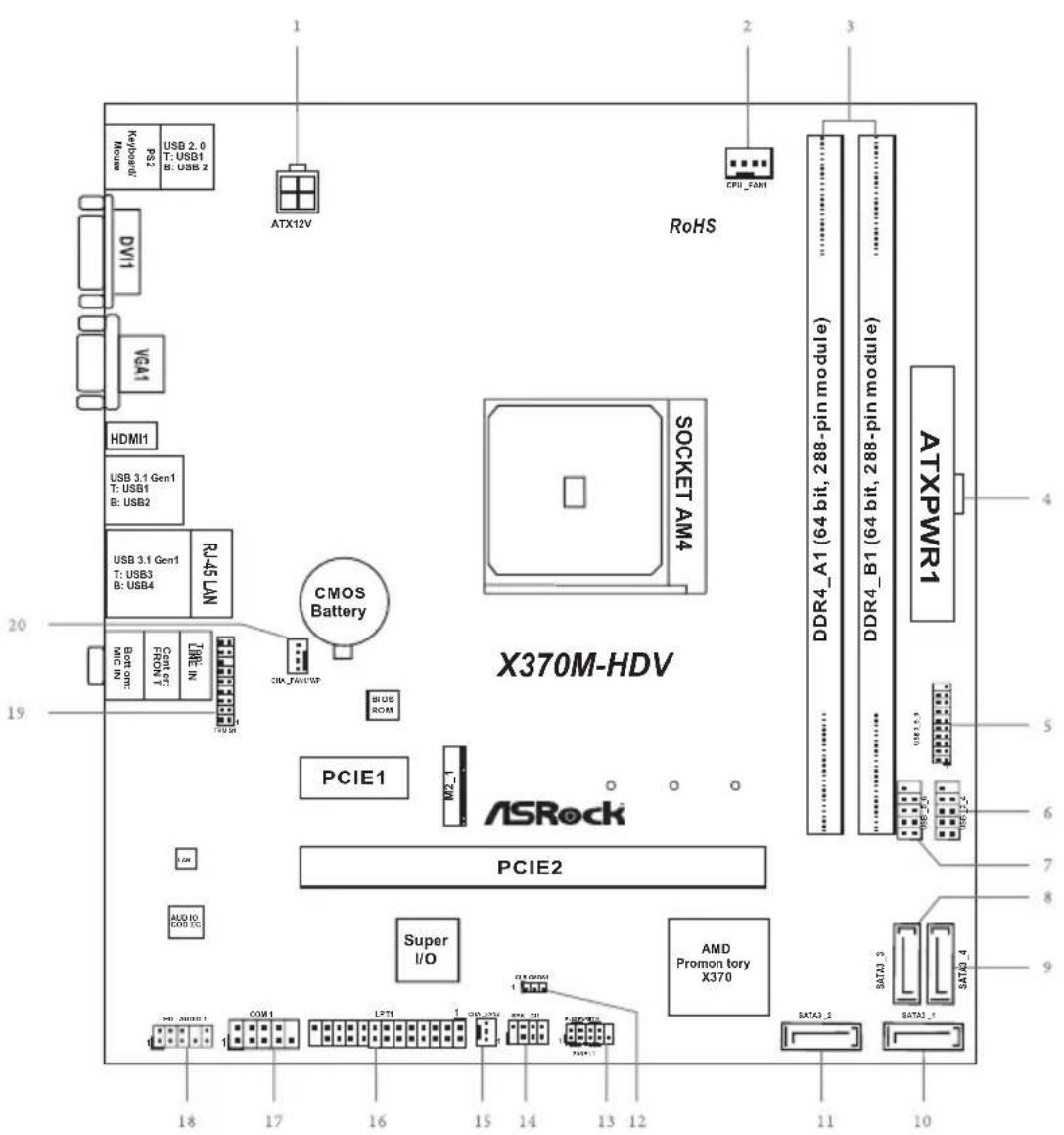

1 2 3 4 5 6 7 8 9 10 11 11 12 13 13 14 14 15 15 16 16 17 17 18 19 20 PCII_FAM1 ATX12V RoHS SOCKET AM4 X370M-HDV DDR4_A1 (64 bit, 288-pin module) DDR4_B1 (64 bit, 288-pin module) ATXPWR1 PCIE1 ASRock PCIE2 Super I/O AMD Promon tory X370 PCII_FAM1/WP CMOS Battery BIUS ROM COM1 LFTI DIP GROM SATA3_2 SATA3_3 SATA3_4 HDI1 VGA1 USB 3.1 Gen1 T: USB1 B: USB2 USB 3.1 Gen1 T: USB3 B: USB4 BORT ON: FRONT IN TIME IN MIC IN CPU 2.0 USB 2.0 P2 Micro DVI1 VGA1

No. Description

1 ATX 12V Power Connector (ATX12V1)

2 CPU Fan Connector (CPU_FAN1)

3 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)

4 ATX Power Connector (ATXPWR1)

5 USB 3.1 Gen1 Header (USB3_5_6)

6 USB 2.0 Header (USB_3_4)

7 USB 2.0 Header (USB_5_6)

8 SATA3 Connector (SATA3_3)

9 SATA3 Connector (SATA3_4)

10 SATA3 Connector (SATA3_1)

11 SATA3 Connector (SATA3_2)

12 Clear CMOS Jumper (CLRCMOS1)

13 System Panel Header (PANEL1)

14 Chassis Intrusion and Speaker Header (SPK_CI1)

15 Chassis Fan Connector (CHA_FAN2)

16 Print Port Header (LPT1)

17 COM Port Header (COM1)

18 Front Panel Audio Header (HD_AUDIO1)

19 TPM Header (TPMS1)

20 Chassis Fan Connector (CHA_FAN1/WP)

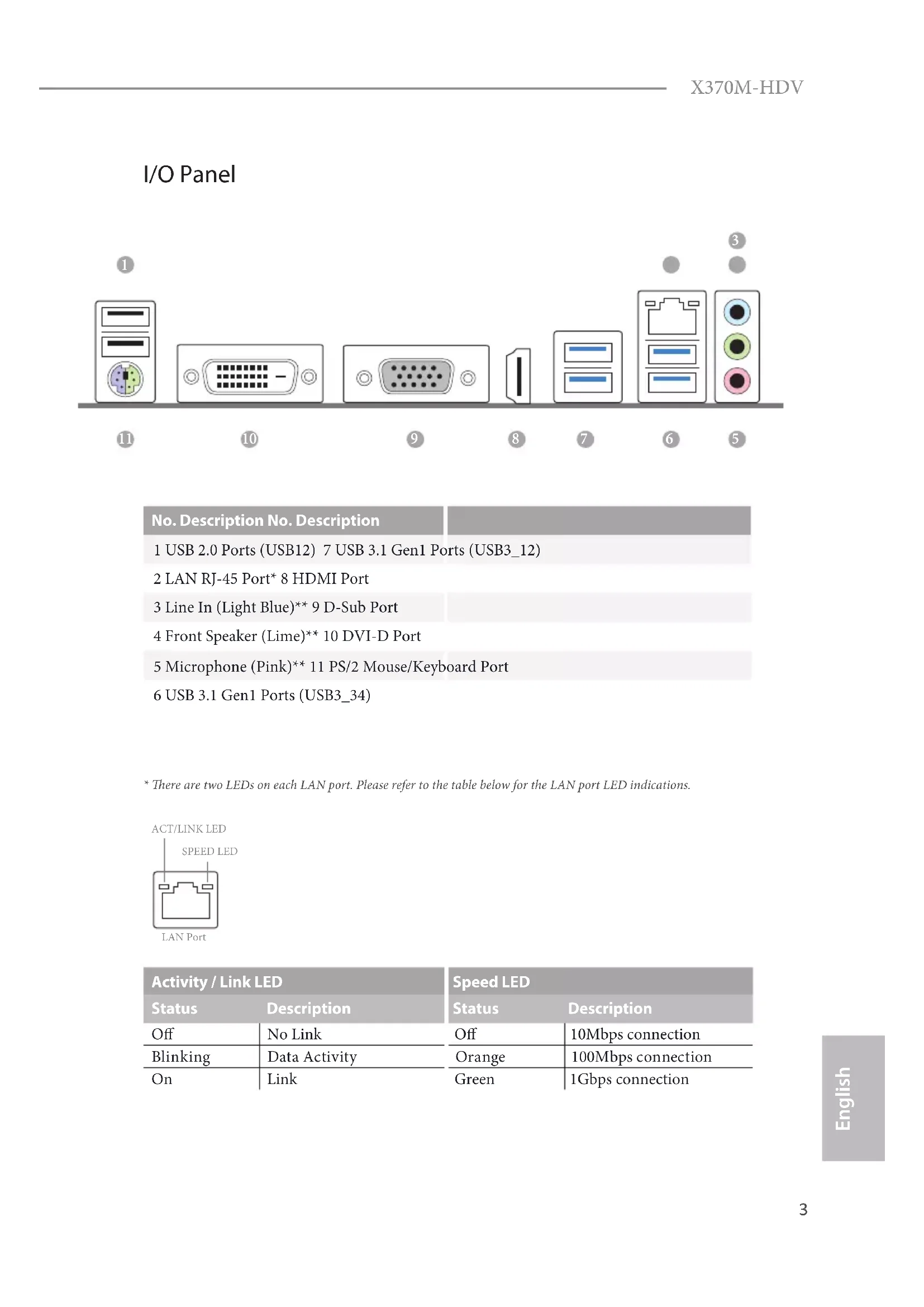

I/O Panel

Diagram showing labeled components of a computer tower or server rack, including ports, connectors, and indicators.

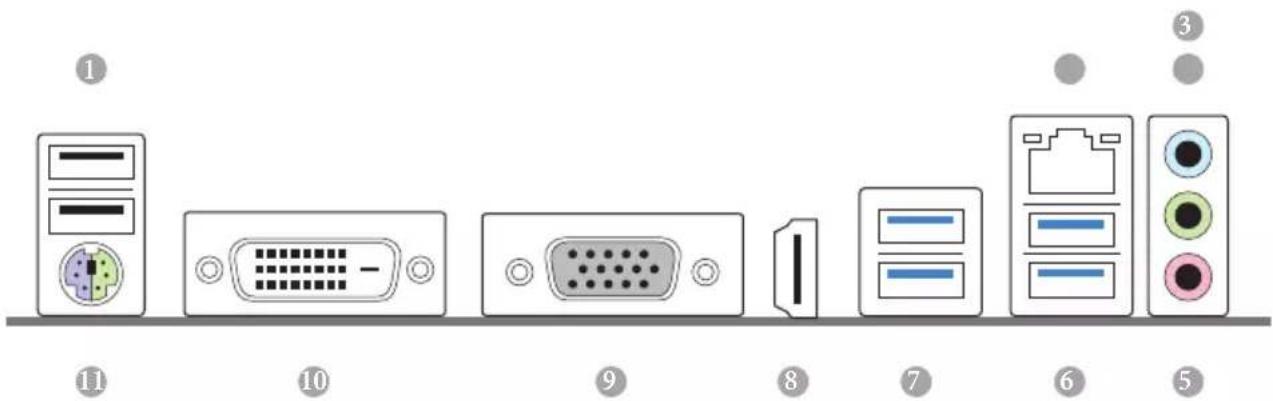

No. Description No. Description

1 USB 2.0 Ports (USB12) 7 USB 3.1 Gen1 Ports (USB3_12)
2 LAN RJ-45 Port* 8 HDMI Port
3 Line In (Light Blue)** 9 D-Sub Port
4 Front Speaker (Lime) ^** 10 DVI-D Port
5 Microphone (Pink)** 11 PS/2 Mouse/Keyboard Port
6 USB 3.1 Gen1 Ports (USB3_34)

* There are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

Activity / Link LED		Speed LED
Status	Description	Status	Description
Off	No Link	Off	10Mbps connection
Blinking	Data Activity	Orange	100Mbps connection
On	Link	Green	1Gbps connection

** To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

Please set Speaker Configuration to "7.1 Speaker" in the Realtek HD Audio Manager.

Realtek HD Audio Manager Speakers Digital Output Main Volume L R Set Default Device Speaker Configuration Sound Effects Room Correction Default Format Speaker Configuration 7.1 Speaker Stereo Quadraphonic 5.1 Speaker 7.1 Speaker Subwoofer Side pair Rear pair Full-range Speakers Frontleft and right Surround speakers Analog Back Panel Front Panel DIGITAL Speaker Fill Swap Center / Subwoofer Output Enable Bass Management OK

Function of the Audio Ports in 7.1-channel Configuration:

Port Function
Light Blue (Rear panel) Rear Speaker Out
Lime (Rear panel) Front Speaker Out
Pink (Rear panel) Central /Subwoofer Speaker Out
Lime (Front panel) Side Speaker Out

Chapter 1 Introduction

Thank you for purchasing ASRock X370M-HDV motherboard, a reliable motherboard produced under ASRock's consistently stringent quality control. It delivers excellent performance with robust design conforming to ASRock's commitment to quality and endurance.

Because the motherboard specifications and the BIOS software might be updated, the content of this manual will be subject to change without notice. In case any modifications of this manual occur, the updated version will be available on ASRock's website without further notice. If you require technical support related to this motherboard, please visit our website for specific information about the model you are using. You may find the latest VGA cards and CPU support list on ASRock's website as well. ASRock website http://www.asrock.com.

1.1 Package Contents

• ASRock X370M-HDV Motherboard (Micro ATX Form Factor)
• ASRock X370M-HDV Quick Installation Guide
• ASRock X370M-HDV Support CD
• 2 x Serial ATA (SATA) Data Cables (Optional)
• 1 x Screw for M.2 Socket (Optional)
• 1 x I/O Panel Shield

1.2 Specifications

Platform	• Micro ATX Form Factor• Solid Capacitor design
CPU	• Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Summit Ridge, Raven Ridge and Pinnacle Ridge)• Digi Power design• 7 Power Phase design• Supports CPU up to 105W
Chipset	• AMD Promontory X370
Memory	• Dual Channel DDR4 Memory Technology• 2 x DDR4 DIMM Slots• AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC)/2933/2667/2400/2133 ECC & non-ECC, un-buffered memory*• AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC)/2933(OC)/2667/2400/2133 ECC & non-ECC, un-buffered memory*• AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC)/2933(OC)/2667/2400/2133 non-ECC, un-buffered memory*• AMD 7^th Gen A-Series APUs support DDR4 2400/2133 ECC & non-ECC, un-buffered memory** For Ryzen Series CPUs (Raven Ridge), ECC is only supported with PRO CPUs.* Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/)* Please refer to page 11 for DDR4 UDIMM maximum frequency support.• Max. capacity of system memory: 32GB• 15μ Gold Contact in DIMM Slots

Expansion AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge)

Slot

• 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*

AMD 7 ^th A-Series APUs

- 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)*

AMD Ryzen series CPUs (Raven Ridge)

- 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)*

* Supports NVMe SSD as boot disks

• 1 x PCI Express 2.0 x1 Slot

Graphics

- Integrated AMD Radeon ^TM Vega Series Graphics in Ryzen Series APU*

- Integrated AMD Radeon ^TM R-Series Graphics in A-series APU*

* Actual support may vary by CPU

- DirectX 12, Pixel Shader 5.0

• Max. shared memory 2GB

- Three graphics output options: D-Sub, DVI-D and HDMI

• Supports Triple Monitor

- Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz

- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz

- Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz

- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)

• Supports HDCP with DVI-D and HDMI Ports

- Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports

Audio

• 7.1 CH HD Audio (Realtek ALC887 Audio Codec)

* To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

• Supports Surge Protection

- ELNA Audio Caps

LAN

• PCIE x1 Gigabit LAN 10/100/1000 Mb/s

• Realtek RTL8111H

• Supports Wake-On-LAN

• Supports Lightning/ESD Protection

• Supports Energy Efficient Ethernet 802.3az

- Supports PXE

Rear Panel

I/O

• 1 x PS/2 Mouse/Keyboard Port

- 1 x D-Sub Port

- 1 x DVI-D Port

- 1 x HDMI Port

• 2 x USB 2.0 Ports (Supports ESD Protection)

• 4 x USB 3.1 Gen1 Ports (Supports ESD Protection)

- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

• HD Audio Jacks: Line in / Front Speaker / Microphone

Storage

- 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug

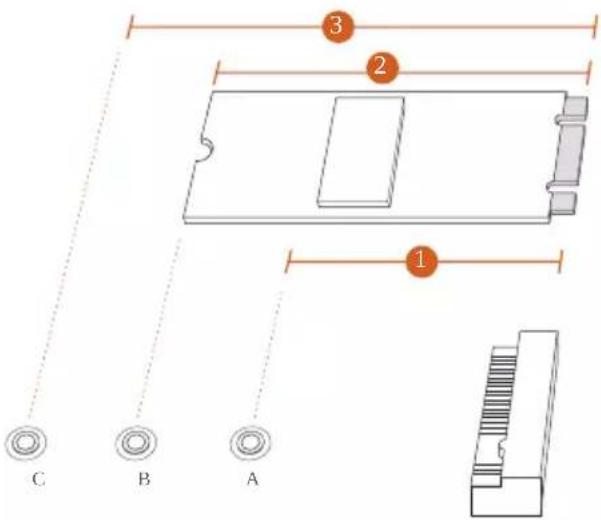

- 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with A-Series APU)*

* Supports NVMe SSD as boot disks

* Supports ASRock U.2 Kit

Connector

• 1 x Print Port Header

• 1 x COM Port Header

- 1 x TPM Header

• 1 x Chassis Intrusion and Speaker Header

• 1 x CPU Fan Connector (4-pin)

* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

- 2 x Chassis Fan Connectors (1 x 3-pin, 1 x 4-pin)

* The Chassis Fan Connector supports the chassis fan of maximum 1A (12W) fan power.

• 1 x 24 pin ATX Power Connector
• 1 x 4 pin 12V Power Connector
• 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
- 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)

BIOS Feature

• AMI UEFI Legal BIOS with GUI support
• Supports "Plug and Play"
• ACPI 5.1 compliance wake up events
• Supports jumperfree
- SMBIOS 2.3 support
• DRAM Voltage multi-adjustment

Hardware Monitor

• CPU/Chassis temperature sensing
• CPU/Chassis Fan Tachometer
• CPU/Chassis Quiet Fan
• CPU/Chassis Fan multi-speed control
• CASE OPEN detection
• Voltage monitoring: +12V, +5V, +3.3V, Vcore

os

• Microsoft® Windows® 10 64-bit

Certifica- tions

• FCC, CE
• ErP/EuP ready (ErP/EuP ready power supply is required)

* For detailed product information, please visit our website: http://www.asrock.com

Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using third-party overclocking tools. Overclocking may affect your system's stability, or even cause damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for possible damage caused by overclocking.

Chapter 2 Installation

This is a Micro ATX form factor motherboard. Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard fits into it.

Pre-installation Precautions

Take note of the following precautions before you install motherboard components or change any motherboard settings.

• Make sure to unplug the power cord before installing or removing the motherboard. Failure to do so may cause physical injuries to you and damages to motherboard components.
• In order to avoid damage from static electricity to the motherboard's components, NEVER place your motherboard directly on a carpet. Also remember to use a grounded wrist strap or touch a safety grounded object before you handle the components.
• Hold components by the edges and do not touch the ICs.
• Whenever you uninstall any components, place them on a grounded anti-static pad or in the bag that comes with the components.
• When placing screws to secure the motherboard to the chassis, please do not over-tighten the screws! Doing so may damage the motherboard.

2.1 Installing the CPU

Please refer to our User Manual in the support CD for the CPU installation guide.

2.2 Installing Memory Modules (DIMM)

This motherboard provides two 288-pin DDR4 (Double Data Rate 4) DIMM slots, and supports Dual Channel Memory Technology.

1. For dual channel configuration, you always need to install identical (the same brand, speed, size and chip-type) DDR4 DIMM pairs.
2. It is unable to activate Dual Channel Memory Technology with only one memory module installed.
3. It is not allowed to install a DDR, DDR2 or DDR3 memory module into a DDR4 slot; otherwise, this motherboard and DIMM may be damaged.

DDR4 UDIMM Maximum Frequency Support

A-Series APUs:

UDIMM Memory SlotA1 B1	Frequency(Mhz)
- SR 2400
SR - 2400
- DR 2400
DR - 2400
SR SR 2400
DR DR 2400

Ryzen Series CPUs (Pinnacle Ridge):

UDIMM Memory SlotA1 B1	Frequency(Mhz)
- SR 2667
SR - 2667
- DR 2400
DR - 2400
SR SR 2667
DR DR 2400

Ryzen Series CPUs (Summit Ridge):

UDIMM Memory SlotA1 B1	Frequency(Mhz)
- SR 2667
SR - 2667
- DR 2667
DR - 2667
SR SR 2667
DR DR 2667

Ryzen Series CPUs (Raven Ridge):

UDIMM Memory SlotA1 B1	Frequency(Mhz)
- SR 2933
SR - 2933
- DR 2667
DR - 2667
SR SR 2667
DR DR 2400

SR: Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module label DR: Dual rank DIMM, 2Rx4 or 2Rx8 on DIMM module label

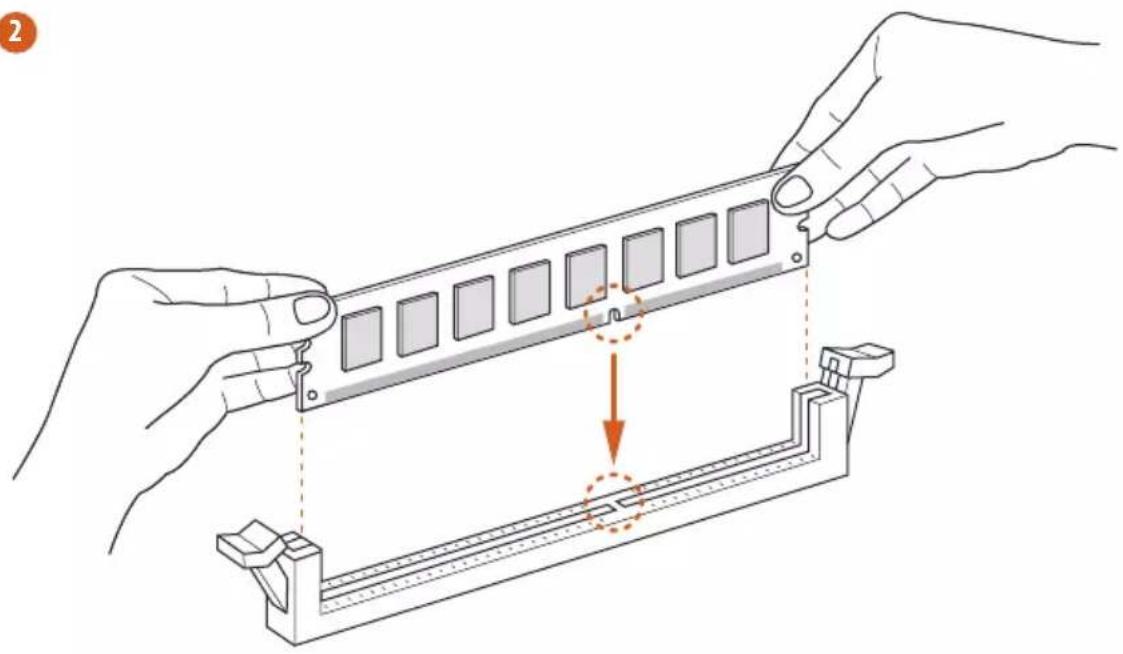

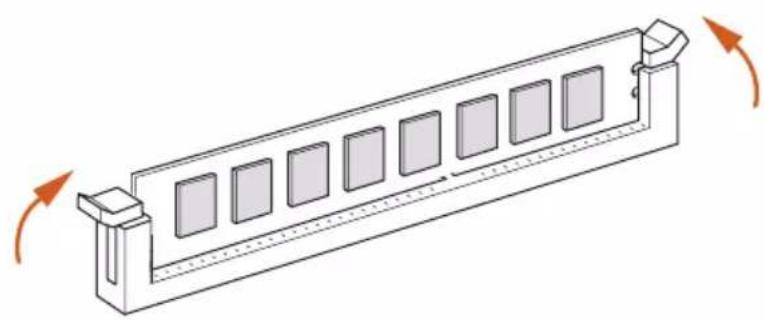

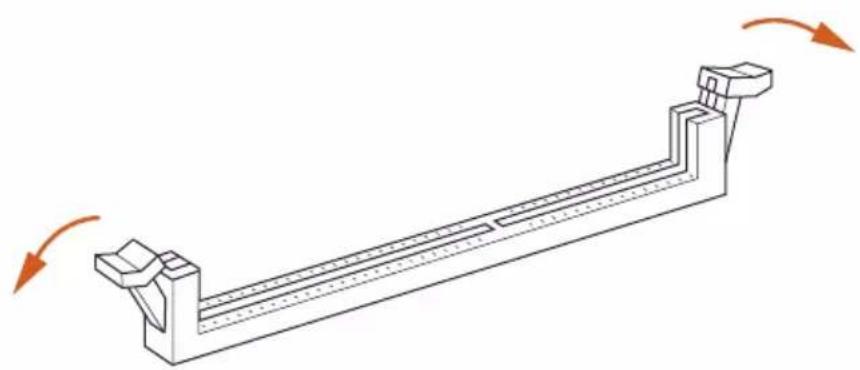

The DIMM only fits in one correct orientation. It will cause permanent damage to the motherboard and the DIMM if you force the DIMM into the slot at incorrect orientation.

1

Technical line drawing of a mechanical support structure with rotational arrows indicating motion (no text or symbols)

2

Illustration of hands assembling a mechanical component with a highlighted section (no text or symbols)

3

Technical line drawing of a mechanical component with multiple slots and directional arrows indicating motion (no text or symbols)

2.3 Expansion Slots (PCI Express Slots)

There are 2 PCI Express slots on the motherboard.

Before installing an expansion card, please make sure that the power supply is switched off or the power cord is unplugged. Please read the documentation of the expansion card and make necessary hardware settings for the card before you start the installation.

PCIe slots:

PCIE1 (PCIe 2.0 x1 slot) is used for PCI Express x1 lane width cards.

PCIE2 (PCIe 3.0 x16 slot) is used for PCI Express x16 lane width graphics cards.

PCIe Slot Configurations

PCIE1 PCIE2

A-Series APUs x1 x8

Ryzen Series CPUs (Pinnacle Ridge) x1 x16

Ryzen Series CPUs (Summit Ridge) x1 x16

Ryzen Series CPUs (Raven Ridge) x1 x8

2.4 Jumpers Setup

The illustration shows how jumpers are setup. When the jumper cap is placed on the pins, the jumper is "Short". If no jumper cap is placed on the pins, the jumper is "Open". The illustration shows a 3-pin jumper whose pin1 and pin2 are "Short" when a jumper cap is placed on these 2 pins.

Short Open 1 2 3

Clear CMOS Jumper (CLRCMOS1)

(see p.1, No. 12)

CLRCMOS1 allows you to clear the data in CMOS. To clear and reset the system parameters to default setup, please turn off the computer and unplug the power cord from the power supply. After waiting for 15 seconds, use a jumper cap to short pin2 and pin3 on CLRCMOS1 for 5 seconds. However, please do not clear the CMOS right after you update the BIOS. If you need to clear the CMOS when you just finish updating the BIOS, you must boot up the system first, and then shut it down before you do the clear-CMOS action. Please be noted that the password, date, time, and user default profile will be cleared only if the CMOS battery is removed.

If you clear the CMOS, the case open may be detected. Please adjust the BIOS option "Clear Status" to clear the record of previous chassis intrusion status.

2.5 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage to the motherboard.

System Panel Header (9-pin PANEL1) (see p.1, No. 13)

PLED+ PLED- PWRBTN# GND 1 GND RESET# GND HDLED- HDLED+

Connect the power switch, reset switch and system status indicator on the chassis to this header according to the pin assignments below. Note the positive and negative pins before connecting the cables.

PWRBTN (Power Switch):

Connect to the power switch on the chassis front panel. You may configure the way to turn off your system using the power switch.

RESET (Reset Switch):

Connect to the reset switch on the chassis front panel. Press the reset switch to restart the computer if the computer freezes and fails to perform a normal restart.

PLED (System Power LED):

Connect to the power status indicator on the chassis front panel. The LED is on when the system is operating. The LED keeps blinking when the system is in S3 sleep state. The LED is off when the system is in S4 sleep state or powered off (S5).

HDLED (Hard Drive Activity LED):

Connect to the hard drive activity LED on the chassis front panel. The LED is on when the hard drive is reading or writing data.

The front panel design may differ by chassis. A front panel module mainly consists of power switch, reset switch, power LED, hard drive activity LED, speaker and etc. When connecting your chassis front panel module to this header, make sure the wire assignments and the pin assignments are matched correctly.

Chassis Intrusion and Speaker Header (7-pin SPK_CI1) (see p.1, No. 14)

SPEAK ER DUMMY +5V 1 SIGNA L GND DUMMY

Please connect the chassis intrusion and the chassis speaker to this header.

Serial ATA3 Connectors (SATA3_1: see p.1, No. 10) (SATA3_2: see p.1, No. 11) (SATA3_3: see p.1, No. 8) (SATA3_4: see p.1, No. 9)

These four SATA3 connectors support SATA data cables for internal storage devices with up to 6.0 Gb/s data transfer rate.

USB 2.0 Headers (9-pin USB_3_4) (see p.1, No. 6) (9-pin USB_5_6) (see p.1, No. 7)

DUMMY GND GND +B +A -B -A USB_PWR USB_PWR 1

There are two headers on this motherboard. Each USB 2.0 header can support two ports.

USB 3.1 Gen1 Header (19-pin USB3_5_6) (see p.1, No. 5)

Vbus/Vbus IntA_PA_SSRX- IntA_PA_SSRX+ GND IntA_PA_SSTX- IntA_PA_SSTX+ GND IntA_PA_D- IntA_PA_D+ INTA_PB_SSRX- IntA_PB_SSRX+ GND INTA_PB_SSTX- IntA_PB_SSTX+ GND INTA_PB_D- IntA_PB_D+ Dummy

There is one header on this motherboard. This USB 3.1 Gen1 header can support two ports.

Front Panel Audio Header (9-pin HD_AUDIO1) (see p.1, No. 18)

GND PRESENCE# MIC_RET OUT_RET 1 J_SENSE OUT2_R MIC2_R MIC2_L

This header is for connecting audio devices to the front audio panel.

1. High Definition Audio supports Jack Sensing, but the panel wire on the chassis must support HDA to function correctly. Please follow the instructions in our manual and chassis manual to install your system.
2. If you use an AC'97 audio panel, please install it to the front panel audio header by the steps below:

A. Connect Mic_IN (MIC) to MIC2_L.
B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_RET and OUT_RET are for the HD audio panel only. You don't need to connect them for the AC'97 audio panel.
E. To activate the front mic, go to the "FrontMic" Tab in the Realtek Control panel and adjust "Recording Volume".

Chassis Fan Connectors

(4-pin CHA_FAN1/WP)

(see p.1, No. 20)

Please connect fan cables to the fan connectors and match the black wire to the ground pin.

(3-pin CHA_FAN2)

(see p.1, No. 15)

CPU Fan Connector

(4-pin CPU_FAN1)

(see p.1, No. 2)

+12V GND CPU_FAN_SPEED FAN_SPEED_CONTROL 1 2 3 4

This motherboard provides a 4-Pin CPU fan (Quiet Fan) connector.

If you plan to connect a 3-Pin CPU fan, please connect it to Pin 1-3.

ATX Power Connector

(24-pin ATXPWR1)

(see p.1, No. 4)

This motherboard provides a 24-pin ATX power connector. To use a 20-pin ATX power supply, please plug it along Pin 1 and Pin 13.

ATX 12V Power

Connector

(4-pin ATX12V1)

(see p.1, No. 1)

This motherboard provides a 4-pin ATX 12V power connector.

Serial Port Header

(9-pin COM1)

(see p.1, No. 17)

RRXD1 DDTR#1 DDSR#1 CCTS#1 RRI#1 RRTS#1 GND TTXD1 DDCD#1

This COM1 header supports a serial port module.

TPM Header

(17-pin TPMS1)

(see p.1, No. 19)

GND SERIRQ# S_PWRDWN# GND LAD0 +3VSB GND LAD1 +3V LAD2 LAD3 SMB_DATA_MAIN PCIRST# SMB_CLK_MAIN FRAME GND PCICLK 1

This connector supports Trusted Platform Module (TPM) system, which can securely store keys, digital certificates, passwords, and data. A TPM system also helps enhance network security, protects digital identities, and ensures platform integrity.

Print Port Header

(25-pin LPT1)

(see p.1, No. 16)

SL CT PE BU SY AC K4 SP SP D6 SP D4 SP D3 SP D2 SP D1 ST B# D0 GND SL IN # PI # # ER NI # # RO R4 AF D1

This is an interface for print port cable that allows convenient connection of printer devices.

2.6 M.2\_SSD (NGFF) Module Installation Guide

The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and versatile card edge connector that aims to replace mPCIe and mSATA. The Ultra M.2 Socket supports SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with A-Series APU).

Installing the M.2_SSD (NGFF) Module

Pure technical line drawing of a rectangular component with notches, no text or symbols present

Step 1

Prepare a M.2_SSD (NGFF) module and the screw.

C B A 1 2 3

Step 2

Depending on the PCB type and length of your M.2_SSD (NGFF) module, find the corresponding nut location to be used.

No.123

Nut Location A B C

PCB Length 4.2cm 6cm 8cm

Module Type Type 2242 Type2260 Type 2280

Step 3

Move the standoff based on the module type and length.

The standoff is placed at the nut location C by default. Skip Step 3 and 4 and go straight to Step 5 if you are going to use the default nut. Otherwise, release the standoff by hand.

Step 4

Peel off the yellow protective film on the nut to be used. Hand tighten the standoff into the desired nut location on the motherboard.

Technical diagram of a mechanical assembly with labeled parts A and B, showing a directional arrow and component details (no text or symbols beyond labels)

Step 5

Gently insert the M.2 (NGFF) SSD module into the M.2 slot. Please be aware that the M.2 (NGFF) SSD module only fits in one orientation.

Technical line drawing of a mechanical component with two circular features labeled A and B, and a 20° angle indicator (no text or symbols beyond labels)

Simple line drawing of a mechanical setup with a lever and base plate (no text or symbols)

Step 6

Tighten the screw with a screwdriver to secure the module into place. Please do not overtighten the screw as this might damage the module.

Technische Daten

• Supporto WOL (Wake-On-LAN)

• Supporto Energy Efficient Ethernet 802.3az

- Supporto PXE

I/O pannello posteriore

* Supporta kit ASRock U.2

Connettore

AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge)

AMD 7 ^th A-Series APUs

1 x PCI Express 3.0 x16 插槽 (PCIE2 : x8 模式 )*

AMD Ryzen series CPUs (Raven Ridge)

*支援NVMe SSD作為開機磁碟

顯示卡

^TM Vega Series Graphics 內建於 Ryzen

系列 APU*

^TM R 系列顯示卡 *

* 實際支援可能隨 CPU 改變

30Hz 解析度的 HDMI

Auto Lip Sync、Deep Color (12bpc)、xvYCC 及 HBR（高位元率音訊）

(BD) 播放

音訊

If you need to contact ASRock or want to know more about ASRock, you're welcome to visit ASRock's website at http://www.asrock.com; or you may contact your dealer for further information. For technical questions, please submit a support request form at https://event.asrock.com/tsd.asp

ASRock Incorporation

2F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District,

Taipei City 112, Taiwan (R.O.C.)

ASRock EUROPE B.V.

Bijsterhuizen 11-11

6546 AR Nijmegen

The Netherlands

Phone: [phone]

Fax: [phone]

ASRock America, Inc.

13848 Magnolia Ave, Chino, CA91710

U.S.A.

Phone: [phone]

Fax: [phone]

DECLARATION OF CONFORMITY

Per FCC Part 2 Section 2.1077(a)

Responsible Party Name: ASRock Incorporation

Address: 13848 Magnolia Ave, Chino, CA91710

Phone/Fax No: [phone]/[phone]

hereby declares that the product

Product Name : Motherboard

Model Number: X370M-HDV

Conforms to the following specifications:

☒ FCC Part 15, Subpart B, Unintentional Radiators

Supplementary Information:

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Representative Person's Name: James

Signature :

Date : May 12, 2017

EU Declaration of Conformity

ASRock®

For the following equipment:

Motherboard

(Product Name)

X370M-HDV / ASRock

(Model Designation / Trade Name)

ASRock Incorporation

(Manufacturer Name)

2F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District, Taipei City 112, Taiwan (R.O.C.)

(Manufacturer Address)

EMC — Directive 2014/30/EU (from April 20th, 2016)

□ EN 55022:2010/AC:2011 Class B

EN 55024:2010/A1:2015

EN 61000-3-3:2013

□ LVD — Directive 2014/35/EU (from April 20th, 2016)

□EN 60950-1:2011+A2:2013

□ EN 60950-1:2006/A12:2011

— Directive 2011/65/EU

(EU conformity marking)

CE

ASRock EUROPE B.V.

(Company Name)

Bijsterhuizen 1111 6546 AR Nijmegen The Netherlands

(Company Address)

Person responsible for making this declaration:

(Name, Surname)

A.V.P

(Position / Title)

June 22, 2018

(Date)

P/N: 15G062103000AK V1.0
