Product Type	Micro ATX Motherboard
Manufacturer	ASRock
Model	H370M-HDV
Chipset	Intel H370
Socket	LGA1151 (8th and 9th Gen Intel Core)
Memory	2 x DDR4 DIMM, max 64 GB, 2666/2400/2133 MHz
Expansion Slots	1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
Integrated Graphics	Intel UHD Graphics, outputs D-Sub, DVI-D, HDMI
Audio	Realtek ALC887/897 7.1-channel HD
Network	Realtek RTL8111H Gigabit LAN
Storage	4 x SATA3 (6 Gb/s), RAID 0/1/5/10 support
USB (Rear panel)	4 x USB 2.0, 2 x USB 3.2 Gen1
Required Power	ATX 24-pin + 12V 8-pin
BIOS	AMI UEFI with multilingual graphical interface
Dimensions	244 x 244 mm (standard Micro ATX form factor)
Weight	Approximately 0.5 kg
Special Features	Solid capacitors, overvoltage and ESD protection
Supported Operating System	Windows 10 64-bit
Certifications	FCC, CE, ErP/EuP
Maintenance	Clean with a soft, dry cloth. Avoid moisture and electrostatic discharges.
Safety	Disconnect power before installation. Handle with ESD precautions.
Spare Parts	Not applicable (complete motherboard).

Frequently Asked Questions - H370M-HDV ASROCK

How to install the ASRock H370M-HDV motherboard?

Place the motherboard in a compatible Micro ATX case. Secure it with the provided screws. Connect the ATX 24-pin and 12V 8-pin power, then connect peripherals (fans, drives, expansion cards). Follow the manual for detailed connections.

Which processors are compatible with the H370M-HDV?

The motherboard supports Intel Core 8th and 9th generation processors (socket LGA1151) with a maximum TDP of 95W. 8th generation processors support the H370 chipset.

What RAM memory can I use?

The motherboard accepts unbuffered non-ECC DDR4 memory in dual-channel configuration. Supported frequencies are 2666, 2400, and 2133 MHz. Maximum capacity is 64 GB (2 x 32 GB). Enable XMP 2.0 in the BIOS to take advantage of memory profiles.

How to update the BIOS of the H370M-HDV?

Download the latest BIOS version from the ASRock website. Copy the file to a USB drive formatted as FAT32. Restart and press F2 or Delete to enter the BIOS. Use the Instant Flash utility to update.

Does the motherboard support dual channel?

Yes, the H370M-HDV supports DDR4 dual-channel memory technology. To enable dual-channel, insert memory modules into both DIMM slots (A1 and B1). Preferably use identical modules.

How to connect fans?

The board has a CPU fan header (4-pin, max 1A/12W) and a chassis fan/water pump header (4-pin, max 2A/24W). Connect the CPU fan to CPU_FAN1 and the chassis fan to CHA_FAN1/WP. Smart speed control adjusts automatically.

What is the maximum RAM capacity?

The maximum system memory capacity is 64 GB, with unbuffered non-ECC DDR4 modules. The motherboard has two DIMM slots, each can hold up to 32 GB.

Does the motherboard have an M.2 slot?

No, the H370M-HDV does not have an M.2 slot. NVMe SSDs are still supported as boot drives via the PCIe 3.0 x16 slot using an adapter. SATA drives connect via the 4 SATA3 ports.

How to enable RAID on the H370M-HDV?

RAID is managed by the H370 chipset. Connect SATA drives to the SATA3 ports. Enter the BIOS and set the SATA mode to RAID. Use the Intel Rapid Storage Technology utility to configure RAID volumes (0, 1, 5, 10).

Where to download drivers for the H370M-HDV?

Drivers are available on the official ASRock website, in the Support section. Search for the H370M-HDV model and select your operating system (Windows 10 64-bit). Download drivers for chipset, audio, network, etc.

USER MANUAL H370M-HDV ASROCK

Published October 2020

Copyright©2020 ASRock INC. All rights reserved.

Copyright Notice:

No part of this documentation may be reproduced, transcribed, transmitted, or translated in any language, in any form or by any means, except duplication of documentation by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this documentation may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners' benefit, without intent to infringe.

Disclaimer:

Specifications and information contained in this documentation are furnished for informational use only and subject to change without notice, and should not be constructed as a commitment by ASRock. ASRock assumes no responsibility for any errors or omissions that may appear in this documentation.

With respect to the contents of this documentation, ASRock does not provide warranty of any kind, either expressed or implied, including but not limited to the implied warranties or conditions of merchantability or fitness for a particular purpose.

In no event shall ASRock, its directors, officers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the documentation or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance controlled in Perchlorate Best Management Practices (BMP) regulations passed by the California Legislature. When you discard the Lithium battery in California, USA, please follow the related regulations in advance.

"Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/perchlorate"

ASRock Website: http://www.asrock.com

AUSTRALIA ONLY

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage caused by our goods. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. If you require assistance please call ASRock Tel: [phone] ext.123 (Standard International call charges apply)

The terms HDMI ^™ and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

HIGH-DEFINITION MULTIMEDIA INTERFACE

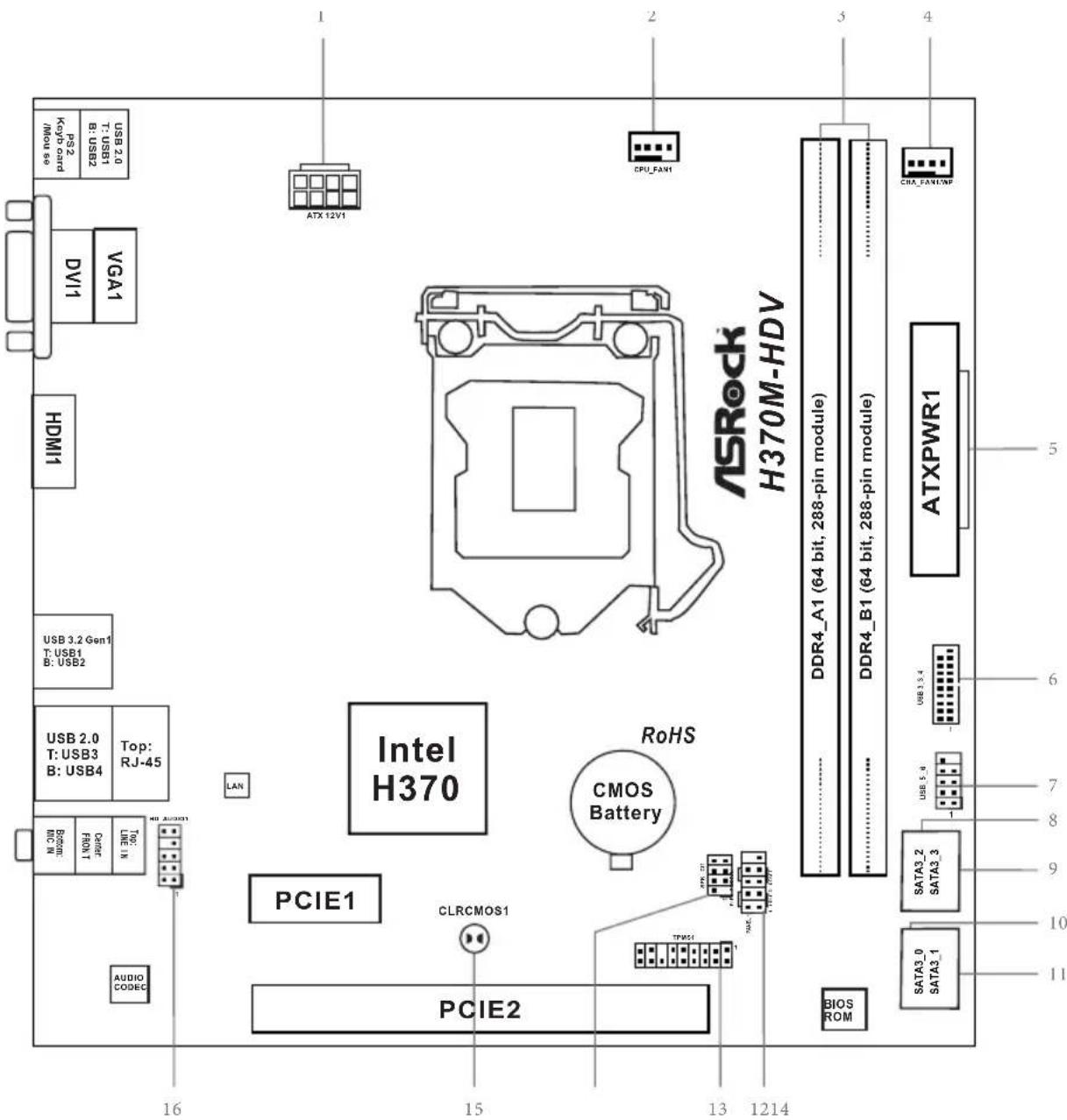

Motherboard Layout

16 AUDIO CDSRC PCIE1 CLRCMOS1 PCIE2 15 Intel H370 CMOS Battery RoHS ASRock H370M-HDV DVD USB 2.0 T:USB3 B:USB4 Top: RJ-45 USB3.2 GenT T:USB1 B:USB2 HDMI VGA1 DVI USB 2.0 T:USB1 B:USB2 PS2 Krip card Mow se 1 2 3 4 5 6 7 8 9 10 11 1214 DDR4_A1 (64 bit, 288-pin module) DDR4_B1 (64 bit, 288-pin module) SATA3_0 SATA3_1 SATA3_2 SATA3_3 USB_5_4 USB_3.5_4 ATXPWR1

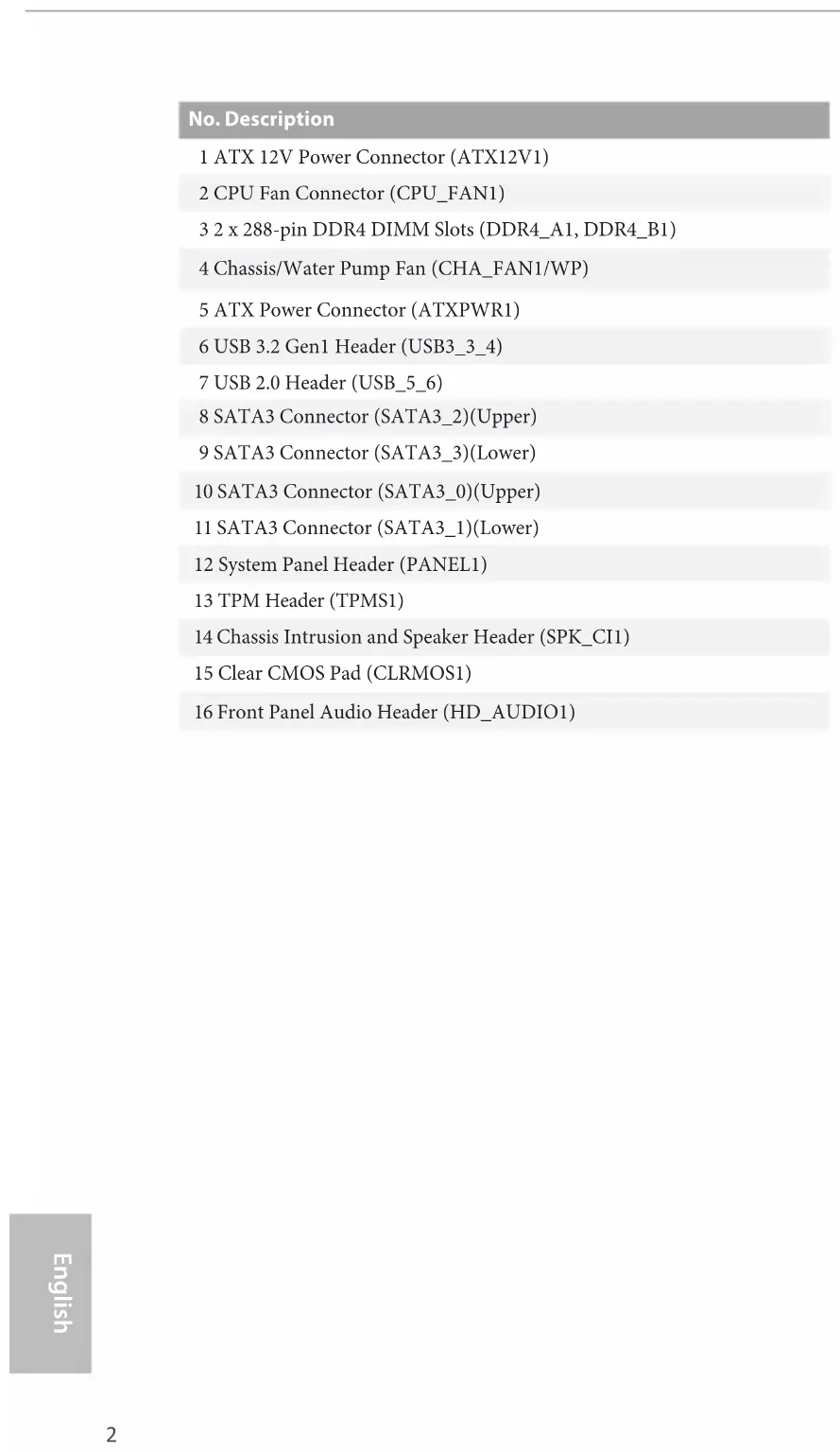

No. Description

1 ATX 12V Power Connector (ATX12V1)

2 CPU Fan Connector (CPU_FAN1)

3 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1)

4 Chassis/Water Pump Fan (CHA_FAN1/WP)

5 ATX Power Connector (ATXPWR1)

6 USB 3.2 Gen1 Header (USB3_3_4)

7 USB 2.0 Header (USB_5_6)

8 SATA3 Connector (SATA3_2)(Upper)

9 SATA3 Connector (SATA3_3)(Lower)

10 SATA3 Connector (SATA3_0)(Upper)

11 SATA3 Connector (SATA3_1)(Lower)

12 System Panel Header (PANEL1)

13 TPM Header (TPMS1)

14 Chassis Intrusion and Speaker Header (SPK_CI1)

15 Clear CMOS Pad (CLRMOS1)

16 Front Panel Audio Header (HD_AUDIO1)

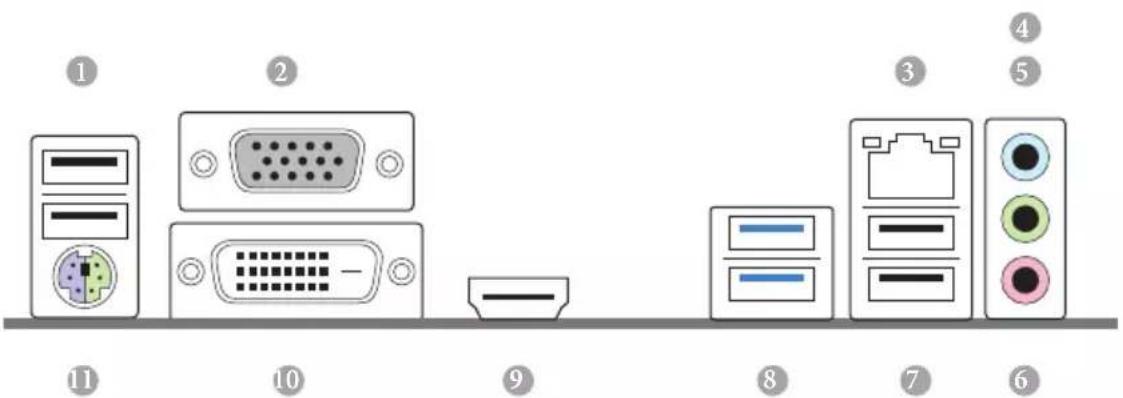

I/O Panel

Diagram showing labeled electronic device ports and connectors, including server, VGA, port, and indicator lights.

No. Description No. Description

1 USB 2.0 Ports (USB12) 7 USB 2.0 Ports (USB_34)
2 D-Sub Port 8 USB 3.2 Gen1 Ports (USB3_12)
3 LAN RJ-45 Port* 9 HDMI Port
4 Line In (Light Blue)** 10 DVI-D Port
5 Front Speaker (Lime)** 11 PS/2 Keyboard/Mouse Port
6 Microphone (Pink)**

* There are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.

ACT/LINK LED

LAN Port

Activity / Link LED Speed LED
Status Description Status Description

Off	No Link	Off	10Mbps connection
Blinking	Data Activity	Orange	100Mbps connection
On	Link	Green	1Gbps connection

**Function of the Audio Ports in 7.1-channel Configuration:

Port Function
Light Blue (Rear panel) Rear Speaker Out
Lime (Rear panel) Front Speaker Out
Pink (Rear panel) Central /Subwoofer Speaker Out
Lime (Front panel) Side Speaker Out

Chapter 1 Introduction

Thank you for purchasing ASRock H370M-HDV motherboard, a reliable motherboard produced under ASRock's consistently stringent quality control. It delivers excellent performance with robust design conforming to ASRock's commitment to quality and endurance.

Because the motherboard specifications and the BIOS software might be updated, the content of this documentation will be subject to change without notice. In case any modifications of this documentation occur, the updated version will be available on ASRock's website without further notice. If you require technical support related to this motherboard, please visit our website for specific information about the model you are using. You may find the latest VGA cards and CPU support list on ASRock's website as well. ASRock website http://www.asrock.com.

1.1 Package Contents

• ASRock H370M-HDV Motherboard (Micro ATX Form Factor)
• ASRock H370M-HDV Quick Installation Guide
• ASRock H370M-HDV Support CD
• 1 x I/O Panel Shield
• 2 x Serial ATA (SATA) Data Cables (Optional)

1.2 Specifications

Platform	• Micro ATX Form Factor• Solid Capacitor design
CPU	• Supports 9 ^th and 8 ^th Gen Intel ^ Core ^TM Processors (Socket 1151)• Supports CPU up to 95W• 4 Power Phase design• Supports Intel ^ Turbo Boost 2.0 Technology
Chipset	• Intel ^ H370
Memory	• Dual Channel DDR4 Memory Technology• 2 x DDR4 DIMM Slots• Supports DDR4 2666/2400/2133 non-ECC, un-buffered memory• Max. capacity of system memory: 64GB• Supports Intel ^ Extreme Memory Profile (XMP) 2.0• 15μ Gold Contact in DIMM Slots
Expansion Slot	• 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)** Supports NVMe SSD as boot disks• 1 x PCI Express 3.0 x1 Slot
Graphics	• Intel ^ UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.• Supports Intel ^ UHD Graphics Built-in Visuals : Intel ^ Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel ^ InTru ^TM 3D, Intel ^ Clear Video HD Technology, Intel ^ Insider ^TM , Intel ^ UHD Graphics• DirectX 12• HWAEncode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1

• Three graphics output options: D-Sub, DVI-D and HDMI
• Supports Triple Monitor
- Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
• Supports HDCP 2.2 with DVI-D and HDMI 1.4 Ports
• Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port

Audio

• 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)

• Supports Surge Protection

LAN

• PCIE x1 Gigabit LAN 10/100/1000 Mb/s

• 1 x Realtek RTL8111H

• Supports Wake-On-LAN

• Supports Lightning/ESD Protection

• Supports Energy Efficient Ethernet 802.3az

- Supports PXE

Rear Panel I/O

• 1 x PS/2 Mouse/Keyboard Port
- 1 x D-Sub Port
- 1 x DVI-D Port
- 1 x HDMI Port
• 4 x USB 2.0 Ports (Supports ESD Protection)
• 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
• HD Audio Jacks: Line in / Front Speaker / Microphone

Storage

- 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 15), NCQ, AHCI and Hot Plug

Connector

- 1 x TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)

* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

- 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)

* The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.

* CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.

- 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

BIOS

• AMI UEFI Legal BIOS with multilingual GUI support

Feature

• ACPI 6.0 Compliant wake up events

- SMBIOS 2.7 Support

• DRAM, PCH 1.05V Voltage Multi-adjustment

Hardware

- Temperature Sensing: CPU, Chassis/Water Pump Fans - Fan Tachometer: CPU, Chassis/Water Pump Fans - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans - Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans - CASE OPEN detection - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore

Monitor

• Microsoft® Windows® 10 64-bit

os

Certifica-

- FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)

tions

* For detailed product information, please visit our website: http://www.asrock.com

Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using third-party overclocking tools. Overclocking may affect your system's stability, or even cause damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for possible damage caused by overclocking.

Chapter 2 Installation

This is a Micro ATX form factor motherboard. Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard fits into it.

Pre-installation Precautions

Take note of the following precautions before you install motherboard components or change any motherboard settings.

• Make sure to unplug the power cord before installing or removing the motherboard components. Failure to do so may cause physical injuries and damages to motherboard components.
• In order to avoid damage from static electricity to the motherboard's components, NEVER place your motherboard directly on a carpet. Also remember to use a grounded wrist strap or touch a safety grounded object before you handle the components.
• Hold components by the edges and do not touch the ICs.
• Whenever you uninstall any components, place them on a grounded anti-static pad or in the bag that comes with the components.
• When placing screws to secure the motherboard to the chassis, please do not over-tighten the screws! Doing so may damage the motherboard.

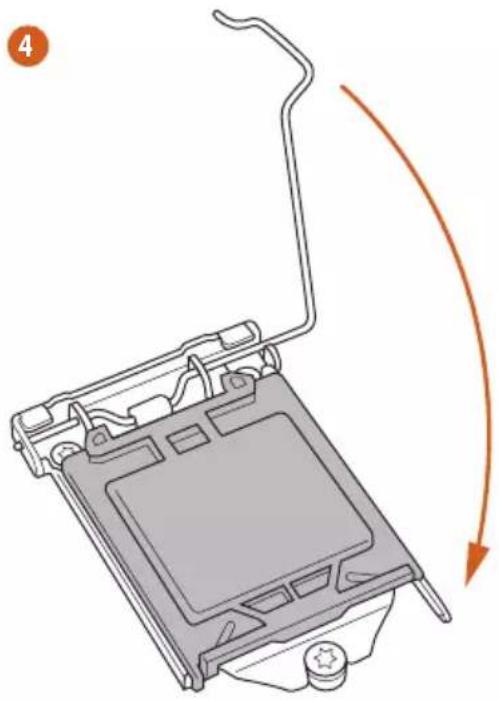

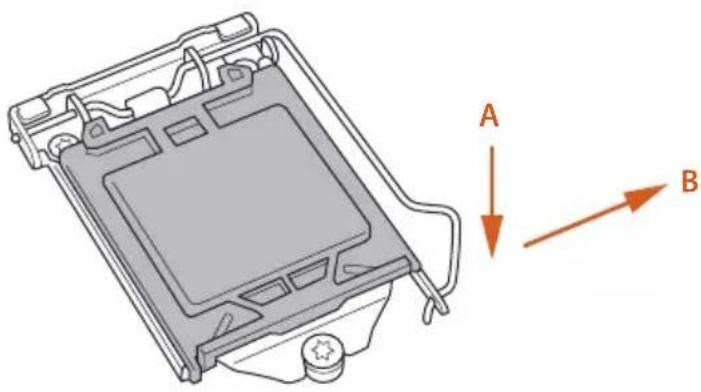

2.1 Installing the CPU

1. Before you insert the 1151-Pin CPU into the socket, please check if the PnP cap is on the socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not force to insert the CPU into the socket if above situation is found. Otherwise, the CPU will be seriously damaged.
2. Unplug all power cables before installing the CPU.

1

Technical diagram of a device casing with labeled directional arrows (A and B), no readable text or symbols present.

2

Technical line drawing of a mechanical device with a highlighted screen and base plate, showing an orange curved arrow indicating rotation (no text or symbols present)

3

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of a computer monitor with an orange curved arrow indicating motion or rotation (no text or symbols present)

5

Diagram of a computer processor showing internal components and a close-up view of the base (no text or symbols)

Please save and replace the cover if the processor is removed. The cover must be placed if you wish to return the motherboard for after service.

2.2 Installing the CPU Fan and Heatsink

Line drawing of a mechanical device with a pipette inserted into a housing (no text or symbols)

Technical diagram showing CPU cooling system with fan and heatsink components, annotated with rotation arrows

2 Cp5.10A

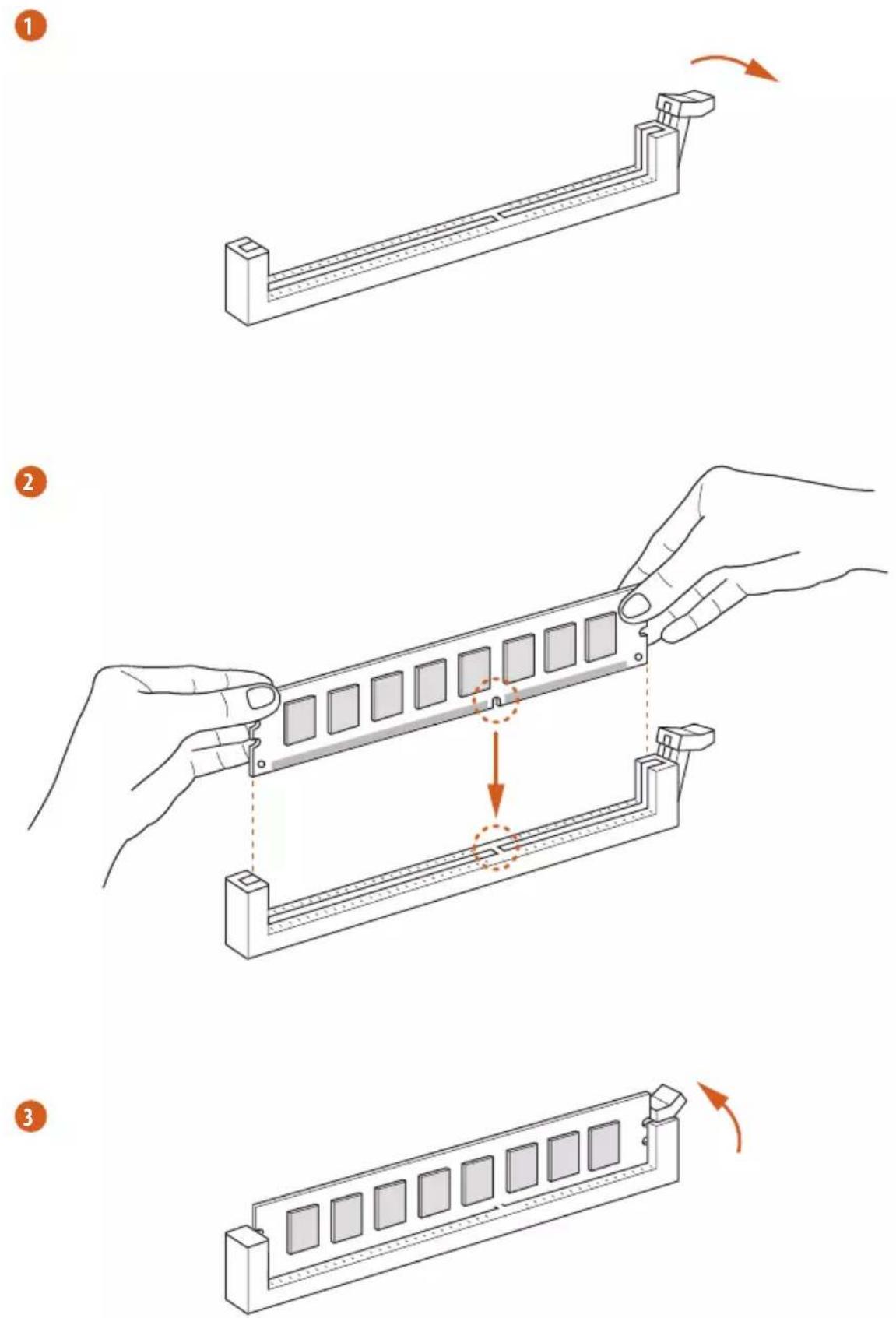

2.3 Installing Memory Modules (DIMM)

This motherboard provides two 288-pin DDR4 (Double Data Rate 4) DIMM slots, and supports Dual Channel Memory Technology.

1. For dual channel configuration, you always need to install identical (the same brand, speed, size and chip-type) DDR4 DIMM pairs.
2. It is unable to activate Dual Channel Memory Technology with only one memory module installed.
3. It is not allowed to install a DDR, DDR2 or DDR3 memory module into a DDR4 slot; otherwise, this motherboard and DIMM may be damaged.

The DIMM only fits in one correct orientation. It will cause permanent damage to the motherboard and the DIMM if you force the DIMM into the slot at incorrect orientation.

2.4 Expansion Slots (PCI Express Slots)

There are 2 PCI Express slots on the motherboard.

Before installing an expansion card, please make sure that the power supply is switched off or the power cord is unplugged. Please read the documentation of the expansion card and make necessary hardware settings for the card before you start the installation.

PCIe slots:

PCIE1 (PCIe 3.0 x1 slot) is used for PCI Express x1 lane width cards.

PCIE2 (PCIe 3.0 x16 slot) is used for PCI Express x16 lane width graphics cards.

2.5 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage to the motherboard.

System Panel Header (9-pin PANEL1)

(see p.1, No. 12)

Connect the power button, reset button and system status indicator on the chassis to this header according to the pin assignments below. Note the positive and negative pins before connecting the cables.

PWRBTN (Power Button):

Connect to the power button on the chassis front panel. You may configure the way to turn off your system using the power button.

RESET (Reset Button):

Connect to the reset button on the chassis front panel. Press the reset button to restart the computer if the computer freezes and fails to perform a normal restart.

PLED (System Power LED):

Connect to the power status indicator on the chassis front panel. The LED is on when the system is operating. The LED keeps blinking when the system is in S1/S3 sleep state. The LED is off when the system is in S4 sleep state or powered off (S5).

HDLED (Hard Drive Activity LED):

Connect to the hard drive activity LED on the chassis front panel. The LED is on when the hard drive is reading or writing data.

The front panel design may differ by chassis. A front panel module mainly consists of power button, reset button, power LED, hard drive activity LED, speaker and etc. When connecting your chassis front panel module to this header, make sure the wire assignments and the pin assignments are matched correctly.

Chassis Intrusion and Speaker Header (7-pin SPK_CI1) (see p.1, No. 14)

Please connect the chassis intrusion and the chassis speaker to this header.

Serial ATA3 Connectors Right Angle:

(SATA3_0:

see p.1, No. 10)(Upper)

(SATA3_1:

see p.1, No. 11)(Lower)

(SATA3_2:

see p.1, No. 8)(Upper)

(SATA3_3:

see p.1, No. 9)(Lower)

SATA3_0 SATA3_2 SATA3_1 SATA3_3

These four SATA3 connectors support SATA data cables for internal storage devices with up to 6.0 Gb/s data transfer rate.

USB 2.0 Header

(9-pin USB_5_6)

(see p.1, No. 7)

DUMMY GND P+ P- USB_PWR G P+ P- USB_PWR 1

There is one USB

2.0 header on this

motherboard. This USB

2.0 header can support two ports.

USB 3.2 Gen1 Header

(19-pin USB3_3_4)

(see p.1, No. 6)

VbusVbus Vbus IntA_P3_SSRX- IntA_P2_SSRX- IntA_P3_SSRX+ GND GND IntA_P3_SSTX- IntA_P2_SSTX- IntA_P3_SSTX+ GND GND IntA_P3_D- IntA_P2_D- IntA_P3_D+ ID 1

There is one header on this motherboard. This

USB 3.2 Gen1 header can support two ports.

Front Panel Audio Header (9-pin HD_AUDIO1) (see p.1, No. 16)

OUT_RET OUT2_L J_SENSE MIC_RED OUT2_R PRESENCE# MIC2_R GND MIC2_L 1

This header is for connecting audio devices to the front audio panel.

1. High Definition Audio supports Jack Sensing, but the panel wire on the chassis must support HDA to function correctly. Please follow the instructions in our manual and chassis manual to install your system.
2. If you use an AC'97 audio panel, please install it to the front panel audio header by the steps below:
   A. Connect Mic_IN (MIC) to MIC2_L.
   B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.
   C. Connect Ground (GND) to Ground (GND).
   D. MIC_RET and OUT_RET are for the HD audio panel only. You don't need to connect them for the AC'97 audio panel.
   E. To activate the front mic, go to the "FrontMic" Tab in the Realtek Control panel and adjust "Recording Volume".

Chassis/Water Pump Fan Connector (4-pin CHA_FAN1/WP) (see p.1, No. 4)

GND FAN_VOLTAGE FAN_SPEED FAN_SPEED_CONTROL 1 2 3 4

This motherboard provides a 4-Pin water cooling chassis fan connectors. If you plan to connect a 3-Pin chassis water cooler fan, please connect it to Pin 1-3.

CPU Fan Connector (4-pin CPU_FAN1) (see p.1, No. 2)

This motherboard provides a 4-Pin CPU fan (Quiet Fan) connector. If you plan to connect a 3-Pin CPU fan, please connect it to Pin 1-3.

ATX Power Connector (24-pin ATXPWR1) (see p.1, No. 5)

This motherboard provides a 24-pin ATX power connector. To use a 20-pin ATX power supply, please plug it along Pin 1 and Pin 13.

ATX 12V Power Connector (8-pin ATX12V1) (see p.1, No. 1)

This motherboard provides an 8-pin ATX 12V power connector. To use a 4-pin ATX power supply, please plug it along Pin 1 and Pin 5.

TPM Header (17-pin TPMS1) (see p.1, No. 13)

GN D +3VSB S_PWRDWN# GN D LAD1 LAD2 SMB_DATA_MAIN SMB_CLK_MAIN Q N5 LAD0 +3 V LAD3 PCIRST # FRAME PCCLK

This connector supports Trusted Platform Module (TPM) system, which can securely store keys, digital certificates, passwords, and data. A TPM system also helps enhance network security, protects digital identities, and ensures platform integrity.

Clear CMOS Pad (CLRMOS1) (see p.1, No. 15)

CLRMOS1 allows you to clear the data in CMOS. To clear CMOS, take out the CMOS battery and short the Clear CMOS Pad.

Technische Daten

Plattform

• Supporto WOL (Wake-On-LAN)

• Supporto Energy Efficient Ethernet 802.3az

- Supporto PXE

I/O pannello posteriore

• 1 x porta mouse/tastiera PS/2

- 1 x porta D-Sub

• 1 x porta DVI-D

• 1 x porta HDMI

- 4 x connettori SATA3 6,0 Gb/s, supportano RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 15), NCQ, AHCI e Hot Plug

Connettore

- Micro ATX Form Factor

- HWAEncode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decodificar apenas), MPEG2, MJPEG, VC-1

If you need to contact ASRock or want to know more about ASRock, you're welcome to visit ASRock's website at http://www.asrock.com; or you may contact your dealer for further information. For technical questions, please submit a support request form at https://event.asrock.com/tsd.asp

ASRock Incorporation

2F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District,

Taipei City 112, Taiwan (R.O.C.)

ASRock EUROPE B.V.

Bijsterhuizen 11-11

6546 AR Nijmegen

The Netherlands

Phone: [phone]

Fax: [phone]

ASRock America, Inc.

13848 Magnolia Ave, Chino, CA91710

U.S.A.

Phone: [phone]

Fax: [phone]

DECLARATION OF CONFORMITY

Per FCC Part 2 Section 2.1077(a)

Responsible Party Name: ASRock Incorporation

Address: 13848 Magnolia Ave, Chino, CA91710

Phone/Fax N o: [phone]/[phone]

hereby declares that the product

Product Name : Motherboard

Model Number : H370M-HDV

Conforms to the following specifications:

☒ FCC Part 15, Subpart B, Unintentional Radiators

Supplementary Information:

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Representative Person's Name: James

Signature :

Date : May 12, 2017

EU Declaration of Conformity

ASRock®

For the following equipment:

Motherboard

(Product Name)

H370M-HDV / ASRock

(Model Designation / Trade Name)

ASRock Incorporation

(Manufacturer Name)

2F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District, Taipei City 112, Taiwan (R.O.C.)

(Manufacturer Address)

EMC — Directive 2014/30/EU (from April 20th, 2016)

□ EN 55022:2010/AC:2011 Class B

EN 55024:2010/A1:2015

EN 55032:2012+AC:2013 Class B

EN 61000-3-3:2013

EN 61000-3-2:2014

□ LVD — Directive 2014/35/EU (from April 20th, 2016)

□ EN 60950-1:2011+A2:2013 □

EN 60950-1:2006/A12:2011

☒ RoHS — Directive 2011/65/EU

CE marking

(EU conformity marking)

CE

ASRock EUROPE B.V.

(Company Name)

Bijsterhuizen 1111 6546 AR Nijmegen The Netherlands

(Company Address)

Person responsible for making this declaration:

(Name, Surname)

A.V.P

(Position / Title)

November 6, 2020

(Date)

P/N: 15G062258000AK V1.0
