Product Type	LCD Monitor
Brand	Acer
Model	KB242YA
Screen Size	23.8 inches (60 cm)
Panel Type	VA
Maximum Resolution	1920 x 1080 @ 75 Hz (HDMI and VGA)
Brightness	250 cd/m² (typical)
Contrast Ratio	100,000,000:1 max (ACM)
Response Time	1 ms (VRB)
Viewing Angle	178° horizontal / 178° vertical (CR=10)
Display Colors	16.7 million
Connectivity	1 x VGA (D-Sub), 1 x HDMI (model with HDMI input)
Built-in Speakers	2 W x 2 (model with audio input, optional)
Power Supply	100-240 V, 50/60 Hz
Power Consumption (On)	22 W (at 200 nits)
Power Consumption (Standby)	0.5 W
Power Consumption (Off)	0.3 W
Dimensions (with stand)	607 x 409 x 133 mm
Weight (net)	3.80 kg
Tilt	-5° to +15°
Height Adjustment	No
Swivel	No
Detachable Stand	Yes
Main Features	FreeSync, Blue Light Reduction, ACM, Overdrive, Image Modes
Cleaning	Soft cloth without solvent, do not use ammonia or alcohol
Safety	Do not open the casing, unplug if damaged

Frequently Asked Questions - KB242YA ACER

How to clean the screen of the Acer KB242YA monitor?

Turn off and unplug the monitor. Use a soft cloth slightly dampened with a solvent-free solution. Never spray liquid directly onto the screen and do not use ammonia or alcohol-based products.

What cables are needed to connect the monitor to a computer?

You can use a VGA (D-Sub) cable or an HDMI cable (depending on the model). Connect the appropriate end to the monitor and computer, then plug in the power cable.

How to attach the monitor stand?

Take the monitor out of the packaging, attach the base to the stand, then rotate the stand clockwise to lock it. For some models, tighten the screw using the tab or a coin.

What to do if the monitor does not turn on?

Check that the power cable is properly connected to both the monitor and a power outlet. Ensure the power button is pressed. If the indicator is orange, the monitor is in standby; press the power button to wake it.

How to adjust display settings like brightness and contrast?

Press the Menu button on the monitor to open the OSD. Use the navigation buttons to select options like Brightness, Contrast, etc. Press the Enter button to adjust.

Does the monitor support FreeSync technology?

Yes, the Acer KB242YA monitor supports FreeSync, which synchronizes the refresh rate with the graphics card to reduce screen tearing.

What is the maximum resolution and refresh rate?

The maximum resolution is 1920 x 1080 (Full HD) with a refresh rate of 75 Hz on both HDMI and VGA.

How to reduce eye strain with this monitor?

Use the blue light reduction feature in the OSD menu. You can also enable flicker-free mode and adjust brightness to a comfortable level.

Can I use the monitor with a gaming console?

Yes, if the console has an HDMI output, you can connect it directly. The 1080p resolution and 75 Hz refresh rate are suitable for gaming.

What to do in case of a stain or dead pixel?

Dead pixels are rare and may not be covered under warranty depending on the manufacturer. If the stain is due to liquid, turn off the monitor and gently clean with a slightly damp microfiber cloth. Do not press too hard.

USER MANUAL KB242YA ACER

Line drawing of a computer monitor with a base (no text or symbols on the screen)

LCD Monitor KB2 series/KB242Y

USER GUIDE

Acer LCD Monitor Quick Start Guide (QSG)

Important safety instructions

Please read the following instructions carefully.

1. To clean the LCD monitor screen: Be sure that your monitor is electrically rated to operate with the AC power available in your location.

2. Turn off the LCD monitor and unplug the power cord.

3. Spray a non-solvent cleaning solution onto a rag and clean the screen gently.
4. NEVER SPRAY OR POUR ANY LIQUID DIRECTLY ONTO THE SCREEN OR CASE.
5. PLEASE DO NOT USE ANY AMMONIA OR ALCOHOL-BASED CLEANERS ON THE LCD DISPLAY SCREEN OR CASE.

6. Acer will not be liable for damage resulting from use of any ammonia or alcohol-based cleaners.

7. Do not place the LCD monitor near a window. Exposing the monitor to rain, moisture or sunlight can severely damage it.

8. Do not apply pressure to the LCD screen. Excessive pressure may cause permanent damage to the display.
9. Do not remove the cover or attempt to service this unit yourself. An authorized technician should perform servicing of any nature.
10. Store the LCD monitor in a room with a temperature of -20^ to 60^ C ( -4^ to 140^ F). Storing the LCD monitor outside this range may result in permanent damage.
11. Immediately unplug your monitor and call an authorized technician if any of the following circumstances occur:

• Monitor-to-PC signal cable is frayed or damaged.

- Liquid spills onto the LCD monitor or the monitor is exposed to rain.

• The LCD monitor or case is damaged.

Attaching the monitor to the base

1. Remove the monitor from the packaging.
2. Attach the foot stand to the base. (for selected models)
3. Turn clockwise to lock. Ensure that the base is locked onto the stand. (for selected models)
4. Secure the base to the stand by turning the screw using the integrated tab or a suitable coin. (for selected models)

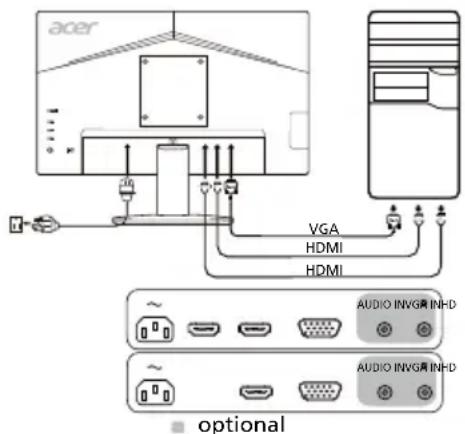

Connecting Your Monitor to a Computer

1. Turn off your monitor and unplug your computer's power cord.

2. 2-1 Connect Video Cable
   a. Make sure both the monitor and computer are powered-OFF.
   b. Connect the VGA video cable to the computer.
   2-2 Connect HDMI Cable (Only HDMI-input model)
   a. Make sure both the monitor and computer are powered-OFF.
   b. Connect one end of the HDMI cable to the back of the monitor and connect the other end to the computer's port.

3. Connect the Audio Cable. (Only Audio-Input Model) (Optional)

4. Insert the monitor power cable into the power port at the back of the monitor.

5. Plug the power cords of your computer and your monitor into a nearby electrical outlet.

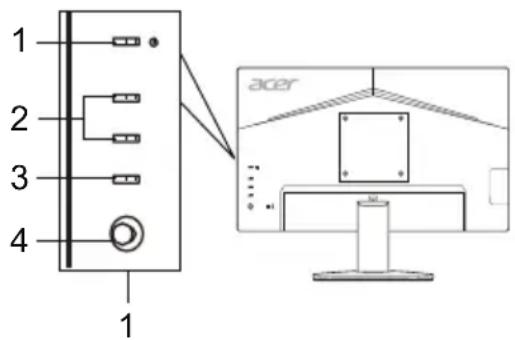

External Controls

No.ItemDescription
1 Power button/indicator	Turns the monitor on/off. Blue indicates power on. Amber indicates standby/power saving mode.
2 Hotkey 1, 2 buttons	Press to activate user defined hotkey function.
3 Input button Press to toggle input sources.

4 Navi/OK button

Press to activate the OSD menu, then use it as directional key to highlight the desired function. Press it again to enter a selection.

Regulations and safety notices

FCC notice

This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

● Reorient or relocate the receiving antenna.
- Increase the separation between the device and receiver.
- Connect the device into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/television technician for help.

CE declaration of Conformity

Hereby, Acer Inc., declares that this LCD monitor is in compliance with the essential requirements and other relevant provisions of EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU, and RoHS Directive 2011/65/EU and Directive 2009/125/EC with regard to establishing a framework for the setting of ecodesign requirements for energy-related product.

Notice:

In order to prevent damage to the monitor, do not lift the monitor by its base.

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with EMC regulations.

Notice:

Acer monitor is purposed for video and visual display of information obtained from electronic devices.

Notice: Peripheral devices

Only peripherals (input/output devices, terminals, printers, etc.) certified to comply with the Class B limits may be attached to this equipment. Operation with non-certified peripherals is likely to result in interference to radio and TV reception.

Caution

Changes or modifications not expressly approved by the manufacturer could void the user authority, which is granted by the Federal Communications Commission, to operate this product.

Operation conditions

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Notice: Canadian users

This Class B digital apparatus complies with Canadian ICES-003.

Disposal of Waste Equipment by Users in Private Household in the European Union

This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

SPECIFICATION

LCD Panel	Driving System TFT Color LCD
	Size 23.8"W (60 cm)
	Pixel Pitch 0.2745 mm (H) x 0.2745 mm (V)
	Brightness	250 cd/m^2 (Typical)
	Contrast 100000000:1 Max (ACM)
	Viewable Angle 178° (H) 178° (V) (CR=10)
	Response Time 1 ms (VRB)
	Panel Type VA
	Video R, G, B Analog Interface
	H-Frequency 30 - 85 KHz
	V-Frequency 56 - 76 Hz
Display Colors 16.7 Million
Dot Clock 174.5 MHz
Maximum Resolution		HDMI: 1920 x 1080 @ 75 HzVGA: 1920 x 1080 @ 75 Hz
Plug & Play VESA DDCCI/DDC2B
Power Consumption (at 200 nits)	On Mode 22 W
	Sleep Mode 0.5 W
	Off Mode 0.3 W
Input Connector		D-SubHDMI (Only HDMI-Input Model)
Input Video Signal		Analog: 0.7 Vp-p (standard), 75 OHM, PositiveHDMI (Only HDMI-Input Model) (Optional)
Speakers 2 W x 2 (Only Audio-Input Model) (Optional)
Maximum Screen Size		Horizontal: 527.04 mmVertical: 296.46 mm
Power Source		100-240 V, 50/60 Hz
Environmental Considerations		Operating Temp: 0° to 40°CStorage Temp: -20° to 60°COperating Humidity: 20% to 80%
Dimensions		607 (W) x 409 (H) x 133 (D) mm
Weight (N. W.)		3.80 kg (net)
Mechanism Specifications		Tilt: -5° to +15°Swivel: NoHeight adjustment: NoPivot: NoDetachable foot stand: Yes
External Controls	Switch/Buttons	Power Button InputHotkey 1 Menu/Navi/OKHotkey 2
	Functions	Brightness MuteContrast Over DriveBlue Light FreeSyncBlack Boost Refresh Rate NumACMSuper Sharpness VRBLanguageH. Position (only Analog input model) OSD TimeoutV. Position (only Analog input model) TransparencyFocus (only Analog input model) OSD LockClock (only Analog input model) InputAuto Configuration (only Analog input model) Auto SourceHot Key AssignmentGamma Wide ModeColor Temperature DDC/ICodes sRGB Mode HDMI Black LevelGrayscale Mode Quick Start Mode6-axis Hue Display information6-axis Hue Display information6-axis Hue Reset All Settings6-axis Hue 6-axis Saturate Exit6-axis Hue 6-axis Saturate6-axis Hue 6-axis Saturate6-axis Hue 6-axis Saturate6-axis Hue 6-axis Saturate6-axis Hue 6-axis Saturate6-axis Hue 6-axis Saturate6-axis Hue 6-axis Saturate6-axis Hue 6-axis Saturate6-axis Hue 6-axis Saturate6-axis Hue 6-axis Saturate6-axis Hue 6-axis Saturate6-axis Hue 6-axis Saturate 6-axis Hue 6-axis Saturate6-axis Hue 6-axis Saturate6-axis Hue 6-axis Saturate6-axis Hue 6-axis Saturate6-axis Hue 6-axis Saturate6-axis Hue 6-axis Saturate6-axis Hue 6-axis Saturate6-axis Hue 6-axis Saturate6-axis Hue 6-axis Saturate6-axis Hue 6-axis Saturate6-axis Hue 6-axis Saturate
Specifications vary depending on model and/or region.

Find manuals and other documents for your Acer product on the official Acer support website.

Panduan Praktis Monitor LCD Acer (QSG)

4 Bouton navigation/OK

Snelstartgids Acer lcd-monitor

Olulised ohutusalased juhised

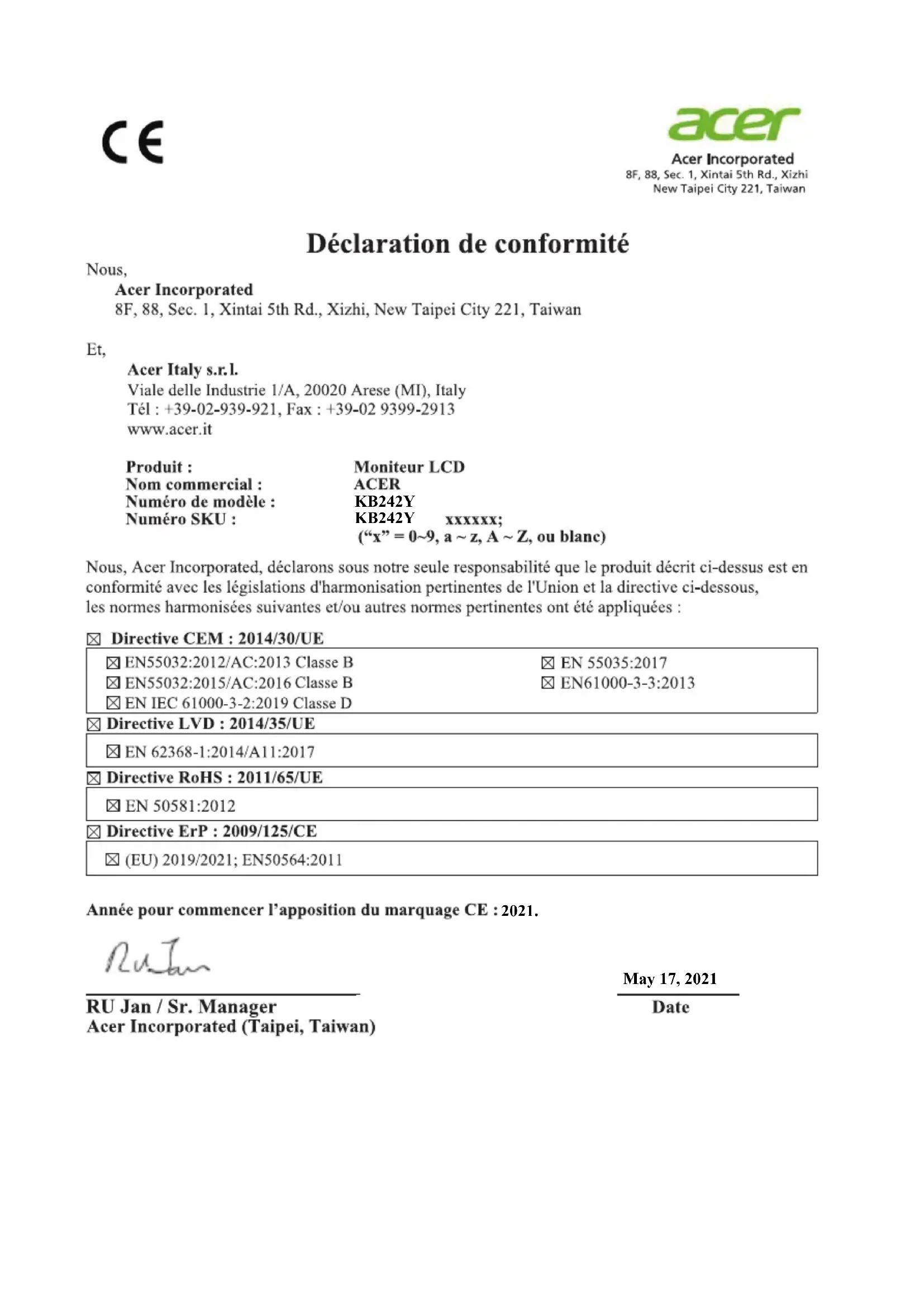

Declaration of Conformity

We,

Acer Incorporated

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

And,

Acer Italy s.r.l.

We, Acer Incorporated, hereby declare under our sole responsibility that the product described above is in conformity with the relevant Union harmonization legislations as below Directive and following harmonized standards and/or other relevant standards have been applied:

EMC Directive: 2014/30/EU

EN55032:2012/AC:2013 Class B

EN 55035:2017

EN55032:2015/AC:2016 Class B

EN61000-3-3:2013

☒ EN IEC 61000-3-2:2019 Class D

LVD Directive: 2014/35/EU

EN 62368-1:2014/A11:2017

RoHS Directive: 2011/65/EU

EN 50581:2012

☒ ErP Directive: 2009/125/EC

☒ (EU) 2019/2021; EN50564:2011

Year to begin affixing CE marking:2021.

RU Jan / Sr. Manager

Acer Incorporated (Taipei, Taiwan)

May 17, 2021

Date

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

Und

Acer Italy s.r.l.

RU Jan / leitender Manager Acer Incorporated (Taipeh, Taiwan)

May 17, 2021

Datum

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwán

Y,

Acer Italy s.r.l.

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

Et,

Acer Italy s.r.l.

RU Jan / Sr. Manager

Acer Incorporated (Taipei, Taiwan)

May 17, 2021

Date

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

E,

Acer Italy s.r.l.

RU Jan / Senior Manager

Acer Incorporated (Taipei, Taiwan)

May 17, 2021

Data

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

En,

Acer Italy s.r.l.

RU Jan / Sr. Manager

Date

Acer Incorporated (Taipei, Taiwan)

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

E,

Acer Italy s.r.l.

RU Jan / Sr. Manager

Acer Incorporated (Taipé, Taiwan)

Regulatory Compliance

Product Information for EU Energy Label

Barcode

MC.TN811.003

4J.55N02.071 (xx)

acer

barcode

MC.TN811.003

Model No.: KB242Y

Part No.: MC.TN811.003

Recycle Paper
