USER MANUAL LO7080 Concept

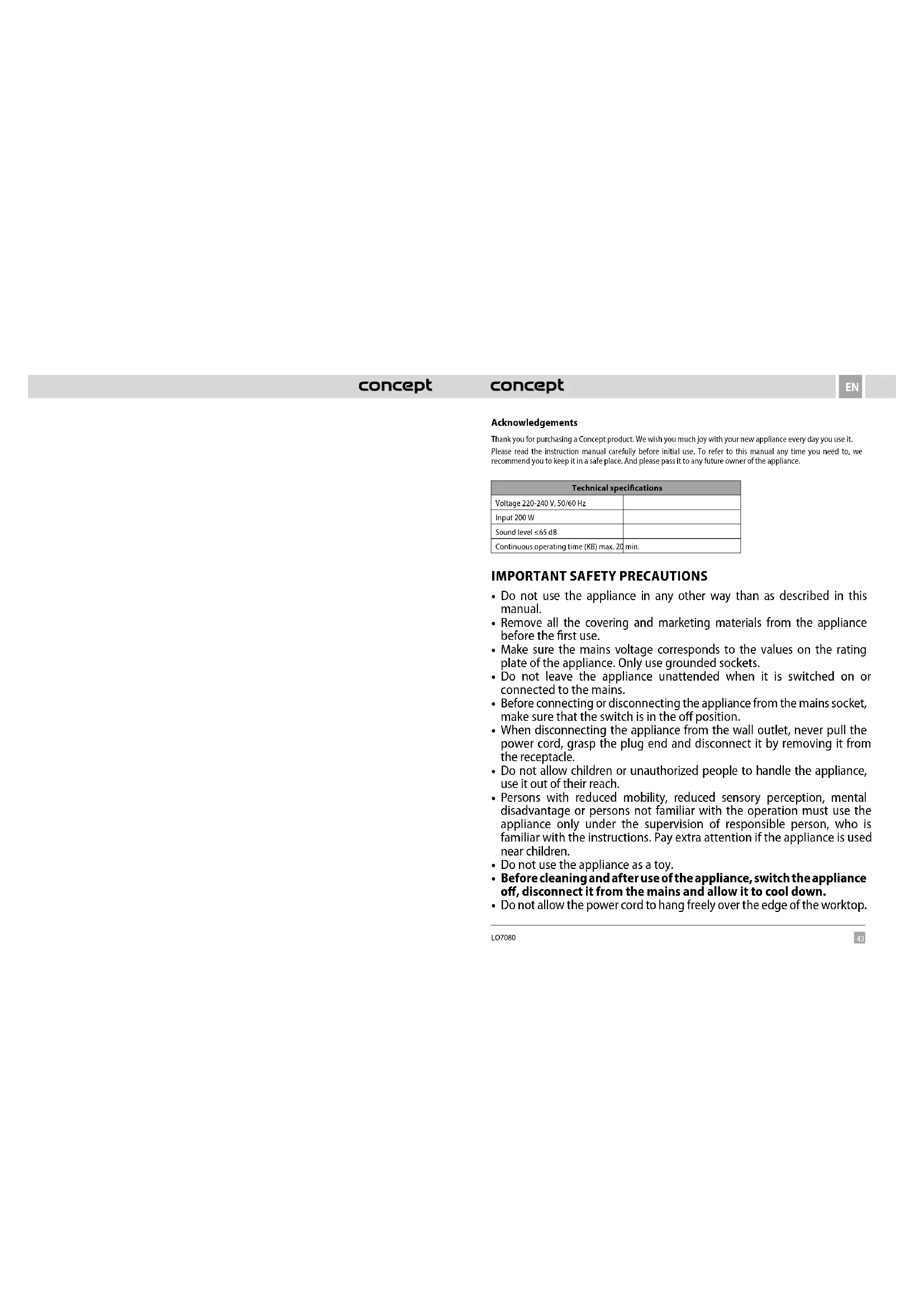

LO7080 Acknowledgements Thank you for purchasing a Concept product. We wish you much joy with your new appliance every day you use it. Please read the instruction manual carefully before initial use. To refer to this manual any time you need to, we recommend you to keep it in a safe place. And please pass it to any future owner of the appliance. Technical specifications Voltage 220-240 V, 50/60 Hz Input 200 W Sound level ≤65 dB Continuous operating time (KB) max. 20 min.

IMPORTANT SAFETY PRECAUTIONS

• Do not use the appliance in any other way than as described in this manual.

• Remove all the covering and marketing materials from the appliance before the first use.

• Make sure the mains voltage corresponds to the values on the rating plate of the appliance. Only use grounded sockets.

• Do not leave the appliance unattended when it is switched on or connected to the mains.

• Before connecting or disconnecting the appliance from the mains socket, make sure that the switch is in the off position.

• When disconnecting the appliance from the wall outlet, never pull the power cord, grasp the plug end and disconnect it by removing it from the receptacle.

• Do not allow children or unauthorized people to handle the appliance, use it out of their reach.

• Persons with reduced mobility, reduced sensory perception, mental disadvantage or persons not familiar with the operation must use the appliance only under the supervision of responsible person, who is familiar with the instructions. Pay extra attention if the appliance is used near children.

• Do not use the appliance as a toy.

• Before cleaning and after use of the appliance, switch the appliance off, disconnect it from the mains and allow it to cool down.

Do not allow the power cord to touch hot surfaces. Do not allow the appliance to hang on the power cord.

• Do not use the appliance if the rotary strainer is damaged.

• Do not use the appliance without properly fitted pulp container.

• The appliance contains sharp parts. Exercise caution when cleaning.

• Never remove the top cover of the appliance until the rotary strainer has come to a complete stop.

• Always use a supplied pusher to push food through the inlet. Never push food with your fingers, fork, spoon, knife or other object.

• Do not use coarse and chemically aggressive substances to clean the appliance.

• Do not use the appliance if it is not working properly, has been dropped, damaged or immersed in liquid. Have it checked and repaired by an authorized service centre.

• Do not use the appliance with a damaged cord or plug and have it repaired immediately by an authorized service centre.

• Do not use the appliance outdoors.

• The appliance is only suitable for home use and is not intended for commercial use.

• Do not immerse the power cord, plug or appliance in water or any other liquid.

• Do not use any accessories other than those recommended by the manufacturer.

• Place the appliance on a stable, flat surface.

• Do not repair the appliance yourself. Contact an authorized service centre.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Cleaning and maintenance performed by the user must not be carried out by children unless they are 8 years old and under supervision. Children aged under 8 years of age must be kept away from the appliance and its power cord. Do not let children play with the appliance. Damages from failure to follow the manufacturer's instructions are not covered by the warranty.46 47 ENEN LO7080 LO7080

9. Continuously check the amount of pulp in the pulp container, the amount of pulp

stuck to the top cover, and the throughput of juice outlet. There must be no clogging of the juice outlet. Wait until the rotary strainer filter stops before opening the top cover. Turn to loosen the top cover, clean it, empty the pulp container, clean the rotary strainer and remove any pulp residue from the juice outlet cover. CAUTION! If there is a significant increase in noise during the juicing process or stronger vibrations occur, clean the appliance immediately!

10. After use, switch off the appliance, disconnect it from the electrical outlet, remove

the remaining pulp and clean the individual components (see the Cleaning and maintenance section).

Warning: The finished juice is intended for immediate consumption because it

oxidises very quickly in the air, which may deteriorate its taste, change colour and, above all, reduce its nutritional value. Apple or pear juice turns brown quickly, you can slow down the process by adding a few drops of lemon juice.

Warning: In case of food jamming of the appliance, turn the mode switch to the “OFF”

position. Then to “R” (reverse) position. After releasing the food, continue juicing by turning the mode switch to the “Juice” position (repeat approximately three times). To eliminate squeaking noises that may come from the auger placed in the cover, add a drop of oil to the tip of the auger. The juice container is not designed to preserve juice or other foods! When juicing fruit or vegetables that contain little water (older apples, kiwis, etc.), it is recommended to continuously insert harder fruit and vegetables, such as carrots, to clean the container, strainer and drain hole. Chilled desserts

1. Place the appliance on a stable surface.

2. Prepare a container (bowl) for dessert under the outlet in front of the

body of the appliance.

3. Place the bowl with juice outlet on the body of the appliance.

4. Insert the ice cream strainer into the working container.

5. Install the auger.

6. Place the top cover and secure it by turning it.

7. Set the button on the bowl with juice outlet to the “Soft fruits” position.

8. In the prepared container, mix the recommended frozen fruit with

cottage cheese or yogurt. You can sweeten the mixture.

Fig. 3 Fig. 4 Fig. 5 OPERATING INSTRUCTIONS NOTICE Before putting a new appliance into operation, you should wipe it thoroughly from the outside with a damp cloth and wash all removable parts in warm water for hygienic reasons. The appliance contains sharp parts. Exercise caution when cleaning. The appliance and its accessories are not suitable for use in a microwave oven. The maximum continuous operation time of the appliance (KB) is 20 minutes. Then switch off the appliance and let it cool down for at least 20 minutes. Tips for preparing juice

• Buy only the freshest fruits and vegetables.

• Fruits and vegetables contain valuable vitamins and minerals that degrade when in contact with oxygen and light. Drink the juice immediately after pressing. If it is necessary to store the juice for several hours, put it in the refrigerator in a porcelain or glass container. Adding lemon juice will improve its preservation ability.

• You can use the pulp to prepare other dishes (jams, compotes, etc.).

• If the fruit is very watery (watermelons, etc.), add it slowly to squeeze as much juice as possible.

• If you juice very ripe fruit, there may be little juice. In this case, it is essential that you process the fruit very slowly so that the juice can flow out more easily and the appliance does not clog.

• It is common that when processing apples and bananas, the juice squeezed is not completely pure. Note: Before juicing, adjust the hardness of the fruit to be juiced with the button on the bowl with juice outlet (6). Soft fruits: orange, watermelon, grapefruit, pineapple, etc. Hard fruits: apple, pear, pomegranate, etc. Juicing Note: The appliance can only be switched on if all components of the appliance are correctly seated.

1. Place the appliance on a stable surface.

2. Place the pulp container on the side of the appliance body.

3. Place the bowl with the juice outlet on the upper part of the appliance body (Fig. 1).

4. Insert the strainer into the bowl with juice outlet by pushing the top edge of the

6. Place the top cover and secure it (Fig. 4). Place a container for collecting squeezed juice

under the juice outlet (Fig. 5).

7. Turn the mode switch to the “Juice” position.

8. Slowly insert washed pieces of fruit and vegetables into the inlet.

You can insert whole apples and pears or cut into large pieces. You don’t have to peel them or remove the core. Remove the peel from the citrus fruits, insert only individual balls of grapes. When juicing currants, you can insert whole bunches. It is difficult to obtain juice from bananas, avocados, blackberries, figs, eggplants, strawberries, etc. Notice: Always use a supplied pusher to push food through the inlet. Never push food with your fingers, fork, spoon, knife or other object. Fig. 1 Fig. 248 49 ENEN LO7080 LO7080 ACCESSORIES The following accessories can be purchased for the appliance: Strainer order code 42393138 price according to the valid price list Ice cream strainer order code 42393139 price according to the valid price list SERVICE CENTRE Extensive maintenance or repair, which requires access to internal parts of the product, has to be performed by aqualified specialist or the service centre. ENVIRONMENTAL CONCERNS

• Packaging materials and old appliances should be recycled.

• Packaging materials may be disposed of as sorted waste.

• Dispose the plastic bags made of polyethylene (PE) of as sorted waste. Recycling of the appliance at the end of its lifespan: This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The disposal of such material has to be done according to the recycling regulations. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the appliance. The product meets all the necessary requirements of the EU directives applicable to the specific product. Changes in text, design, and technical specifications are subject to change without prior notice and we reserve the right to change them. CAUTION! Only insert stoned and properly washed frozen fruit. If there is a significant increase in noise during the juicing process or stronger vibrations occur, clean the appliance immediately! Use frozen fruits such as: strawberries, raspberries, blueberries, bananas, etc. Do not use fruit with stones, nuts or ice cubes. Self clean To facilitate cleaning, we recommend closing the drain plug after the juicing / ice cream preparation process is completed. Use the mode switch to select the “Self clean” program and pour approx. 400 ml of water through the opening of the top cover. After 1-2 minutes, open the plug and allow the water to flow out into the prepared container. If necessary, you can repeat the procedure.

CLEANING AND MAINTENANCE

Before each cleaning of the appliance, unplug the power cord from the electrical outlet! To clean the surface of the appliance, use only a damp cloth, no detergents or hard objects, as they can damage the surface of the appliance! Wash removable parts in warm water. Use the brush provided. Never clean the appliance body under running water, do not rinse it or immerse it in water!

1. Open the top cover.

2. Release the bowl with juice outlet upwards together with the rotary strainer.

3. Remove and clean the pulp container.

4. After cleaning the removable parts, assemble the appliance in the reverse order.

TROUBLESHOOTING Problem Cause Remedy The motor is not working. The plug inserted incorrectly or insufficiently in the wall outlet. Check connection of the plug. The wall outlet is not energized. Check the presence of voltage, e.g. with another appliance. Improperly assembled top cover or cover pressure clip. Check that the appliance is correctly assembled. Damaged power cord. Have it checked and repaired by an authorized service centre. Engine operation is noisy. Improperly fitted rotary strainer. Check that the appliance is correctly assembled. Dirty rotary strainer. Unplug the power cord. Clean the top cover, empty the pulp container and clean the rotary strainer.51

• if the product installation, operation and service conditions stipulated in the product operating manual have not been adhered to,

• to malfunctions caused due to mechanical, heat or chemical damage, short circuit, over voltage or incorrect installation,

• to malfunctions caused by an inexpert third-party intervention,

• to malfunctions caused by natural disaster,

• to malfunctions caused by insufficient or inappropriate maintenance in violation of the operating manual, including malfunctions caused by water and other sediments,

• to changes in colour of the heating surface or to scratching of the surface caused as a result of using the products in an unusual manner,

• to appearance and functional changes caused by exposure to sunlight, thermal radiation of water and other sediments,

• if the service life of certain product parts expires, e.g. for accumulators, bulbs, etc. The warranty does not apply to any products and services provided along with the product (gifts, promotional articles, etc.). Filing a complaint A complaint against a product defect must be filed as soon as identified, yet no later than before the end of the warranty term. The customer must file a product complaint with the dealer from which they have purchased the product, or with any authorised service centre, a list of which is included in the product package, or available at www. my-concept.com. While filing a product complaint, the product must be duly cleaned and securely packed so as to prevent any damage during its transport to an authorised service centre, where relevant, unless the product is delivered in person. The customer must submit proof of having concluded a purchase contract for the product by producing the receipt. While filing their complaint, the customer must indicate the noted defect and identify the preferred complaint application method. Complaints processing As long as the noted defect may be removed, the user has the right to have the defect duly removed free of charge on a timely basis. Where such a procedure is not reasonable with regard to the nature of the defect, the user may require to be supplied a new defect-free product (replacement), or, where the defect applies to a part of the product only, replacement of the part concerned. However, if replacement of the product or any part thereof is not proportionate with regard to the nature of the defect, especially if the defect can be removed without undue delay, the customer has the right to have the defect removed free of charge.
