CE3520 - Juicer Concept - Free user manual and instructions

Product Type	Citrus Juicer
Brand	Concept
Model	CE3520
Power Input	160 W
Voltage	220-240 V ~ 50/60 Hz
Noise Level	68 dB(A)
Maximum Continuous Operation	15 seconds
Recommended Rest Period	15 seconds
Maximum Consecutive Fruits	10 oranges or lemons
Cooling Break After 10 Fruits	10 minutes
Maximum Pressure on Handle	3 kg
Dimensions (approx.)	20 x 20 x 30 cm
Weight (approx.)	1.5 kg
Cleaning – Removable Parts	Wash in warm water
Cleaning – Main Body	Wipe with damp cloth; do not immerse
Included Accessories	Cone, filter tray, juice tray, handle
Safety Feature	Do not remove cover until rotating sieve stops
Warranty	24 months
Intended Use	Domestic only
Repair Service	Authorized service center required

Frequently Asked Questions - CE3520 Concept

How long can I operate the juicer continuously?

The recommended continuous operation time is 15 seconds. After that, allow a 15-second pause.

How many oranges can I juice before a long break?

You can juice up to 10 oranges or lemons consecutively. After that, let the machine rest for at least 10 minutes.

Can I use the juicer for grapefruits?

Yes, the juicer is suitable for larger citrus fruits like grapefruits. Place the fruit on the cone and press down the handle.

What is the maximum pressure I should apply on the handle?

Do not press the handle with more than 3 kg of pressure. Press gently to avoid damage.

How do I clean the juicer?

Unplug the appliance. Remove the cone, filter tray, and juice tray. Wash these parts in warm water. Wipe the main body with a damp cloth. Never immerse the main body or power cord in water.

Can I wash the main body under running water?

No, never clean the main body under running water, do not rinse or submerge it. Only wipe with a wet cloth.

What is the power consumption of the juicer?

The power input is 160 W at 220-240 V ~ 50/60 Hz.

Is the juicer suitable for commercial use?

No, it is designed for domestic use only. Commercial operation is not recommended.

What should I do if the appliance does not work?

Check the power connection and ensure the switch is ON. If it still doesn't work, contact an authorized service center for repairs. Do not attempt to repair it yourself.

Can I remove the cone cover to juice by hand?

Yes, you can remove the cone lid and press the orange or lemon manually against the cone.

USER MANUAL CE3520 Concept

Black-and-white photo of a modern electric juice organizer with an open lid, next to a glass of milk (no text or symbols visible)

CE 3520

concept

concept

CZ

PODĚKOVÁNÍ

NÁVOD K POUŽITÍ

NÁVOD NA POUŽITIE

ZPOSÓB UŻYCIA

HASZNÁLATI ÚTMUTATÓ

LIETOŠANAS INSTRUKCIJA

Atverlet škildruma izlaišanas atverl, lai pa to varėtu tecėt izsplestą sula. Zem izlaišanas atveres novletojiet gläzi. Pärgriezlet apelsinu val citronu uz pusėm. Novletojiet pusí citrusaugja uz konusa un nospiedlet sulu spiedes sviru. Motora daja säks darboties.

BRĪDINĀJUMS

1. Novietojlet apelsinu val citronu konusa augšdaljä. Sulu spiede darbosles labåk, ja citrusauglls tiks novietots konusa augšdaljä.
2. Nespiediet sviru pärāk spēcīgi (spiediens apm. 3 kg). leteicamais nepārtrauktas darbības ilgums ir 15 sekundes un tad 15 sekunžu pauze. Pēc 10 citrusauglu sulas izspiešanas 10 minutes ierici nedarbiniet.
3. Nonemot konusa spiedlena väku, apelsinu un citronu sulu var izspiest manuälli. Sulu spiede ir piemërota ari lieläku citrusauglu, piemëram, greipfrütu, sulas izspiesanai.

TİRİŞANA UN APKOPE

The image is too blurry to recognize any text content.

21

CE 35

ACKNOWLEDGMENT

Thank you for purchasing a Concept product. We hope you will be satisfied with our product throughout its service life.

Please study the entire Operating Manual carefully before you start using the product. Keep the manual in a safe place for future reference. Make sure other people using the product are familiar with these instructions.

Technical parameters
Voltage 220–240 V ~ 50/60 Hz
Power input 160 W
Noise level 68 dB(A)

IMPORTANT SAFETY PRECAUTIONS

• Make sure the mains voltage corresponds to the values on the rating plate.
• Do not leave the unit unattended while it is turned on or even only plugged into the wall outlet.
• Before plugging in or unplugging the unit from the wall outlet, make sure the switch is OFF.
• When disconnecting the unit from the wall outlet, never pull the power cord. Grasp the plug and disconnect it by pulling.
• Do not allow children or unskilled people to handle the unit. Use the unit out of the reach of these individuals.
  • Take extra care when using the unit near children.
• Turn the unit off, unplug the power cord from the wall outlet, and let the unit cool down before cleaning and after use.
• Do not let the power cord hang loosely over the edge of a table. Make sure the power cord does not touch hot surfaces.
• Do not let the unit hang loose on the power cord.
• Never remove the upper cover until the rotating sieve stops completely.
• Do not use abrasive or chemically aggressive substances for cleaning the unit.
• Do not use the unit if it does not operate properly, or if it has been dropped, damaged or exposed to any liquids. Refer the unit to an authorized service center for testing and repair.
• Never use an appliance with a damaged power cord or plug. Contact an authorized service center immediately to have the defective components repaired or replaced.
• The unit is not designed for outdoor use.
• The unit is suitable for domestic use only. It is not designed for commercial operation.
• Use the product only for the intended purpose specified in the Operating Manual.
• Do not immerse the power cord, plug, or appliance into water or any other liquid.
• Use only accessories recommended by the manufacturer.
• Put the appliance on a flat, steady surface.
• Do not repair the appliance yourself. Contact an authorized service center.
• This appliance may be used by children 8 years of age and older and by persons with physical or mental impairments or by inexperienced persons if they are properly supervised or have been informed about how to use of the product in a safe manner and understand the potential dangers. Children must not play with the appliance. This appliance may be cleaned by children 8 years of age and older if they are properly supervised. Keep this appliance and the power cord out of reach of children younger than 8 years of age.

Failure to follow the manufacturer's instructions may lead to refusal of warranty repair.

EN

concept

concept

EN

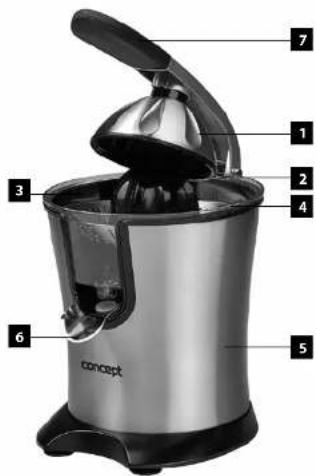

PRODUCT DESCRIPTION

1 Handle
2 Cone
3 Filter tray
4 Juice tray
5 Main body

USE

Put down the spout mouth and put the cup under it. Cut in half of the orange or lemon, put a half on the cone, and press down the handle. Main body start working.

ATTENTION:

1. Put the orange or lemon on the top of cone, the juicer will be better, if you will propendent on top of cone.
2. Please don't press the handle hard! Press it by under 3 kg pressure. During the working operation, go on 15" and stop 15". Please take a break for 10 minutes around after the machine continues working on pressing 10 pieces oranges or lemons.
3. Take up the cone lid, you can press the orange or lemon by hand.

CLEANING AND MAINTENANCE

Before cleaning the unit, always disconnect the power cord from the wall outlet!

The surface of the unit may only be cleaned using a wet cloth. Do not use any detergents or hard objects as they may damage the unit's surface!

Wash the removable parts in warm water.

Never clean the unit under running water, do not rinse it, and do not submerge it in water!

REPAIR & MAINTENANCE

Any extensive maintenance or repair that requires access to the inner parts of the product must be performed by an expert service centre.

ENVIRONMENTAL PROTECTION

• Packaging materials and obsolete appliances should be recycled.
  • The transport box may be disposed of as sorted waste.
  • Polyethylene bags shall be handed over for recycling.

Appliance recycling at the end of its service life:

A symbol on the product or its packaging indicates that this product should not go into household waste. It must be taken to the collection point of an electric and electronic equipment recycling facility. By making sure this product is disposed of properly, you will help prevent the negative effects on the environment and human health that would otherwise result from inappropriate disposal of this product. You can learn more about recycling this product from your local authorities, a household waste disposal service or in the shop where you bought this product.

CE 35

DANKE FÜR IHR VERTRAUEN

BEDIENUNGSANLEITUNG

The manufacturer (or importer) is responsible for ensuring the product complies with the requirements of applicable legal regulations as well as those of the relevant technical standards. Moreover, they are responsible for ensuring the product has the properties the manufacturer described in documents related to the goods or those reasonably expected by the customer with regard to the nature of the goods or based on advertising produced by the manufacturer, and further they are responsible for ensuring the product is fit for the purpose proposed by the manufacturer or that a product of the same type is normally used for.

The quality warranty term is 24 months from product takeover by the customer.

The warranty does not apply to wear and tear caused by regular use. The customer shall not be entitled to any warranty claims if, prior to taking the product over, they knew the product contained a defect or if the defect is attributable to the customer.

The warranty specifically does not apply:

• if the product installation, operation and service conditions stipulated in the product operating manual have not been adhered to,
• to malfunctions caused due to mechanical, heat or chemical damage, short circuit, over voltage or Incorrect Installation,
  • to malfunctions caused by an inexpert third-party intervention,
  • to malfunctions caused by natural disaster,
  • to malfunctions caused by insufficient or inappropriate maintenance in violation of the operating manual, including malfunctions caused by water and other sediments,
• to changes in colour of the heating surface or to scratching of the surface caused as a result of using the products in an unusual manner,
  • to appearance and functional changes caused by exposure to sunlight, thermal radiation of water and other sediments,
• if the service life of certain product parts expires, e.g. for accumulators, bulbs, etc.

The warranty does not apply to any products and services provided along with the product (gifts, promotional articles, etc.).

Filing a complaint

A complaint against a product defect must be fi led as soon as identifi ed, yet no later than before the end of the warranty term.

The customer must file a product complaint with the dealer from which they have purchased the product, or with any authorised service centre, a list of which is included in the product package, or available at www.my-concept.com.

While fi ling a product complaint, the product must be duly cleaned and securely packed so as to prevent any damage during its transport to an authorised service centre, where relevant, unless the product is delivered in person.

The customer must submit proof of having concluded a purchase contract for the product by producing the receipt.

While fi ling their complaint, the customer must indicate the noted defect and identify the preferred complaint application method.

Complaints processing

As long as the noted defect may be removed, the user has the right to have the defect duly removed free of charge on a timely basis.

Where such a procedure is not reasonable with regard to the nature of the defect, the user may require to be supplied a new defect-free product (replacement), or, where the defect applies to a part of the product only, replacement of the part concerned. However, if replacement of the product or any part thereof is not proportionate with regard to the nature of the defect, especially if the defect can be removed without undue delay, the customer has the right to have the defect removed free of charge.

If the noted defect is not removable, or if the customer becomes entitled to replacement of the product or a part thereof, yet the replacement is not possible, for example due to the product having been sold out, the customer has the right to return the product (withdrawal from the contract).

The customer shall have the right to a new product (replacement) or to replacement of a part of the product even if the defect can be removed, provided they cannot properly use the product due to repeated occurrence of the defect or due to a high number of such defects. In such a case, the customer also has the right to return the product (by withdrawing from the contract).

If the product is not returned (the customer does not withdraw from the contract), or if the customer does not apply the right to a new defect-free product (replacement), to replacement of a part thereof or to repair of the product, they may request a reasonable discount. The customer also has a right to a reasonable discount if a new defect-free product cannot be supplied to them, or if a product part cannot be replaced or the product repaired unless the situation is remedied within a reasonable time limit, or if remedying the situation would create major discomfort on the part of the customer.

The seller, authorised service centre or a staff member authorised by them must decide about each complaint immediately or within three business days in complicated cases. This term does not include a reasonable period of time, depending on the type of product concerned,

required for the defect to be assessed by an expert. A complaint, including defect removal, must be dealt with without any undue delay, yet no later than within 30 calendar days of the complaint fi ling date, unless the seller and the customer agree on a later deadline.

On returning the product (withdrawing from the contract) the customer must return any accessories and documents supplied along with the product.

The customer does not have the right to keep the defective parts and components of the product replaced as part of a repair of the product.

This shall be without prejudice to any other rights the customer may have in relation to the purchase of the product.

Remark: Complaints against products damaged in transport are governed by the carrier's complaints procedure.

Manufacturer

Jindřich Valenta - ELKO Valenta

Vysokomytská 1800, 565 01 Chocen

Czech Republic

tel.: [phone]

fax [phone]

Company ID No. 13216660

email: [e-mail]

www: www.my-concept.com

Product data

Model:
Production number:
Date of purchase: Seal and signature of vendor:

concept

Jindřich Valenta – ELKO Valenta Czech Republic

Vysokomýtská 1800, 565 01 Choceň

Tel. [phone], Fax: [phone]

www.my-concept.cz

SK

ELKO Valenta – Slovakia, s.r.o.

Hurbanova 1563/23, 911 01 Trenčín

Tel.: [phone], Fax: [phone]

www.my-concept.sk

PL

Elko Valenta Polska Sp. Z. o. o.
