CE-3510 - Juicer Concept - Free user manual and instructions

Product Type	Electric Juicer
Model	CE-3510
Brand	Concept
Color	White and Silver
Power Supply	220-240 V, 50/60 Hz
Power Consumption	700 W
Juice Capacity	1.0 L
Pulp Container Capacity	1.5 L
Feeding Tube Diameter	75 mm
Speed Settings	2 speeds (low/high)
Motor Type	Induction motor
Juicing Method	Centrifugal
Stainless Steel Filter	Yes, micro-mesh
Anti-Drip Function	Yes
Safety Locking Arm	Yes
Non-Slip Feet	Yes
Dishwasher Safe Parts	Pulp container, juice jug, lid, filter
Cleaning Brush Included	Yes
Dimensions (W x D x H)	28 x 20 x 36 cm
Weight	3.2 kg
Cord Length	1.0 m
Spare Parts Available	Yes (filter, jug, pulp container)
Warranty	2 years

Frequently Asked Questions - CE-3510 Concept

How do I assemble the juicer?

Place the motor unit on a flat surface. Attach the pulp container, then the filter basket. Lock the juicer lid with the safety arm. Finally, place the juice jug under the spout.

Can I juice leafy greens and wheatgrass?

The CE-3510 is a centrifugal juicer, best suited for hard fruits and vegetables. For leafy greens, use a low speed and feed slowly. Wheatgrass may not yield high juice volume.

How do I clean the filter basket?

Rinse immediately after use under running water. Use the included brush to remove pulp. The filter is dishwasher safe on the top rack.

What is the maximum operating time?

The juicer has a thermal protection. Do not run continuously for more than 2 minutes; allow to cool for 5 minutes between uses.

Is the juicer BPA-free?

Yes, all plastic parts that come into contact with food are BPA-free.

Can I juice whole apples?

Apples should be cut into pieces that fit the feeding tube (up to 75 mm). Remove seeds and stems for best taste.

Why is the juicer vibrating excessively?

Ensure the filter basket is properly seated and the lid is locked. Also check that the pulp container is not overfilled.

What spare parts are available?

Spare parts include the stainless steel filter, juice jug, pulp container, and lid. Contact Concept customer service or authorized dealers.

Does the juicer have an overload protection?

Yes, the motor is protected by a thermal cut-off switch. If it overheats, it will automatically shut off. Unplug and allow to cool before restarting.

Where can I download the user manual?

The manual is available for free on notice-facile.com or the official Concept website. Search for model CE-3510.

USER MANUAL CE-3510 Concept

Line drawing of a modern kitchen grater with a lid and handle (no text or symbols)

CE 3510

CZ SK PL HU UK

POPIS VÝROBKU

Illustration of a water tap with a grimmer and pipe, crossed by a diagonal line (no text or symbols)

SERVIS

POPIS VÝROBKU

Illustration of a water tap with a grater and a lid, crossed by lines (no text or symbols)

SERVIS

OPIS PRODUKTU

Illustration of a water tap with a grimmer and pipe, crossed by a diagonal line (no text or symbols)

SERWIS:

TERMÉK LEÍRÁSA

Illustration of a water tap with a grater and a lid, crossed by lines (no text or symbols)

SZERVIZ

Before starting to use the appliance, please read carefully all instructions.

• Check if the voltage on the product's label corresponds to your power supply voltage.
• Never leave the appliance in operation unattended. Keep out of the reach of children.
• Never use the appliance if it shows any signs of damage or if its power cord is damaged.
  • The appliance is intended for household use.
• Never use the appliance close to hot surfaces.
• If the power cord is damaged, only qualified persons may replace it.
• Never use the appliance outdoor. Store in dry environment.
• Never use accessories unapproved by the manufacturer.
• Never lift and carry the device by power cord.
• Do not crease the power cord.
• Never use the device close to wash basin or close to other water sources.
• Never dip the device into water or any other liquids.

- If dropped into water, please proceed as follows:

• Disconnect power supply immediately.
  • Do not put your hands into the water.
• Prior to further use have the device checked by a qualified person.

• Make sure the device is never wet (sprinkled with water etc.)

PRODUCT DESCRIPTION

1 Dust shield (for storing)
2 Large cone (to obtain maximum quantity of juice from large fruits such as grapefruits and oranges)
3 Small cone (for smaller fruits such as lemons and limes)
4 Rakes (preventing fruit pulp from settling in the sieve and facilitating juice pressing from the pulp)
5 Sieve (serves to filtrate the pulp and stone while juice flows down into container)
6 Juice container (capacity 0.6 l)
7 Reverse-run spindle (rotating the cone in the opposite direction if pressed by the user)
8 Base unit with motor (with power cord storage compartment)

Warning: Appliance is intended for short intervals of use.

The device is designed for processing average quantities of fruits in a household. It can be operated without break for maximally 5 minutes, than it should be let cool down for approximately 5 minutes.

INSTRUCTIONS FOR USE

A. Place the base unit onto dry and even surface.

B. Put the juice container ⑥ onto the spindle ● so that it touches the base unit ● and make sure the motor pin correctly bears on the cavity in the juice container ⑥ bottom.

Put the sieve ⑤ on the removable juice container ⑥ and make sure the sieve handle precisely bears on the corresponding cavity in the juice container ⑥. Place the small cone ③ on the spindle ⑦.

C. Plug the device's power cord into a power socket.

D. Cut fruits into two halves.

E. Firmly press each half on the small ③ or large ② cone; the motor starts automatically. Fruits shall run down into the removable juice container ⑥ through the sieve ⑤.

Warning:

- Never use the appliance longer than 5 minutes - the motor might get damaged.

- The device may be used in households only for the intended use corresponding to its design.

CLEANING AND MAINTENANCE

- Disconnect the device's power cord from power socket.

- Parts 1, 4, ●, ●, ●, ● can be removed and immersed in warm water containing detergent. Never immerse parts 7 and 8 into water or any other liquid.

- Do not wash these parts in a dishwasher!

- The parts could get deformed by hot water and cleaning agents.

- All removable parts must be rinsed immediately after use, before the fruit pulp dries. Dried pulp may be difficult to remove and leave blurs.

- After washing and rinsing the removable components, please dry them well.

Clean the base unit with motor using humid cloth. Never use aggressive cleaning agents and hard brushes the appliance might become scratched.

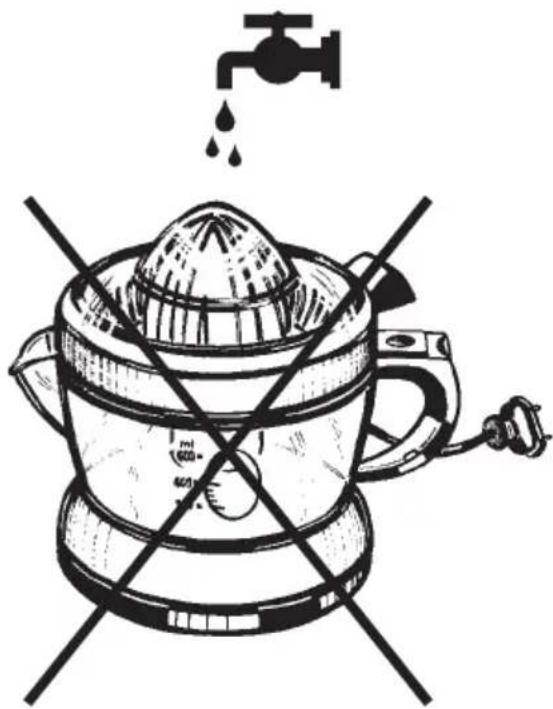

IMPORTANT WARNING:

NEVER IMMERSE THE BASE UNIT WITH MOTOR INTO WATER OR ANY OTHER LIQUIDS.

Illustration of a water tap with a grimmer and pipe, crossed by a diagonal line (no text or symbols)

SERVICING

More extensive maintenance or repairs requiring the interference with internal parts of the product must be carried out by a professional repair shop.

ENVIRONMENTAL PROTECTION

• Prefer recycling of cover materials and old appliances.
• The product's packing box can be disposed in waste paper recycling.
• Dispose of plastic polyethylene (PE) bags in raw-material salvage for recycling.

Device recycling at the end of its service life:

• Plastic materials marked as such, as well as other materials, can be recycled at the end of the appliance's service life.
• For possibilities of disposal please enquire relevant local authorities.
