M420CW - Hand blender GORENJE - Free user manual and instructions

Product type	Immersion blender / Electric hand mixer
Brand	Gorenje
Model	M420CW
Speeds	4 speeds + Turbo function
Rated power	300 W
Accessories included	2 whisks, 2 dough hooks
Motor unit material	ABS plastic
Accessories material	Stainless steel
Dimensions (approx.)	20 x 10 x 15 cm
Weight (approx.)	1.2 kg
Cord length	1.2 m
Noise level	72 dB(A)
Usage	Mixing, beating, whisking, kneading, stirring
Recommended rest (whisks)	Max 10 min operation, then 10 min rest
Recommended rest (hooks)	Max 2 min operation, then 10 min rest
Control type	Sliding speed selector and Turbo button
Ejection system	Eject button to remove accessories
Cleaning the motor unit	Wipe with a damp cloth; do not immerse
Cleaning the accessories	Wash in warm soapy water, dry thoroughly
Child safety	Use by children aged 8 and above under supervision
Repairability	Repair exclusively by a professional; cord replaced by after-sales service
Warranty	Gorenje international warranty
Country of manufacture	Europe

Frequently Asked Questions - M420CW GORENJE

How to install the whisks or dough hooks?

Make sure the appliance is unplugged and in the Off position. Insert the shaft of a whisk into one hole of the motor unit, push and turn until it locks. Repeat for the second one.

How to remove the accessories from the mixer?

Set the appliance to the Off position, then press the Eject button. Pull the whisks or hooks out of the holes.

What speed is recommended to start?

It is recommended to start at low speed (position 1), then increase gradually if necessary. Use the Turbo button for extra power.

Can I use the mixer for more than 10 minutes at a time?

No, do not operate the appliance for more than 10 minutes with the whisks or more than 2 minutes with the dough hooks. Let it cool for at least 10 minutes before using again.

How to clean the motor unit?

Never immerse the motor unit in water. Wipe it with a damp cloth and mild detergent. Do not use solvents or abrasives.

How to clean the whisks and dough hooks?

Wash them in hot water with detergent, then dry them thoroughly. Do not clean them under running water while attached to the mixer.

What to do if the power cord is damaged?

Unplug the appliance immediately. The cord must be replaced exclusively by a Gorenje after-sales service technician.

Can this appliance be used by children?

Children aged 8 and above can use the appliance under supervision if they have received instructions on safe use. Children must not play with the appliance or perform cleaning without supervision.

What to do in case of a malfunction?

Contact the Gorenje Customer Service in your country (number on the international warranty card) or the retailer. Do not attempt to repair the appliance yourself.

How to dispose of the appliance at the end of its life?

Do not discard the appliance with household waste. Take it to a recycling center that handles Waste Electrical and Electronic Equipment (WEEE) in accordance with Directive 2012/19/EU.

USER MANUAL M420CW GORENJE

Instructions for use GB

Instructions for use RO

Instructions for use SK

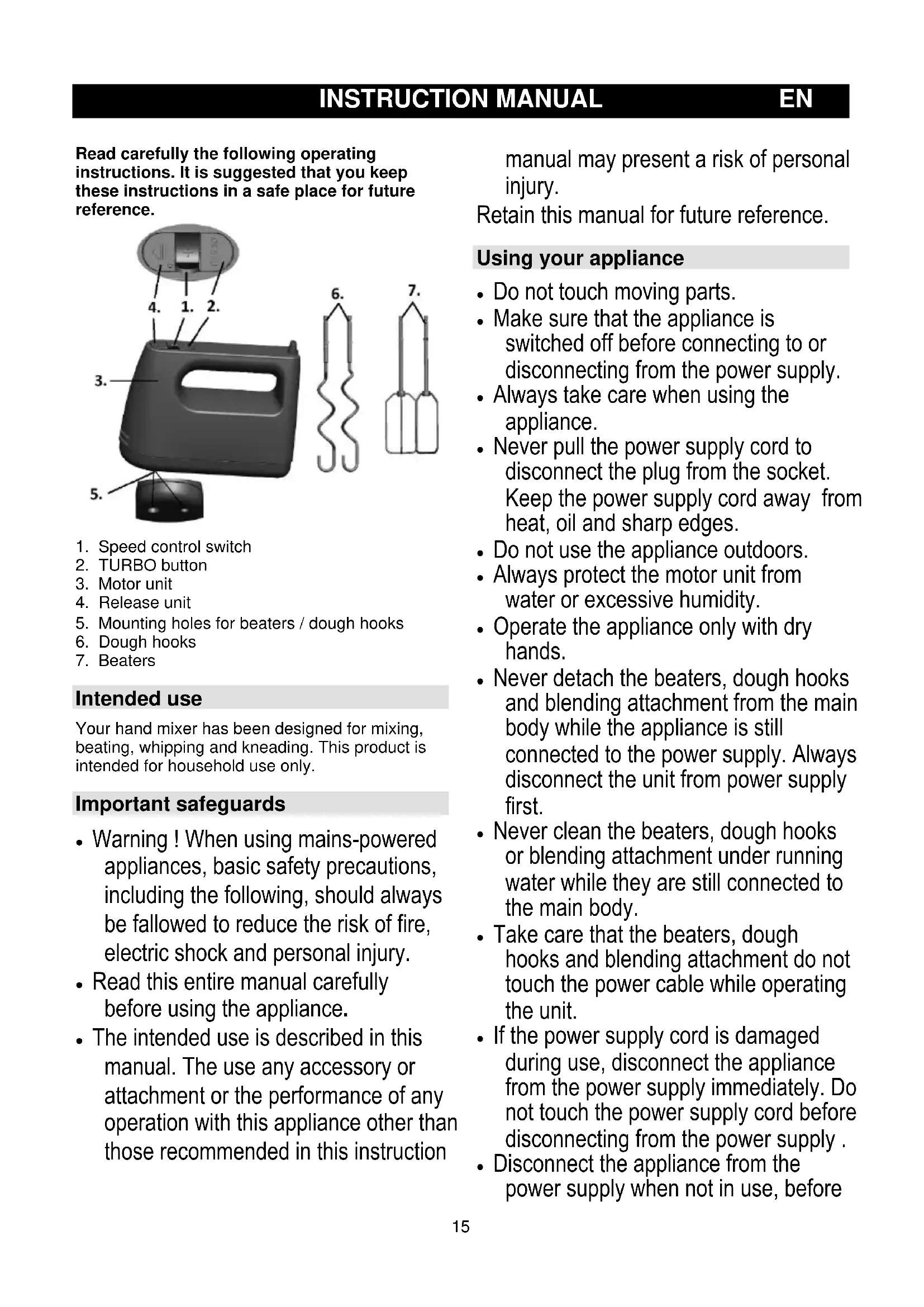

Read carefully the following operating instructions. It is suggested that you keep these instructions in a safe place for future reference.

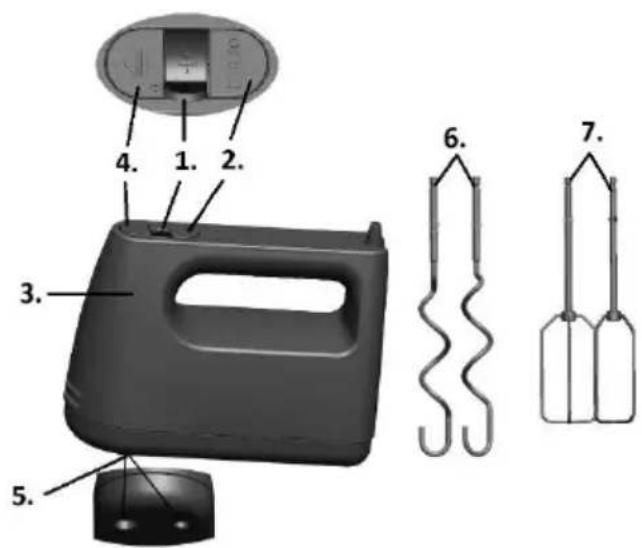

1. Speed control switch
2. TURBO button
3. Motor unit
4. Release unit
5. Mounting holes for beaters / dough hooks
6. Dough hooks
7. Beaters

Intended use

Your hand mixer has been designed for mixing, beating, whipping and kneading. This product is intended for household use only.

Important safeguards

• Warning! When using mains-powered appliances, basic safety precautions, including the following, should always be followed to reduce the risk of fire, electric shock and personal injury.
• Read this entire manual carefully before using the appliance.
• The intended use is described in this manual. The use of any accessory or attachment or the performance of any operation with this appliance other than those recommended in this instruction

manual may present a risk of personal injury.

Retain this manual for future reference.

Using your appliance

• Do not touch moving parts.
• Make sure that the appliance is switched off before connecting to or disconnecting from the power supply. Always take care when using the appliance.
• Never pull the power supply cord to disconnect the plug from the socket. Keep the power supply cord away from heat, oil and sharp edges.
• Do not use the appliance outdoors. Always protect the motor unit from water or excessive humidity.
• Operate the appliance only with dry hands.
• Never detach the beaters, dough hooks and blending attachment from the main body while the appliance is still connected to the power supply. Always disconnect the unit from power supply first.
• Never clean the beaters, dough hooks or blending attachment under running water while they are still connected to the main body. Take care that the beaters, dough hooks and blending attachment do not touch the power cable while operating the unit.
• If the power supply cord is damaged during use, disconnect the appliance from the power supply immediately. Do not touch the power supply cord before disconnecting from the power supply.
• Disconnect the appliance from the power supply when not in use, before

fitting or removing parts and before cleaning.

• All repairs of electrical appliances must only be performed by skilled personnel. Improper repairs can result in considerable hazards for the user.
• In case of damage, the power cord must be changed only by skilled service personnel.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.
• Cleaning and maintenance shall not be made by children unless they are older than 8 and supervised.
• Noise level: Lc = 72 dB(A)

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

This guideline is the frame of a European-wide validity of return and recycling on Waste Electrical and Electronic Equipment.

After use

• Switch off and remove the plug from the socket before leaving the appliance unattended and before changing, cleaning or inspecting any parts of the appliance.
• When not in use, the appliance should be stored in a dry place. Children should not have access to stored appliances.

Inspection and repairs

• Before use, check the appliance for damaged or defective parts. Check for breakage of parts, damage to switches and any other conditions that may affect its operation.
• Do not use the appliance if any part is damaged or defective.
• Before use, check the power supply cord for signs of damage, ageing and wear.
• Do not use the appliance if the power supply cord or mains plug is damaged or defective.
• Never attempt to remove or replace any parts other than those specified in this manual.

ASSEMBLY

Before assembly, make sure that the appliance is switched off and unplugged.

Choosing beaters, dough hooks or blending attachment

• Use beaters for mixing, beating, whipping and creaming liquids and mixtures.
• Use dough hooks for mixing and kneading dough.
• Use blending attachment for blending.

Fitting the beaters or dough kneaders

• Switch the appliance off.
• Insert the stem of beater into one of the mounting holes in the motor unit.
• Push and turn the beater until in locks into place.
• Repeat for the other beater.

Removing the beaters or dough hooks

• Switch the appliance off.
• Keep the release button depressed.
• Pull the beaters or dough hooks out of the motor unit.

USE

• To switch on, slide the speed control switch to one of the positions "1" (lowest speed) to "4" (highest speed). It is recommended to start at a low speed, then change to a higher speed if necessary. To switch off, slide the switch to position "0".
• Do not operate the appliance continuously for more than 5 minutes (with beaters) or 2 minutes (with dough hooks)! After working with the appliance continuously for this period of time, let it cool down for at least 10 minutes before operating it again.
• When working with liquids, use a low speed in order to avoid splashing liquid onto the appliance.
• Firmly hold the container that you are using with the mixer.

CLEANING AND MAINTENANCE

!!!Before cleaning and maintenance, switch the appliance off and unplug it.

• Wash the beaters, dough hooks or blending attachment in warm soapy water and dry well.
• Wipe the motor unit with a damp cloth. Do not use any abrasive or solvent-based cleaner.

Do not immerse the motor unit in water or any other liquid.

Environment

Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

Guarantee & service

If you need information or if you have a problem, please contact the Gorenje Customer Care Centre in your country (you find its phone number in the worldwide guarantee leaflet). If there is no Customer Care Centre in your country, go to your local Gorenje dealer or contact the Service department of Gorenje domestic appliances. For personal use only!

GORENJE WISHES YOU A LOT OF PLEASURE WHEN USING YOUR APPLIANCE

We reserve the right to any modifications!

Before using the appliance, read the instructions carefully.

IMPORTANT SAFEGUARDS

When using electrical products, basic safety precautions should always be followed, including the following, to reduce the risk of fire, electric shock, and personal injury: Read all instructions before using the appliance. The intended use is described in the manual. Use of any

accessories or attachments, or use of the appliance for purposes other than those described in this manual may create a risk of personal injury.

Keep this manual for future reference.

Using the appliance

Do not touch moving parts. Always unplug the appliance before assembling or disassembling it from the mains. Always be careful when using the appliance. Never pull the power cord to disconnect it from the outlet. Keep the power cord away from heat, oil, and sharp edges. Do not use the appliance outdoors. Always protect the motor from water or excessive moisture. Operate the appliance only with dry hands. Never remove the attachments, mixing bowls, or blender from the appliance while it is still connected to the mains. Always unplug the appliance first. Never immerse the attachments, mixing bowls, or blender in water while they are attached to the appliance. Always ensure that the attachments, mixing bowls, and blender are

not touching the power cord during operation.

Unplug the appliance when not in use, before cleaning or removing parts, and before any maintenance. All repairs of electrical appliances must be carried out by a qualified specialist. Improper repair may lead to serious injury to the user. If the power cord is damaged, it must be replaced only by a qualified service specialist. Children under 8 years of age should not be allowed near the appliance unless under constant supervision. Ensure that they do not play with the appliance. If the appliance is used by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, they should be supervised or instructed in the safe use of the appliance and understand the hazards involved. Noise level: Lc = 72 dB (A)

This appliance is marked according to the European Directive 2012/19/EU on waste electrical and electronic equipment (WEEE). This directive defines the framework for the return and recycling of used appliances within the European Union.

Disposal

Store the device in a dry place. During storage, the device must be inaccessible to children.

Inspection and repair

• Before use, check the device for damage and defects in parts. Check all parts for damage, the power cord and any other aspects that may affect its operation. Do not use the device if any part is damaged or defective.
• Before use, check the power cord for signs of damage and wear. Do not use the device if the power cord or plug is damaged or defective.
• Never remove or replace any parts other than those specified in the manual.

ASSEMBLY

Before assembling the device, make sure it is unplugged from the power supply.

Selecting attachments, mixing bowls, or blender.

Choose the appropriate attachment for mixing, whisking, or bringing ingredients to a homogeneous state. Choose the mixing bowl for mixing and kneading dough. Choose the blender for blending.

Installing the attachment for mixing.

Turn on the device

Insert the attachment into the opening while the motor is off.

Press and turn the attachment until it locks into place.

Repeat with another attachment.

Dough

Install the base of the left-side mixer (with the large gasket) into the large mounting hole of the motor.

Press down and turn the mixer base until it clicks into place.

Install the base of the right-side mixer (with the small gasket) into the small mounting hole of the motor.

Press down and turn the mixer base until it clicks into place.

Operation

To turn on the appliance, move the speed regulator to position 1 (minimum speed) to 4 (maximum speed).

It is recommended to start at the lowest speed, then increase to a higher speed if necessary. To turn off, move the regulator to position 0.

Use the turbo button (pulse) to achieve maximum speed immediately.

Do not use the appliance for more than 15 minutes continuously!

When working with dough, use the lowest speed to avoid splashing the dough out of the appliance.

Securely hold the container in which you are working with the mixer.

Cleaning and Maintenance

Before cleaning and maintenance, turn off the appliance and unplug it.

- Rinse the attachments with warm soapy water and dry them well. - Wipe the motor with a damp cloth. Do not use abrasive or solvent-based cleaning agents.

Do not immerse the motor in water or any other liquid.

Disposal

Do not dispose of the appliance with household waste; instead, take it to an official collection point for recycling. In this way, you will help protect the environment.

Warranty and Service

If you need information or have a problem, contact the Gorenje customer service center in your country (the phone number can be found on the warranty card). If there is no customer service center in your country, contact your local dealer or the Gorenje Domestic Appliances technical service department.

GORENJE WISHES YOU SATISFACTION WITH YOUR APPLIANCE

Carefully read the following operating instructions.

It is recommended to keep these instructions in a safe place for future reference.

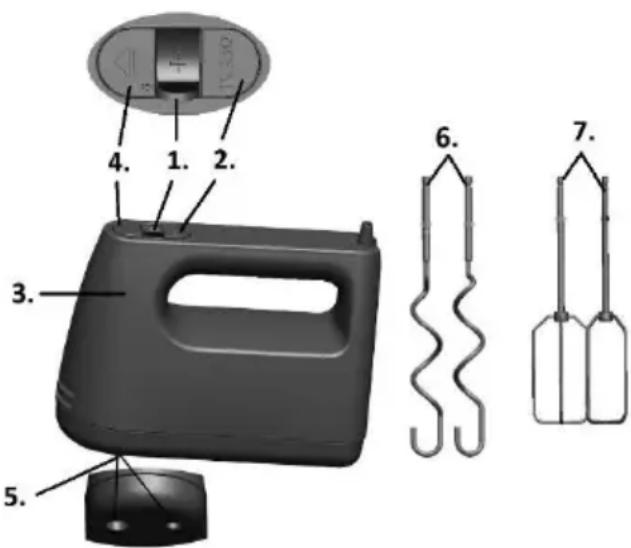

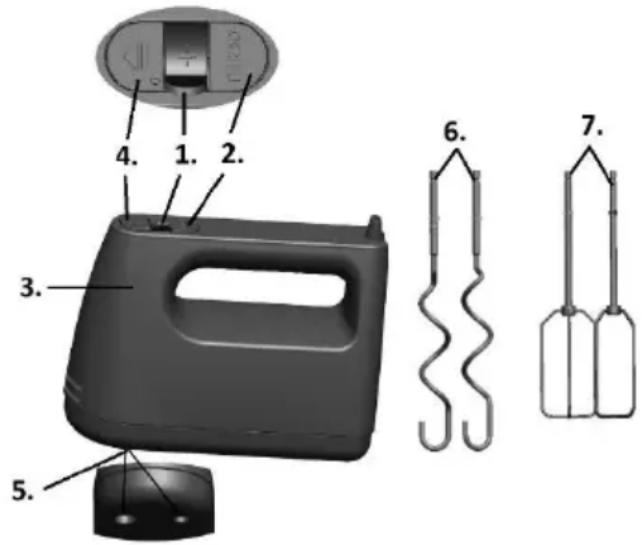

1. On/Off switch, speed selection, pulse positions
2. Turbo button
3. Motor unit
4. Removable unit
5. Mounting holes for beaters/ dough hooks
6. Dough hooks
7. Beaters

Appliance

The hand mixer is intended for mixing, whipping, kneading and blending food products. This product is intended for household use only.

Important safety measures

Attention! When using electrical appliances, basic safety measures should always be followed, including the following, to reduce the risk of fire, electric shock and injury. Read these instructions carefully before using the appliance. The purpose is described in this instruction. Use of any

accessory or attachment or performance of any operation with this device, other than those recommended in this instruction, may present a risk of personal injury.

Keep these instructions for future use.

Operation of the appliance

Do not touch moving parts. - Make sure the appliance is switched off before connecting to or disconnecting from the mains. Always be careful when using the appliance. Never pull the power cord to disconnect the plug from the outlet. Keep the power cord away from heat sources, oil and sharp edges. Do not use the appliance outdoors. Always protect the motor unit from water or excessive moisture. - Operate the appliance only with dry hands. Never remove the beaters, dough hooks and blender attachment from the main body of the appliance while it is still connected to the mains. Always disconnect the appliance from the mains first. Never immerse the beaters, dough hooks and blender attachment in water while they are still attached to the main body. - Make sure that the beaters, dough hooks and

blender attachment do not touch the power cord while the unit is operating.

• If the power cord is damaged during operation, immediately disconnect the appliance from the mains. Do not touch the power cord before disconnecting it from the mains.
• Disconnect the appliance from the mains when it is not in use, before inserting or removing parts, and before cleaning. Any repair of the electrical appliance must be carried out only by qualified personnel. Unprofessional repair may lead to serious danger for the user. In case of damage to the power cord, it must be replaced only by a qualified specialist.
• This appliance can be used by children aged 8 and above; persons with reduced physical, sensory or mental capabilities; or persons lacking experience and knowledge, provided they are supervised or have been instructed on the safe use of the appliance and understand the associated risks. Ensure that children do not play with the appliance.
• Cleaning and maintenance must not be performed by children younger than 8 years, unless under adult supervision.
• Noise level: Lc = 72 dB (A)

This equipment is marked in accordance with European Directive 2012/19/EU on waste electrical and electronic equipment (WEEE). This directive defines the requirements applicable in all EU countries.

Requirements for the collection and disposal of waste from electrical and electronic equipment.

After use

Disconnect and unplug the device from the outlet before leaving it unattended and before replacing, cleaning, or inspecting any part of the device. When not in use, store the device in a dry place. Children should not have access to the stored device.

Inspection and repair

• Before reuse, check the device for damage and manufacturing defects. Check that parts are not broken, switches and other components are not damaged, which could adversely affect its operation. Do not use the device if any of its parts are damaged or defective.
• Before use, check the power cord and plug for damage or defects. Do not use the device if the power cord or plug is damaged or defective. Never attempt to remove or replace any part other than those specified in this manual.

Assembly

Before assembly, make sure the device is unplugged and disconnected from the power supply.

Choosing beaters, dough hooks, and blender attachment

• Use the beaters for mixing, whisking, kneading, crushing, and emulsifying liquids and mixtures.
• Use the dough hooks for mixing and kneading dough.
• Use the blender attachment for pureeing (mixing into a homogeneous mass).

Installing beaters and dough hooks

• Unplug the device. Insert the beater shaft into the mounting hole in the motor block.
• Press and turn the beater until it locks into place.
• Repeat the procedures for the beater.

Beaters

test hooks

• Turn off the appliance.
• Press the release button.
• Remove the beaters or test hooks from the motor block.

USE

Set the speed switch to one of the positions from 1 (lowest speed) to 4 (highest speed). Start mixing products at low speed. After some time, switch the appliance to a higher speed. - To turn on, set the speed switch to position 0. - Continuous operation should not exceed 10 minutes (with beaters for whipping) and 2 minutes (with test hooks). After continuous operation for this time, let the appliance rest for at least 10 minutes before starting work again. - Mix liquids at low speed so they do not splash onto the appliance. - When operating the appliance, hold the handle in which you mix products.

CLEANING AND MAINTENANCE

Before cleaning and maintenance, turn off the appliance and disconnect it from the power supply.

Wash the beaters, test hooks, or blender attachment in warm soapy water and rinse thoroughly. - Wipe the motor block with a damp cloth. Do not use any abrasives or solvents.

Do not immerse the motor block in water or any other liquid.

Environmental protection

After the end of the service life, do not dispose of the appliance with household waste. Hand it over to a specialized collection point for further recycling. This way you will help protect the environment.

Warranty and service

Tel: [phone]

[e-mail]

http://www.gorenje.ru

GORENJE WISHES YOU PLEASANT USE OF YOUR APPLIANCE
